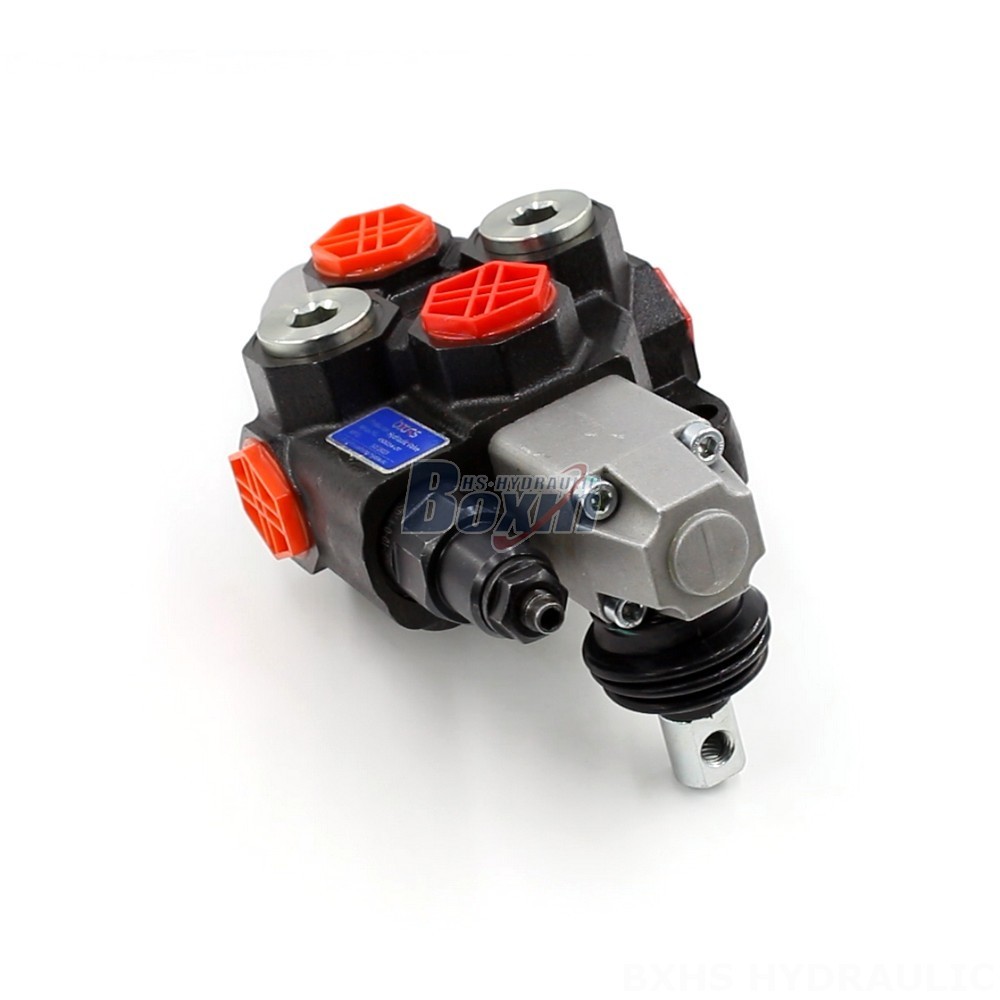

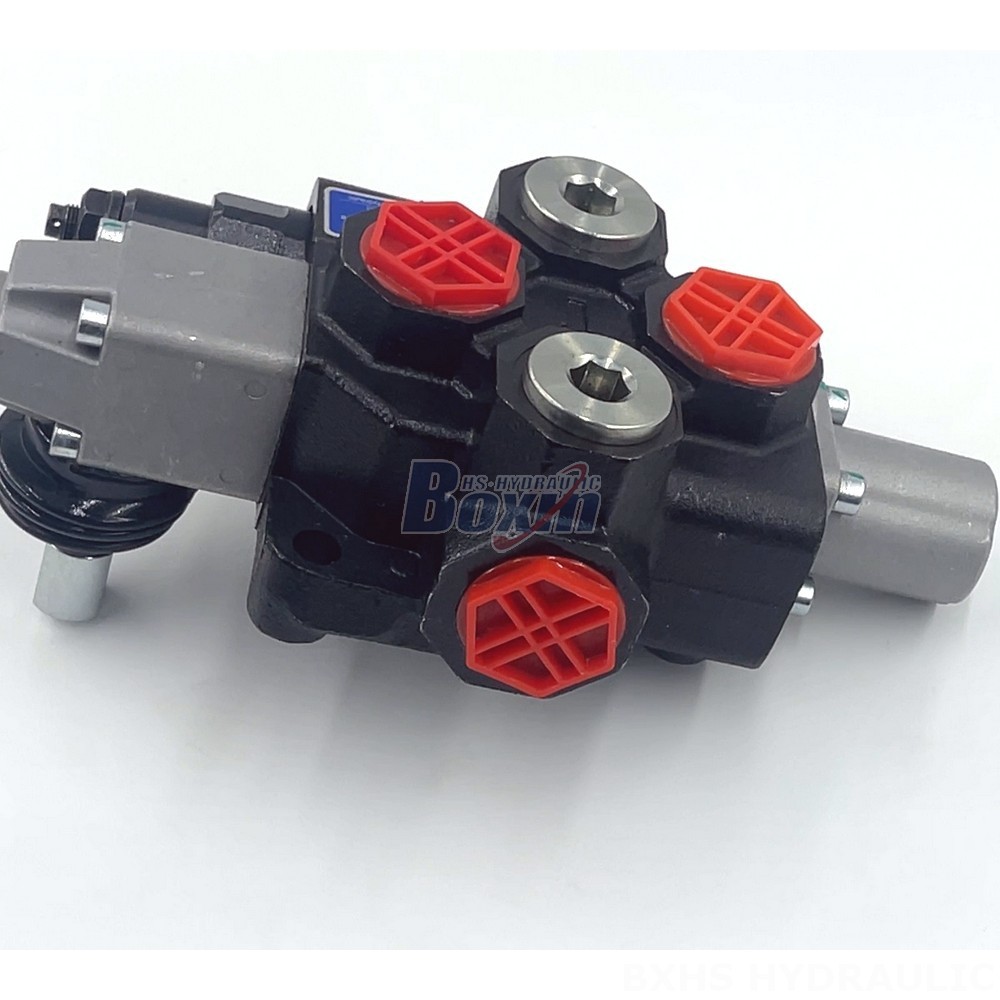

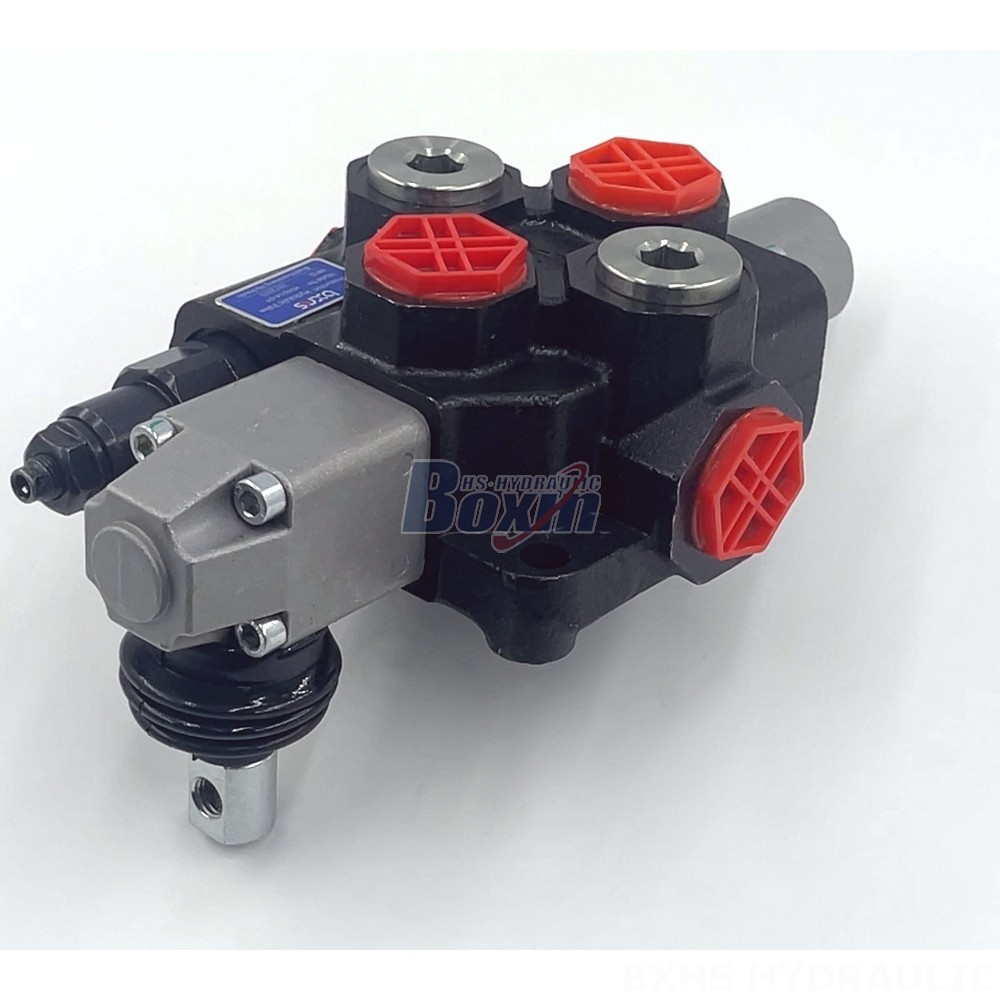

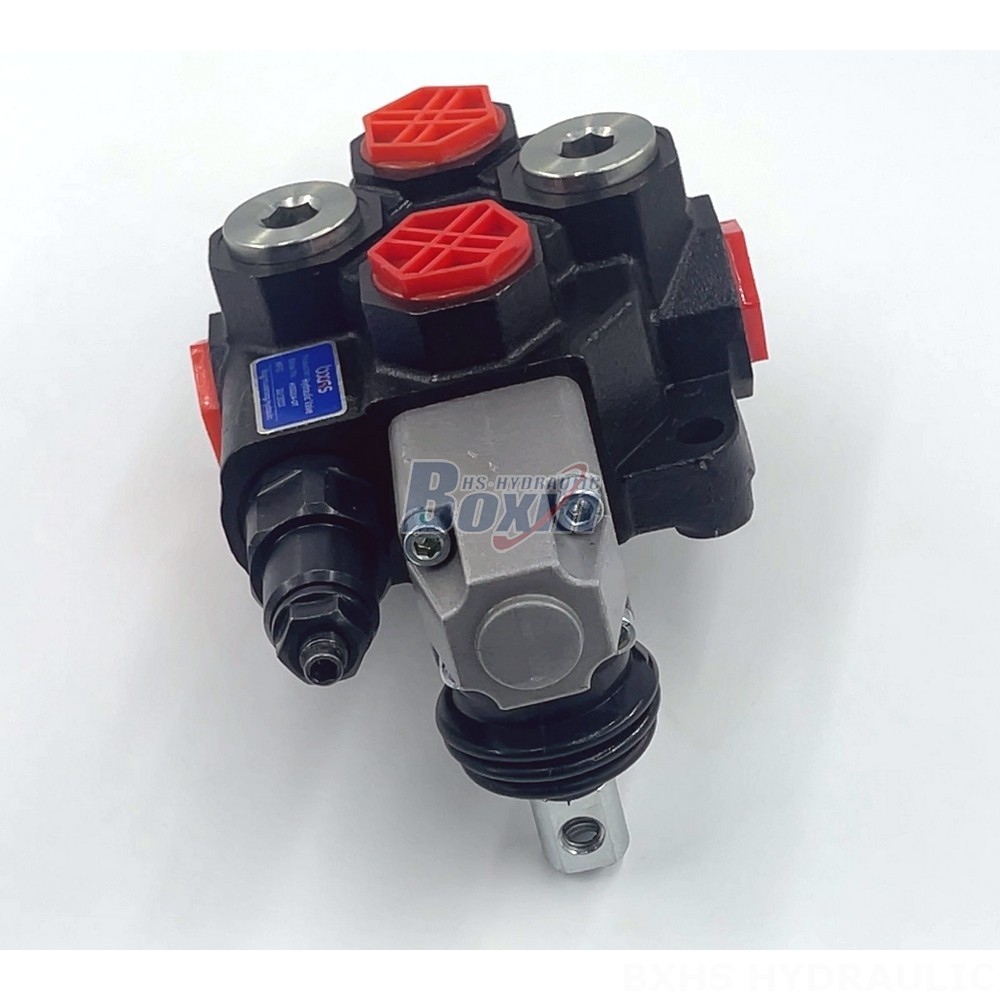

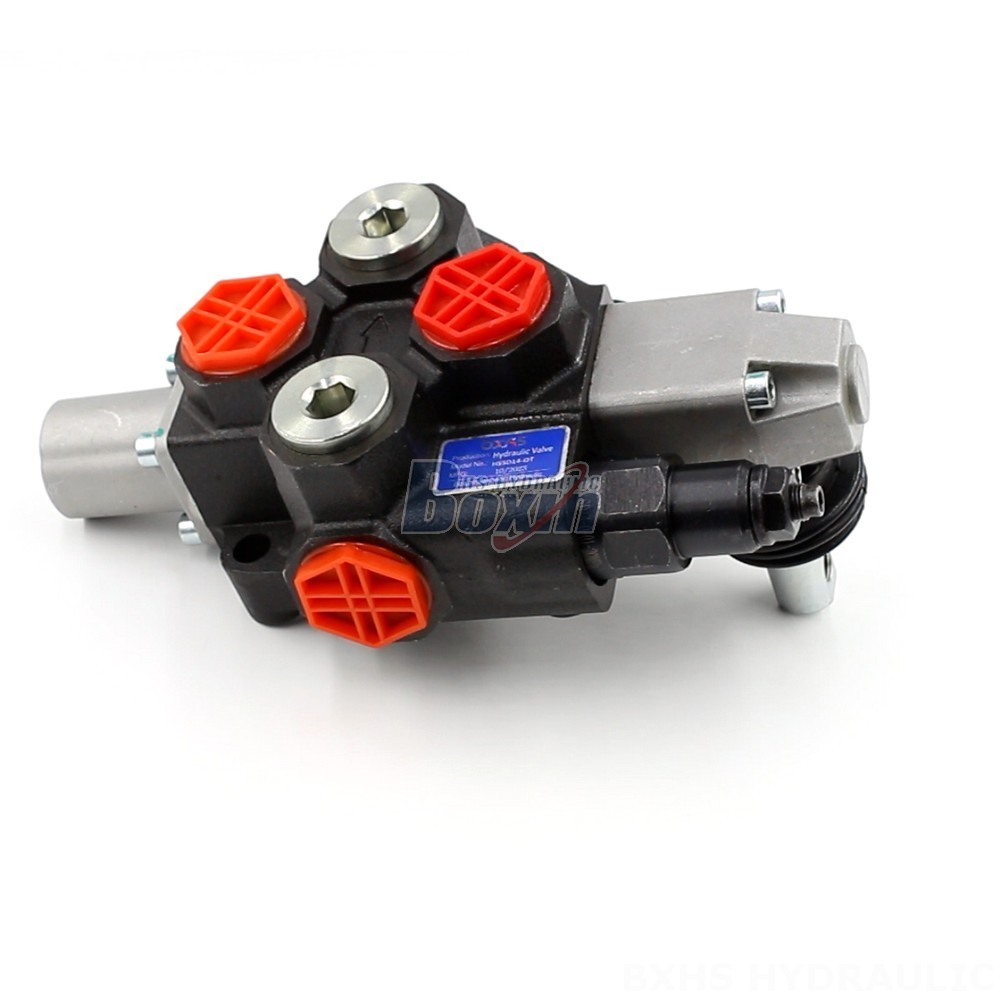

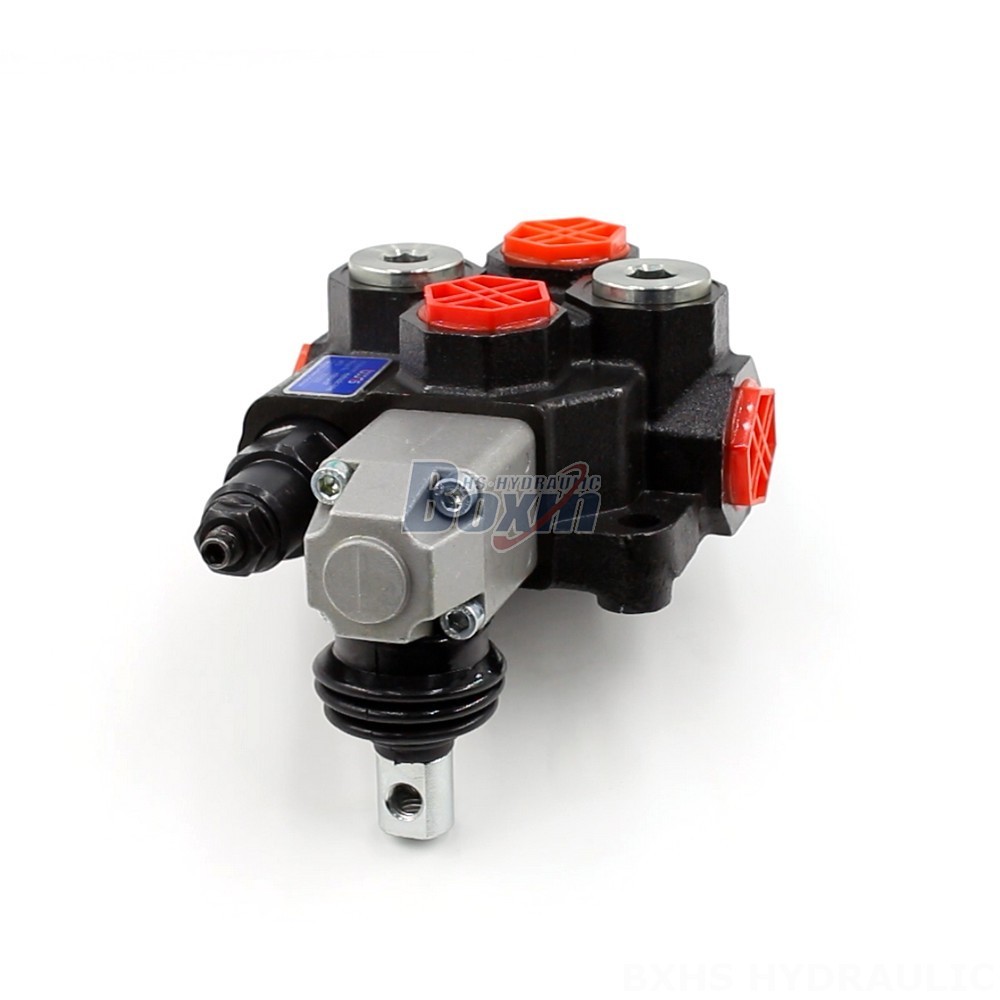

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

Kontrol Yöntemi:Manuel

Makara:1 Makara

Anma Akışı:120 L/dak (31.7 US gpm)

Maksimum Basınç:305 bar (4400 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:SD14 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:15*26*15

Brüt ağırlık:6.80 kg

Stok Durumu: Stokta Var

1080 Görünümler Bu Ürünü Arıyor

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

SD14 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Hidrolik
Makara 1 Makara
Ortam Sıcaklık Aralığı -40°C ila +60°C (-40°F ila +140°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 120 L/dak (31.7 US gpm)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G3/4
Çıkış Portu G3/4
Port Boyutu G3/4

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
