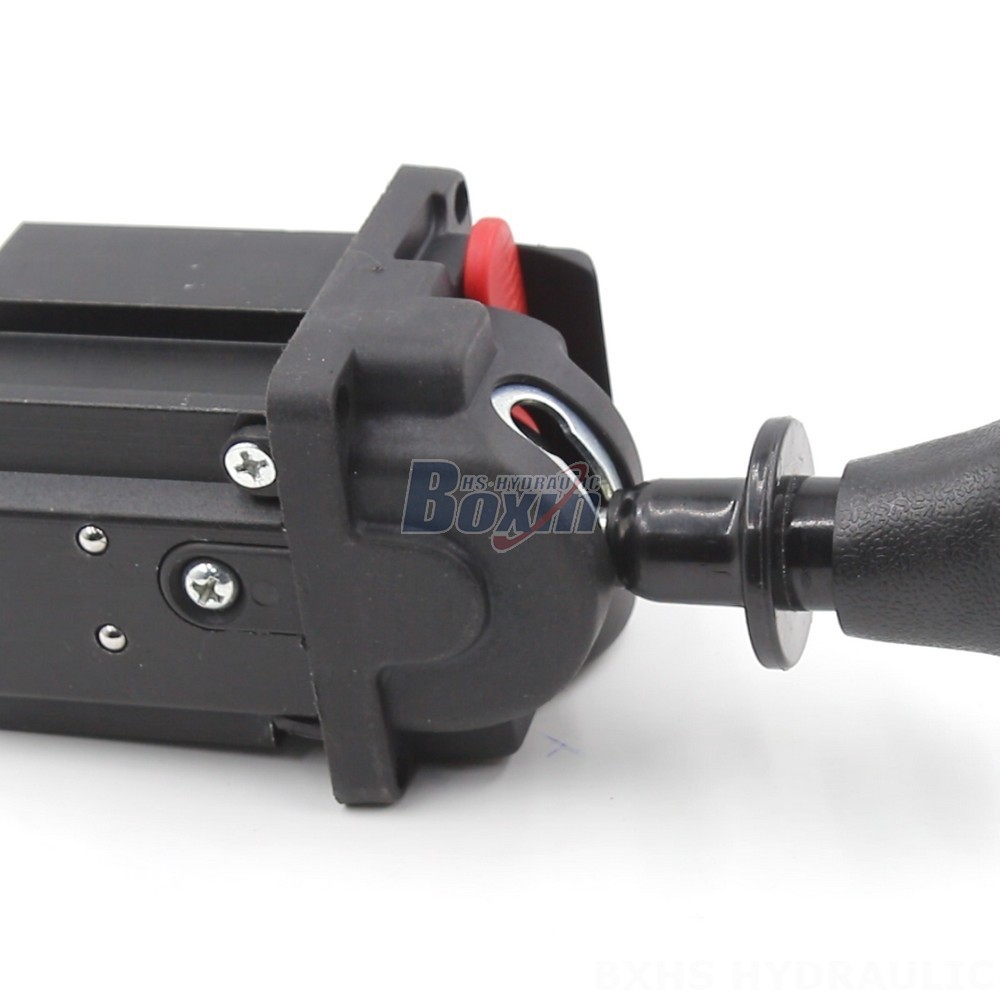

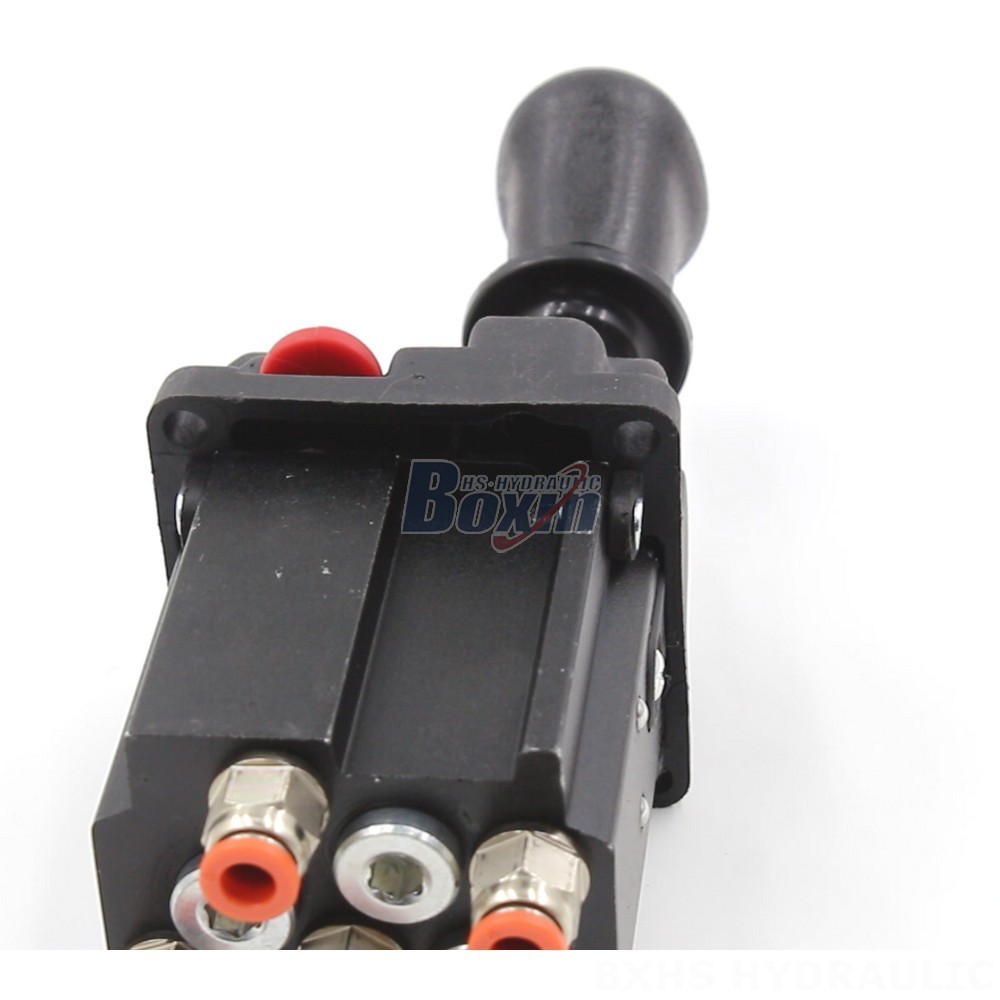

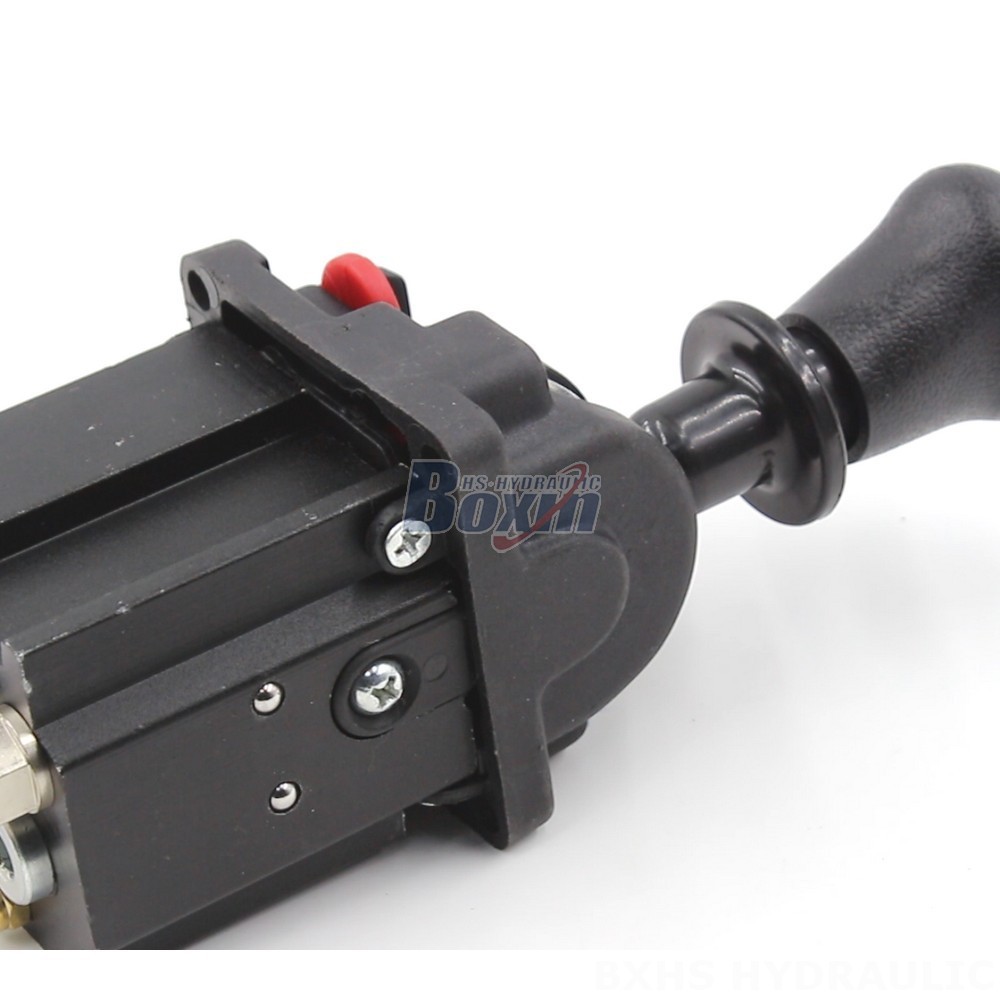

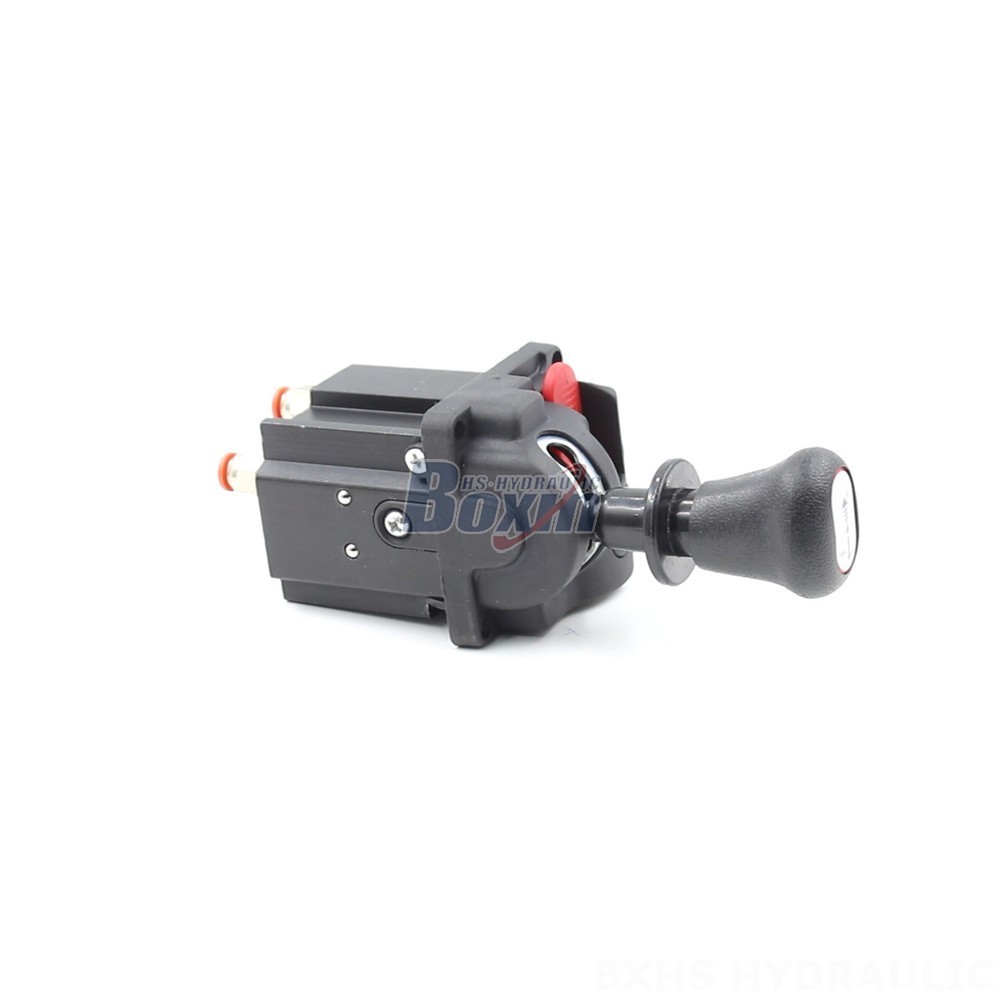

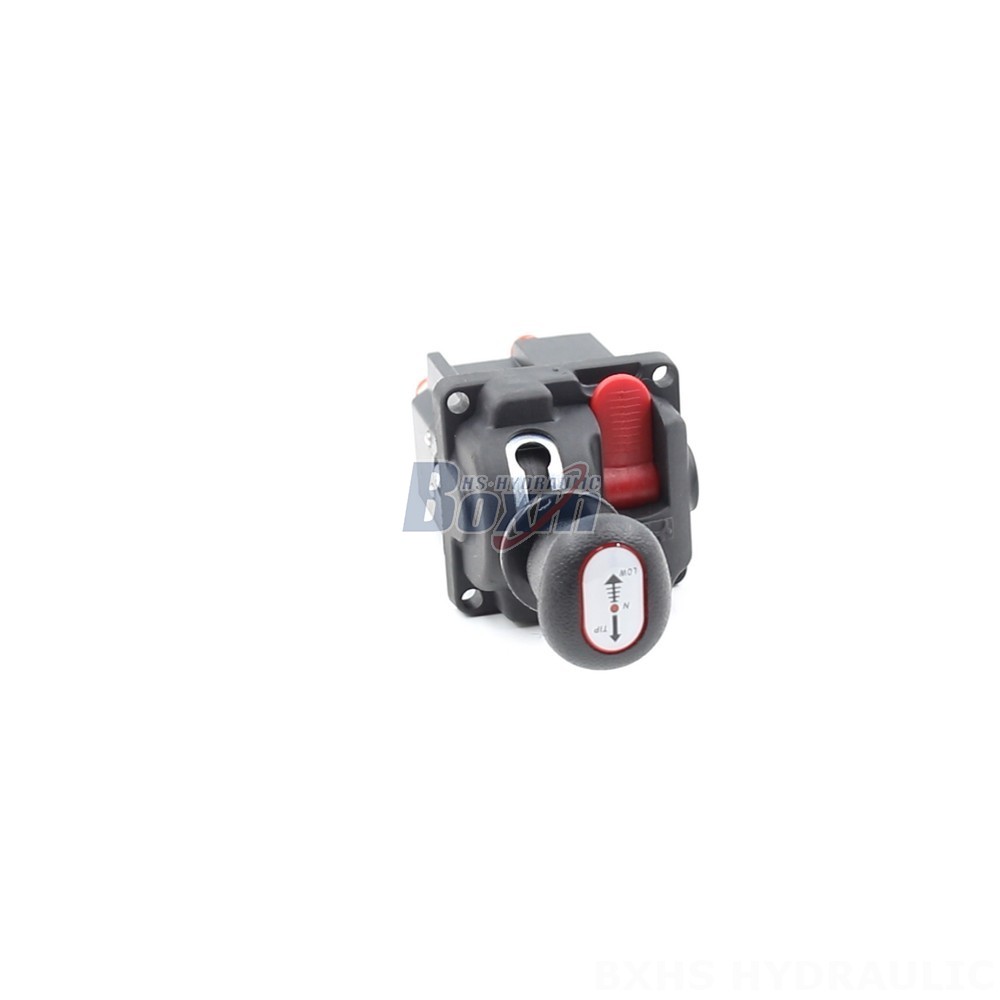

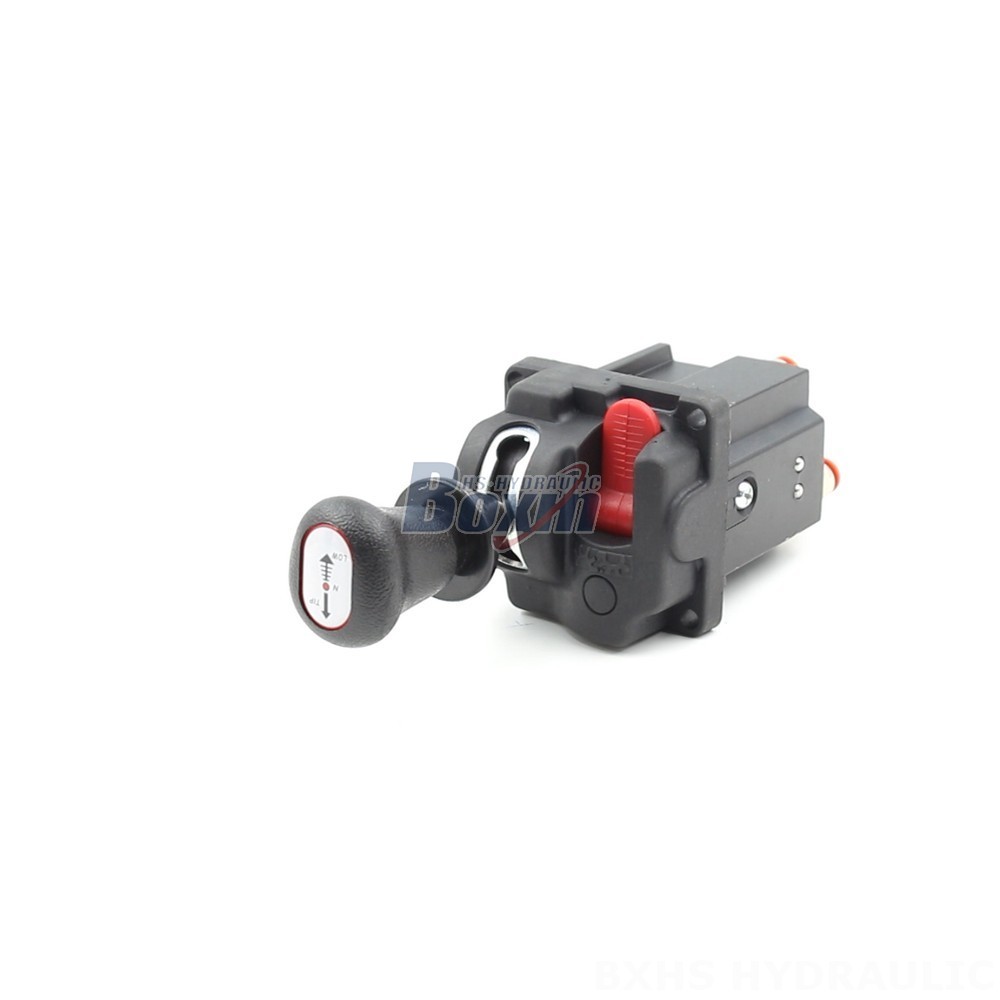

This high-quality and reliable hydraulic control valve is designed for use in various construction and material handling applications. With its 1-spool, monoblock valve structure, it provides reliable operation in demanding environments. The valve is suitable for a wide range of equipment, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders. It offers a rated flow of 40 L/min and a maximum pressure of 1 MPa, making it a versatile and dependable choice for your hydraulic system needs.
| BKQF34 Serisi Pnömatik Kontrol Vanası Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 1 MPa (145 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
This BKQF34 Series hydraulic control valve is a pneumatic control valve specifically designed for log splitters. It is a 1-section, monoblock valve with a single spool and a rated flow of 40 L/min. The valve can handle a maximum pressure of 1 MPa and operates within a viscosity range of 12 - 400 mm²/s. It is suitable for a wide range of construction and material handling equipment, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders. The valve is built to withstand demanding operating conditions and can be used in temperatures ranging from -40°C to +80°C. This makes it a highly reliable and versatile option for your log splitting needs.
