Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

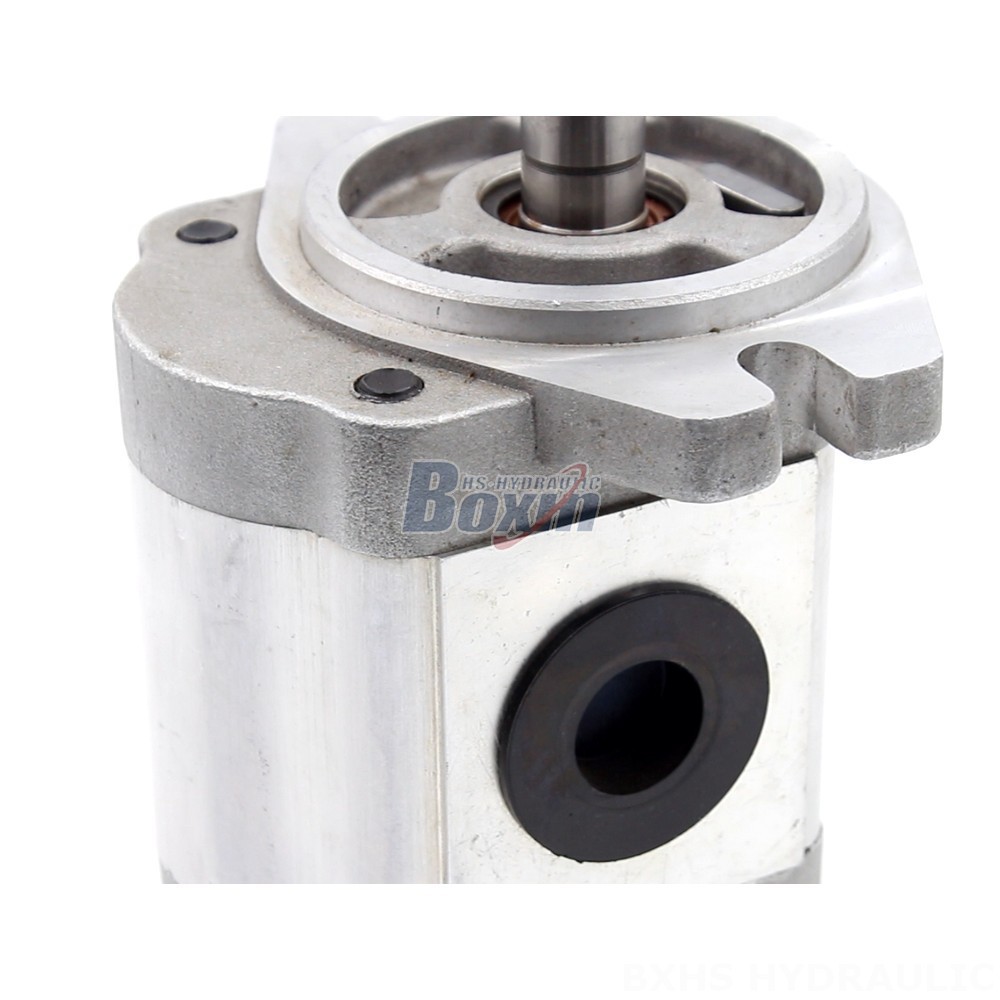

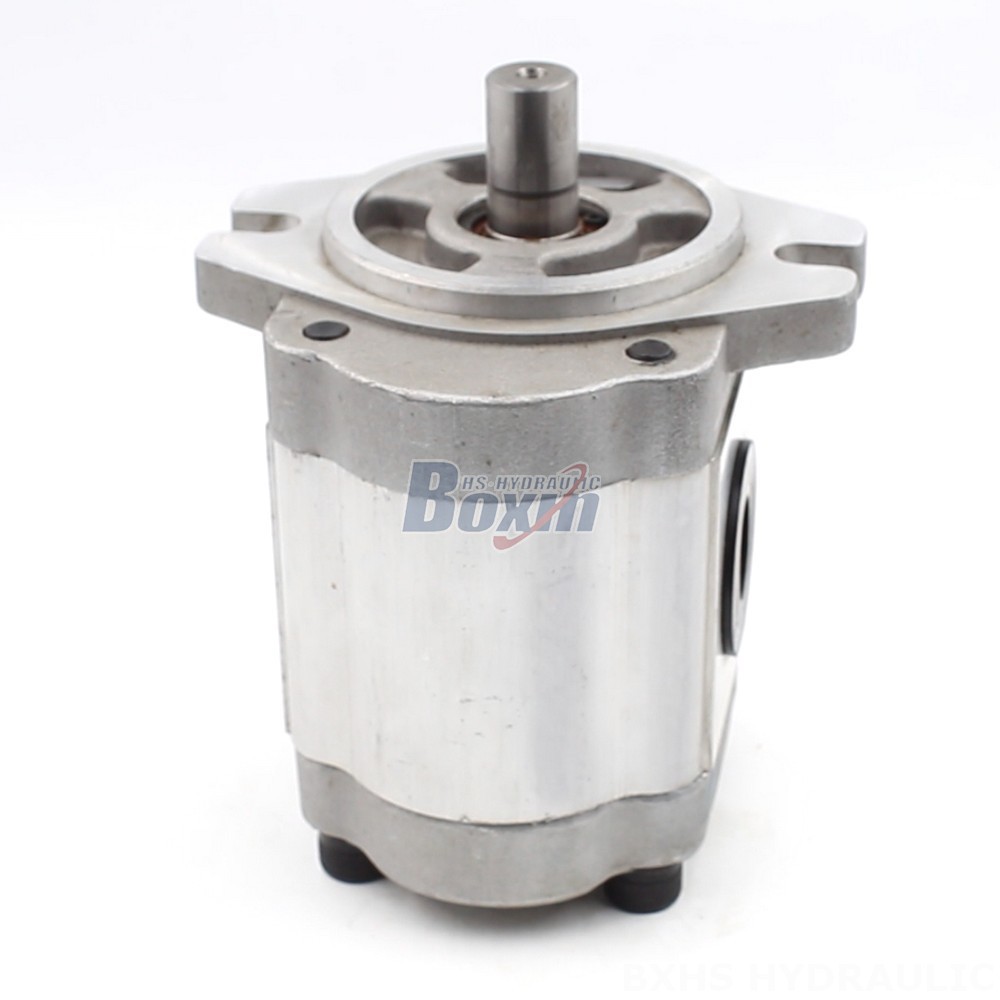

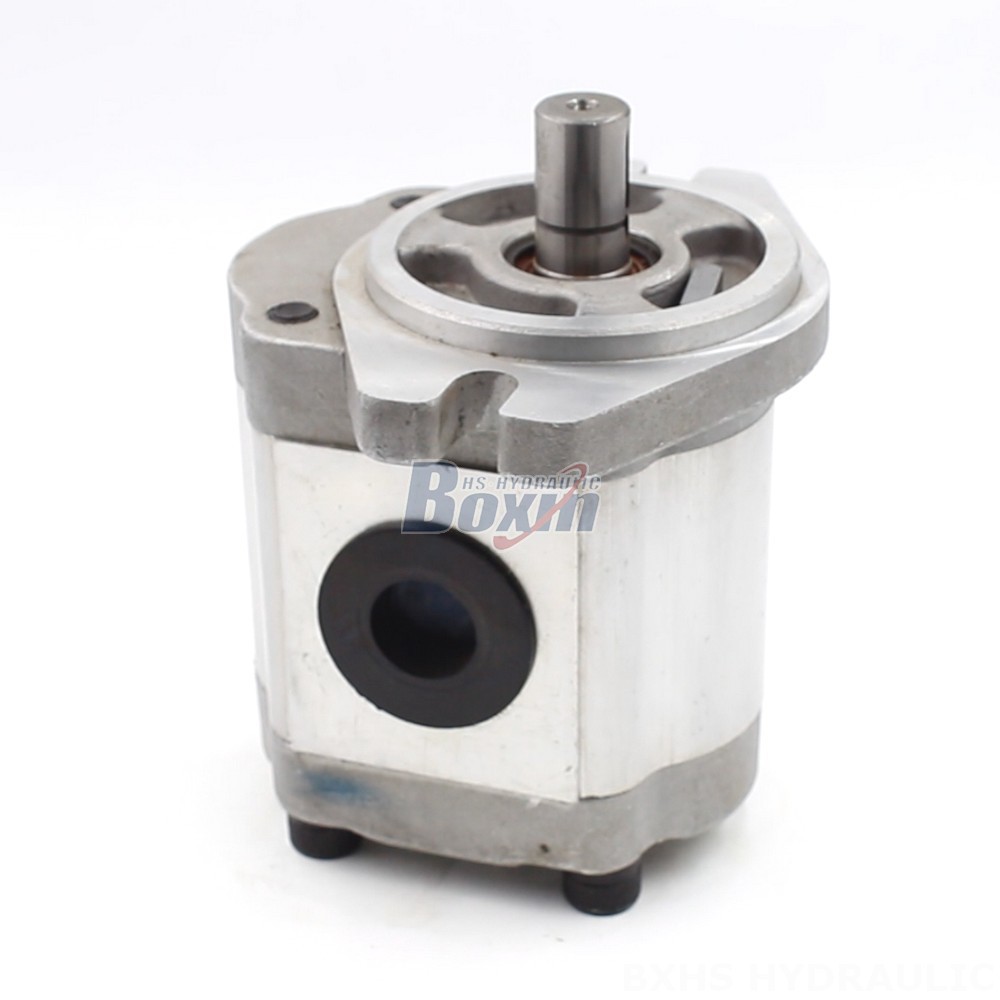

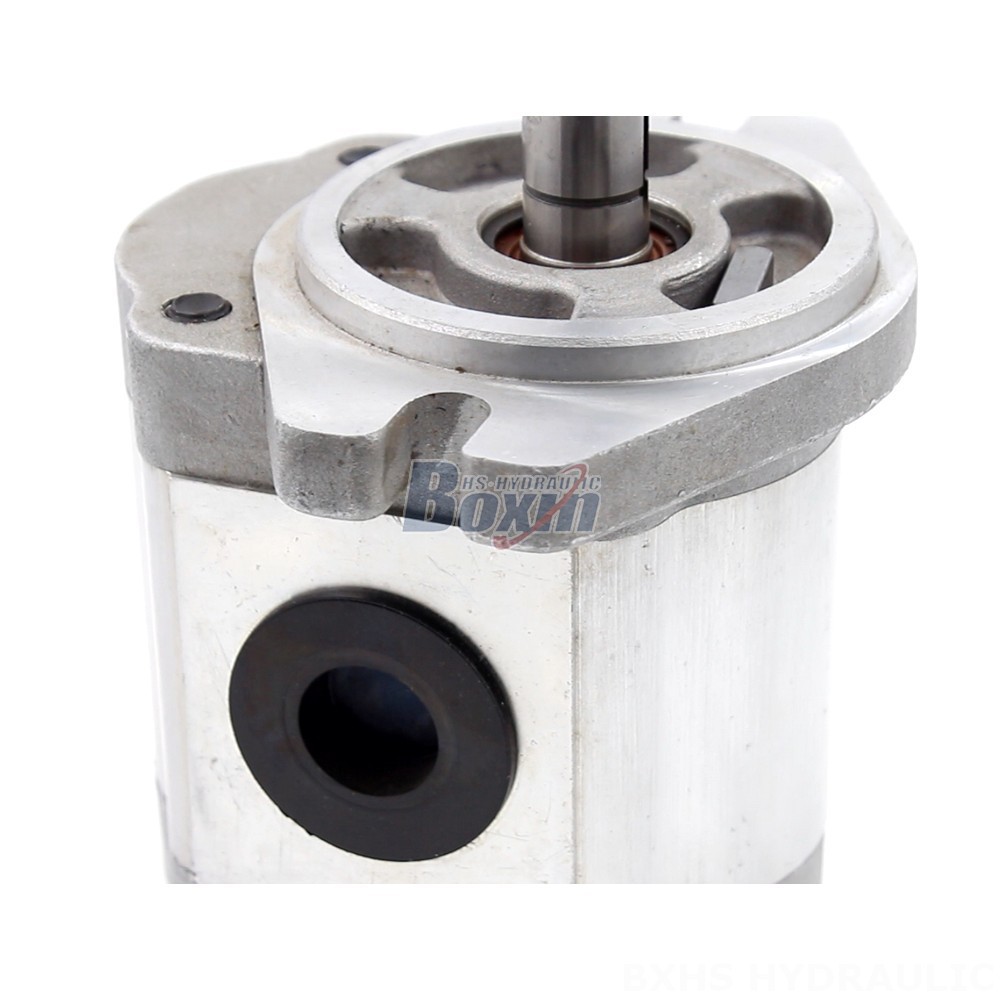

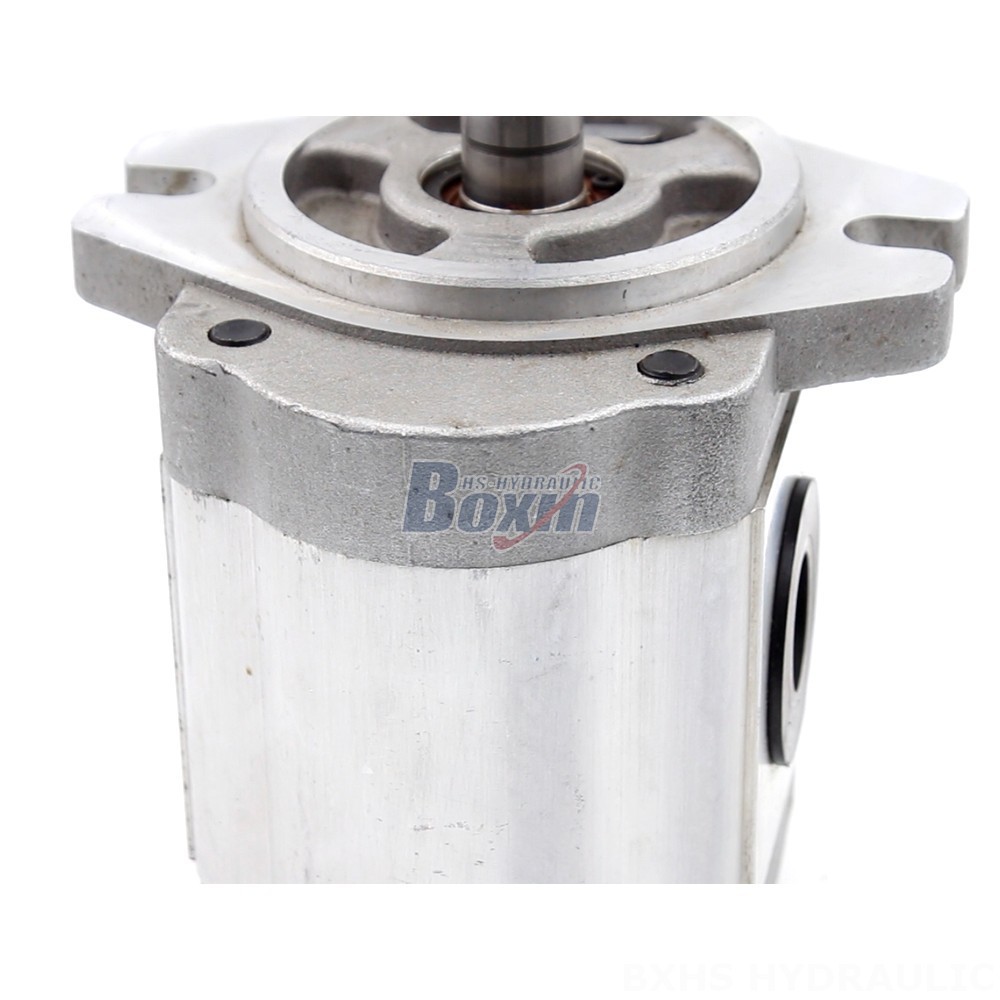

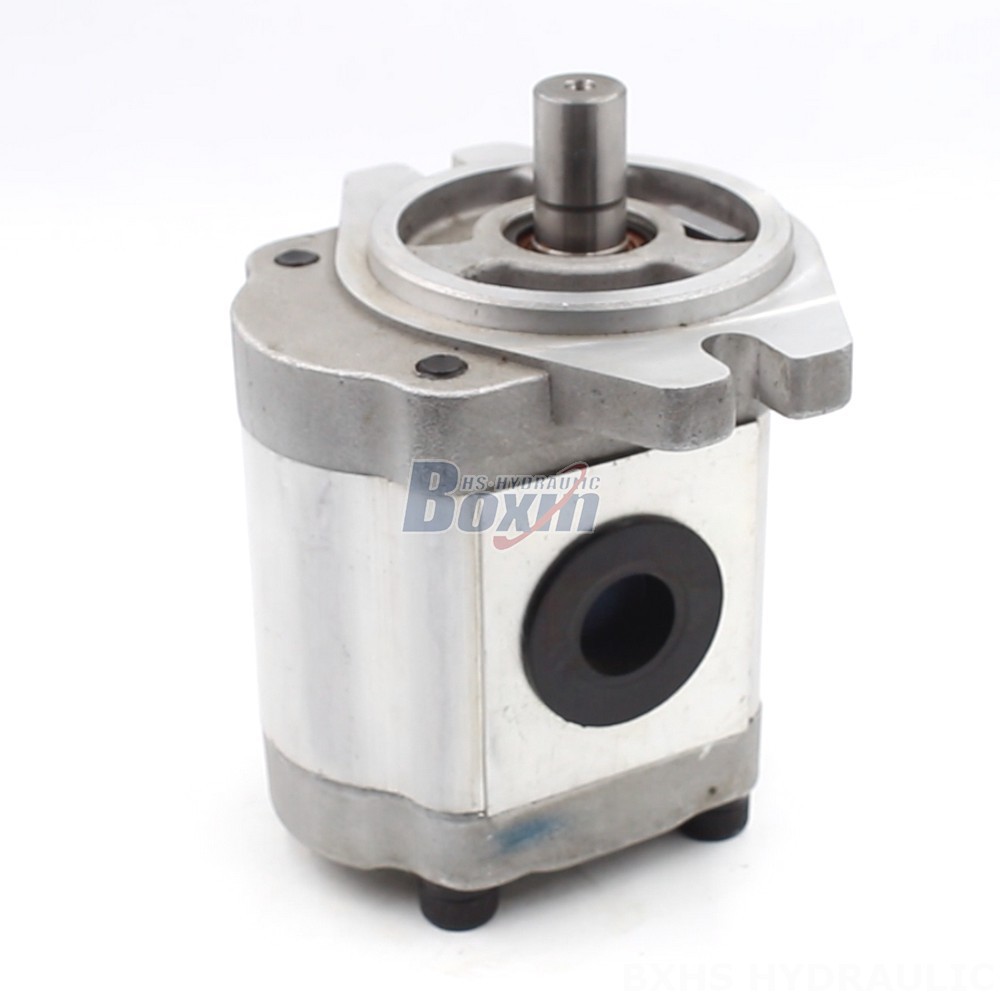

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
