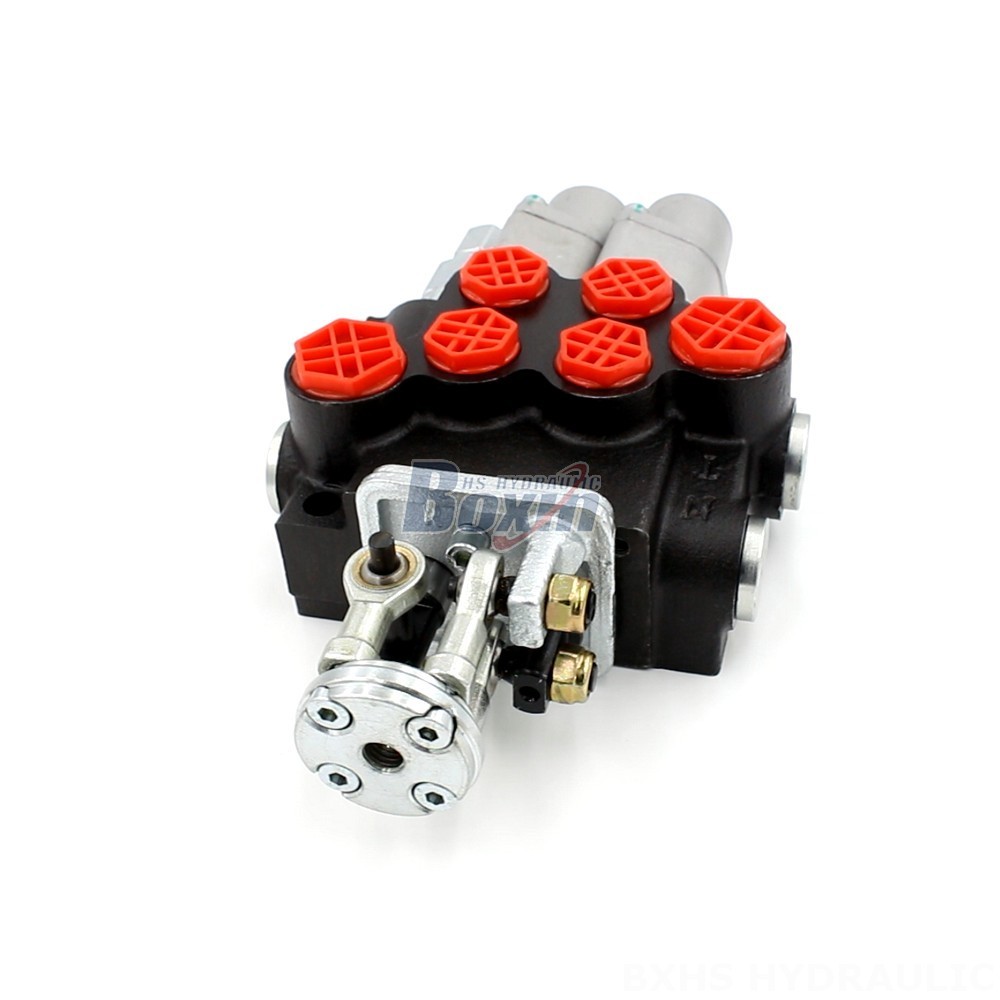

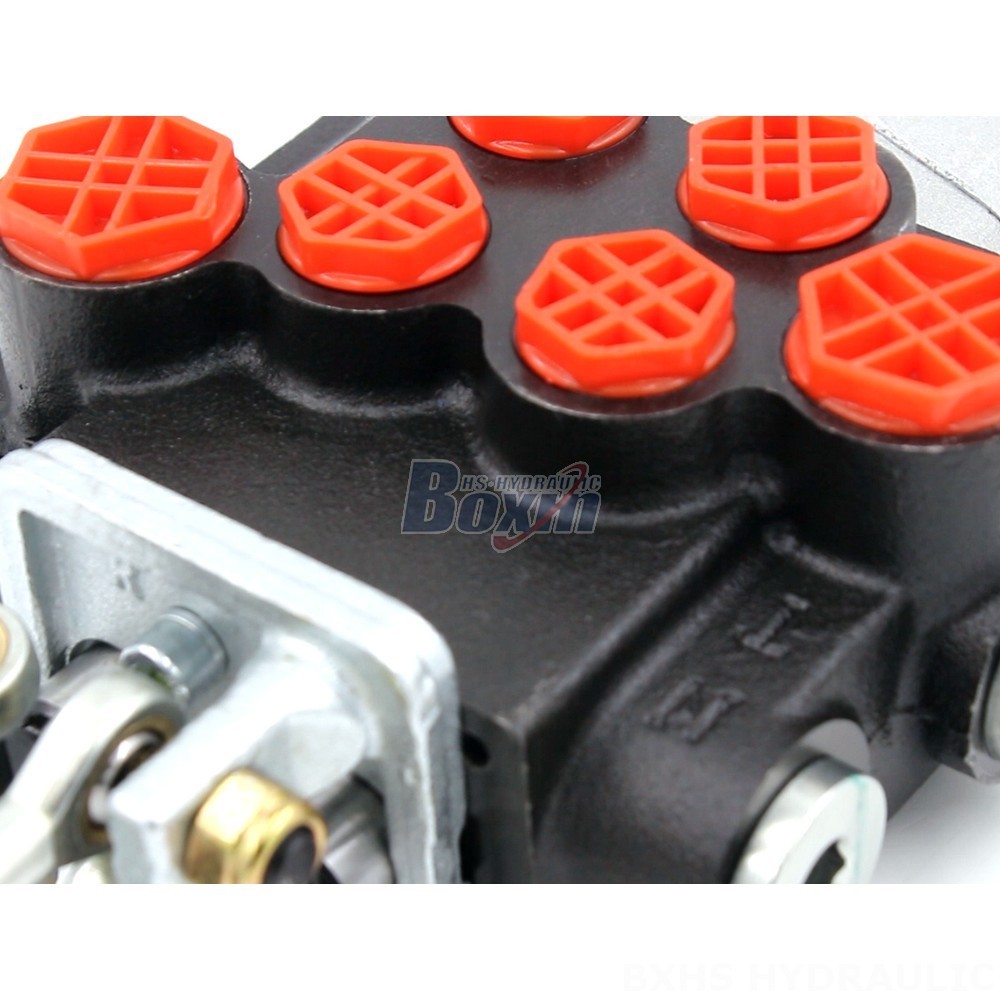

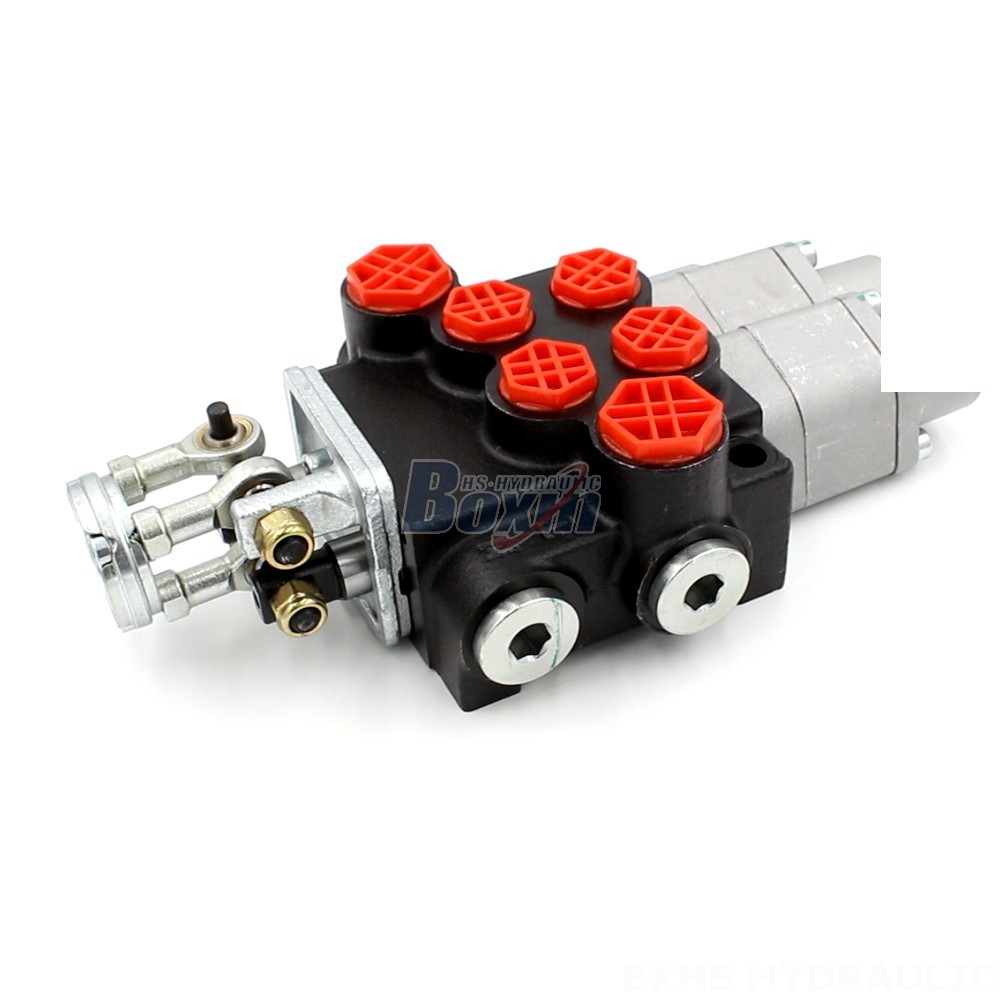

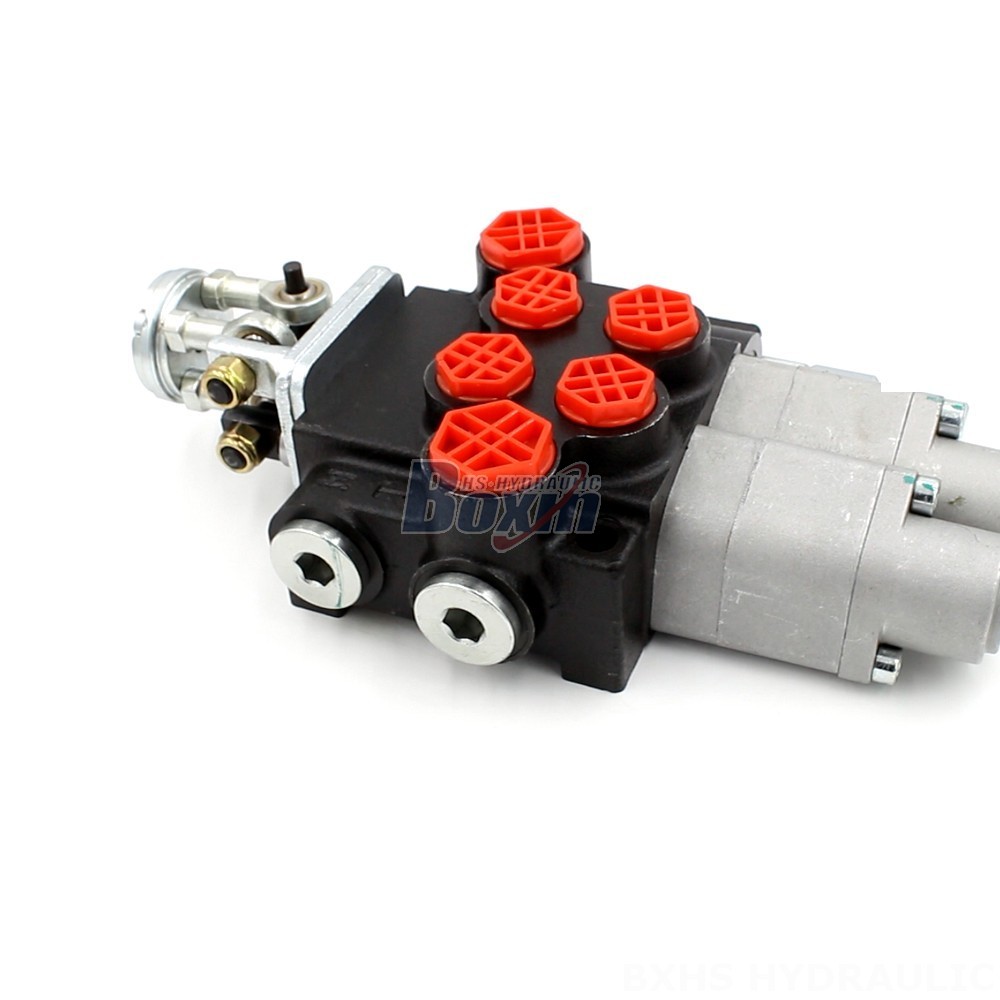

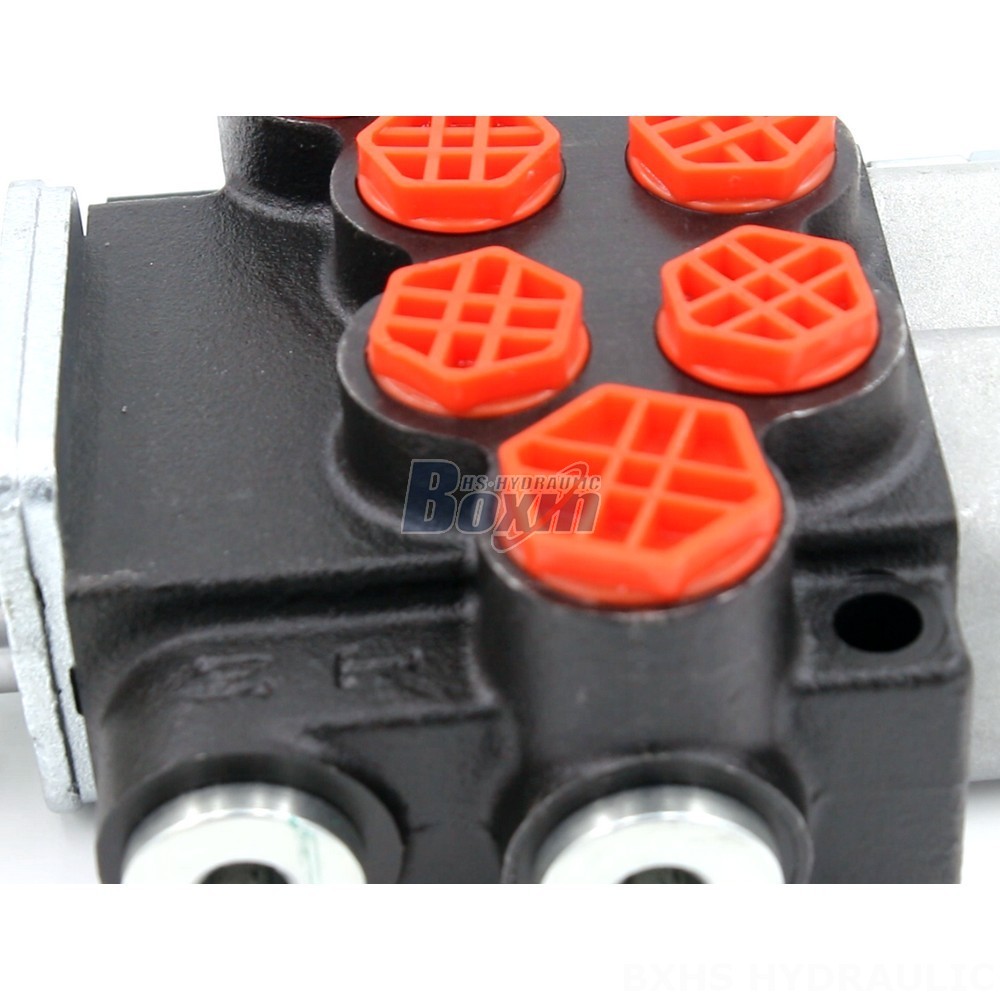

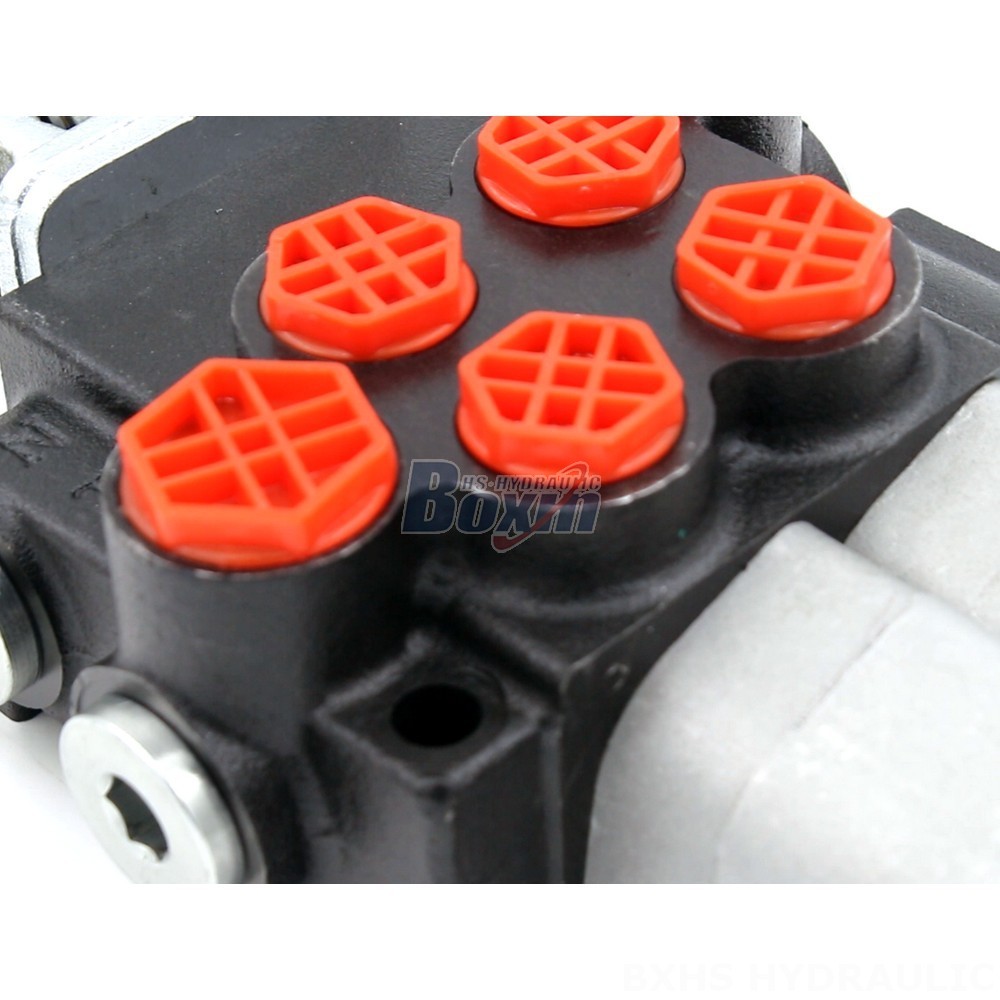

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

Kontrol Yöntemi:Manuel ve Joystick

Makara:2 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*18*13

Brüt ağırlık:6.50 kg

Stok Durumu: Stokta Var

1258 Görünümler Bu Ürünü Arıyor

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply drawing image

The P40 Series 2-Spool Hydraulic Directional Valve is a compact and reliable flow control valve designed for use in a variety of mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicles. It features manual and joystick control options, a monoblock valve structure, and a wide operating temperature range.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 2-Spool Hydraulic Directional Valve is a high-performance, durable, and versatile valve that offers a variety of features and benefits. The valve is available with a variety of options, including manual and joystick control, making it suitable for a wide range of applications. The valve also features a compact design, which makes it easy to install and maintain. It is built to withstand demanding operating conditions and offers a long service life. The valve is ideal for use in applications such as material handling, construction, agriculture, and industrial vehicles. It is also compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about this product and how it can benefit your business.
