2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

Kontrol Yöntemi:Selenoid

Makara:2 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:200 bar (2900 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:37*18*11

Brüt ağırlık:9.50 kg

Stok Durumu: Stokta Var

1148 Görünümler Bu Ürünü Arıyor

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

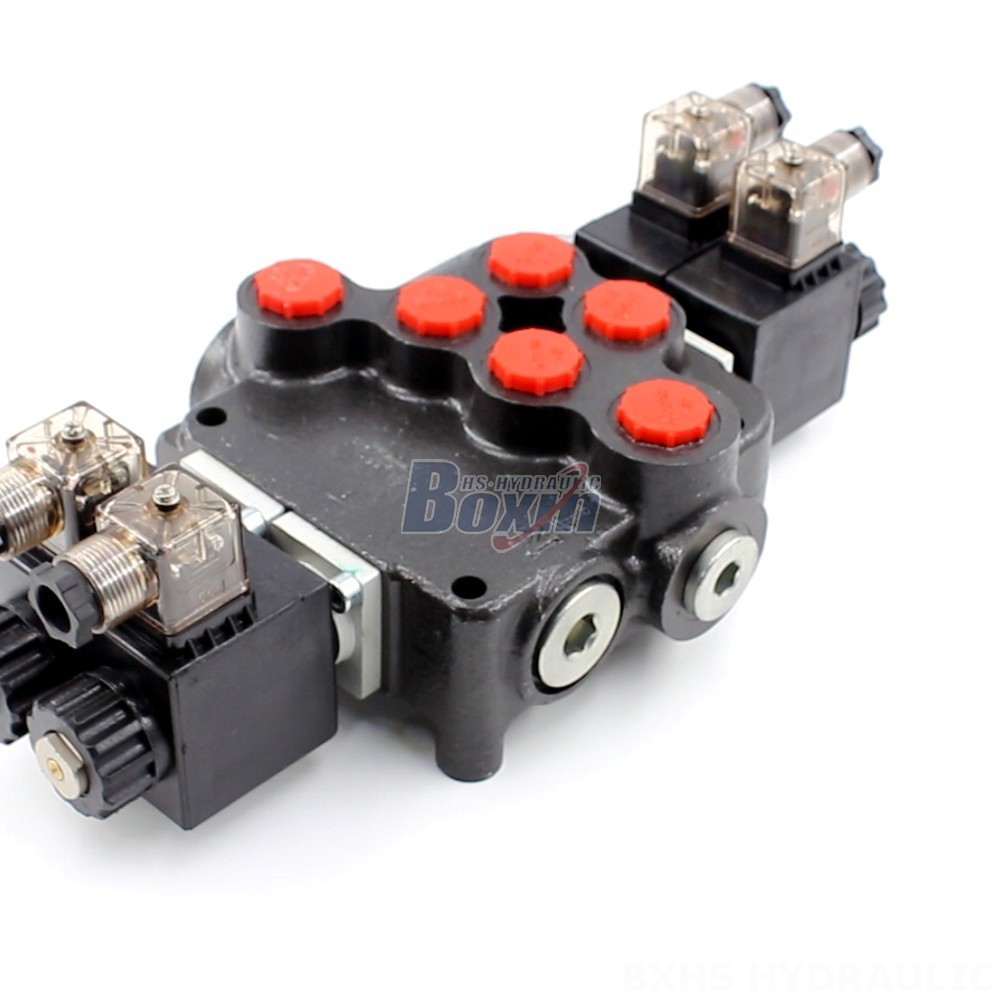

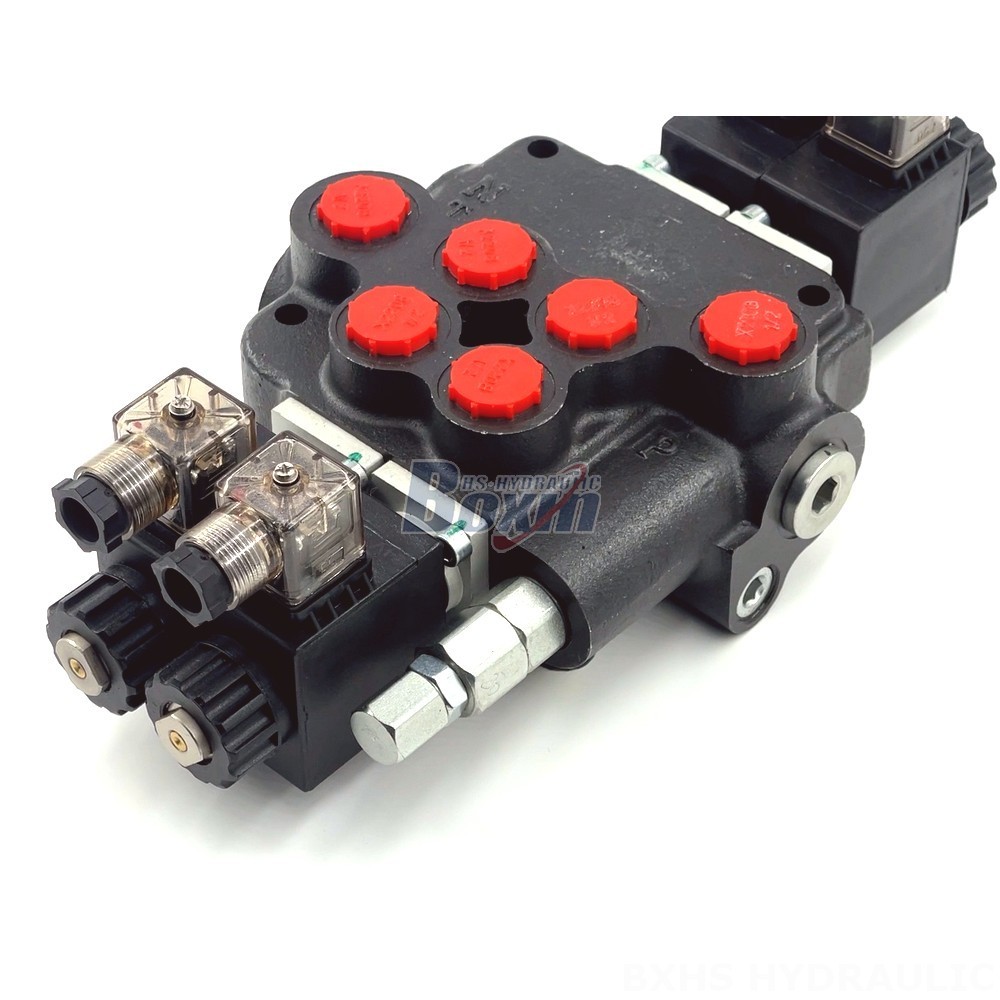

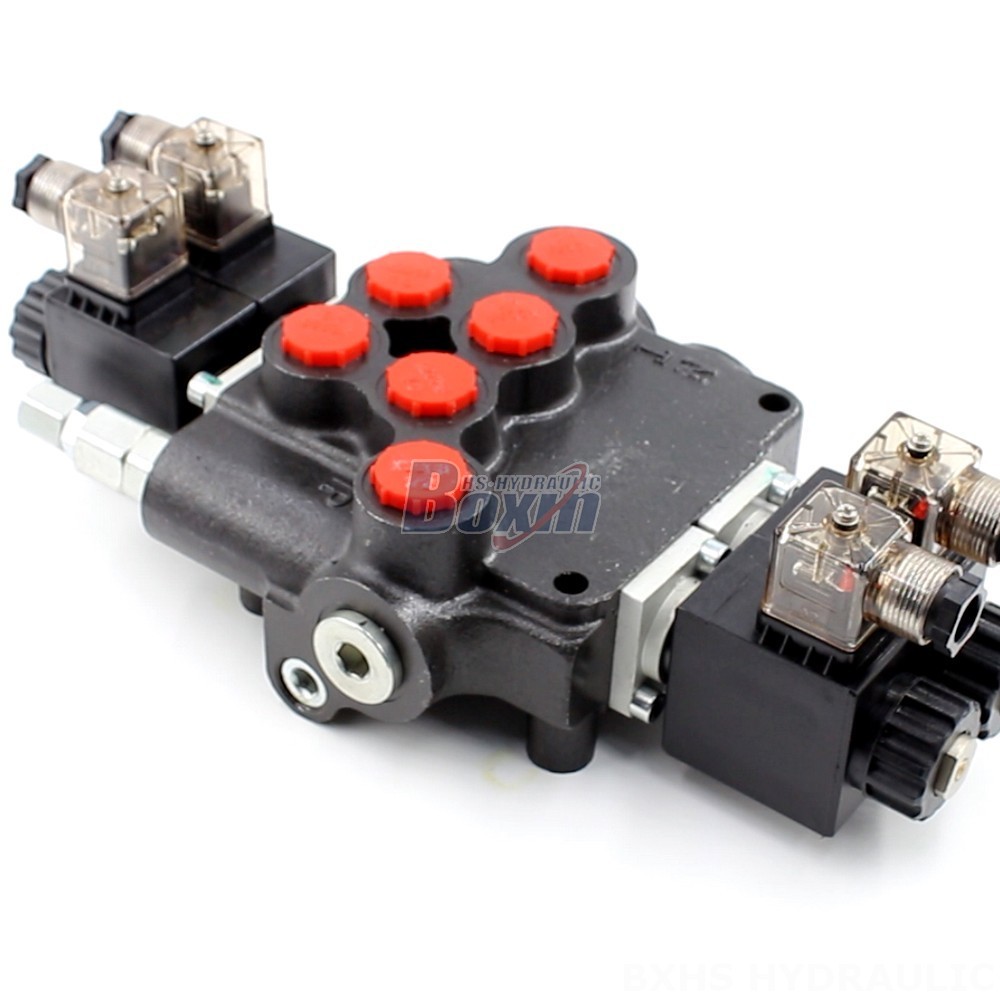

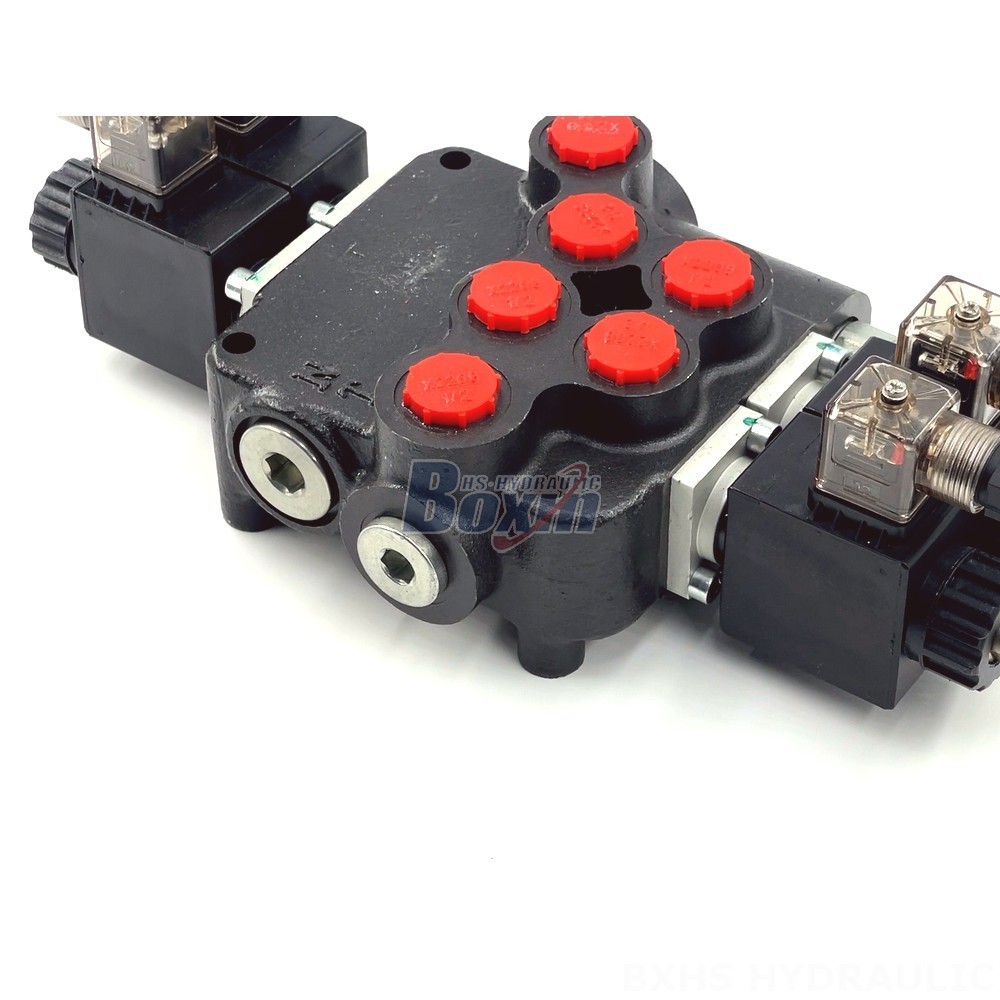

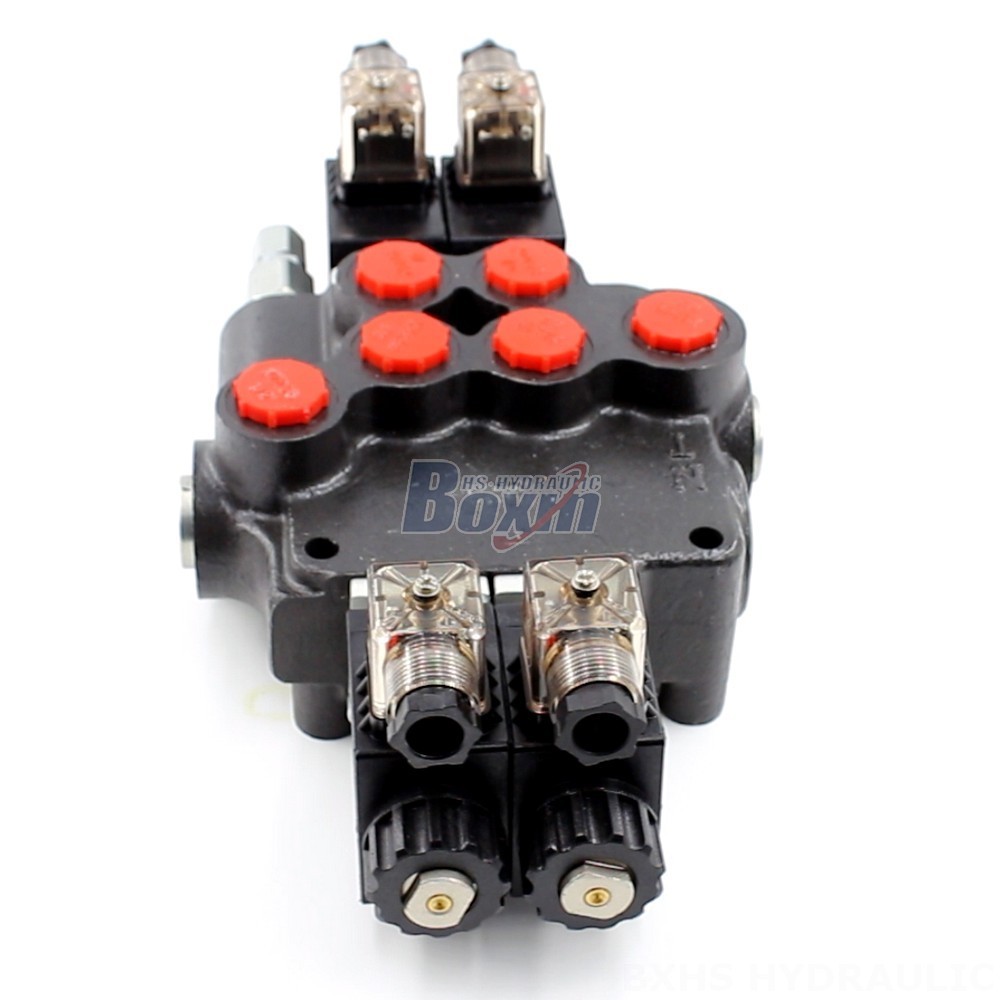

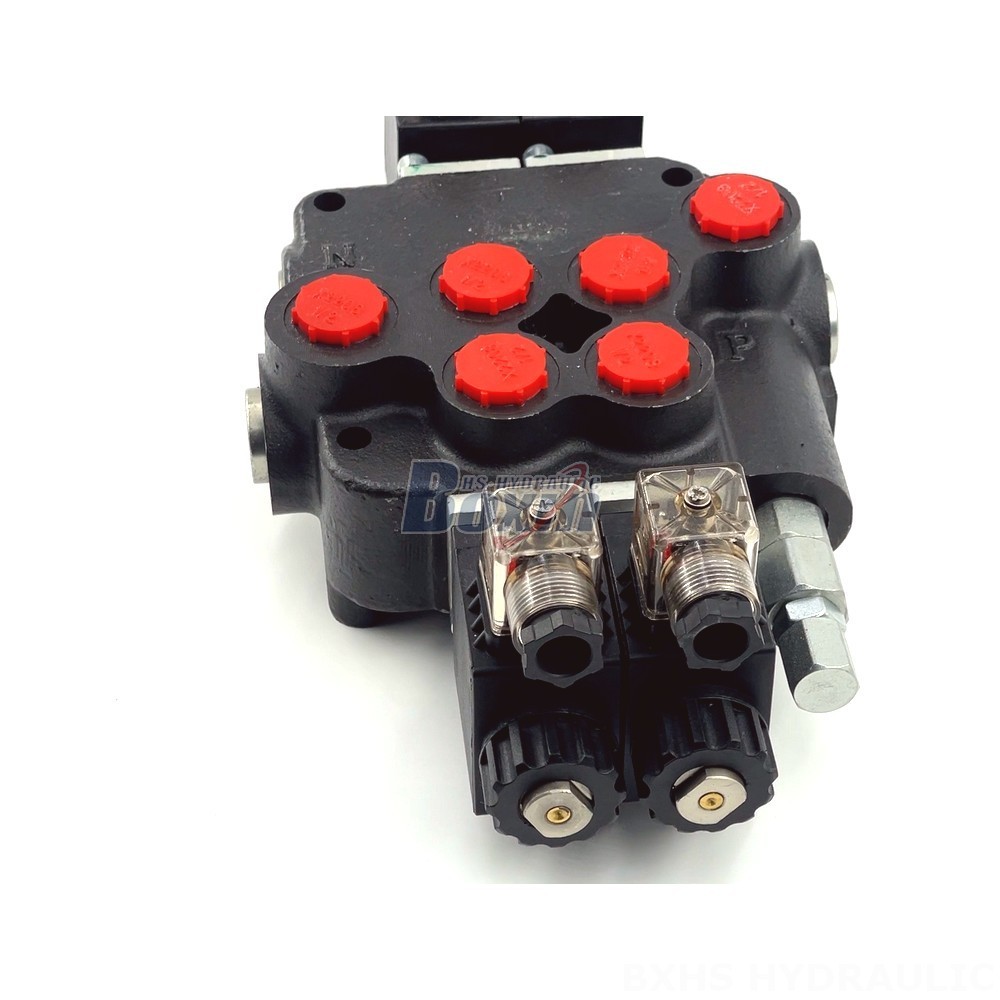

Our P80 model Two Output Hydraulic Levers is a 2-spool, monoblock hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a high flow rate and pressure capacity, making it suitable for demanding operations. The valve is available in a variety of configurations and can be customized to meet your specific requirements.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 model Two Output Hydraulic Levers is a powerful and versatile hydraulic valve, featuring a 2-spool design and a robust monoblock construction. This valve delivers a high flow rate of 80 L/min (21.2 US gpm) and can withstand pressures up to 250 bar (3600 psi), making it suitable for heavy-duty applications. It's designed for use in a range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's solenoid control system offers precise and reliable operation. It's also built to withstand extreme temperatures, operating reliably in environments from -40°C to +80°C (-40°F to +176°F). Our P80 model is available directly from the factory and can be customized to meet your specific needs. Contact us today for more information about this powerful and reliable hydraulic valve.
