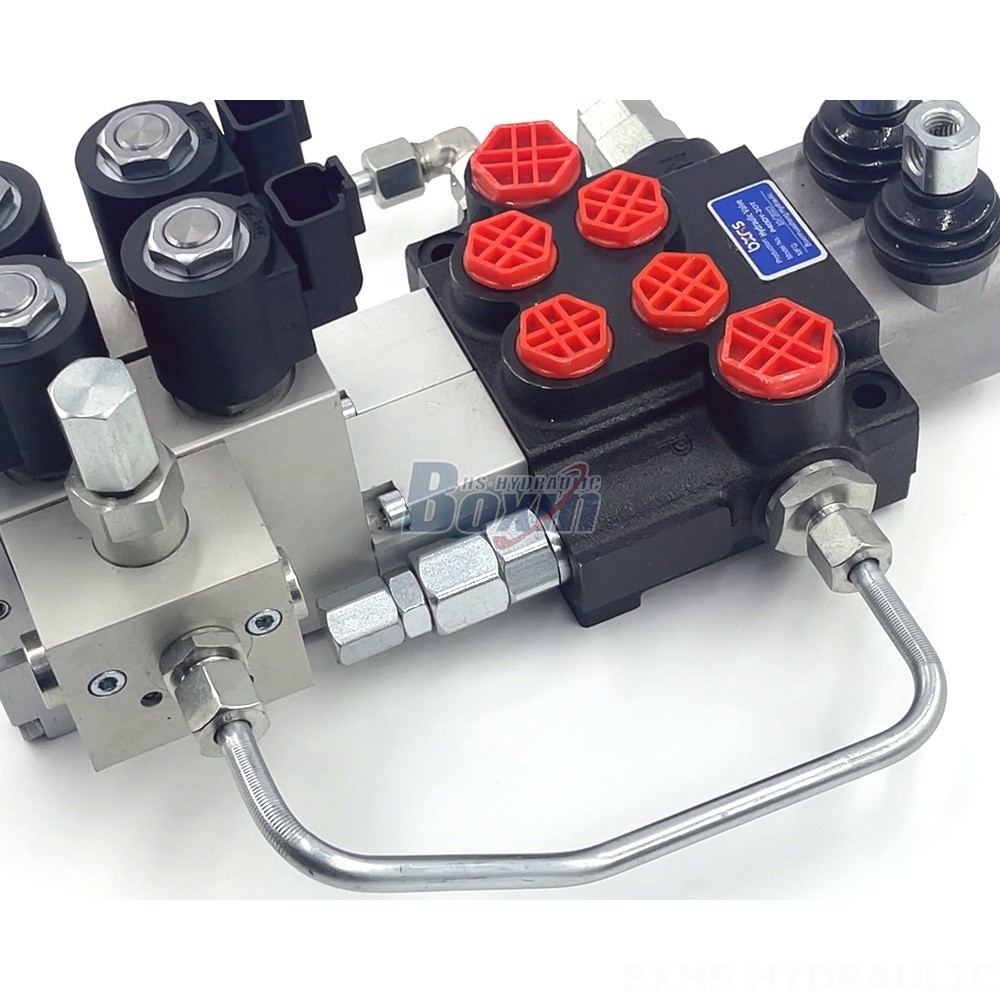

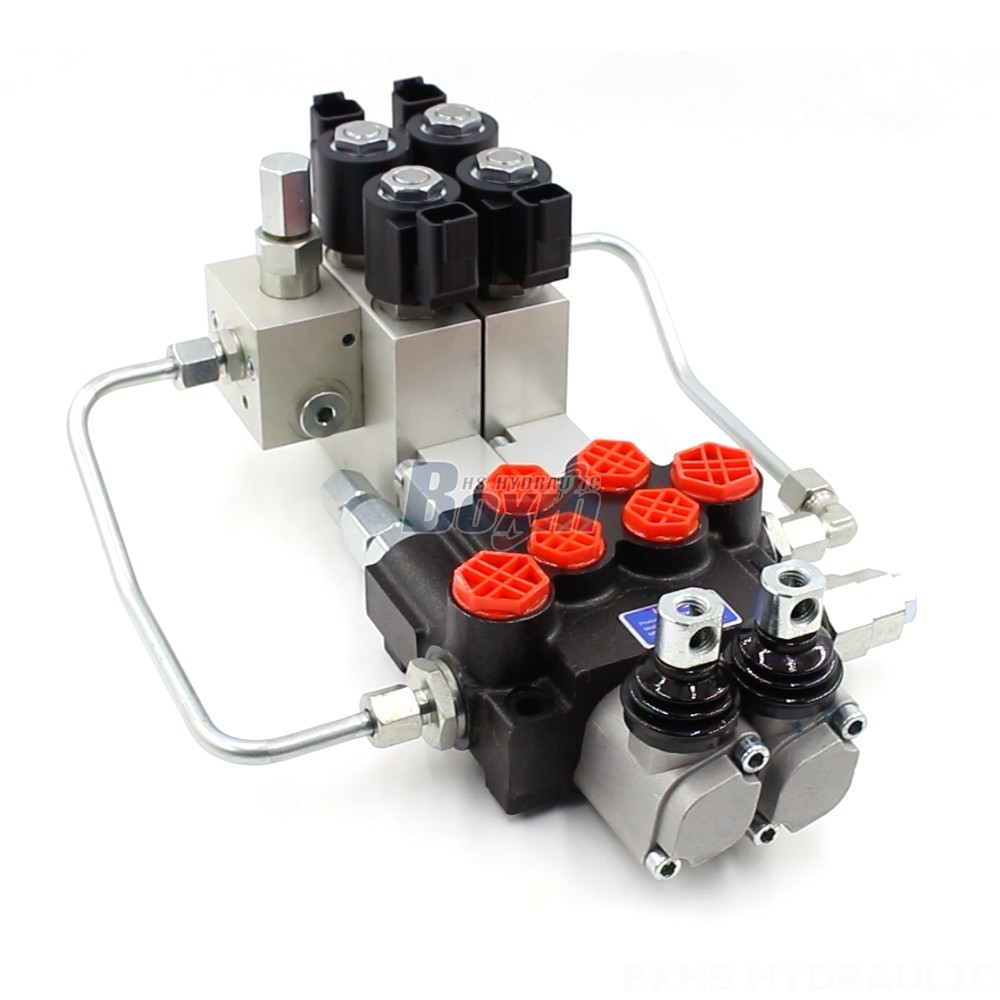

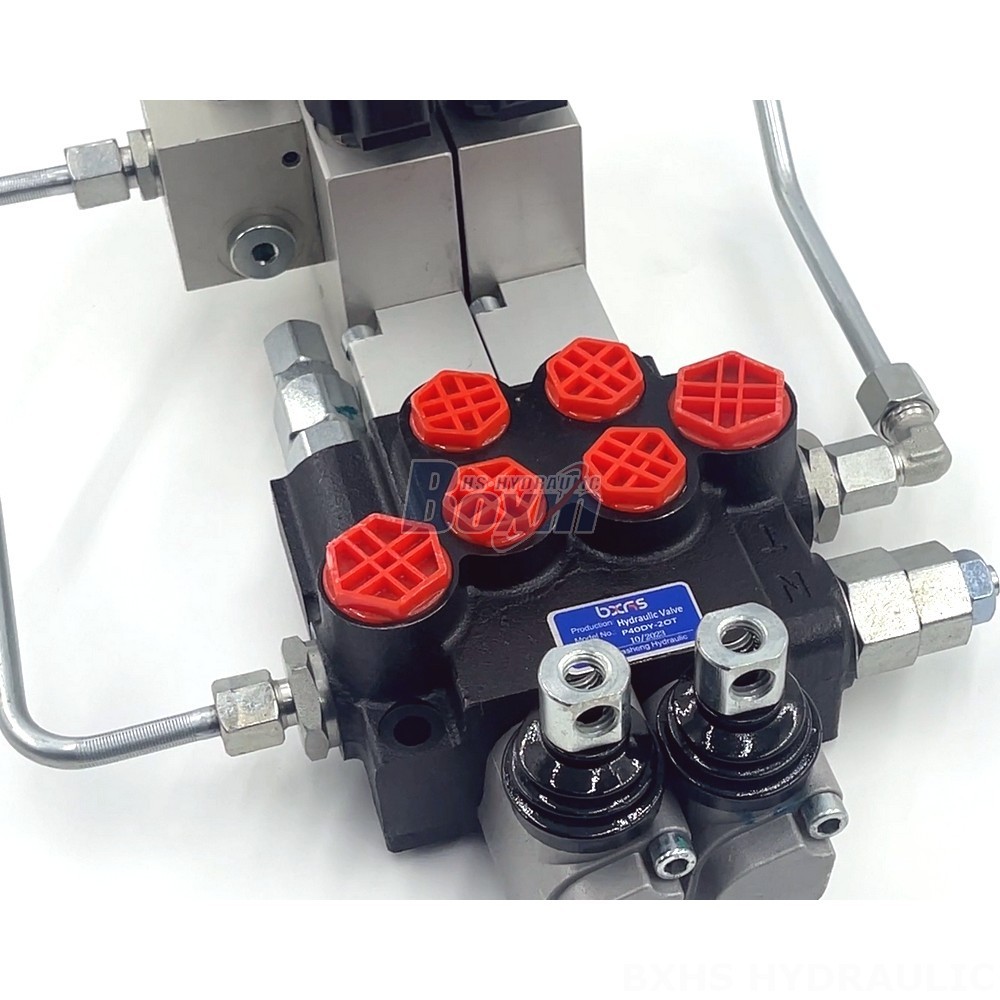

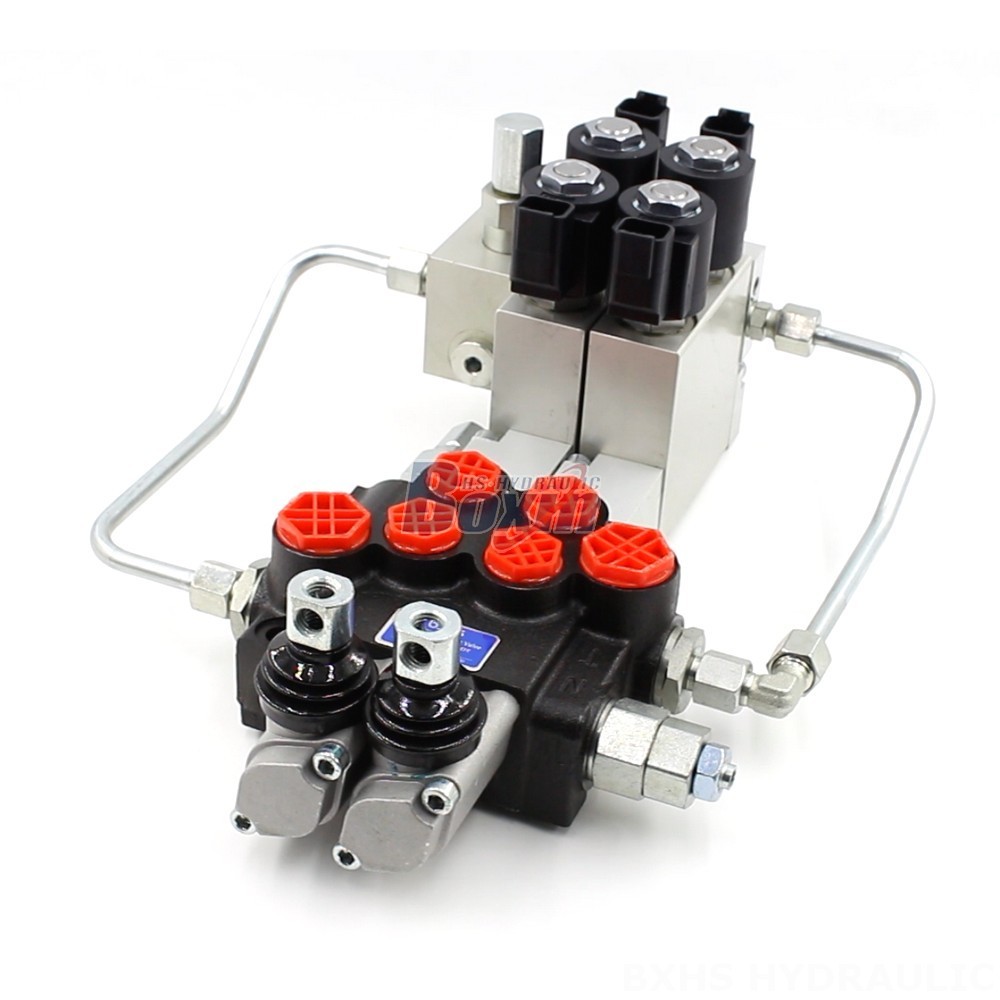

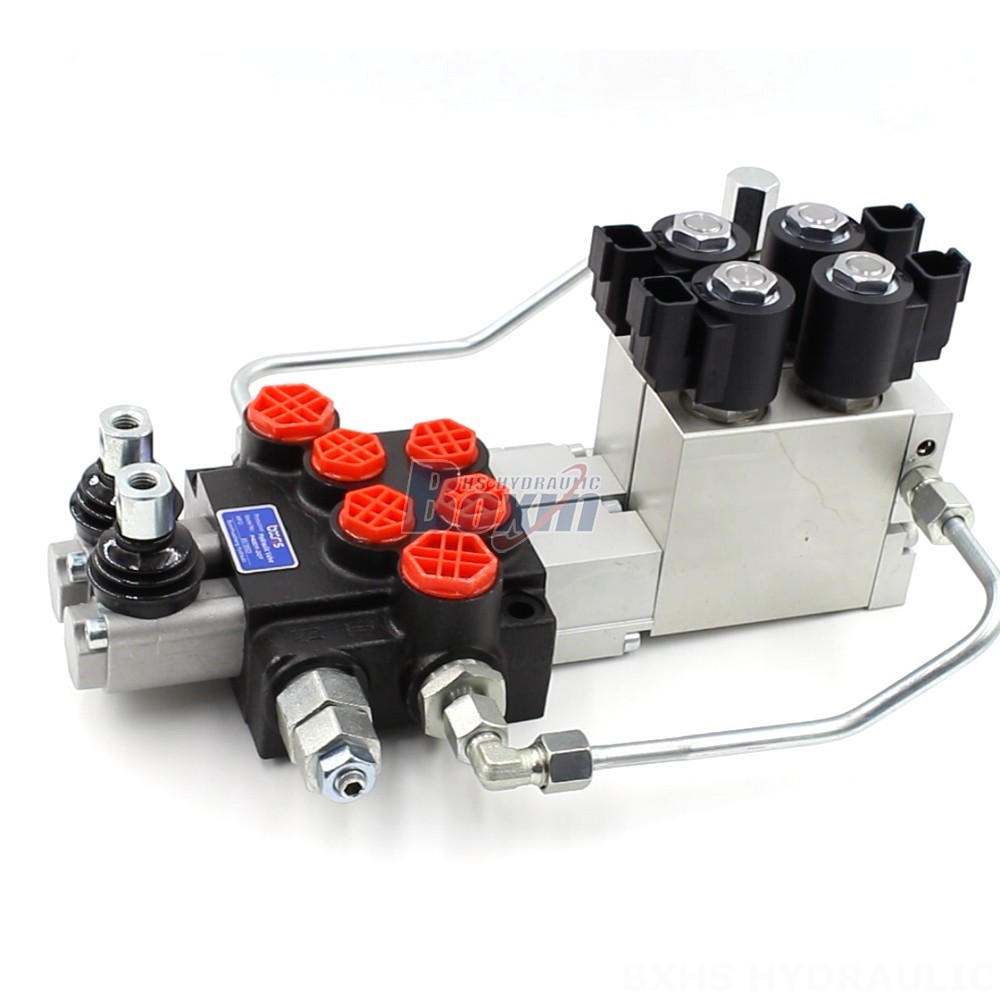

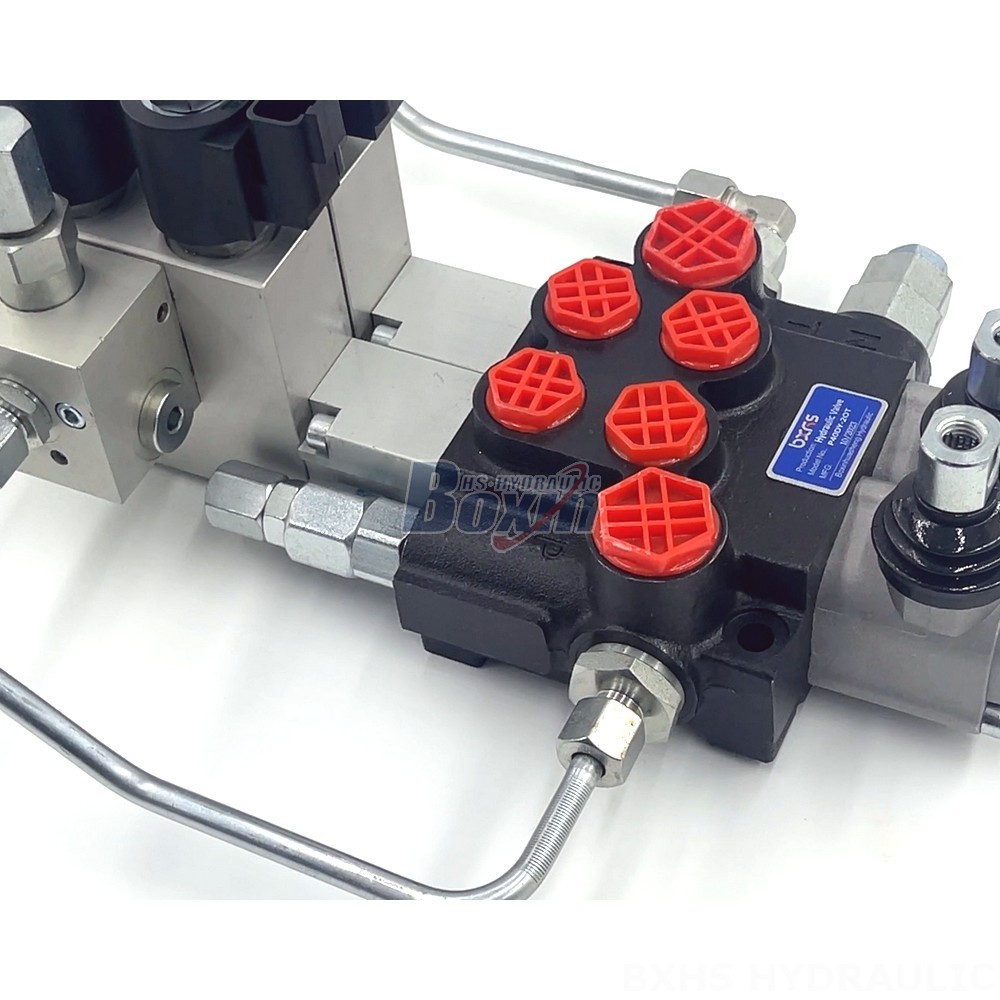

This Manual Operated Directional Valve is a reliable and durable solution for various applications in material handling, construction, agriculture, and industrial vehicles. Featuring a robust design, this 2 Spool Valve delivers smooth operation with a rated flow of 40 L/min and a maximum pressure of 250 bar. Its compact monoblock structure provides efficient performance in a variety of challenging environments.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Manual Operated Directional Valve is a high-quality hydraulic component designed for demanding applications. It features a 2-section monoblock valve design with a 2 Spool configuration. The valve is electro-hydraulically controlled and boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). This valve is suitable for use in a wide range of operating temperatures, from -40°C to +80°C (-40°F to +176°F). It is compatible with hydraulic fluids with viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt). The valve is ideal for use in a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. Its durability and reliability make it a dependable choice for heavy-duty equipment.
