3-Spool Monoblock Valve | P80 Series | Factory Direct

Kontrol Yöntemi:Selenoid

Makara:3 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:200 bar (2900 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:33*28*13

Brüt ağırlık:13.00 kg

Stok Durumu: Stokta Var

1301 Görünümler Bu Ürünü Arıyor

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct

3-Spool Monoblock Valve | P80 Series | Factory Direct drawing image

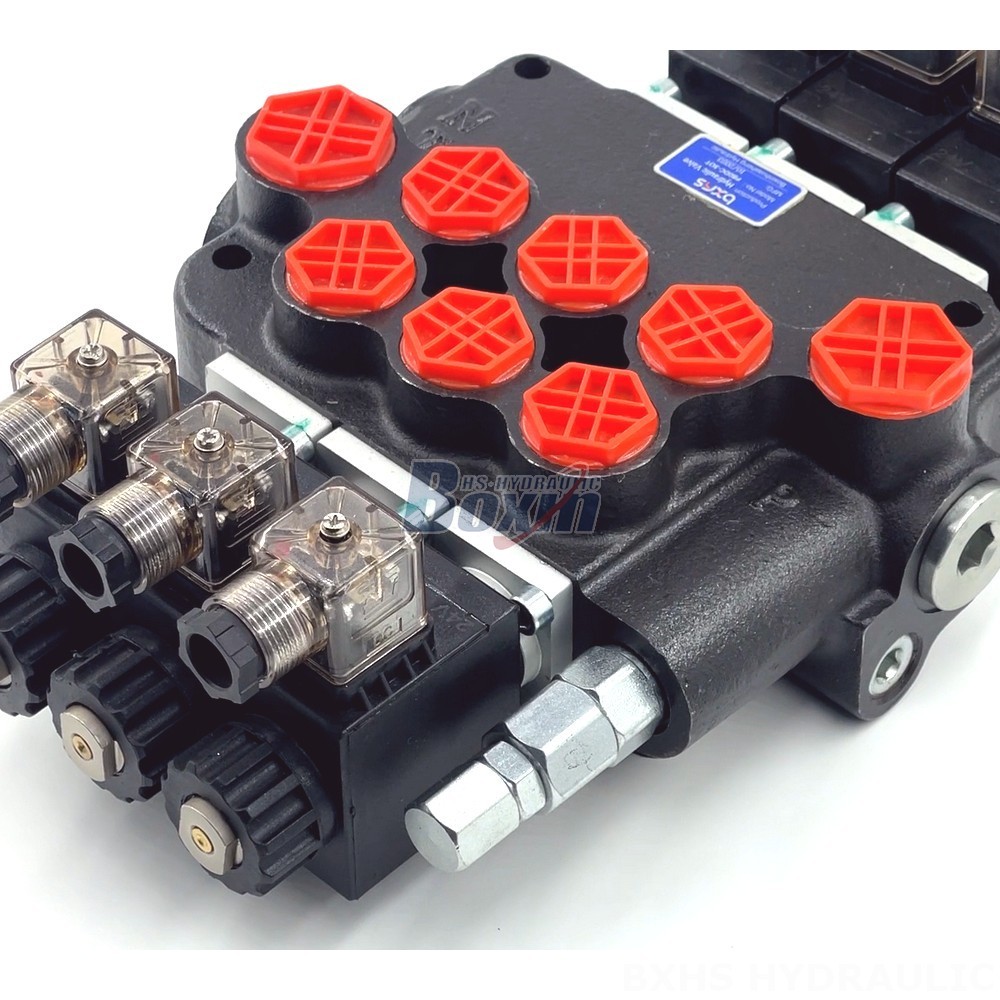

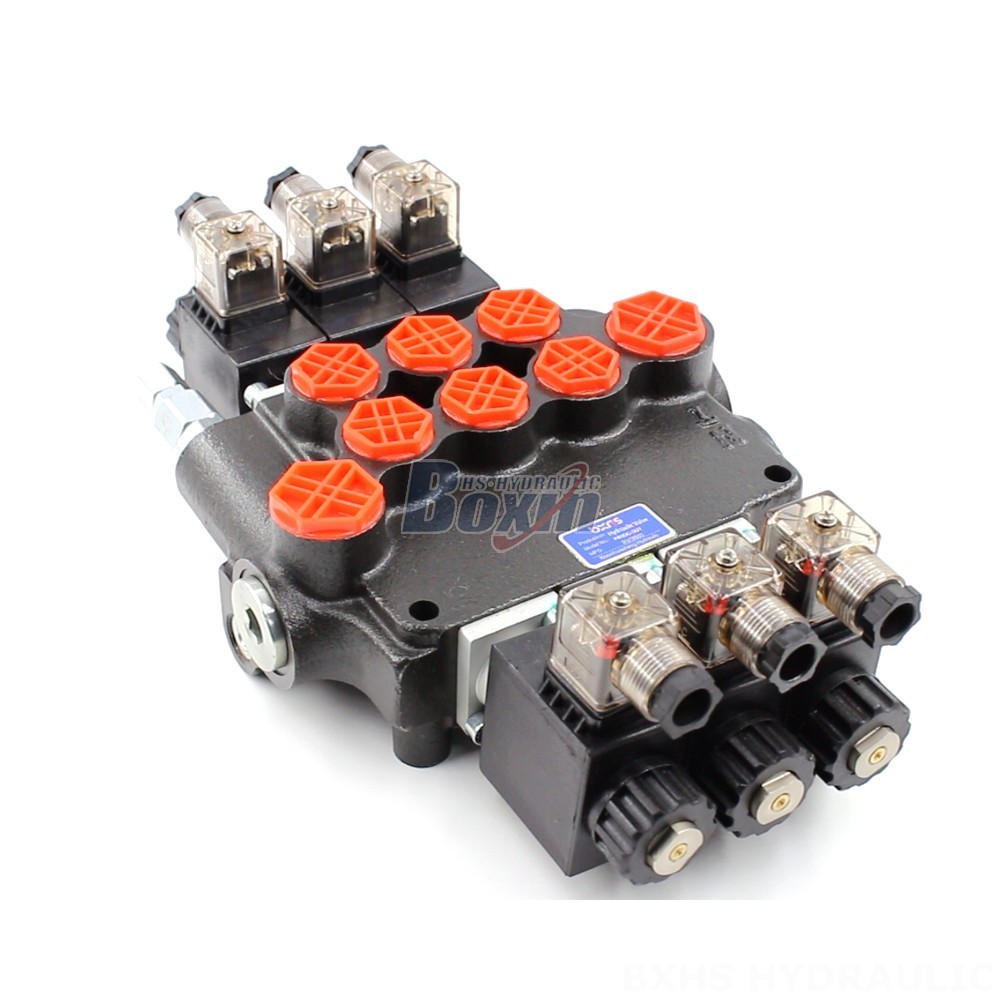

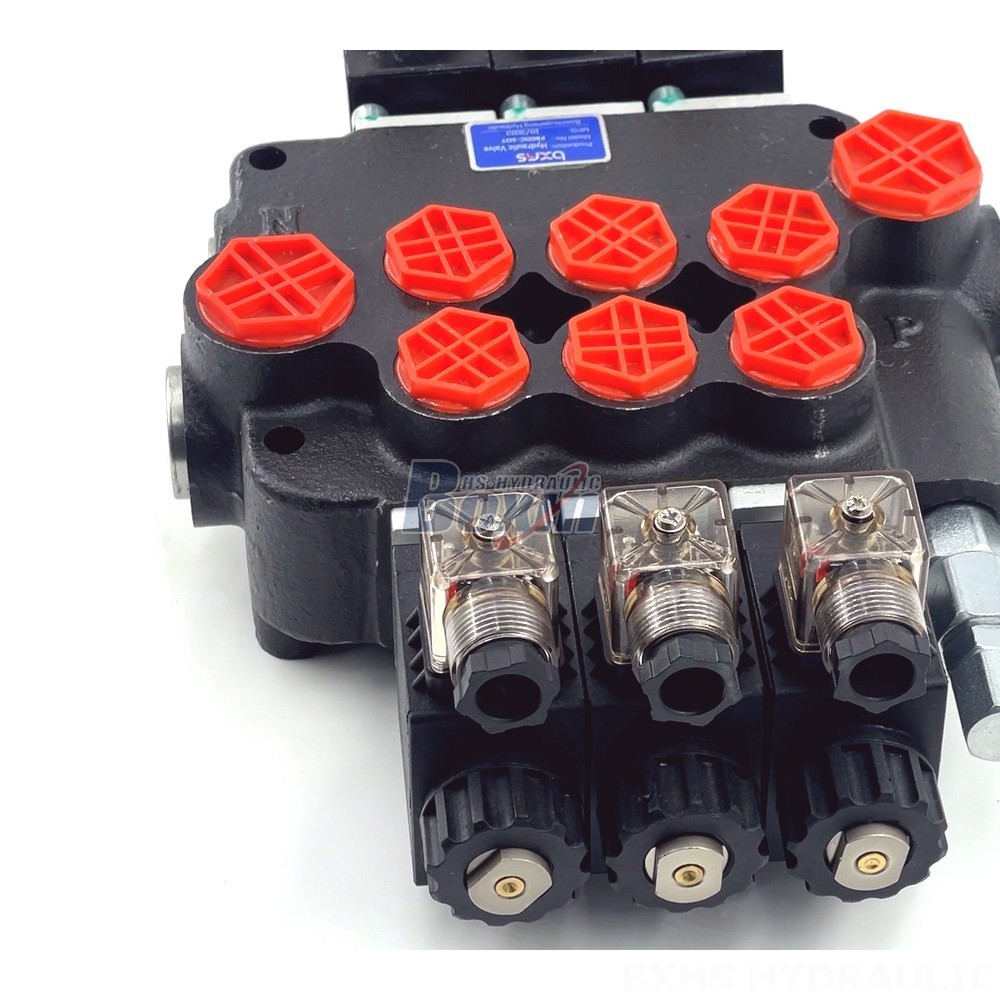

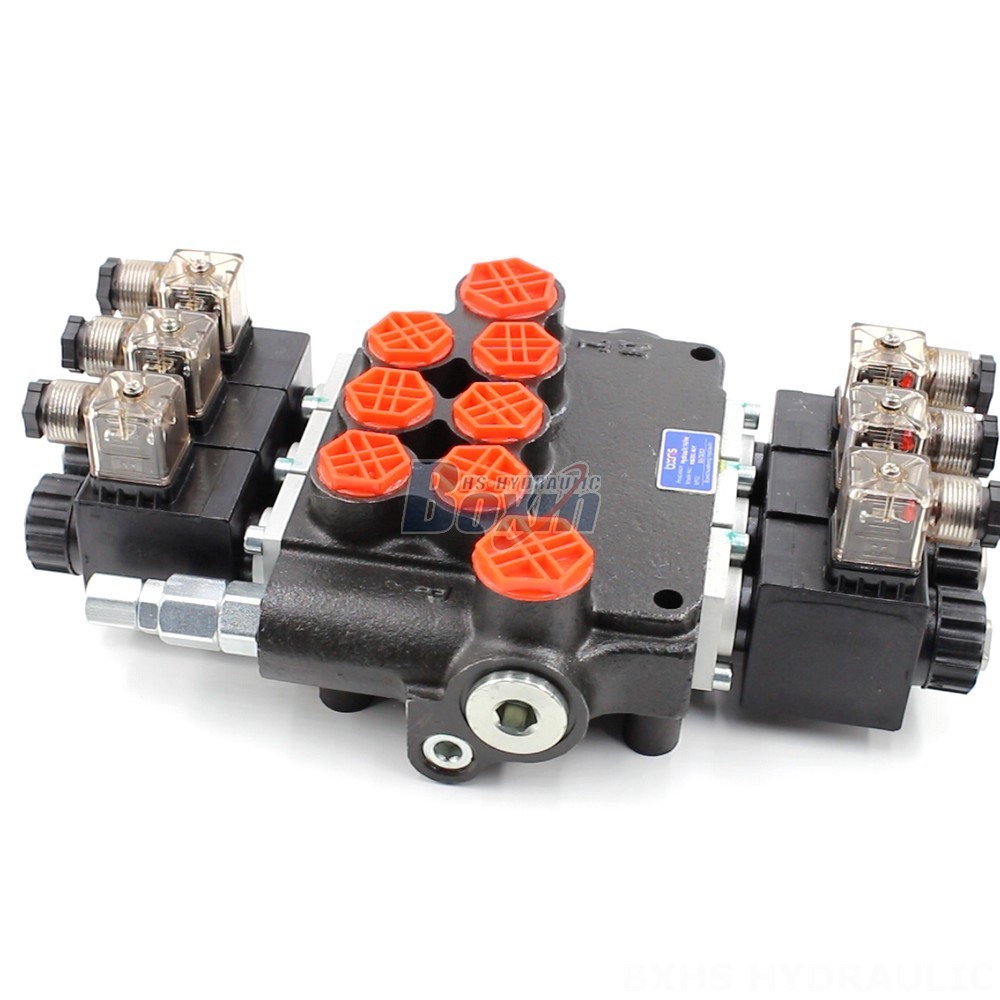

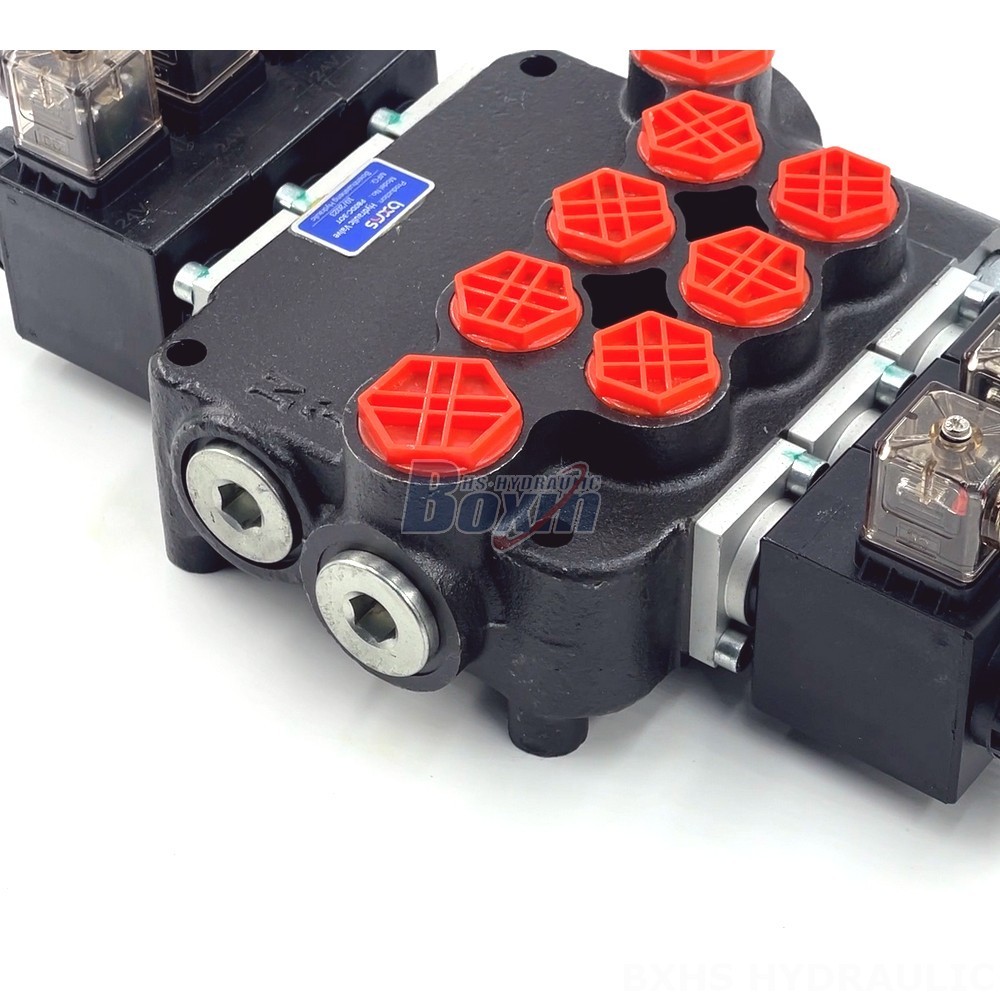

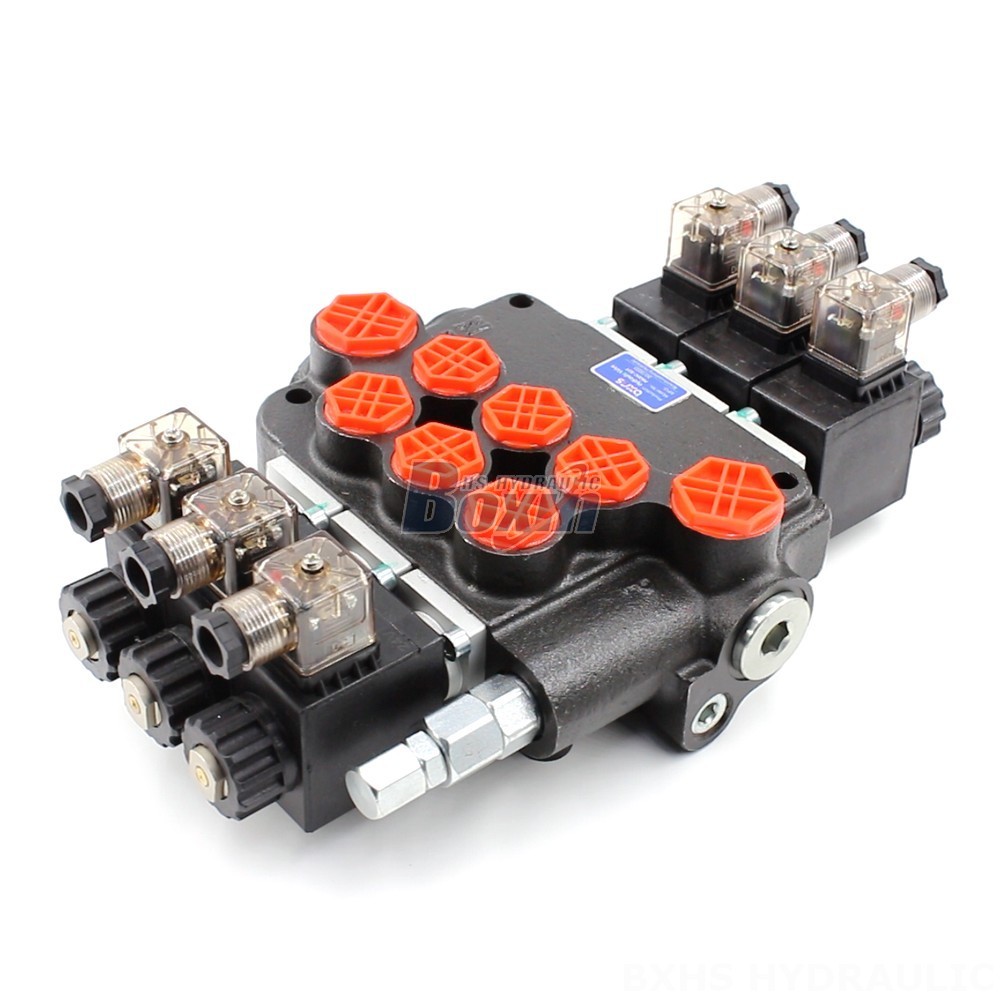

The P80 Series 3-Spool Monoblock Directional Control Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This valve features a compact design, high flow rate, and durable construction, making it ideal for demanding applications.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series 3-Spool Monoblock Directional Control Valve is a powerful and versatile hydraulic component designed for demanding applications. It offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for a wide range of heavy-duty machinery. The valve's compact monoblock design ensures robust performance and durability, while its solenoid control system provides precise and responsive operation. This valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It is manufactured to meet the highest quality standards and is backed by a comprehensive warranty.
