Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

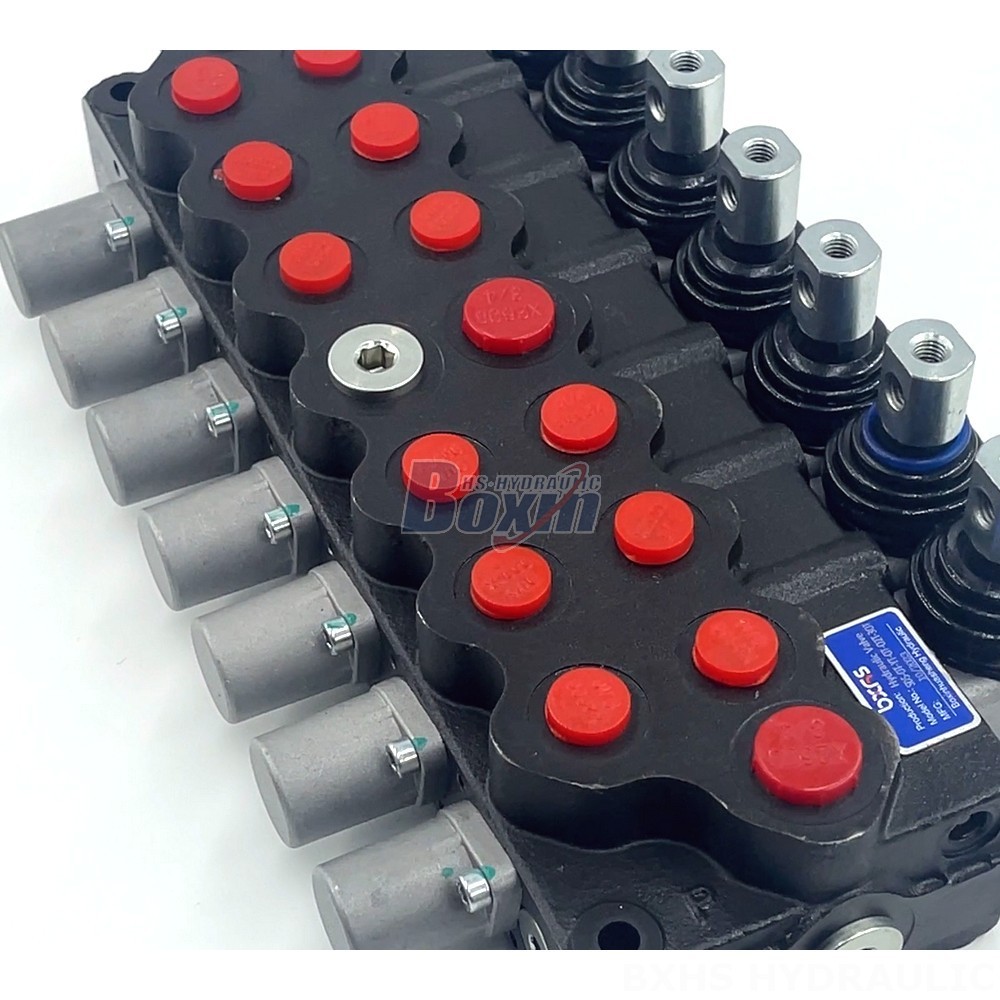

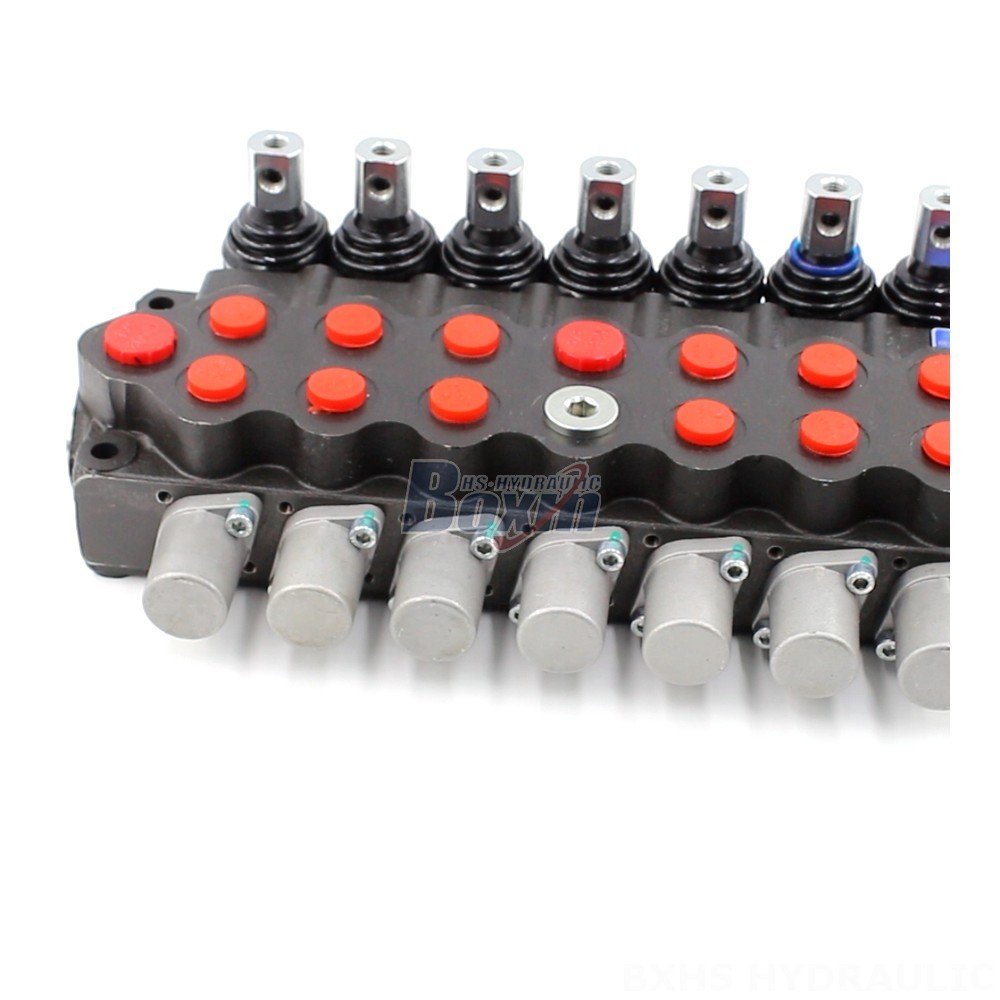

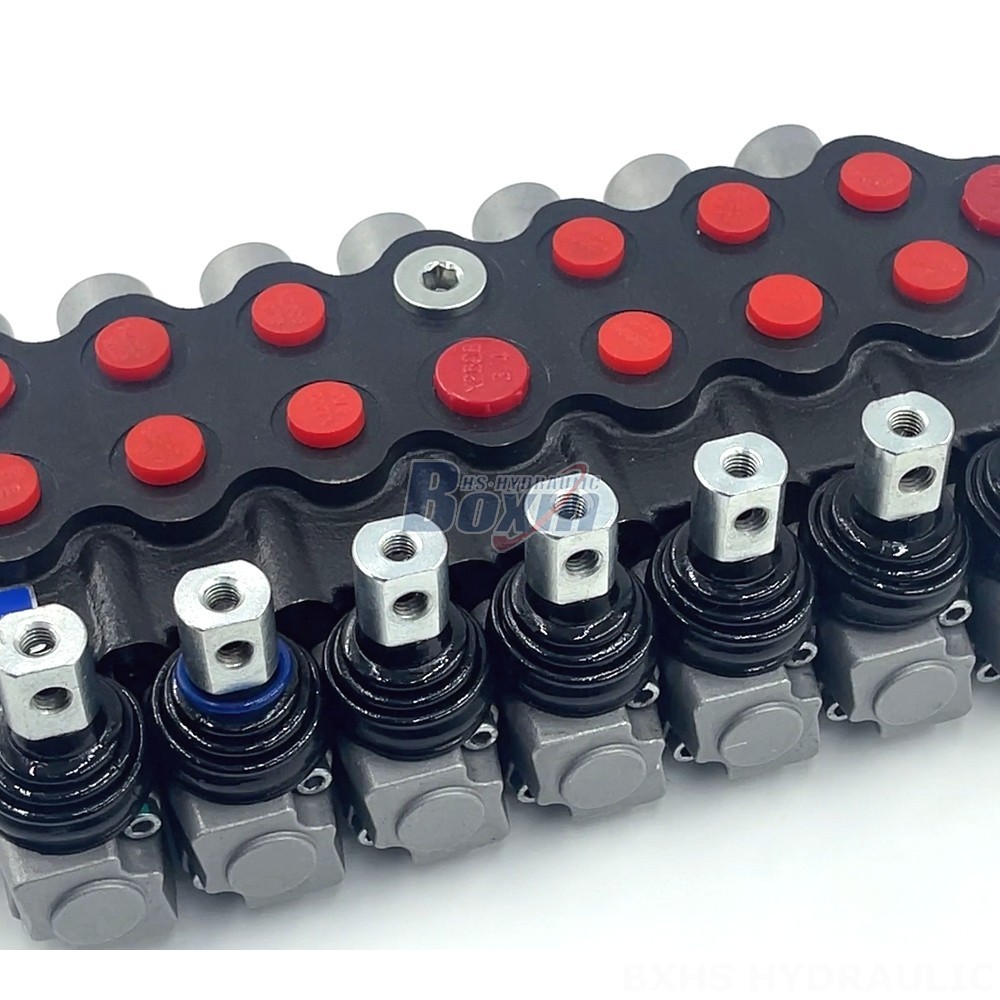

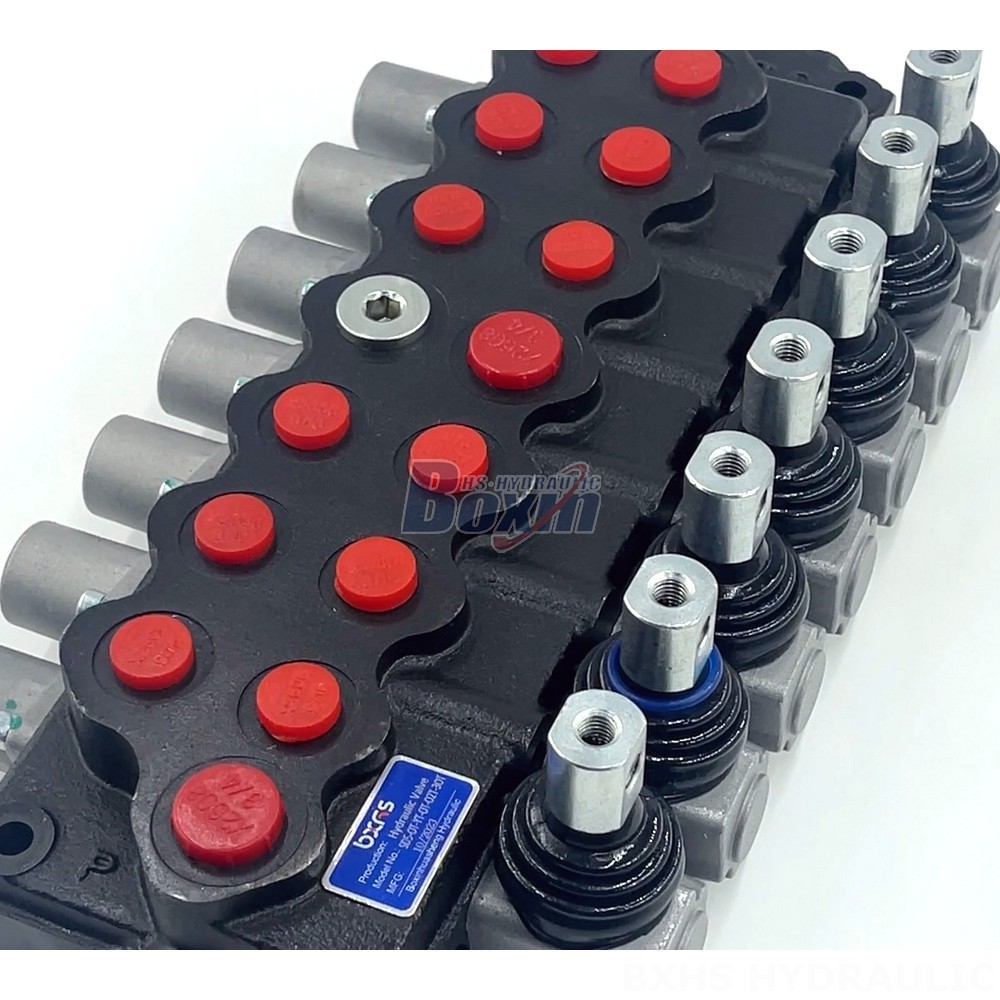

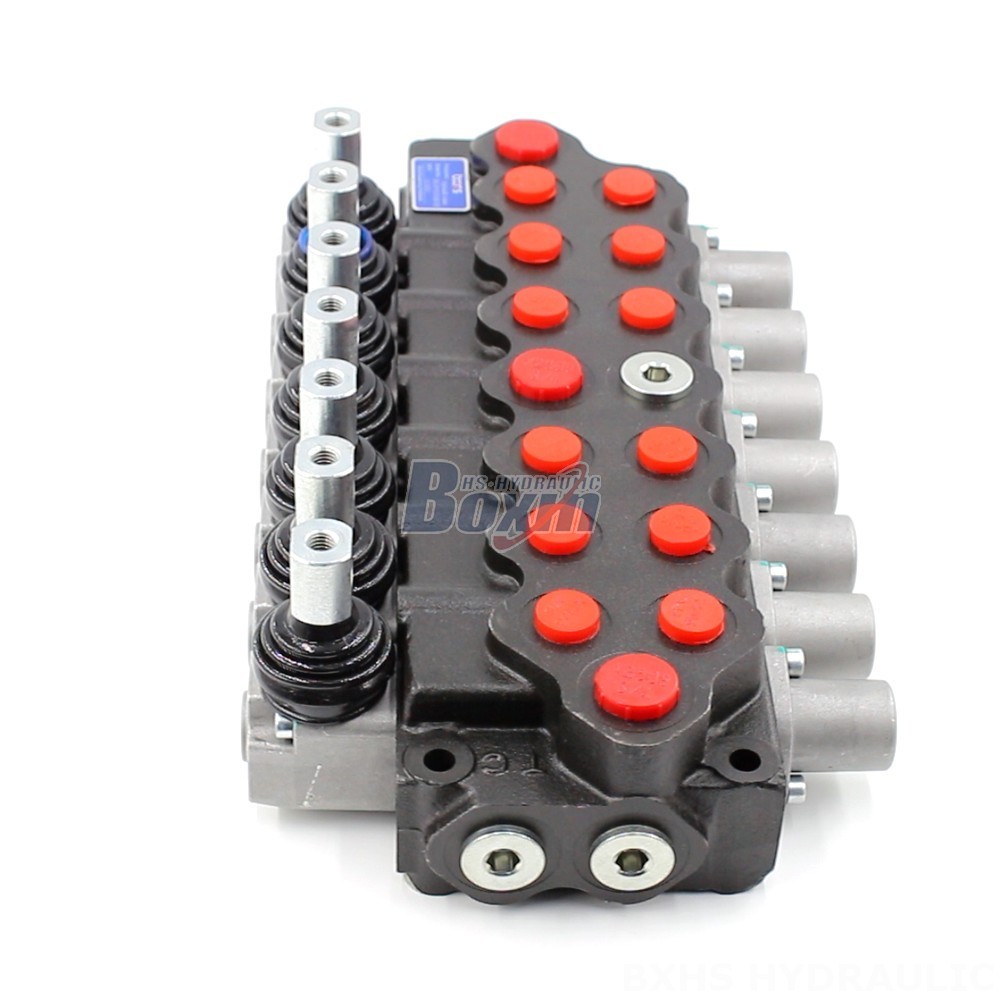

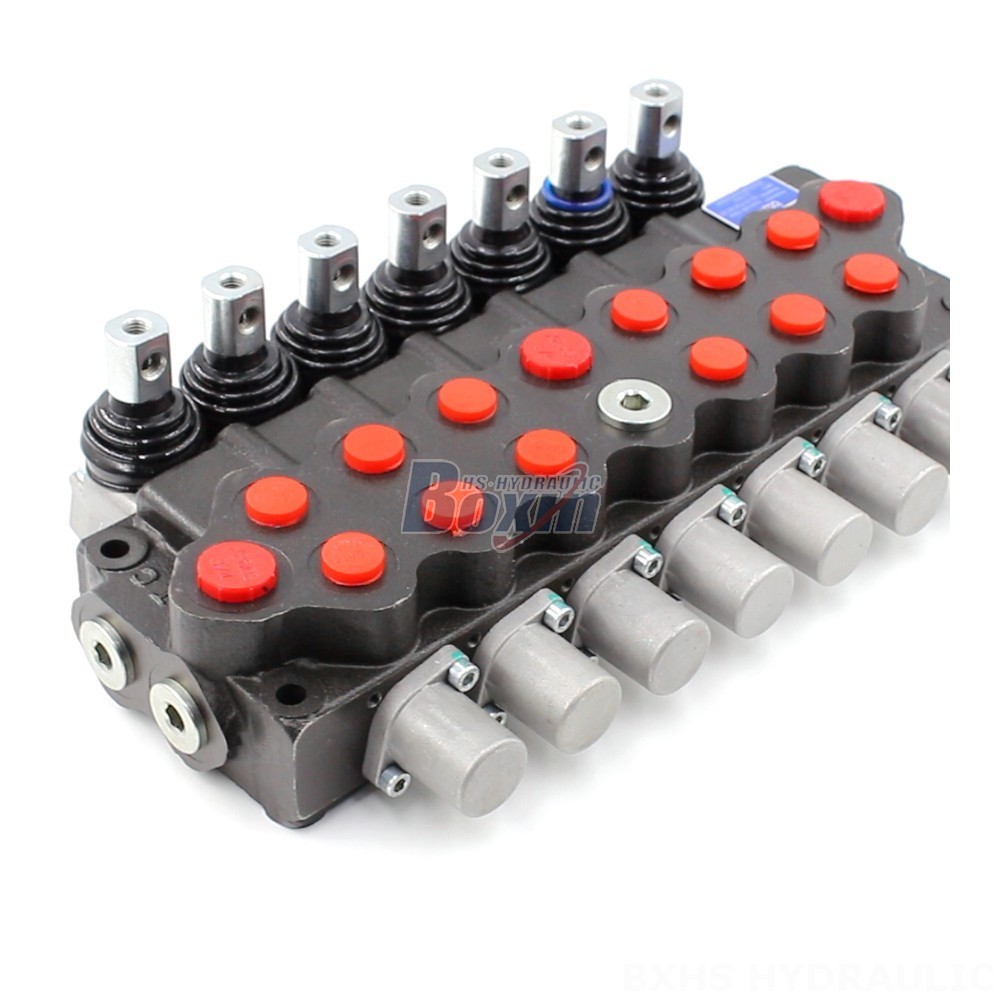

The SD5 Series 7-Spool Hydraulic Multiplier Valve is a high-performance, monoblock valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. With its 7 spools and rated flow of 40 L/min, it provides precise control and efficient operation.
| SD5 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 305 bar (4400 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Port Boyutu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 7-Spool Hydraulic Multiplier Valve is built with a robust monoblock construction, providing exceptional durability and reliability. It features a rated flow of 40 L/min, a maximum pressure rating of 305 bar (4400 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for demanding environments, it operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F). With its manual control and 7 spools, this valve offers precise control for a variety of hydraulic functions. This Hydraulic Multiplier Valve is ideal for applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
