Advanced Hydraulic Gear Pumps - CBHS-F550 Series. Wholesale & OEM. Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev. Rated Pressure: 20 MPa (2900 psi). Rated Speed: 2000 r/min. Max Speed: 2200 r/min. These pumps are widely used in material handling, construction and earth moving, agriculture, and industrial vehicles.
| CBHS-F5 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 32 cc/devir, 50 cc/devir, 63 cc/devir, 20 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 2500 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Dökme Demir |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | B-Kare Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |

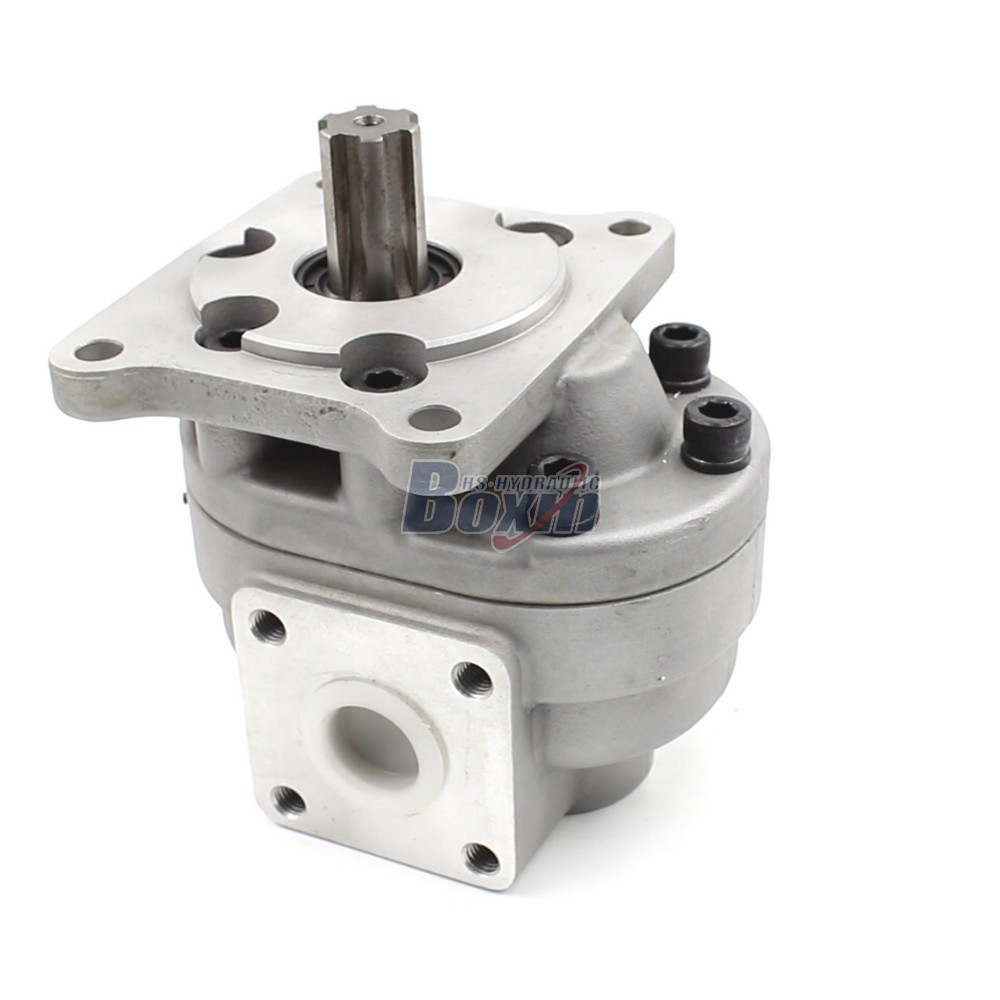

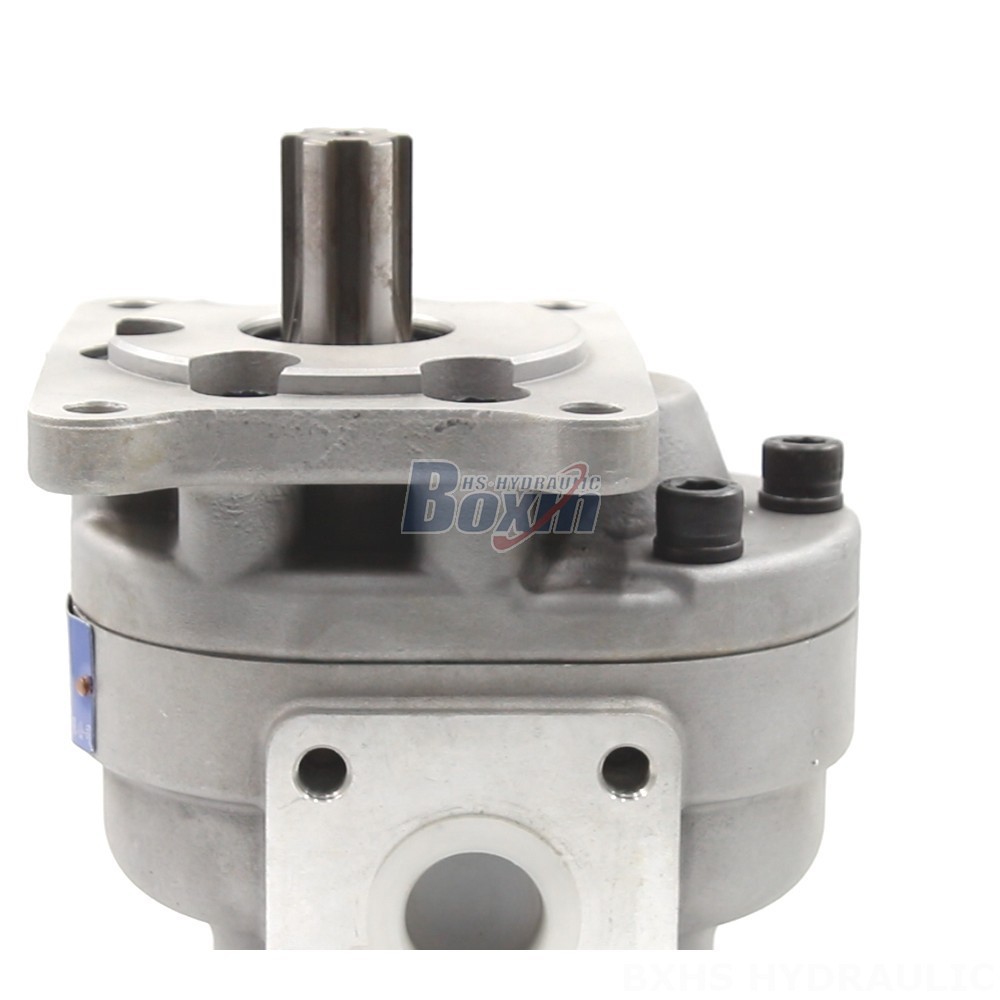

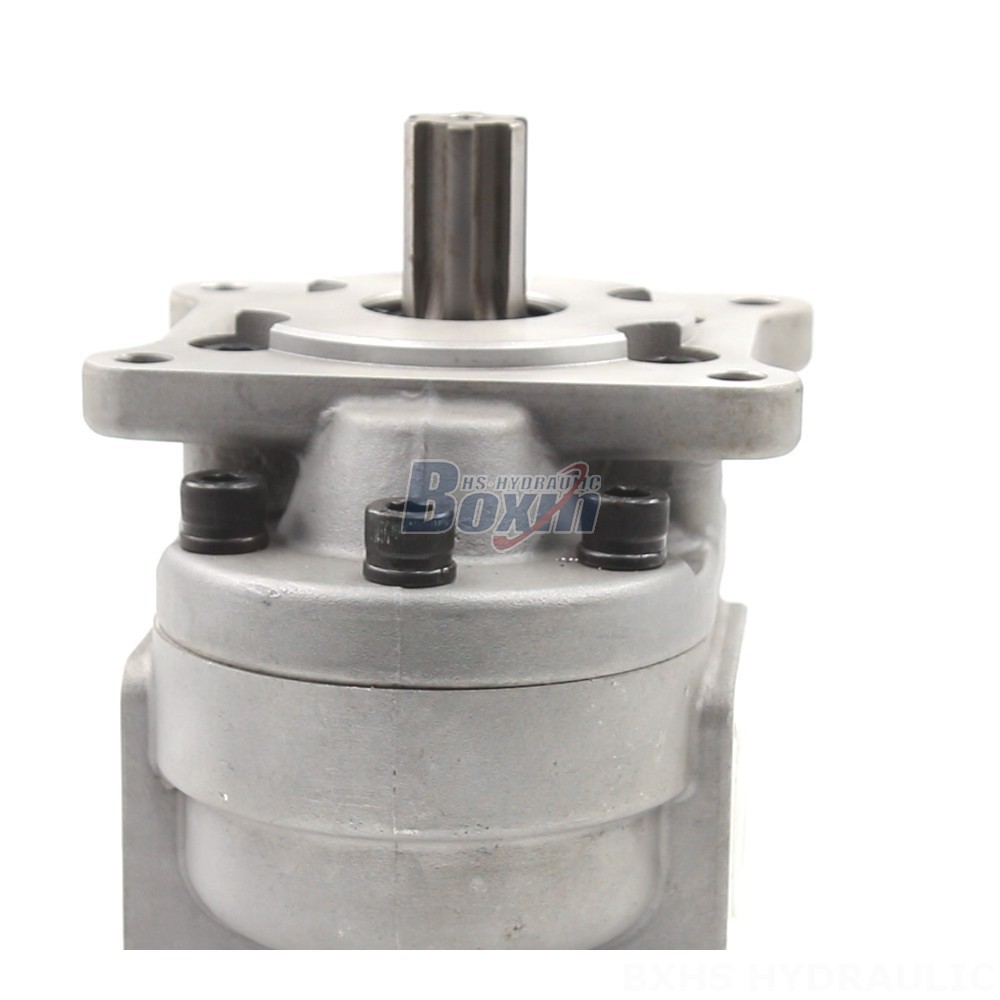

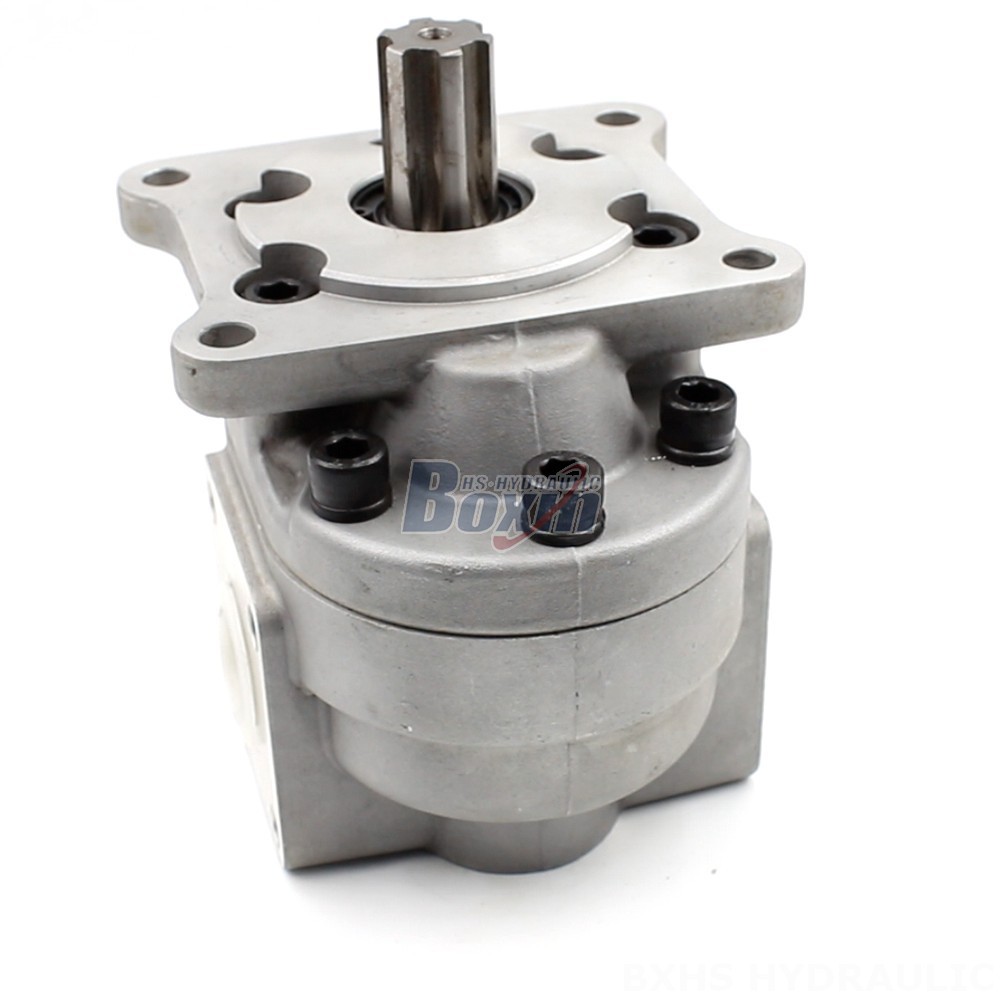

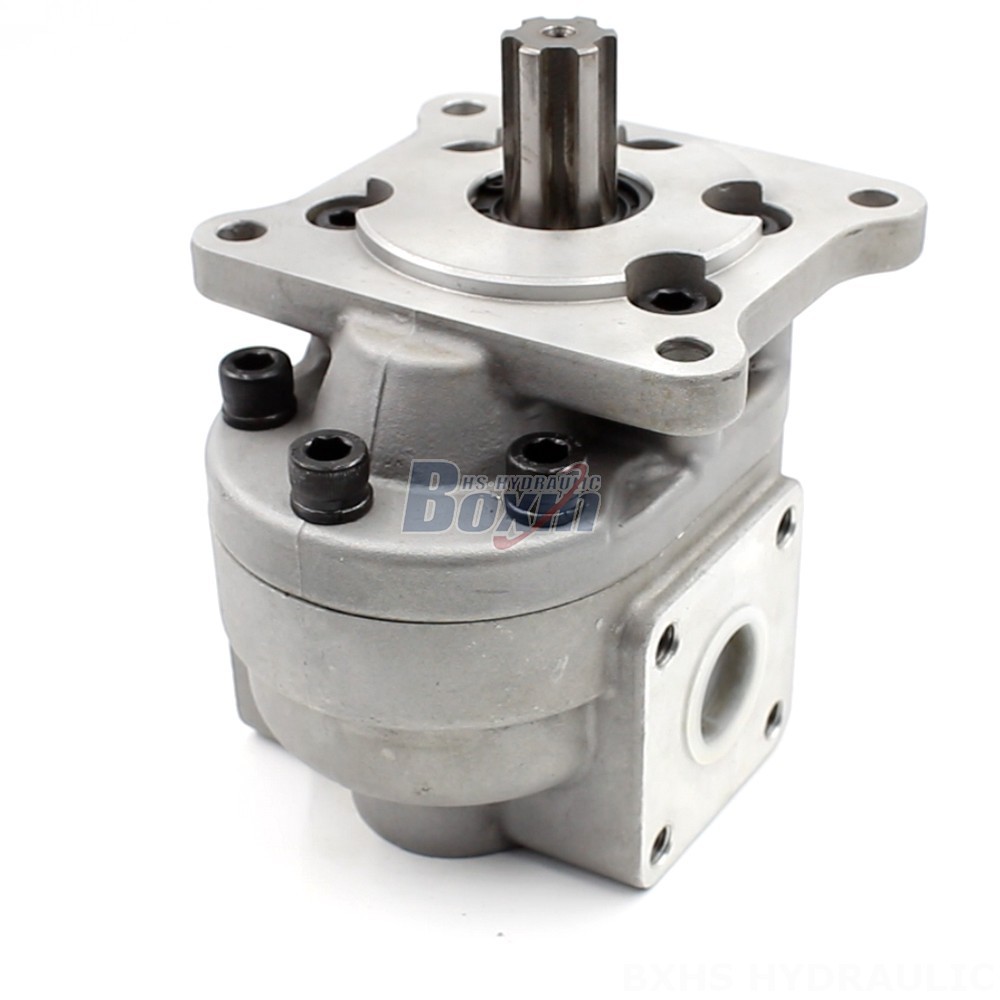

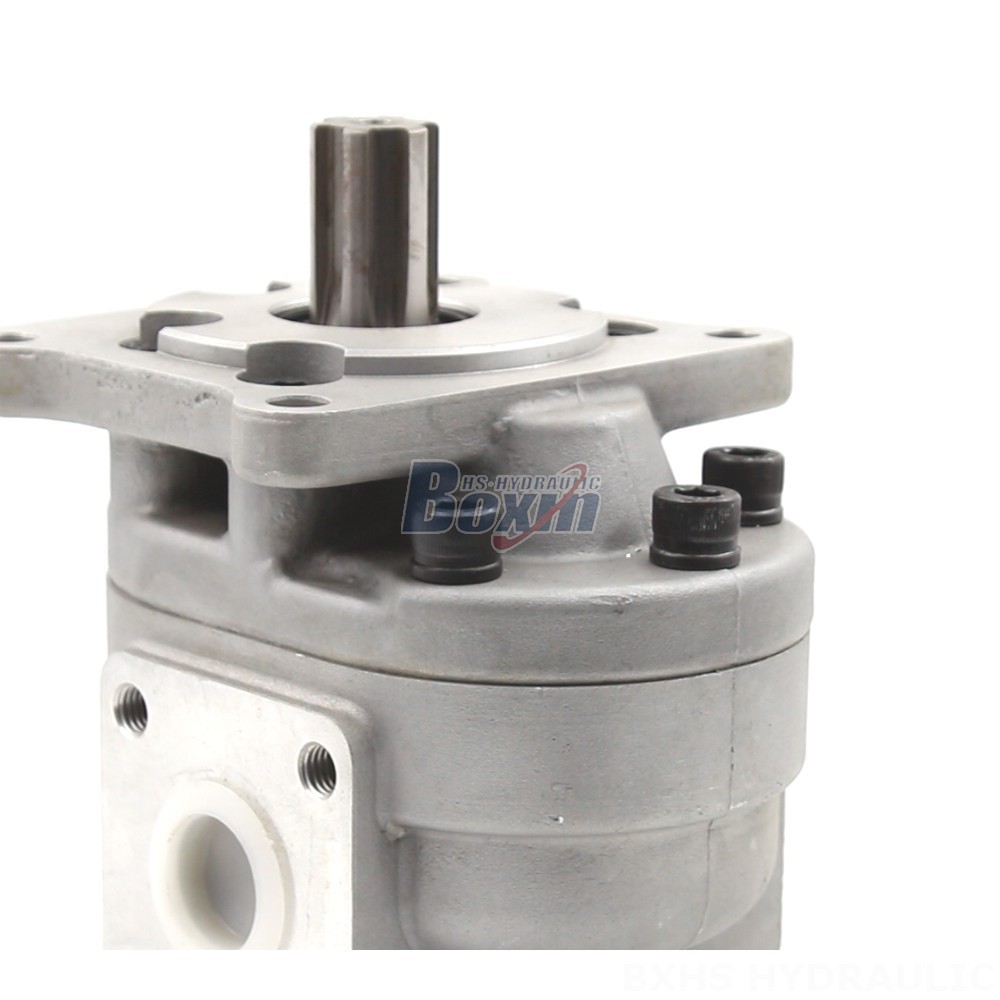

**Advanced Hydraulic Gear Pumps - CBHS-F550 Series**
**Product Description**
The Advanced Hydraulic Gear Pumps - CBHS-F550 Series are designed to provide high performance and reliability in a wide range of applications. These pumps feature a robust cast iron construction and are available with a variety of displacement options to meet the specific requirements of your application.
**Key Features**
* Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: Left (counter-clockwise), Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: Plain Key, Rectangle Spline, Involute Spline
* Series: CBHS-F5 Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
**Benefits**
* High performance and reliability
* Robust cast iron construction
* Variety of displacement options
* Wide range of applications
**Contact us today to learn more about the Advanced Hydraulic Gear Pumps - CBHS-F550 Series.**
