The HSDVG32 4 Spool Proportional Control Valve is an advanced hydraulic valve technology designed for demanding applications in various industries. With its high flow rate of 140 L/min and maximum pressure of 315 bar, it provides precise and efficient control of hydraulic systems. The electric proportional and manual control options offer versatility and flexibility in operation.
| HSDVG32 Serisi Oransal Kontrol Valfi Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektrohidrolik, Selenoid, Hidrolik ve Manuel, Kablo, Elektrikli orantılı, Solenoid ve Manuel, Elektrikli orantılı ve Manuel |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 140 L/dk (37 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G3/4 |
| Çıkış Portu | G3/4 |
| Port Boyutu | G1/2, G3/4 |

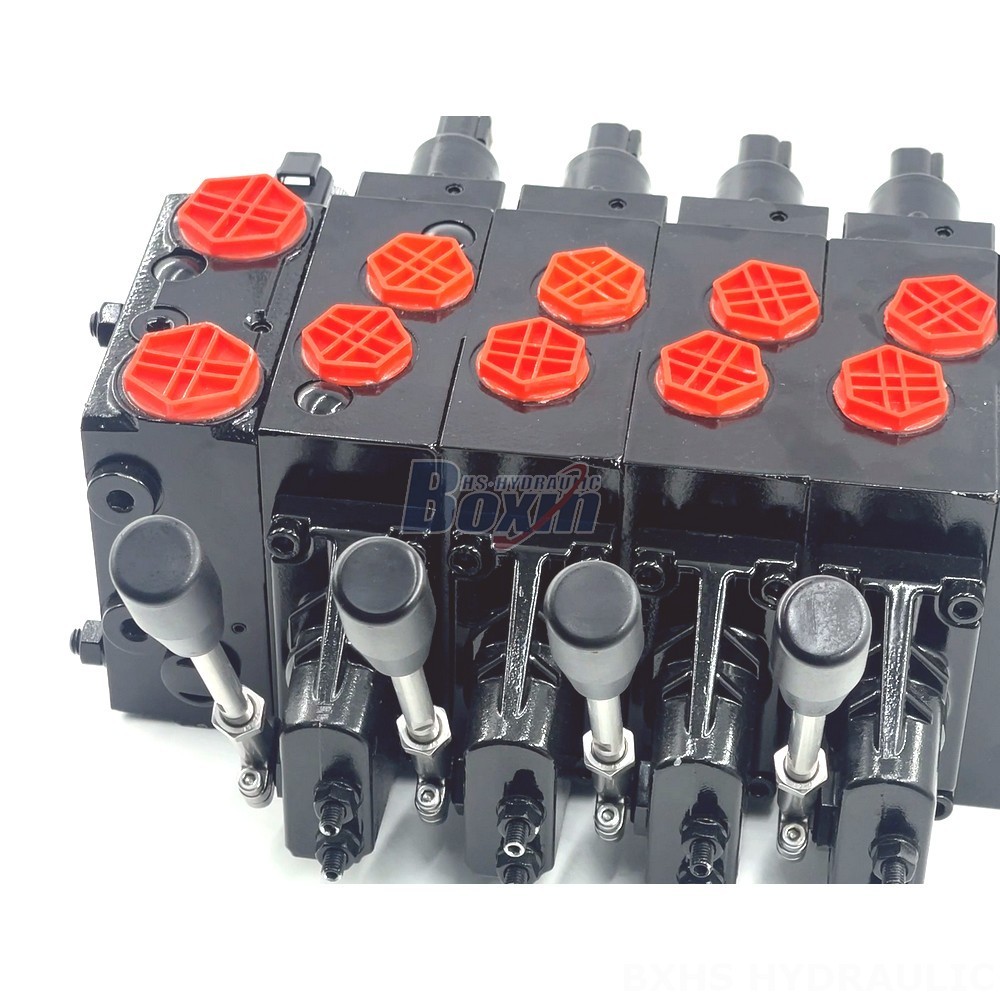

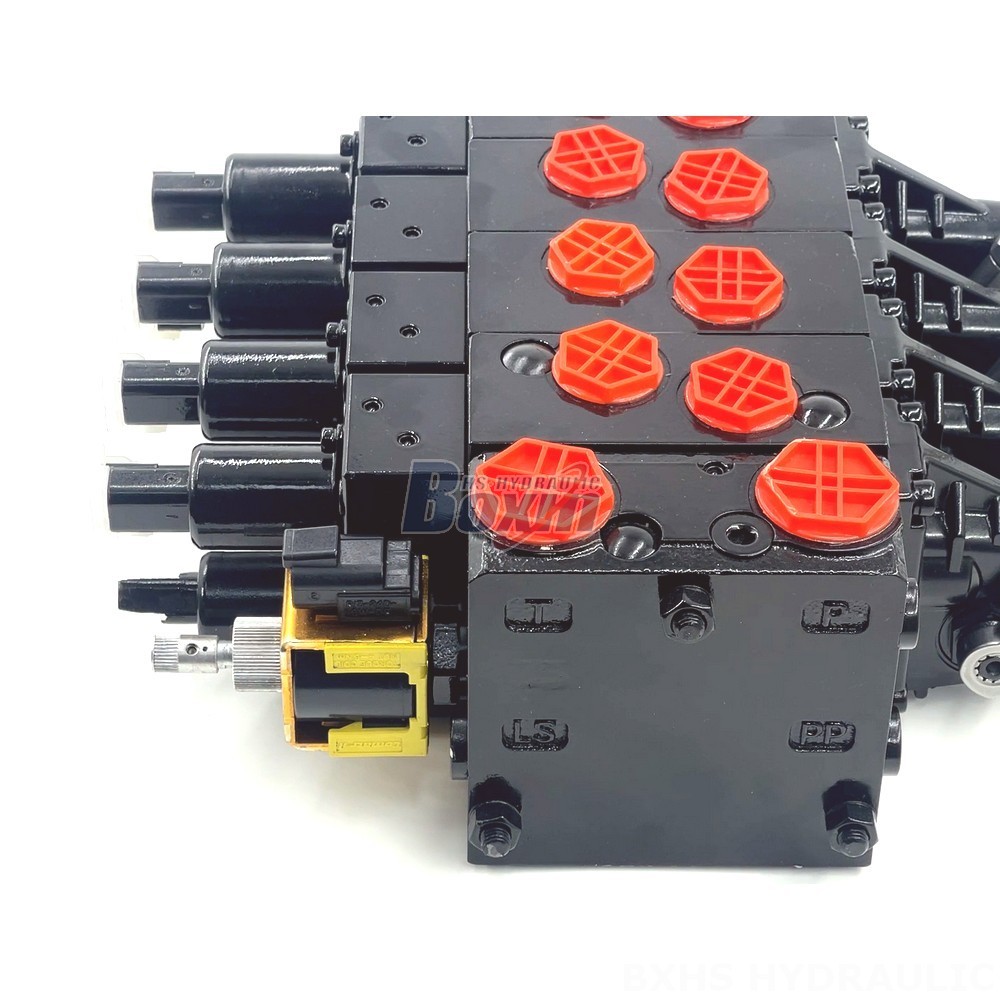

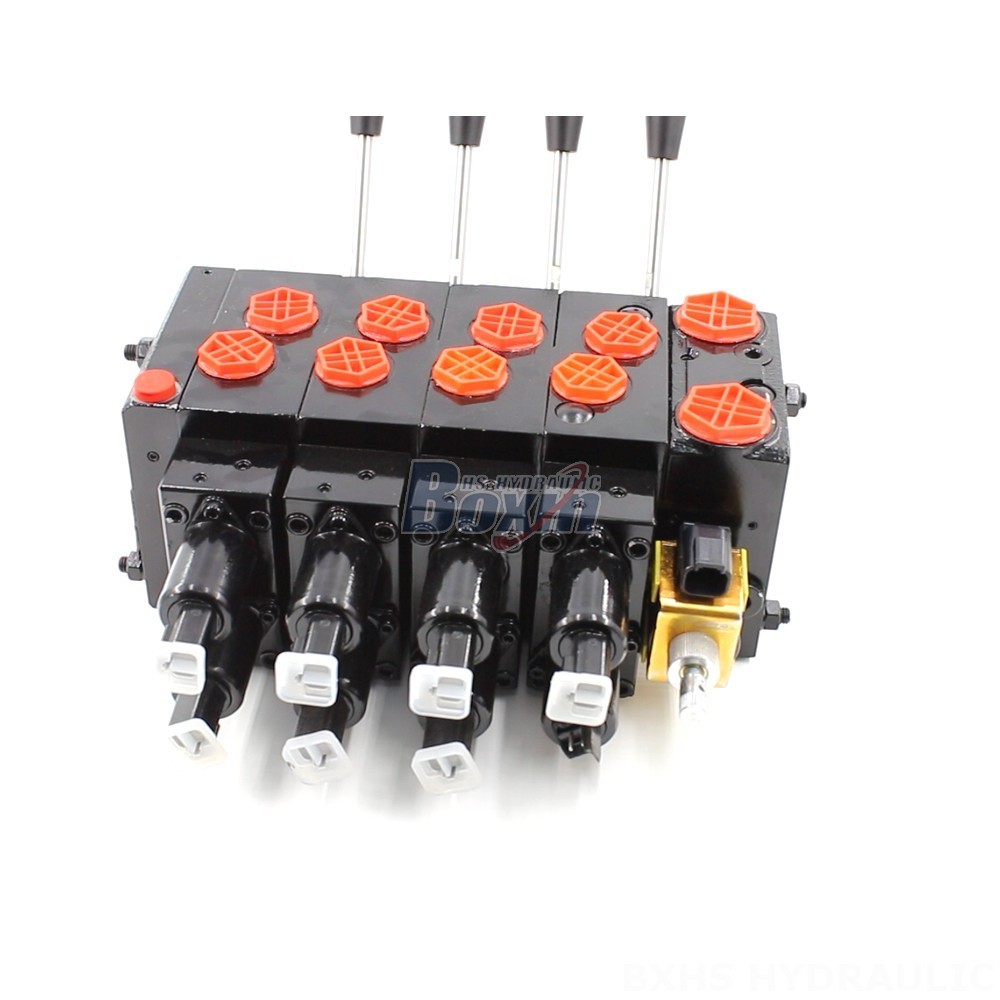

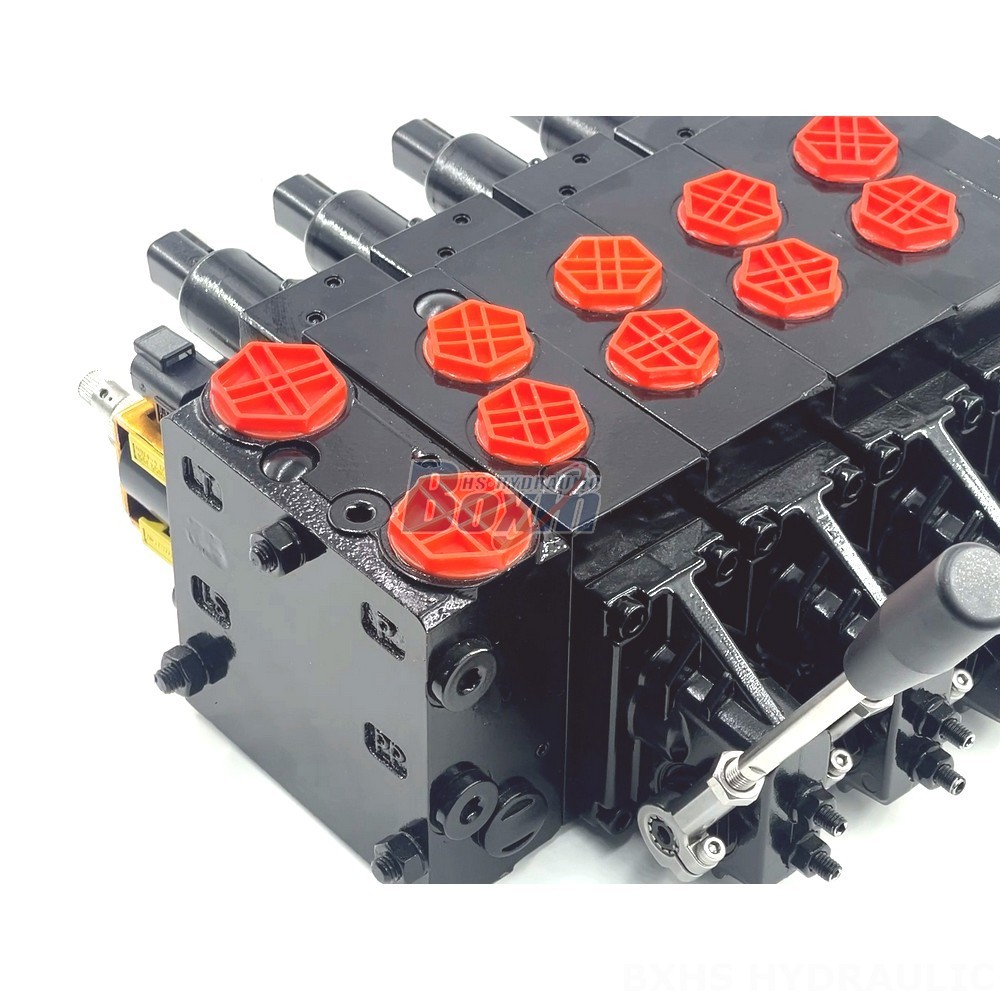

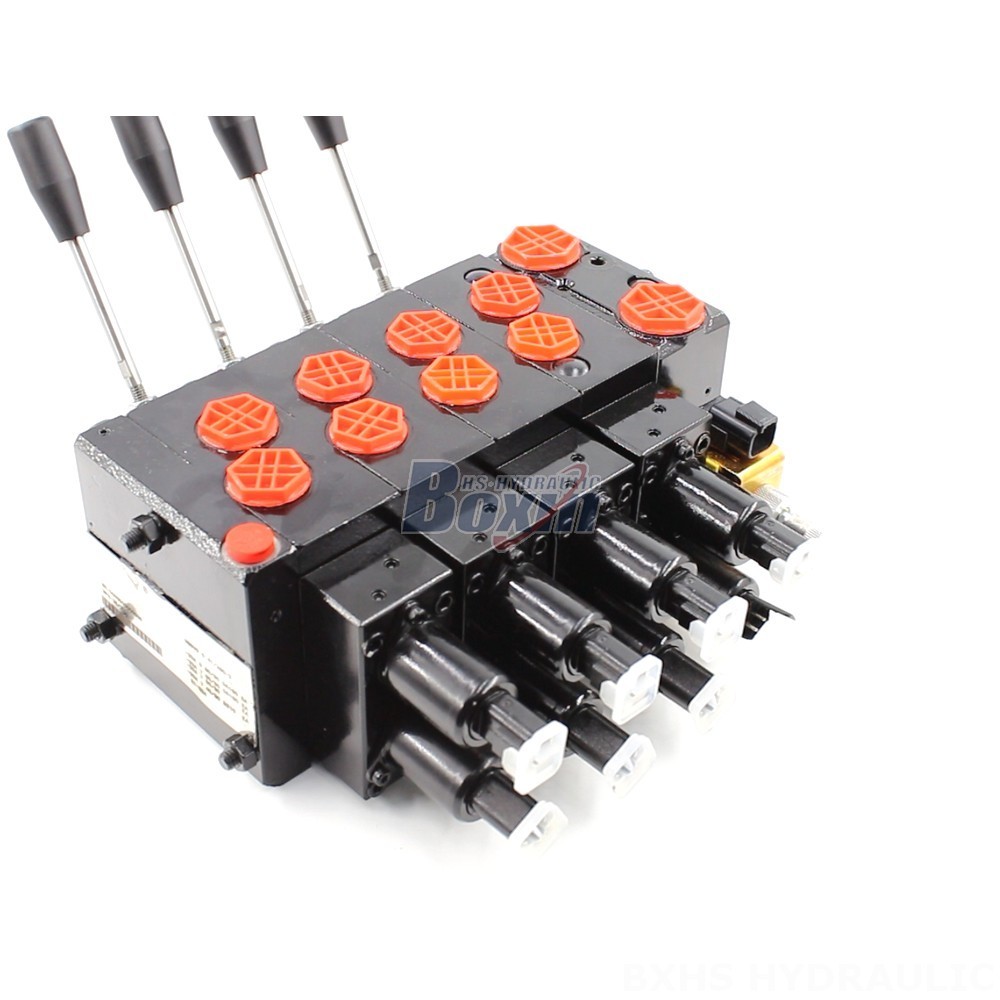

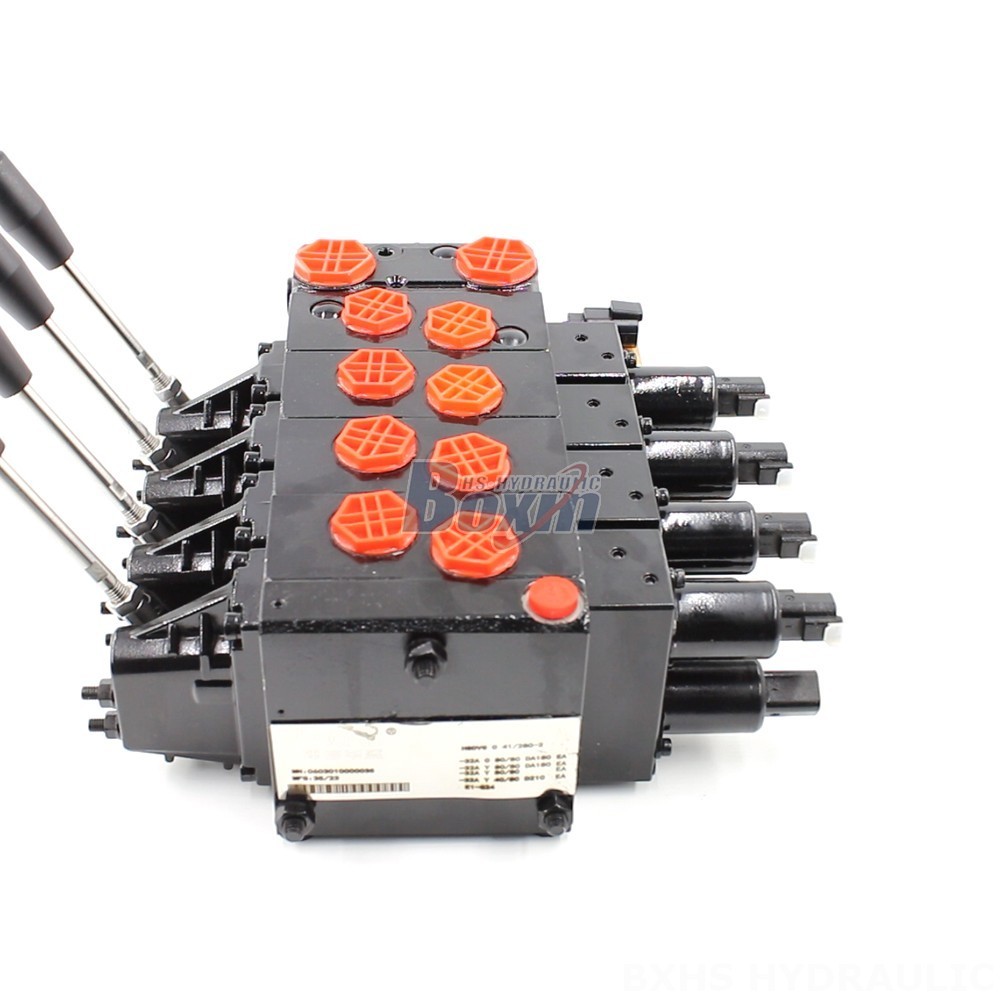

**HSDVG32 4 Spool Proportional Control Valve**
The HSDVG32 4 Spool Proportional Control Valve is a sectional valve with four spools, providing independent control of multiple hydraulic circuits. It is constructed from high-quality materials to ensure durability and reliability in harsh operating conditions. The valve features an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
**Key Features:**
* Rated Flow: 140 L/min (37 US gpm)
* Max Pressure: 315 bar (4600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: HSDVG32 Series
* Control Method: Electric proportional and Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 4 Spool Proportional Control Valve is ideal for applications requiring precise flow control and high pressure capabilities. Its versatility and reliability make it suitable for a wide range of hydraulic systems in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
