Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Yenilik gelişimi yönlendirir Teknoloji geleceği şekillendirir
1077 Görünümler Bu Ürünü Arıyor

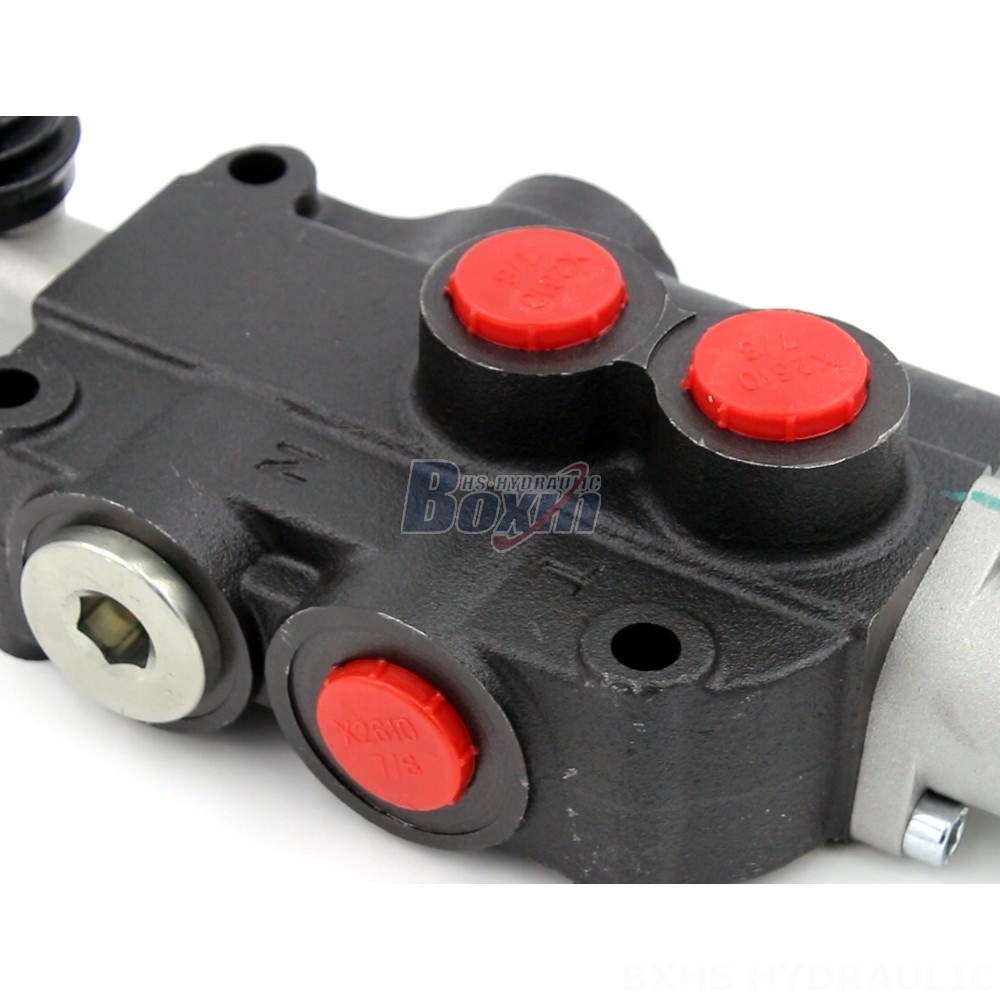

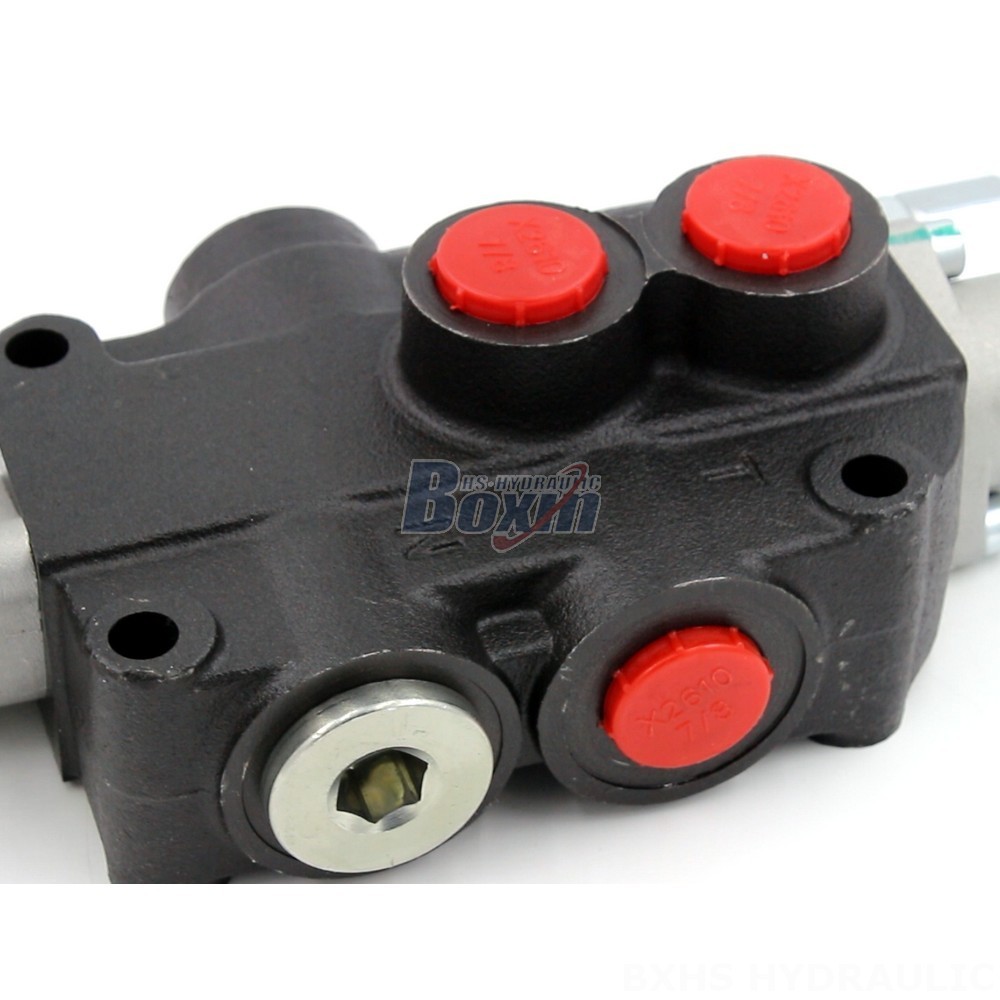

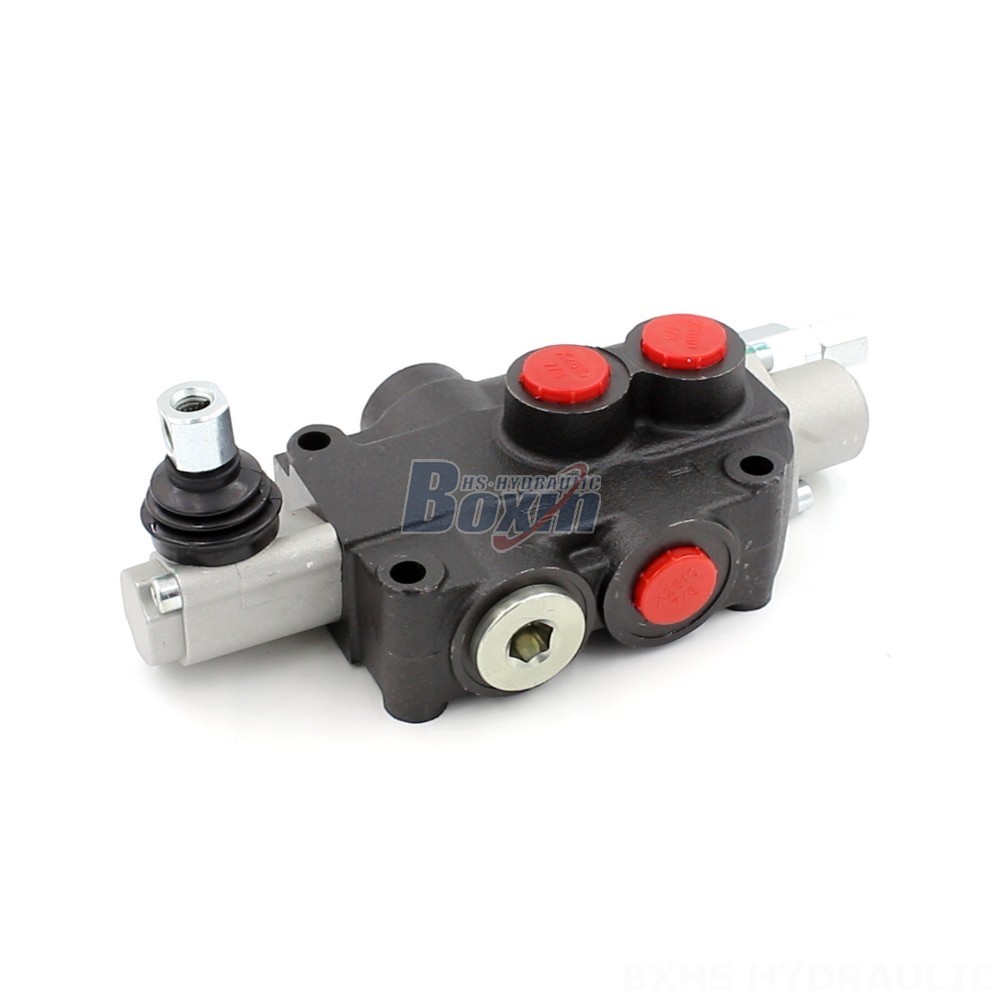

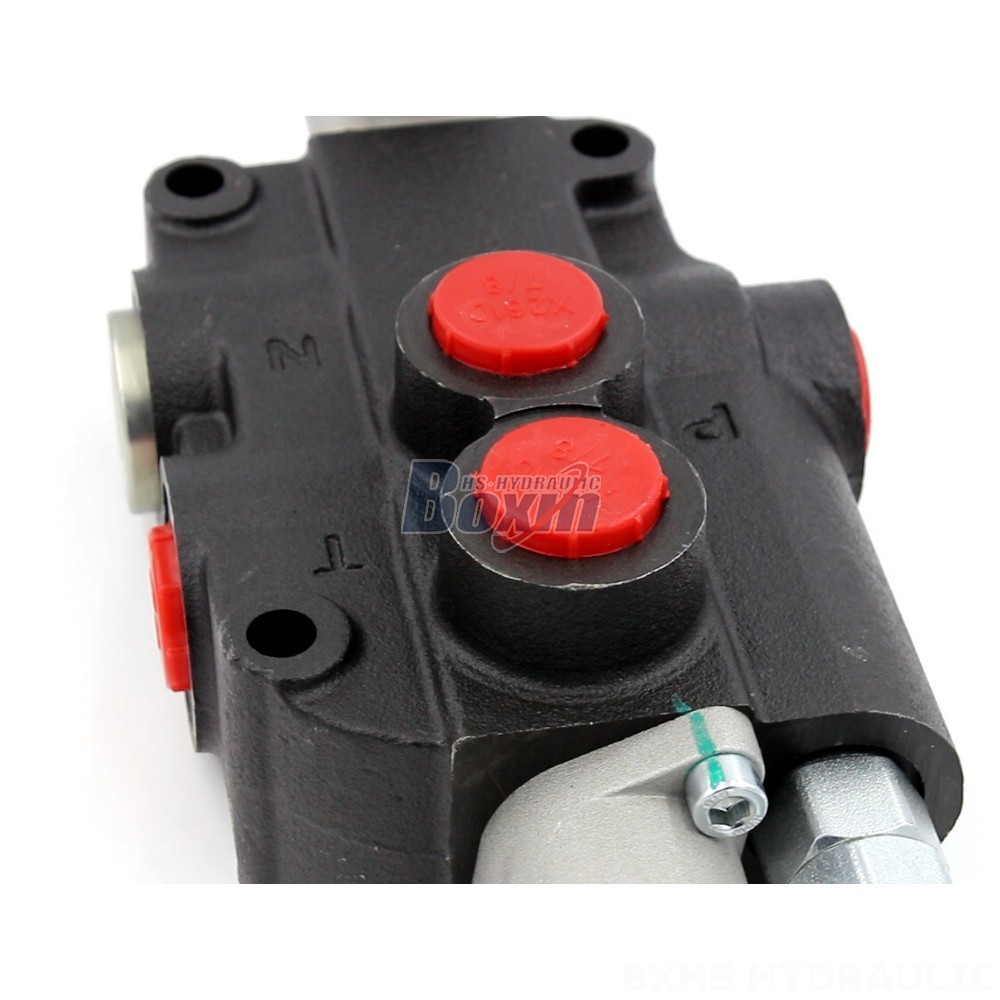

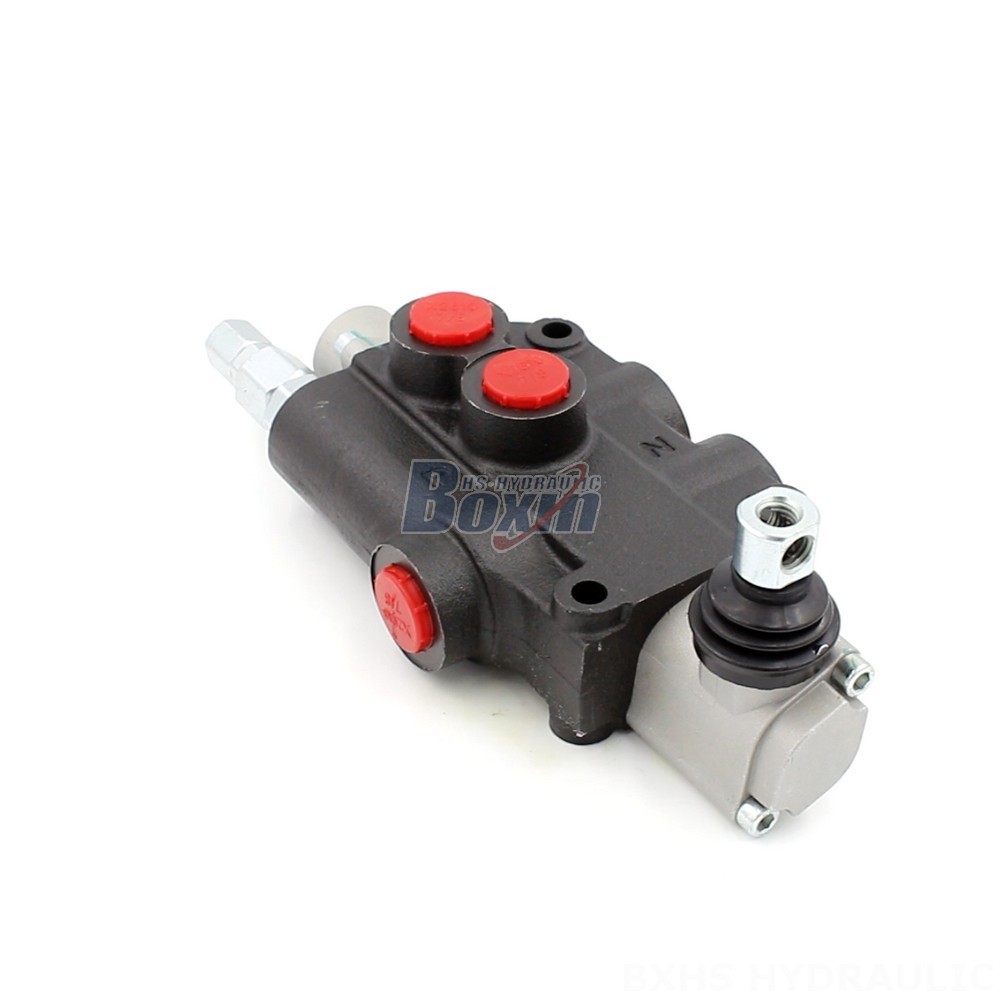

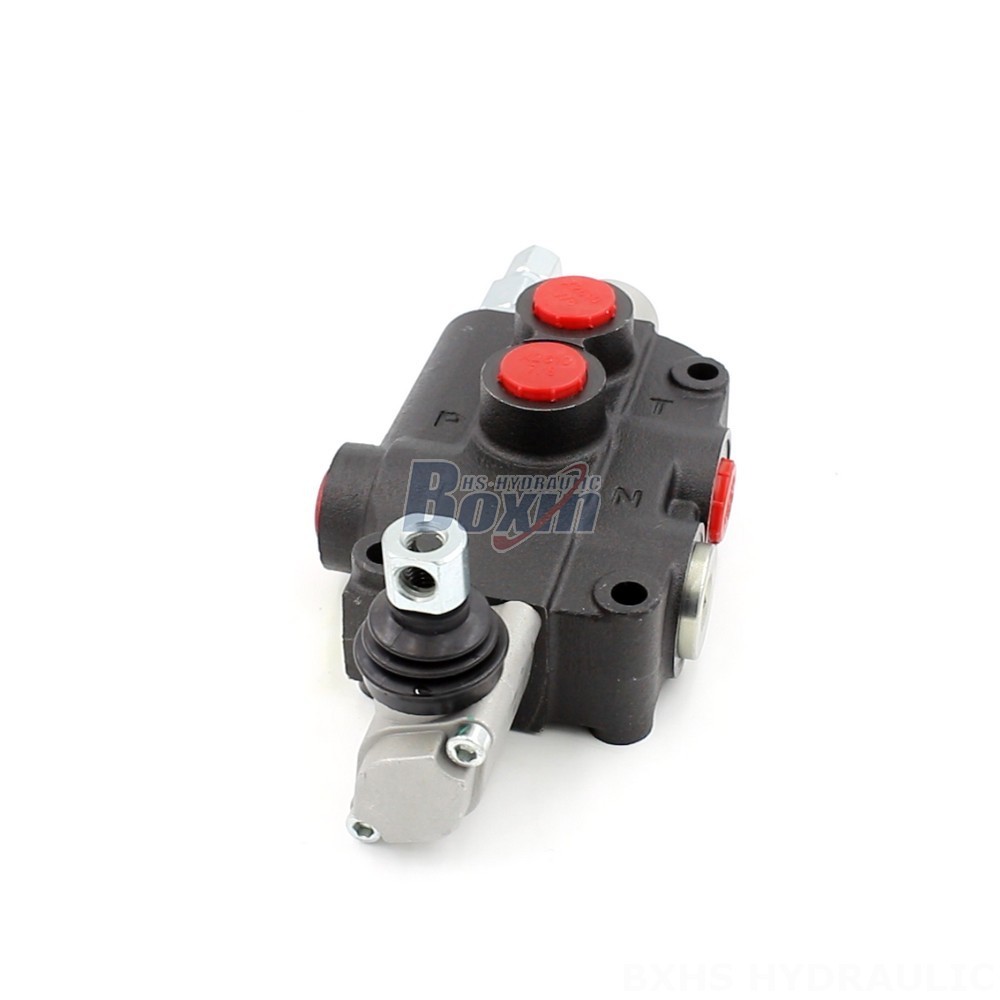

P80-U78-OT Directional Control Valves are bespoke hydraulic components designed to meet specific application requirements. With a manual control method, monoblock valve structure, 80 L/min (21.2 US gpm) rated flow, and 250 bar (3600 psi) max pressure, these valves are ideal for MATERIAL HANDLING applications, particularly in FORKLIFTs.
| P80 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our bespoke hydraulic components offer a range of benefits, including:
* **Customization:** We can tailor our products to your specific requirements, ensuring a perfect fit for your application.
* **OEM and ODM services:** We offer both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services, providing flexibility in product development.
* **High quality:** Our products are manufactured to the highest standards, ensuring reliability and durability.
* **Global distribution:** We have a network of distributors, wholesalers, agents, and traders worldwide, ensuring easy access to our products.
P80-U78-OT Directional Control Valves are just one example of our bespoke hydraulic component offerings. Contact us today to discuss your specific requirements and how we can provide a customized solution for your application.
