Introducing our Bespoke Hydraulic Solutions: P40-G12-OT Directional Control Valves, engineered to meet your unique hydraulic system requirements. These customizable valves offer manual control, a compact monoblock design, and exceptional performance with a rated flow of 40 L/min and a maximum pressure of 250 bar.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

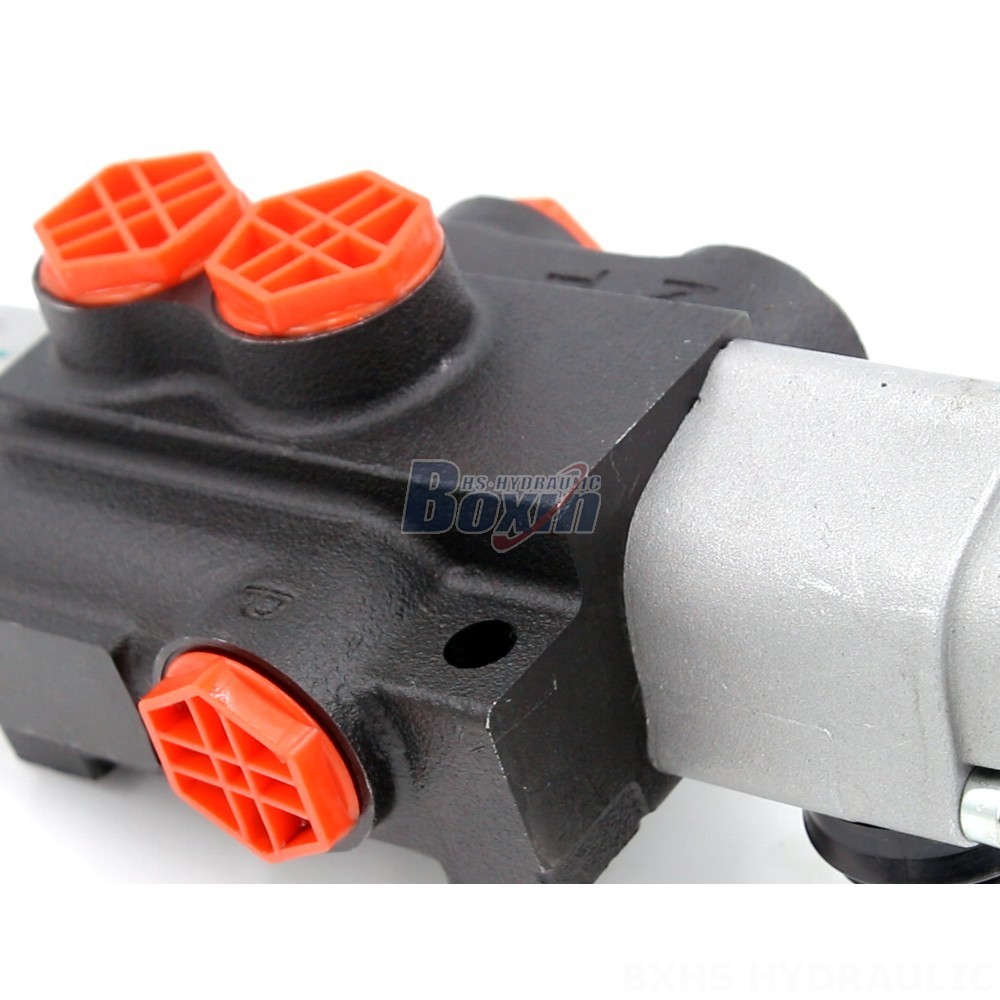

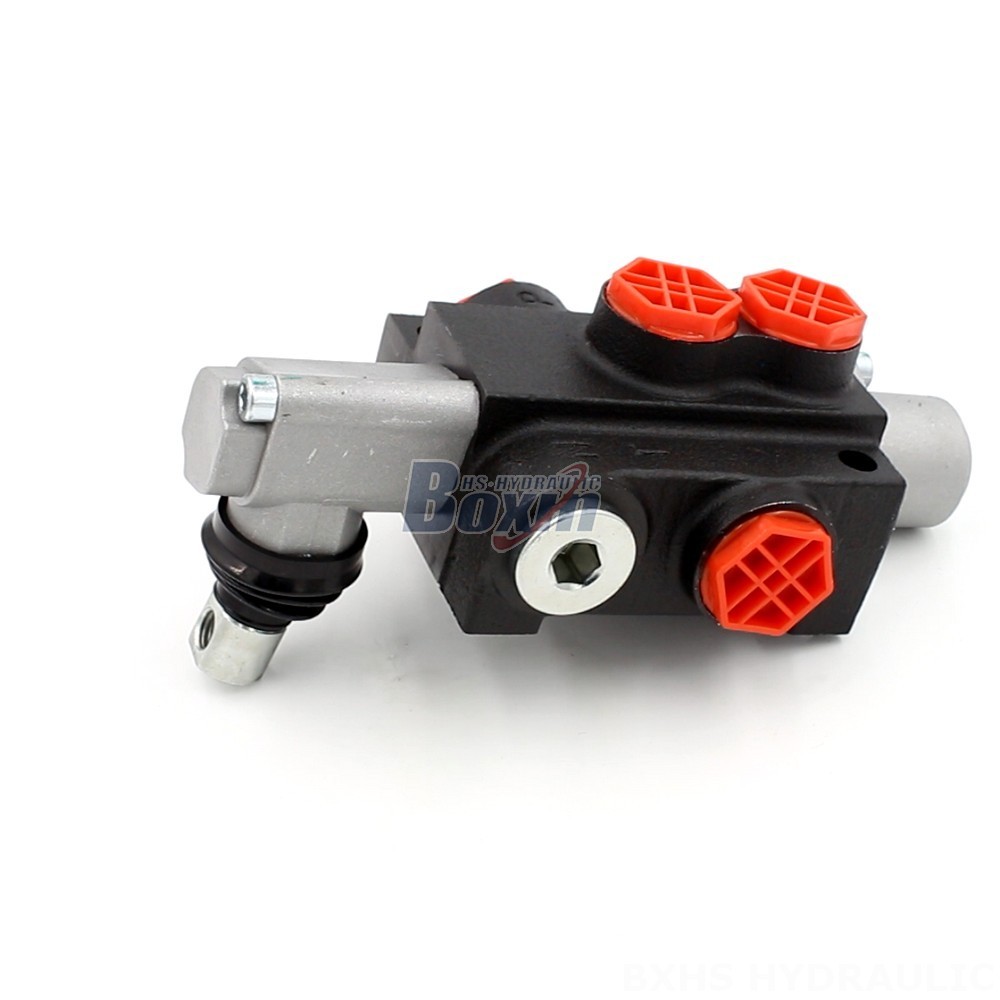

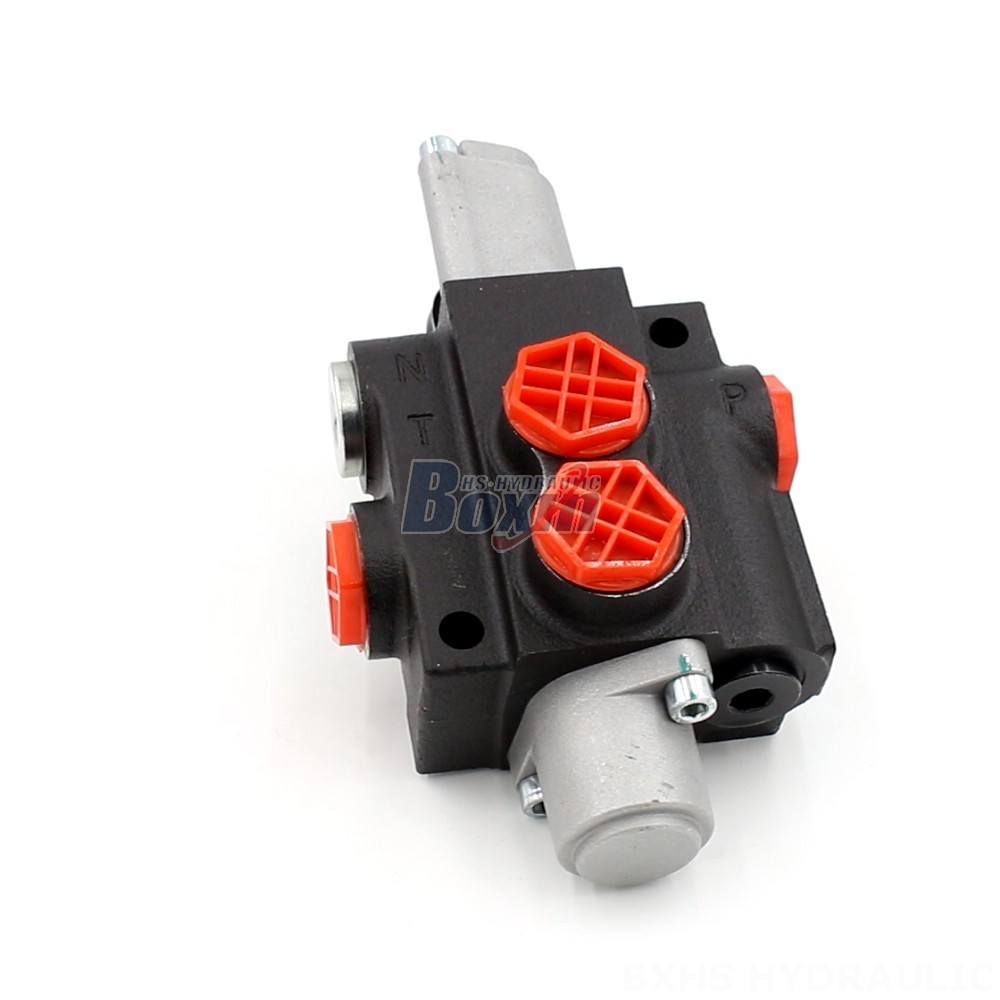

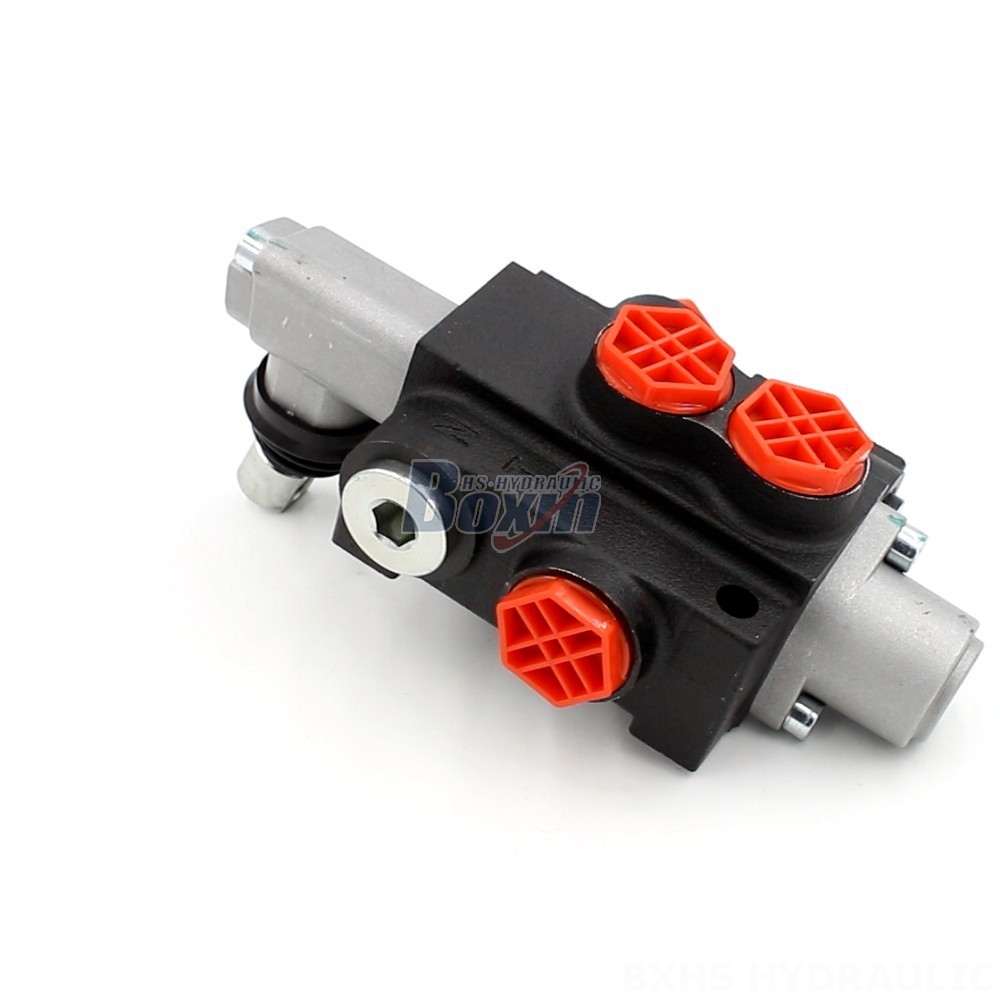

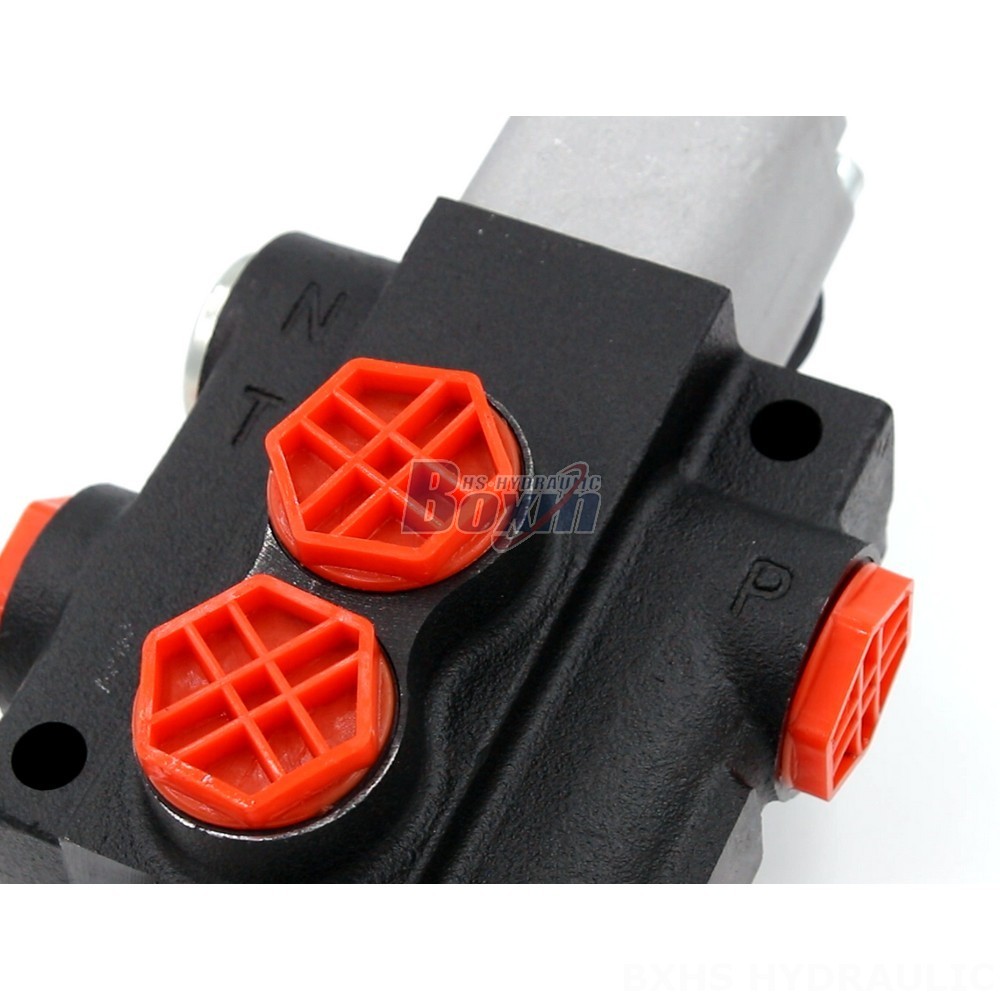

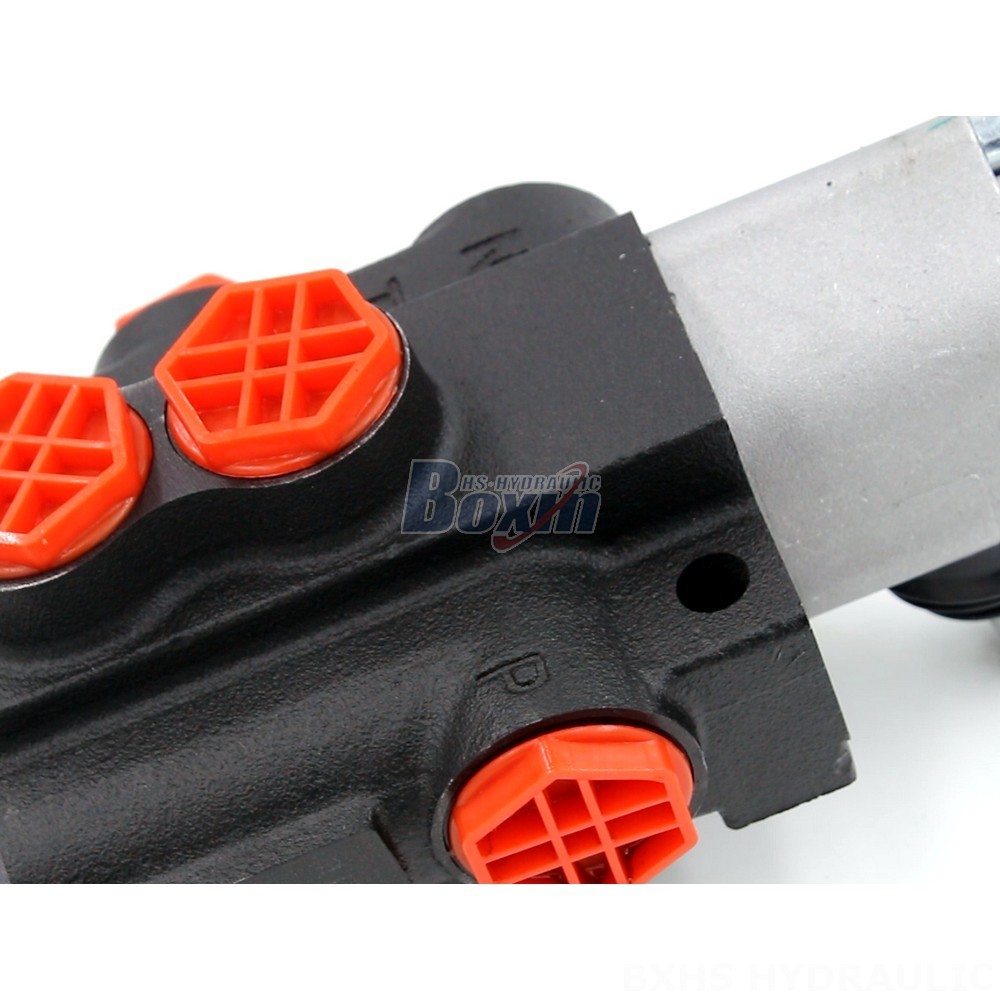

**P40-G12-OT Directional Control Valves: Tailored Hydraulic Solutions**
Our P40-G12-OT Directional Control Valves are designed to provide precise fluid control in a wide range of hydraulic applications. With their customizable features and robust construction, these valves deliver reliable performance and enhanced system efficiency.
**Key Features:**
- Manual control for intuitive operation
- Monoblock valve design for compactness and durability
- Rated flow of 40 L/min (10.5 US gpm) to handle demanding flow requirements
- Maximum pressure of 250 bar (3600 psi) for high-pressure applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions
- Ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
