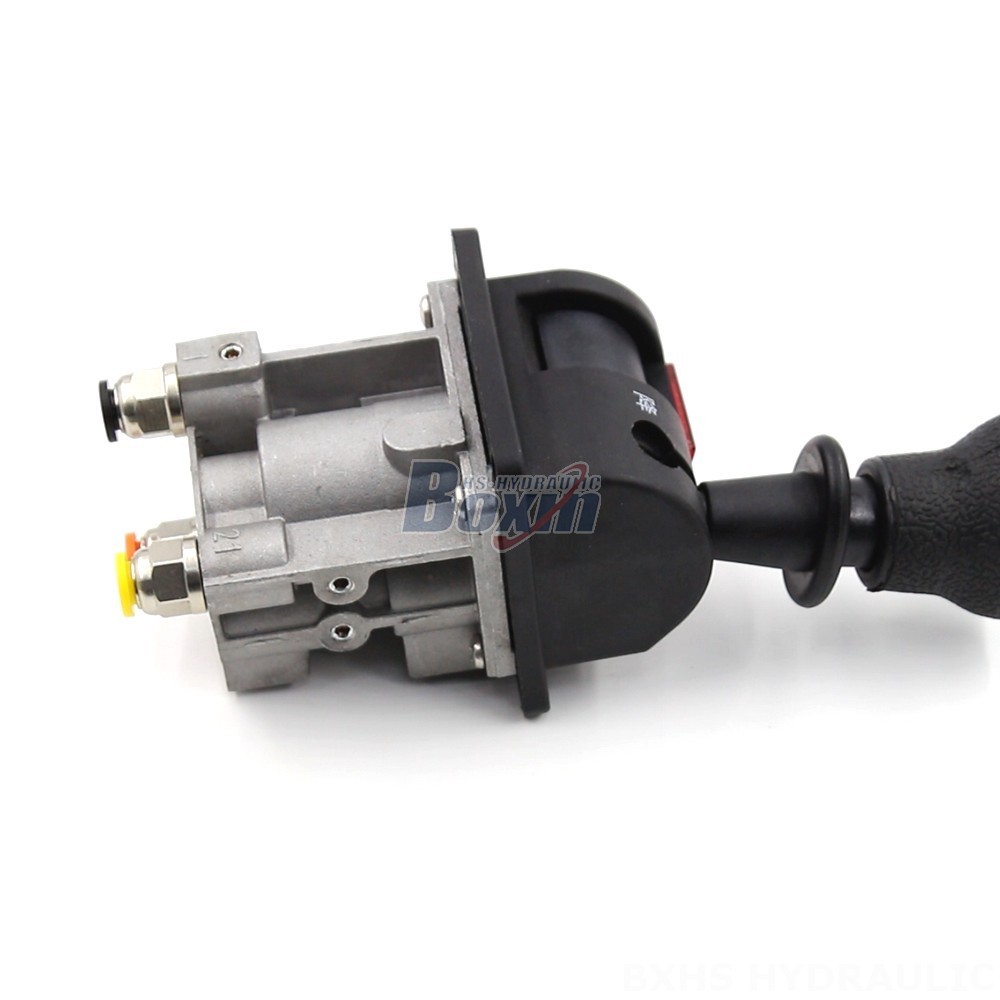

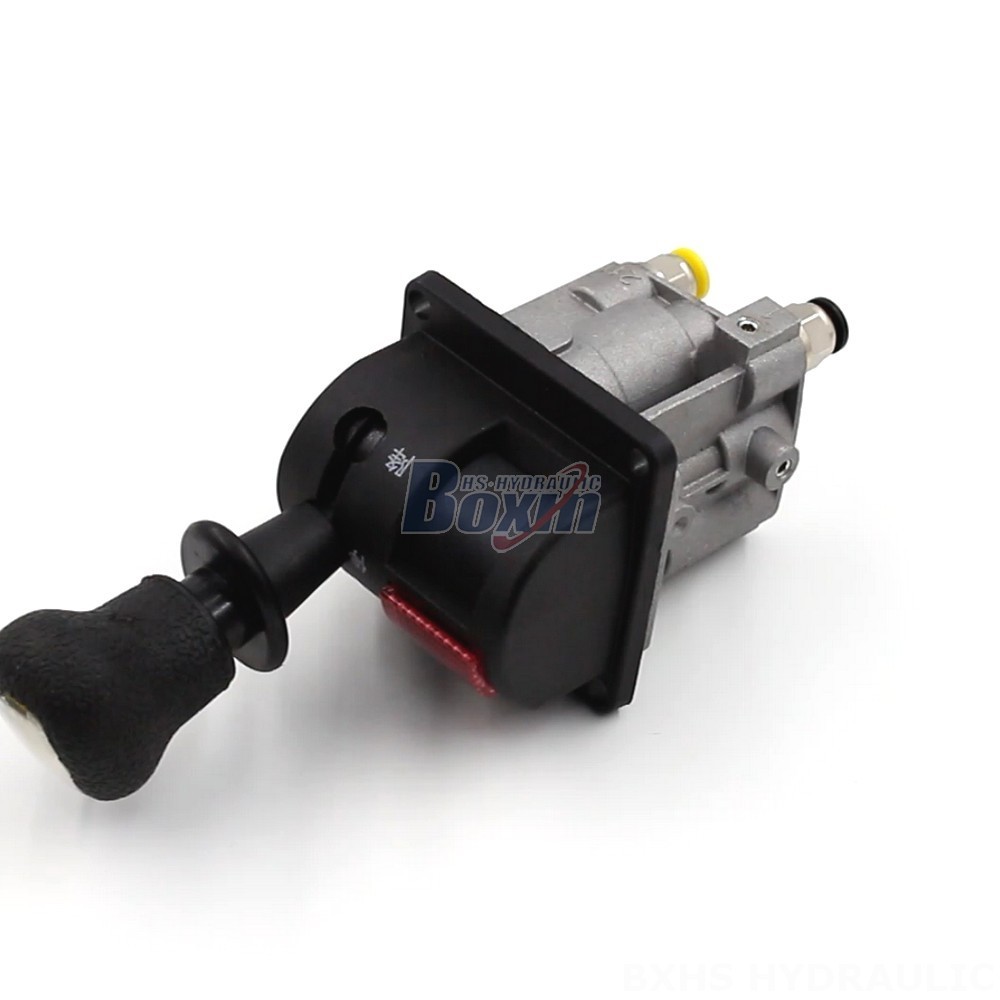

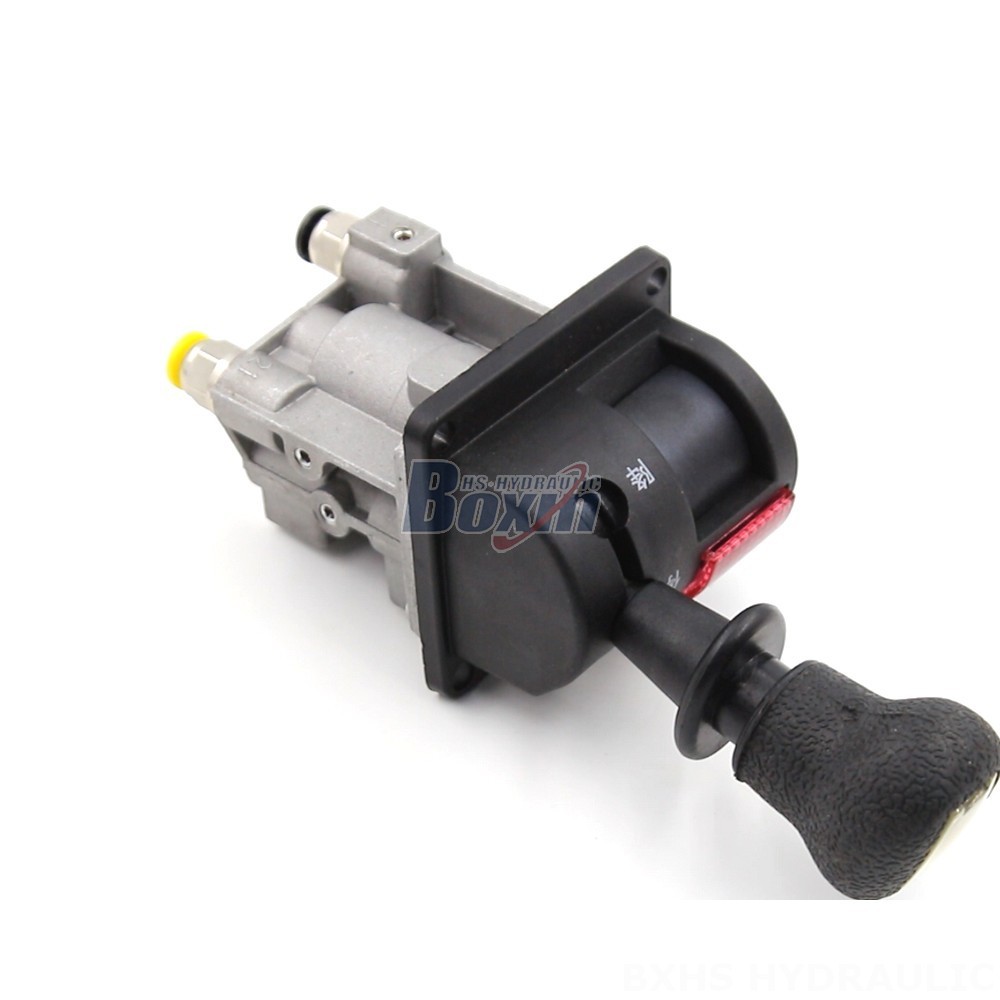

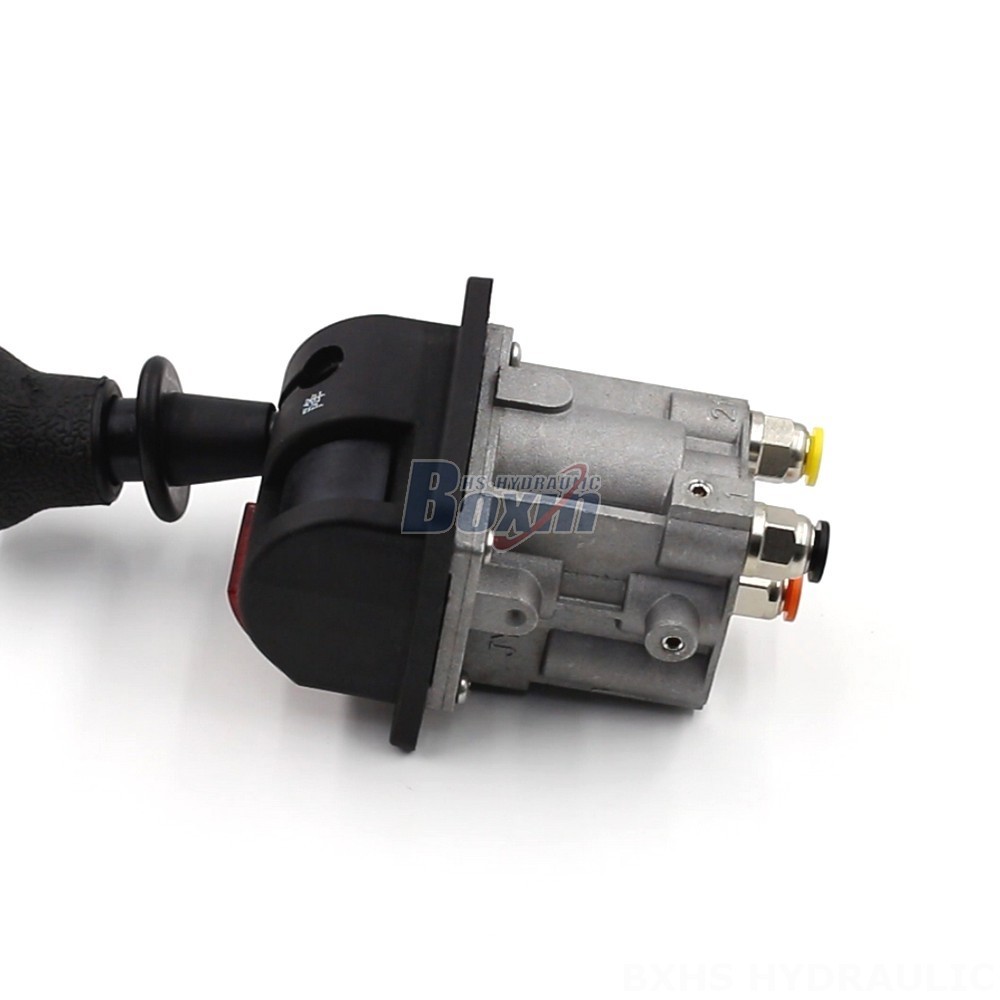

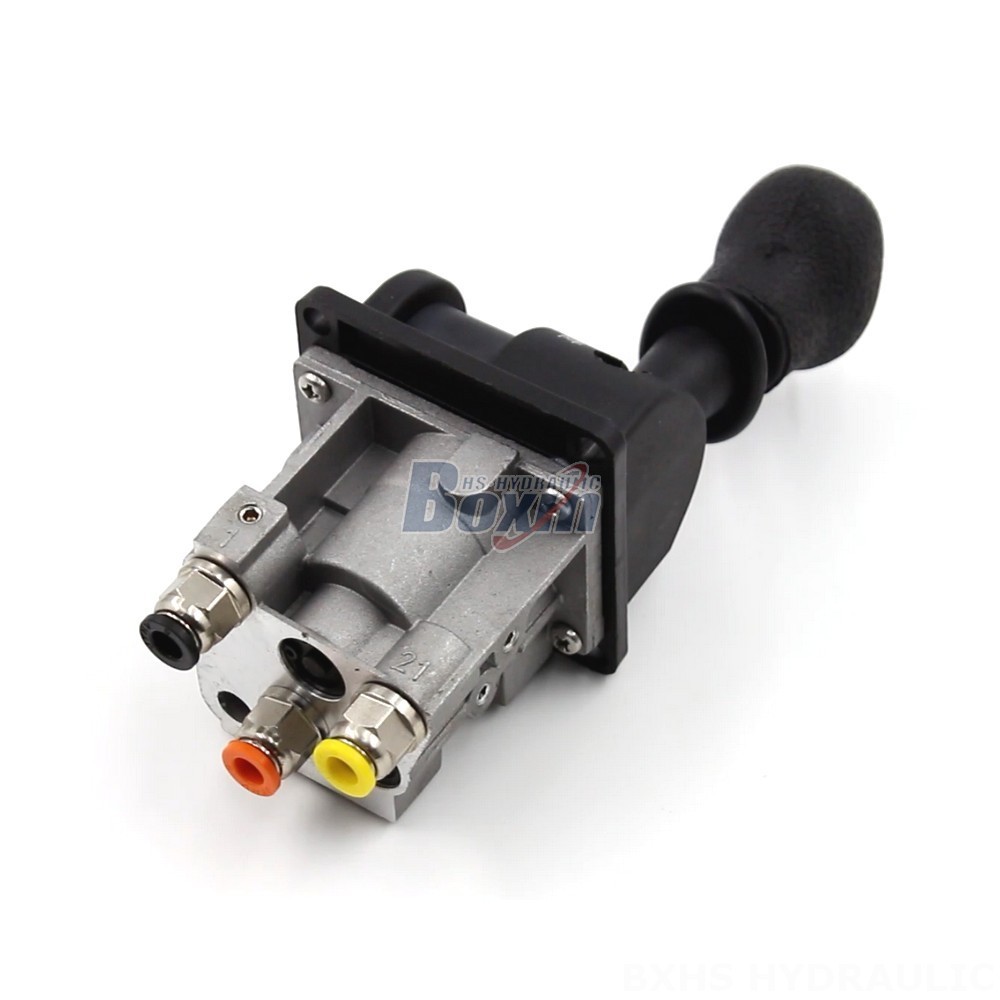

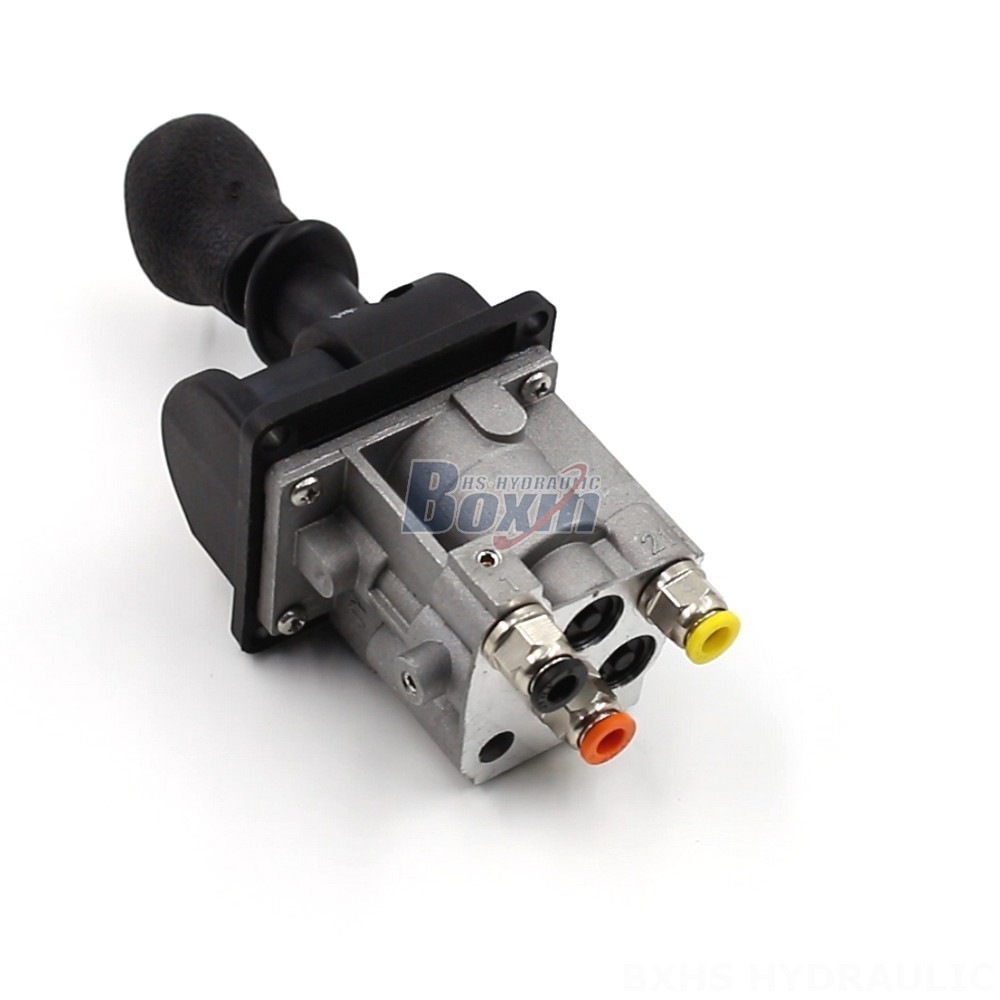

The BKQF34-A Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. This valve features a compact and robust monoblock construction, manual control, and a rated flow of 40 L/min. With a maximum pressure of 160 bar and an operating viscosity range of 12 - 400 mm²/s, this valve is suitable for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles.
| BKQF34 Serisi Pnömatik Kontrol Vanası Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 1 MPa (145 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
**Product Highlights:**
* Manual control for precise and responsive operation
* Monoblock construction for durability and reliability
* Rated flow of 40 L/min for efficient hydraulic system performance
* Maximum pressure of 160 bar for handling high-pressure applications
* Operating viscosity range of 12 - 400 mm²/s for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in harsh environments
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
