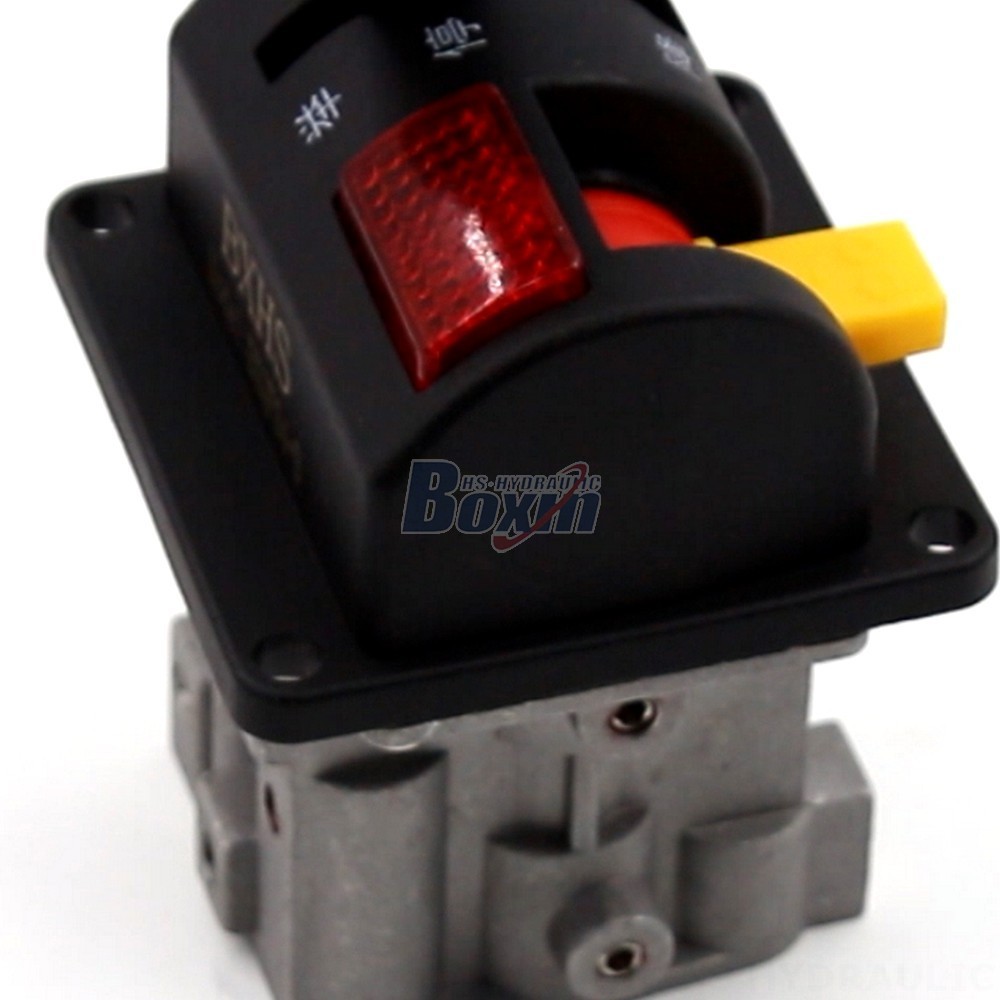

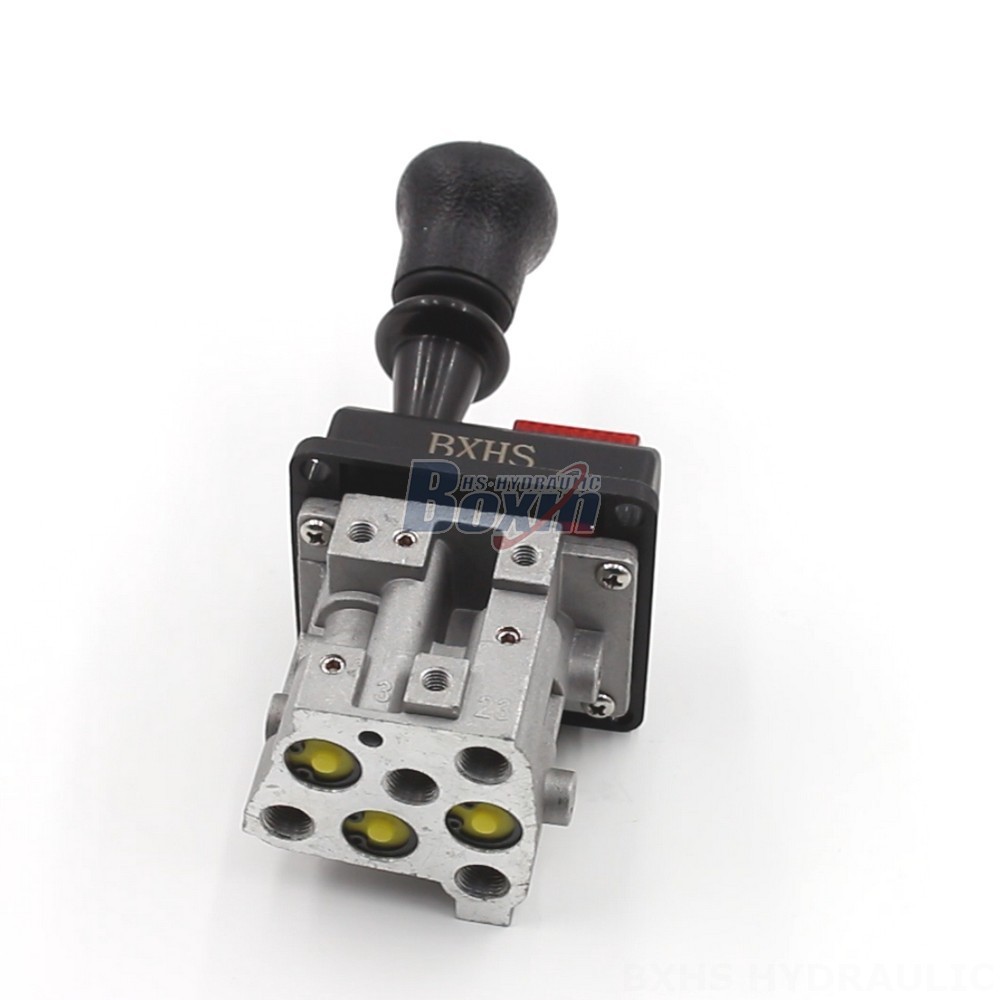

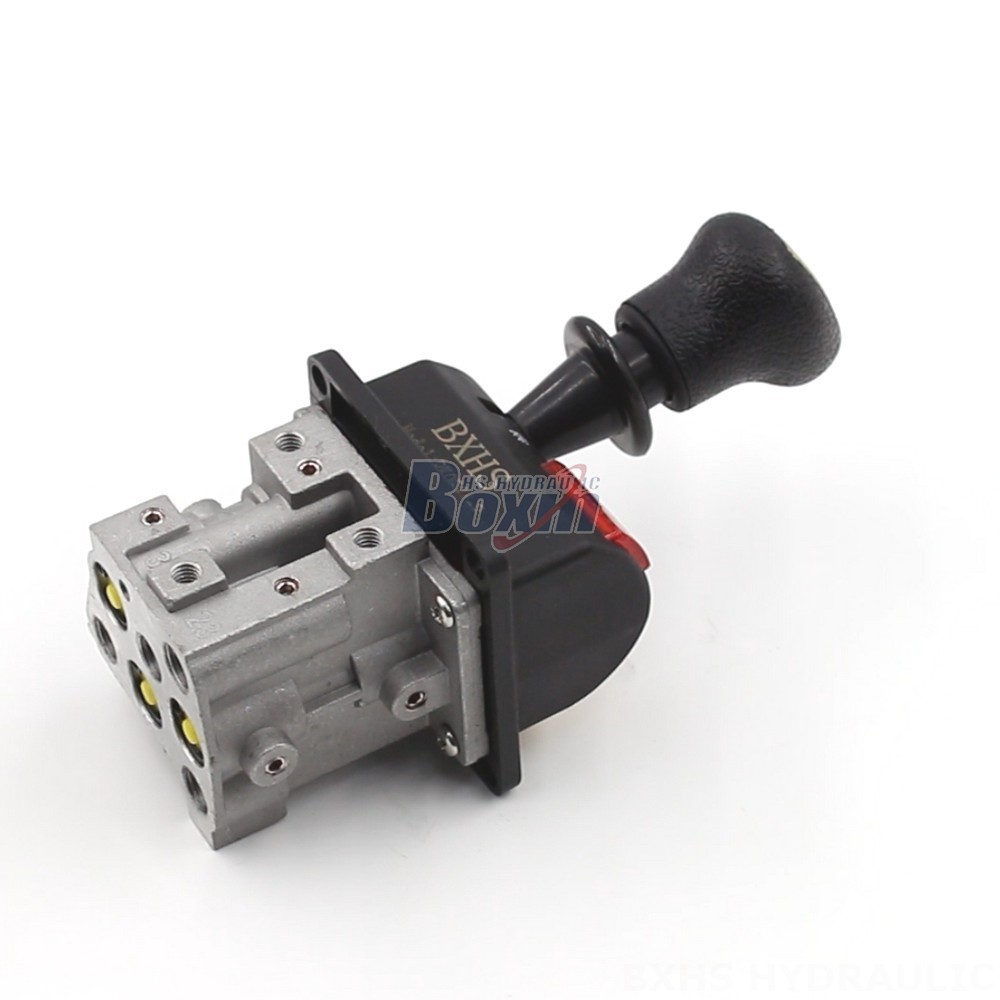

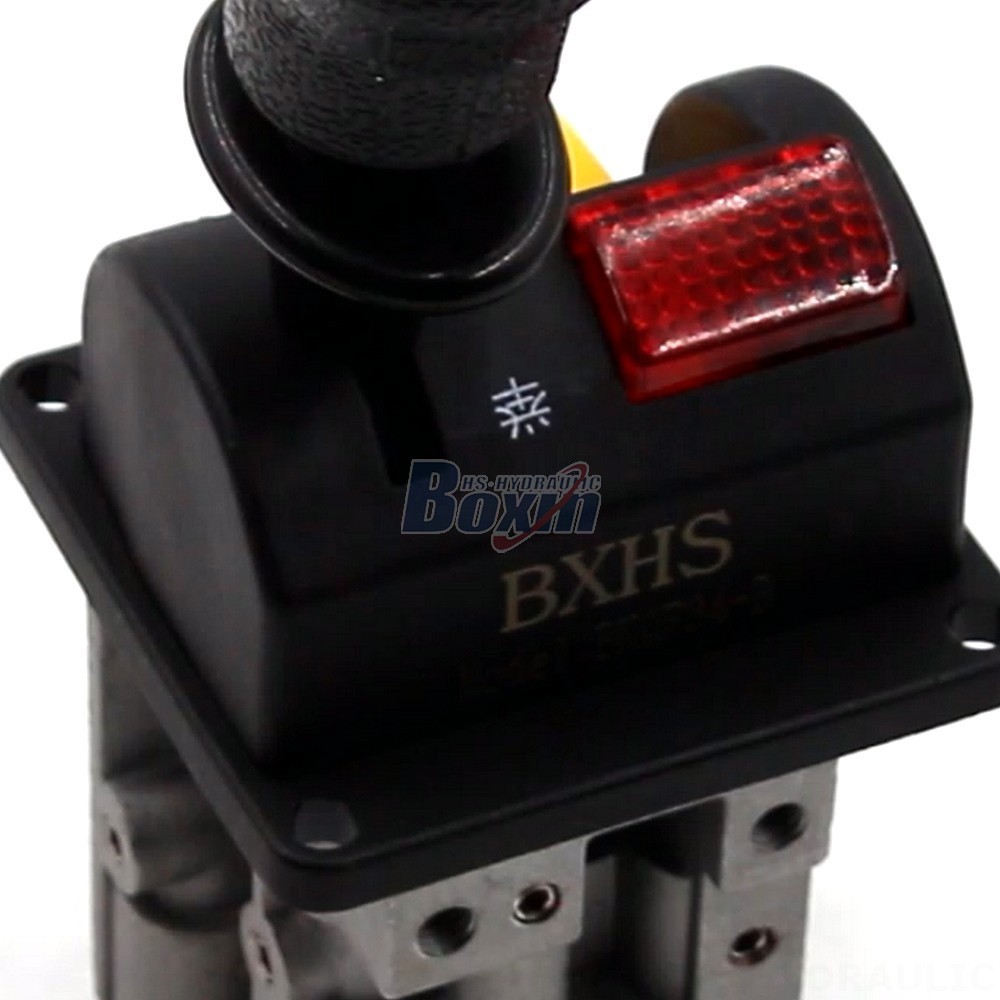

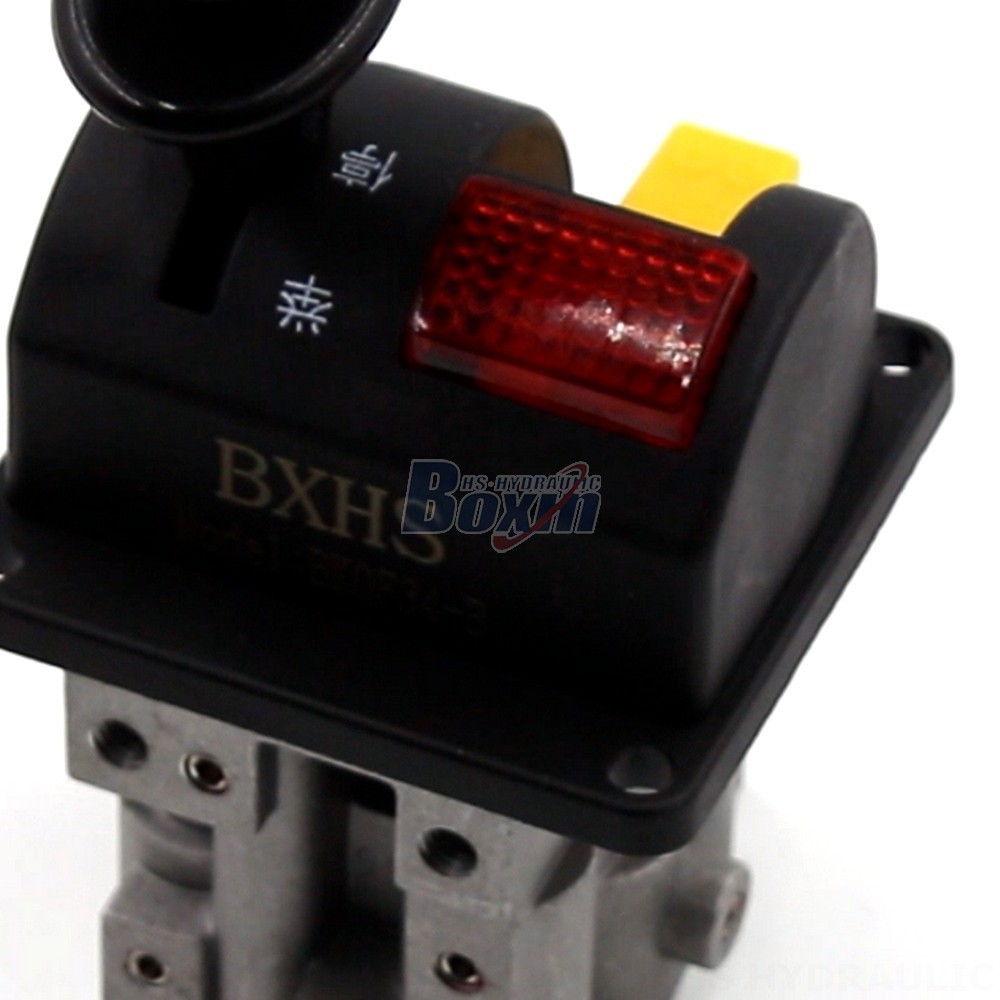

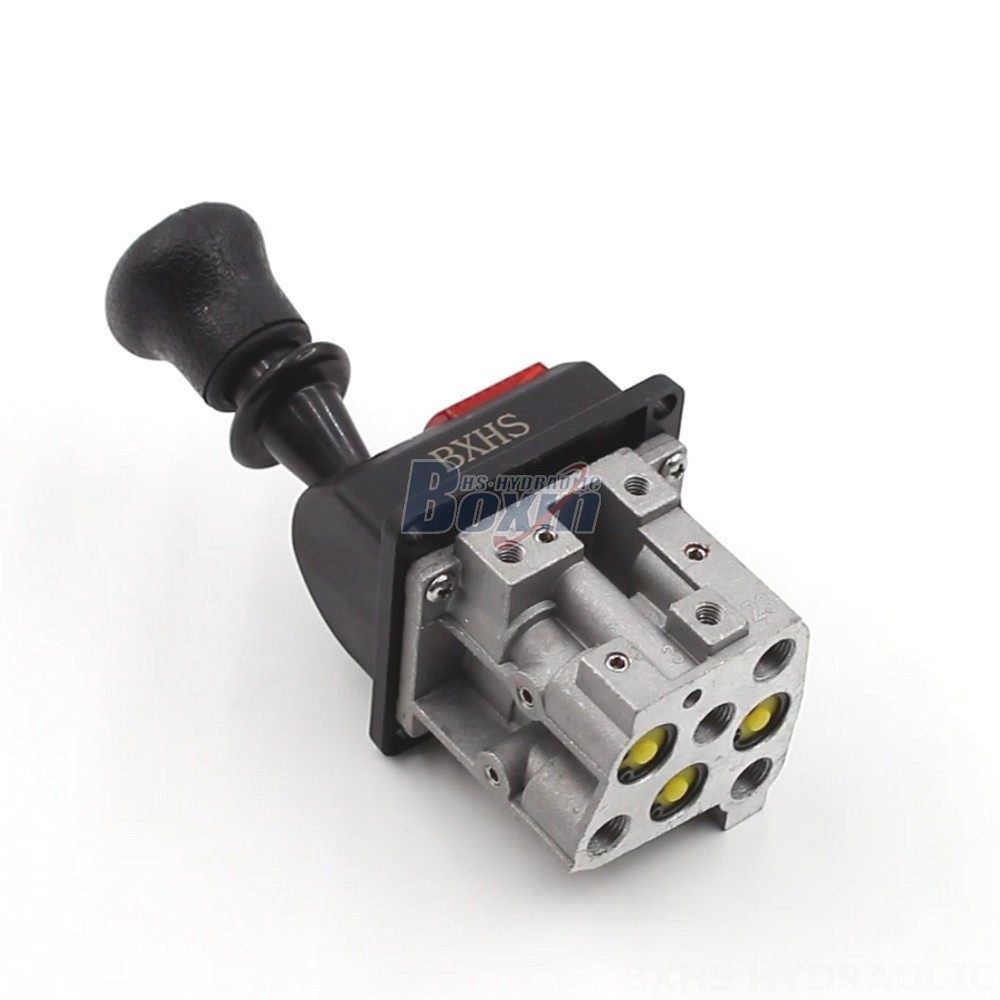

The BKQF34-B Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 160 bar, this valve offers reliable and efficient control of hydraulic systems. Its compact monoblock design and manual control mechanism make it easy to install and operate.
| BKQF34 Serisi Pnömatik Kontrol Vanası Parametreler | |
|---|---|
| Kontrol Yöntemi | Pnömatik |
| Makara | 1 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 1 MPa (145 psi) |
| Giriş Portu | G1/4 |
| Çıkış Portu | G1/4 |
| Port Boyutu | G1/4 |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock design for compact and leak-free performance
* 1 section for simple and effective flow control
* Rated flow of 40 L/min (10.5 US gpm) for efficient system operation
* Max pressure of 160 bar (2300 psi) for demanding applications
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in harsh environments
**Applications:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
