Buy high-quality 50ml/r hydraulic steering units directly from the factory. We offer OEM, ODM, and wholesale options for various applications including construction, agriculture, and material handling. Contact us for competitive pricing and global distribution opportunities.
| 101 Serisi Direksiyon Ünitesi Parametreler | |
|---|---|
| Deplasman | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r |
| Malzeme | Dökme Demir |
| Anma Akışı | 5 L/dakika, 6 L/dakika, 8 L/dakika, 10 L/dakika, 12.5 L/dak, 16 L/dakika, 20 L/dakika, 25 L/dakika, 28 L/dakika, 31,5 L/dakika, 40 L/dakika |
| Valf Bloğu | Özelleştirilebilir |
| Maksimum Sürekli Geri Basınç | 2,5 Mpa |
| Maksimum Giriş Basıncı | 17,5 Mpa |

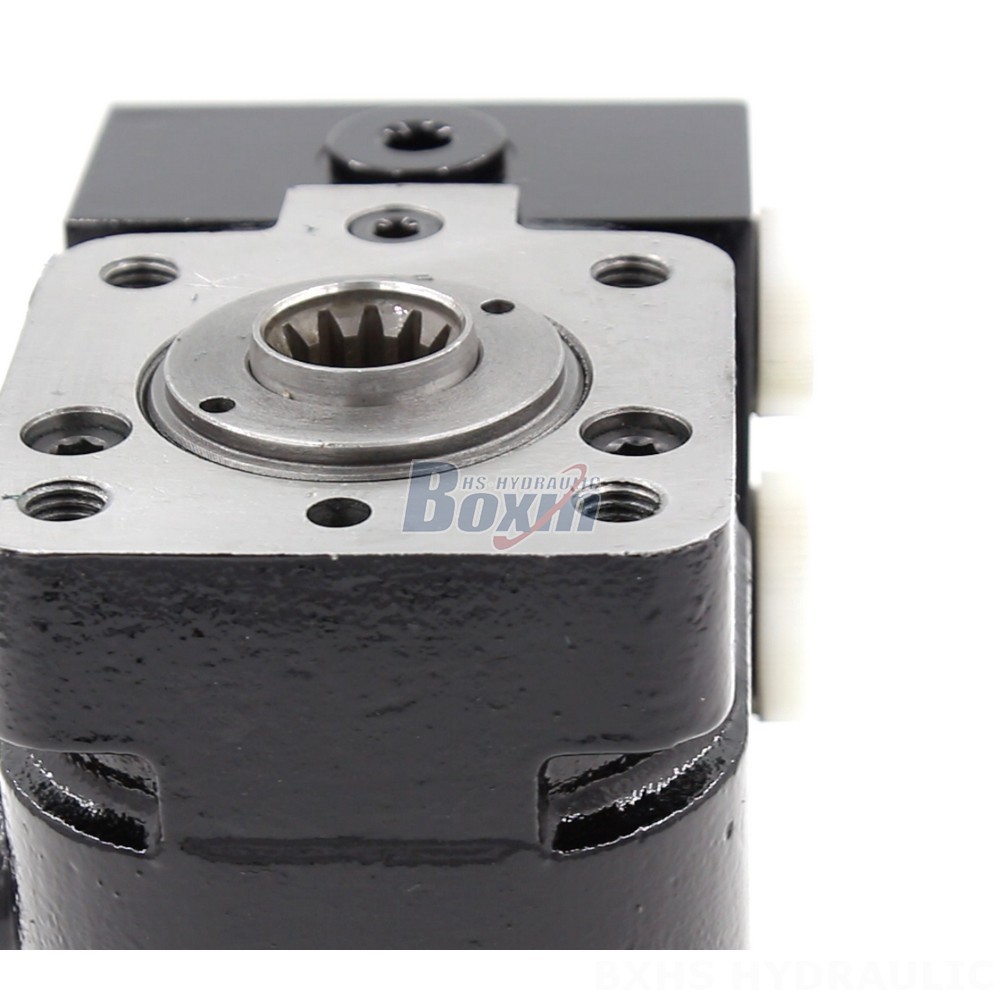

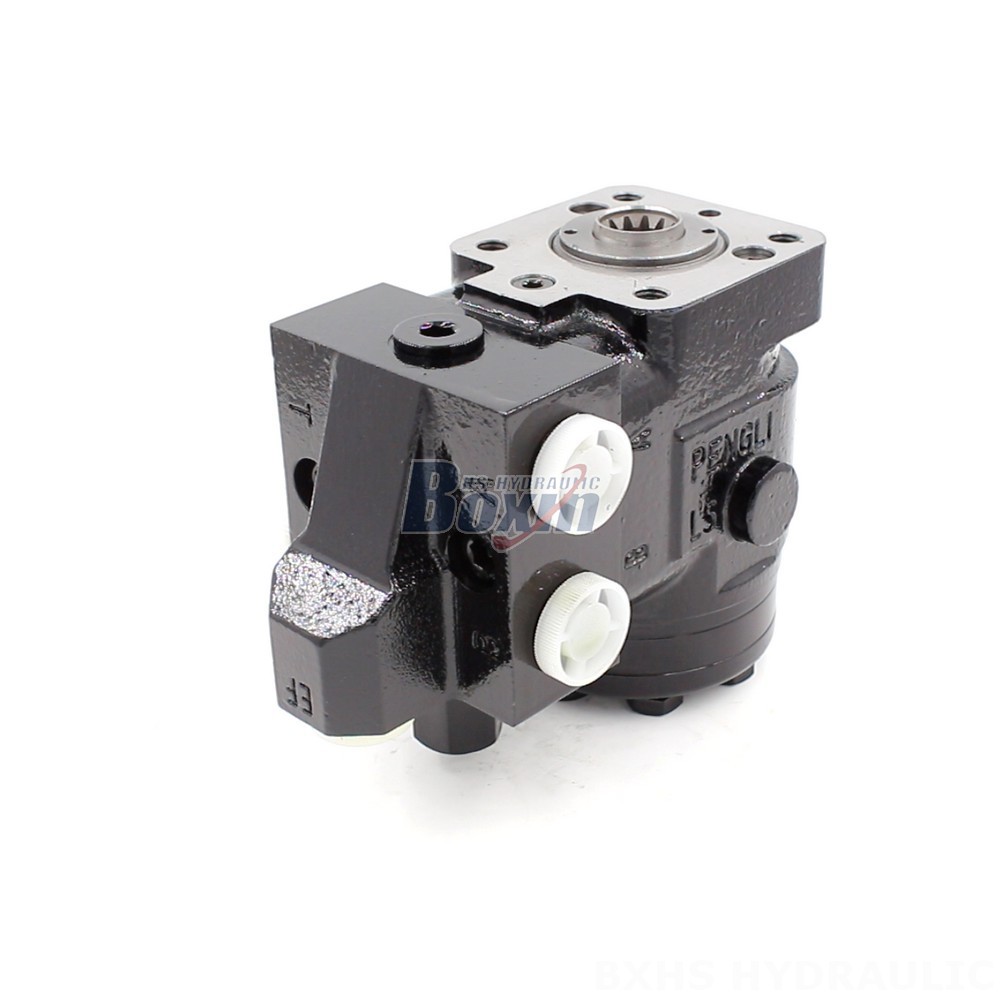

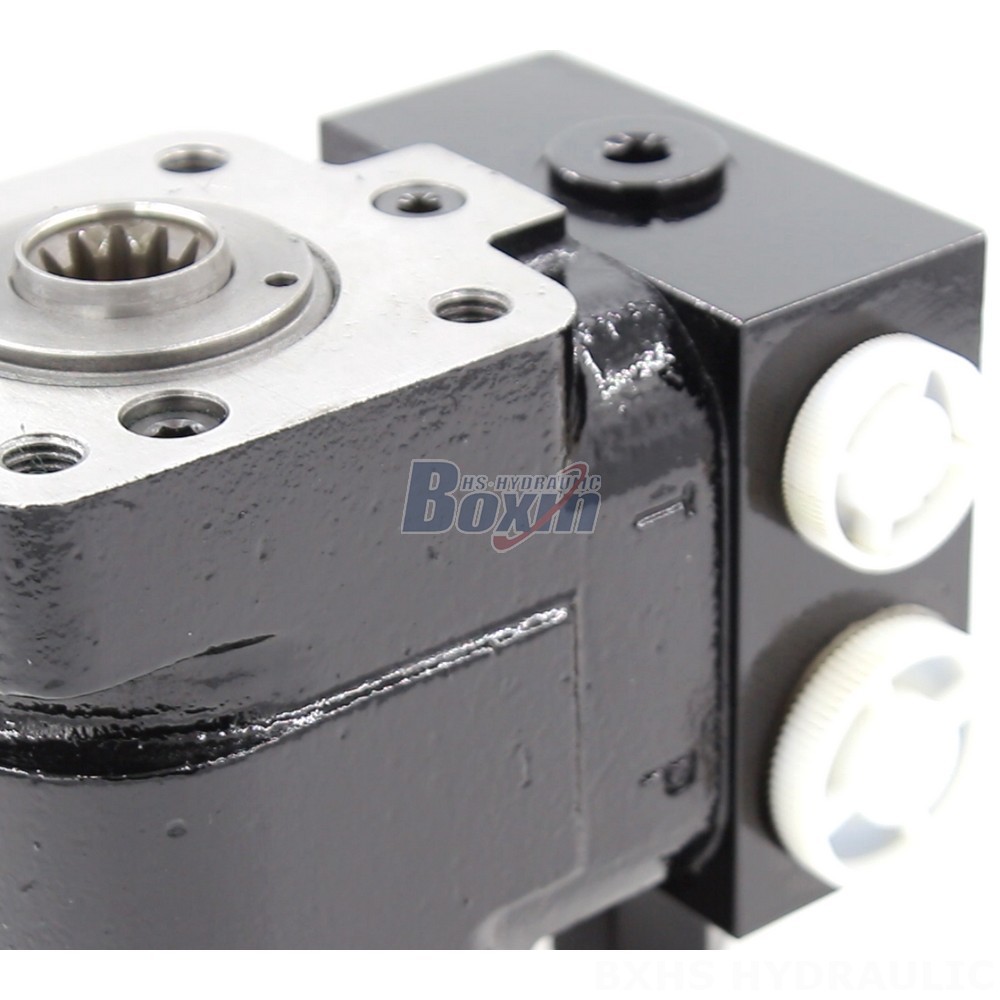

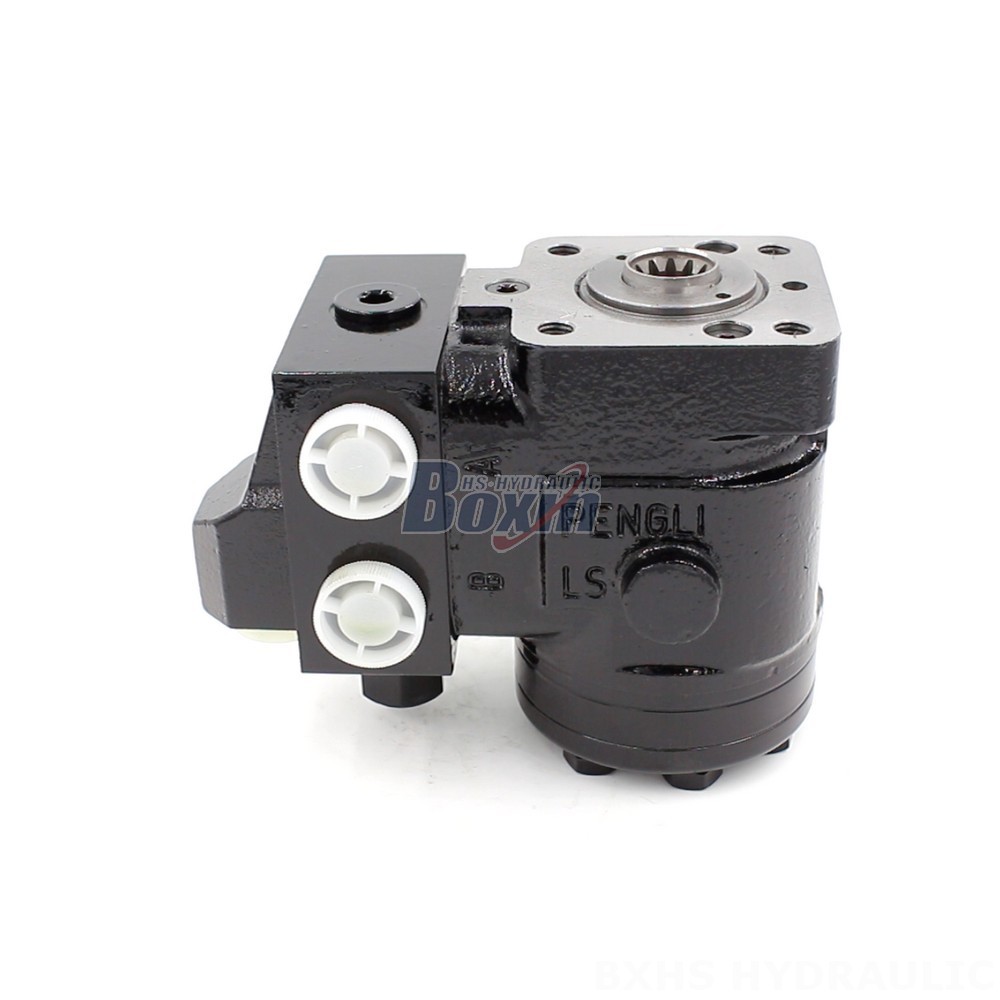

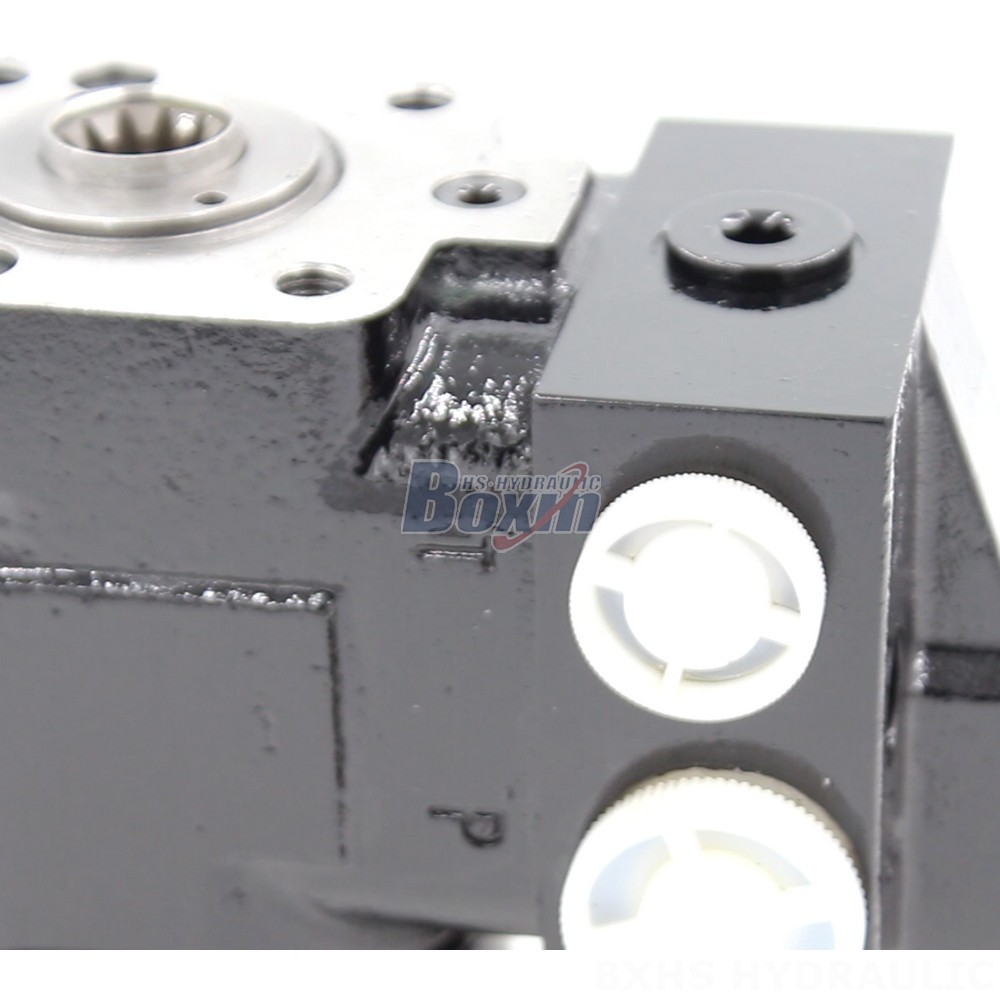

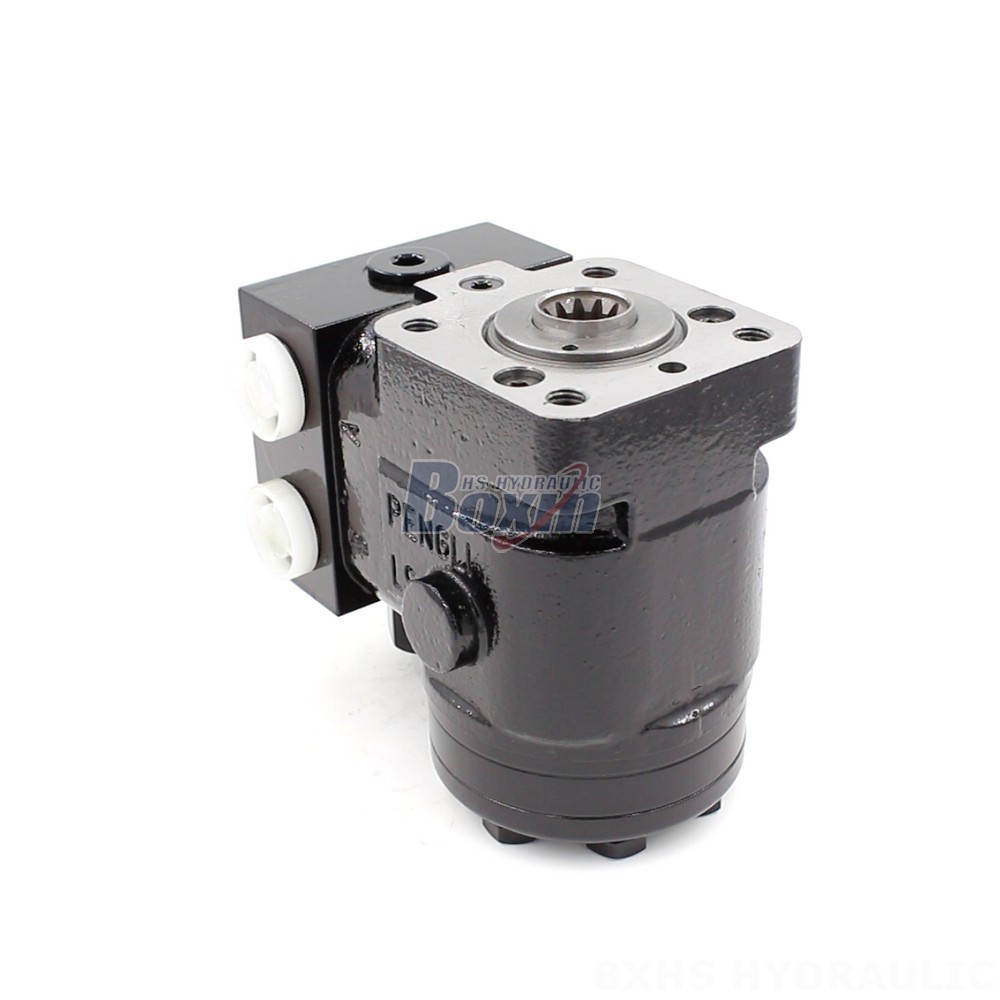

We are a hydraulic product manufacturer supplying globally. Our Buy 101S-5T-50-PV40 Hydraulic Steering Unit boasts a 50 ml/r displacement, 17.5 Mpa max input pressure, and a 5 L/min rated flow. Constructed from durable cast iron, it features a customizable valve block and is perfect for forklifts, skid steer loaders, compact wheel loaders, mini-excavators, tractors, telehandlers, and backhoe loaders.
**Key Features:**
* Displacement: 50 ml/r
* Max Input Pressure: 17.5 Mpa
* Max Cont Back Pressure: 2.5 Mpa
* Rated Flow: 5 L/min
* Material: Cast Iron
* Customizable Valve Block
**Applications:** Material Handling, Construction & Earth Moving, Industrial Vehicles, Agriculture
**We offer:**
* **Manufacturing:** High-quality production from our own factory.
* **OEM/ODM:** Customize your hydraulic steering units to your specifications.
* **Private Labeling:** Brand your own hydraulic steering units with your logo.
* **Wholesale:** Competitive pricing for bulk orders.
**We are seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies
**Contact us today to discuss your needs and explore partnership opportunities. Benefit from our factory direct pricing and reliable supply chain. We offer factory wholesale pricing and guarantee high-quality products.**
