Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

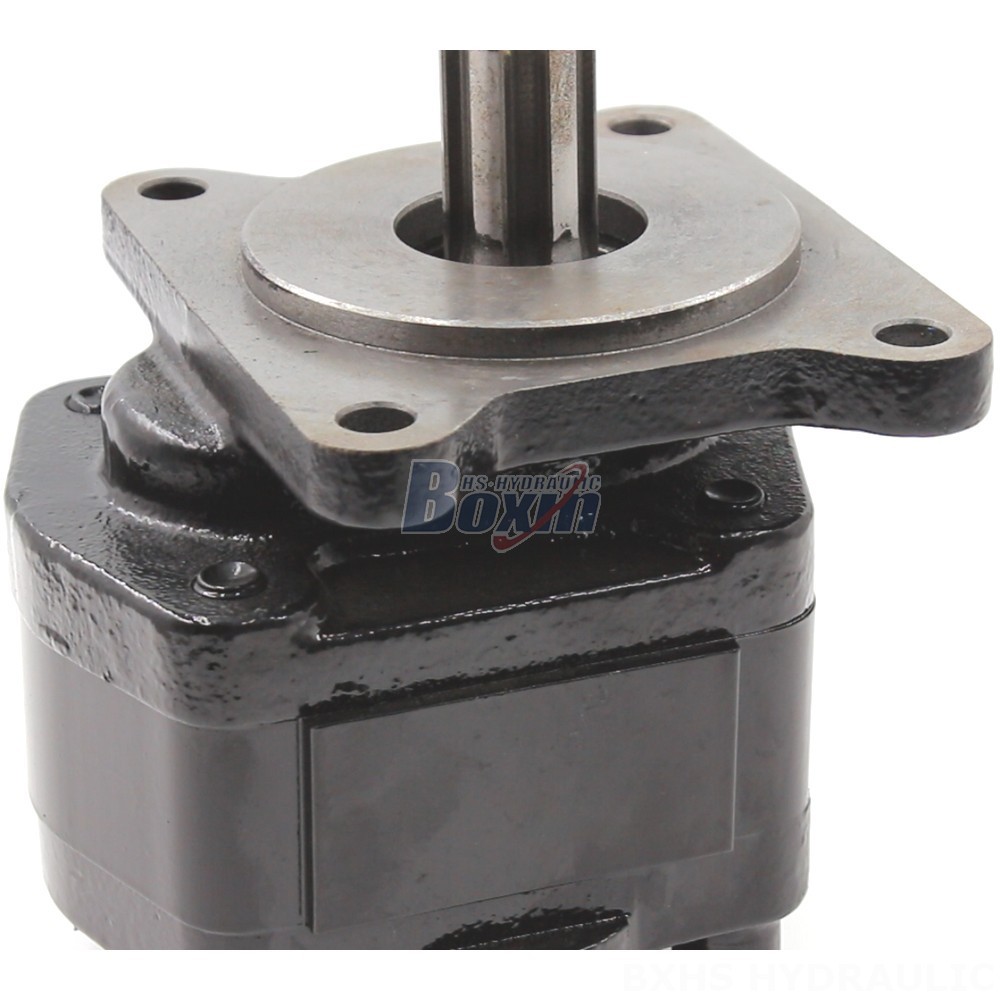

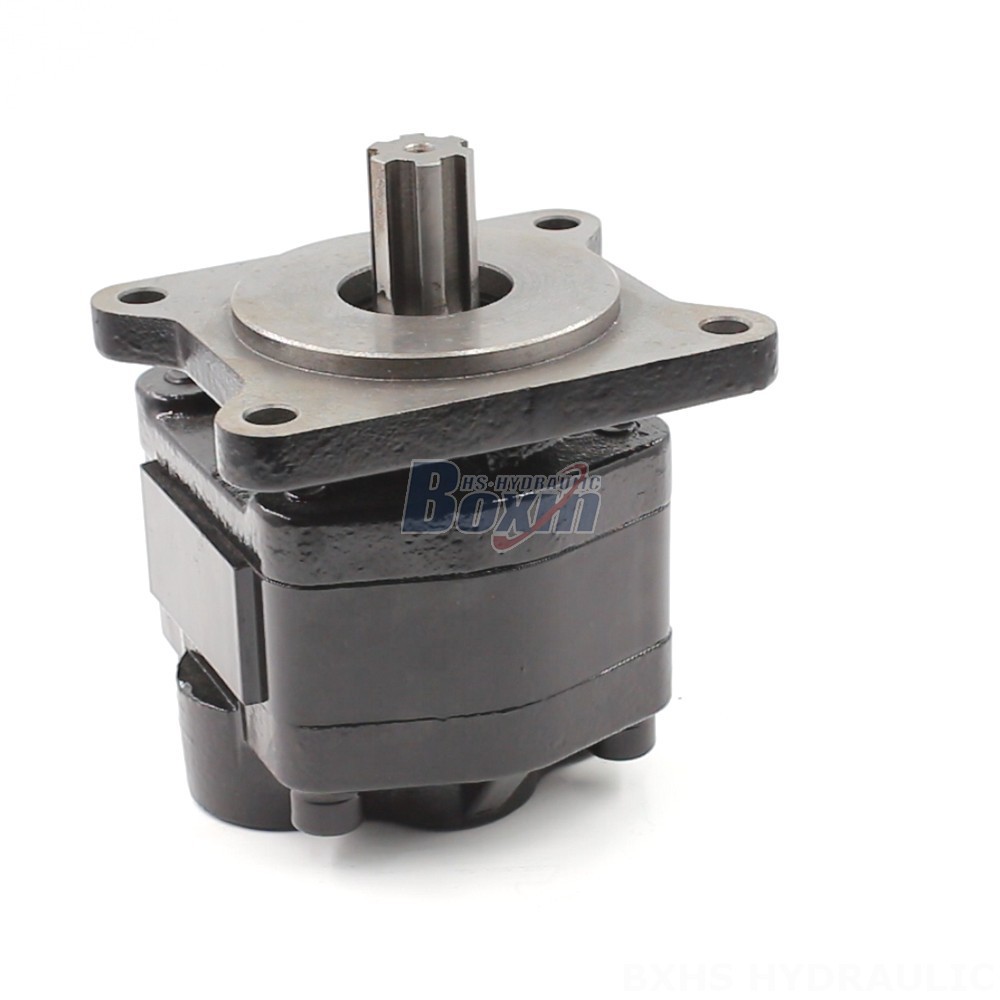

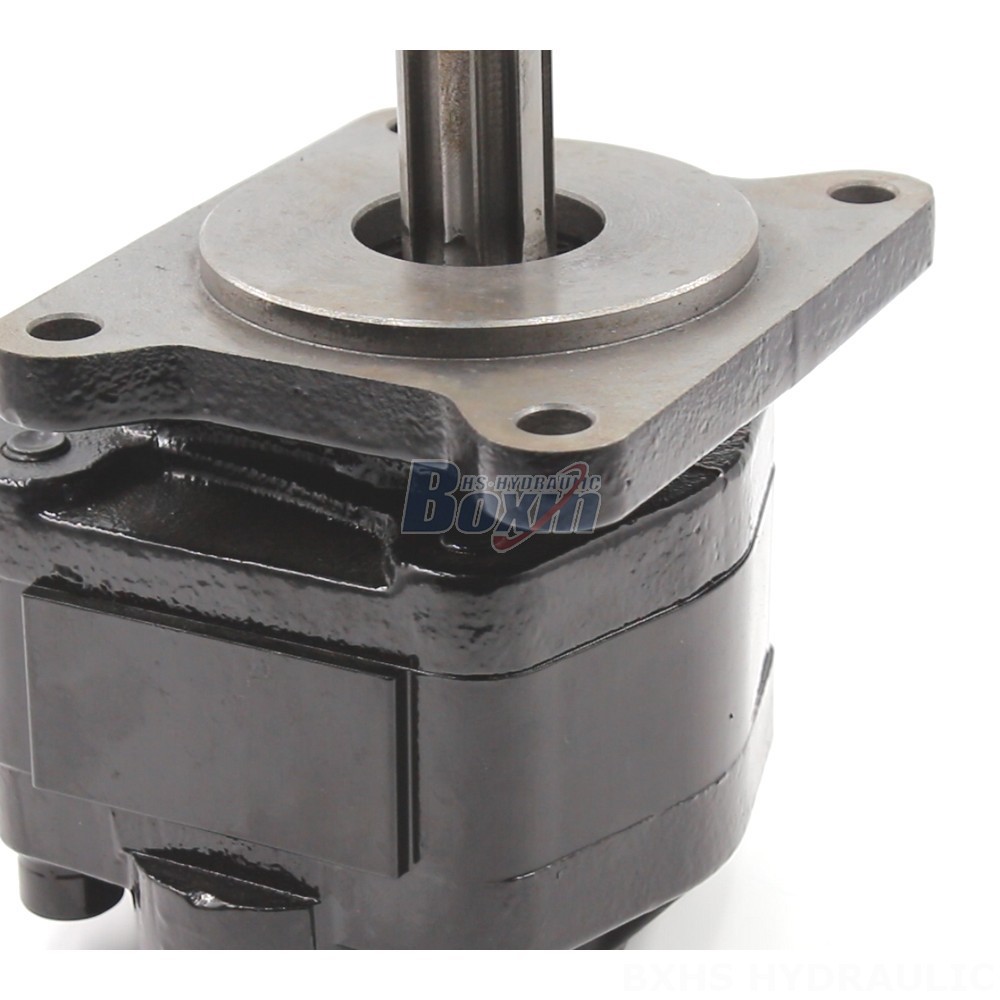

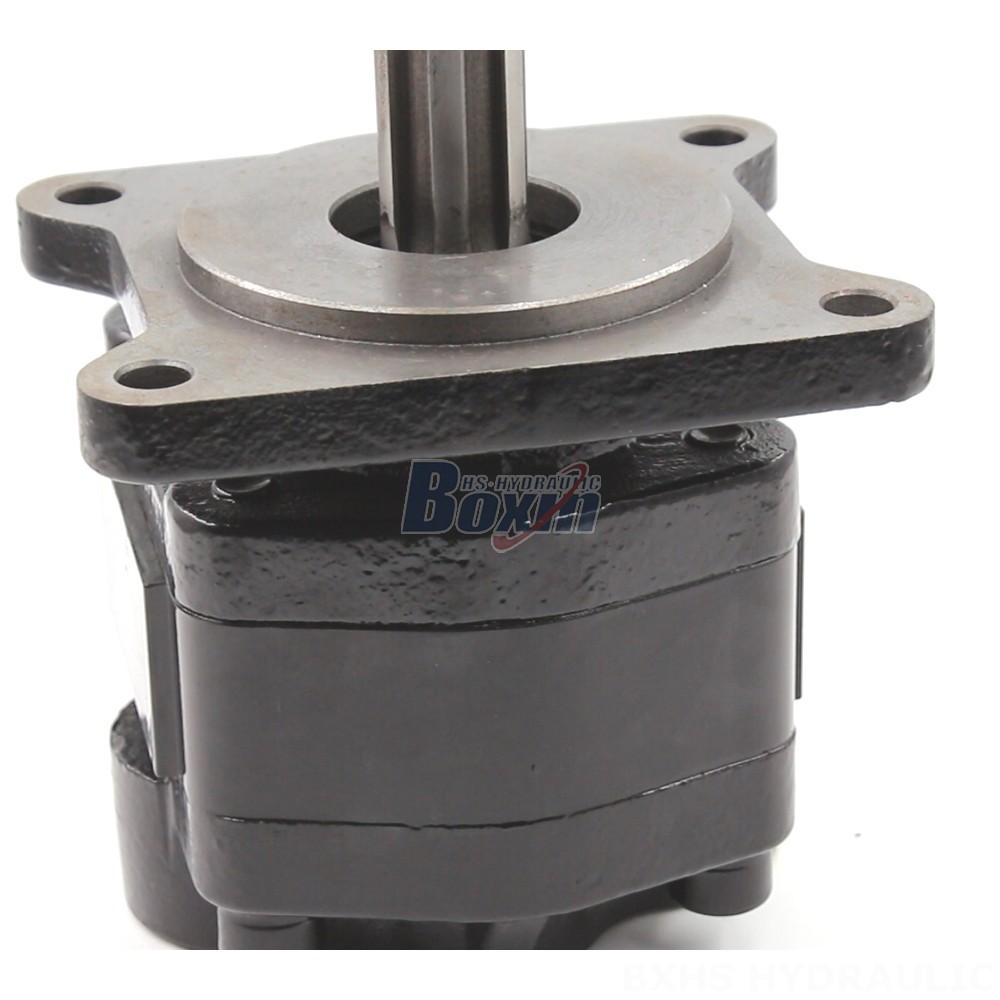

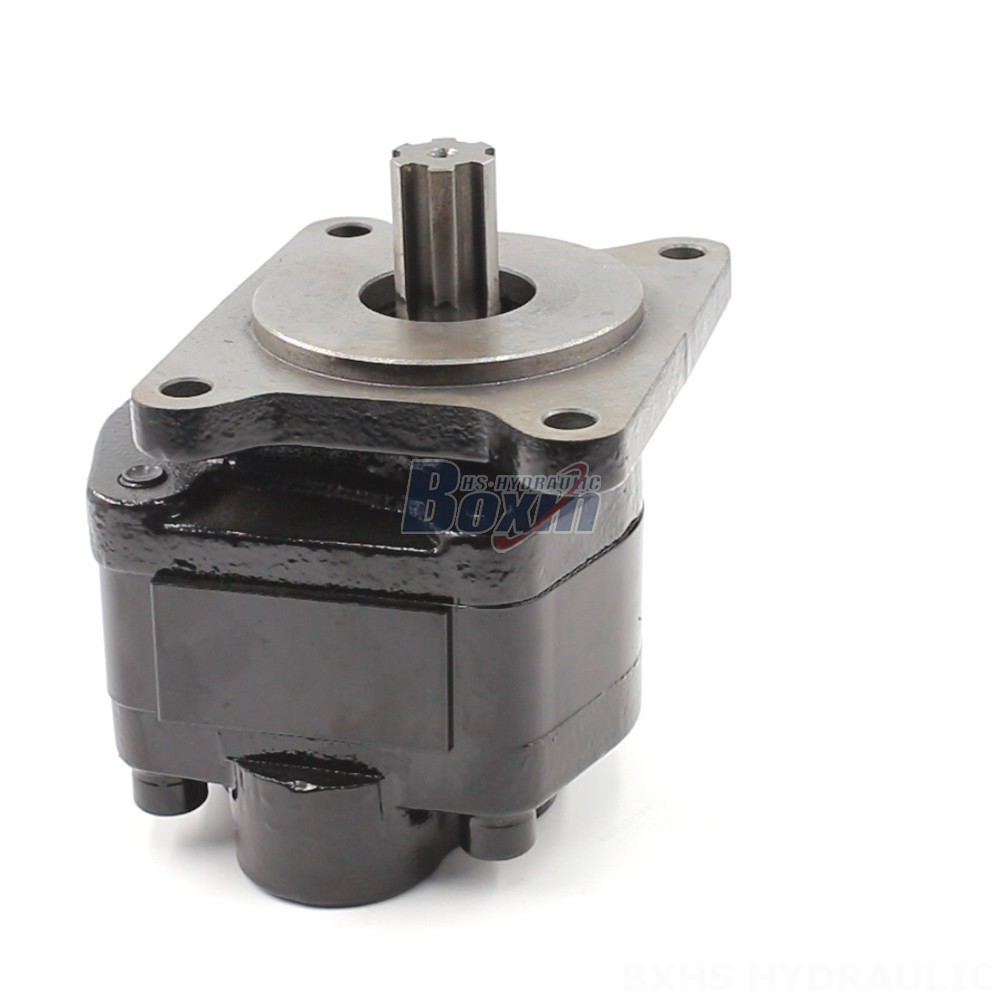

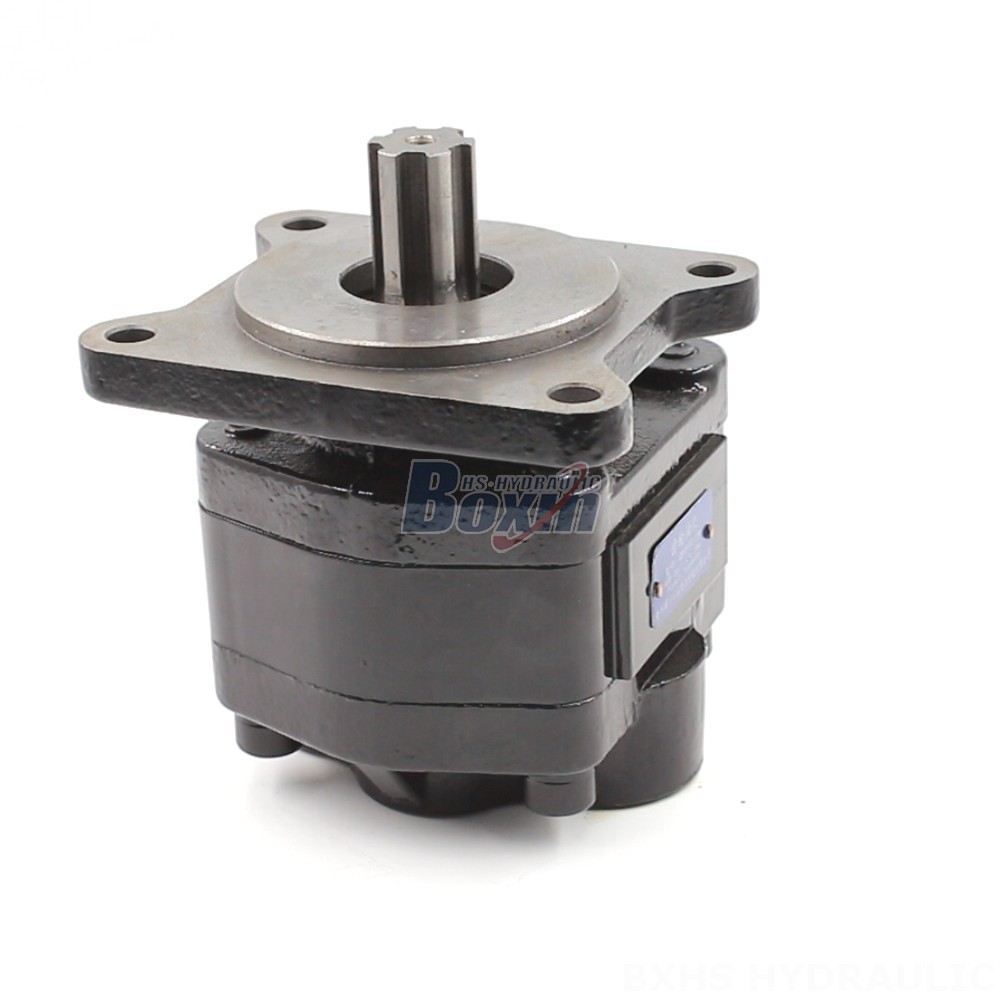

This product is a 20 cc/rev hydraulic gear pump, available in various displacements (32 cc/rev, 50 cc/rev, 63 cc/rev) and shaft types (Plain Key, Rectangle Spline, Involute Spline). It's designed for heavy-duty applications in various industries like material handling, construction, agriculture, and industrial vehicles.
| CBHS-F5 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 32 cc/devir, 50 cc/devir, 63 cc/devir, 20 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 2500 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Dökme Demir |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | B-Kare Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
The CBHS-F5 Series 20 cc/rev hydraulic gear pump is a robust and reliable power source for various machinery. Featuring a cast iron construction, B-Square flange, and a rated pressure of 20 MPa (2900 psi), this pump delivers high performance and durability. It is available in three displacement options (32 cc/rev, 50 cc/rev, 63 cc/rev) to suit diverse application requirements. Choose from different shaft types (Plain Key, Rectangle Spline, Involute Spline) for compatibility with your existing system. This pump is ideal for use in material handling equipment like forklifts and telehandlers, construction and earth moving machines such as mini-excavators, midi-excavators, skid steer loaders, and compact wheel loaders, as well as agricultural machinery like tractors and harvesters.
