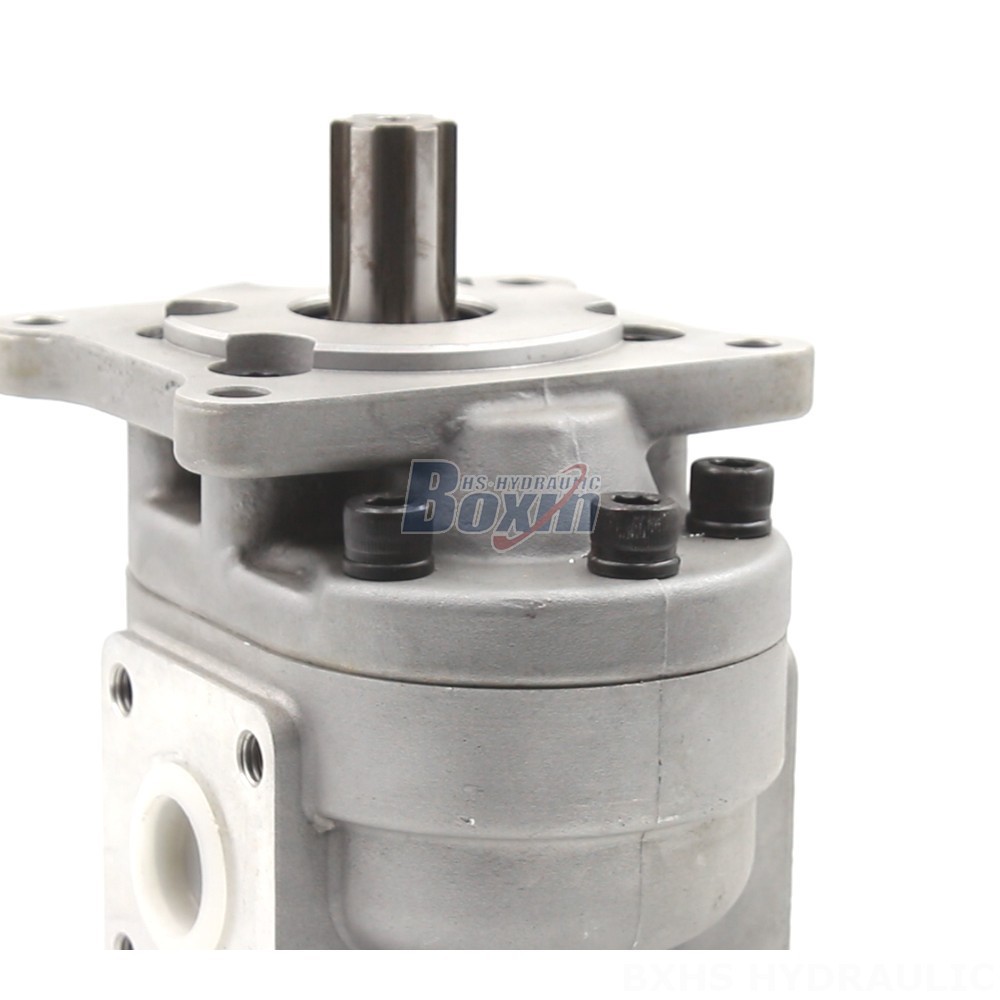

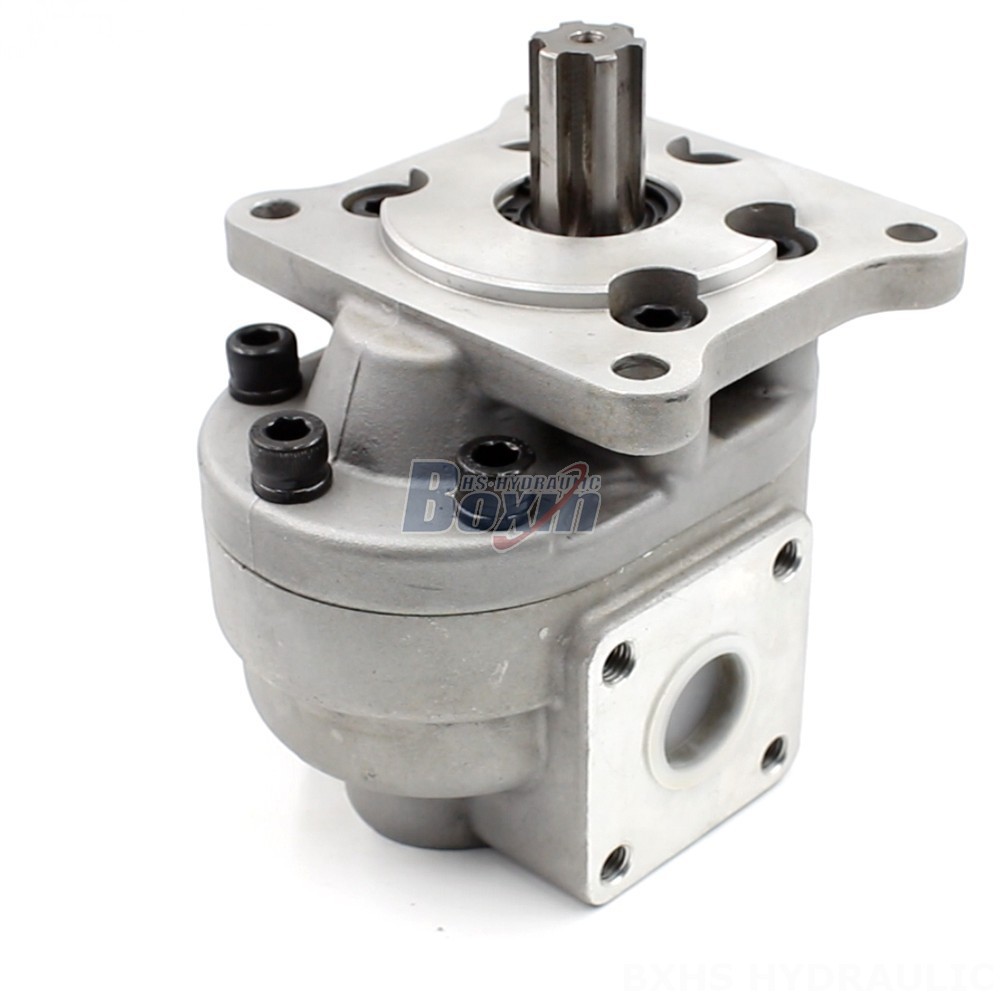

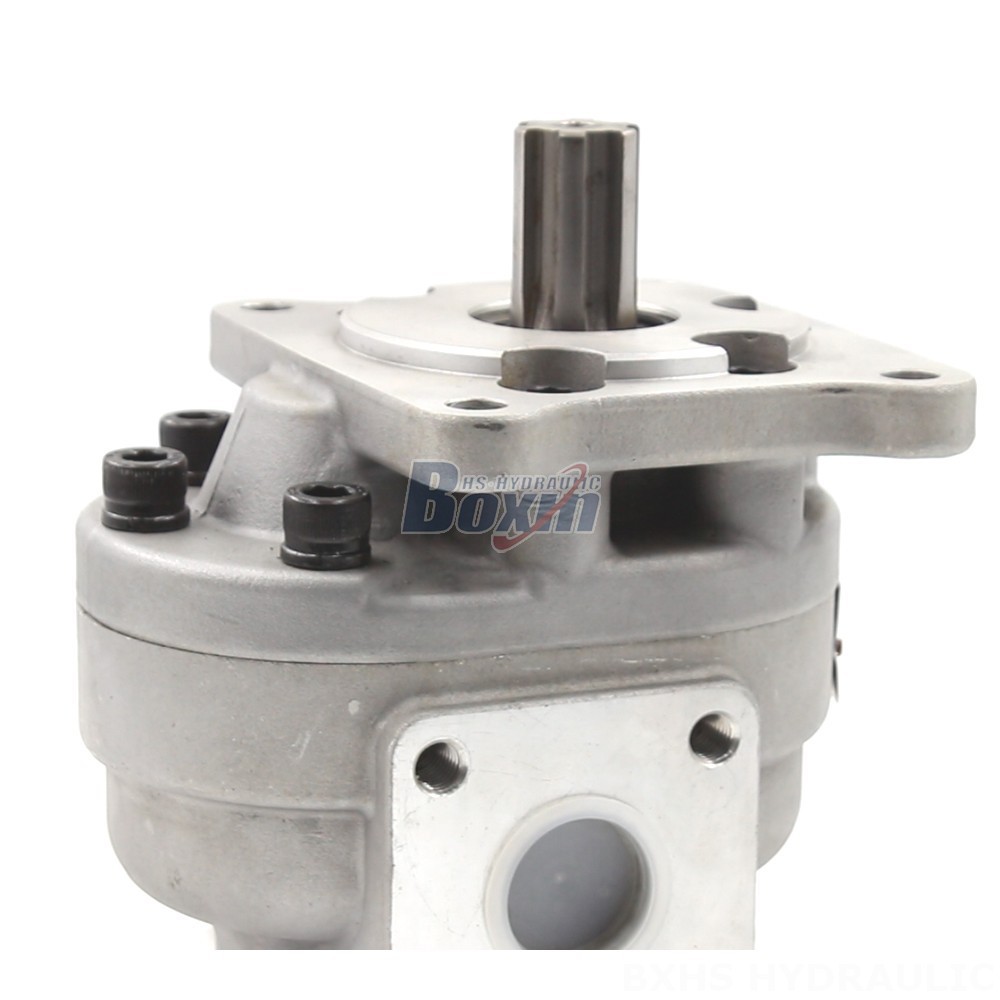

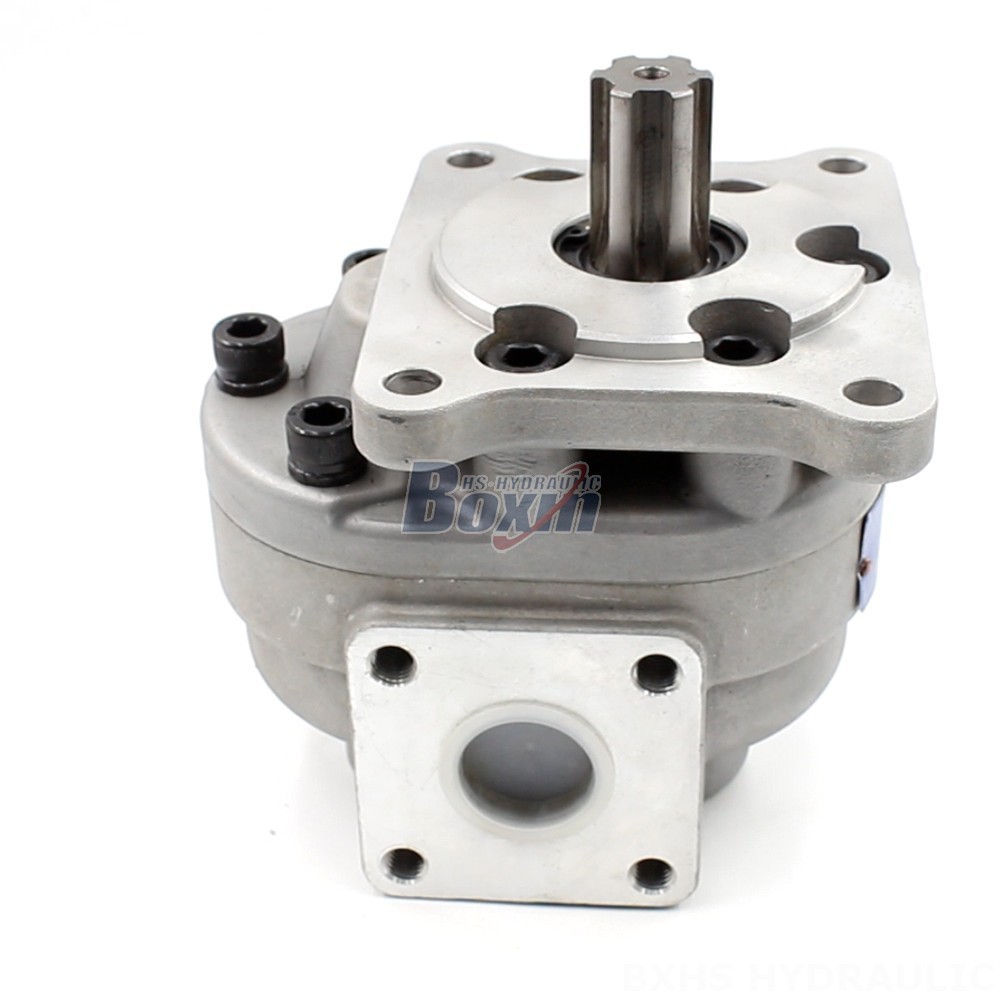

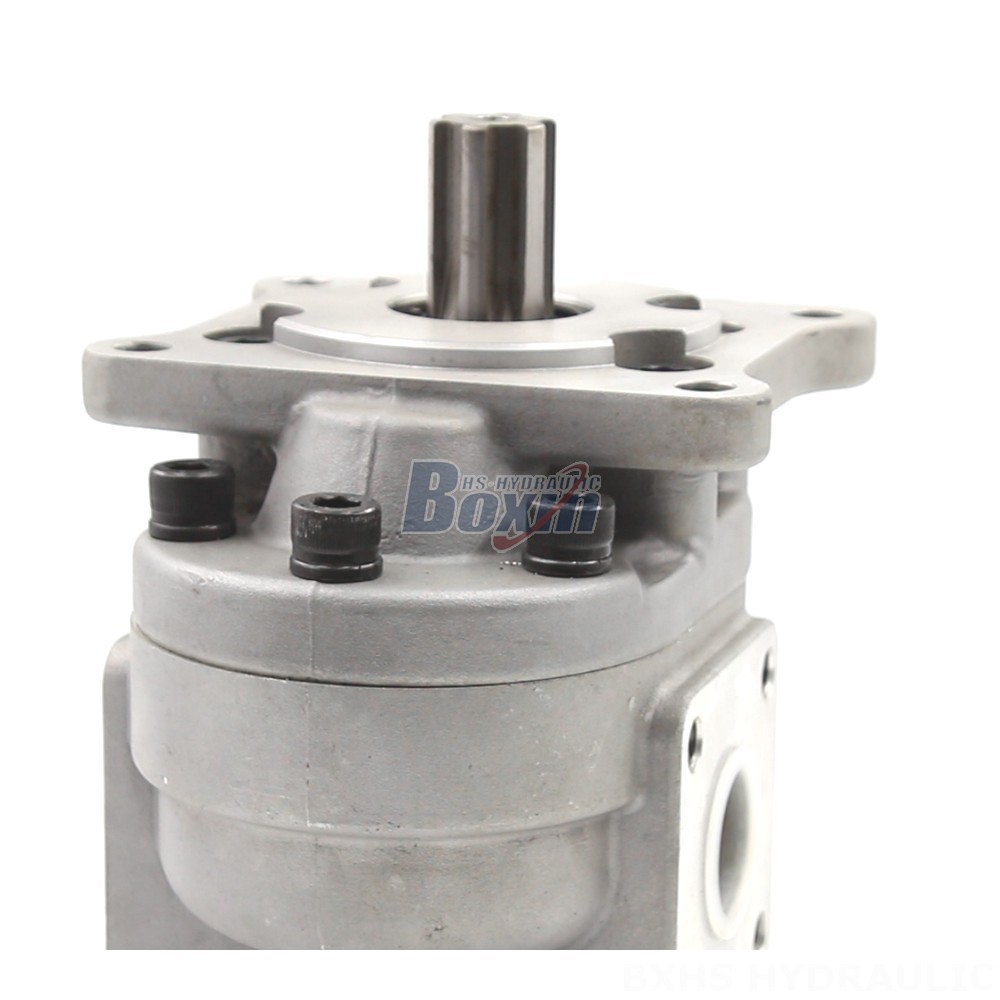

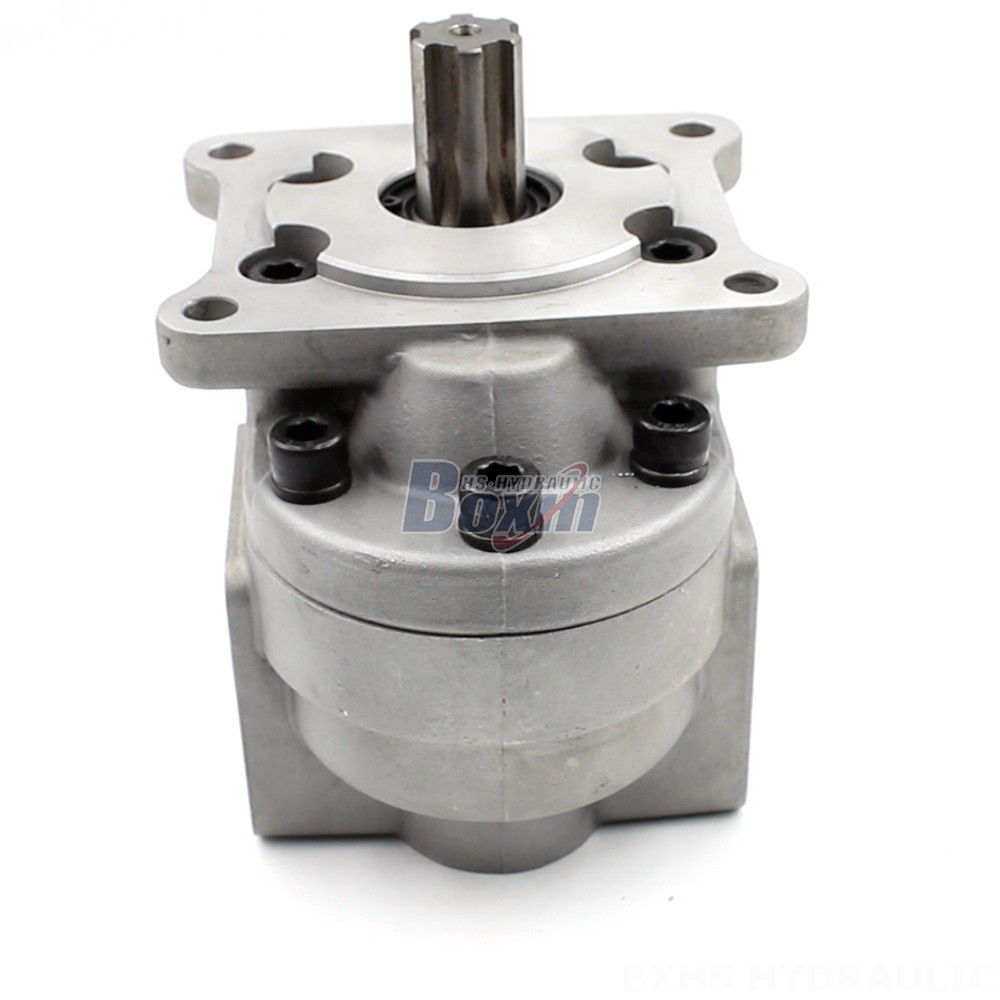

The CBHS-F550 Hydraulic Gear Pump, part of the CBHS-F5 Series, is a highly adaptable and efficient component designed for a wide range of applications in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. With a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), a rated speed of 2000 r/min, and a maximum speed of 2200 r/min, this pump delivers exceptional performance under various operating conditions.
| CBHS-F5 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 32 cc/devir, 50 cc/devir, 63 cc/devir, 20 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 2500 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Dökme Demir |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | B-Kare Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
**Product Details of the CBHS-F550 Hydraulic Gear Pump:**
* **Displacement:** 32 cc/rev, 50 cc/rev, 63 cc/rev
* **Rated Pressure:** 20 MPa (2900 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2200 r/min
* **Rotation:** Left (counter-clockwise), Right (clockwise)
* **Structure:** Internal Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Plain Key (P), Rectangle Spline (H), Involute Spline (X)
* **Product Series:** CBHS-F5 Series
* **Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
