Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Yenilik gelişimi yönlendirir Teknoloji geleceği şekillendirir
1054 Görünümler Bu Ürünü Arıyor

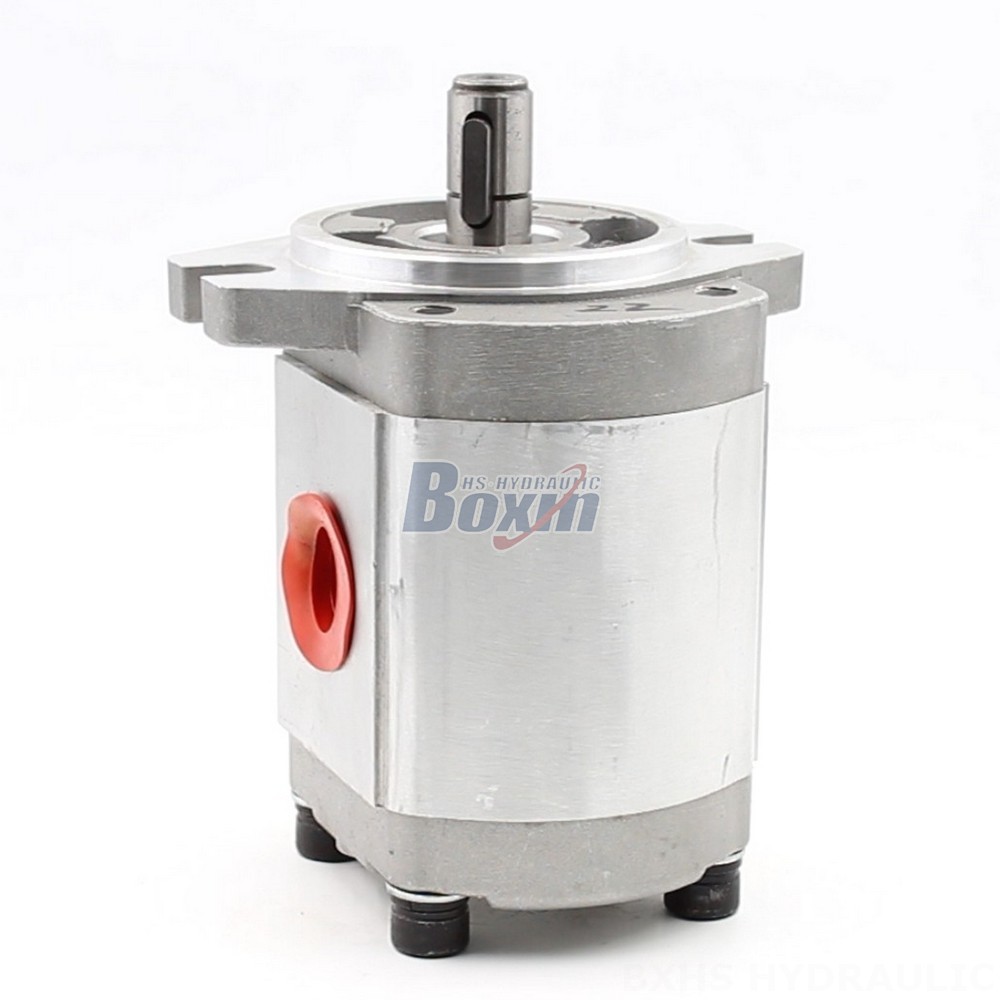

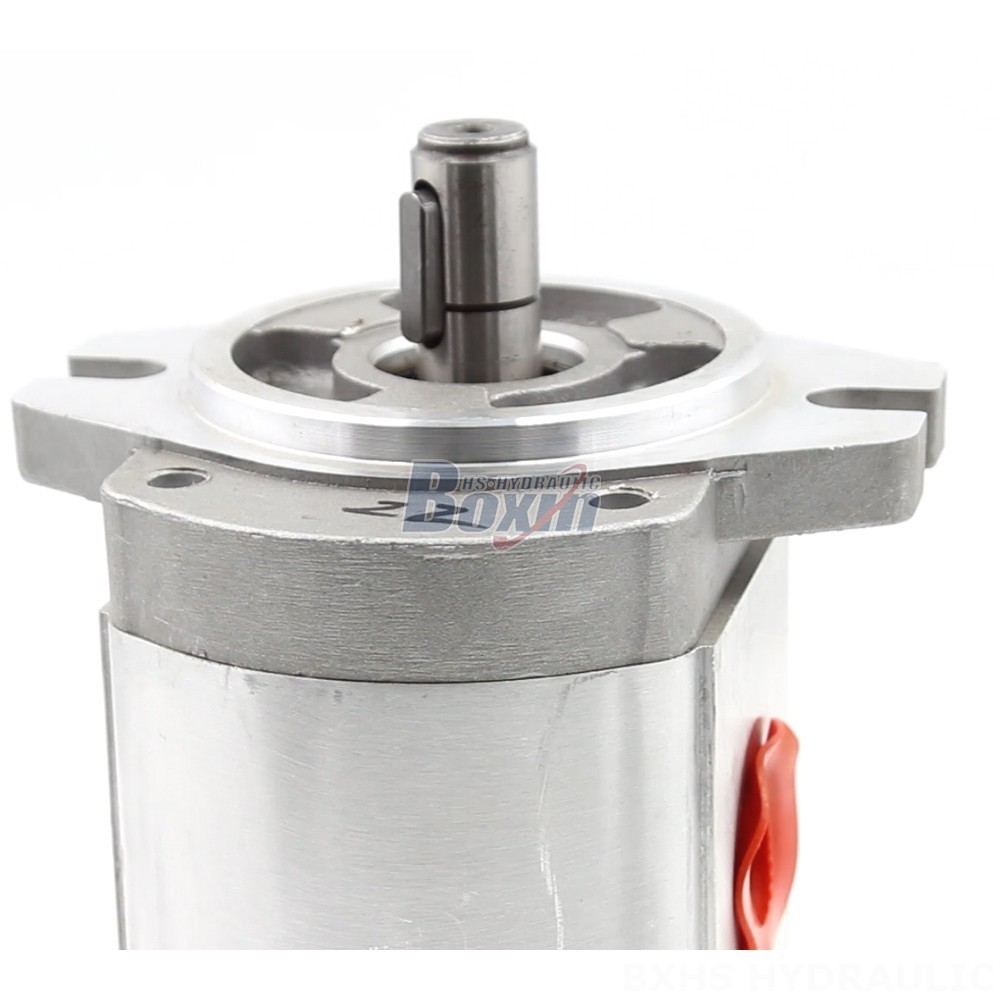

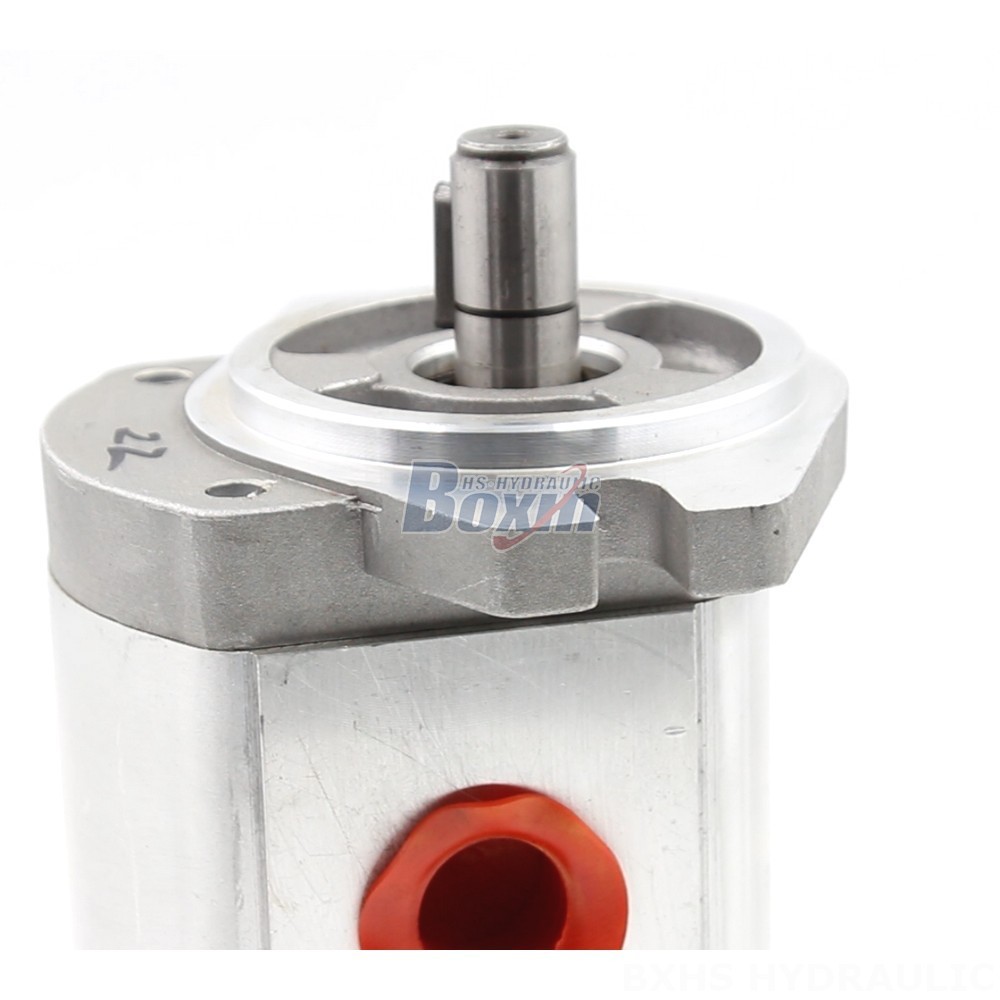

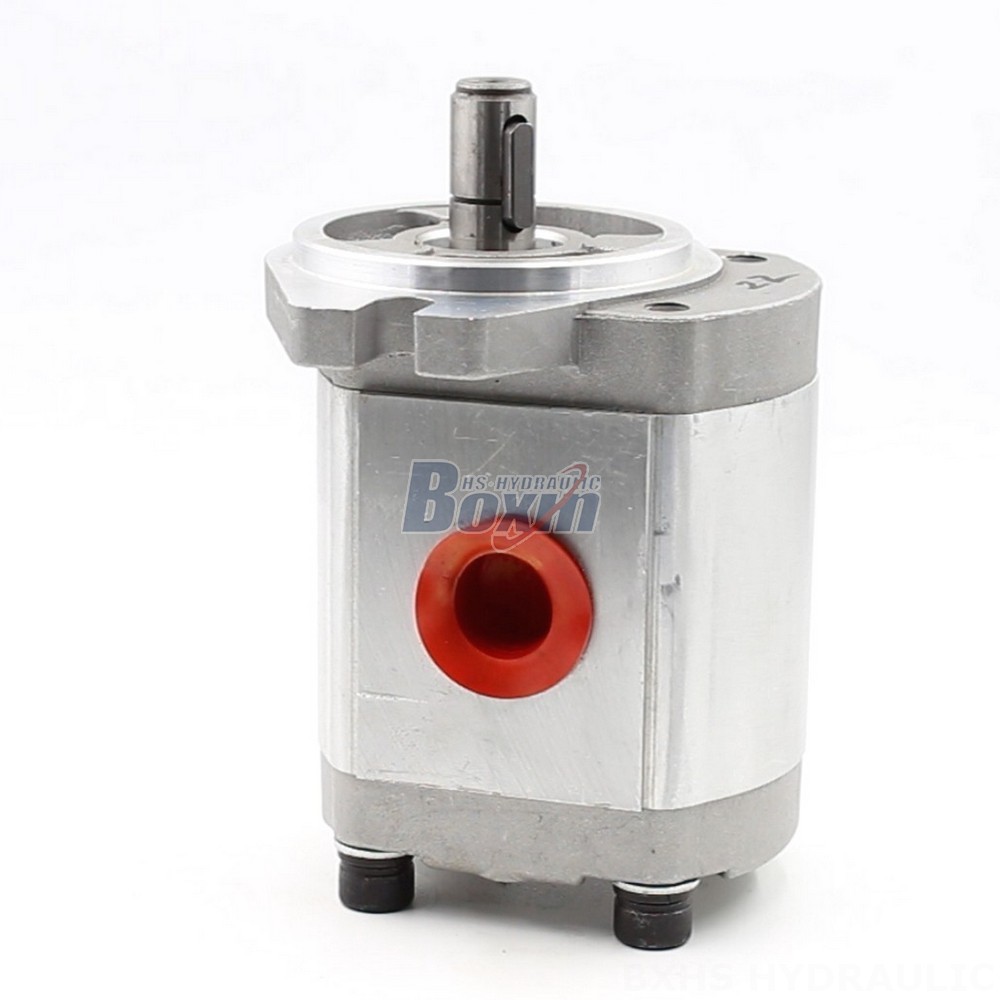

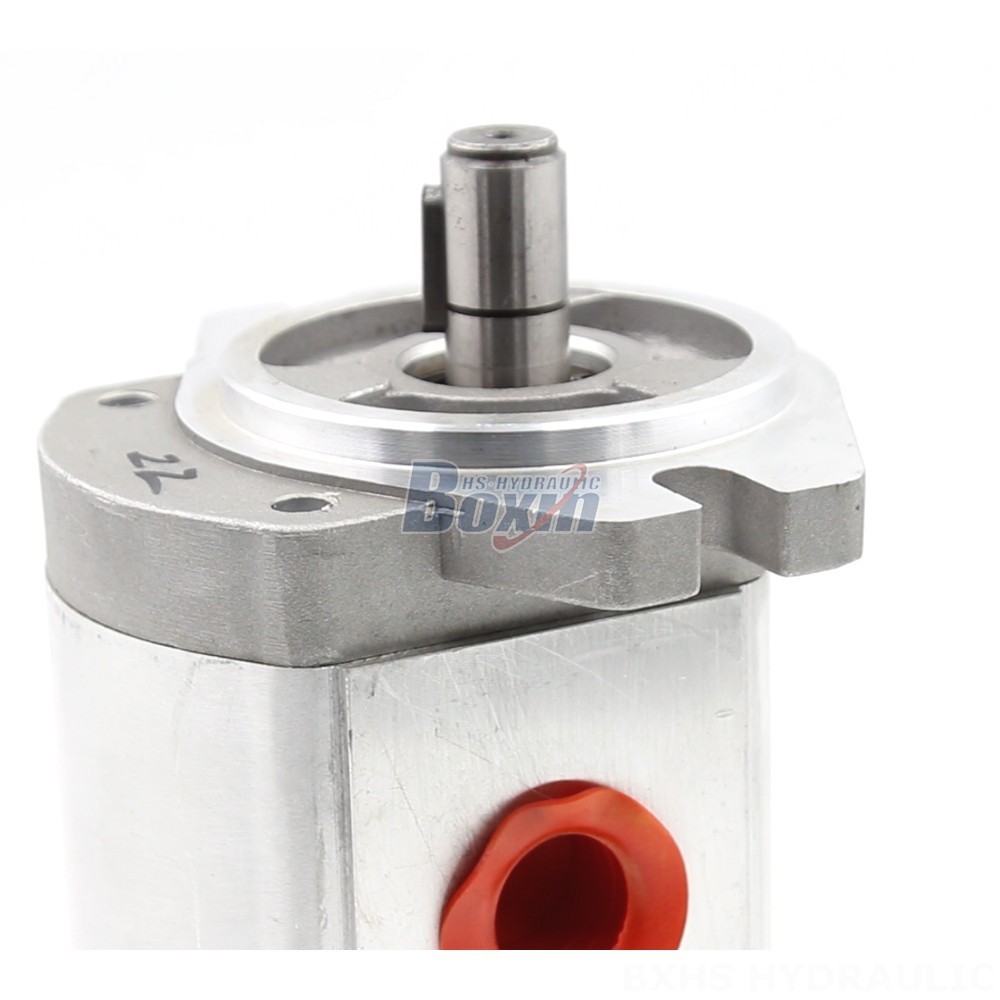

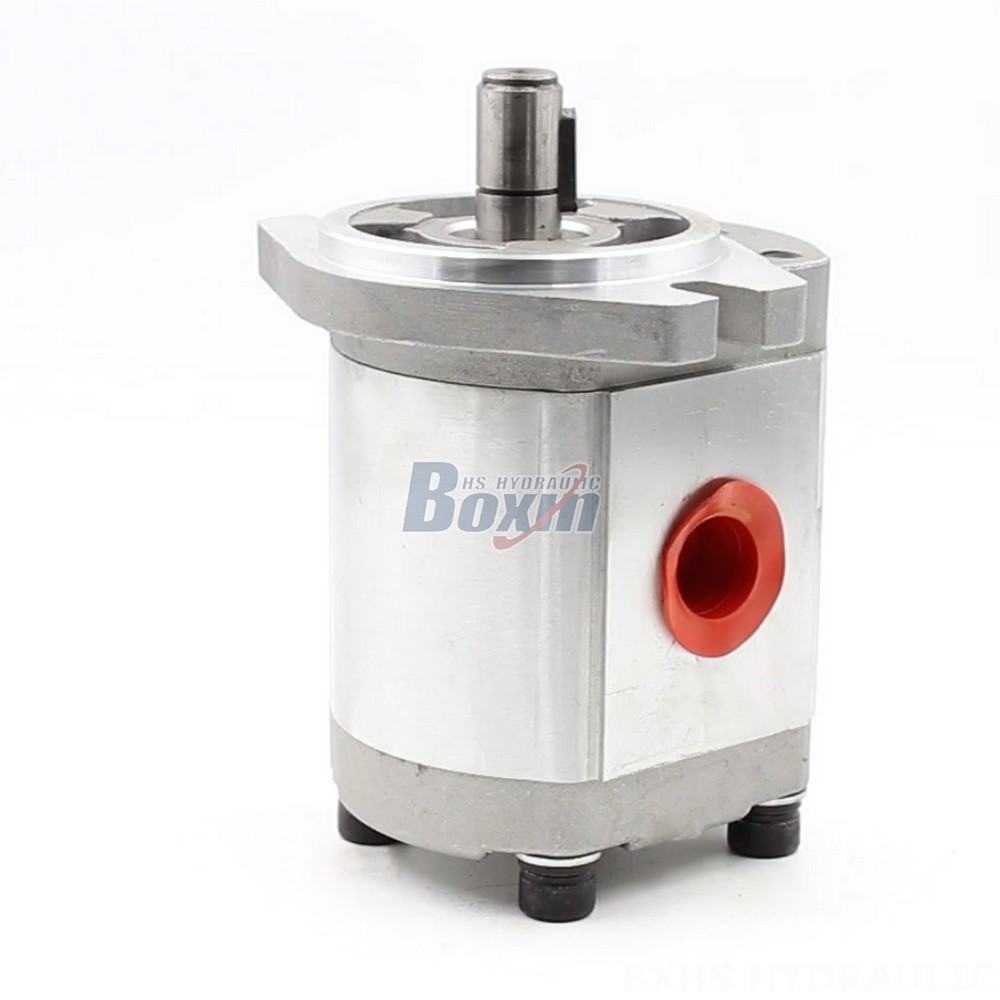

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
