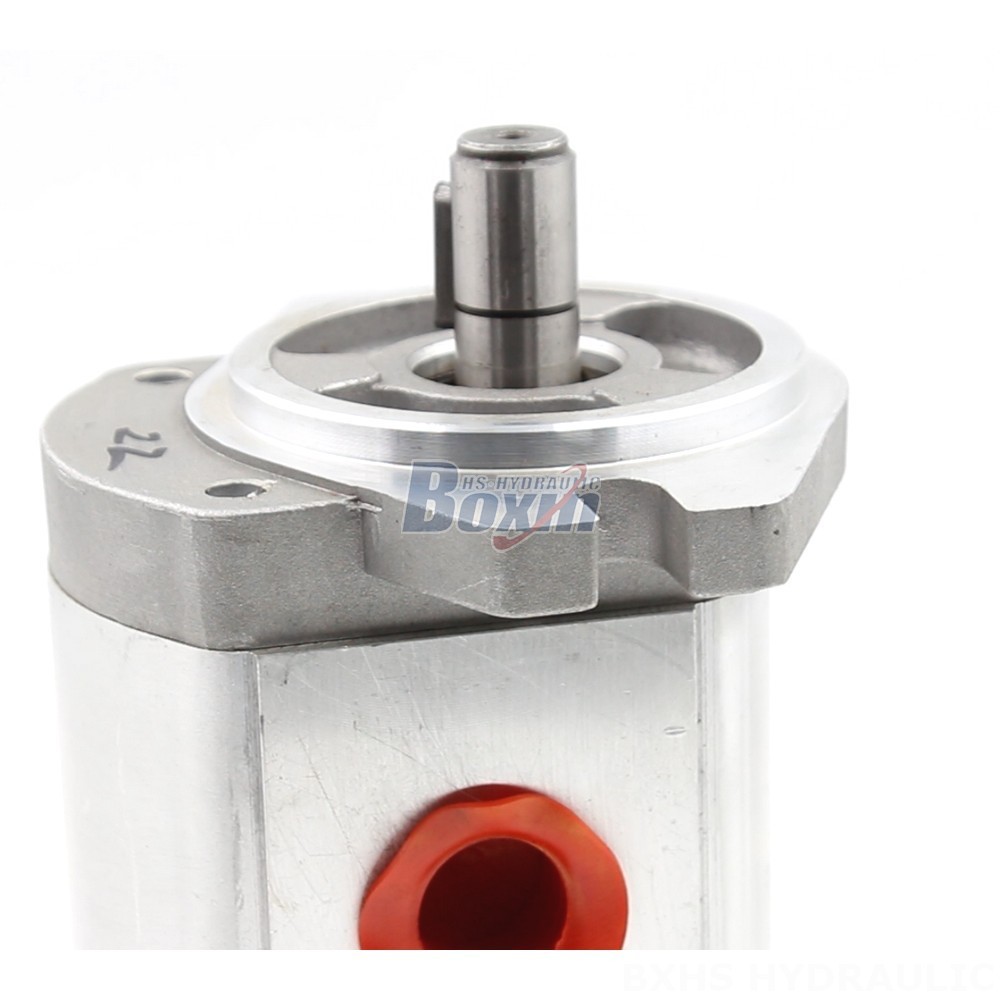

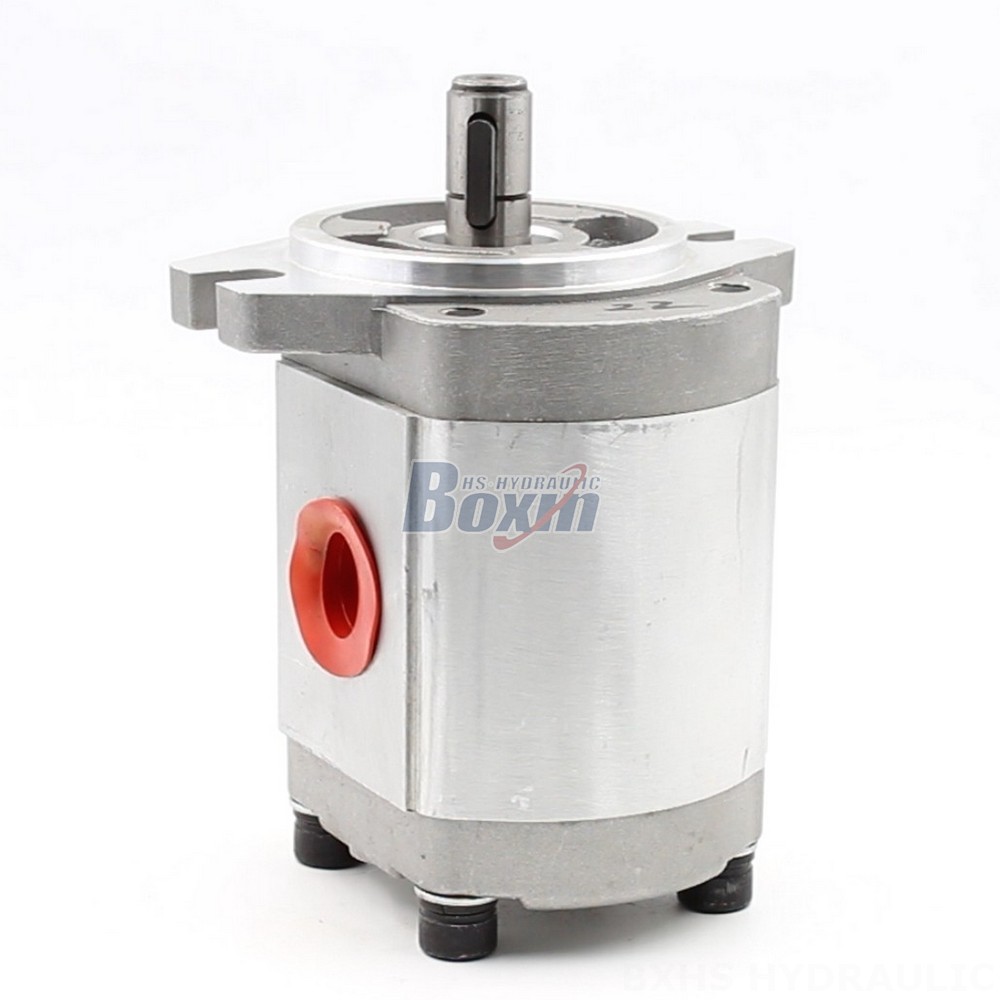

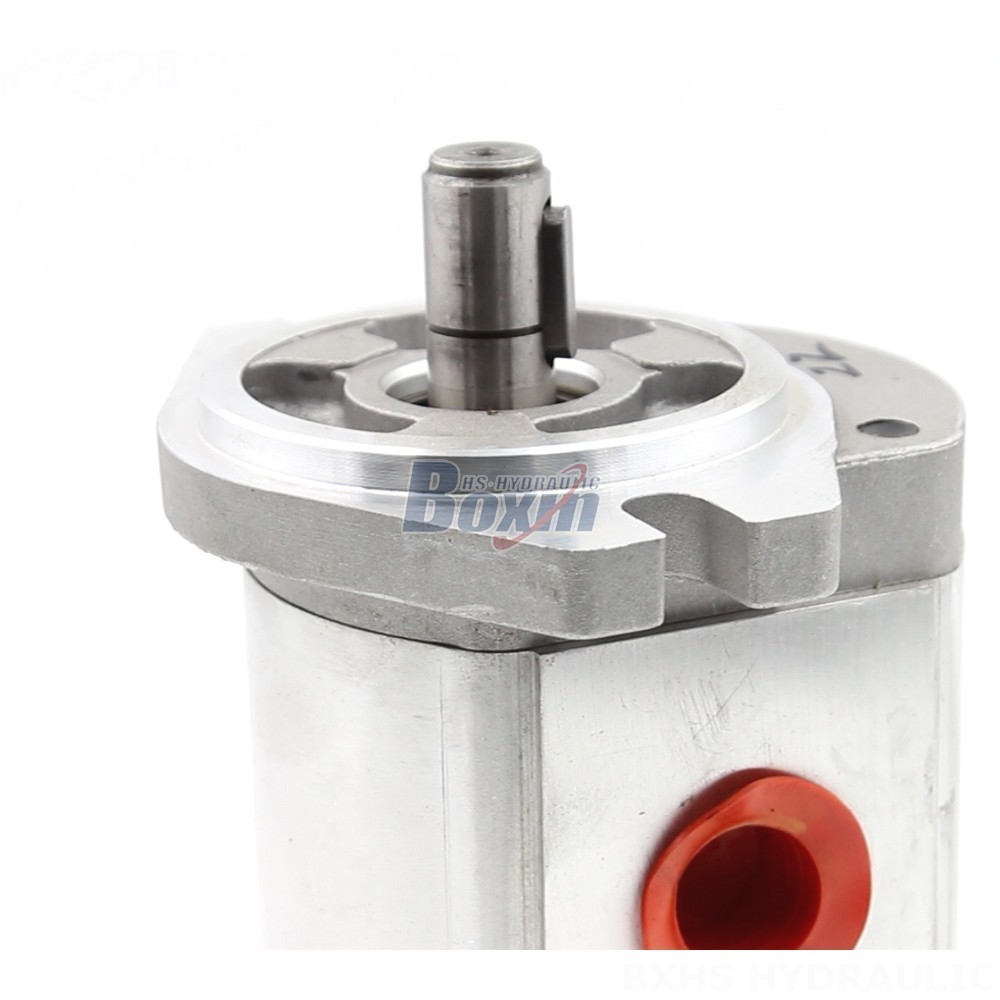

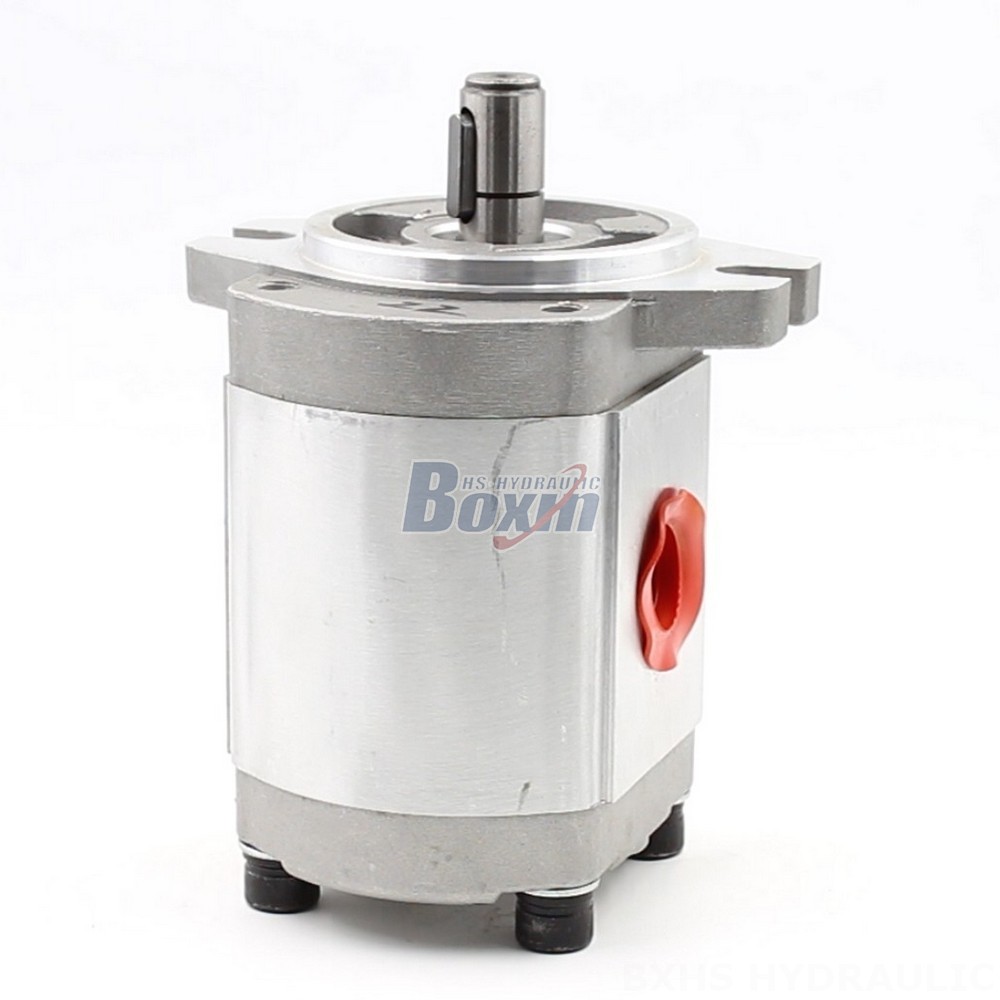

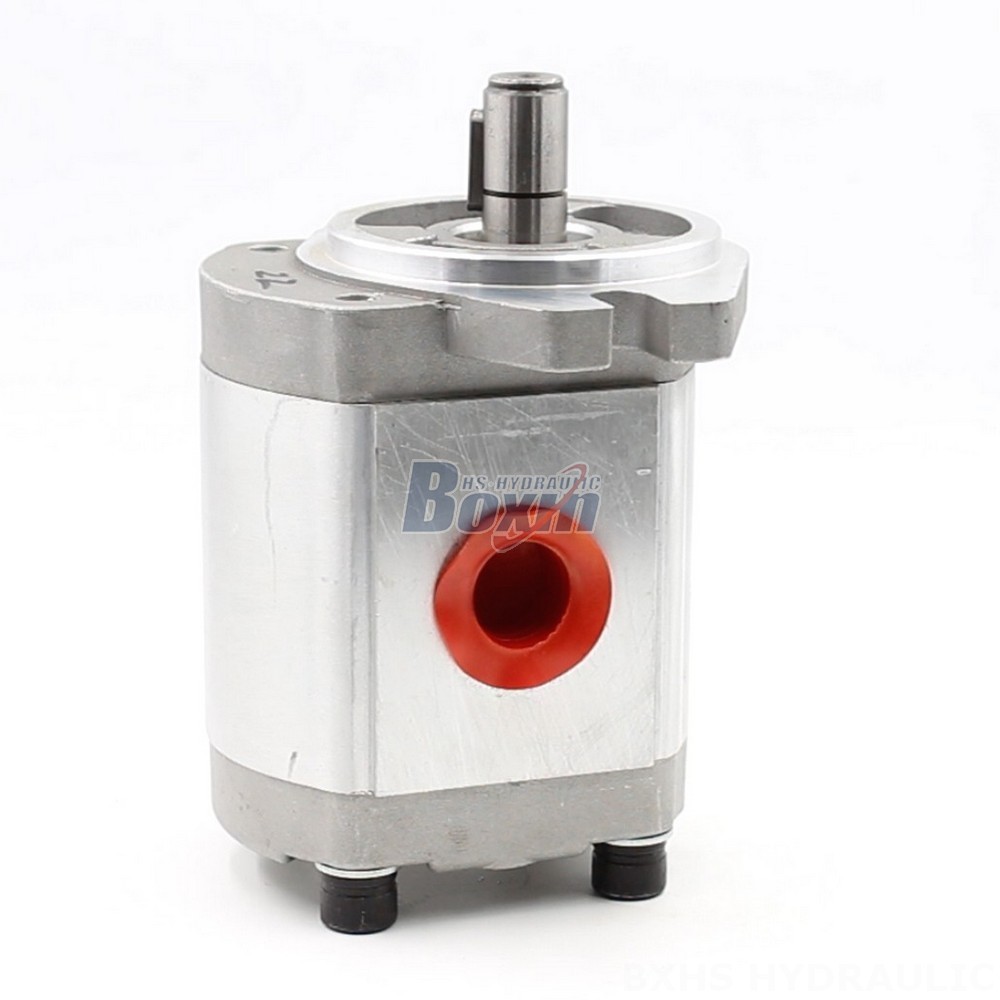

The CBHS-FL304 Hydraulic Gear Pump is a reliable and efficient pump designed for heavy-duty applications in various industries. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min, making it suitable for a wide range of construction and agricultural equipment.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
The CBHS-FL304 Hydraulic Gear Pump is a high-performance pump designed for demanding applications in construction, agriculture, and industrial vehicles. It features an internal gear pump design with an aluminum body, ensuring durability and efficiency. The pump has a displacement of 10 cc/rev and a rated pressure of 20 MPa, providing strong hydraulic power for a variety of tasks. Its rated speed is 2000 r/min, with a maximum speed of 3000 r/min. The CBHS-FL304 is available with both left and right rotation options. It features an A-Oval flange and a plain key shaft, making it compatible with various equipment. This pump is ideally suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
