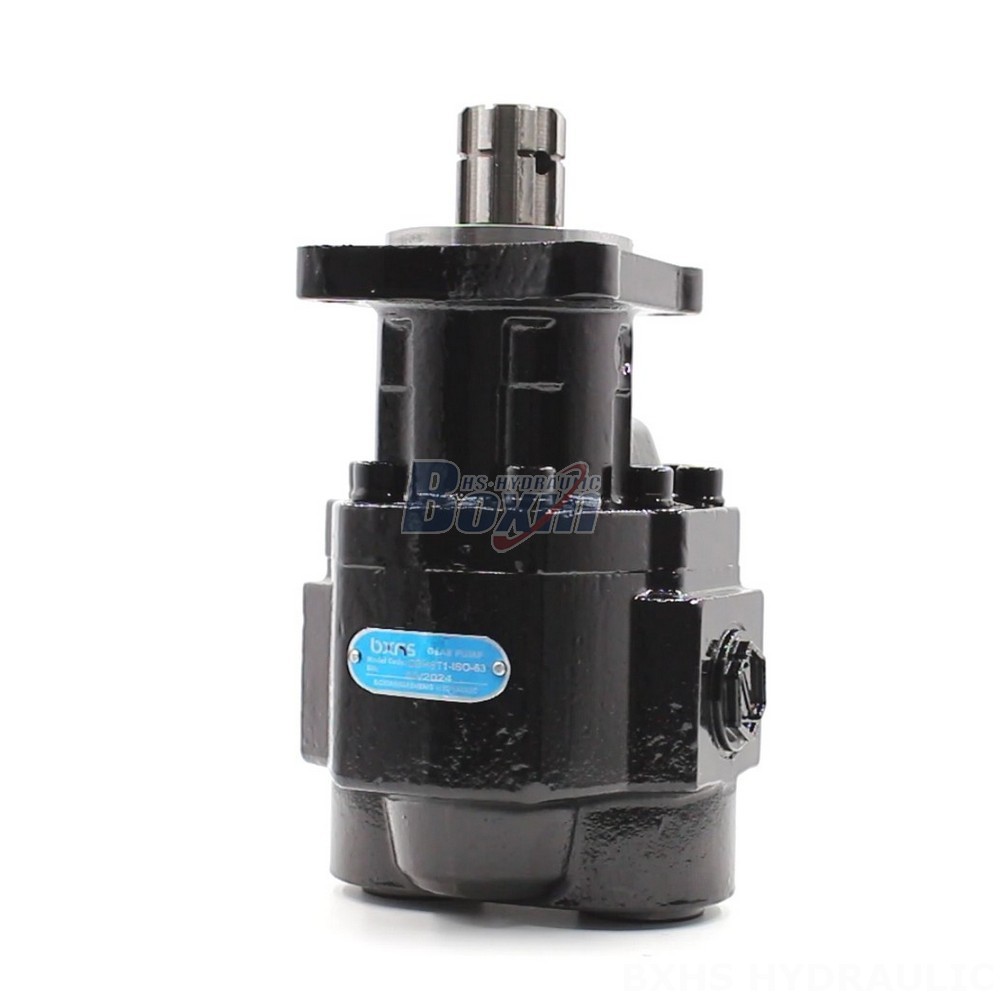

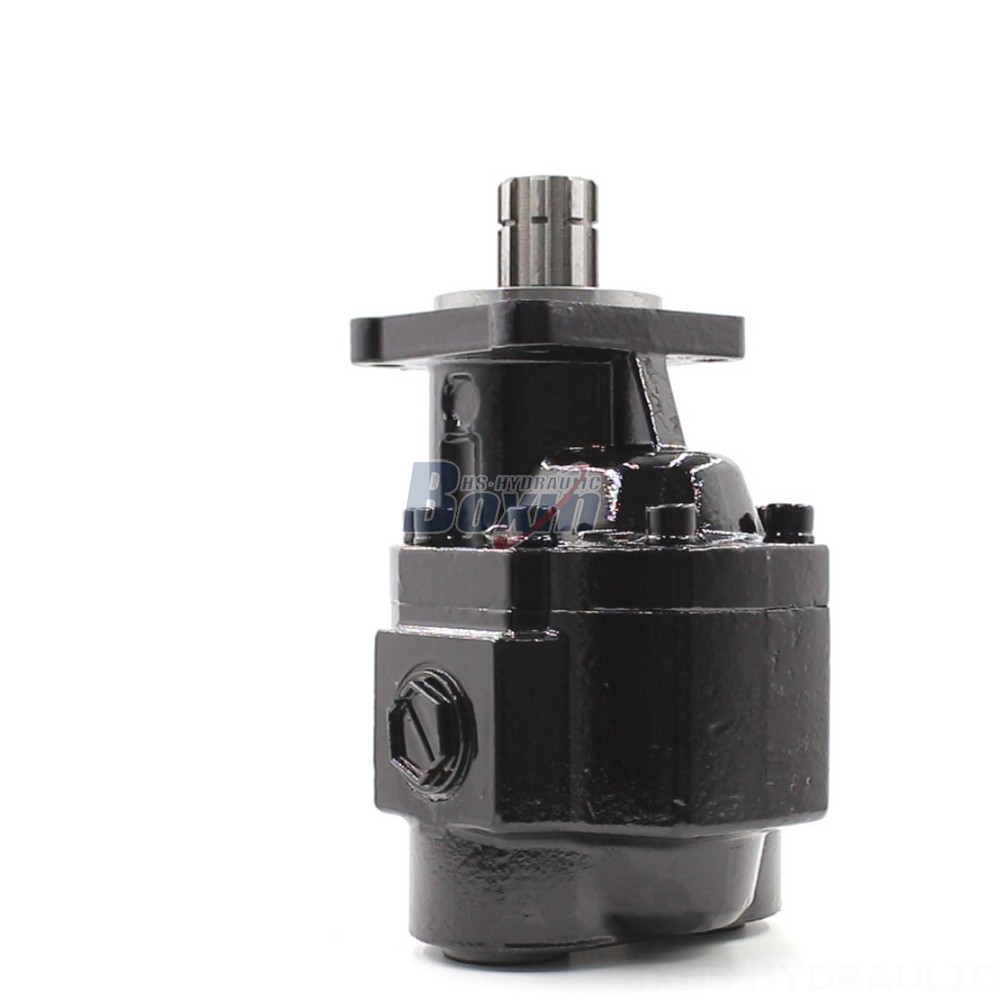

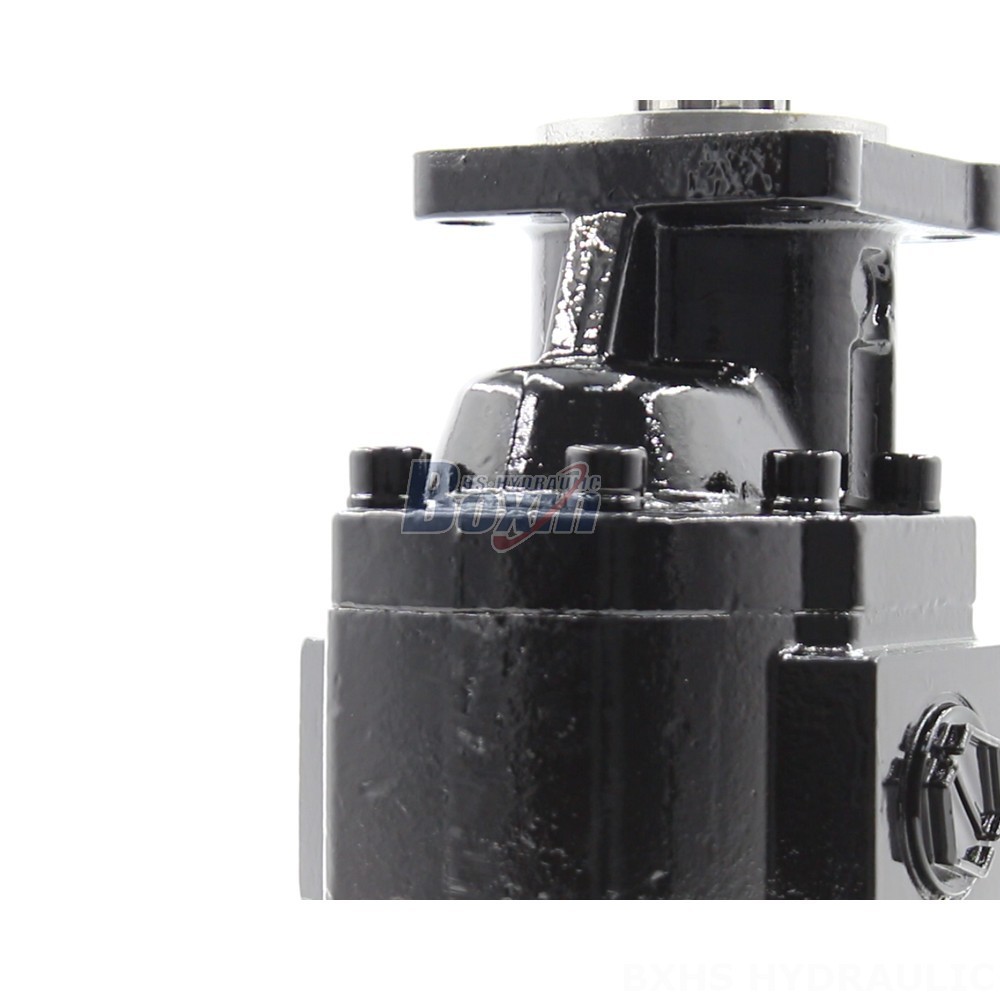

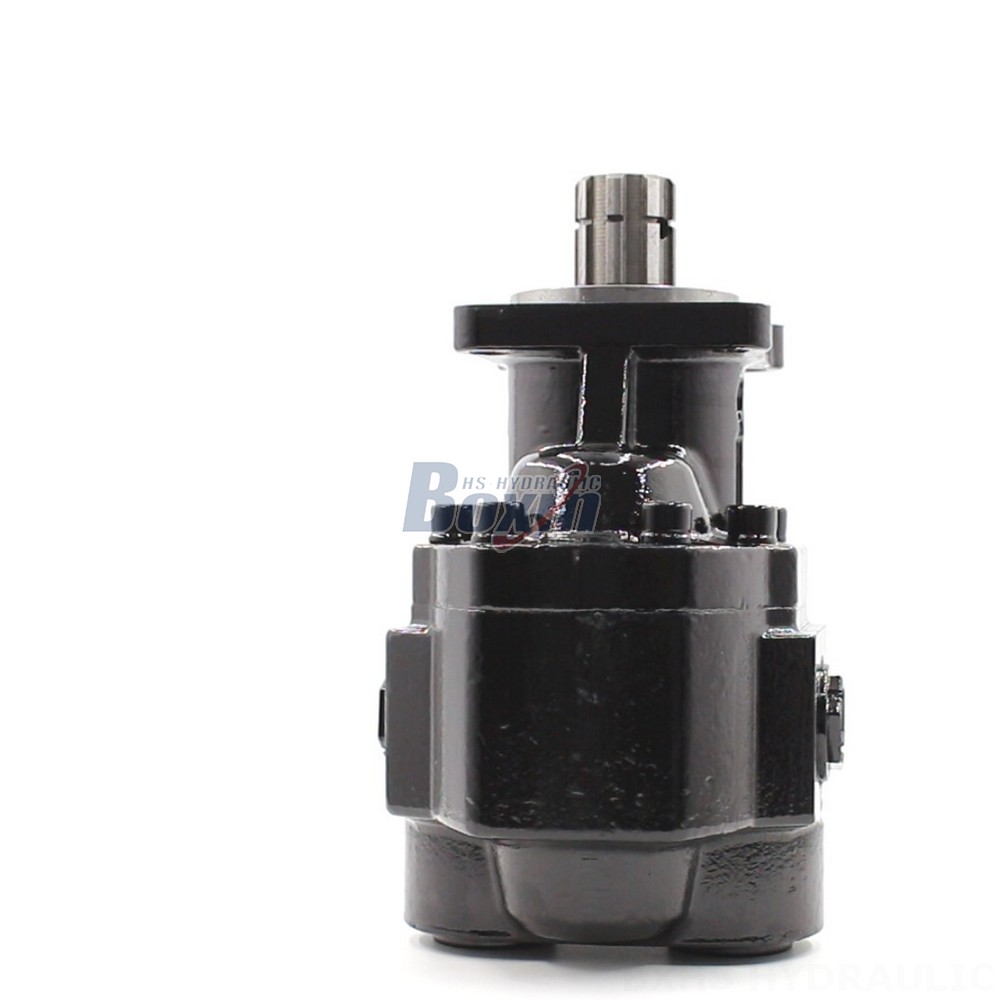

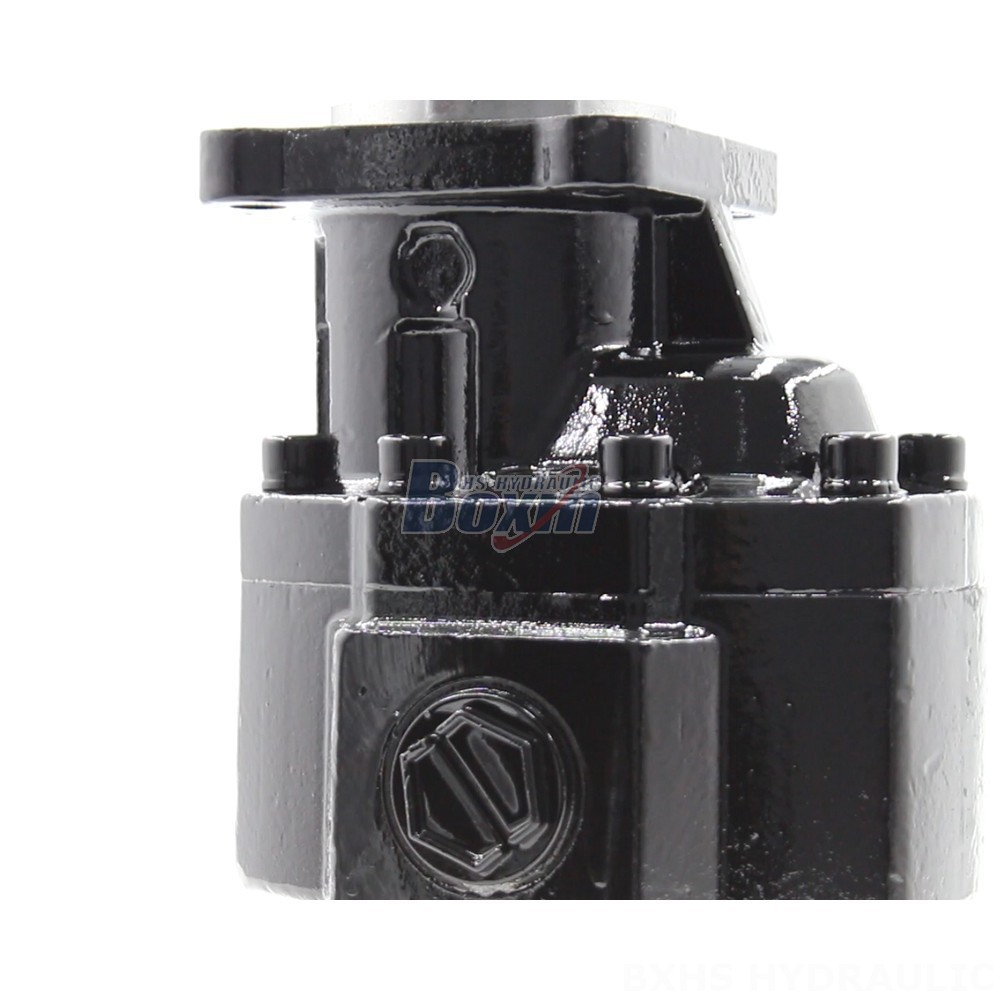

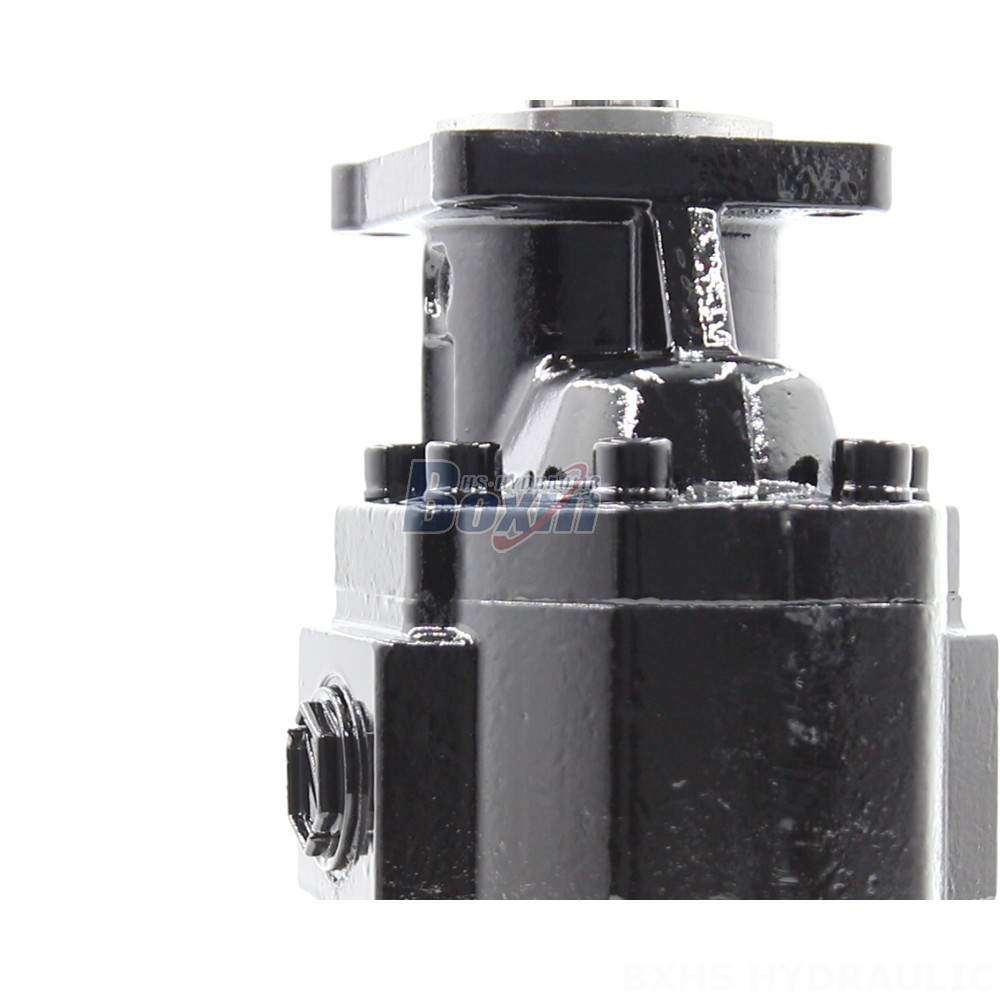

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| CBHST1-ISO Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 50 cc/devir, 63 cc/devir, 80 cc/devir, 100 cc/devir, 110 cc/devir, 34 cc/devir, 43 cc/devir, 90 cc/devir, 120 cc/devir, 82 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Maksimum Basınç | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 2500 devir/dakika |
| Dönüş Yönü | /: (Çift Yönlü) |
| Malzeme | Dökme Demir |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | ISO-4 Montaj Delikleri |
| Mil Tipi | H: Dikdörtgen Kayar Eksen |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
