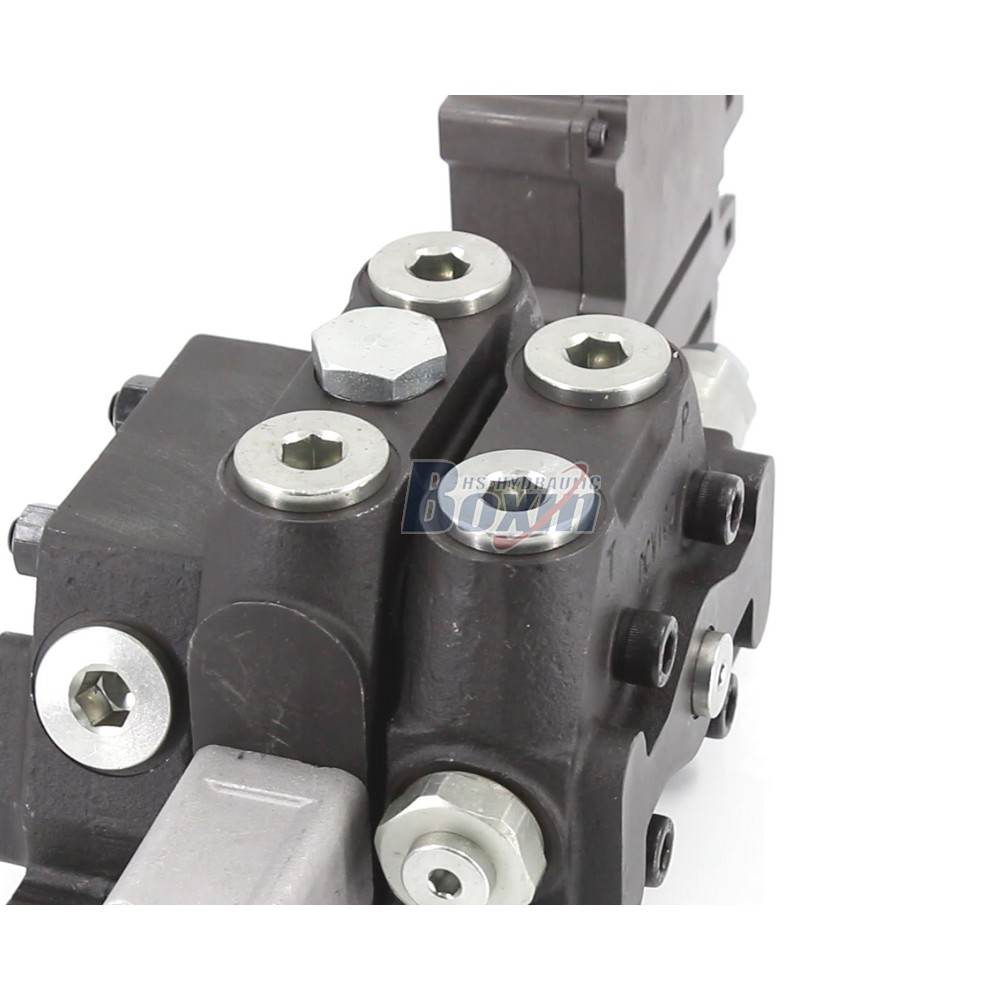

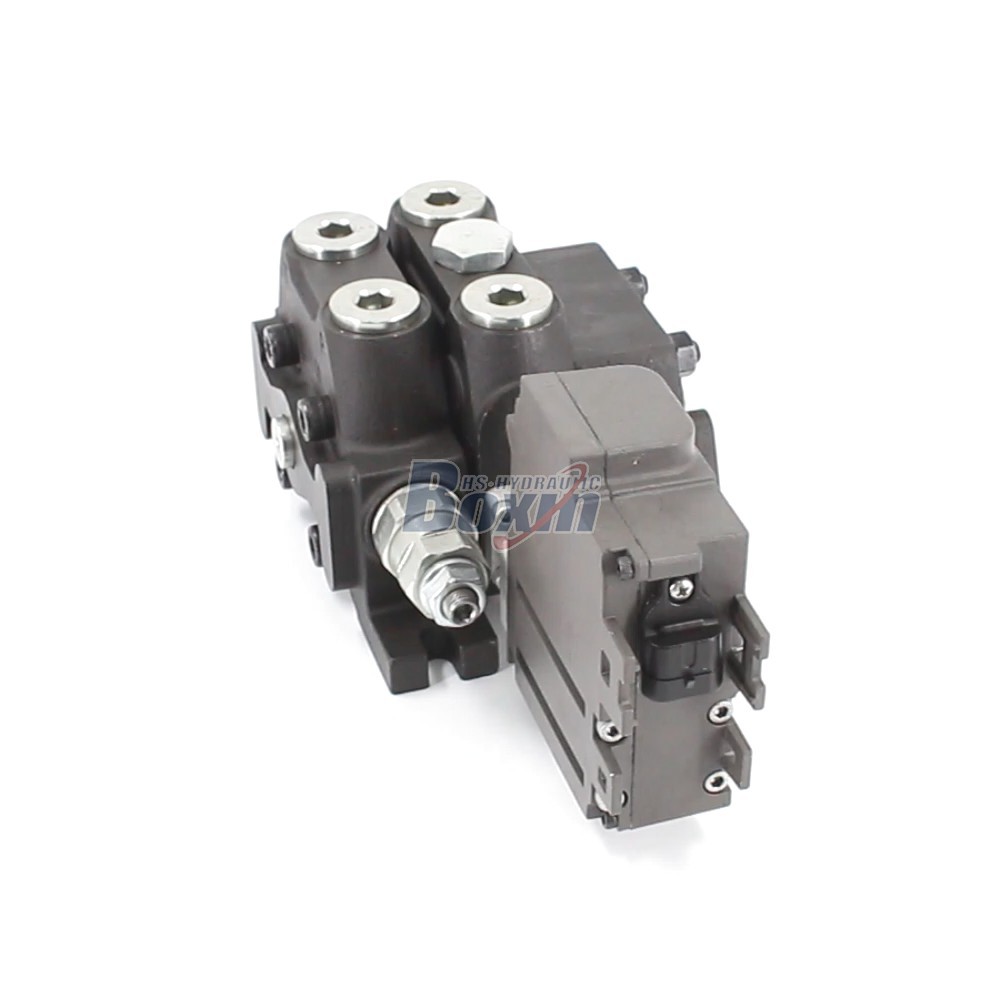

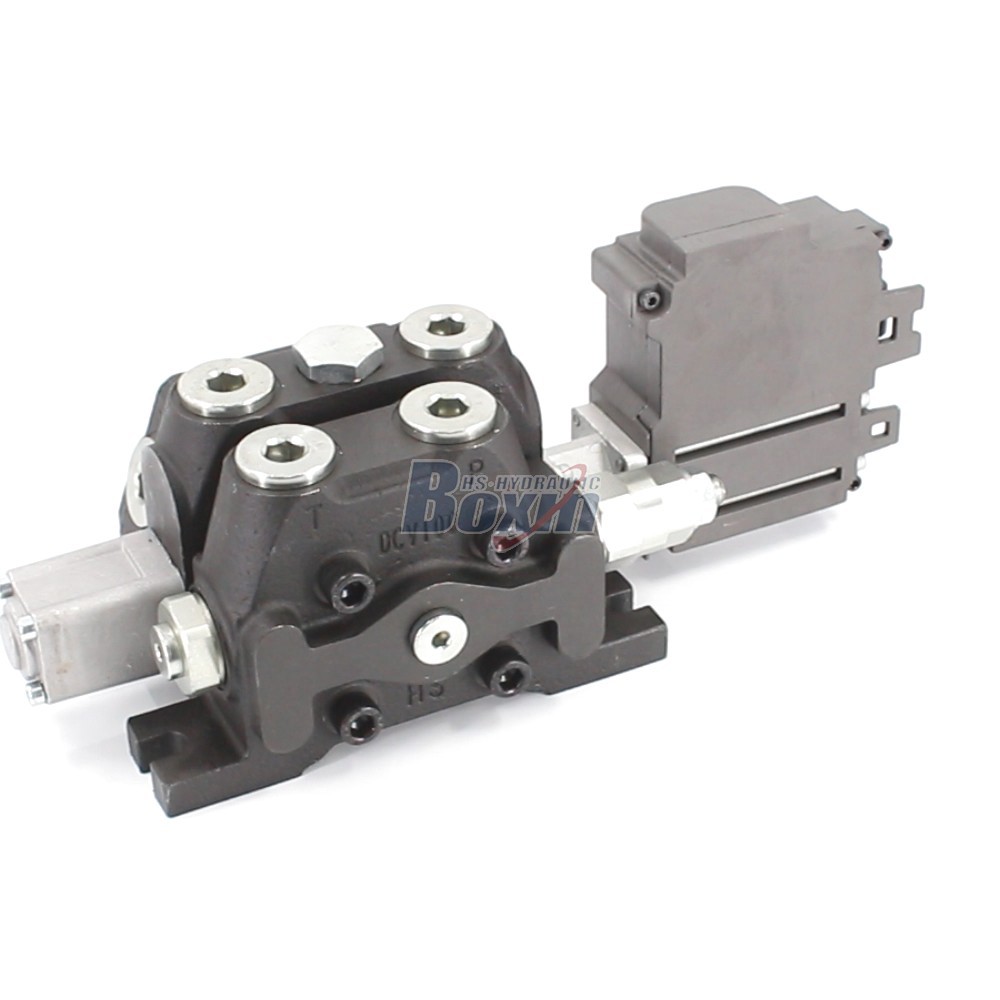

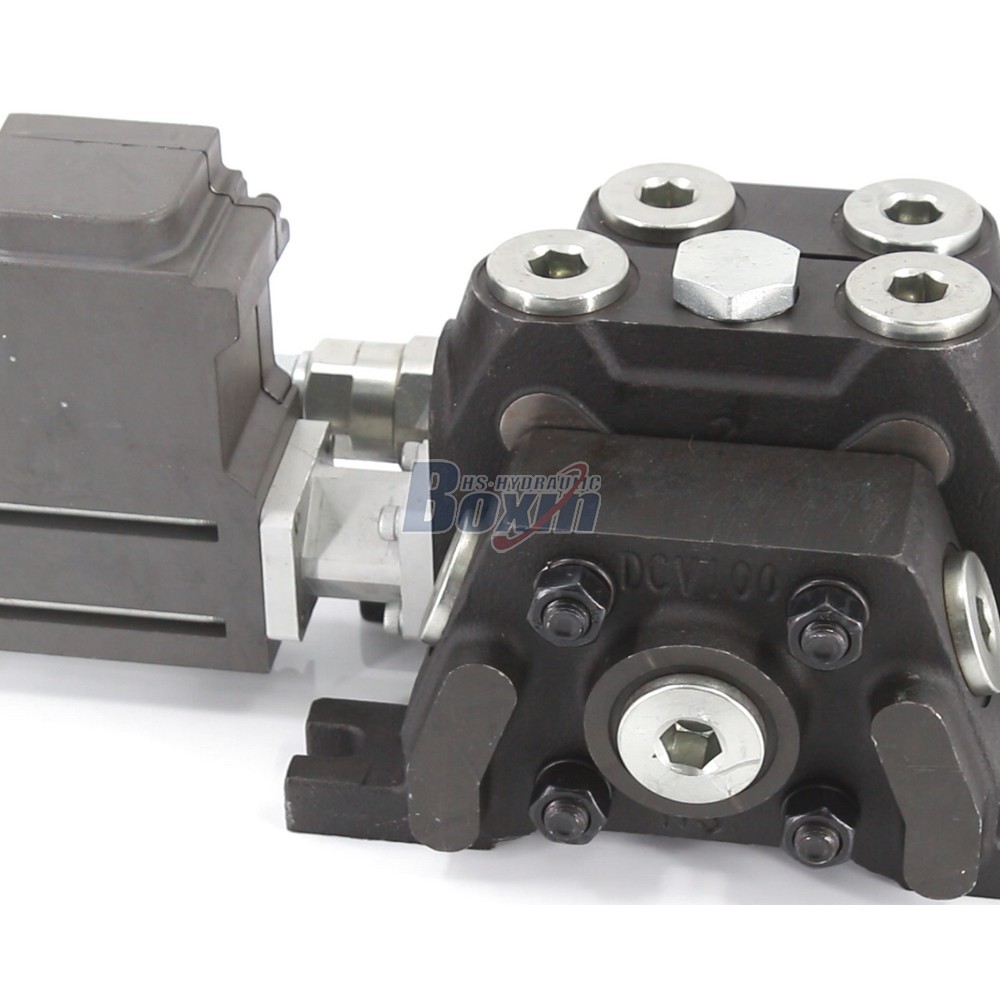

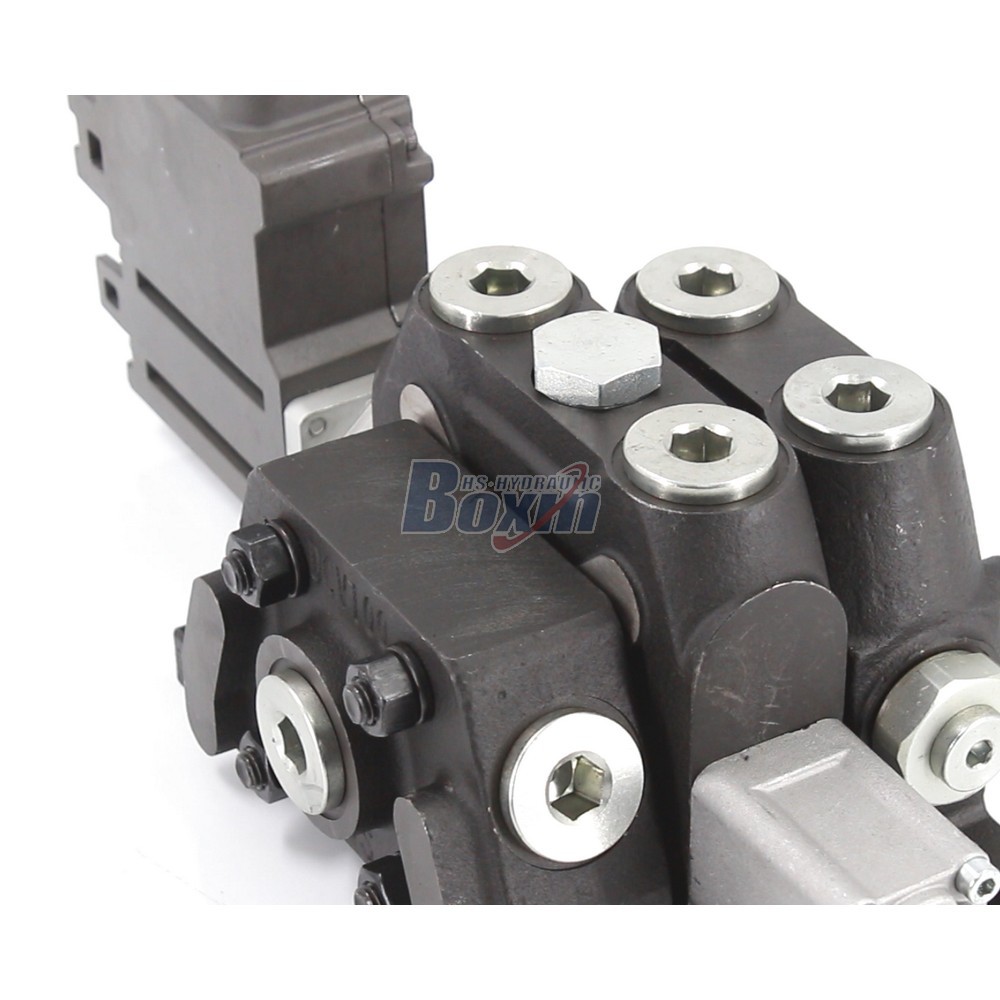

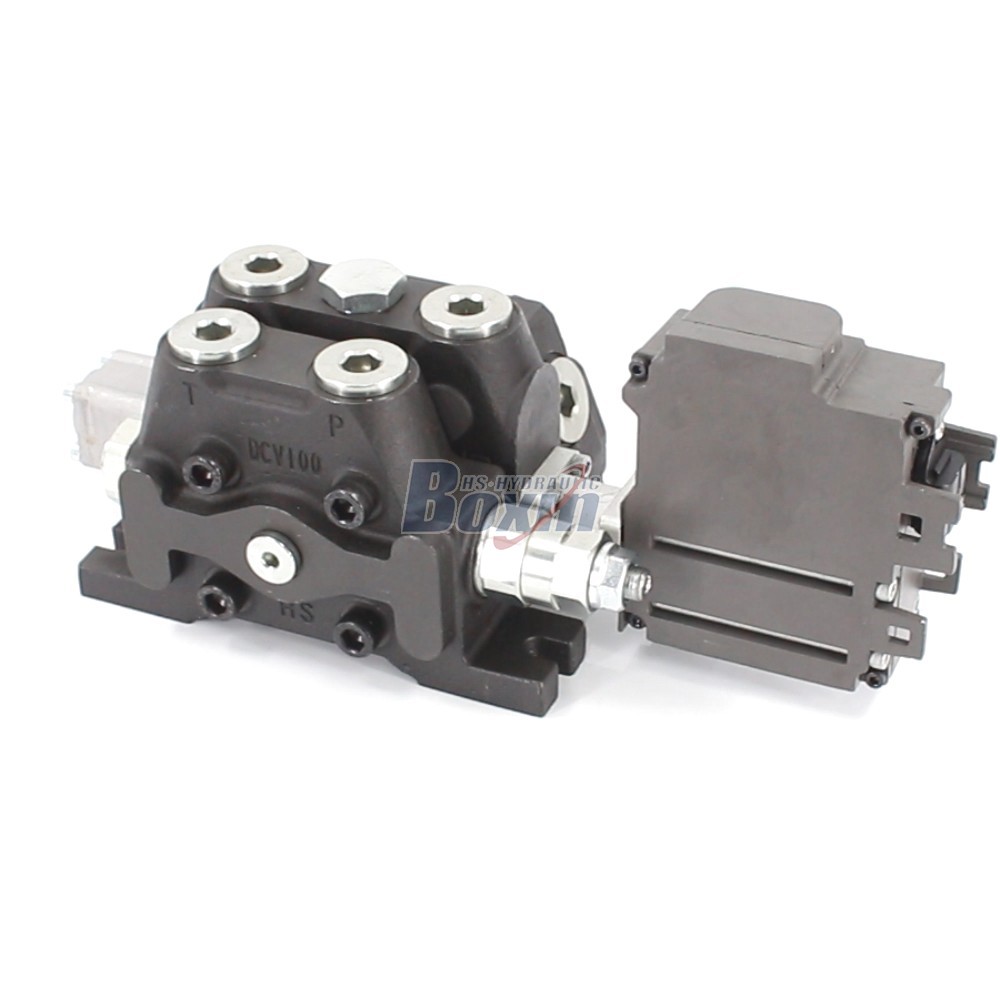

This DCV100EMA-OT is a 1 Spool Sectional Directional Valve driven by an electric motor, designed for hydraulic systems requiring up to 100 L/min flow and 315 bar pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| DCV100 Serisi Kesitsel Yönsel Valf Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Kablo, Joystick, Manuel ve Joystick, Manuel ve Elektro-hidrolik, Elektrik motoru, Elektro-hidrolik ve Selenoid |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 100 L/dk (26,5 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Çıkış Portu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Boyutu | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 100 L/min (26.5 US gpm) flow with G3/4 inlet/outlet ports, ensuring efficient fluid dynamics.
- Operates safely at max pressure of 315 bar (4600 psi), ideal for demanding material handling tasks.
**2. Reliable Electric Hydraulic Control Valve Design**
- Features integrated electric motor control for precise spool actuation and automated system integration.
- Compact 1 spool configuration simplifies installation in space-constrained industrial vehicle applications.
**3. Durable 1 Spool Directional Valve Construction**
- Built with high-grade castings and finished with anti-rust treatment for extended service life.
- Undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee zero defects.
**4. Versatile DCV100 Series Valve Applications**
- Perfectly compatible with telehandlers, mini-excavators, skid steer loaders, and wood splitters.
- Serves as a direct replacement for major international brands, reducing maintenance costs for wholesalers.
**5. Factory Direct Sales & Customization Power**
- Backed by a Professional Manufacturer with 25+ years experience, 68,000 sqm facility, and IATF 16949 certification.
- Supports OEM/ODM services including laser logo marking and custom packaging for China Wholesale buyers.
