The DCV60 2-Spool Electro-hydraulic Directional Valve is a high-performance valve designed for various industrial applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, it ensures efficient and precise control of hydraulic systems in demanding conditions.
| DCV60 Serisi Kesitsel Yönsel Valf Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 60 L/dk (15,8 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi), 350 bar (5100 psi) |
| Giriş Portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |

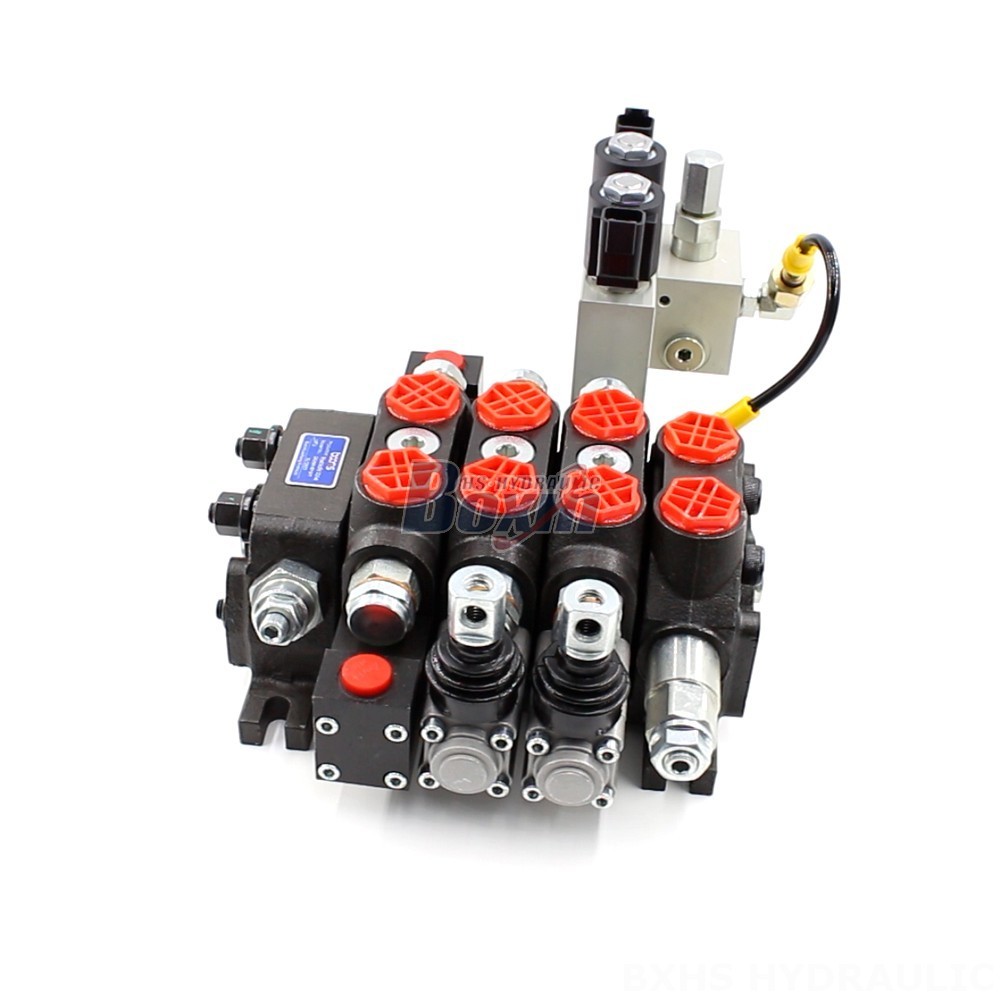

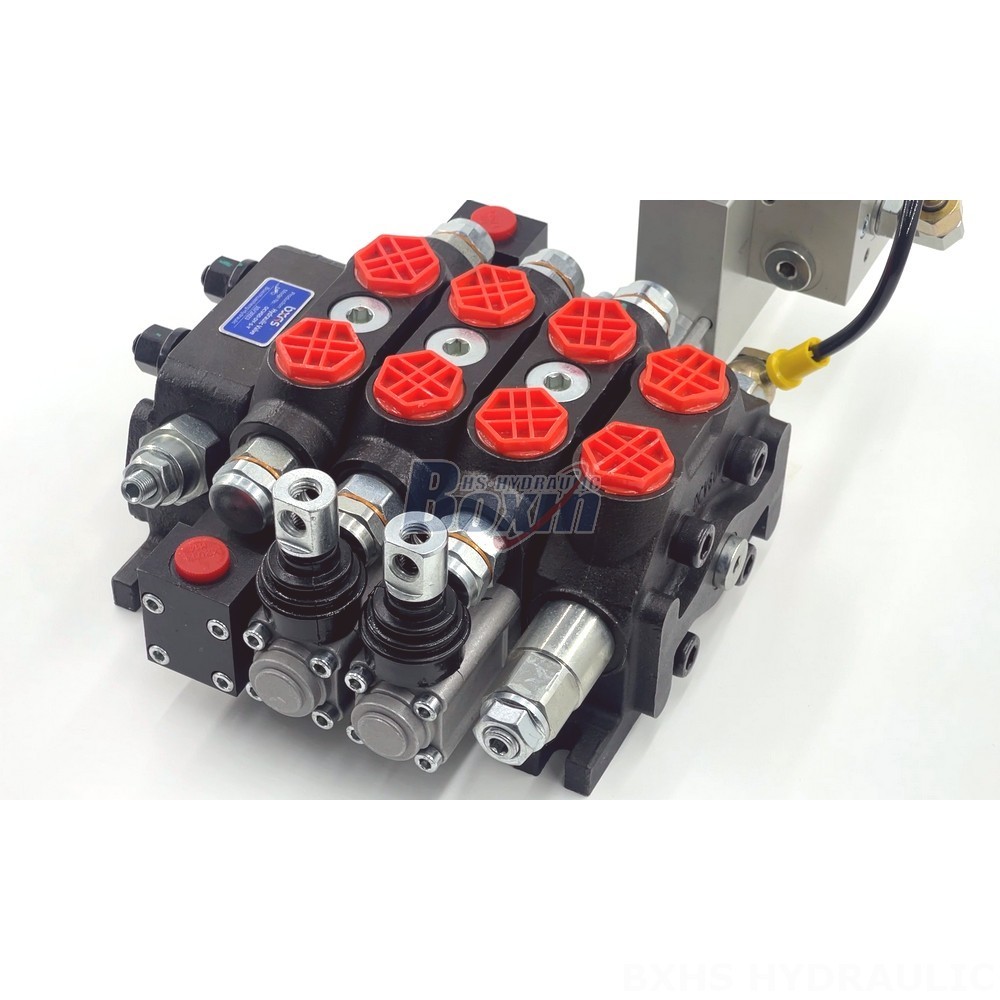

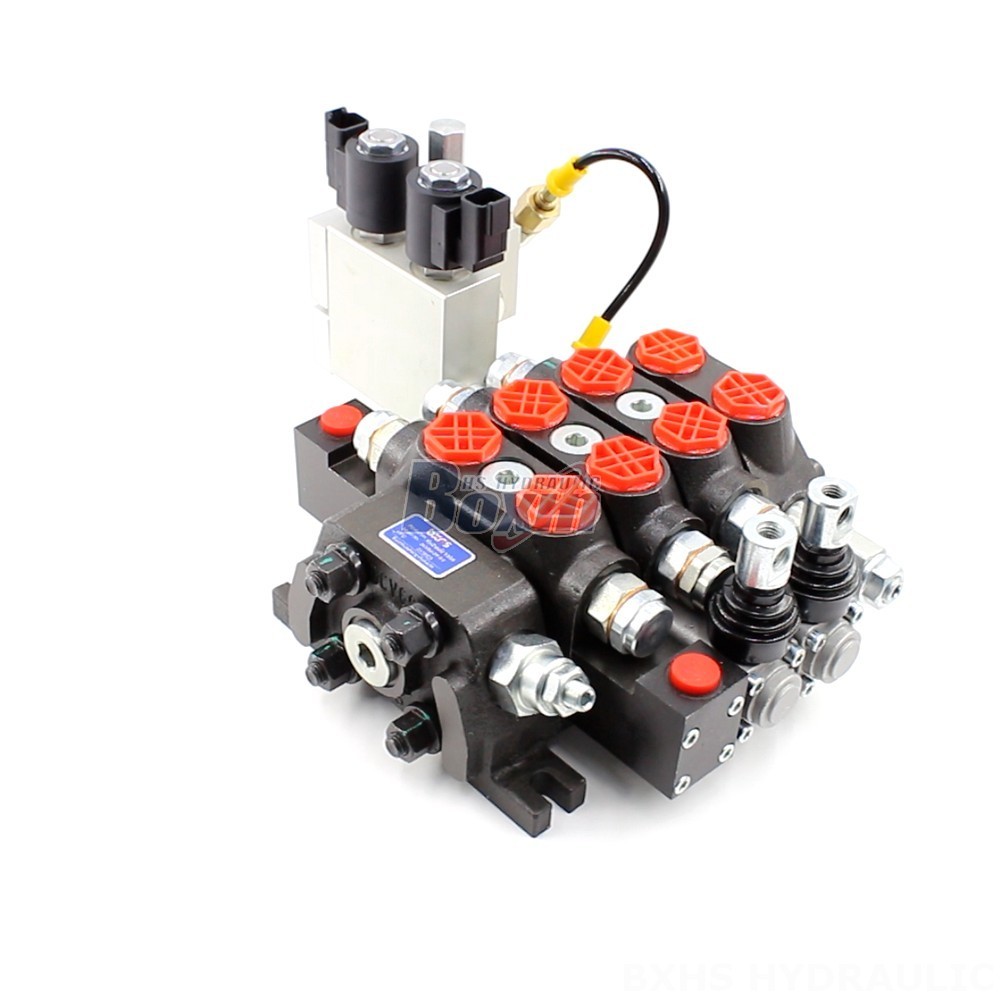

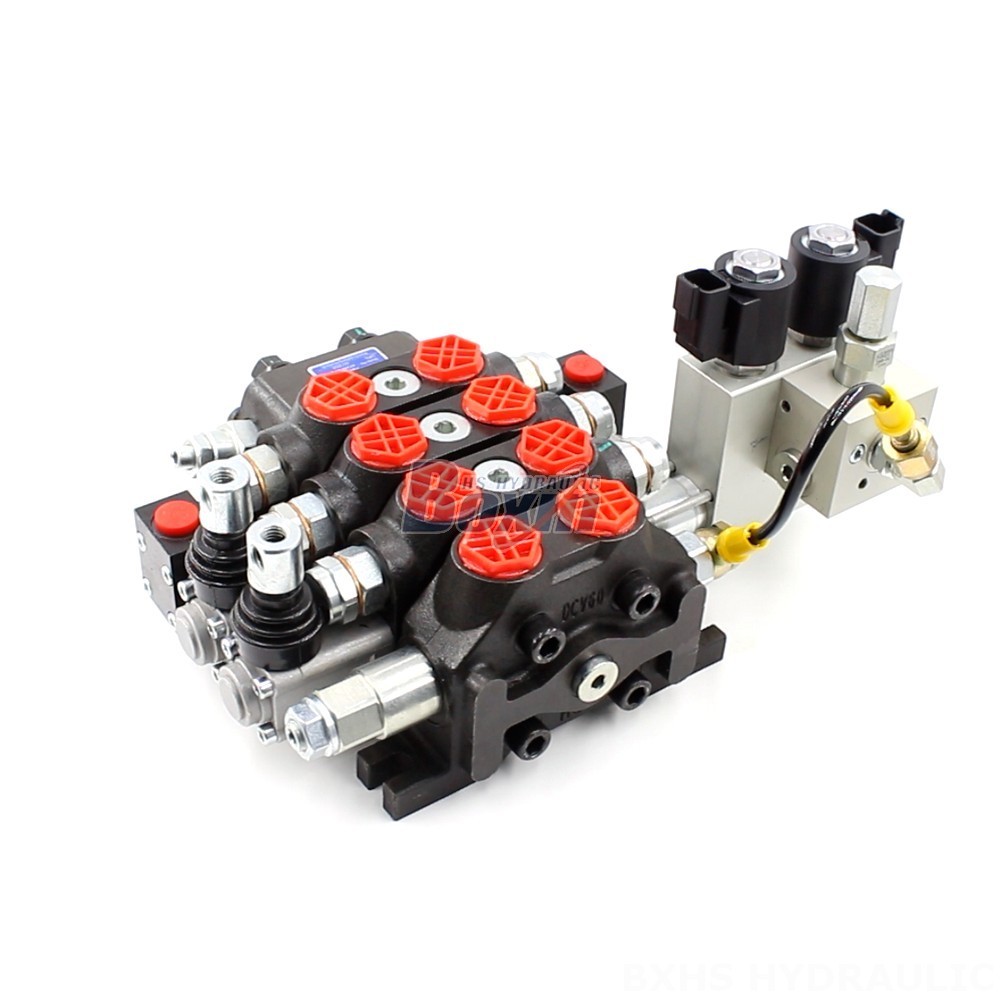

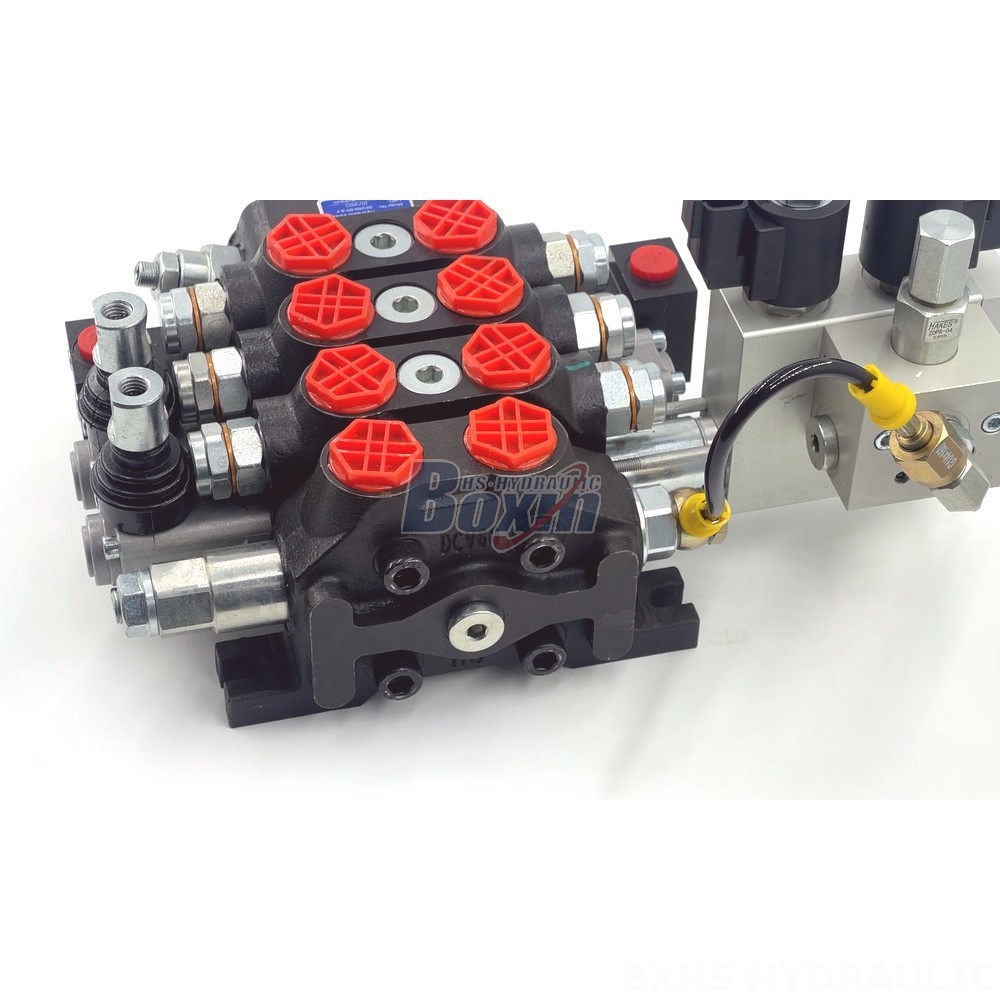

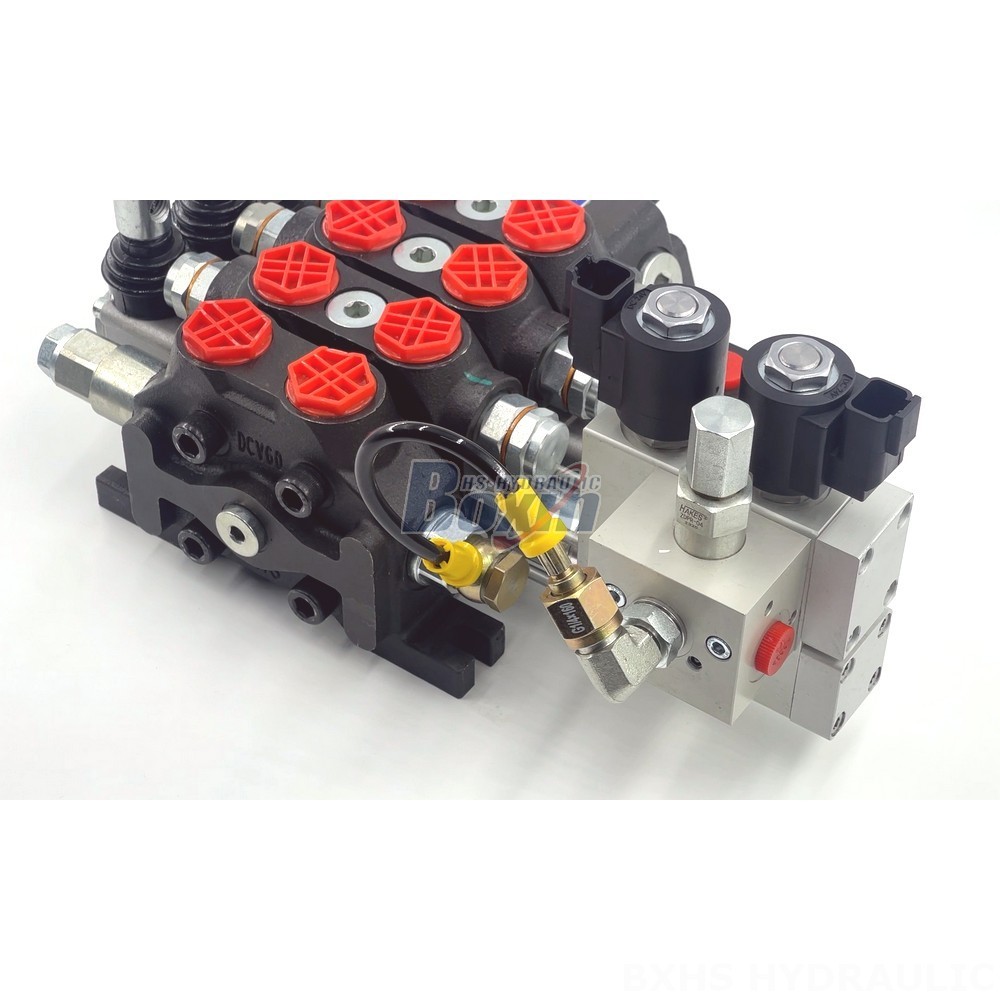

**DCV60 2-Spool Electro-hydraulic Directional Valve**
**Product Description:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is a compact and reliable valve that offers precise control of hydraulic systems. It features a sectional valve structure, allowing for easy customization and integration into various applications. The valve is designed to operate within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), ensuring optimal performance in diverse operating conditions.
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- 2-spool design for versatile flow control
- Sectional valve structure for easy customization
- Rated flow of 60 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity and temperature ranges for adaptability
- Compact design for space optimization
- Suitable for various industrial applications, including material handling, construction, agriculture, and industrial vehicles
**Applications:**
The DCV60 2-Spool Electro-hydraulic Directional Valve is widely used in hydraulic systems of:
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders
