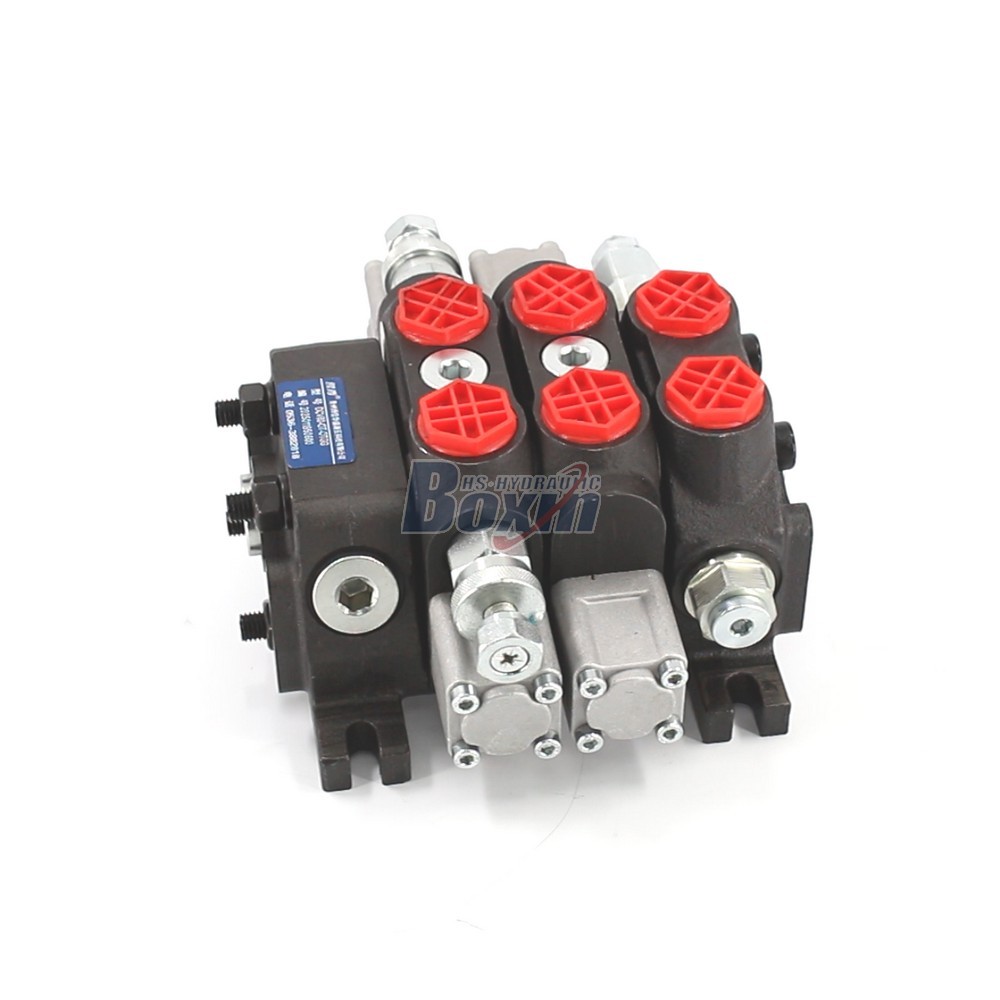

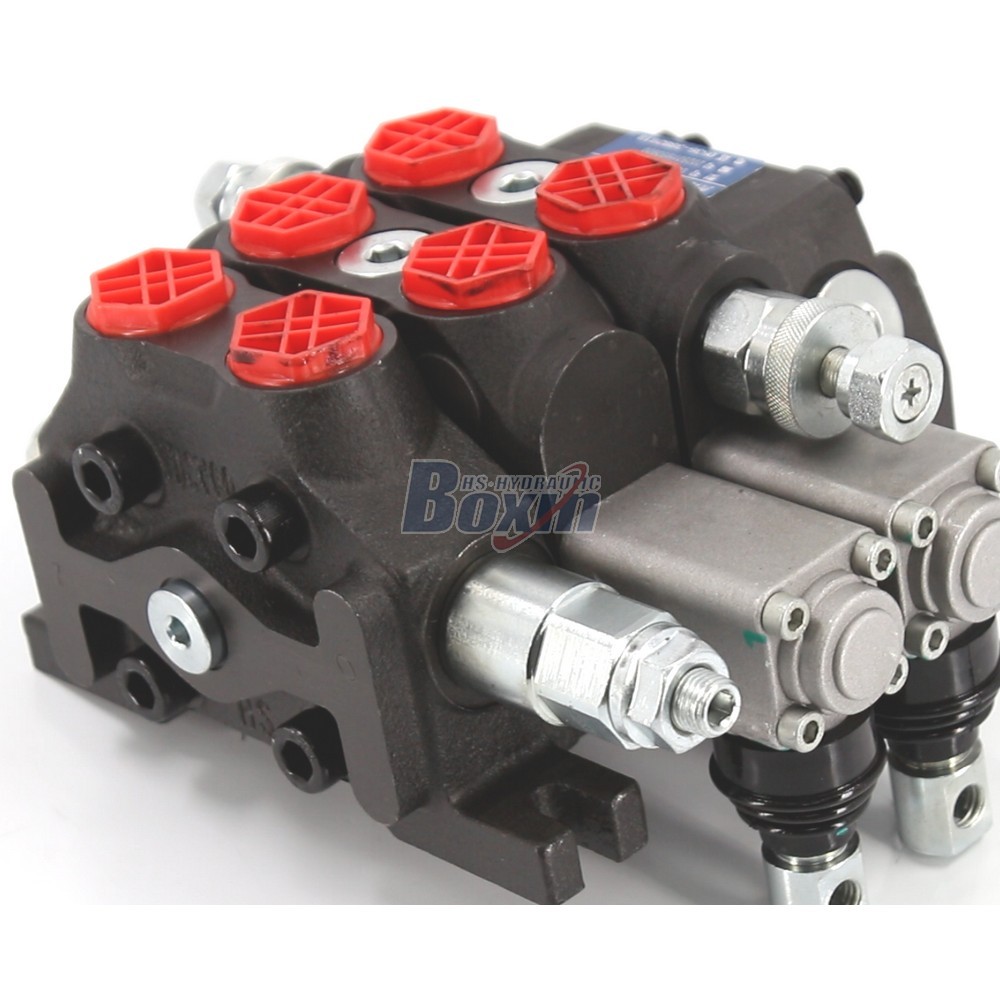

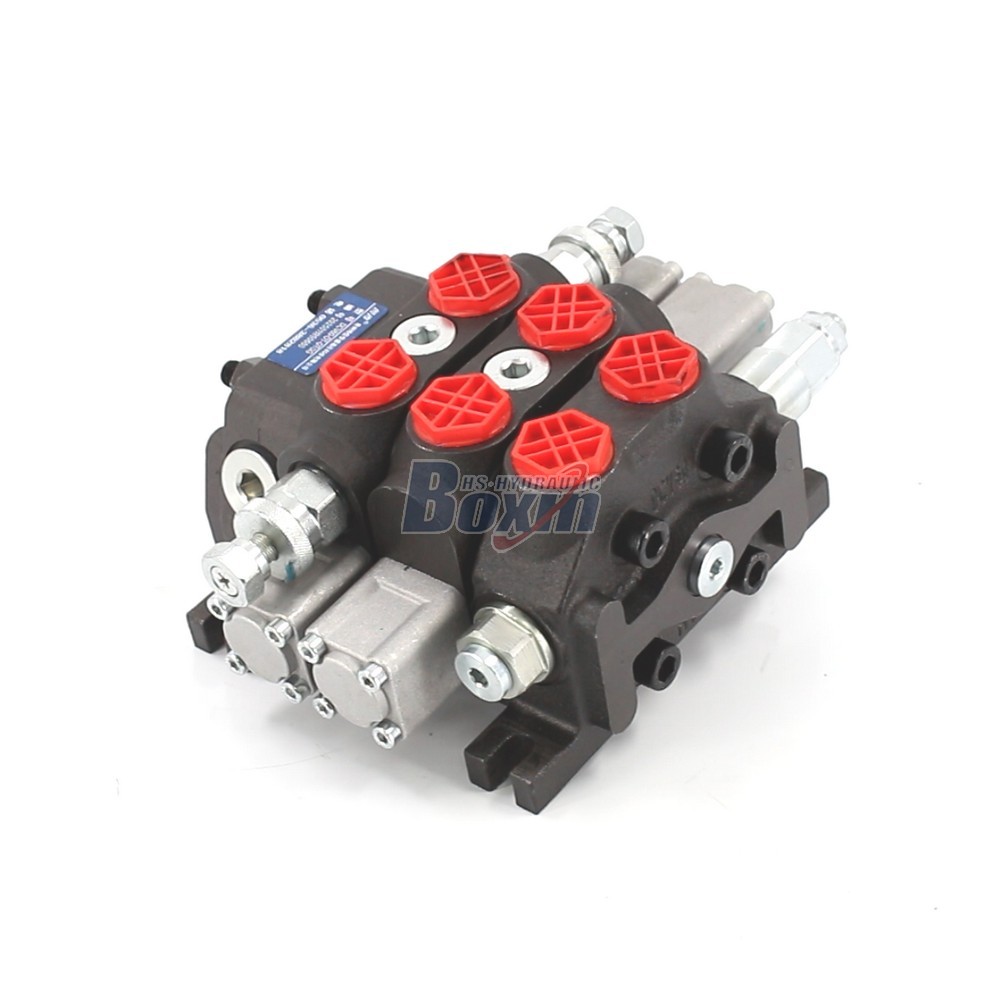

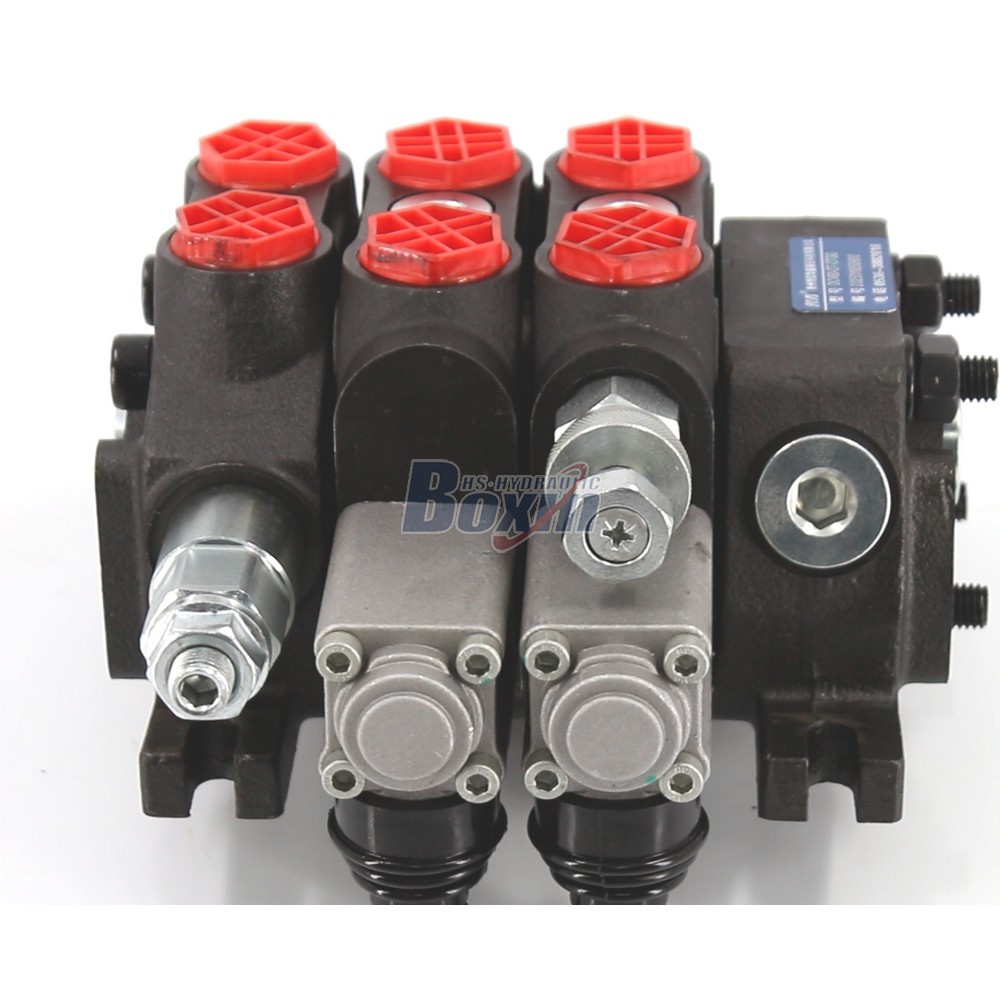

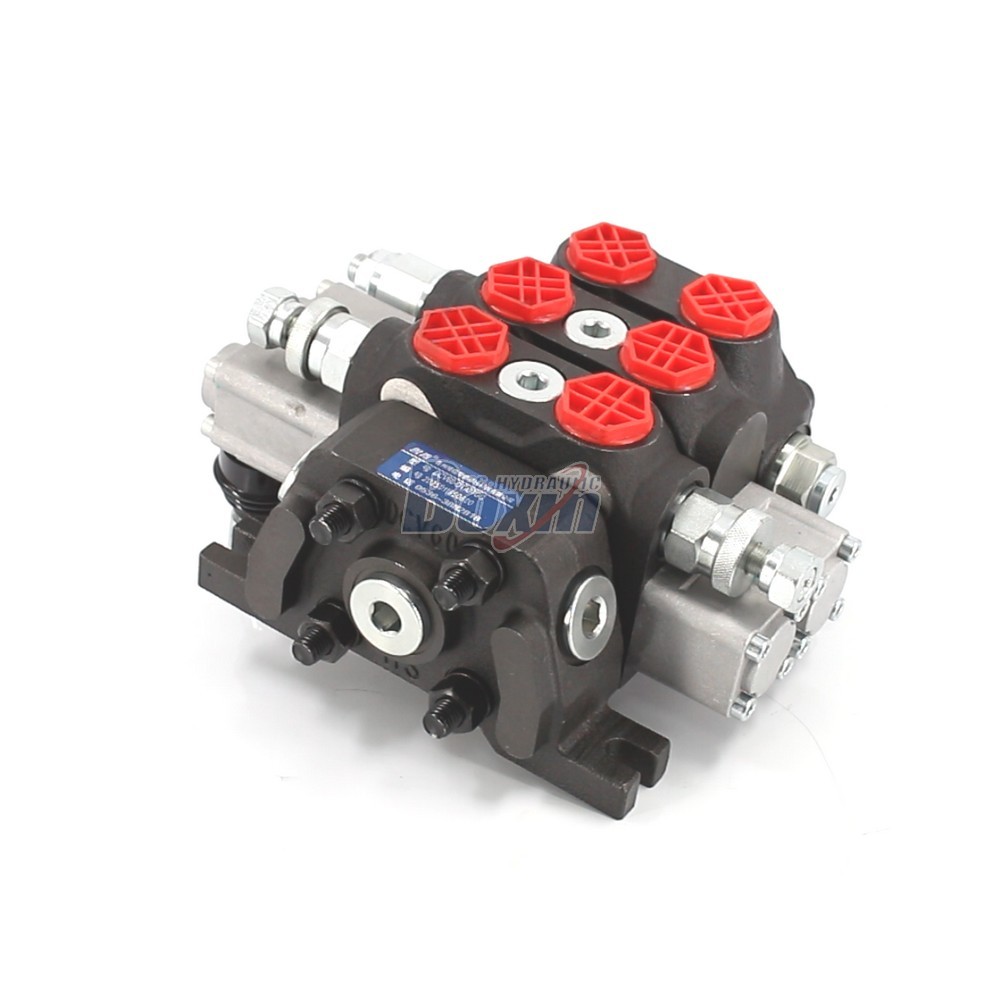

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:60 L/dk (15,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:DCV60 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:30*25*18

Brüt ağırlık:11.00 kg

Stok Durumu: Stokta Var

109 Görünümler Bu Ürünü Arıyor

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve drawing image

The DCV60-FZJ Series is a high-performance 2-spool sectional hydraulic directional control valve designed for precise manual operation. It offers a rated flow of 60 L/min and can withstand pressures up to 350 bar, making it ideal for demanding construction, agricultural, and material handling applications.

DCV60 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 60 L/dk (15,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi), 350 bar (5100 psi)
Giriş Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a prominent hydraulic manufacturer, we provide the DCV60-FZJ Series 2 Spool Sectional Valve, engineered for professional-grade performance and reliability. Featuring a robust manual control system and G3/4 porting, this valve is optimized for compact machinery such as mini-excavators, skid steer loaders, and tractors. We offer comprehensive solutions including manufacturing, OEM, and private labeling services to meet your specific technical requirements. Our factory supply ensures competitive wholesale pricing and consistent quality for high-volume orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need customized configurations or bulk supply, our factory-direct support provides the technical expertise and inventory stability required for industrial vehicle and earth-moving equipment applications.
