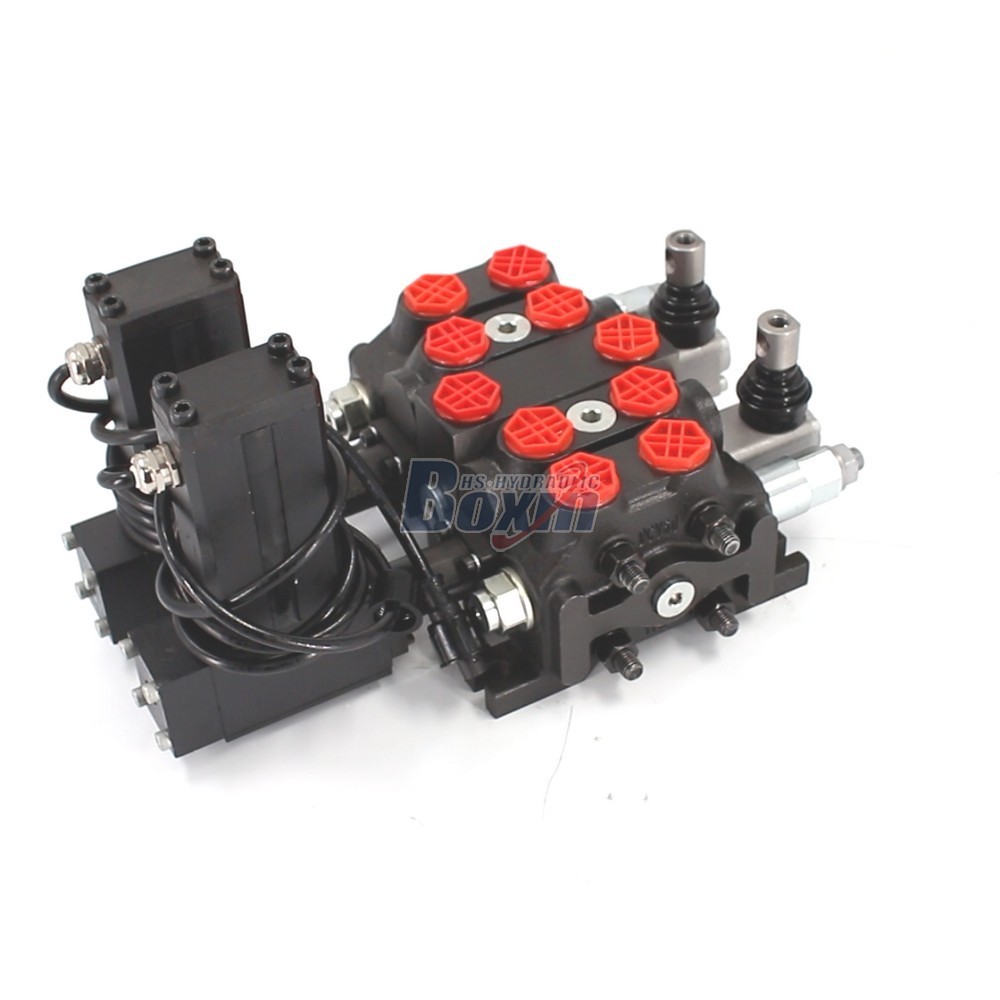

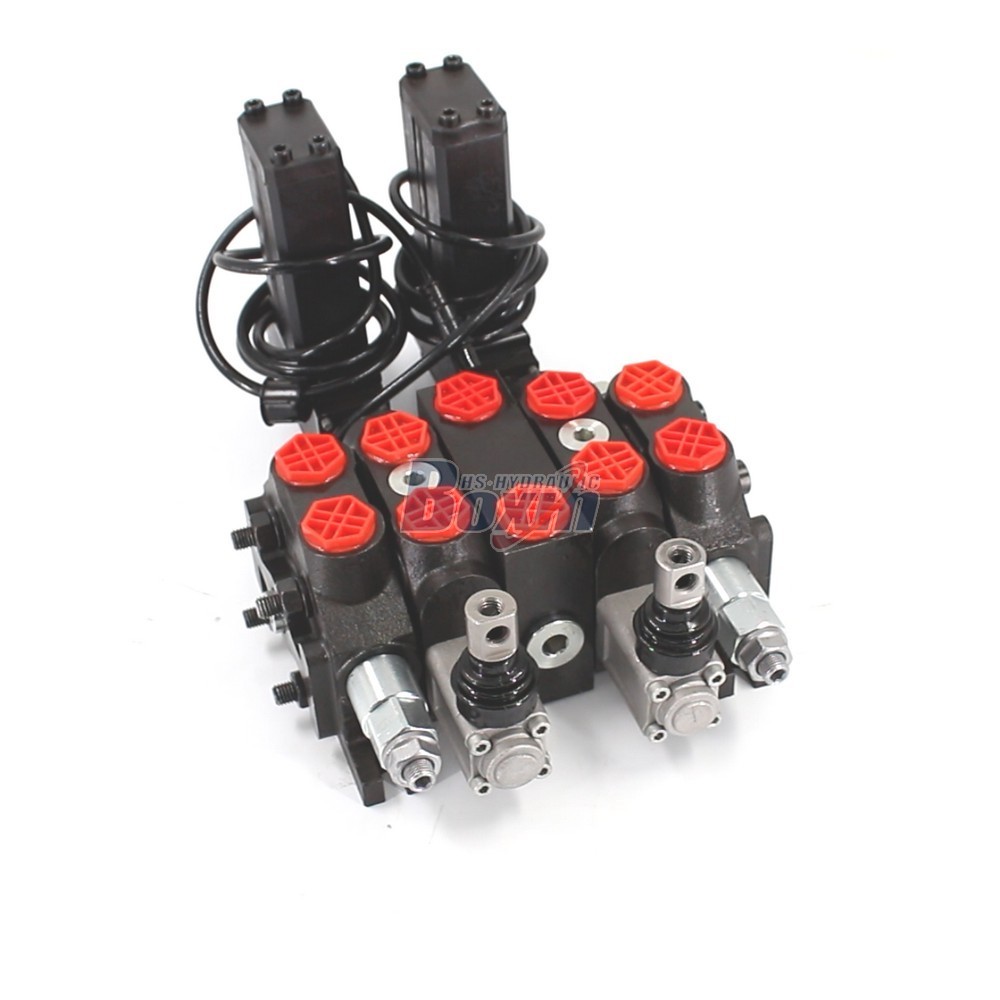

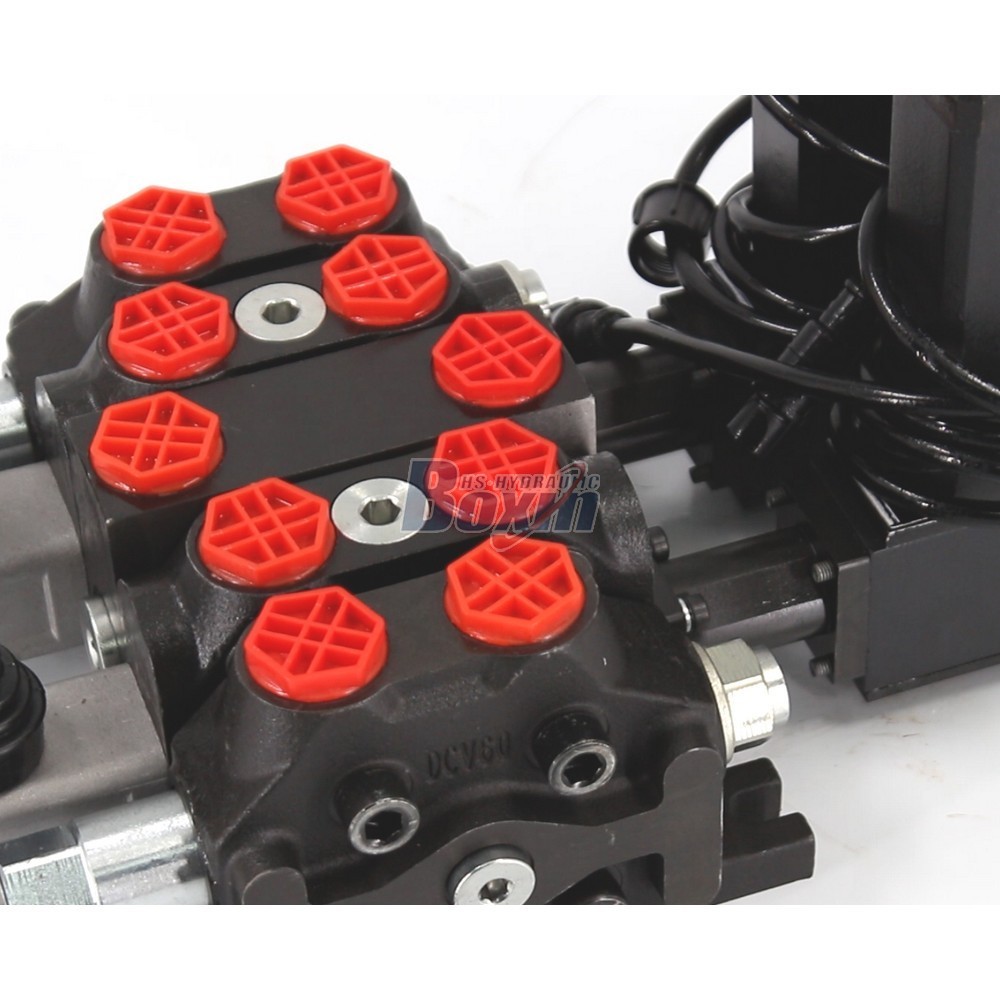

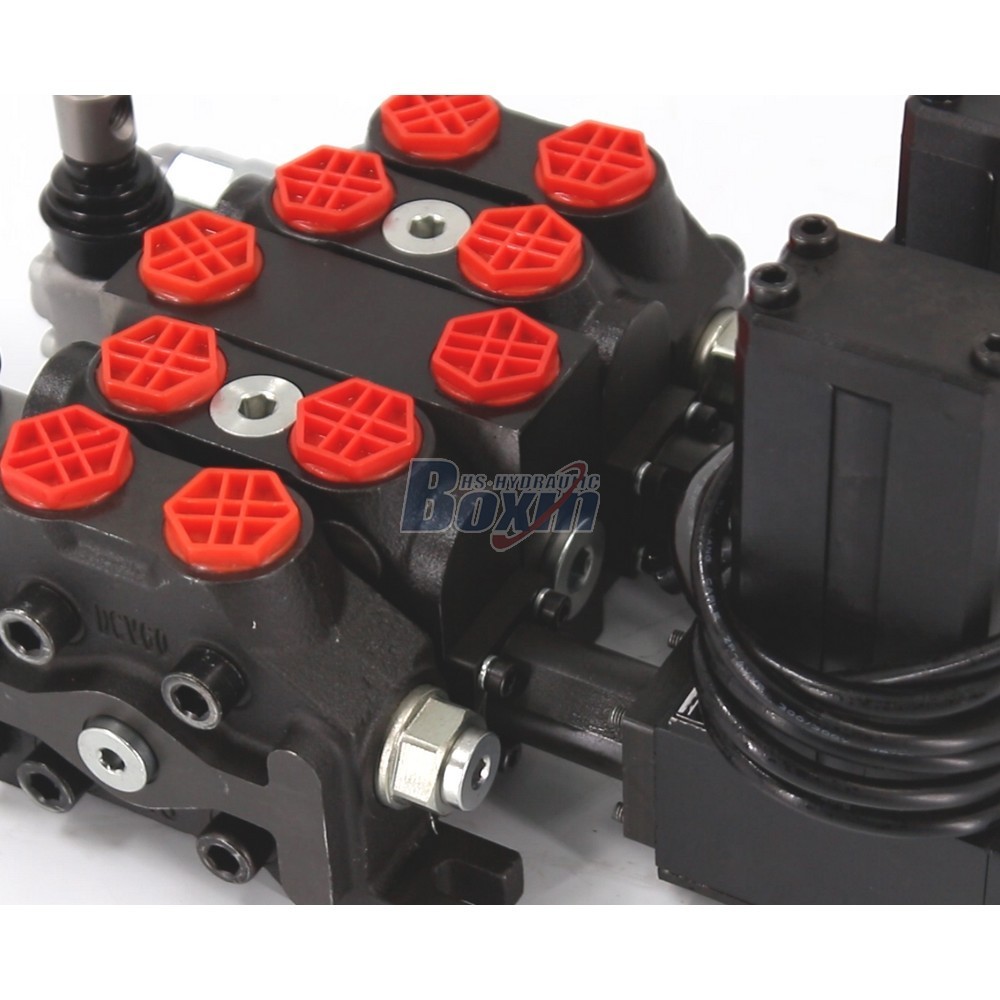

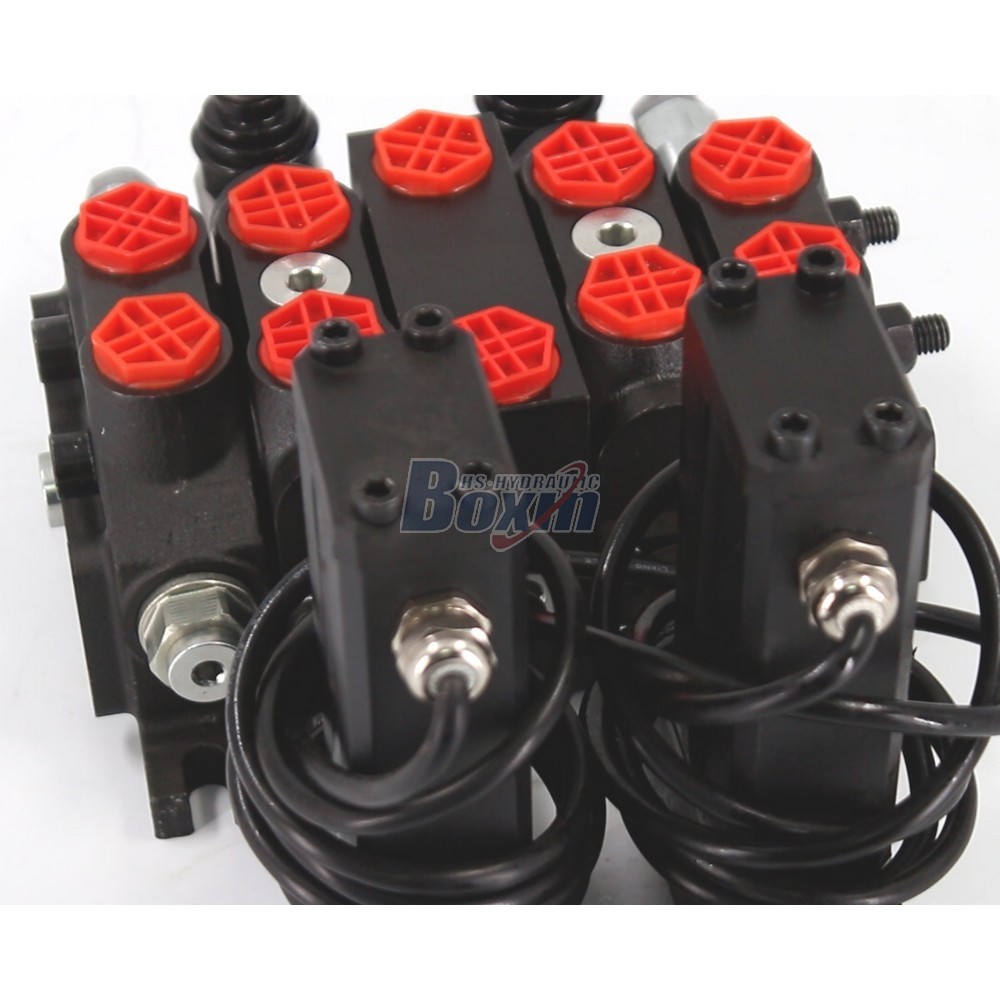

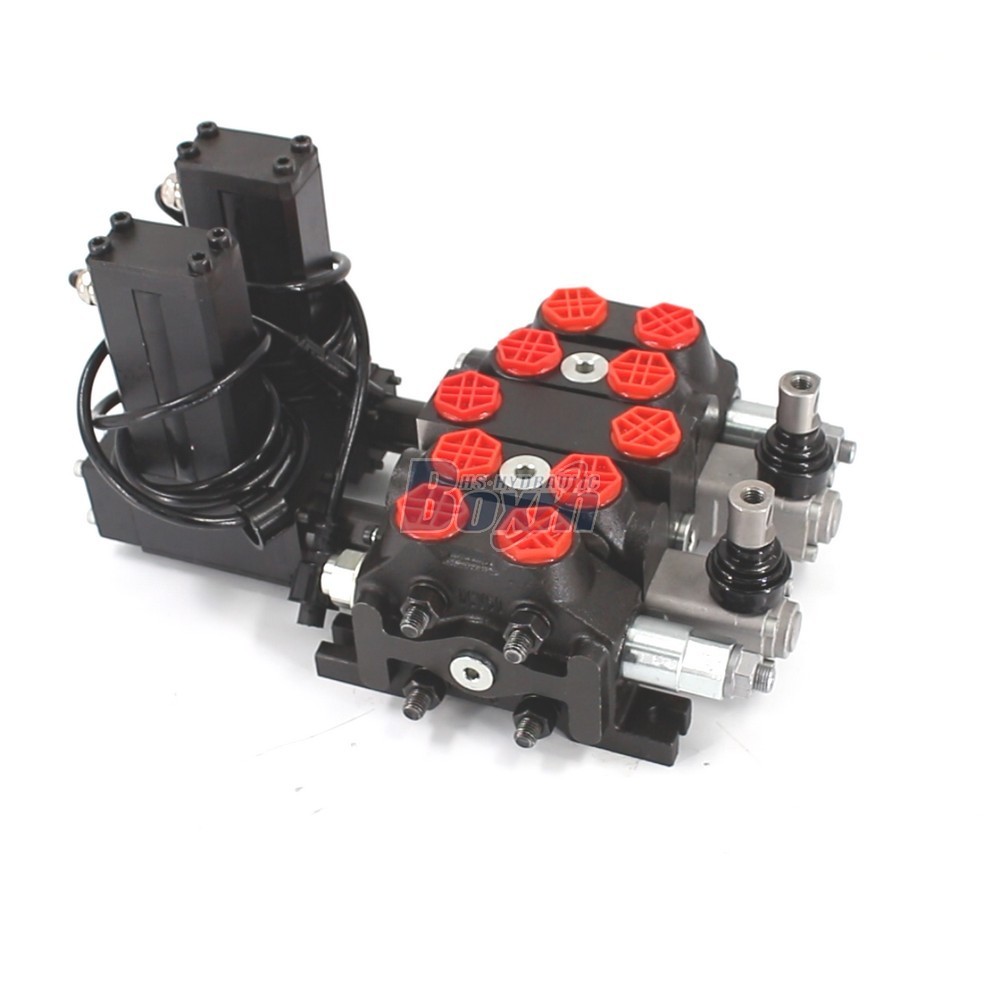

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

Kontrol Yöntemi:Elektrik motoru

Makara:2 Makara

Anma Akışı:60 L/dk (15,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:DCV60 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:22.5*34.05*18.85

Brüt ağırlık:20.50 kg

Stok Durumu: Stokta Var

102 Görünümler Bu Ürünü Arıyor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor

DCV60 Hydraulic 2 Spool Sectional Directional Valve with Electric Motor drawing image

High-performance DCV60 series 2-spool sectional directional valve featuring electric motor control, designed for precise flow management up to 60 L/min and pressures up to 315 bar in demanding mobile and industrial applications.

DCV60 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 60 L/dk (15,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi), 350 bar (5100 psi)
Giriş Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading large-scale hydraulic manufacturer, we provide the DCV60 Series 2 Spool Sectional Directional Valve, specifically engineered for precision and durability. This electric motor-controlled valve supports a rated flow of 60 L/min (15.8 US gpm) and handles maximum pressures up to 315 bar (4600 psi), making it suitable for tractors, forklifts, skid steer loaders, and mini-excavators. We offer comprehensive manufacturing solutions including OEM, private labeling, and custom engineering to meet specific regional requirements. Our factory supply chain is optimized for bulk wholesale, ensuring competitive pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need specialized configurations for agricultural harvesters or heavy-duty construction earth-moving equipment, our factory-direct wholesale model provides the reliability and technical support your business requires.
