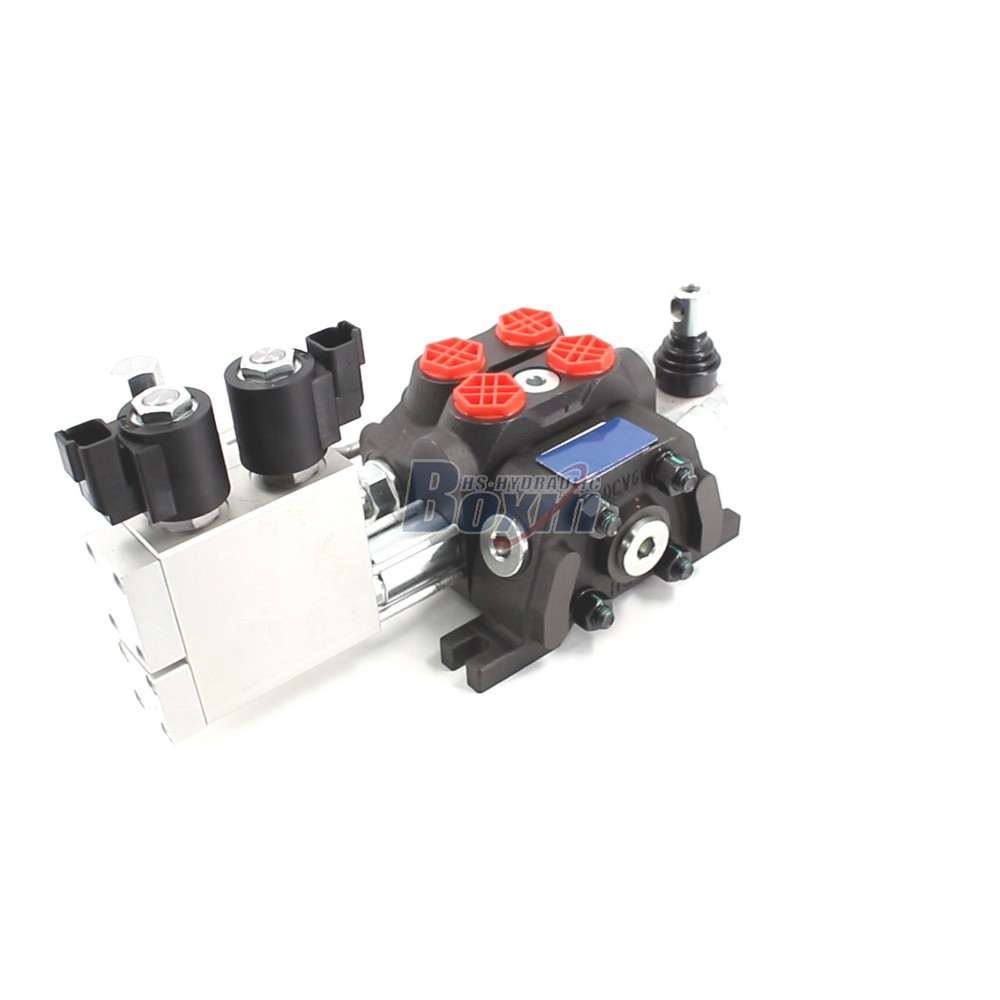

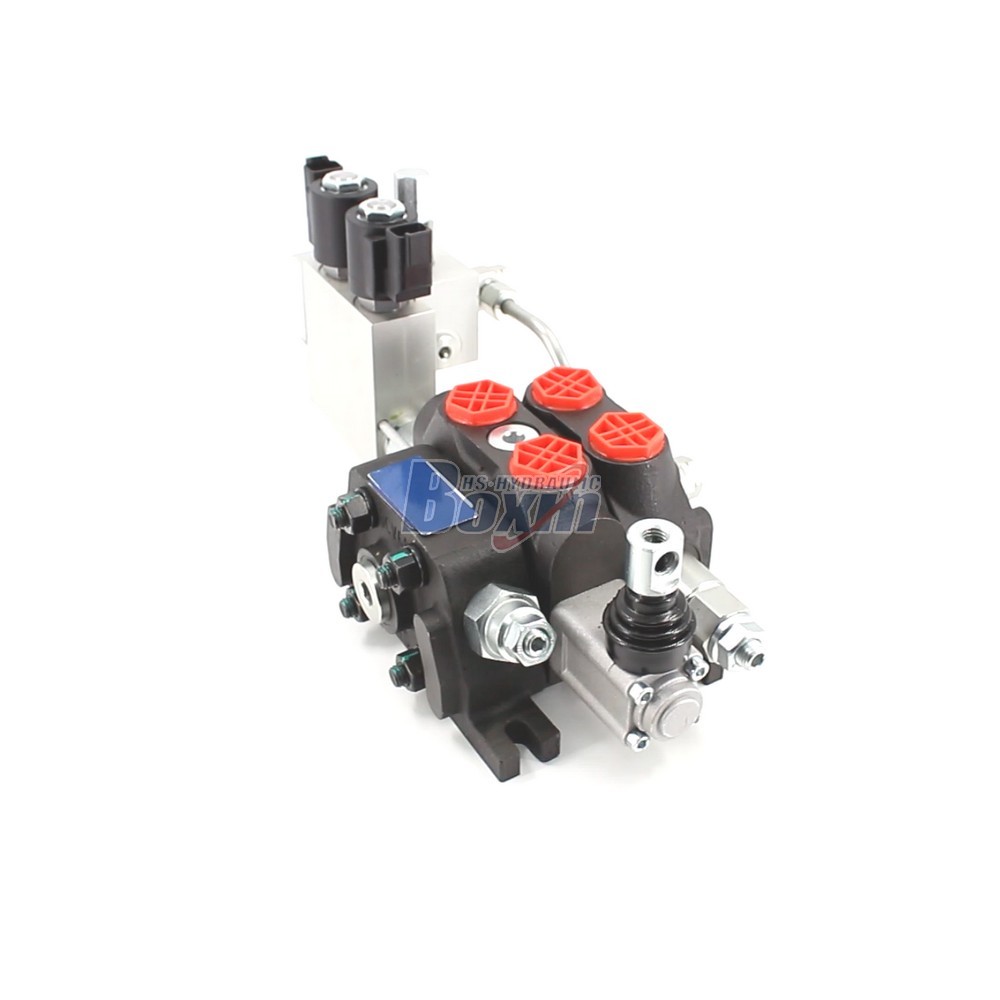

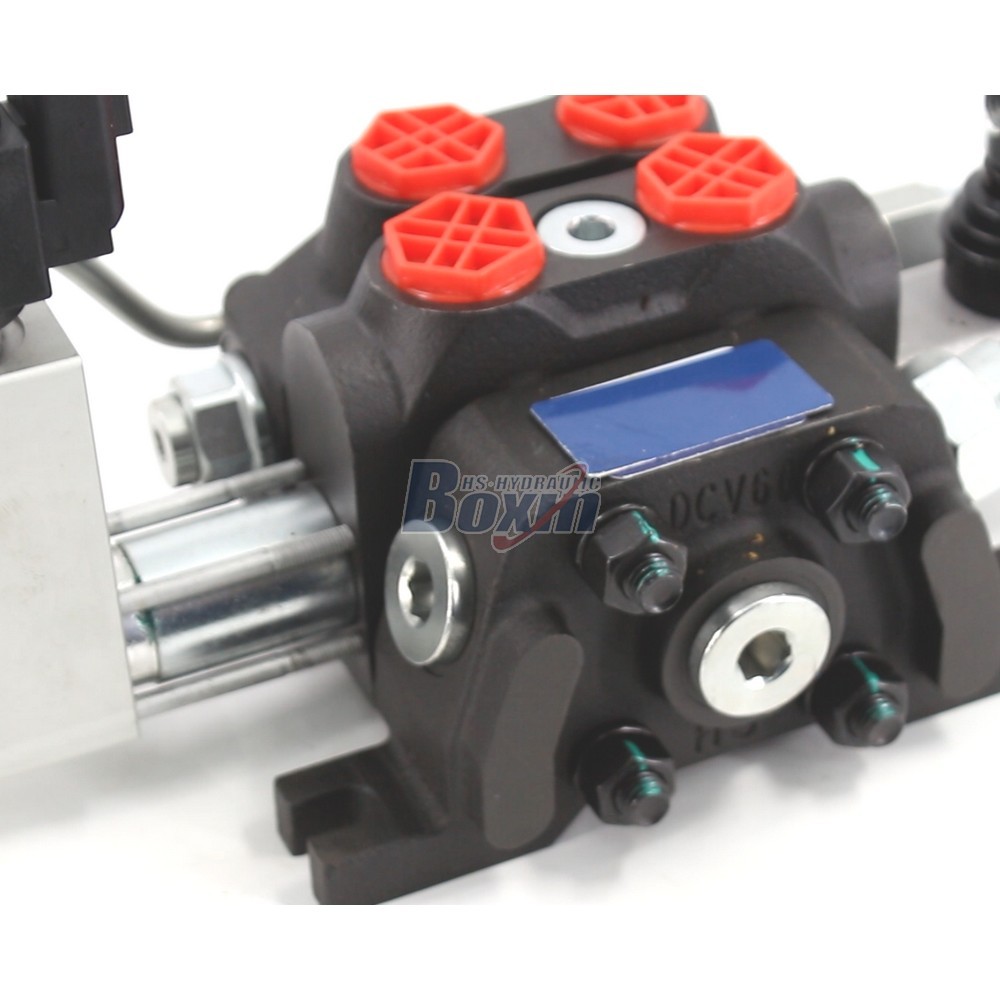

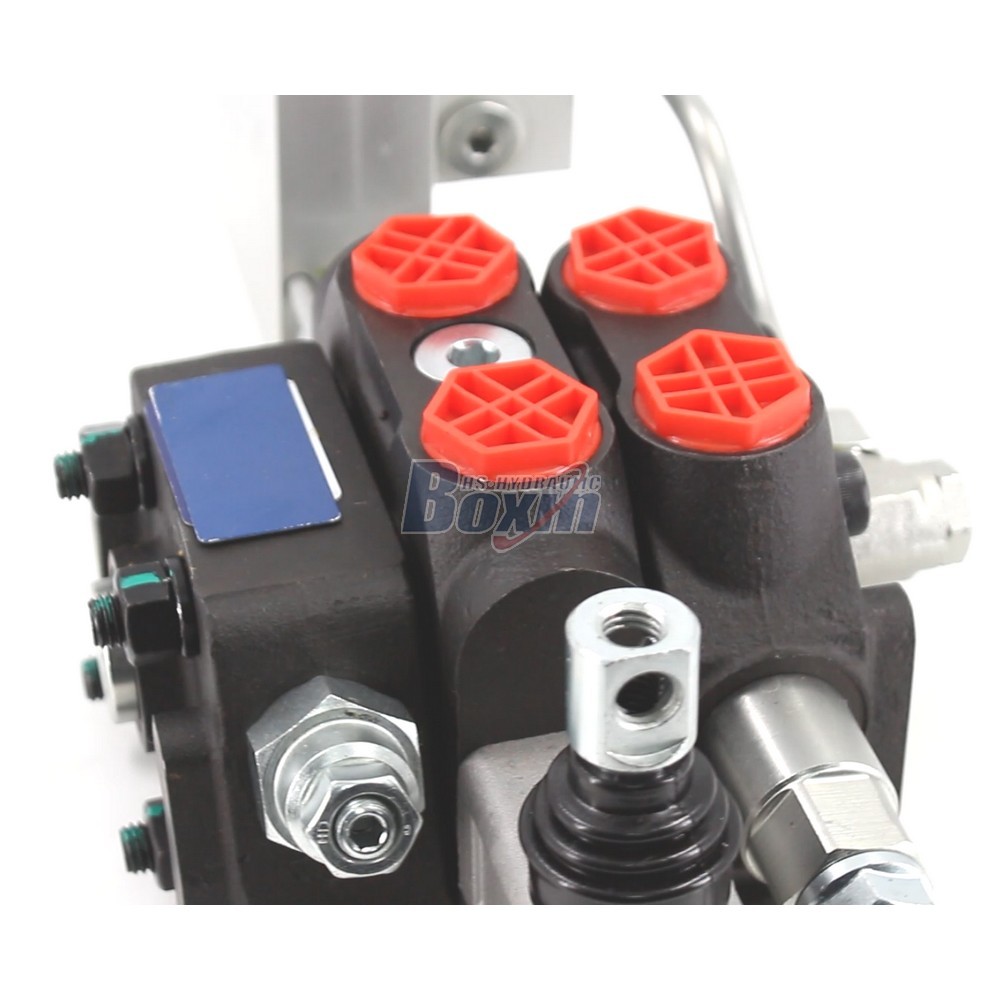

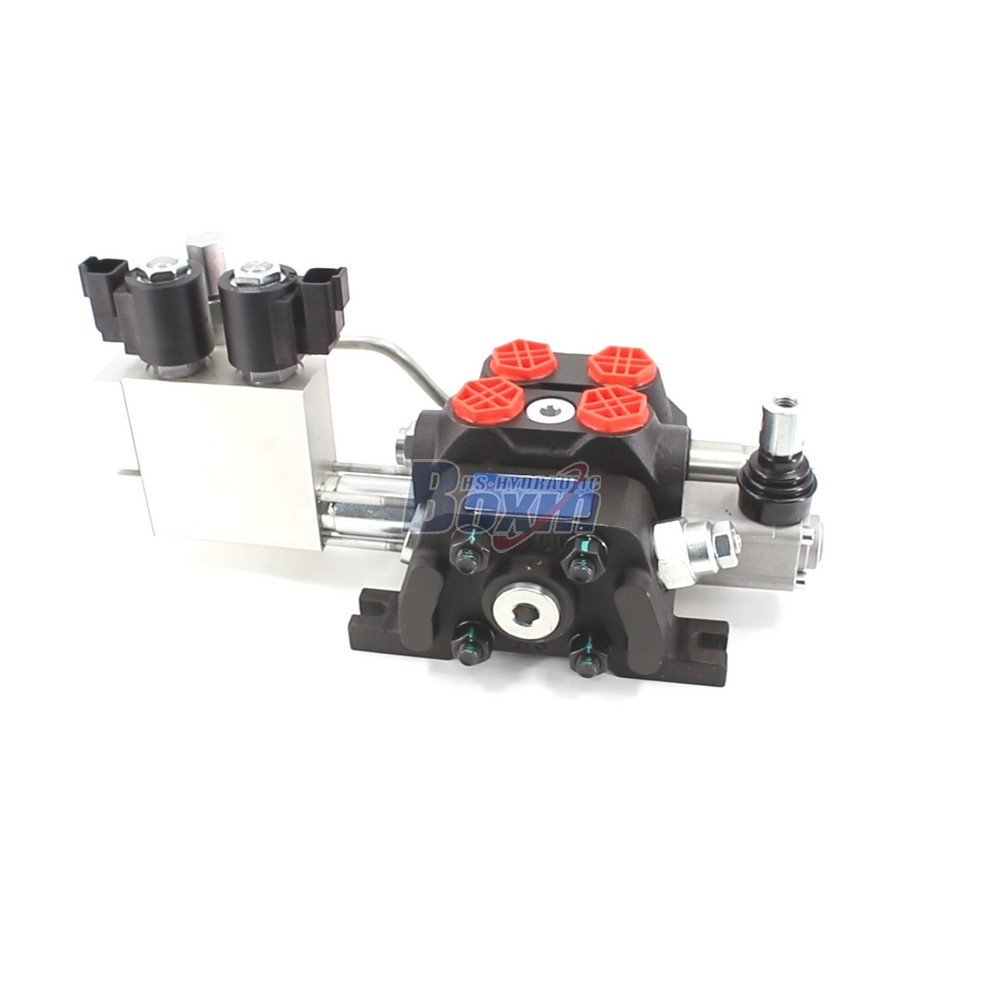

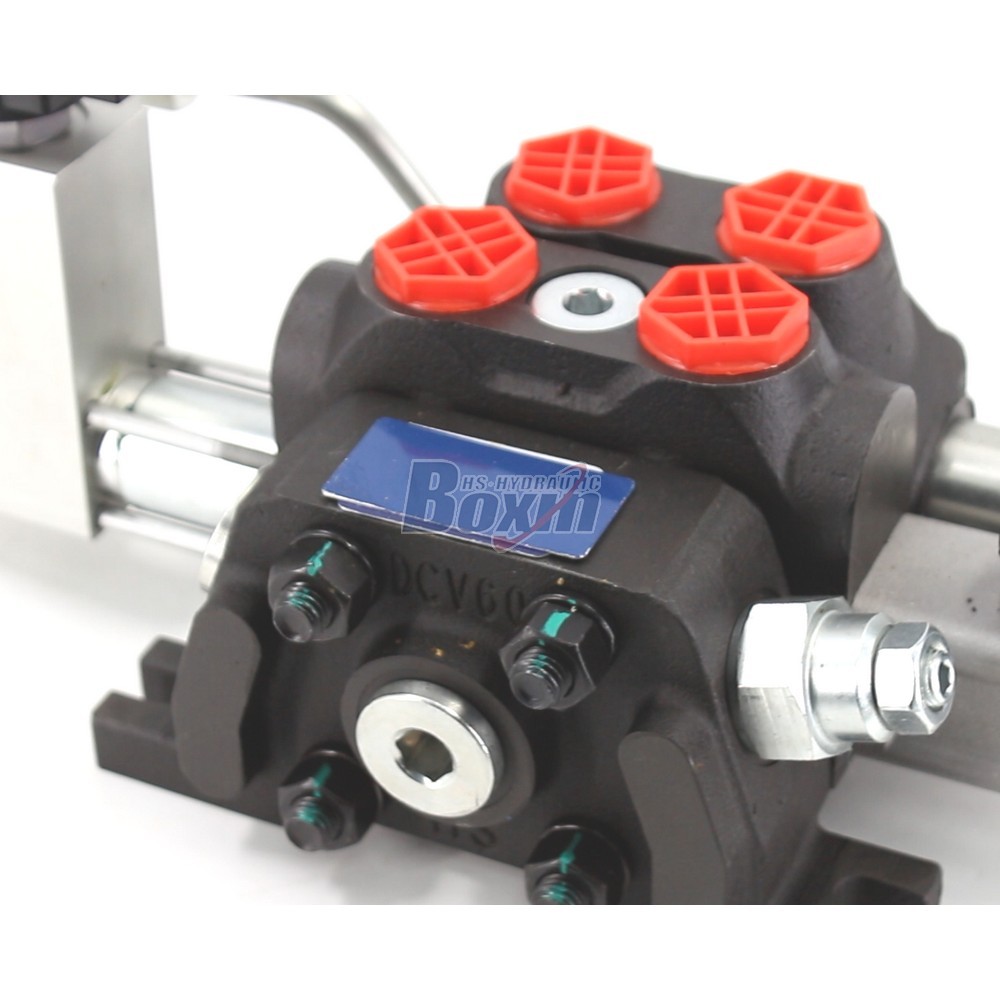

DCV60 Series Electro-hydraulic Directional Control Valve 1 Spool Sectional Type

Kontrol Yöntemi:Elektrohidrolik

Makara:1 Makara

Anma Akışı:60 L/dk (15,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:DCV60 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:39*23*21

Brüt ağırlık:11.60 kg

Stok Durumu: Stokta Var

106 Görünümler Bu Ürünü Arıyor

DCV60 Series Electro-hydraulic Directional Control Valve 1 Spool Sectional Type

DCV60 Series Electro-hydraulic Directional Control Valve 1 Spool Sectional Type

DCV60 Series Electro-hydraulic Directional Control Valve 1 Spool Sectional Type drawing image

The DCV60 Series is a high-performance, single-spool electro-hydraulic directional control valve engineered for heavy-duty mobile applications. Featuring a 60 L/min flow rate and 350 bar pressure capacity, it offers precise control for construction, agricultural, and material handling equipment.

DCV60 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 60 L/dk (15,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi), 350 bar (5100 psi)
Giriş Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading manufacturer of hydraulic components, we specialize in high-precision directional control valves designed for demanding operational environments. Our DCV60 Series provides reliable performance for various machinery, including tractors, mini-excavators, and material handling vehicles. We are committed to supporting global partners through flexible cooperation models, including OEM, ODM, private labeling, and custom engineering services. Our factory-direct supply chain ensures consistent quality and competitive wholesale pricing for global distributors, wholesalers, and international traders. Whether you require standard inventory or specialized, application-specific configurations, our production team is equipped to meet your technical specifications with efficiency and professional support. We are actively seeking long-term partnerships with distributors, wholesalers, and trade companies worldwide to expand our market reach and deliver high-value hydraulic solutions to the construction and agricultural sectors.
