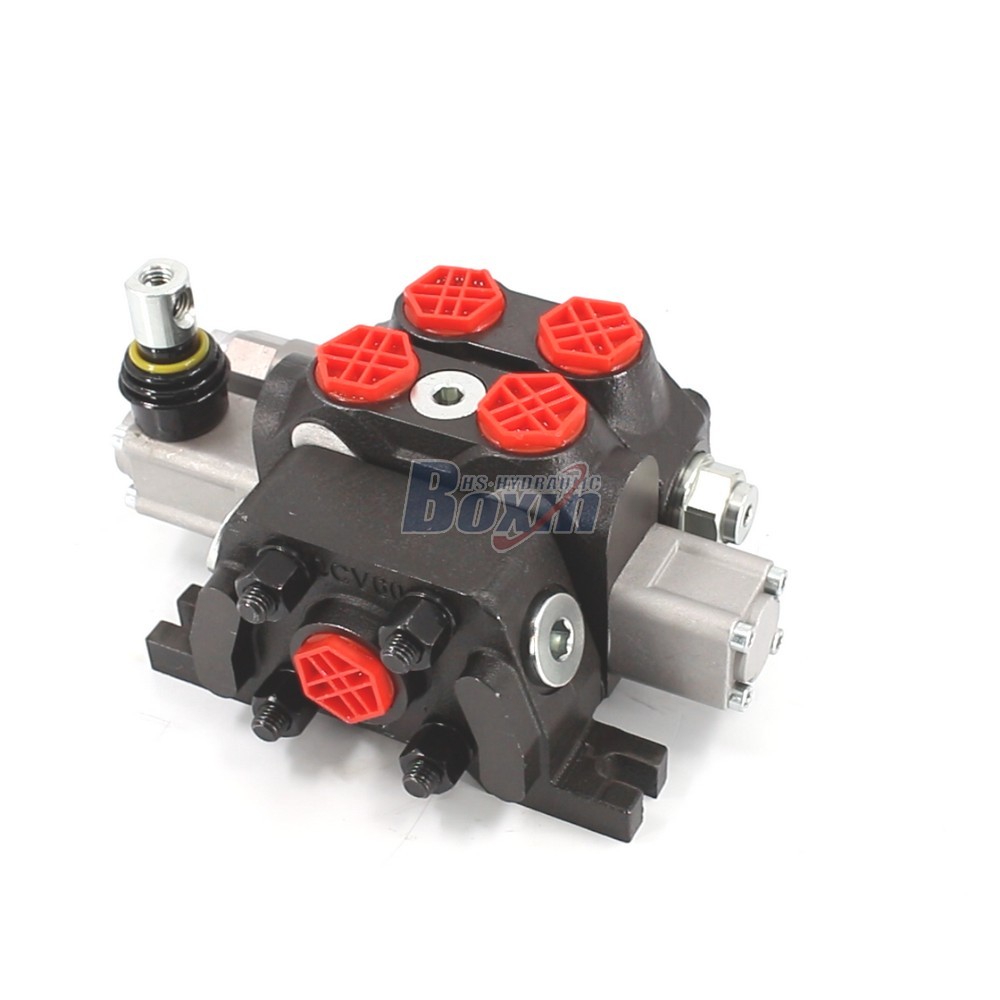

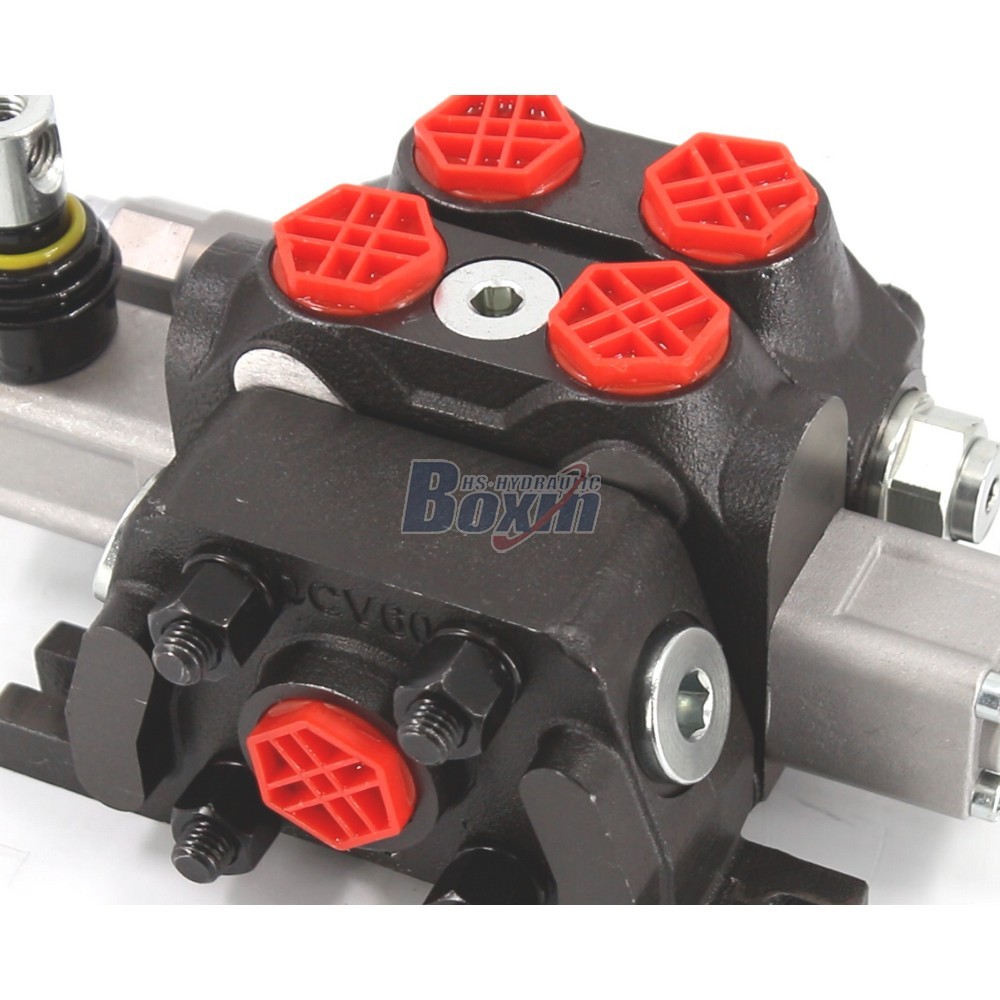

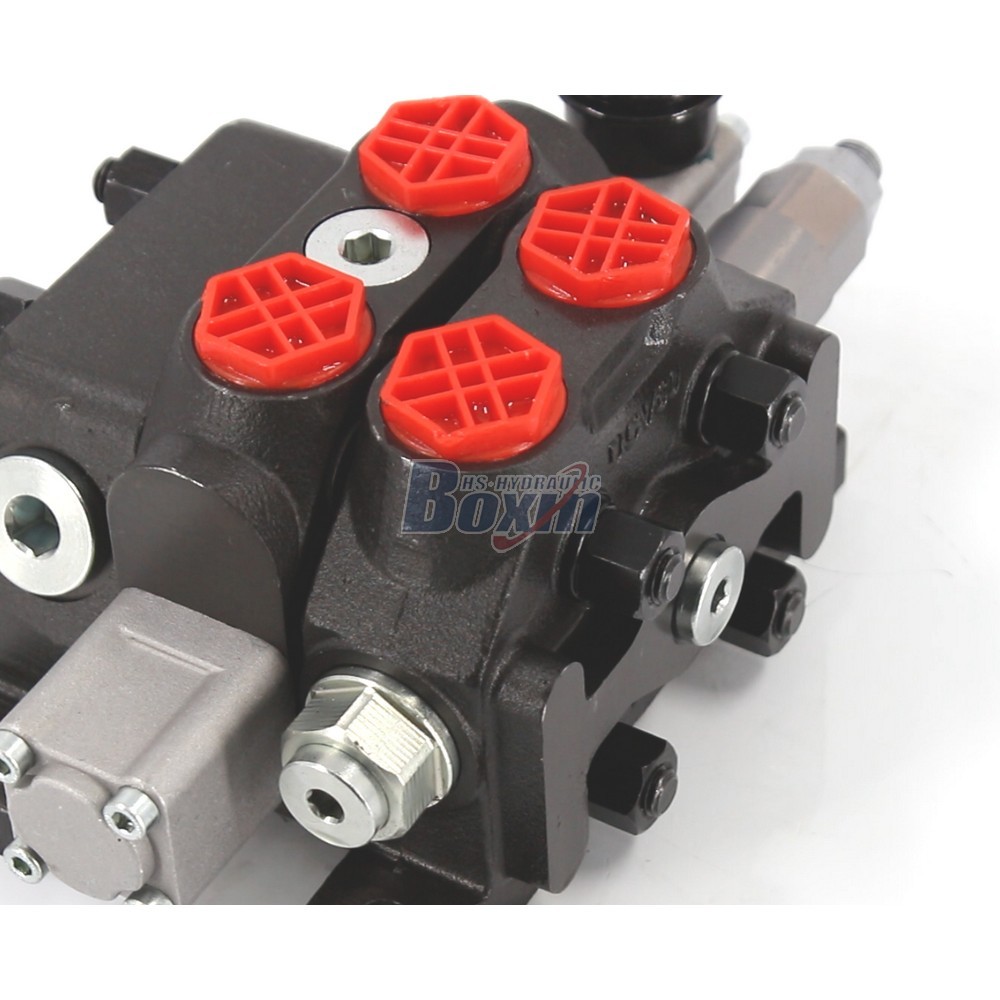

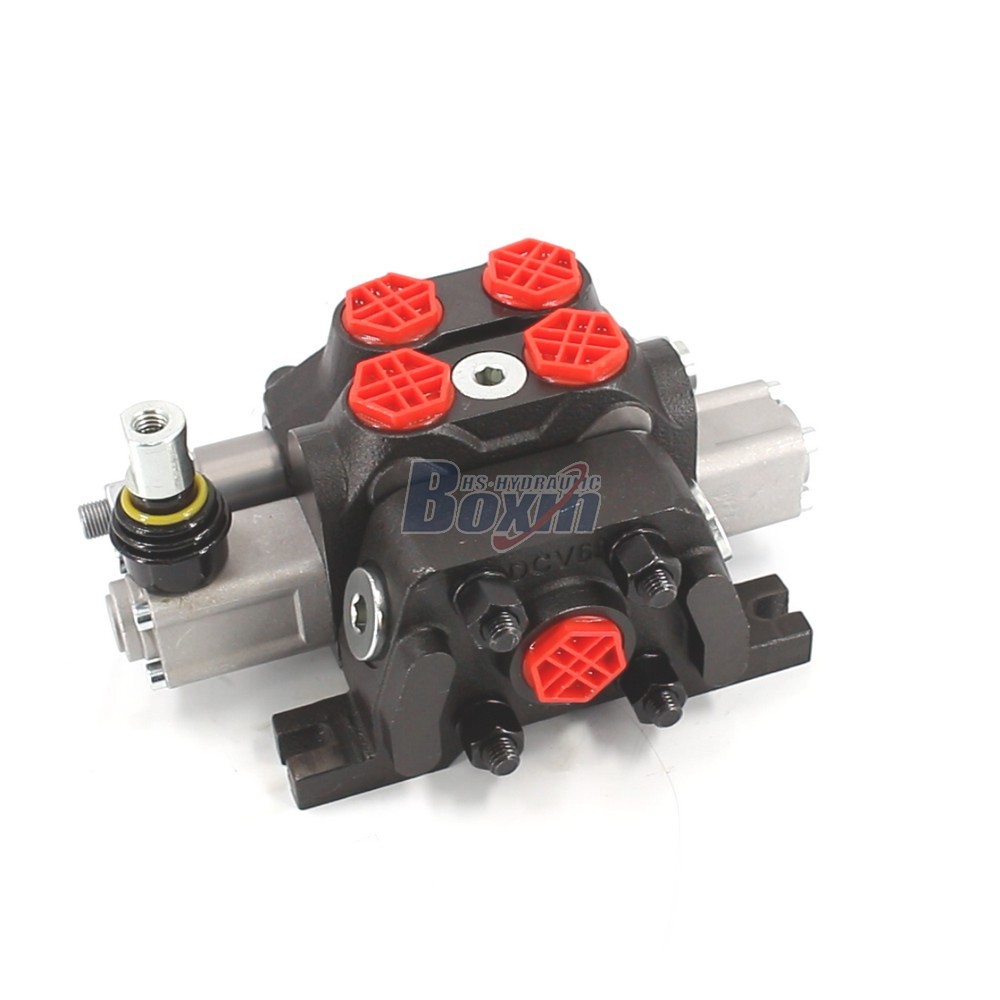

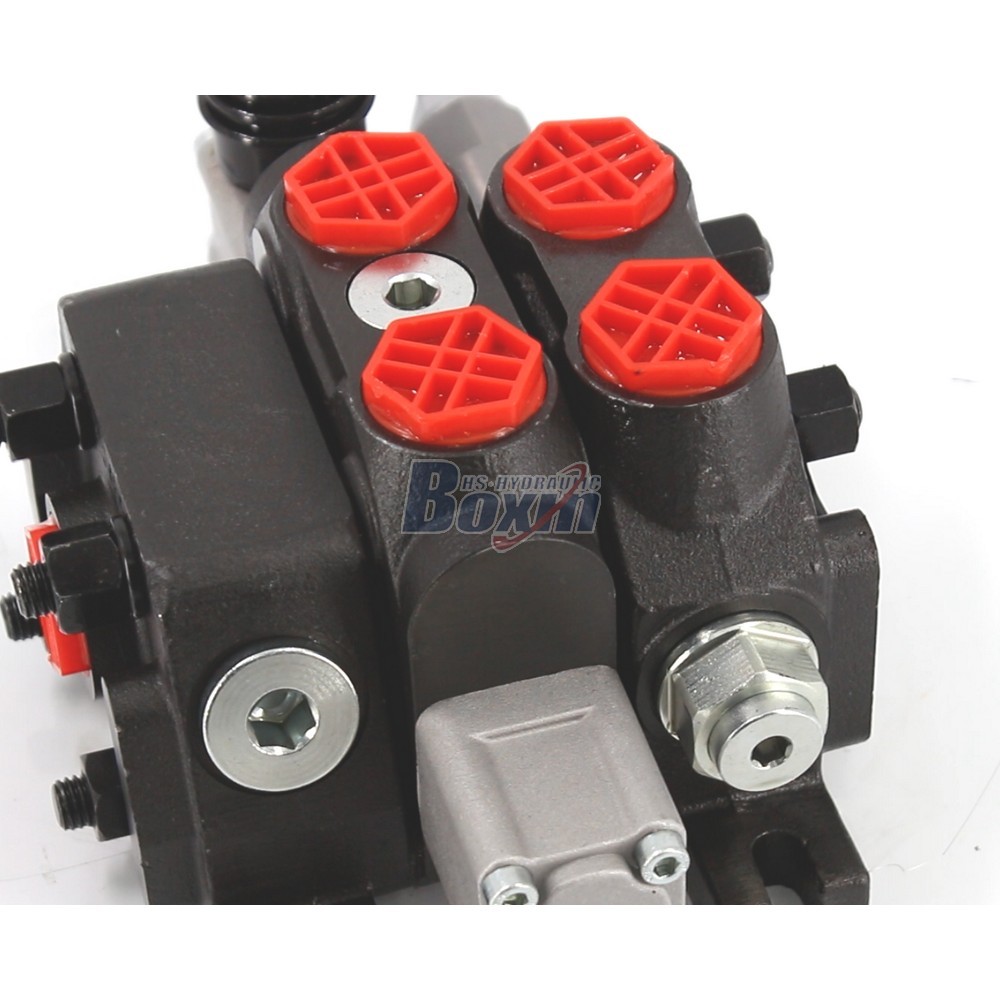

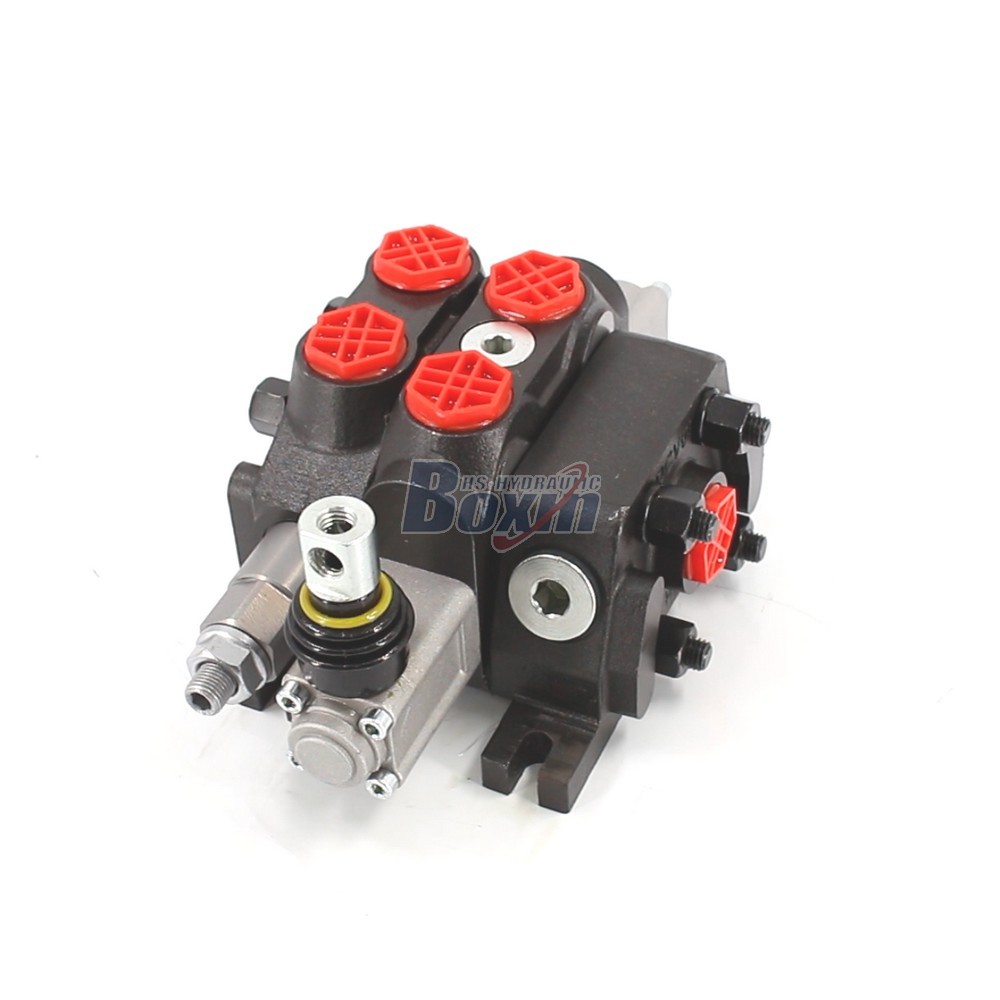

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

Kontrol Yöntemi:Manuel

Makara:1 Makara

Anma Akışı:60 L/dk (15,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Kesitsel Yönsel Valf

Ürün Serisi:DCV60 Serisi Kesitsel Yönsel Valf

Ambalaj boyutu:18*14*26

Brüt ağırlık:7.50 kg

Stok Durumu: Stokta Var

85 Görünümler Bu Ürünü Arıyor

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type

DCV60 Series Manual Directional Control Valve 1 Spool Sectional Type drawing image

The DCV60 Series is a high-performance 1-spool sectional manual directional control valve designed for versatile hydraulic systems, offering a rated flow of 60 L/min and operating pressures up to 350 bar. It is ideal for material handling, construction, and agricultural machinery, providing precise manual control and robust durability.

DCV60 Serisi Kesitsel Yönsel Valf Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Manuel, Solenoid ve Joystick, Manuel ve Joystick, Elektrik motoru
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara, 11 Makara, 12 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Seksiyonel vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm, 11 Bölüm, 12 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 60 L/dk (15,8 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi), 350 bar (5100 psi)
Giriş Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a leading manufacturer of hydraulic solutions, we present the DCV60 Series Manual Directional Control Valve. This 1-spool sectional type valve is engineered for high-pressure applications, reaching up to 350 bar (5100 psi) with a stable flow rate of 60 L/min (15.8 US gpm). Featuring G1/2 inlet and outlet ports, it is perfectly suited for equipment such as mini-excavators, skid steer loaders, tractors, and forklifts.

Our factory provides comprehensive services including OEM, private labeling (ODM), and tailored customization to meet specific technical requirements. We specialize in factory-direct wholesale and large-scale manufacturing, ensuring reliable supply chains and professional quality. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our global market presence. Partner with us for competitive factory pricing and superior technical support in the hydraulic components sector.
