Kontrol Yöntemi:Manuel

Makara:7 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:36*23*13

Brüt ağırlık:13.50 kg

Stok Durumu: Stokta Var

931 Görünümler Bu Ürünü Arıyor

Direct Access to Hydraulic Expertise: Partner with the Manufacturer

Direct Access to Hydraulic Expertise: Partner with the Manufacturer

Direct Access to Hydraulic Expertise: Partner with the Manufacturer drawing image

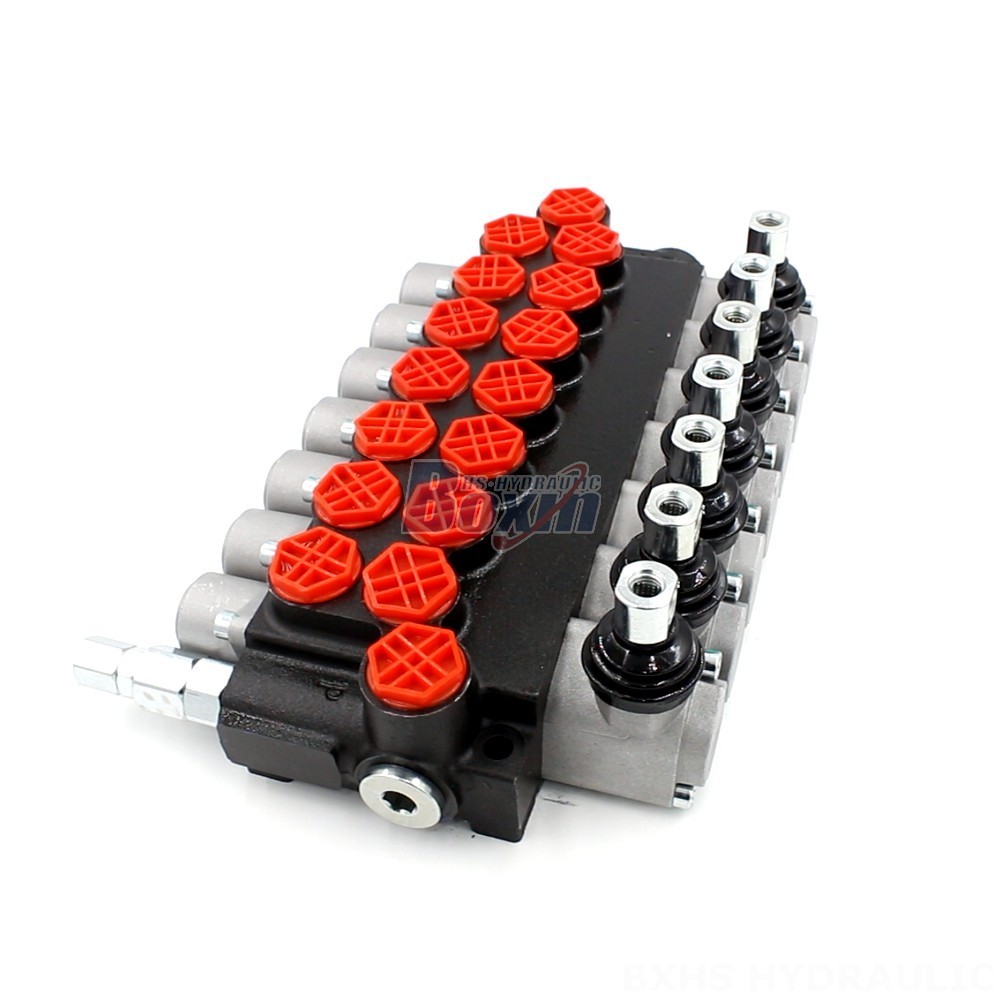

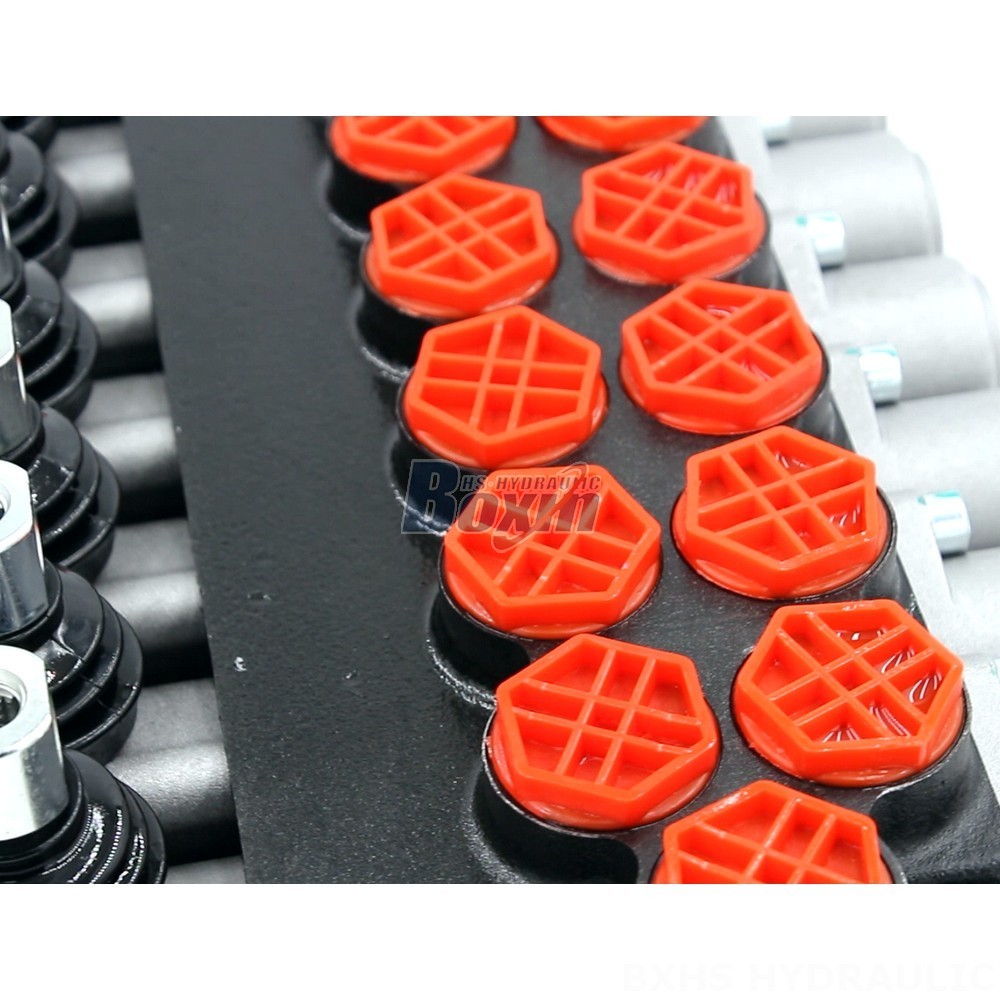

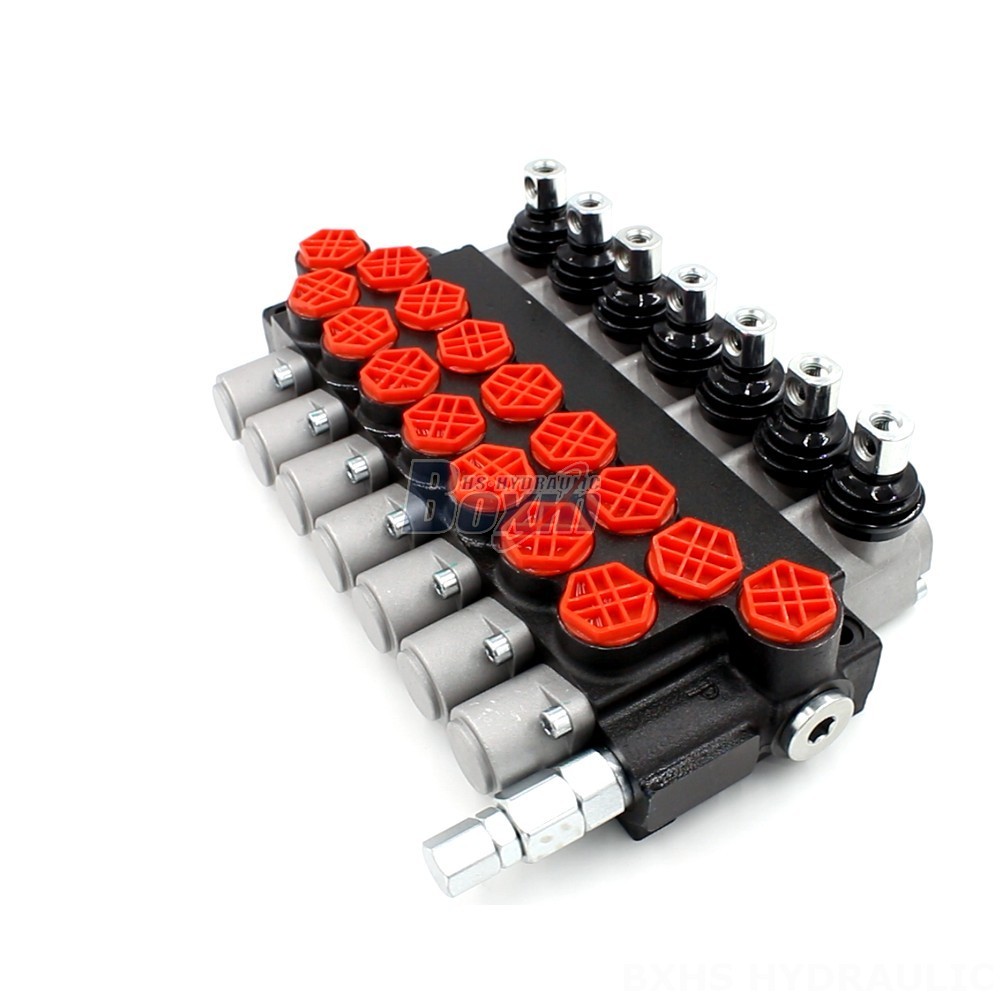

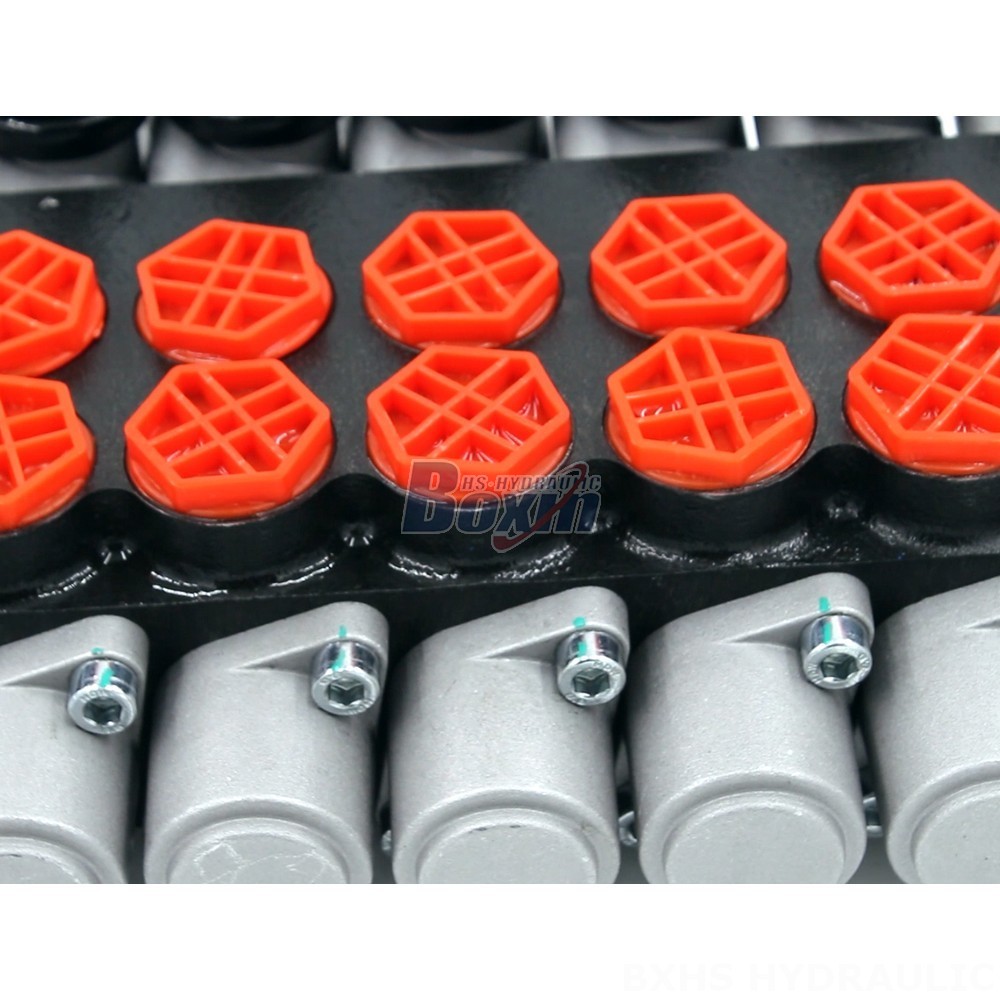

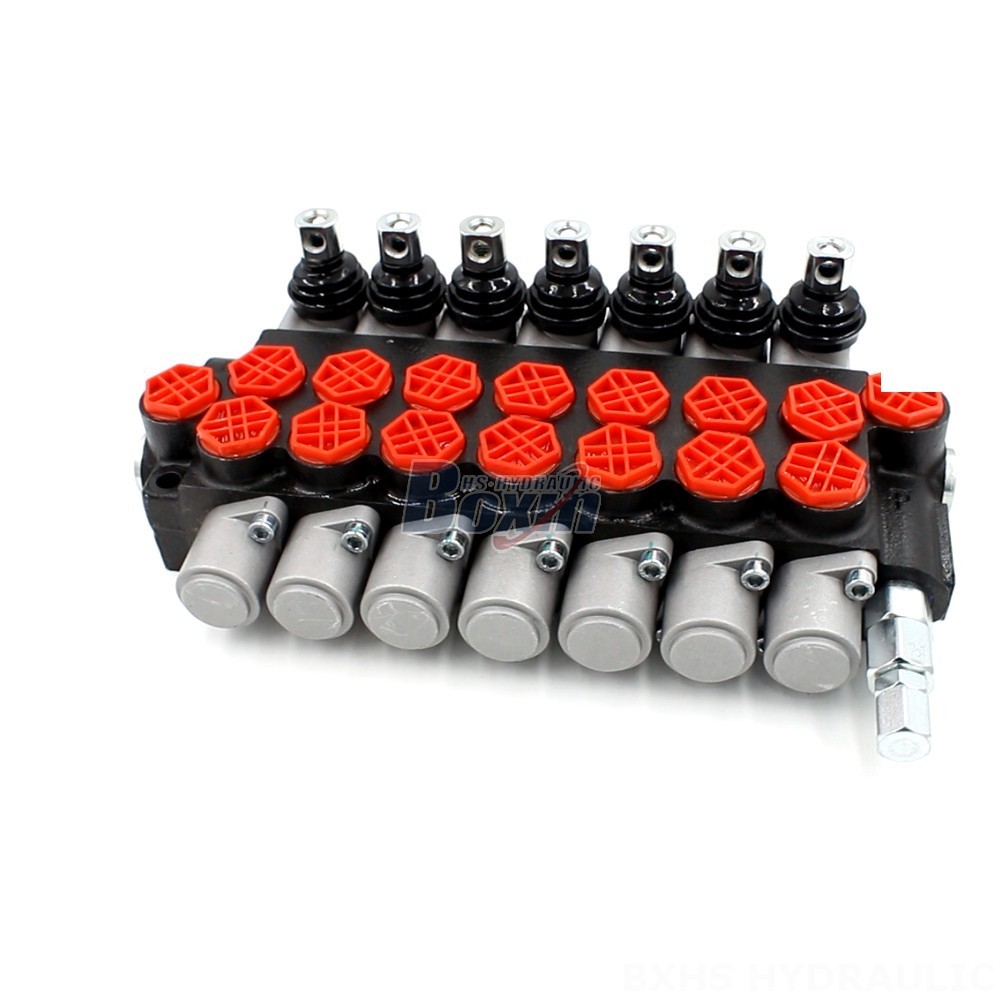

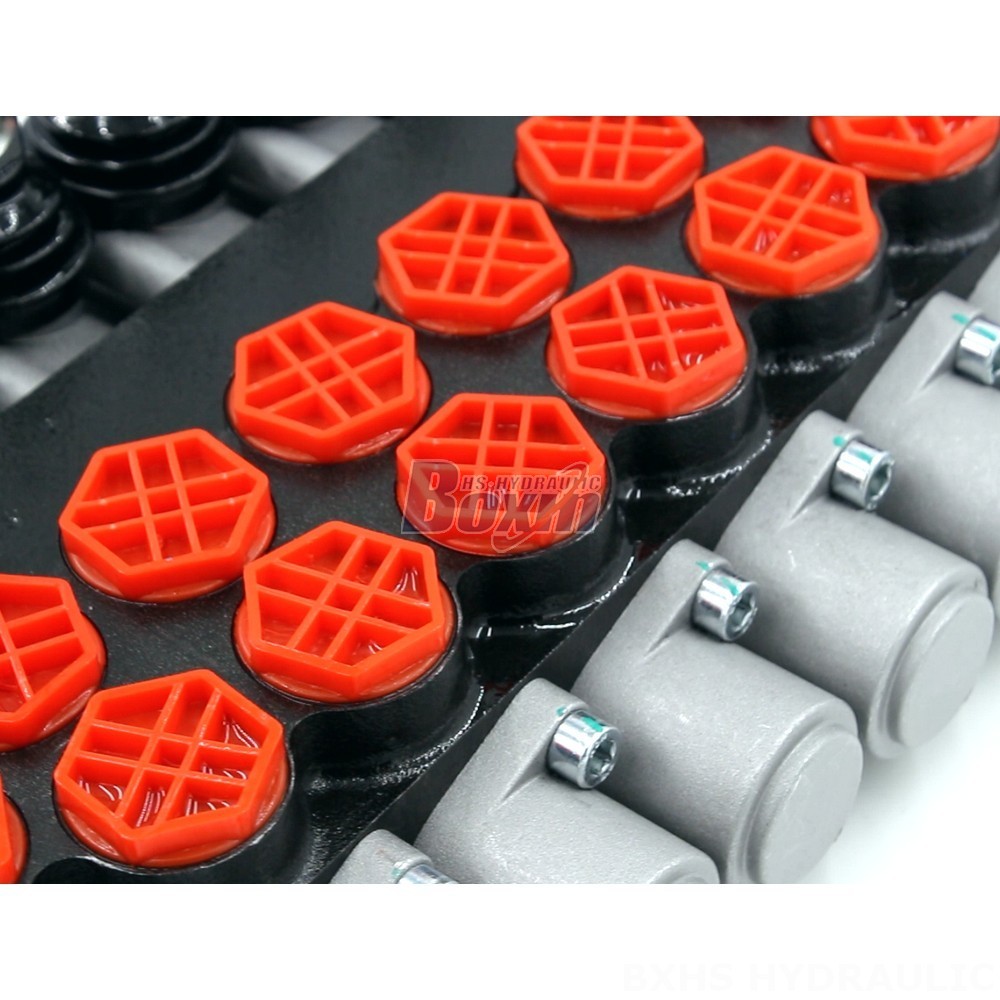

This 7-spool hydraulic valve is a robust and reliable control solution for material handling, construction, agriculture, and industrial vehicles. Featuring a compact monoblock design, it offers high flow rates and pressure capabilities, making it ideal for a wide range of applications.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our 7-spool hydraulic valve is part of the P40 Series, offering a compact and efficient solution for controlling hydraulic systems in various applications. It features a monoblock structure for enhanced durability and performance. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding environments. Its wide operating viscosity range and ambient temperature range ensure reliable operation in diverse conditions. As a manufacturer, we offer direct access to hydraulic expertise, providing factory supply and factory wholesale options for our customers. We also offer OEM, ODM, and customization services to meet specific needs. Partner with us to find the perfect solution for your hydraulic system.
