Directional Control Valve - P40-G12-G38-2QTW | Wholesale & OEM

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*18*13

Brüt ağırlık:5.10 kg

Stok Durumu: Stokta Var

1095 Görünümler Bu Ürünü Arıyor

Directional Control Valve - P40-G12-G38-2QTW | Wholesale & OEM

Directional Control Valve - P40-G12-G38-2QTW | Wholesale & OEM

Directional Control Valve - P40-G12-G38-2QTW | Wholesale & OEM drawing image

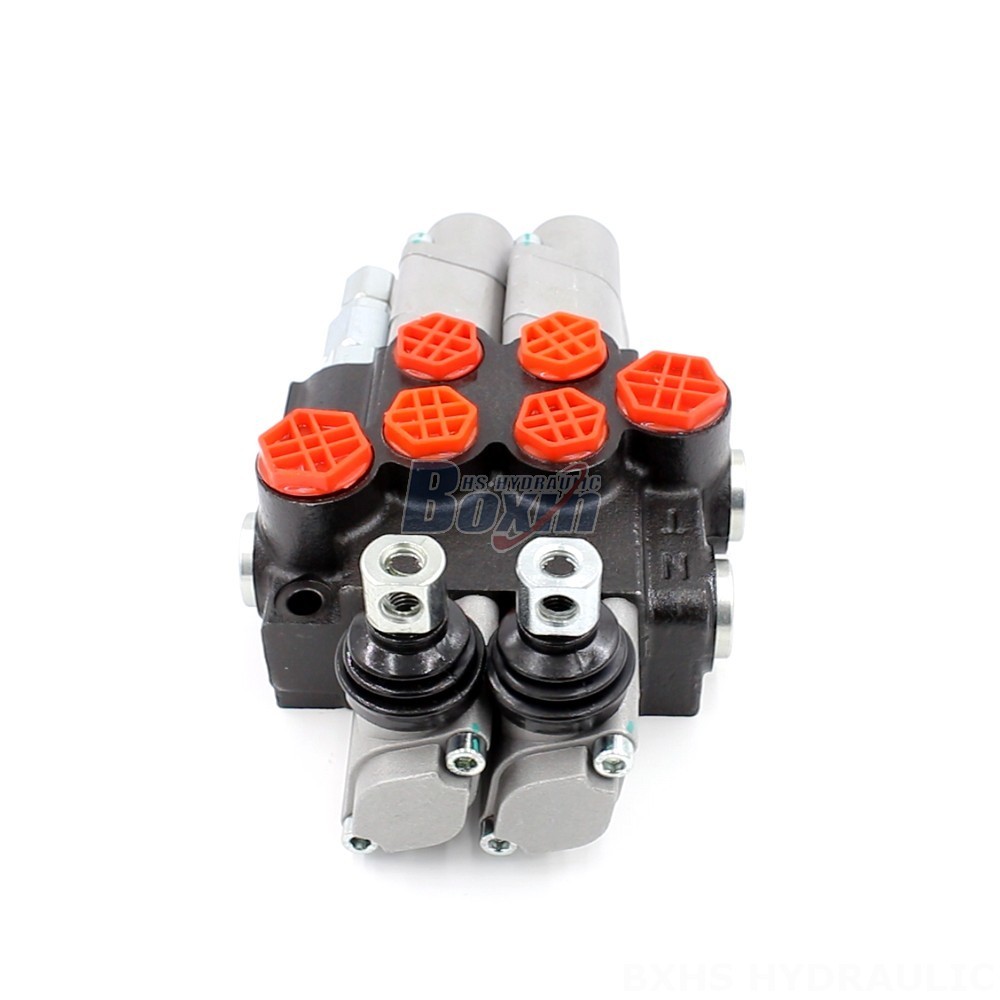

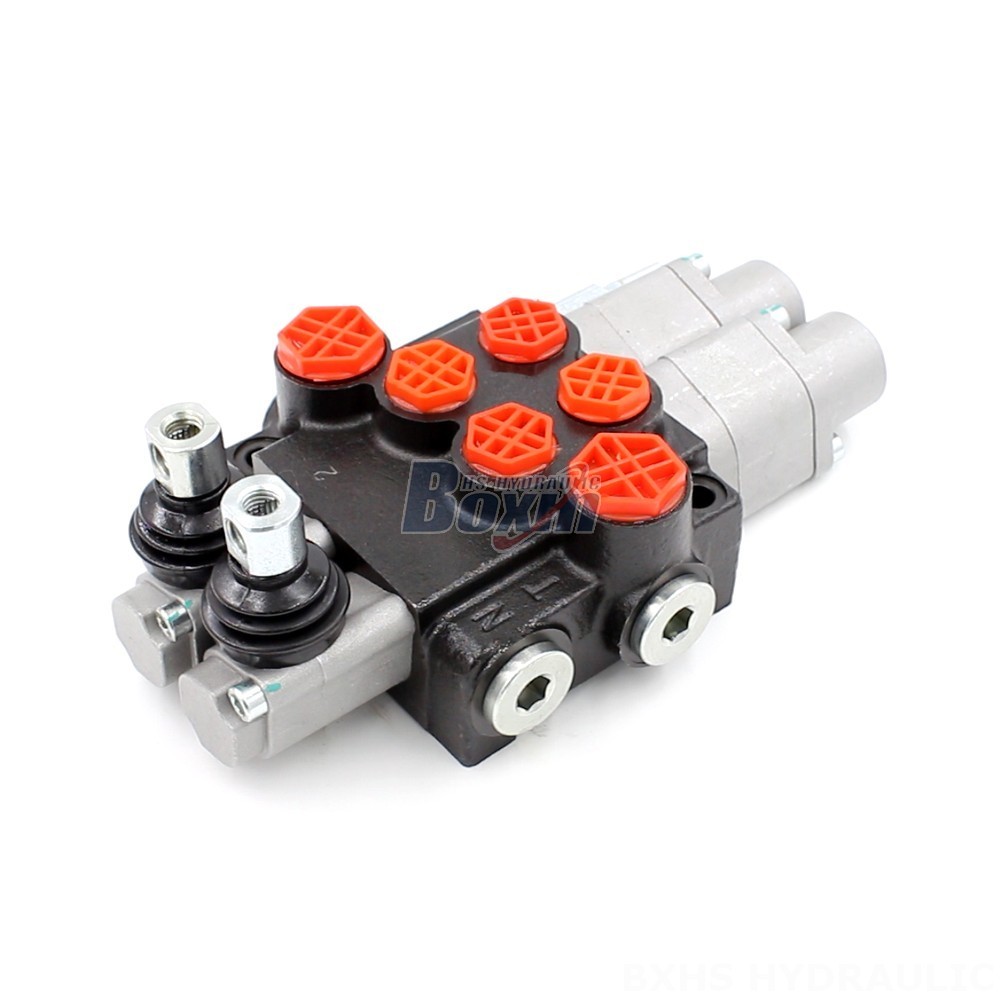

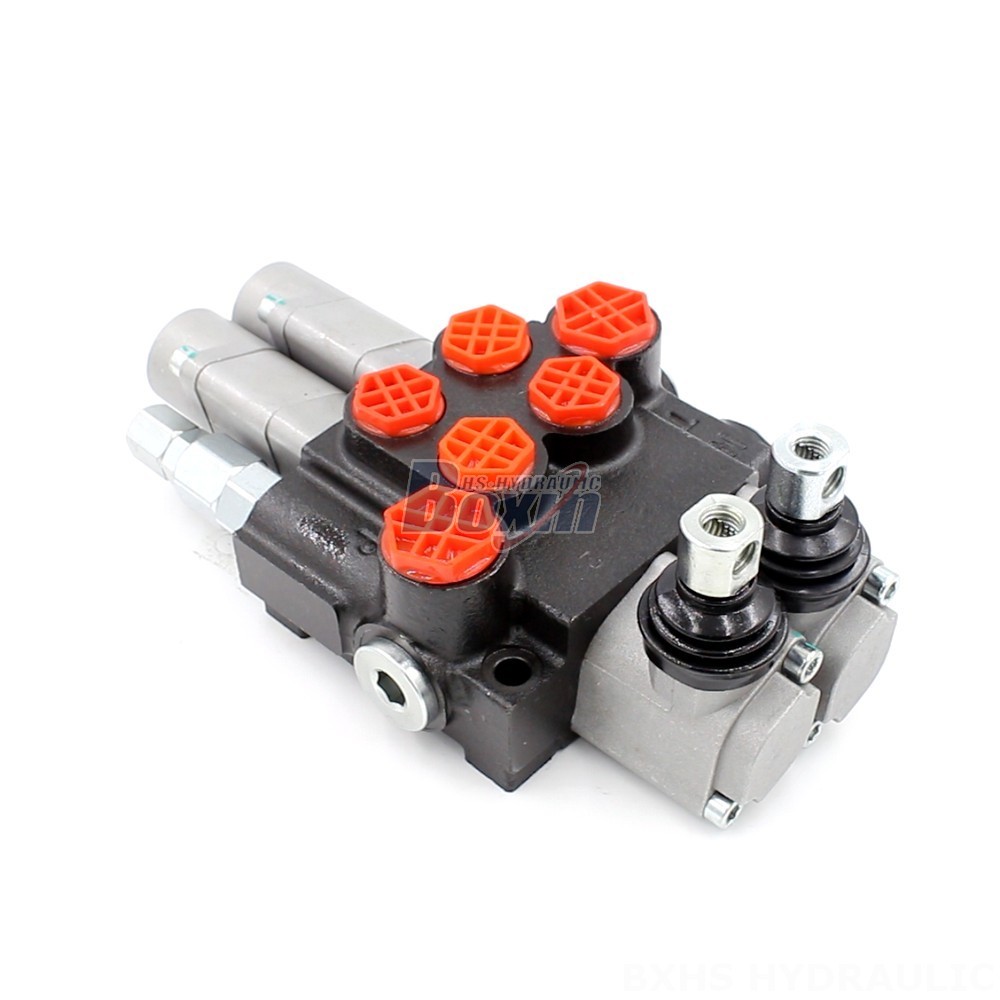

The P40-G12-G38-2QTW is a 2-section, monoblock hydraulic directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features manual control and is suitable for a wide range of applications in material handling, construction, and agriculture.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-performance hydraulic directional control valve from our P40 series is a reliable and efficient solution for various applications. It features a compact design with a 2-section, monoblock structure, delivering smooth and precise control. The valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding operations. It also offers a wide operating viscosity range and exceptional temperature resistance. With its manual control mechanism, it provides intuitive and easy operation. This valve is perfect for various applications, including material handling, construction, and agriculture. It is compatible with a range of machinery, such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
