Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G1/2

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*18*11

Brüt ağırlık:8.20 kg

Stok Durumu: Stokta Var

1275 Görünümler Bu Ürünü Arıyor

Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Directional Control Valve P80-G34-G12 | Factory Direct & Customization drawing image

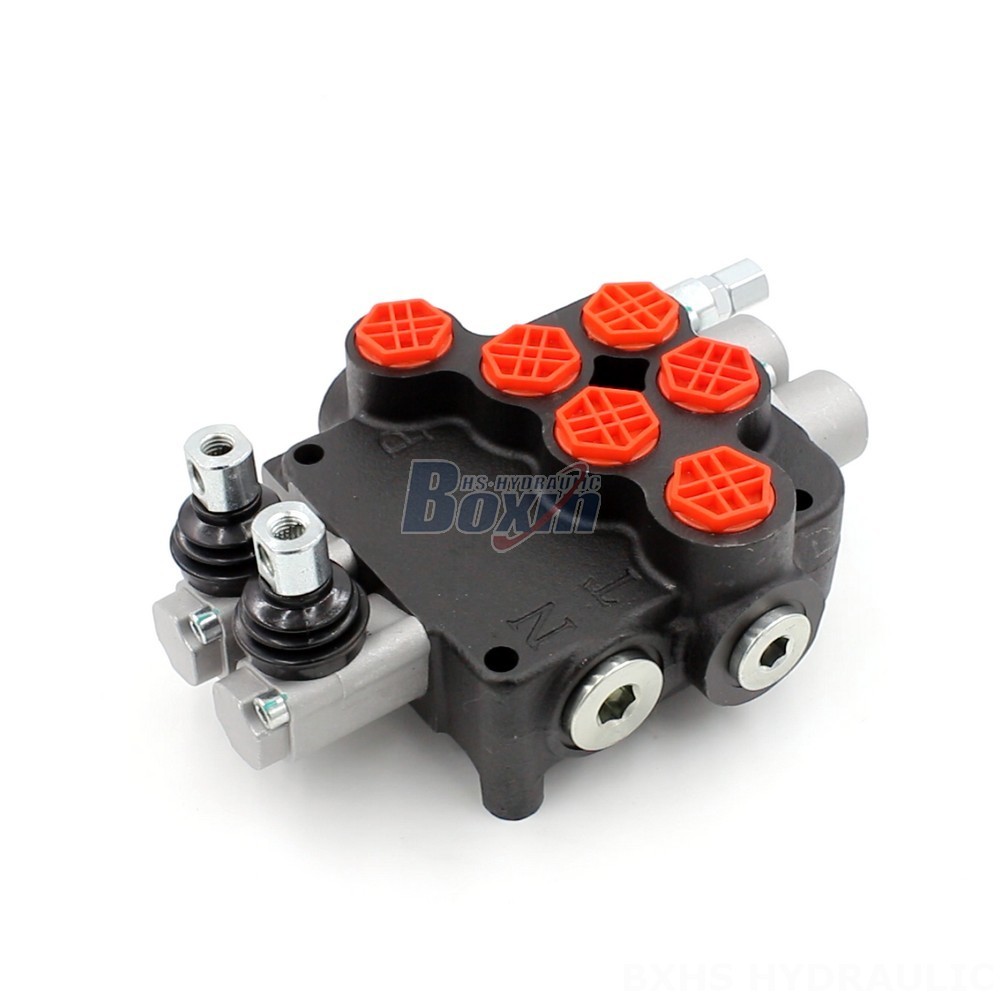

The P80-G34-G12 Air PTO Switch Valve Directional Control Valve is a heavy-duty, manual hydraulic valve designed for construction, material handling, agricultural and industrial vehicle applications. Featuring a 2 section, monoblock design, it boasts a 80 L/min flow rate and a 250 bar maximum pressure rating, making it ideal for a wide range of applications.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34-G12 is a reliable and durable Air PTO Switch Valve Directional Control Valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Its manual control method ensures user-friendly operation, while its 2 section, monoblock design provides robustness and efficiency. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling high-pressure hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to perform reliably in a variety of operating conditions. The P80-G34-G12 is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
