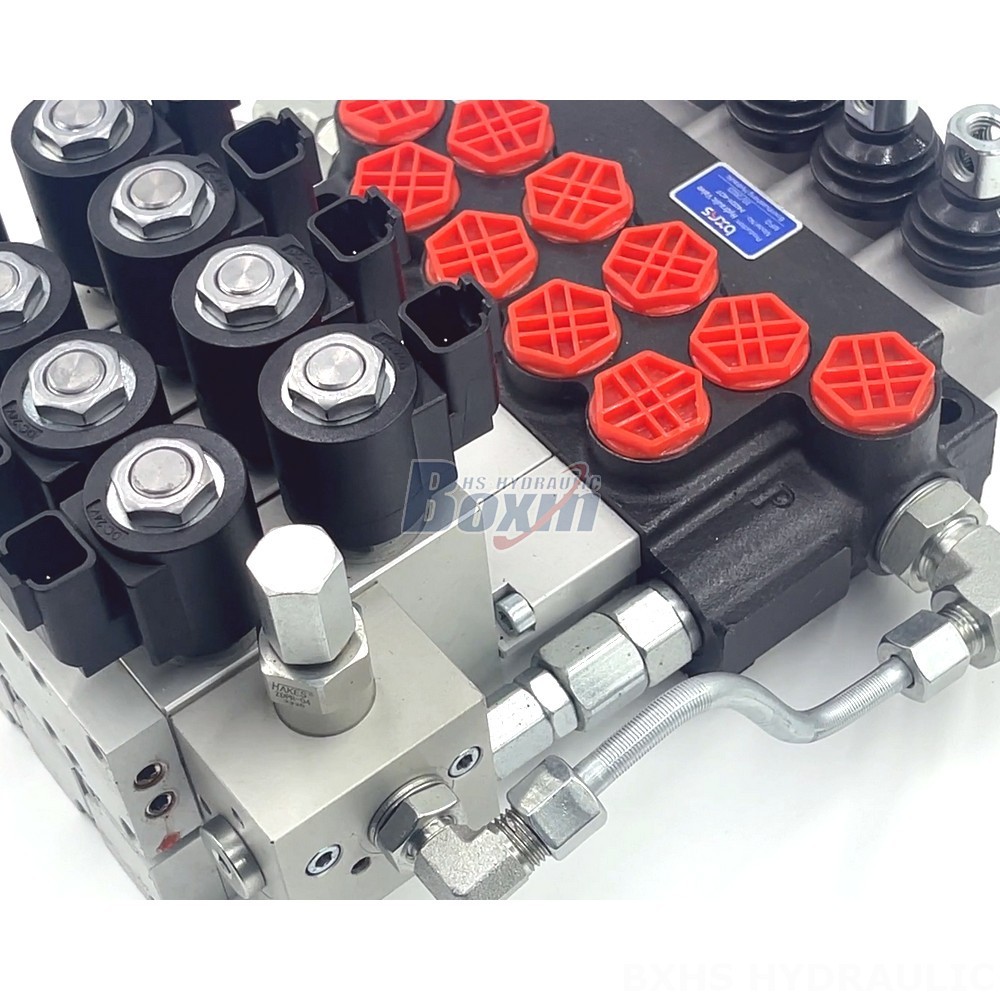

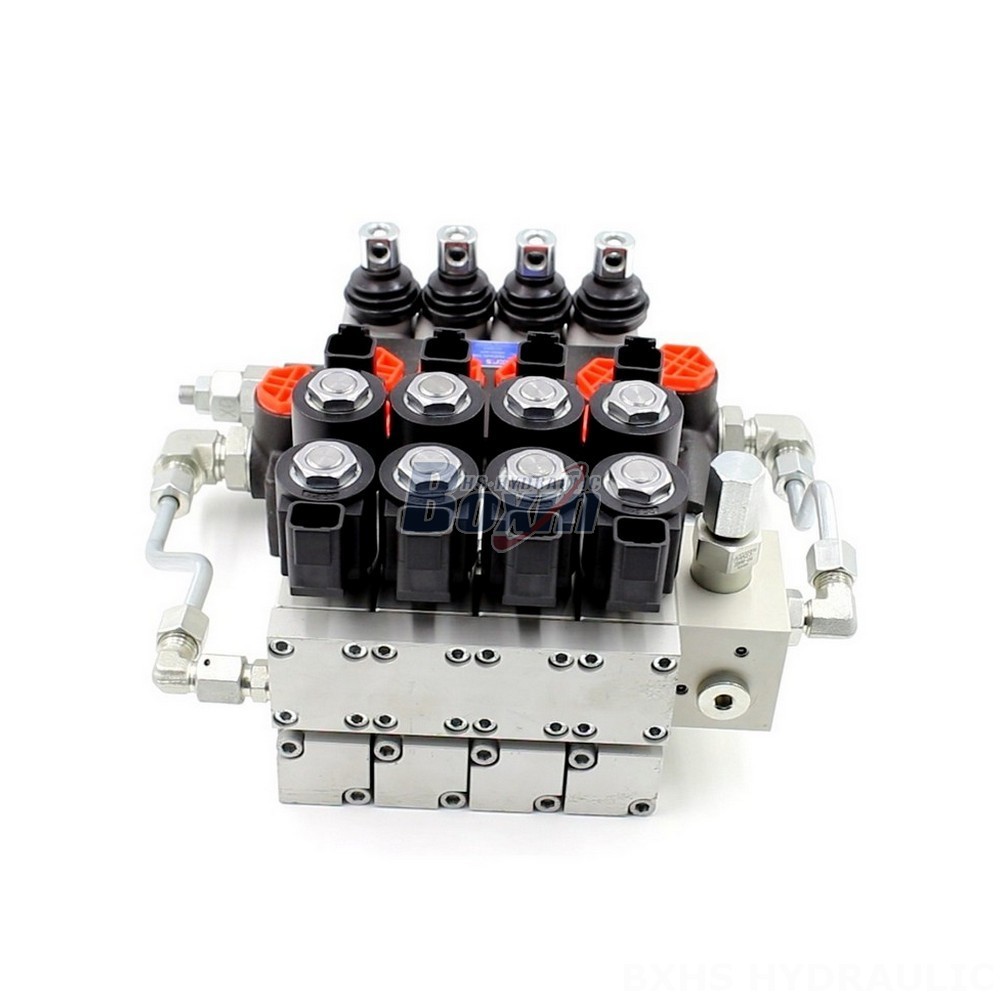

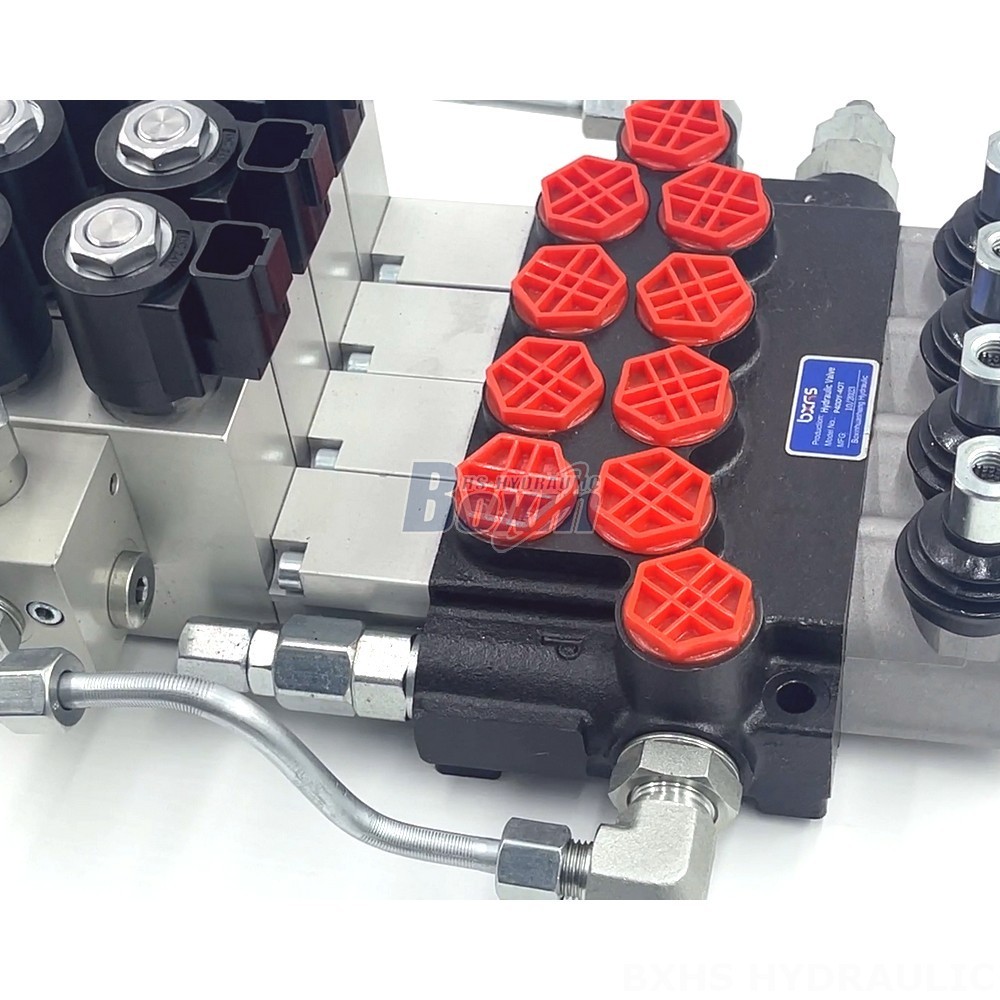

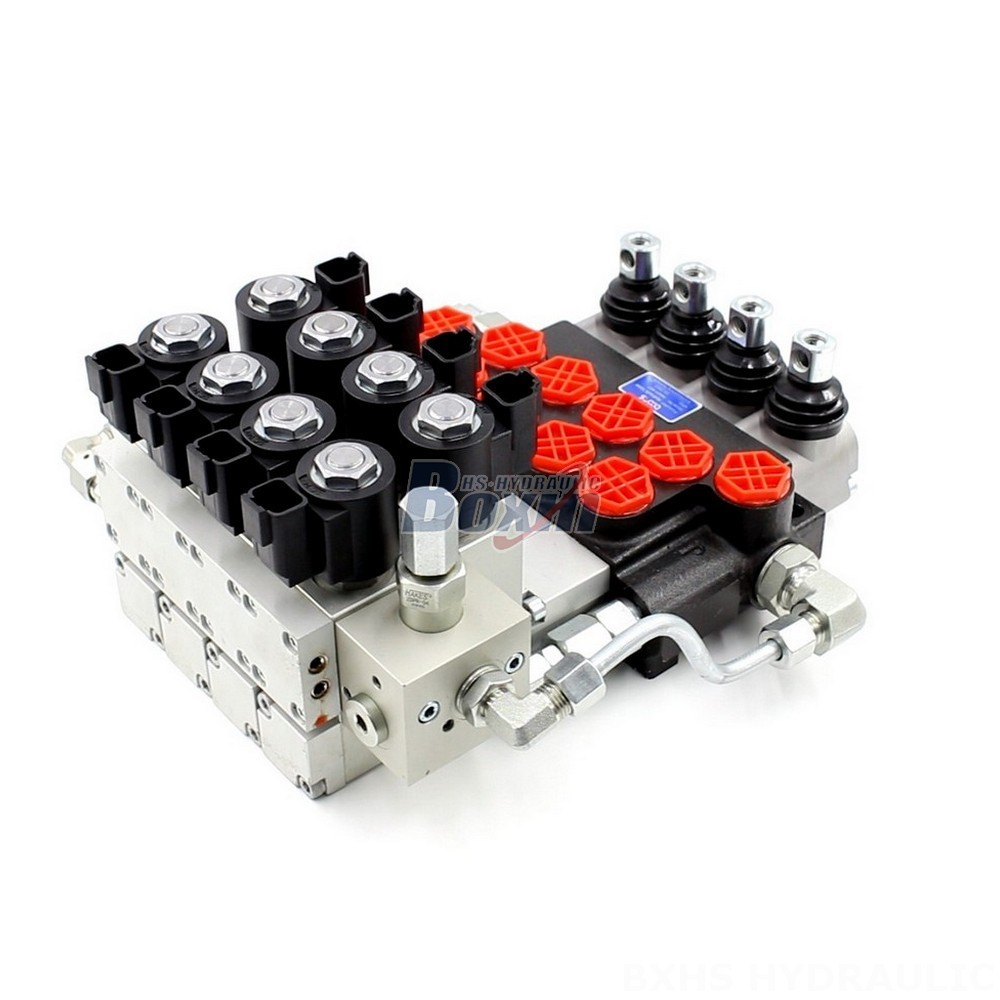

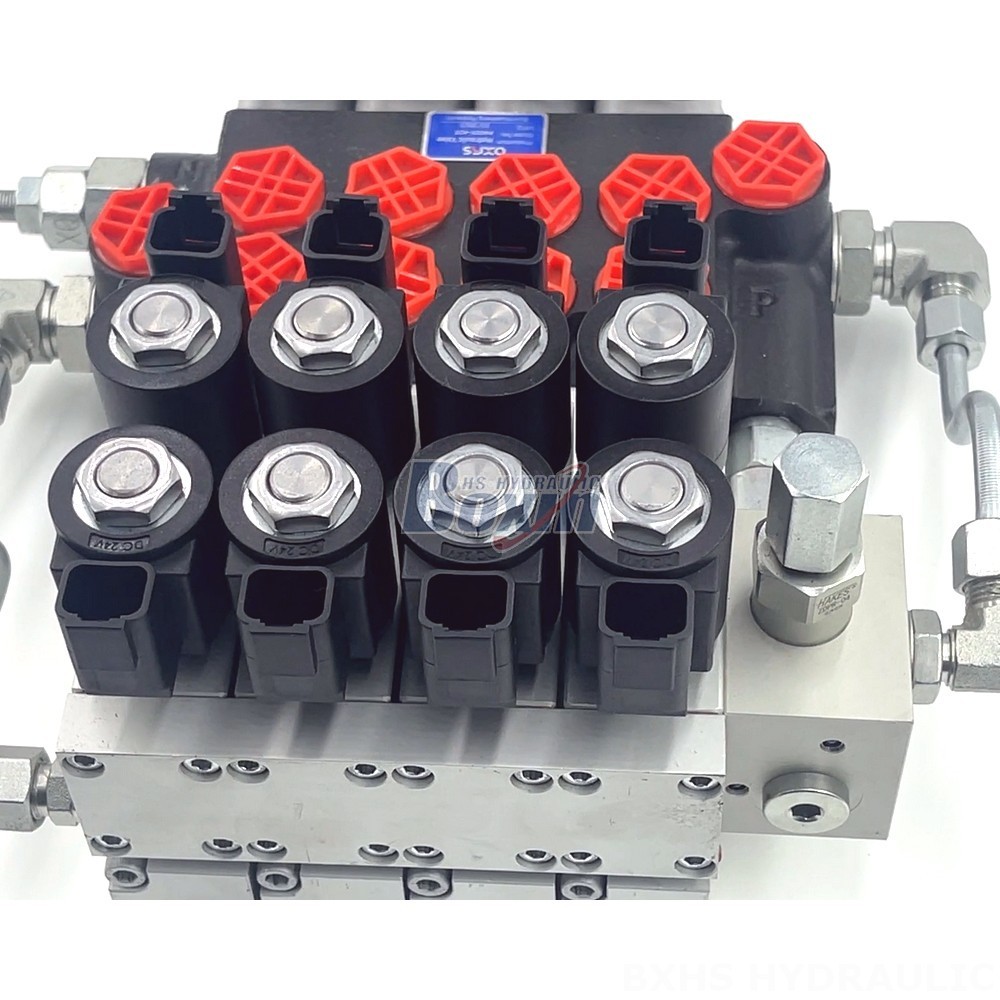

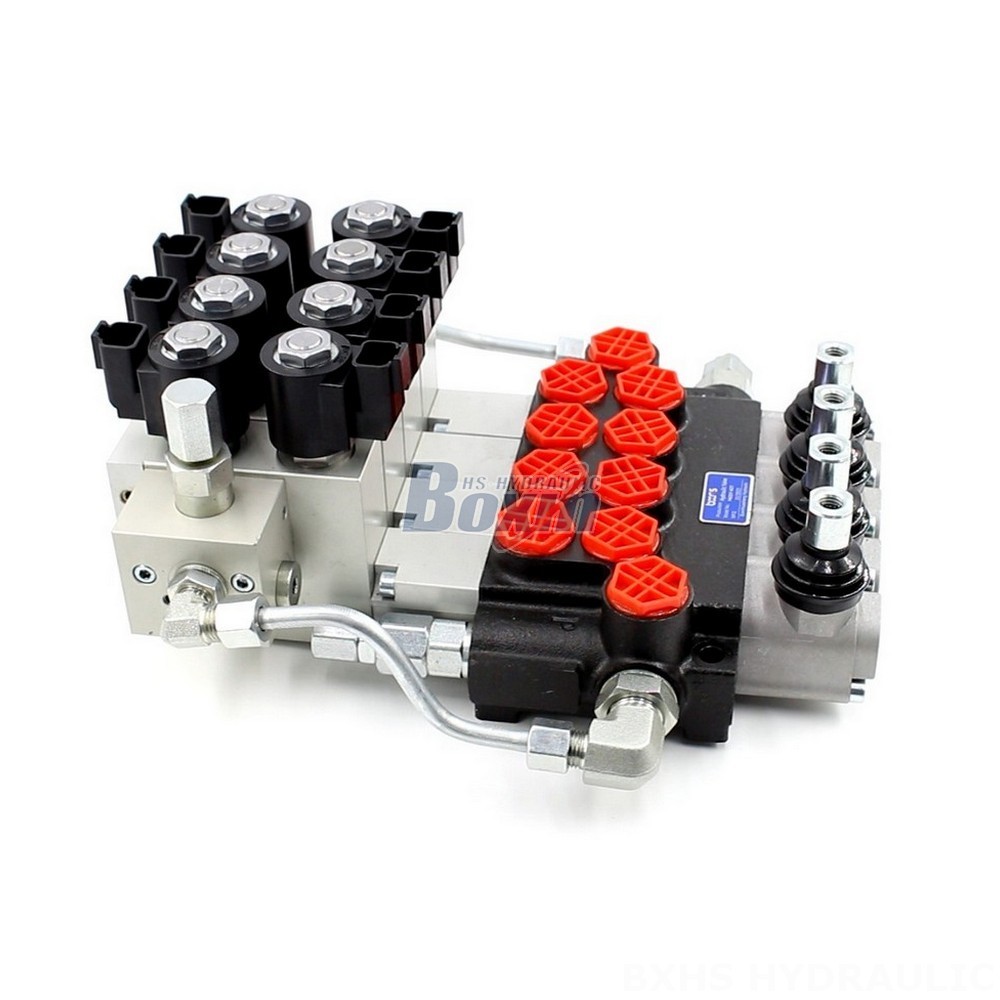

The Electro-hydraulic Control Precision: P40 Valve is a high-performance valve designed for demanding applications. It features electro-hydraulic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is available with 4 spools and is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Electro-hydraulic Control Precision: P40 Valve for Demanding Applications**
The Electro-hydraulic Control Precision: P40 Valve is a high-performance valve designed for demanding applications. It features electro-hydraulic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P40 Valve is available with 4 spools and is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The P40 Valve is also suitable for use in a variety of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Wheel loaders
* Backhoe loaders
