Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Innovation drives development Technology forges future
1192 Görünümler Bu Ürünü Arıyor

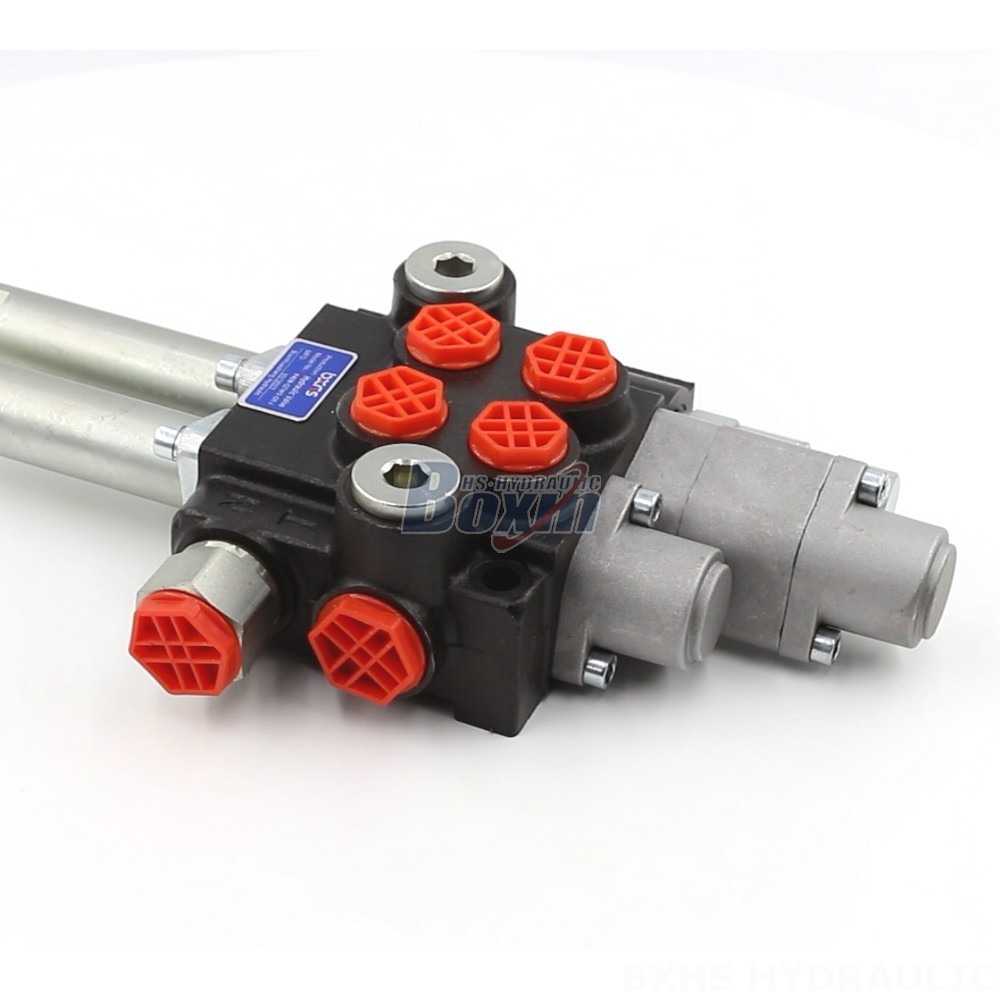

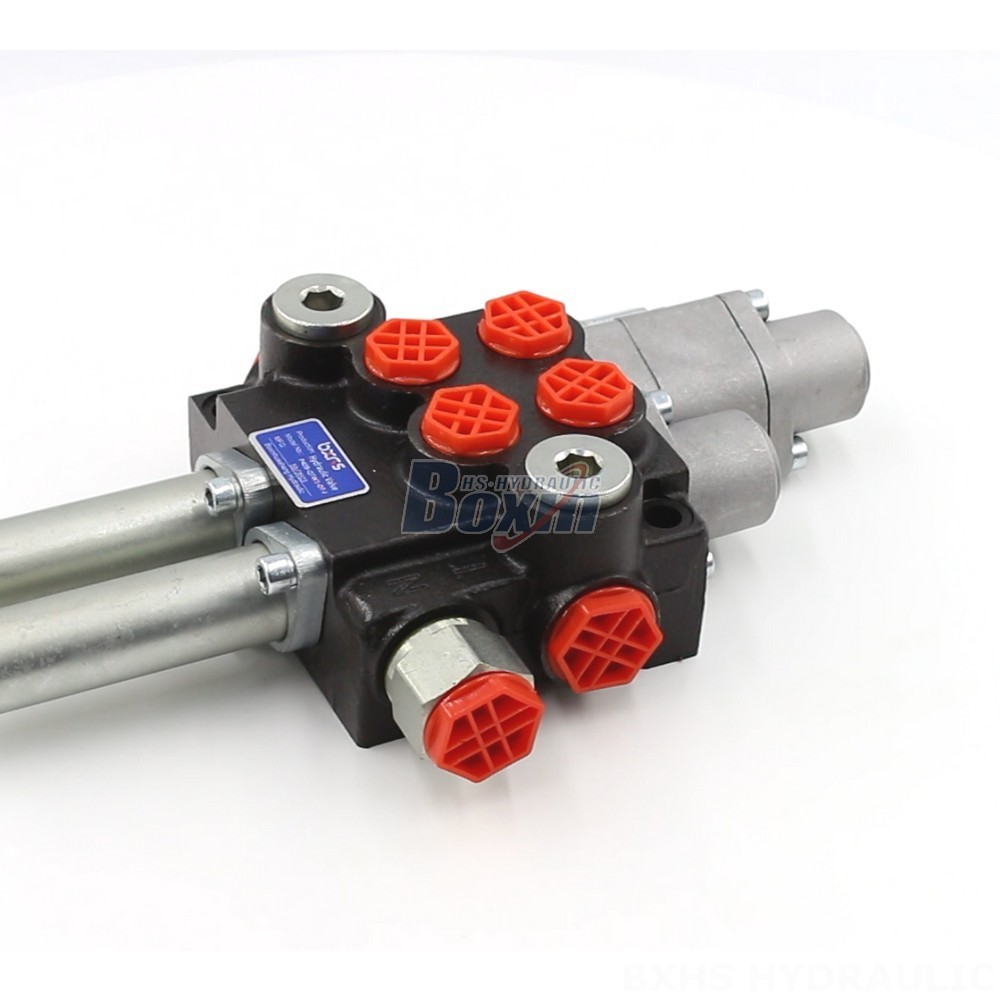

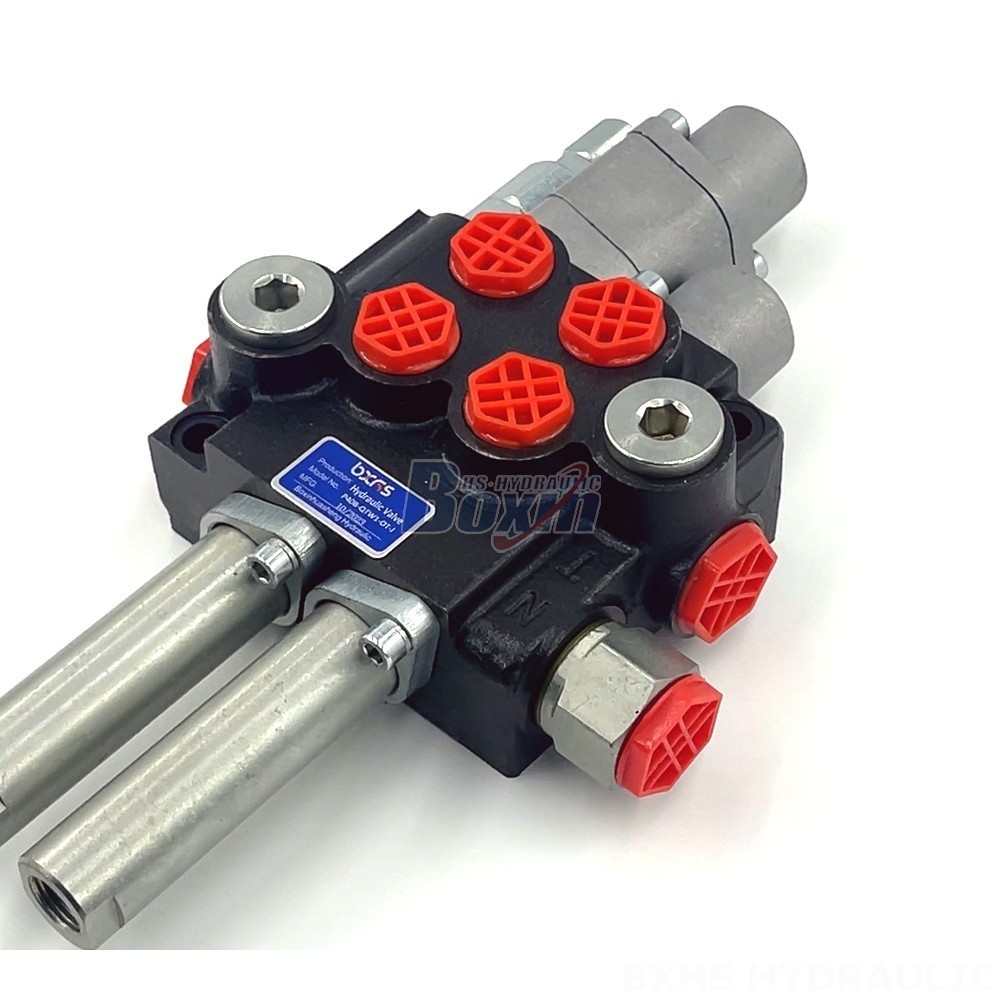

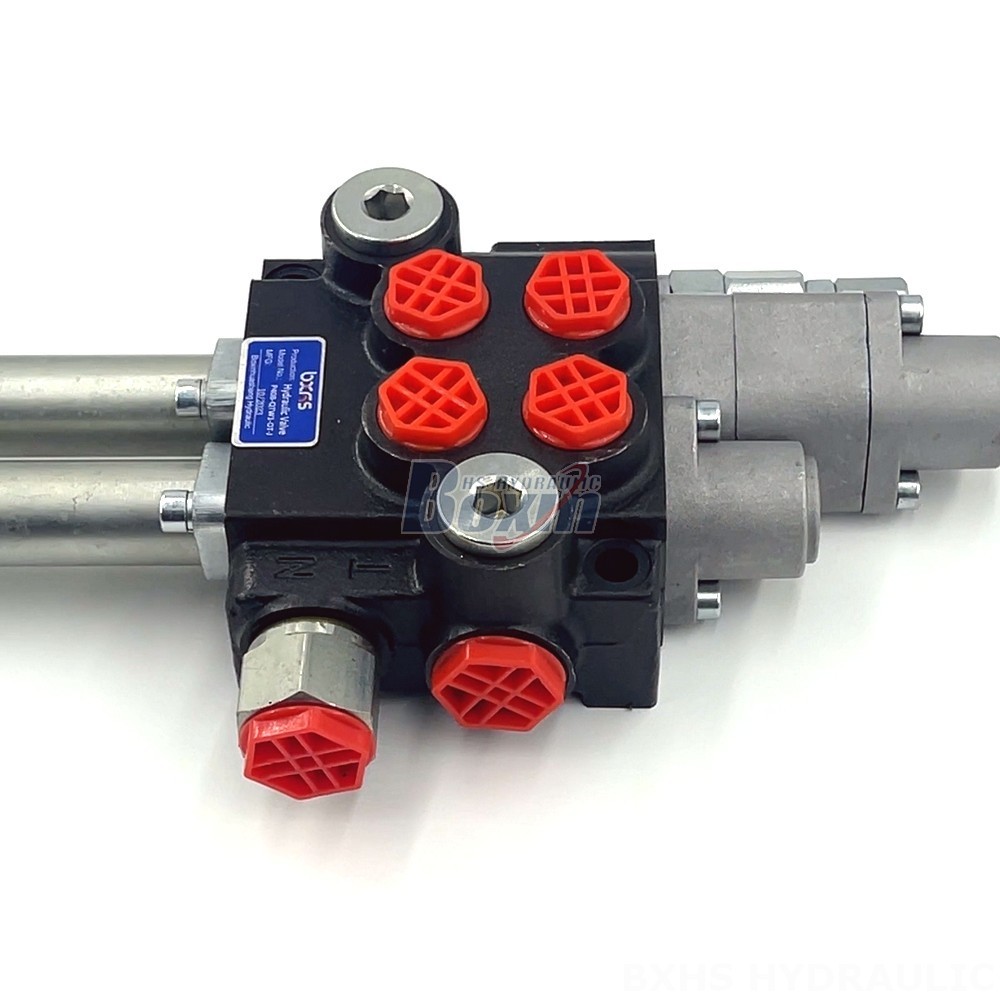

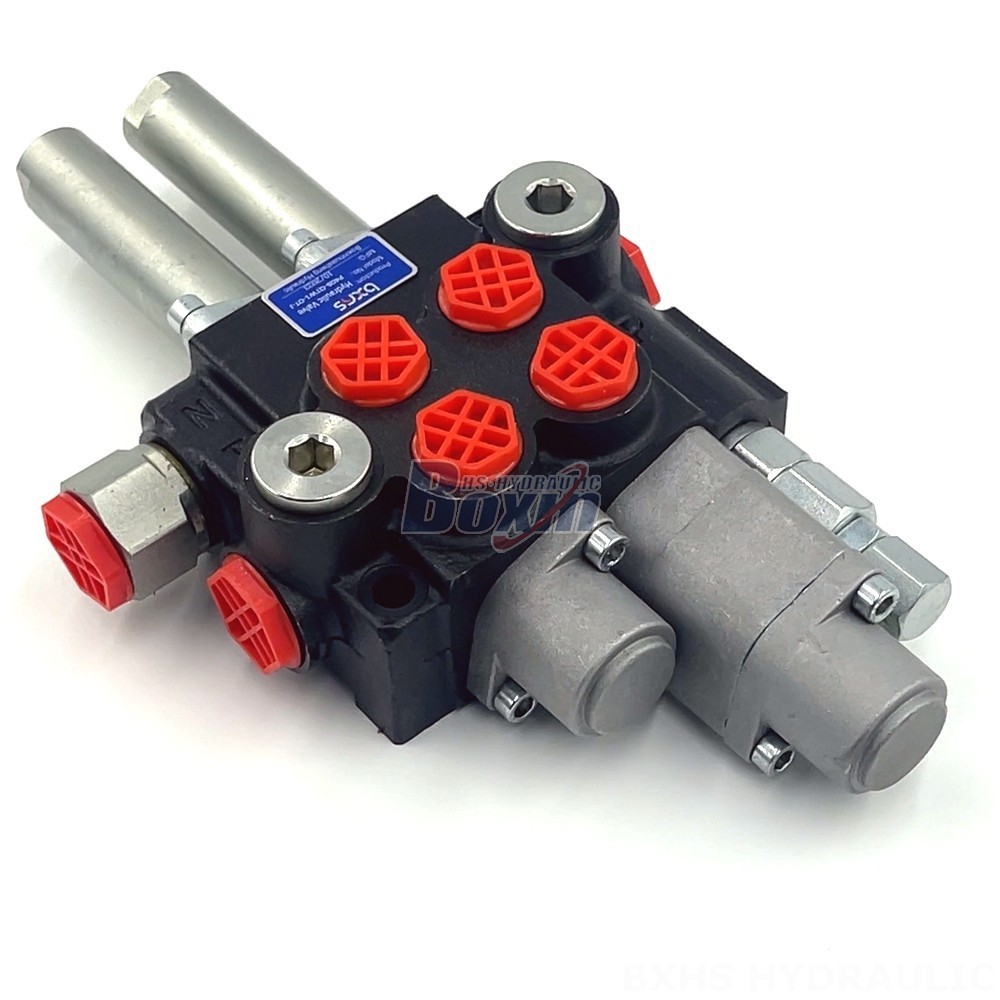

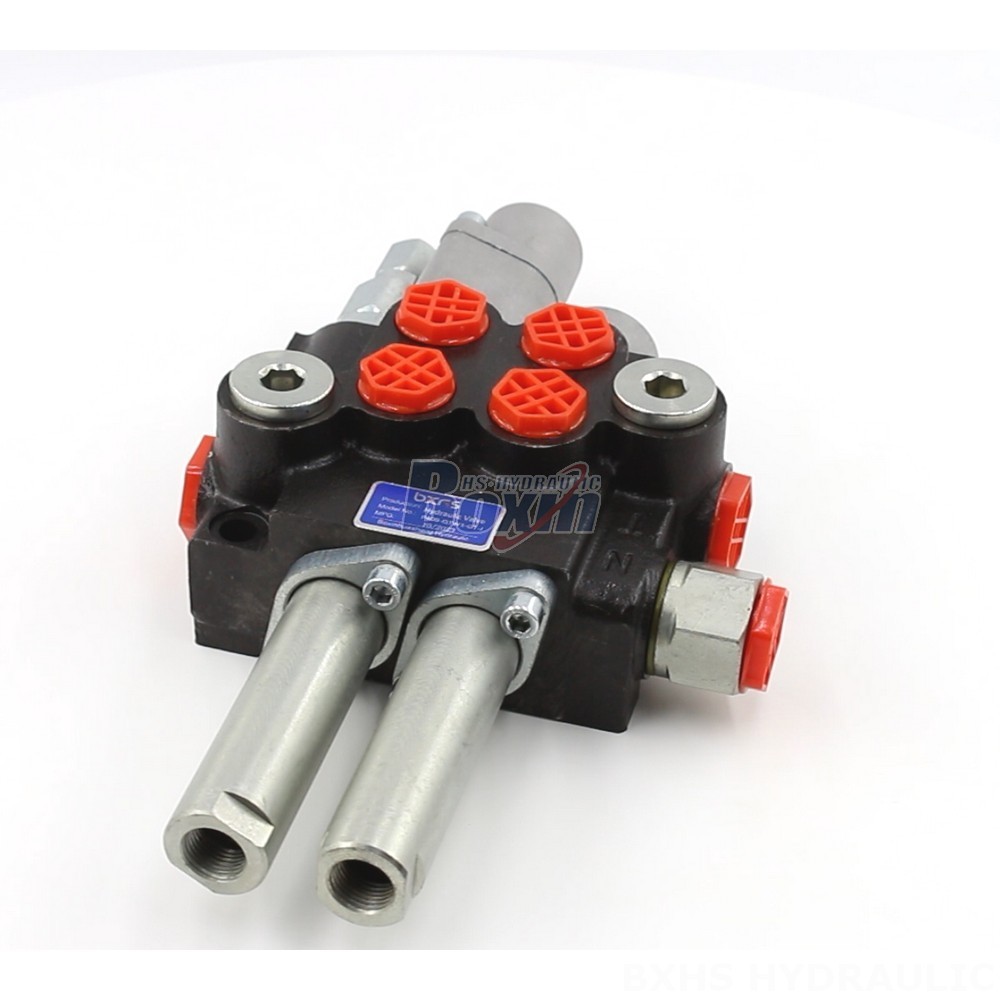

Introducing our exclusive factory deals on high-performance P40 Floating Cable 2 Spool Monoblock Directional Valves. These valves are meticulously engineered for seamless operation, providing precise flow control in demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, our valves excel in diverse industries, including material handling, construction, agriculture, and industrial vehicles. Their flexible 2-spool design and compatibility with various applications make them a versatile choice for your hydraulic system requirements.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40 series valves feature a rugged monoblock construction, ensuring durability and leak-free performance. The floating cable control mechanism offers precise spool actuation, while the 2-spool design allows for independent control of two separate hydraulic circuits. These valves operate within a wide viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, ensuring reliable operation in challenging conditions. As a leading manufacturer, we offer these valves at competitive factory deals, enabling you to optimize your hydraulic system performance without breaking the bank. Whether you're a distributor, wholesaler, or end-user, we invite you to explore our exclusive factory deals on P40 Floating Cable Directional Valves.
