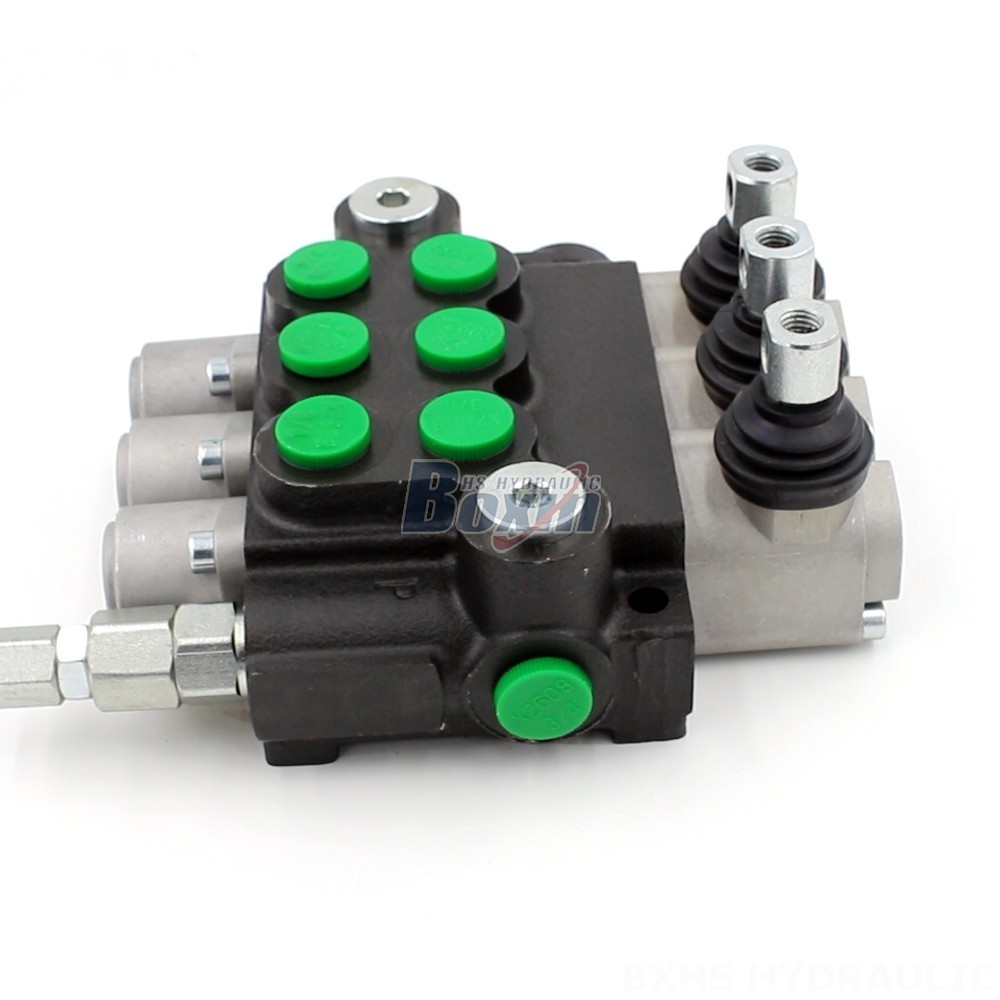

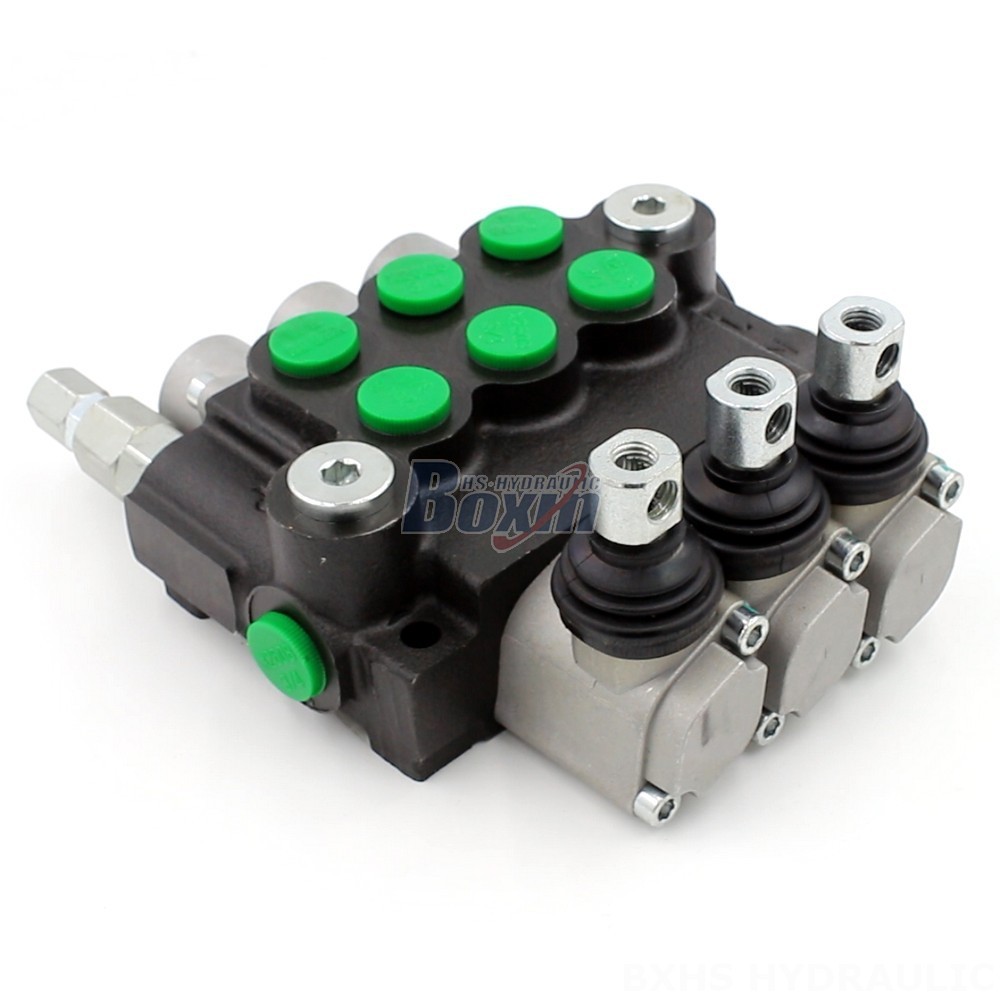

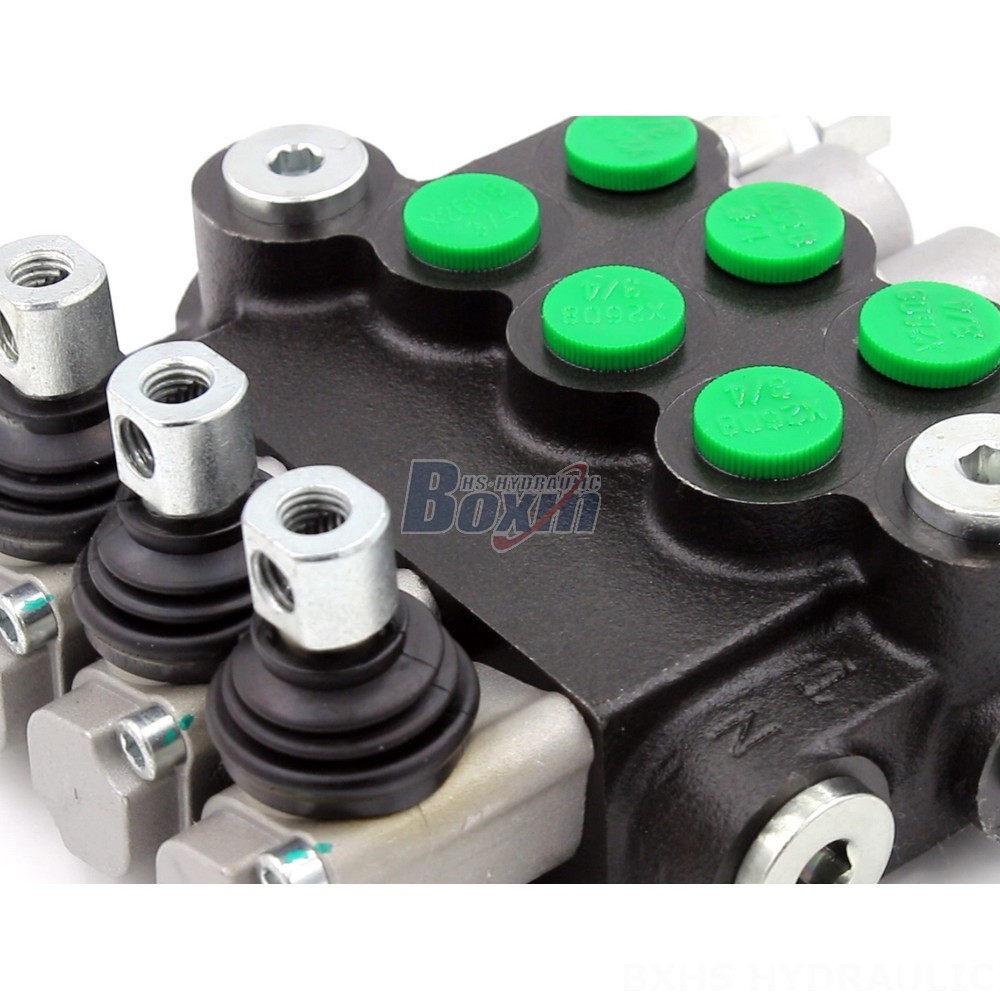

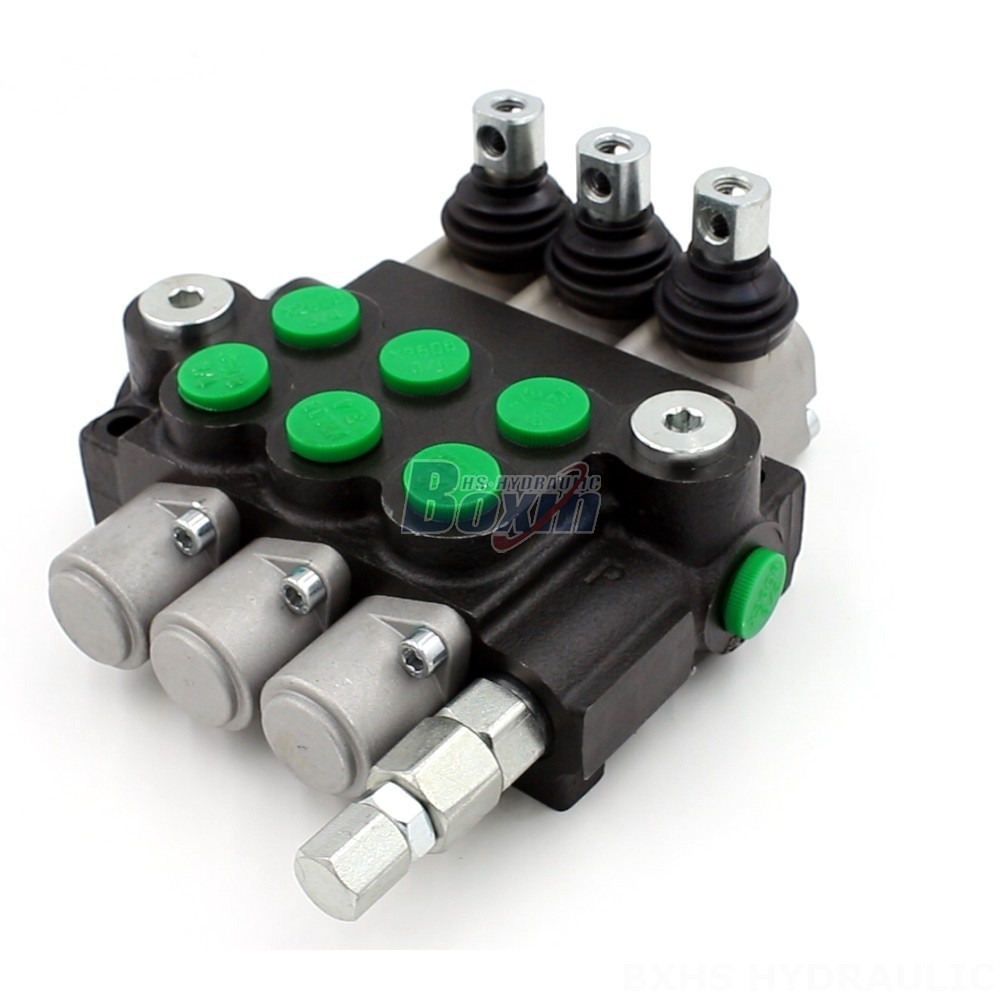

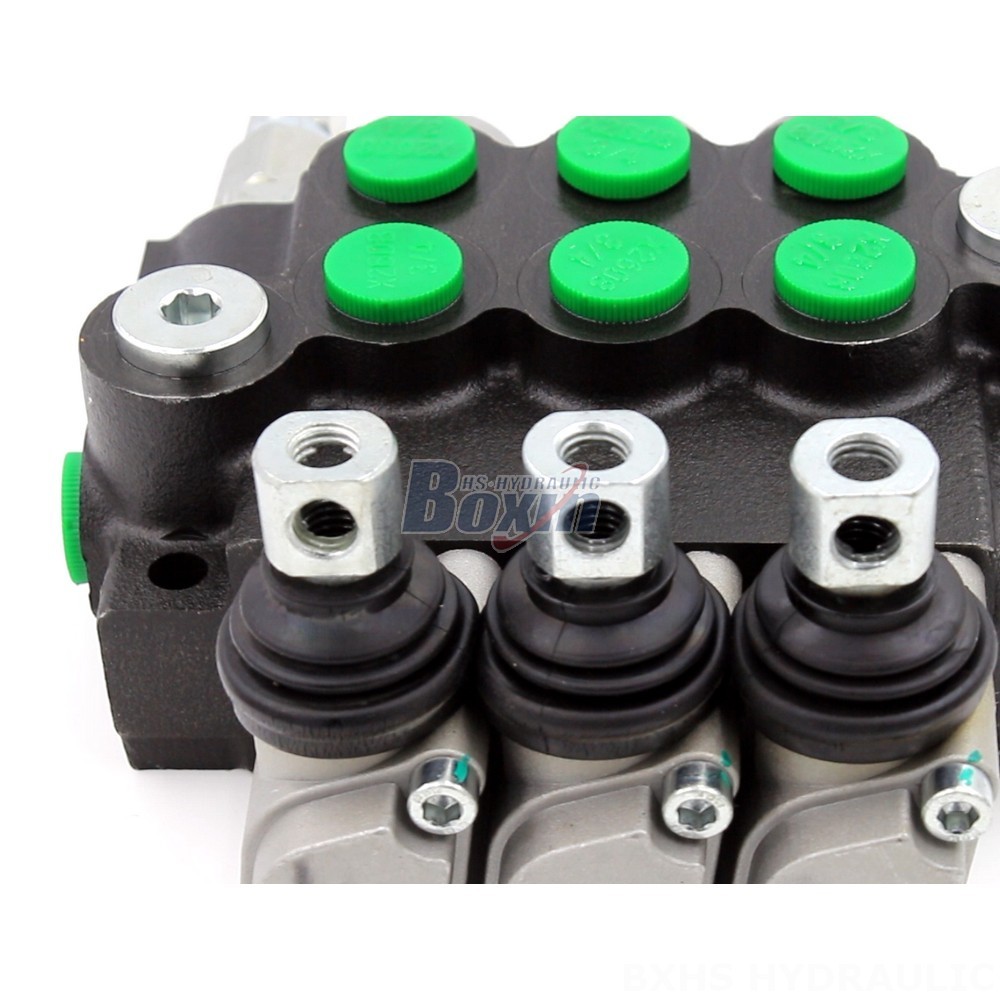

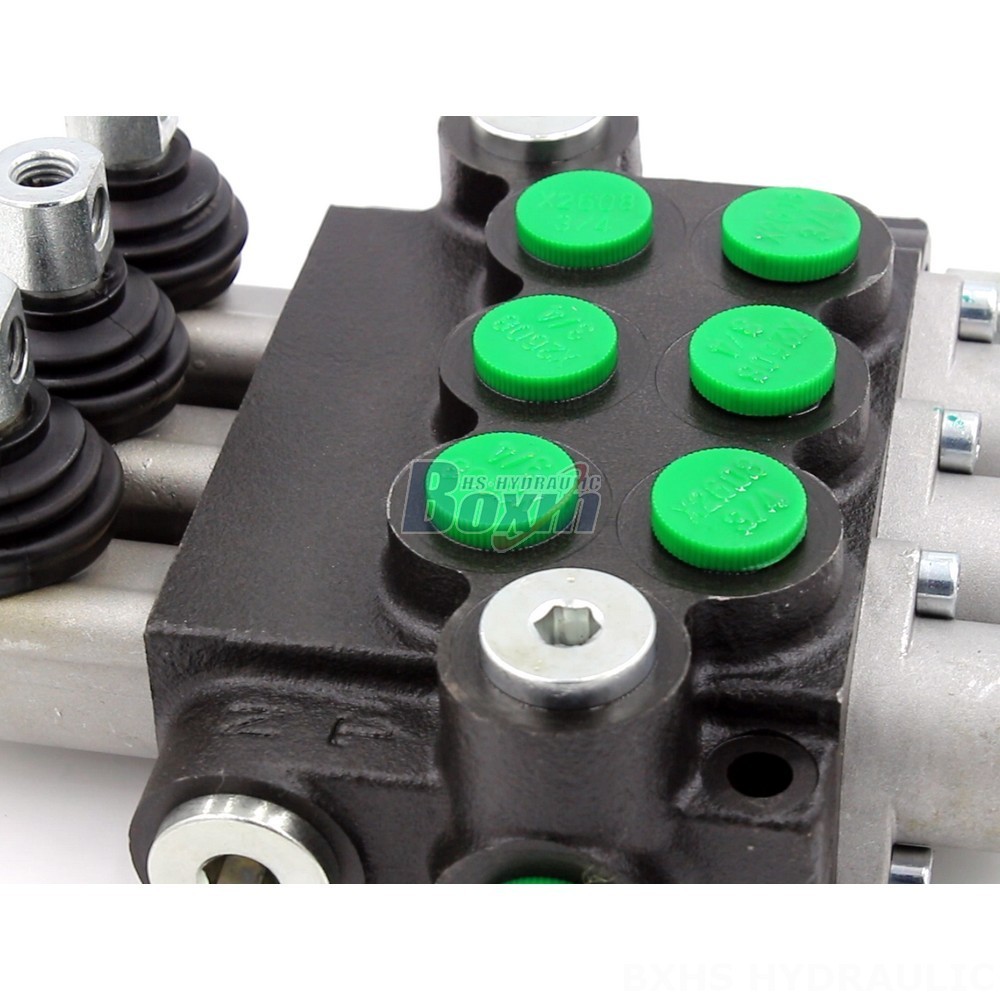

The P40-U34-OT hydraulic valve is a high-performance, manually controlled monoblock valve designed for use in a wide range of demanding applications. With a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s, this valve is capable of handling even the most challenging hydraulic systems. The valve's robust construction and durable components ensure long-lasting performance and reliability.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Factory Wholesale Supply: P40-U34-OT Hydraulic Valves from the Manufacturer**
**Product Description:**
The P40-U34-OT hydraulic valve is a 3-spool, monoblock valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve is manufactured by a leading hydraulic component manufacturer and is available for factory wholesale supply.
**Key Features:**
* Manual control
* 3-section design
* Rated flow: 40 L/min (10.5 US gpm)
* Max pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 3 spool
* P40 Series
**Applications:**
The P40-U34-OT hydraulic valve is suitable for use in a wide range of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
**Benefits:**
* High performance and reliability
* Durable construction
* Factory wholesale pricing
* Fast delivery
* Excellent customer service
If you are looking for a high-quality hydraulic valve for your application, the P40-U34-OT is an excellent choice. Contact us today to learn more about this product and to get a quote.
