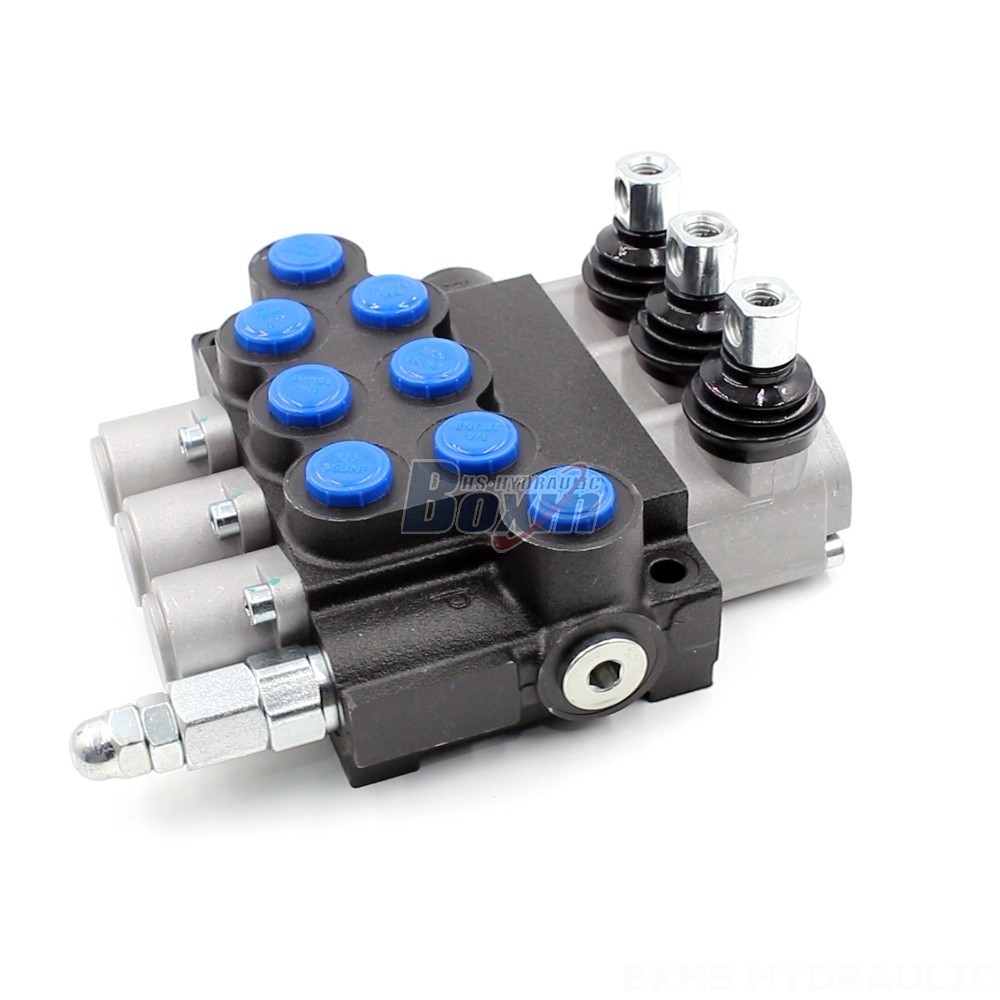

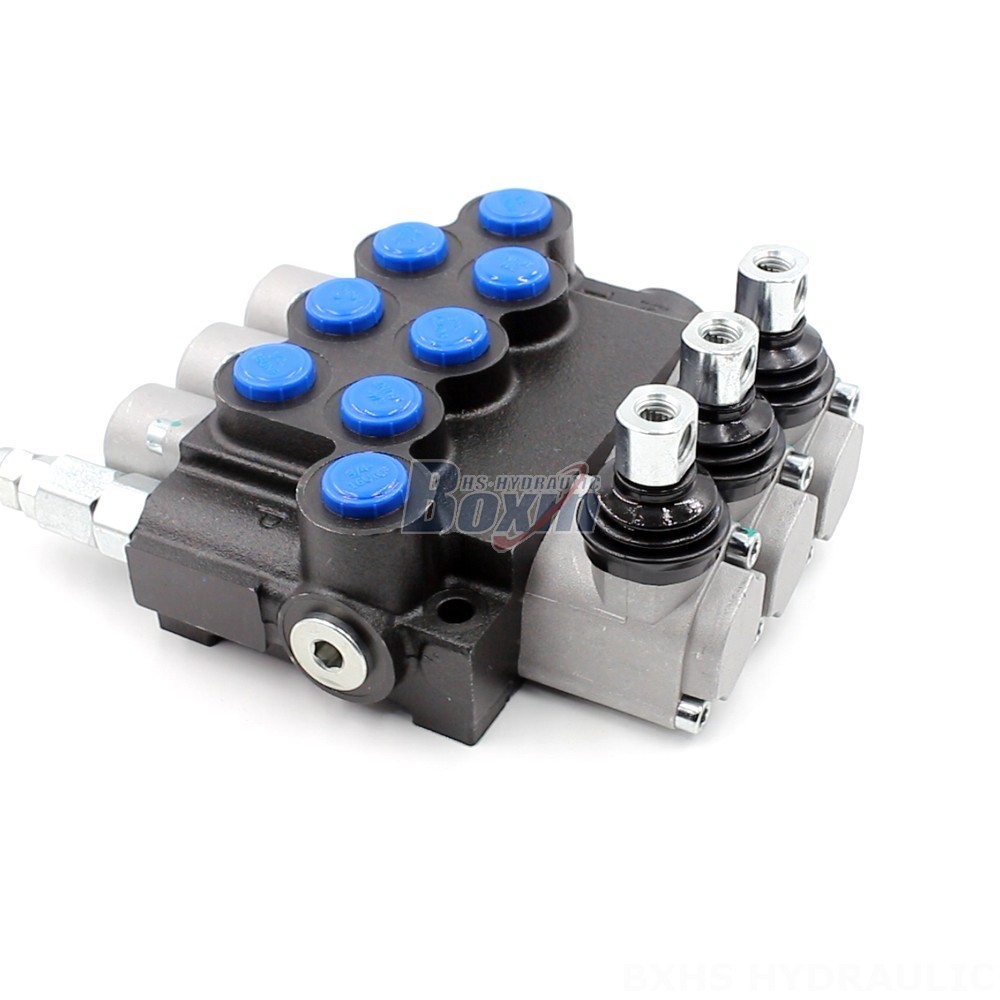

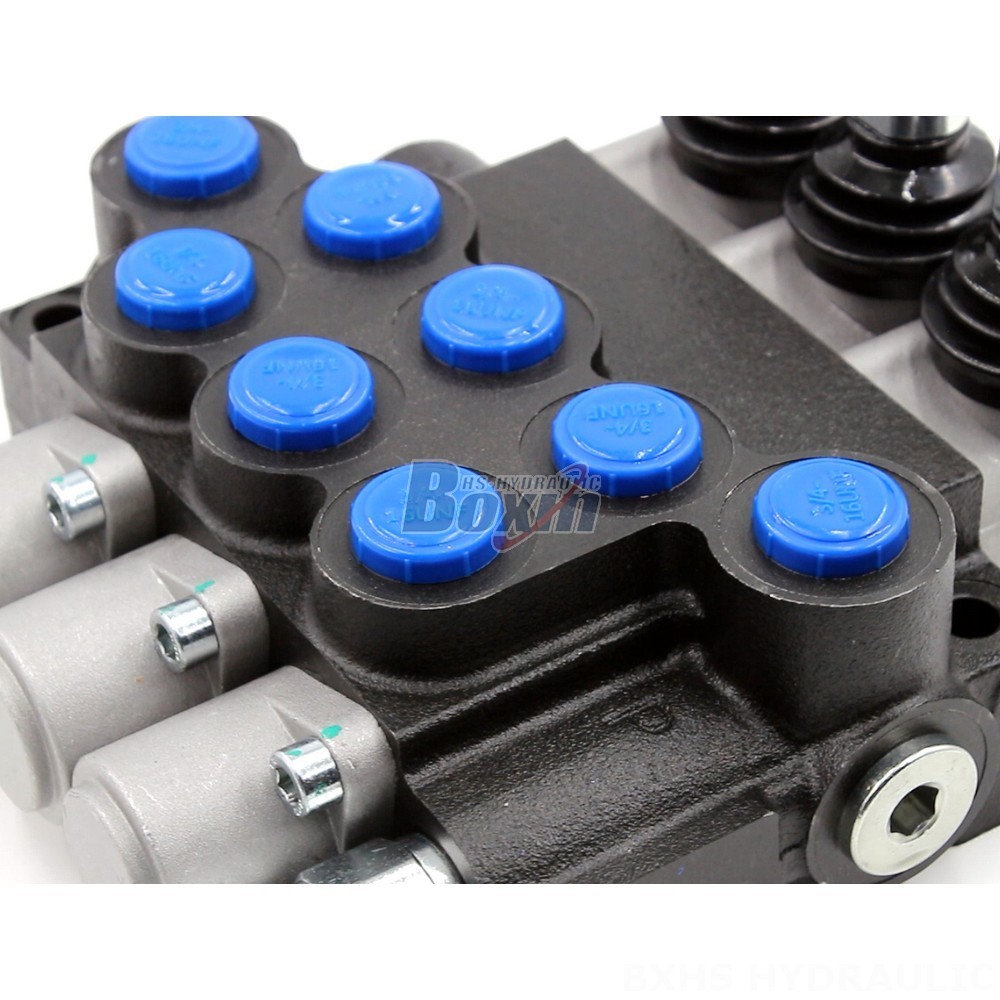

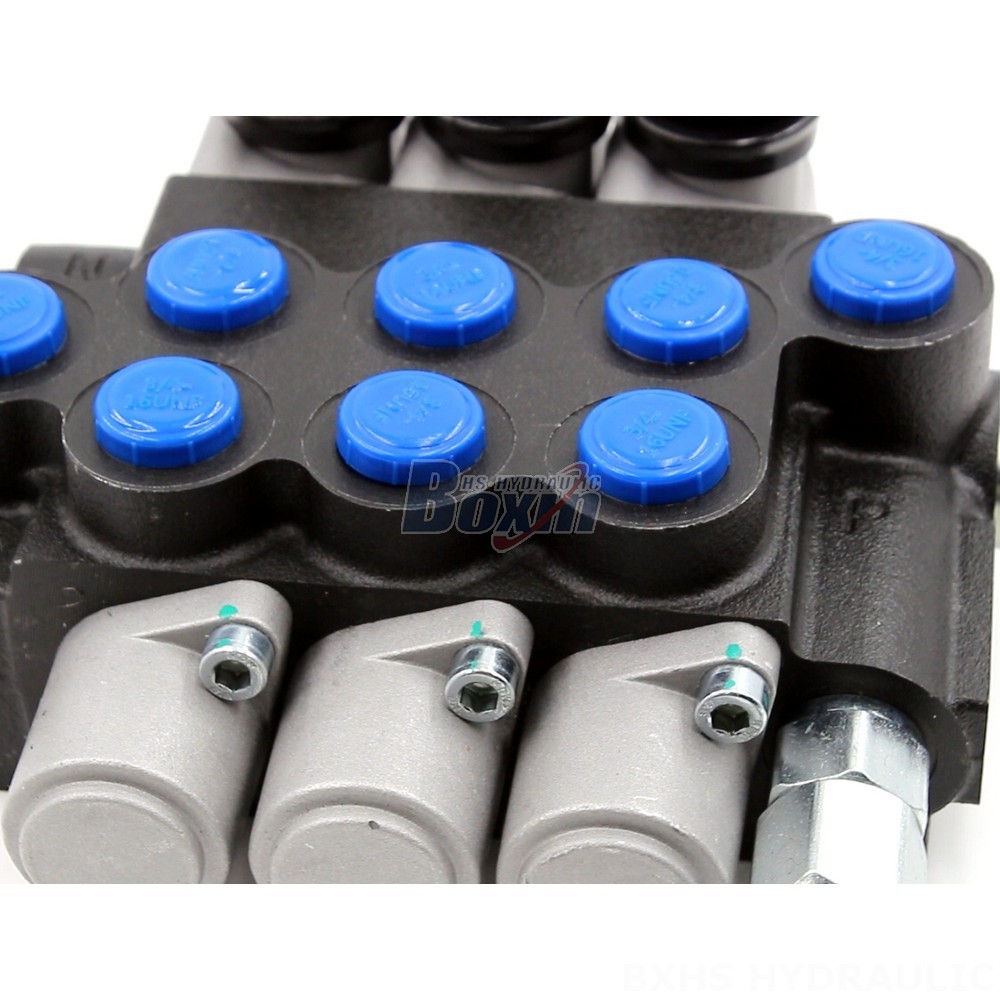

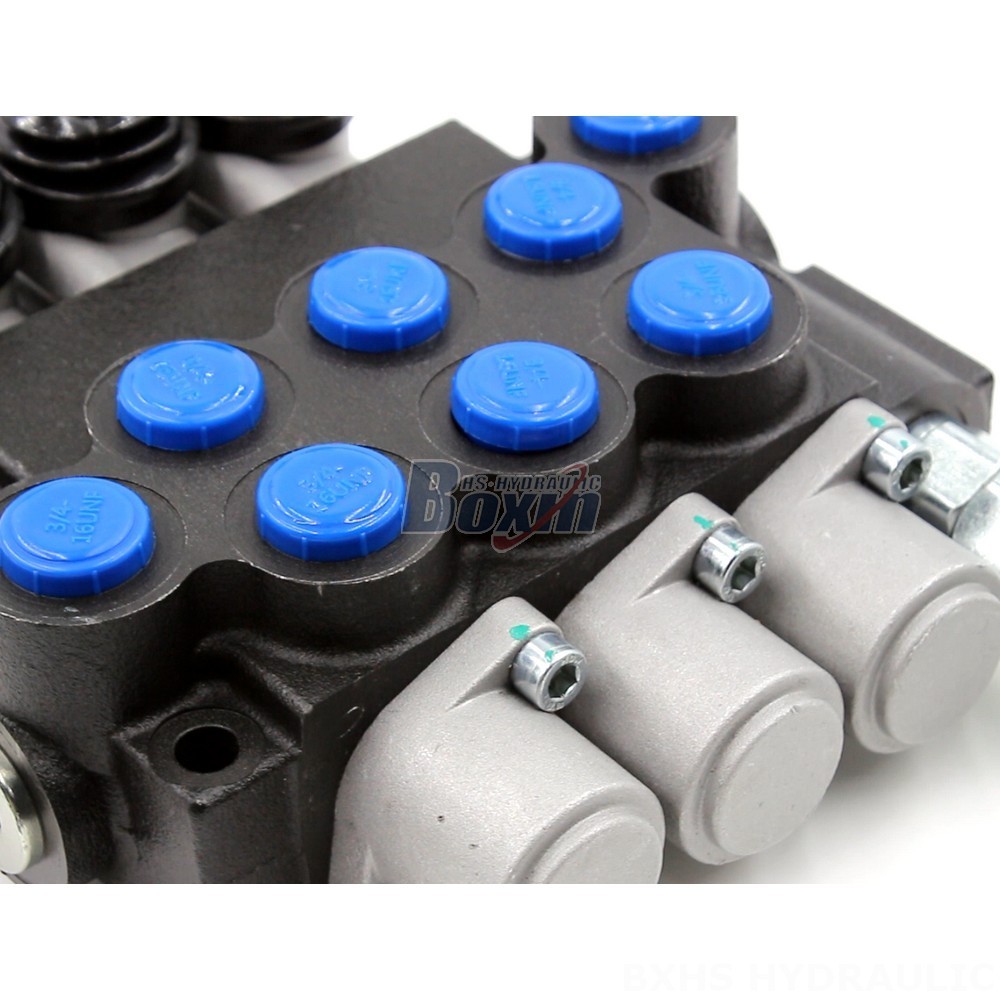

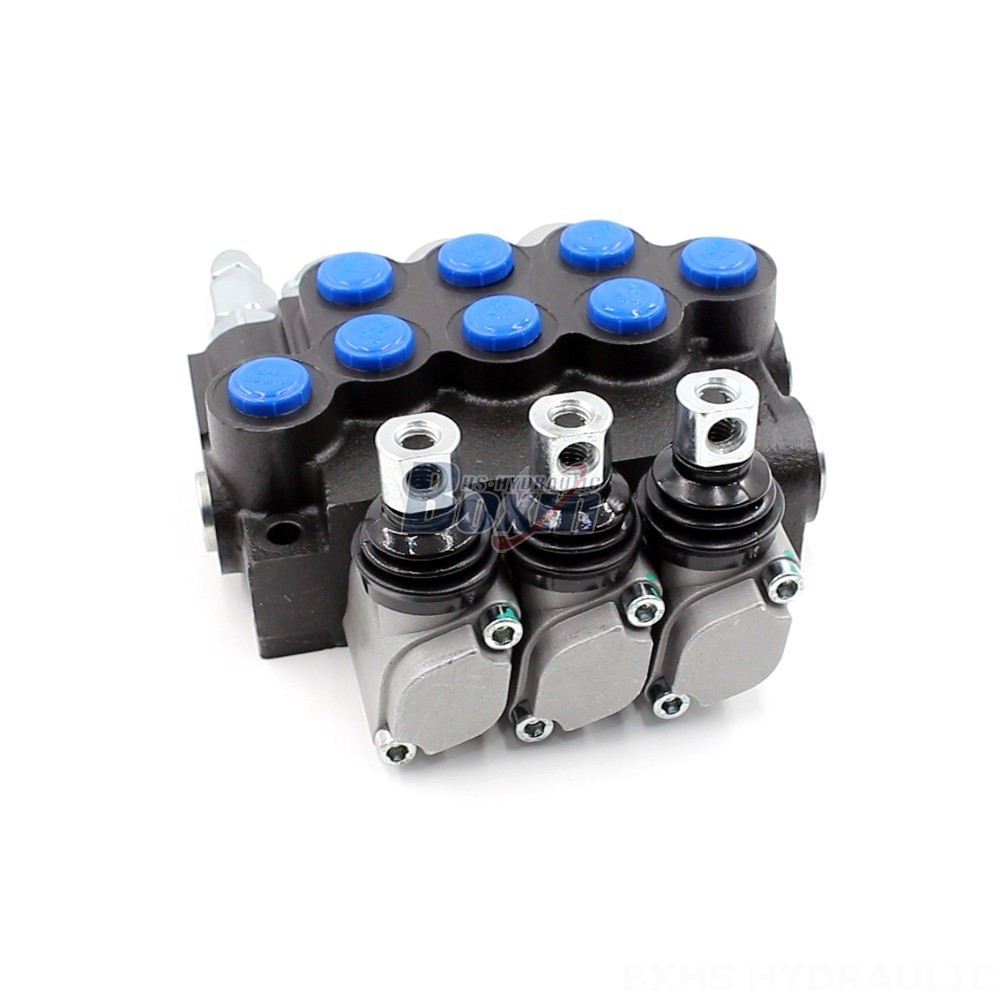

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Kontrol Yöntemi:Manuel

Makara:3 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:SAE 10

Çıkış Portu:SAE 10

Port Boyutu:SAE 10

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:24*21*13

Brüt ağırlık:6.60 kg

Stok Durumu: Stokta Var

1042 Görünümler Bu Ürünü Arıyor

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer drawing image

This P40-U78 Hydraulic Valve is a 3-section monoblock valve designed for manual control in various applications, including material handling, construction, and agriculture. It features a rated flow of 40 L/min, a max pressure of 250 bar, and is suitable for a wide range of operating temperatures.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our factory directly supplies this high-quality P40-U78 Hydraulic Valve, a 3-section monoblock valve with manual control. This valve is designed for applications in material handling, construction, and agriculture, and is suitable for various machines such as telehandlers, forklifts, cranes, and excavators. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions. It is also engineered for a wide operating temperature range of -40°C to +80°C, ensuring durability and longevity. We are a global supplier offering manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and find the perfect solution for your needs.
