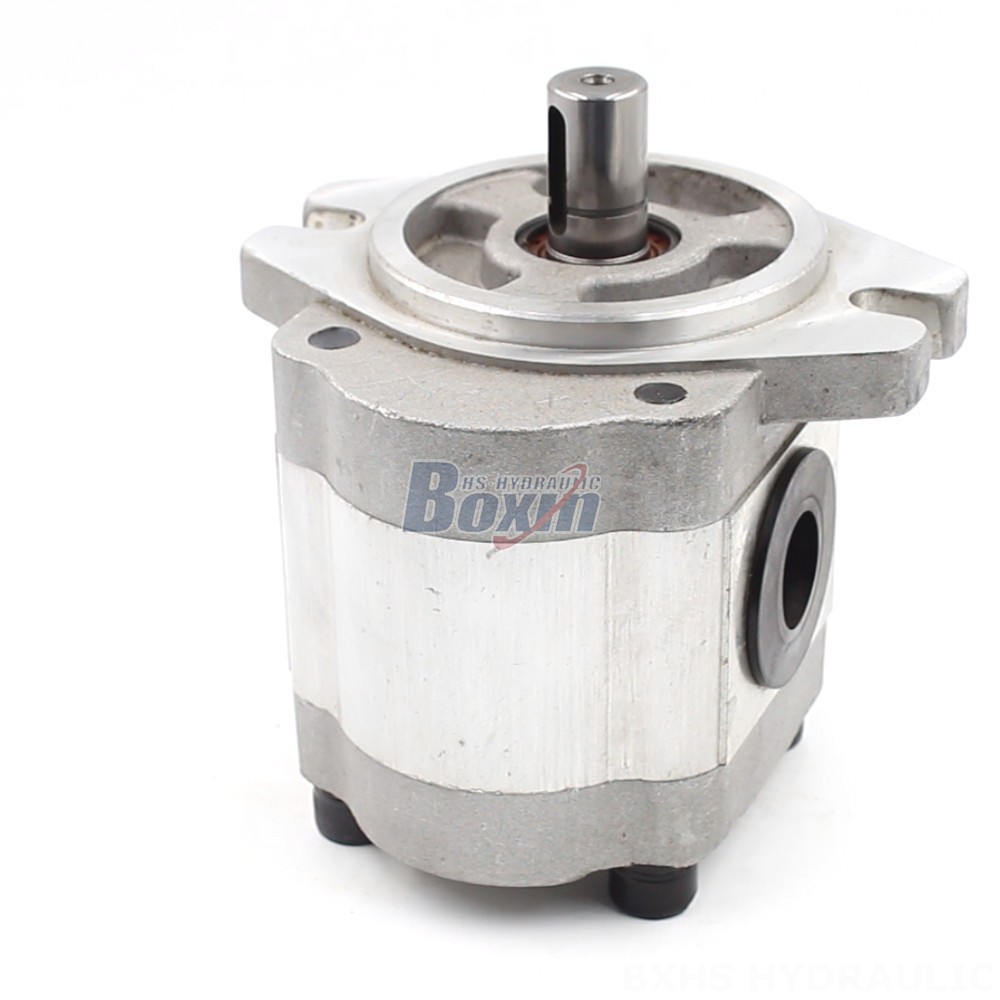

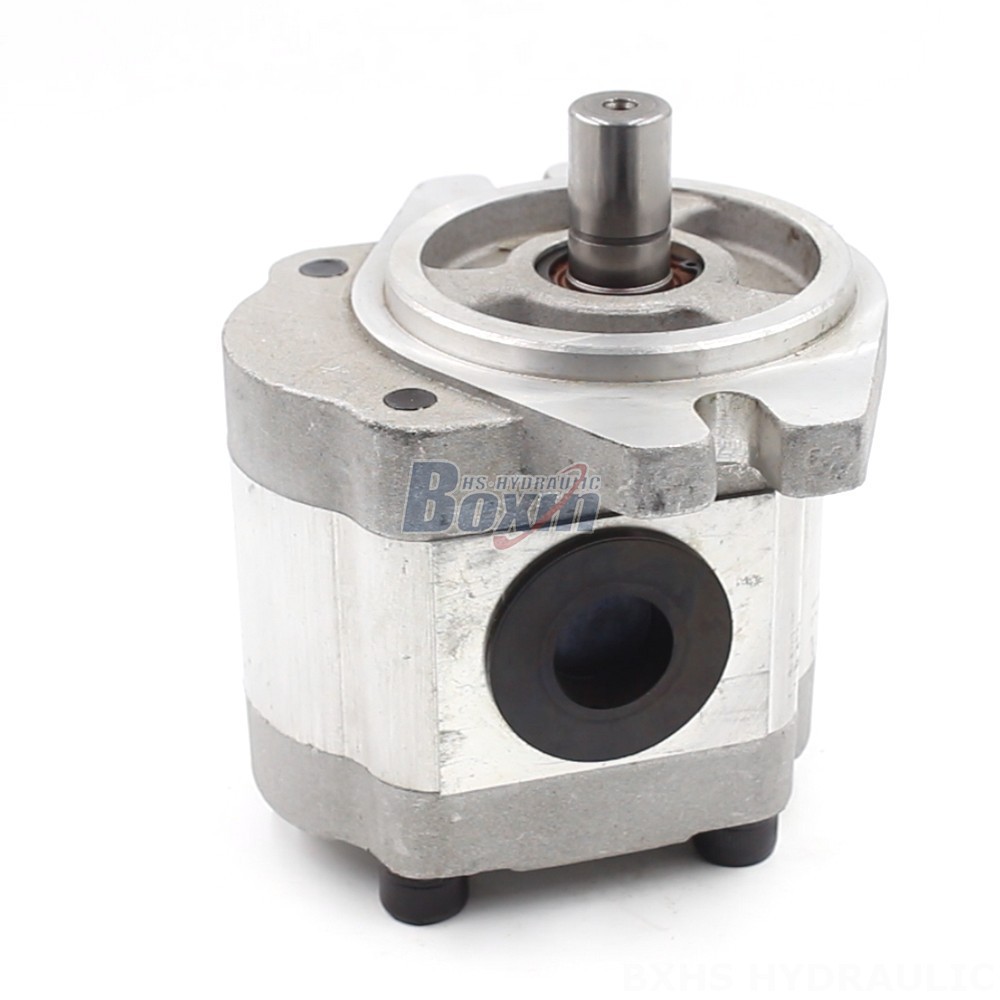

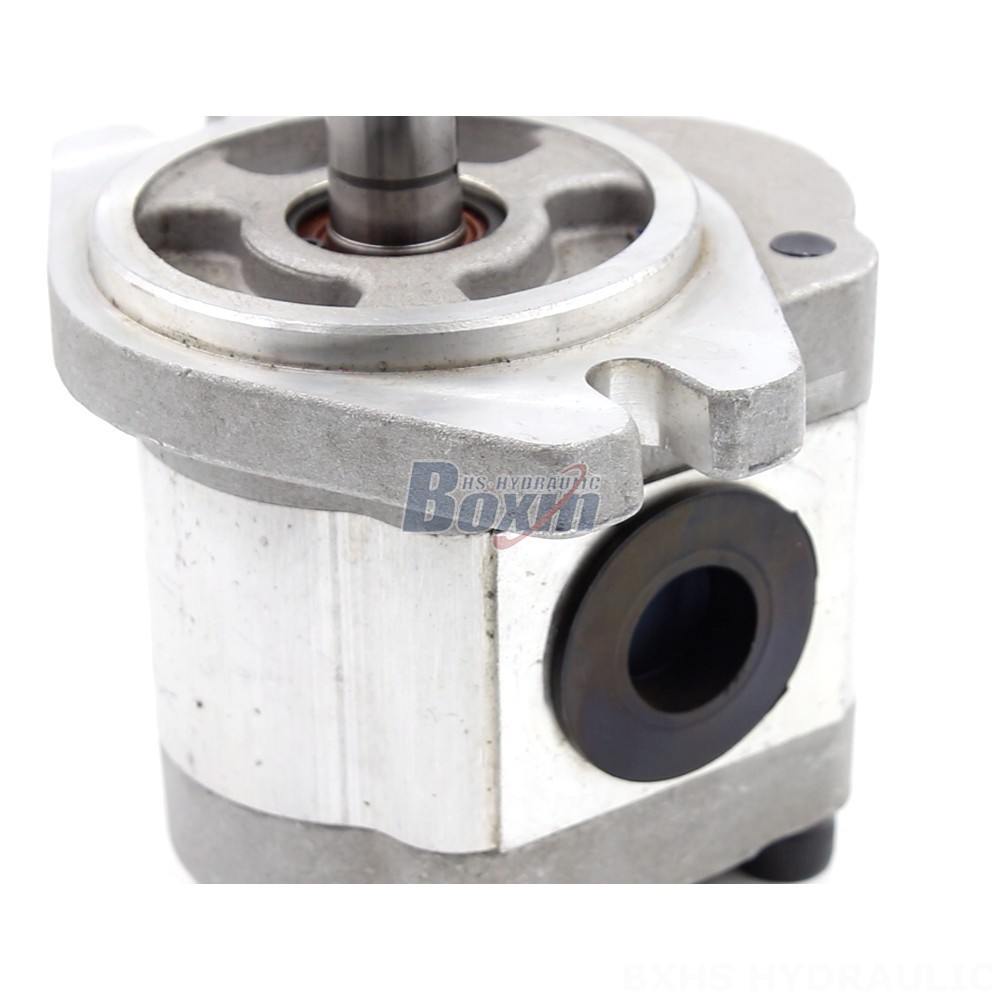

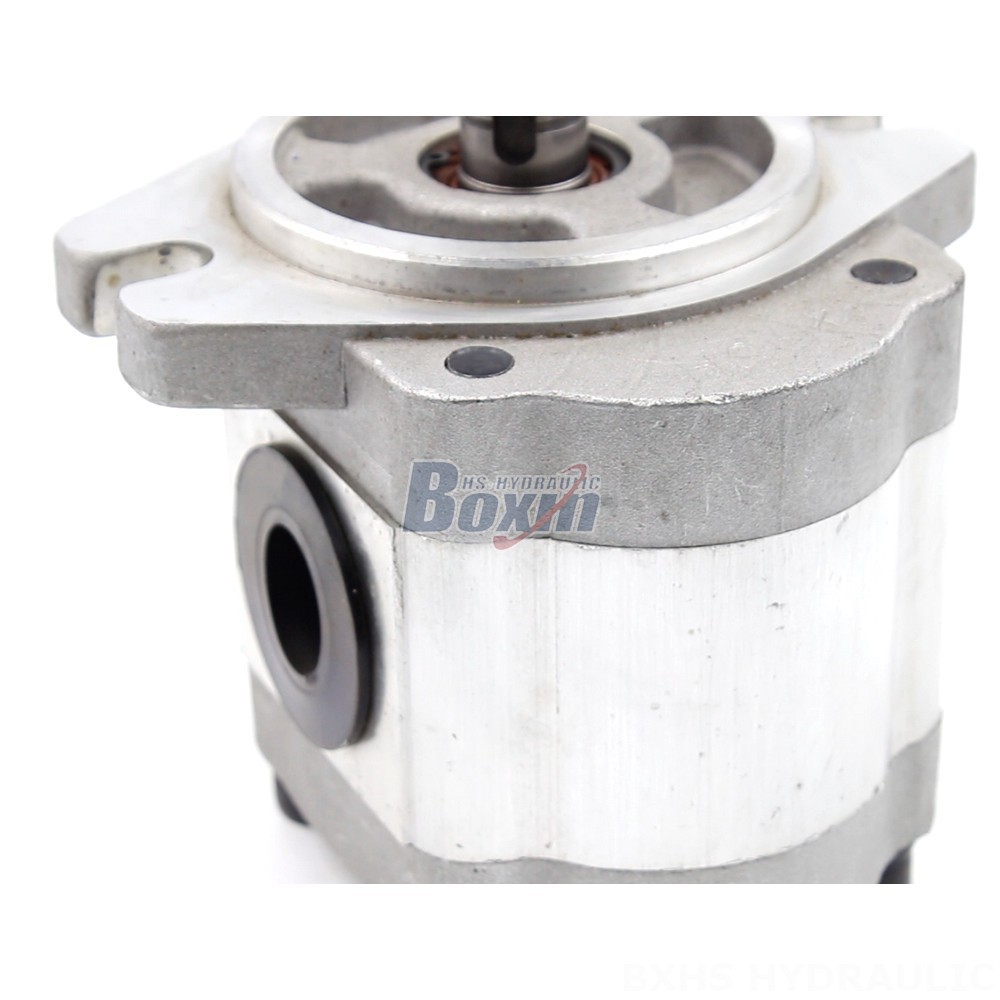

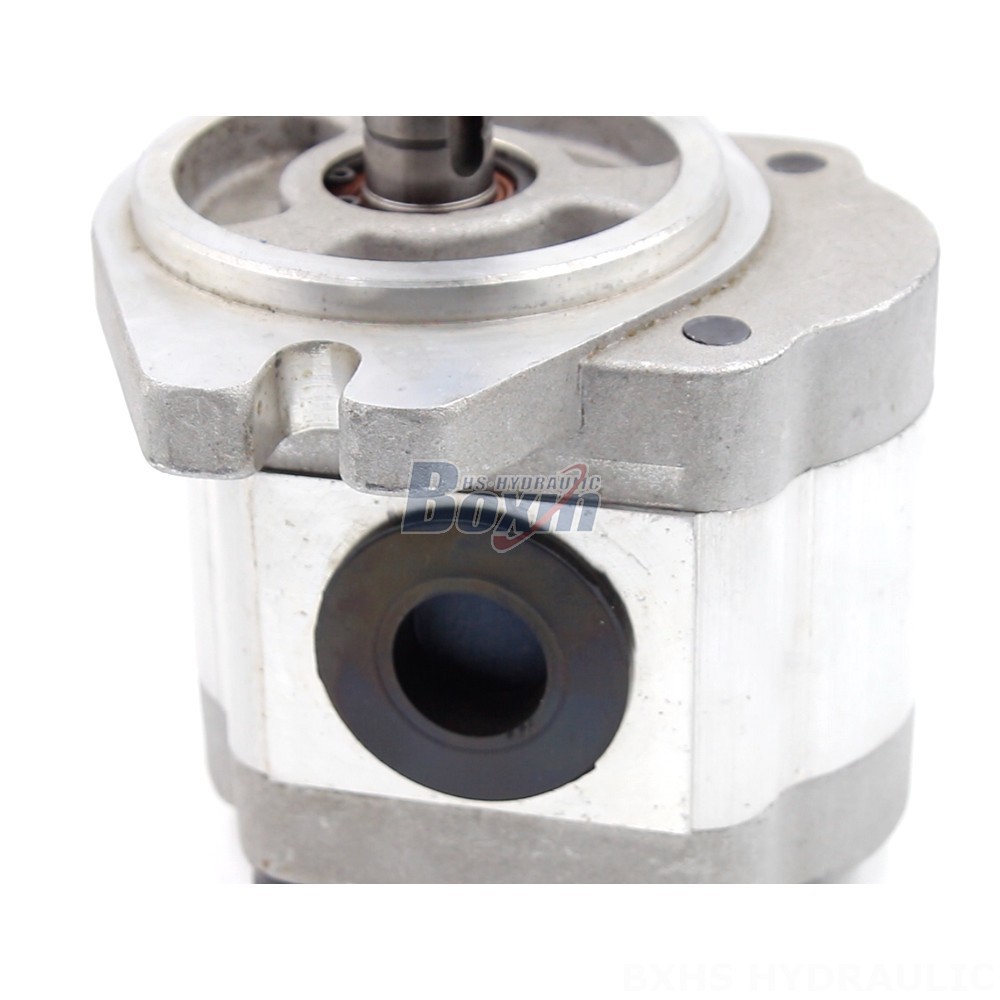

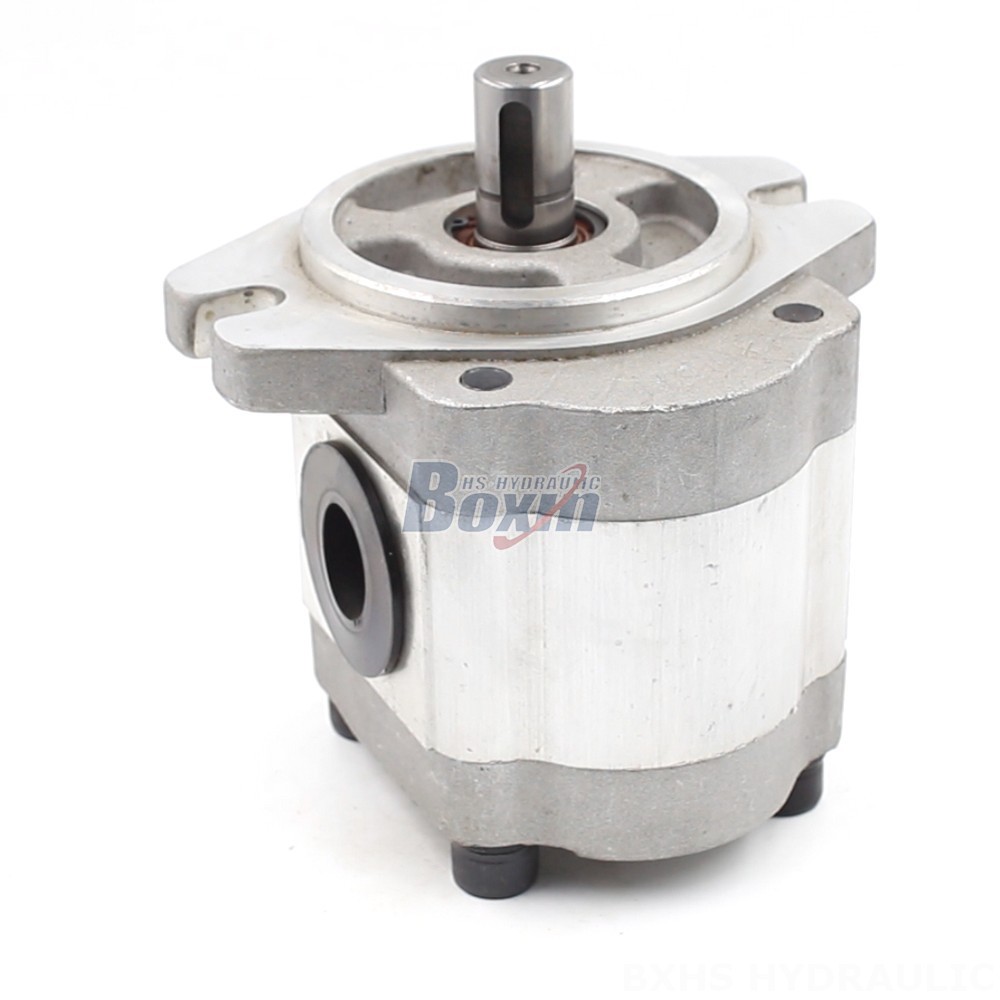

This is a high-performance 6 cc/rev hydraulic gear pump designed for various applications including construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa rated pressure, and 2000 r/min rated speed, making it suitable for demanding tasks.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
This high-performance 6 cc/rev hydraulic gear pump is a robust and reliable solution for various applications. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed. The pump can withstand a maximum speed of 3000 r/min. It's available in both left (counter-clockwise) and right (clockwise) rotations. The pump features an internal gear design, is constructed from aluminium, and comes with an A-Oval flange and a plain key shaft. This pump is part of the CBHS-FL3 Series, making it ideal for applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers.
