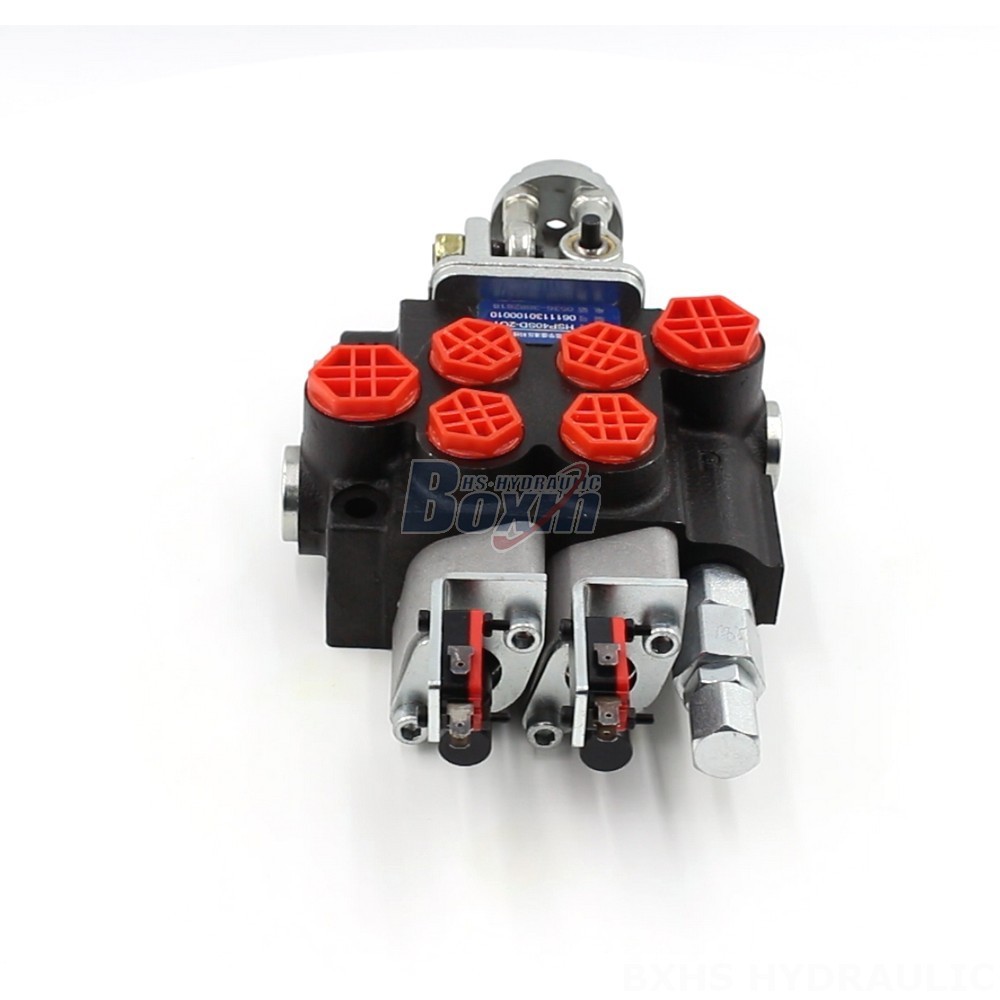

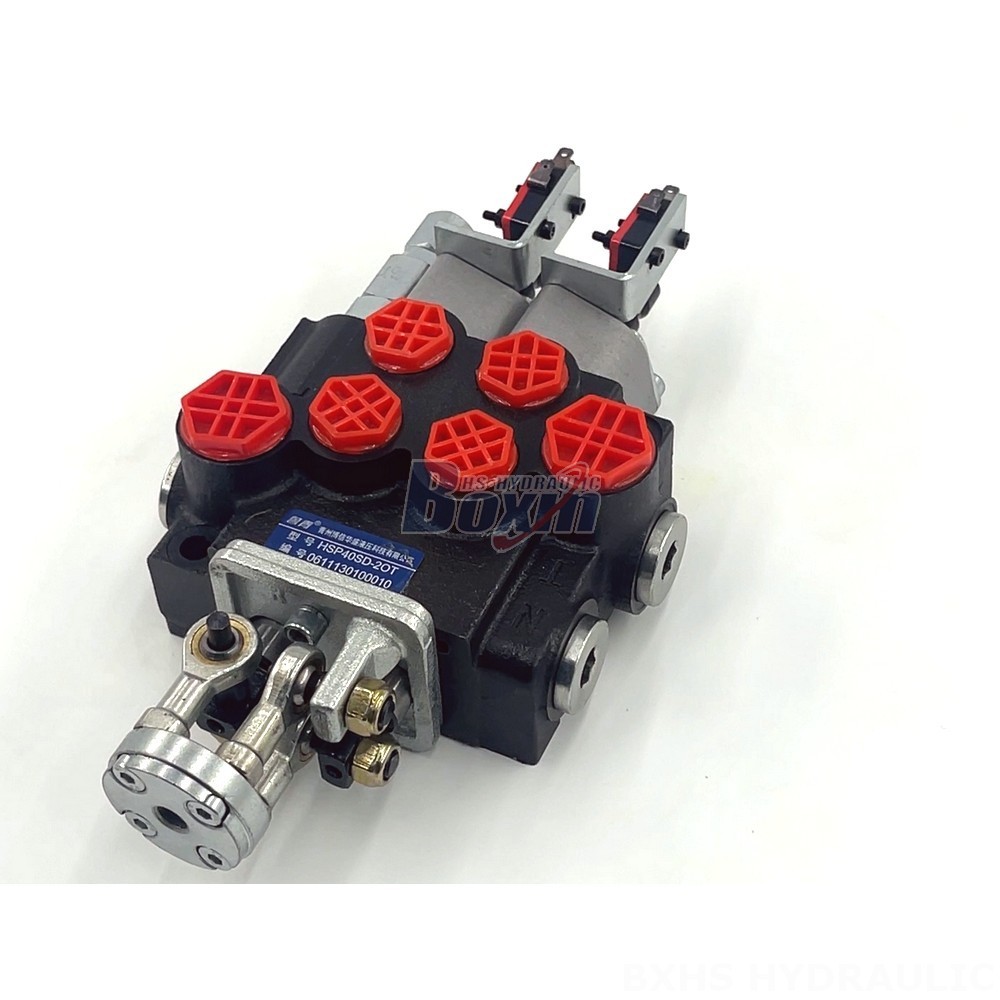

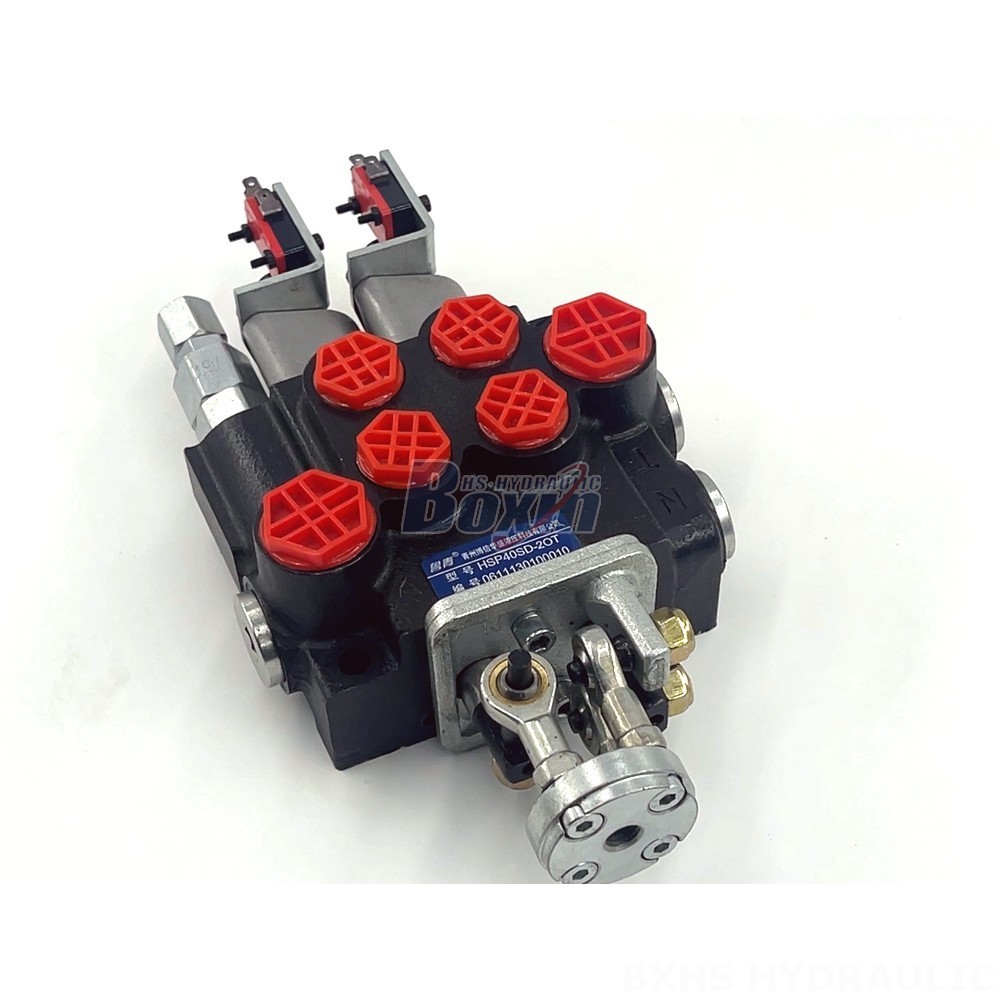

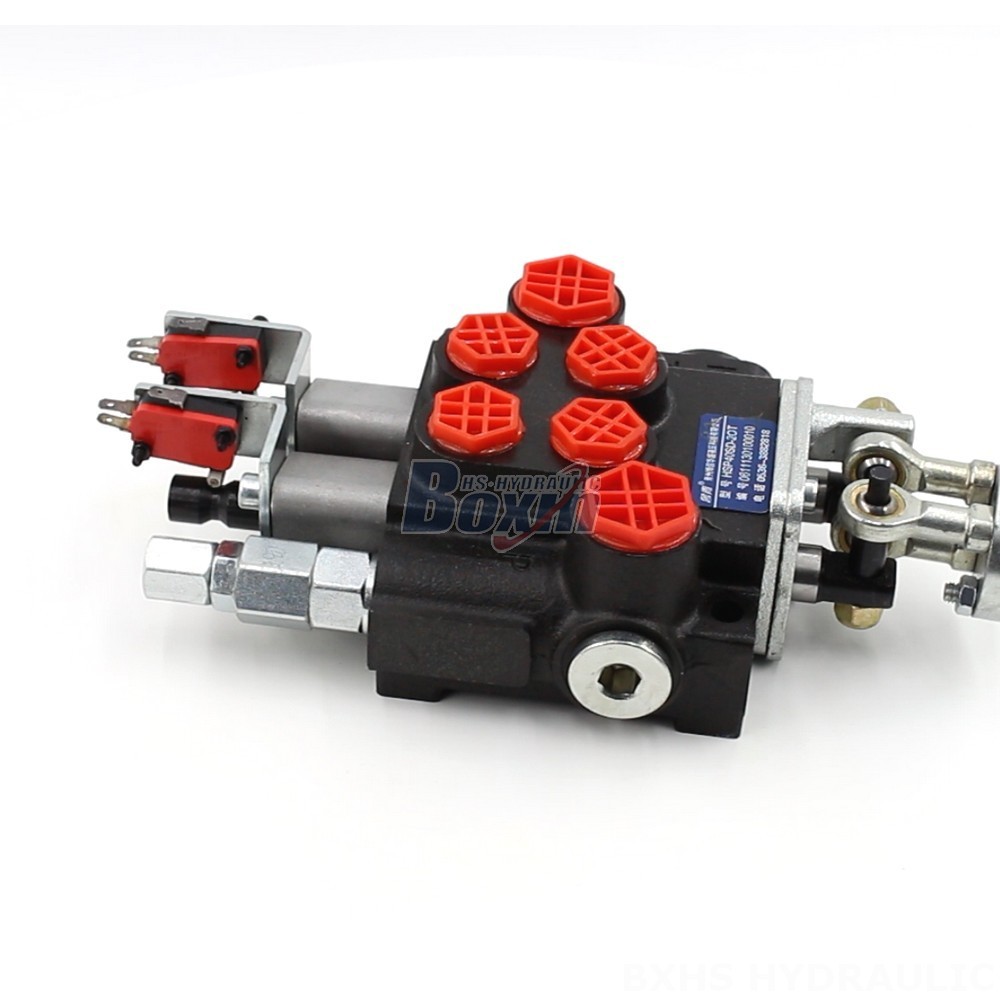

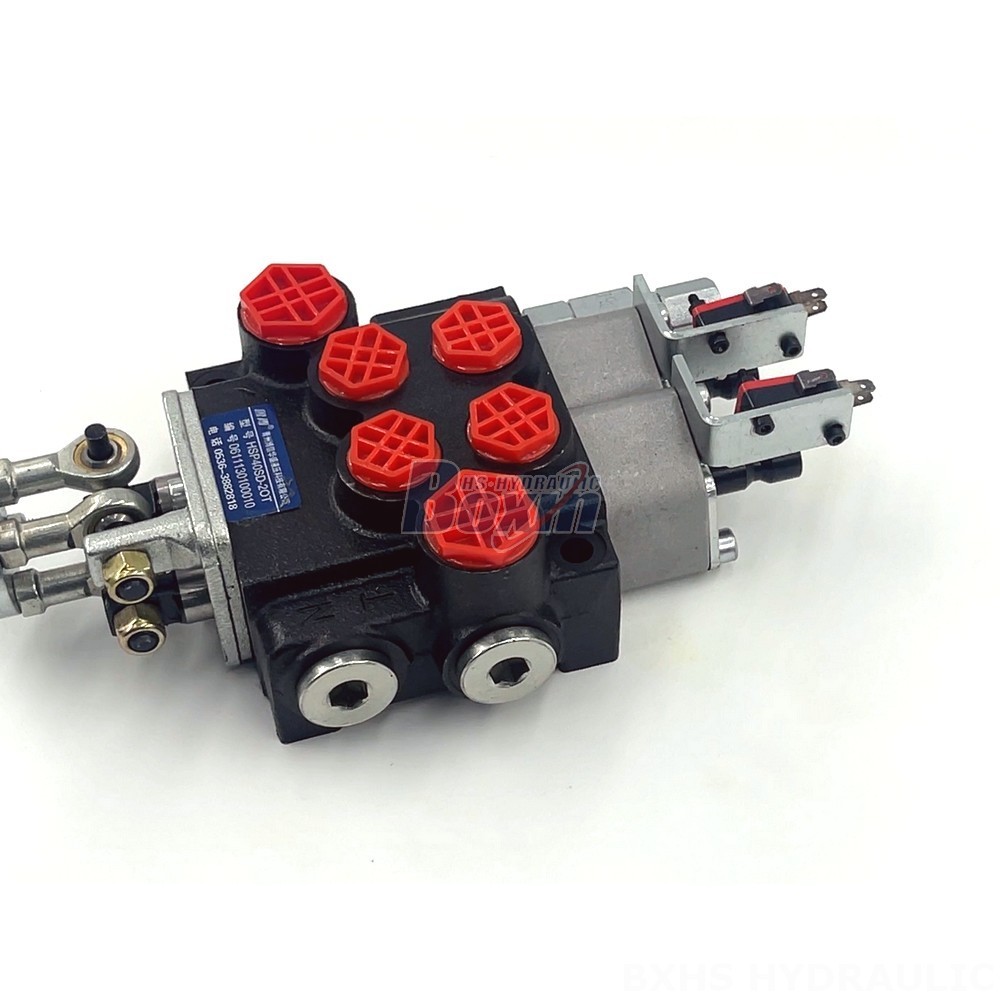

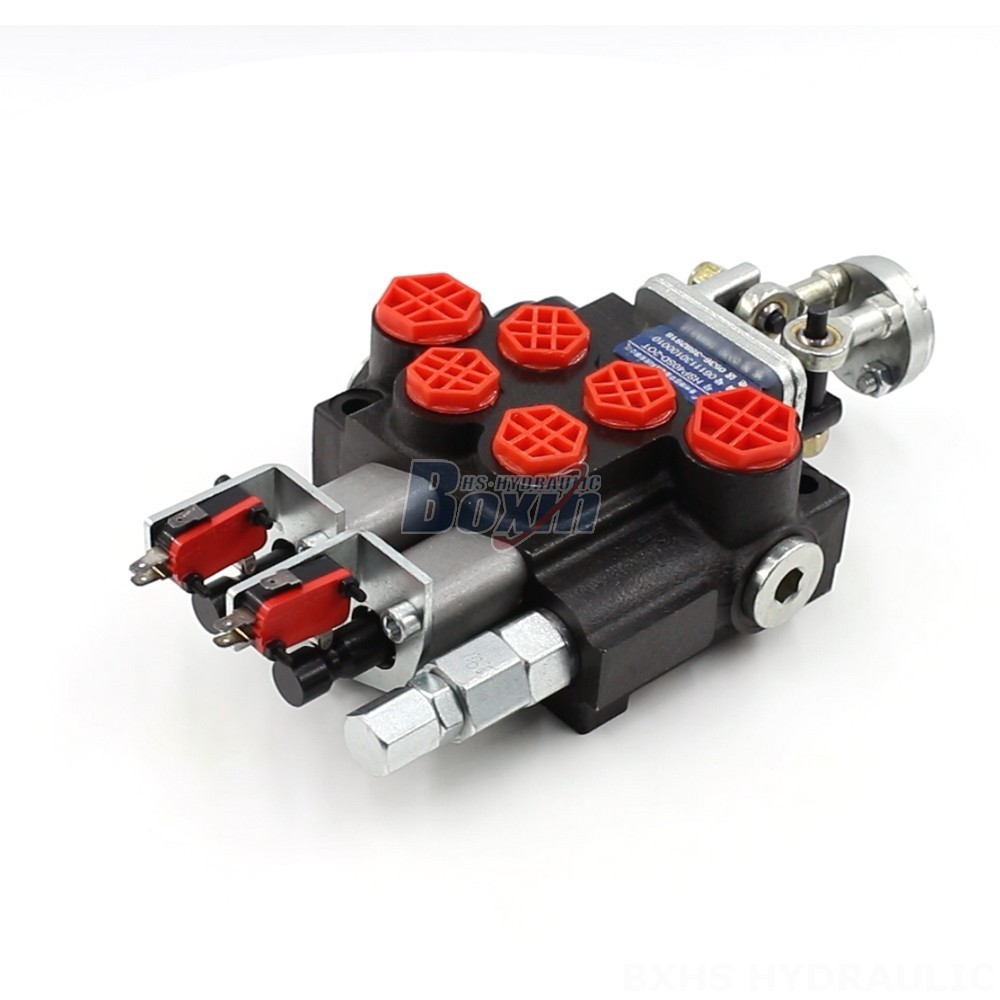

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve offers unmatched accuracy and control for demanding hydraulic applications. Its innovative joystick design provides precise and intuitive operation, while the 2-spool monoblock construction ensures reliability and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**
**Key Features:**
* Joystick control for precise and intuitive operation
* 2-spool monoblock construction for reliability and durability
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for extreme environments
**Applications:**
* Material handling: telehandlers, forklifts
* Construction and earth moving: mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders
* Agriculture: harvesters, backhoes, sprayers, balers
* Industrial vehicles: forklifts, mobile cranes
The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is the ideal choice for applications requiring high-precision control and reliability. Its innovative design and robust construction make it a trusted choice for professionals in a wide range of industries.
