Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Kontrol Yöntemi:Manuel

Makara:5 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80F Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*30*11

Brüt ağırlık:16.00 kg

Stok Durumu: Stokta Var

1260 Görünümler Bu Ürünü Arıyor

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier drawing image

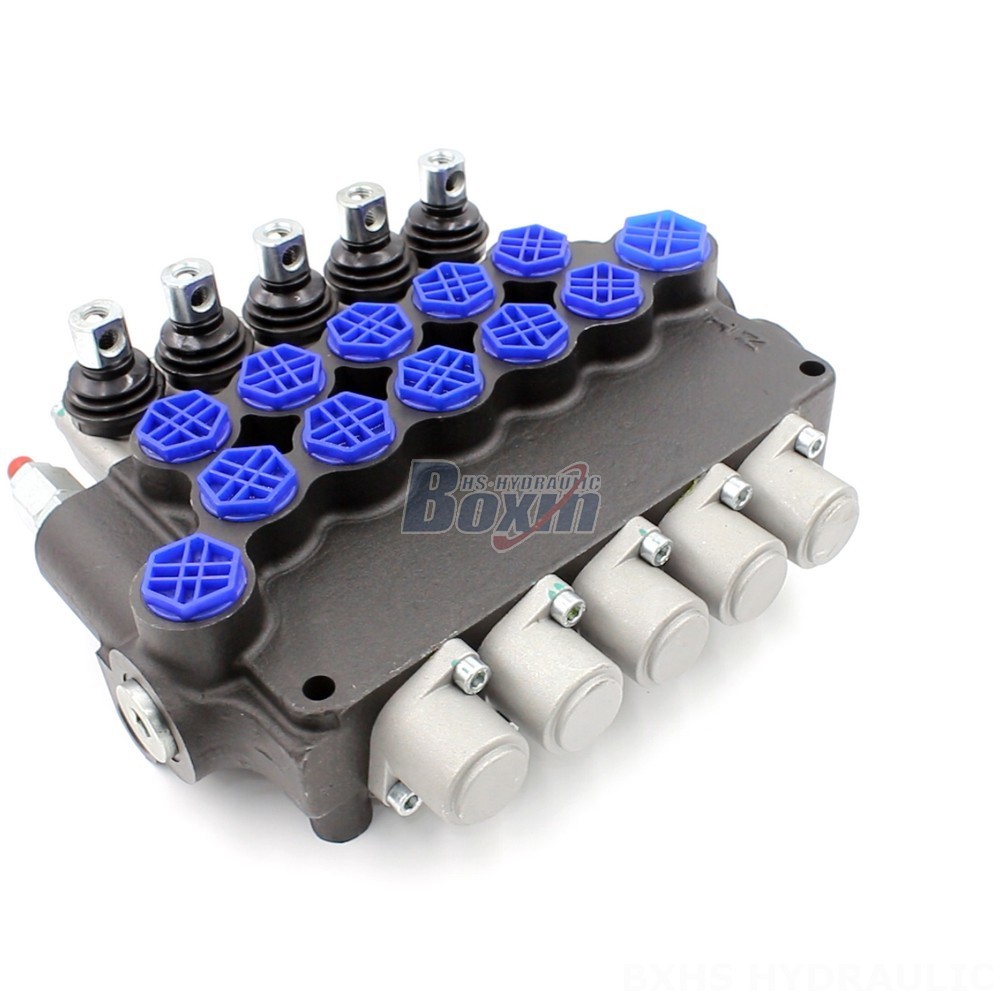

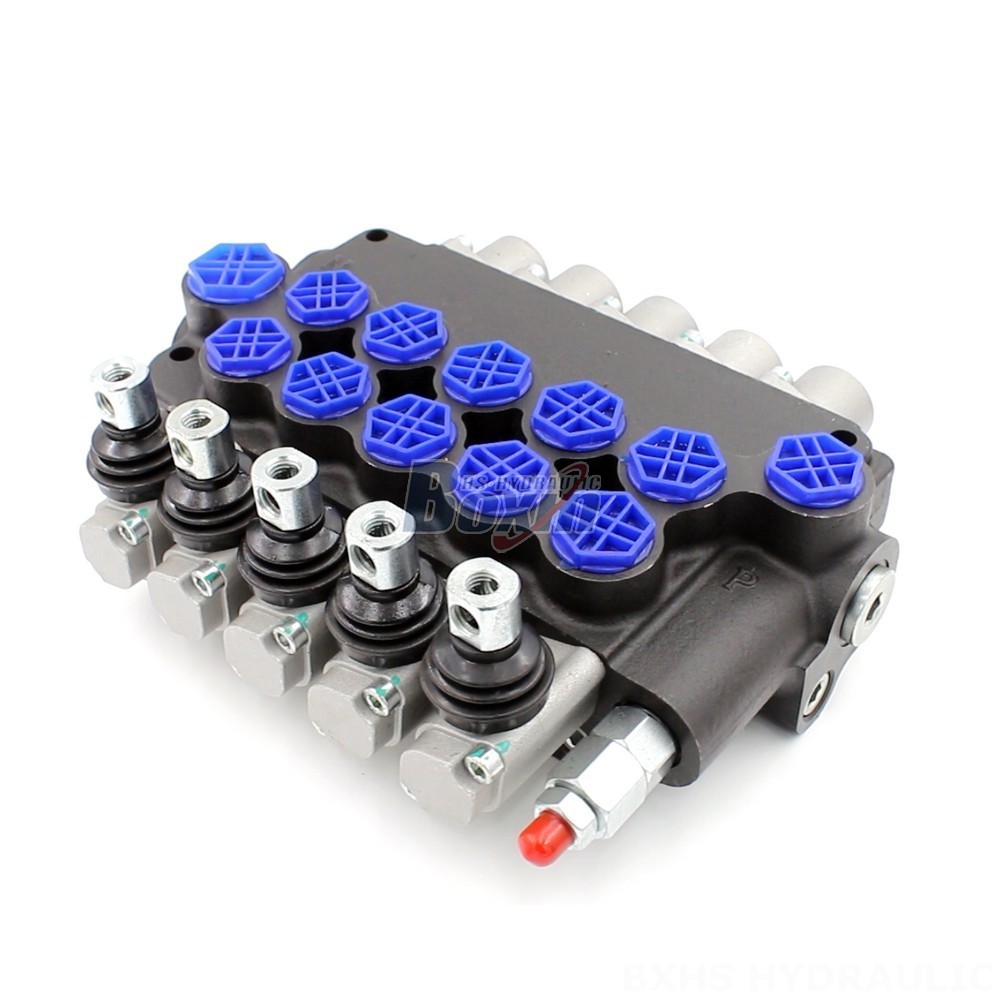

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.

P80F Serisi Monoblok Yönlendirmeli Vana Parametreler
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick
Port Boyutu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Maksimum Basınç 315 bar (4600 psi)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Yapı Türü Monoblock vana
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
