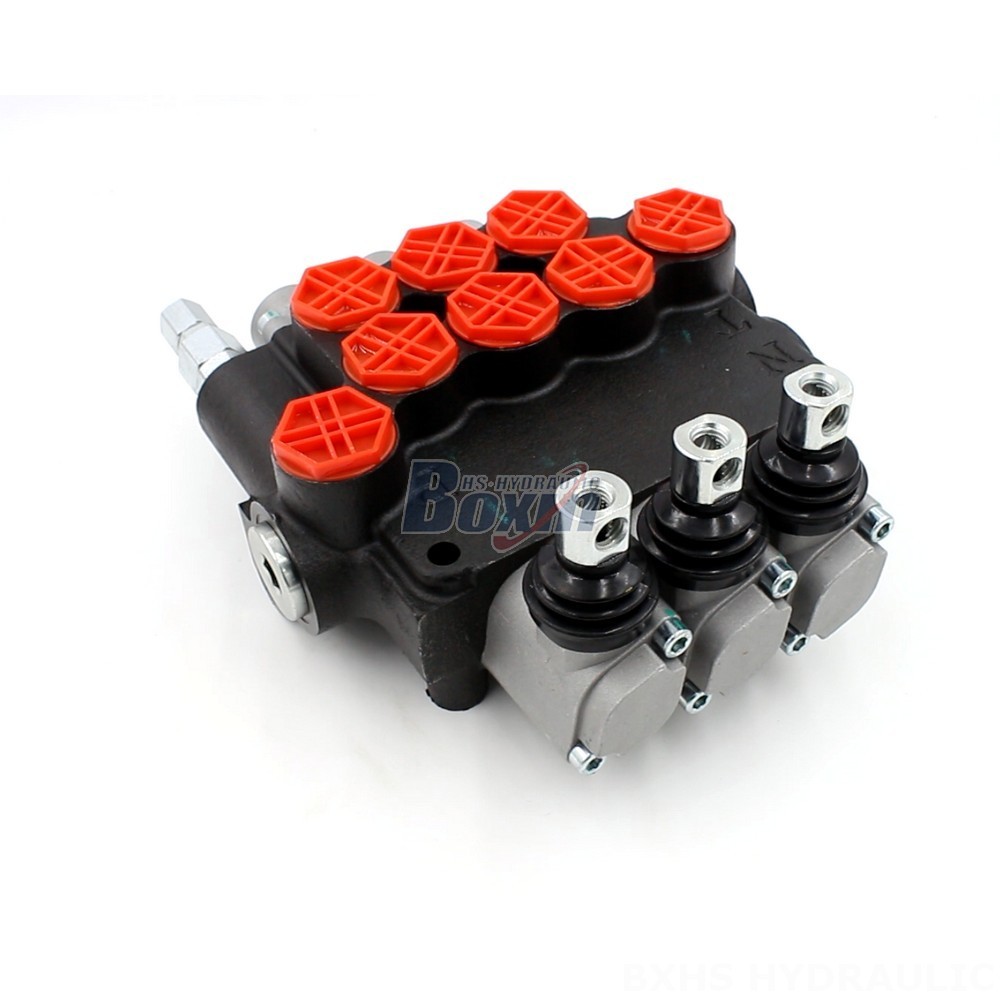

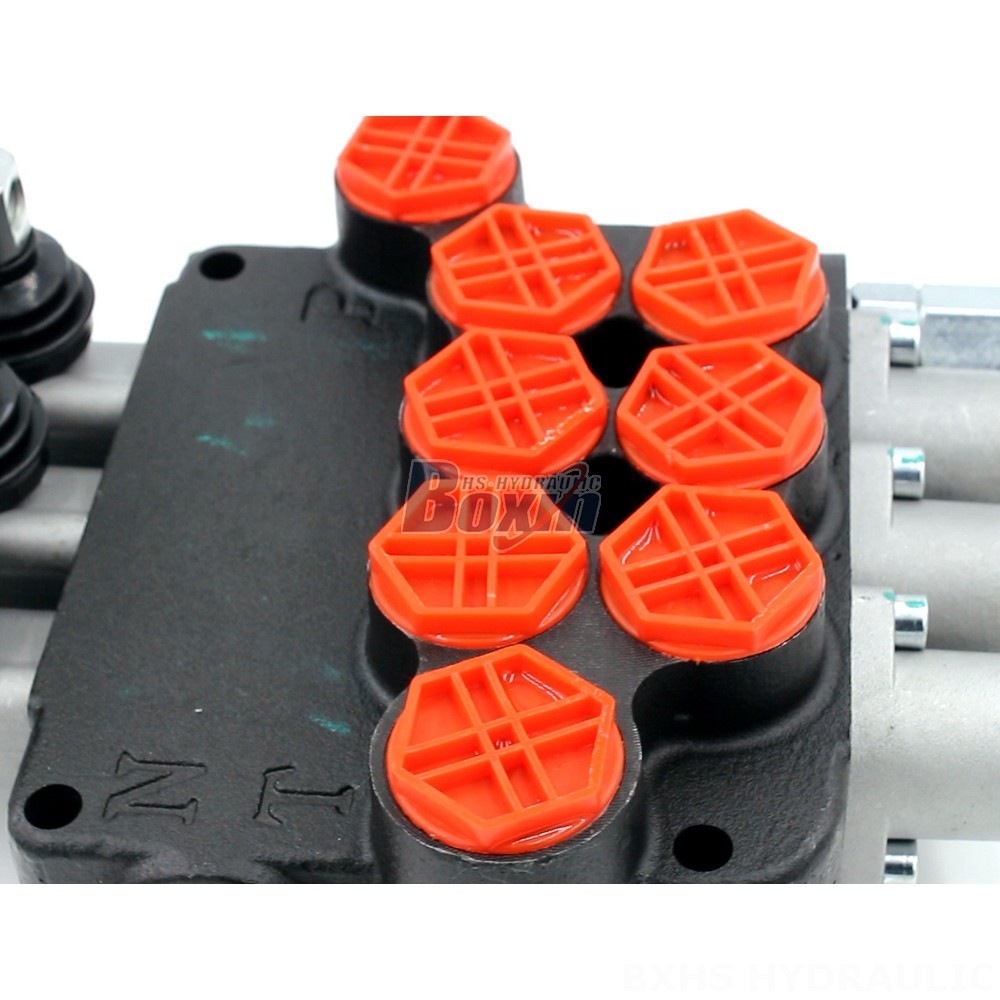

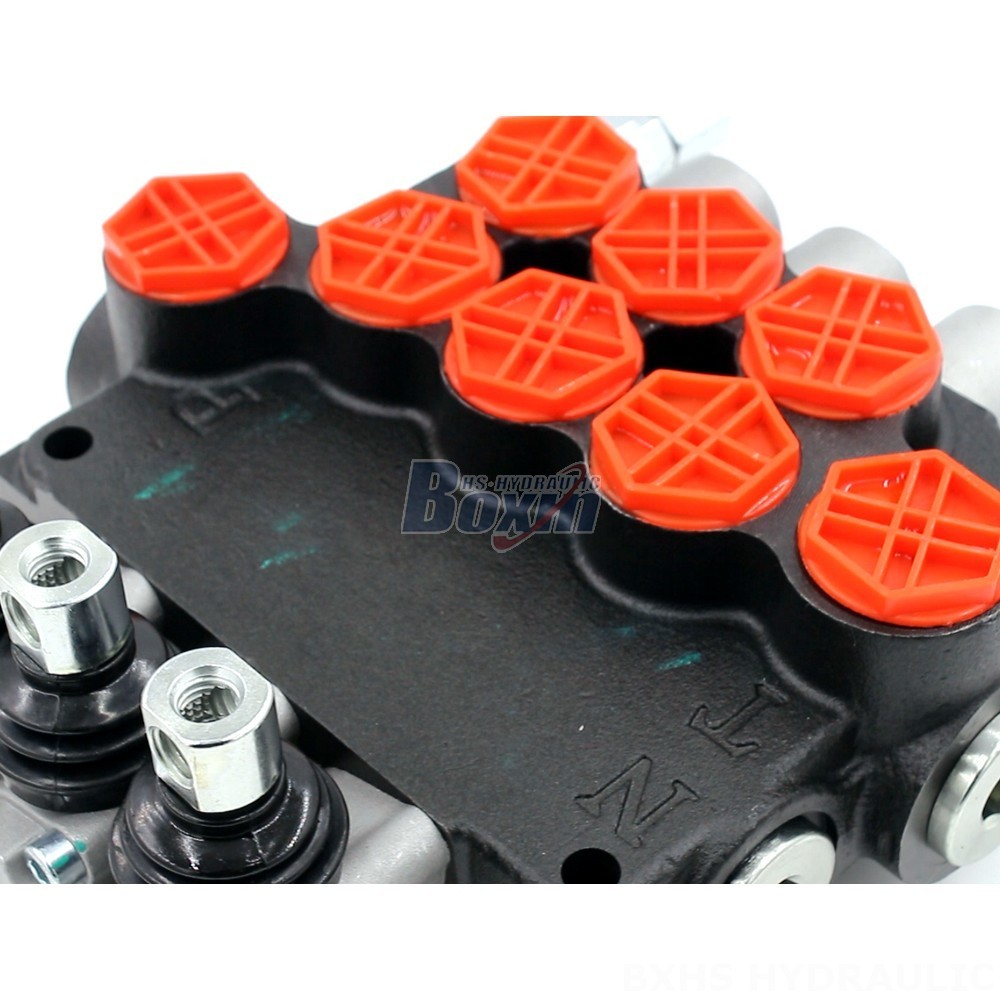

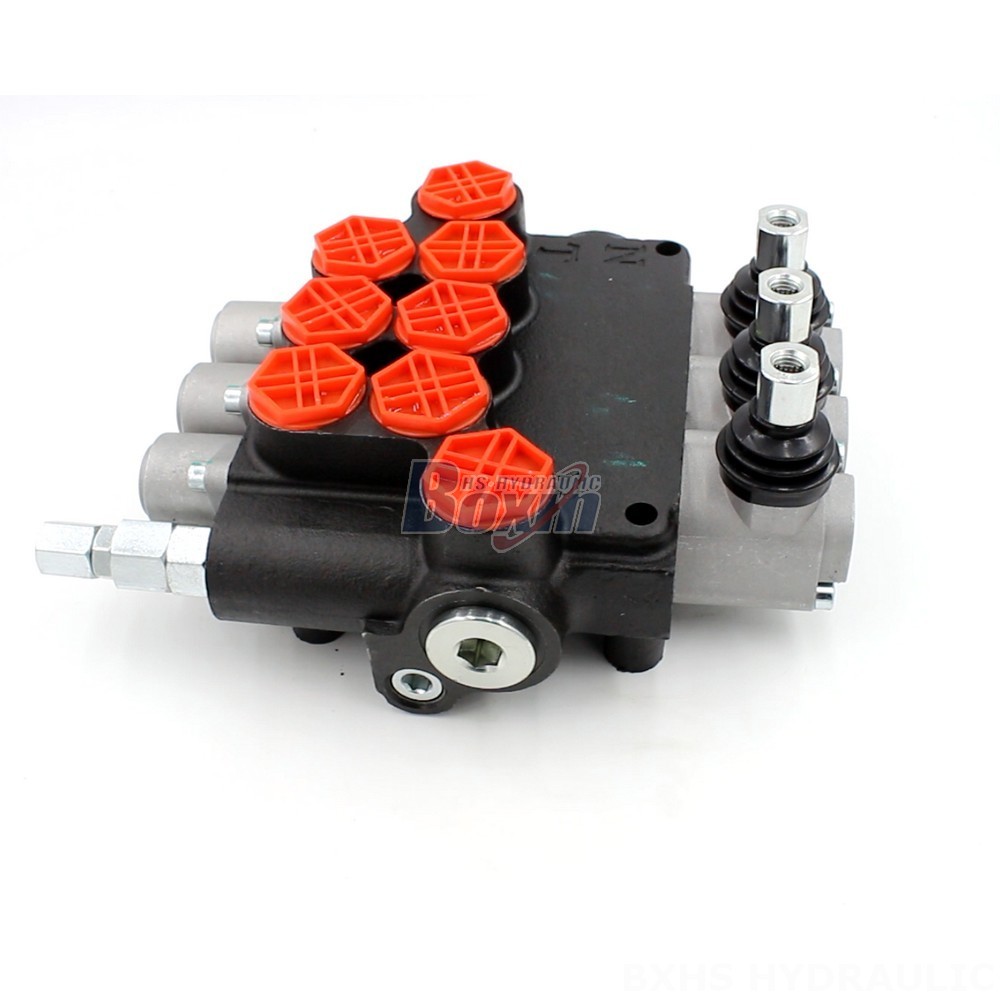

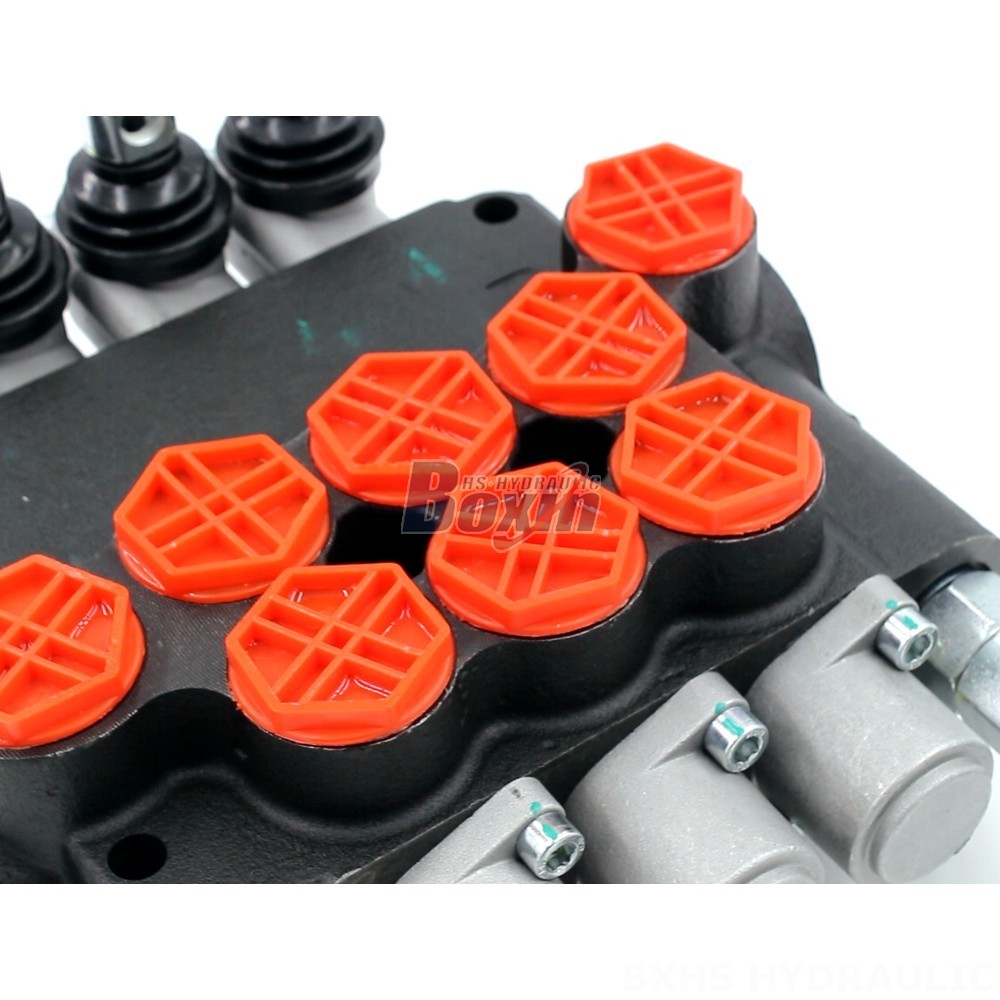

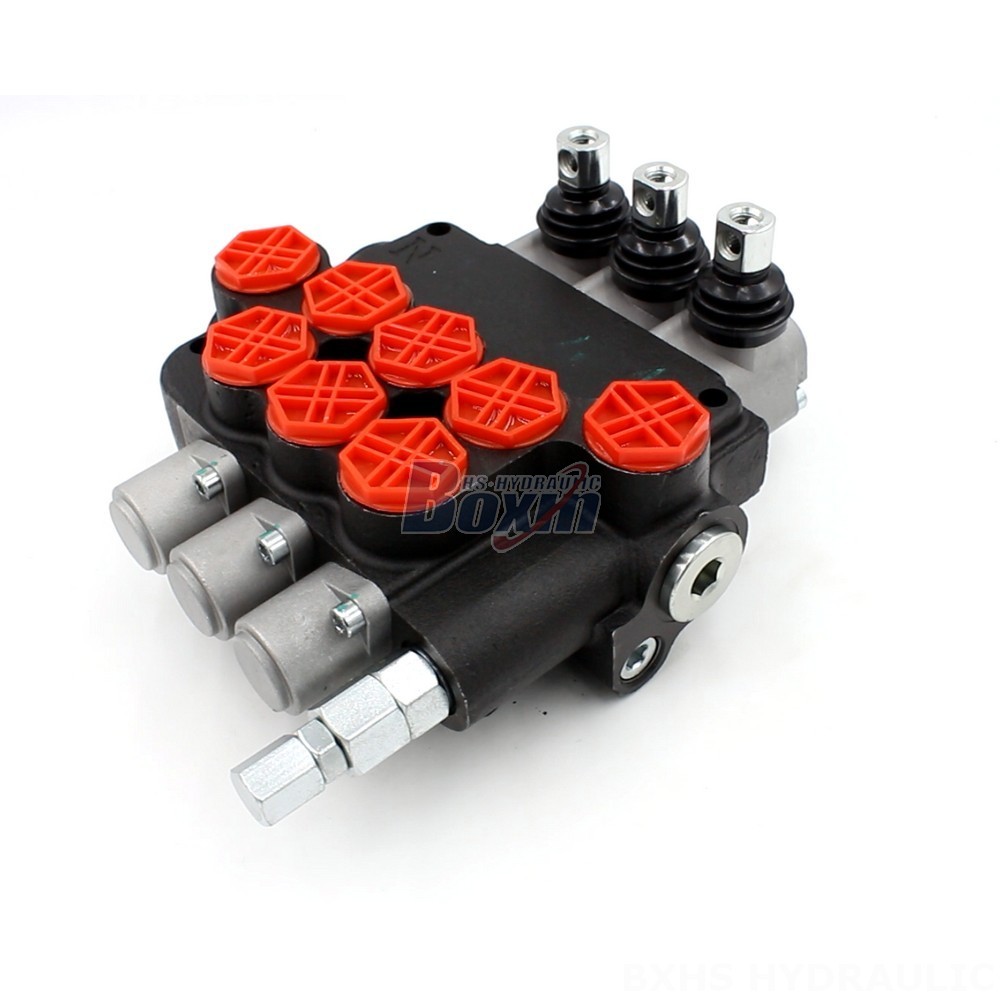

Hydraulic Directional Control Valve

Kontrol Yöntemi:Manuel

Makara:3 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*23*11

Brüt ağırlık:10.70 kg

Stok Durumu: Stokta Var

1099 Görünümler Bu Ürünü Arıyor

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve

Hydraulic Directional Control Valve drawing image

This high-performance P80 Series Electro Pneumatic Directional Control Valve is a 3-section monoblock valve designed for heavy-duty applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers reliable control for a wide range of equipment.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 Series Electro Pneumatic Directional Control Valve is a robust and efficient solution for demanding hydraulic applications. Its monoblock structure provides durability and reliability, while the manual control method allows for easy operation. This 3-section valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, excavators, loaders, and dumpers. Its operating viscosity range of 15-75 mm²/s and ambient temperature range of -40°C to +80°C ensure optimal performance in diverse environments. The P80 Series valve is engineered for long-lasting performance and minimal maintenance requirements, providing a cost-effective and reliable hydraulic control solution.
