Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Kontrol Yöntemi:Manuel

Makara:4 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:SAE 10

Çıkış Portu:SAE 10

Port Boyutu:SAE 10

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P80 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:26*27*11

Brüt ağırlık:13.40 kg

Stok Durumu: Stokta Var

1250 Görünümler Bu Ürünü Arıyor

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT drawing image

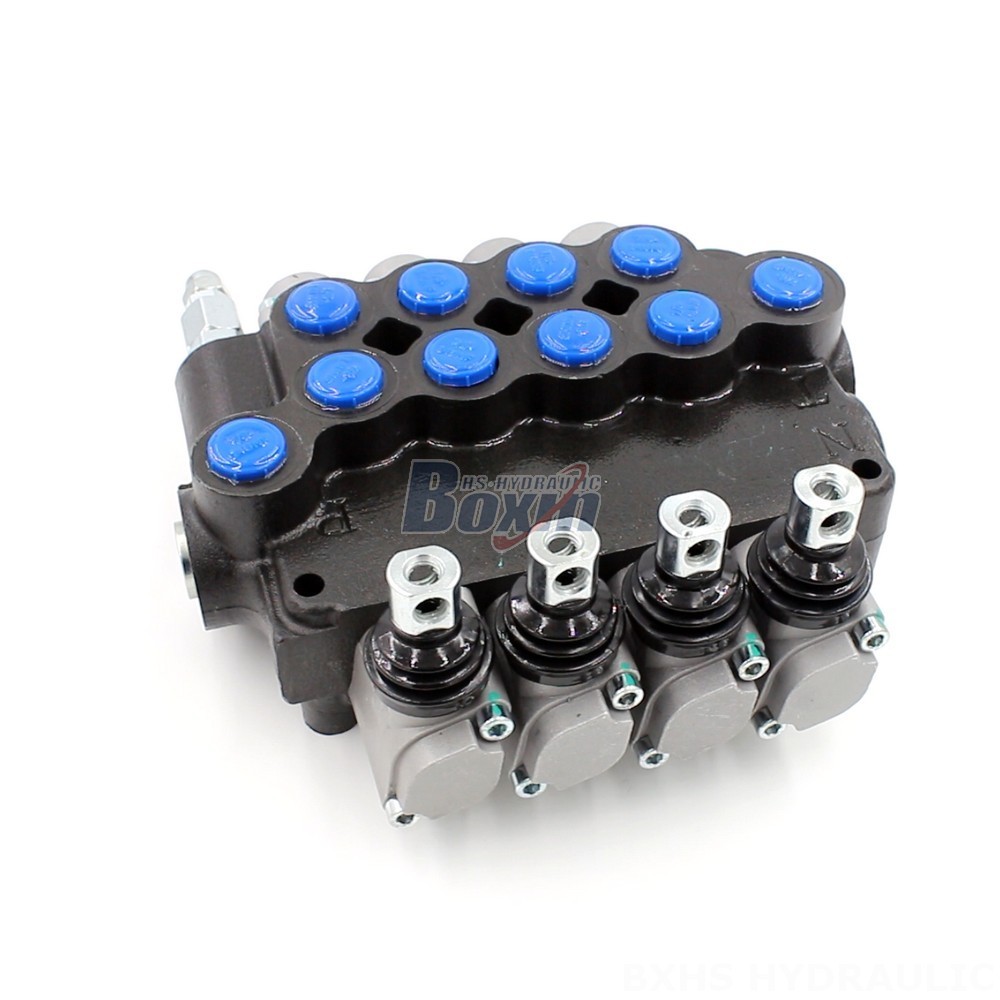

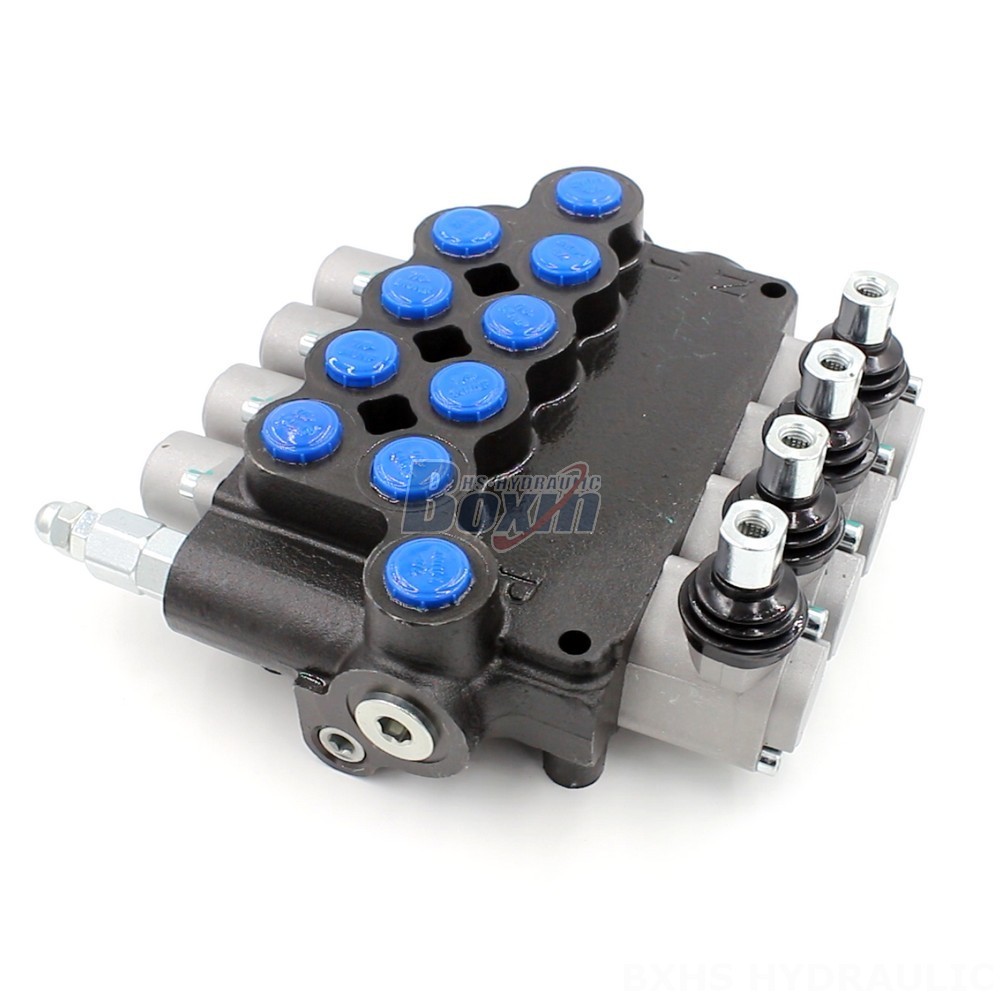

The P80-U78-4OT Hydraulic Control Panel is a 4-spool, monoblock directional valve designed for material handling, construction, agriculture, and industrial vehicle applications. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for various equipment like telehandlers, forklifts, and mini-excavators.

P80 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak)
Maksimum Basınç 315 bar (4600 psi)
Giriş Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Çıkış Portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Boyutu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80-U78-4OT Hydraulic Control Panel features a 4-spool, monoblock design, providing a compact and reliable solution for hydraulic systems. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. The control method is manual, offering straightforward operation. The valve is designed for an operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This durable and efficient valve is specifically designed for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
