Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi
Yenilik gelişimi yönlendirir Teknoloji geleceği şekillendirir
935 Görünümler Bu Ürünü Arıyor

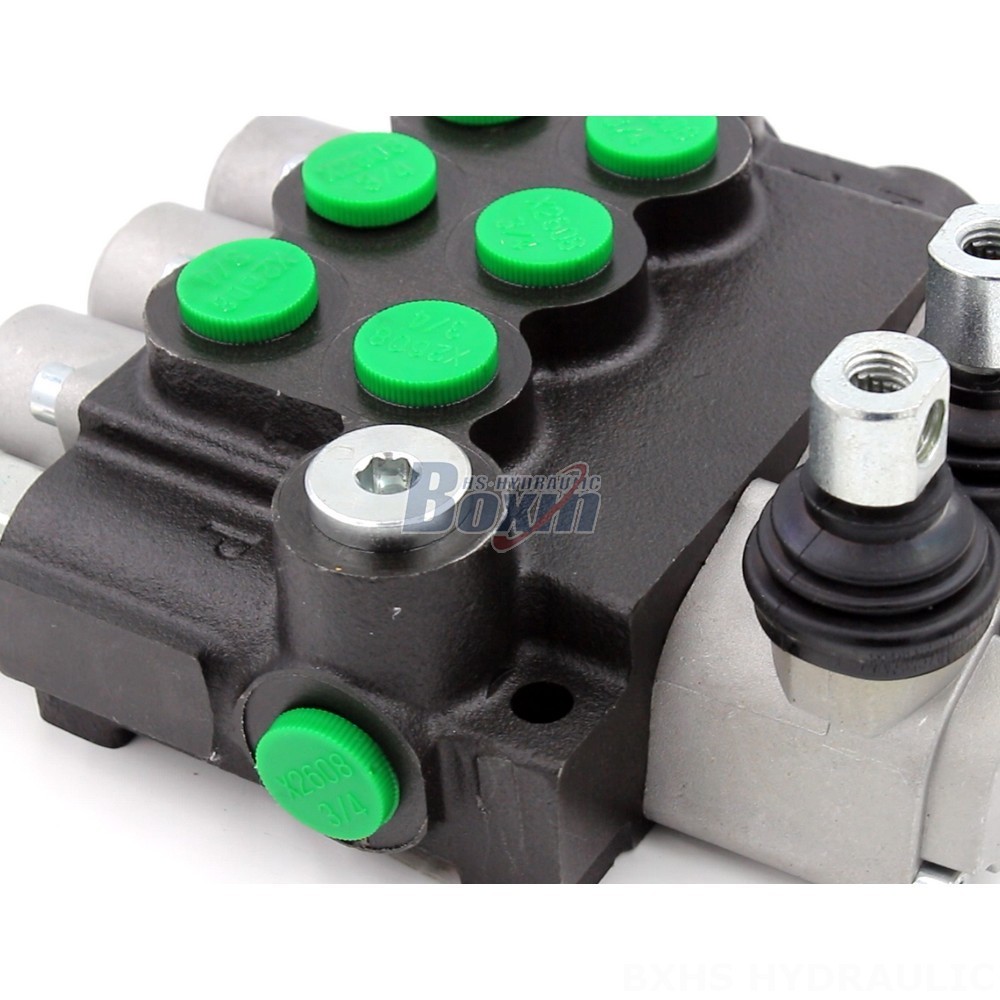

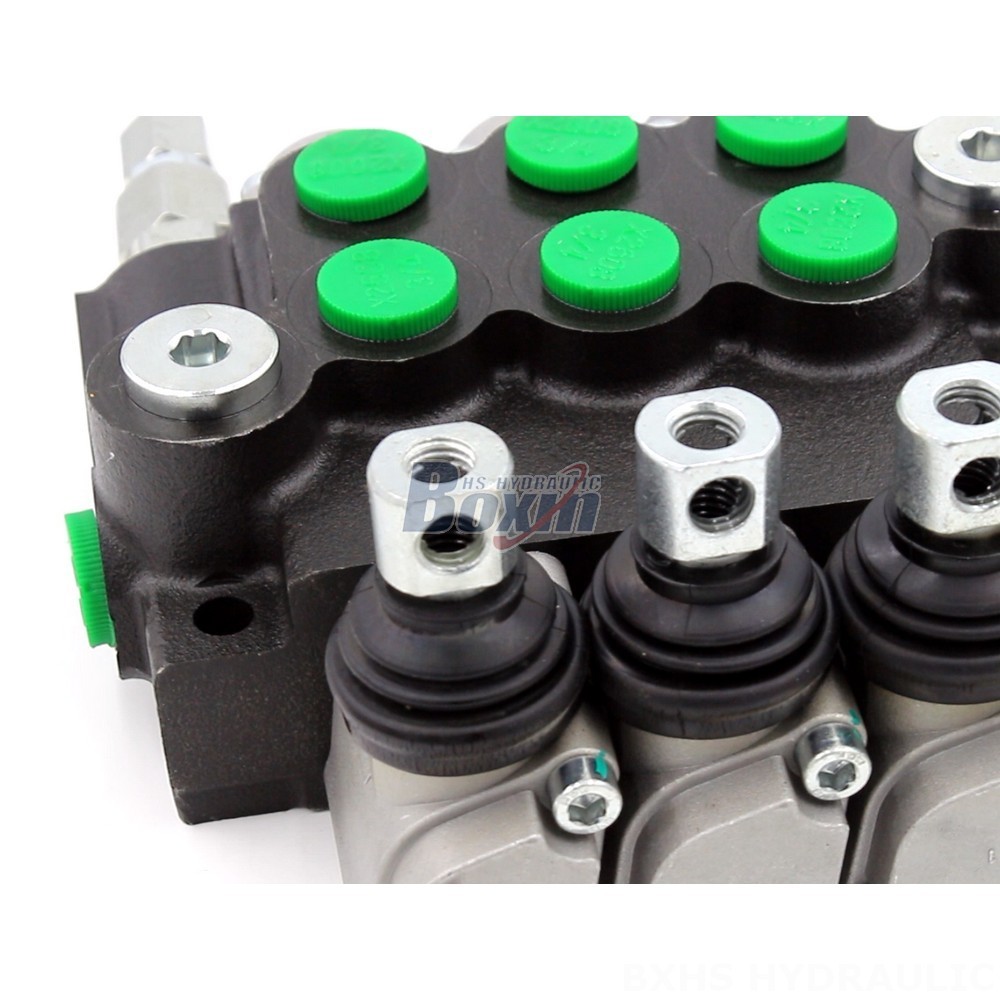

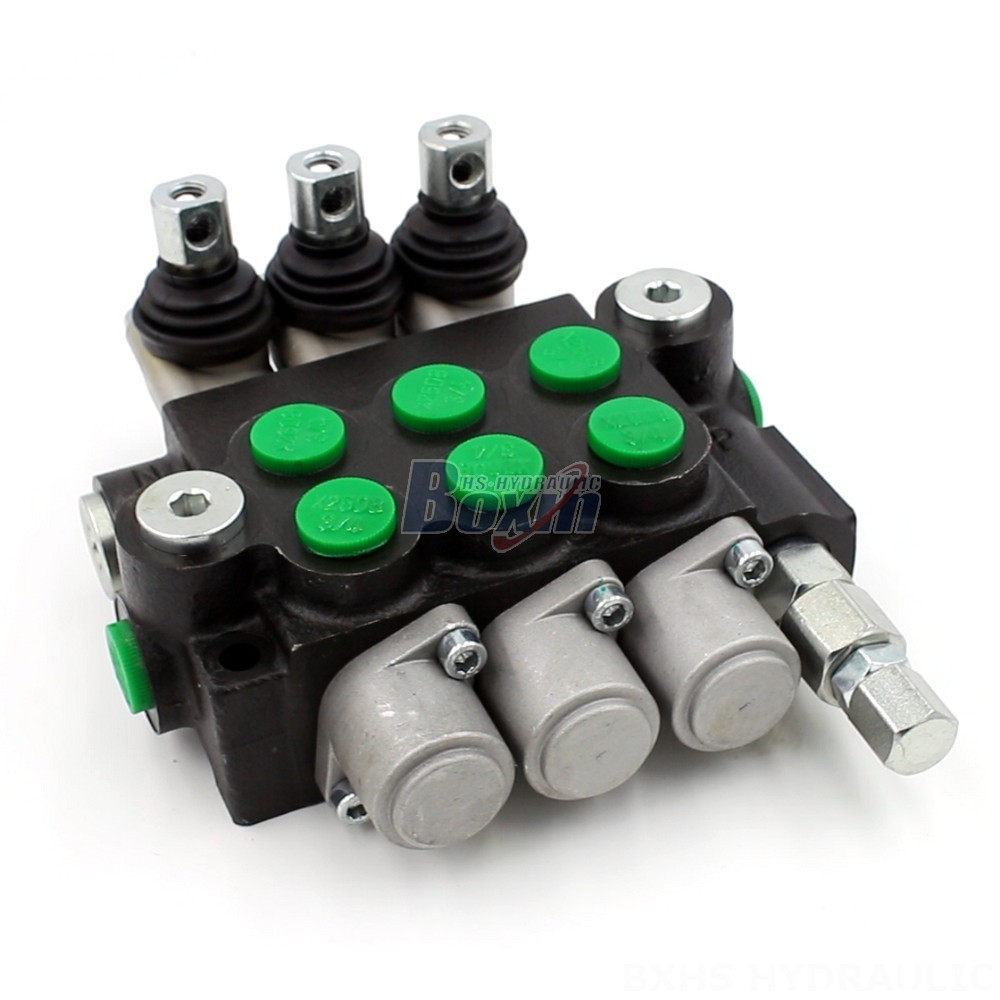

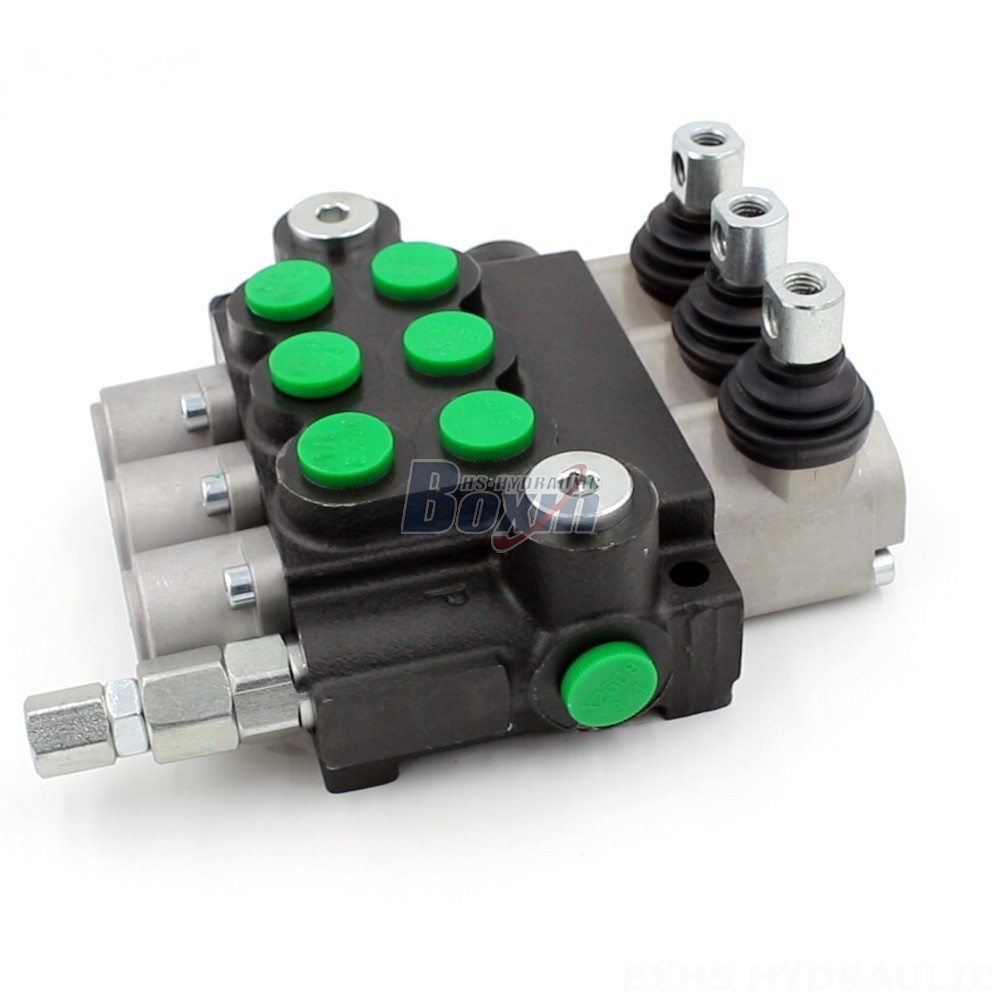

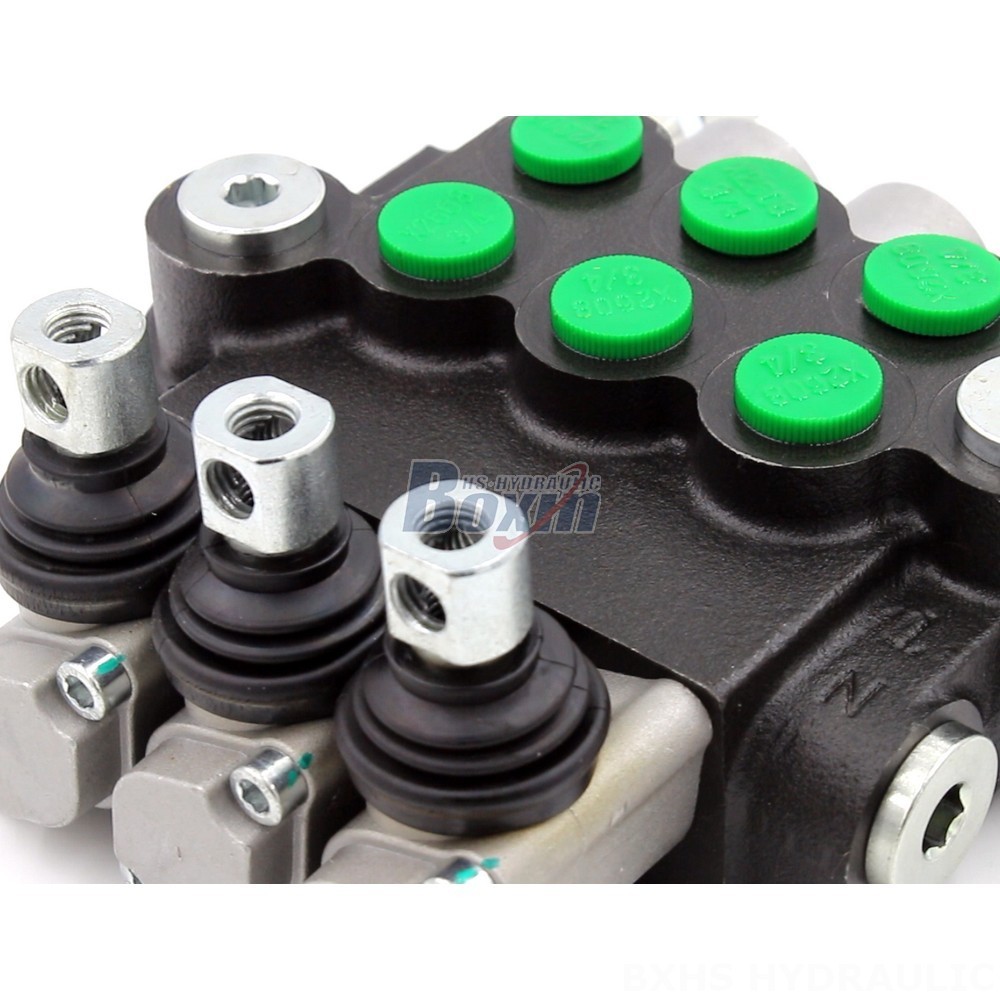

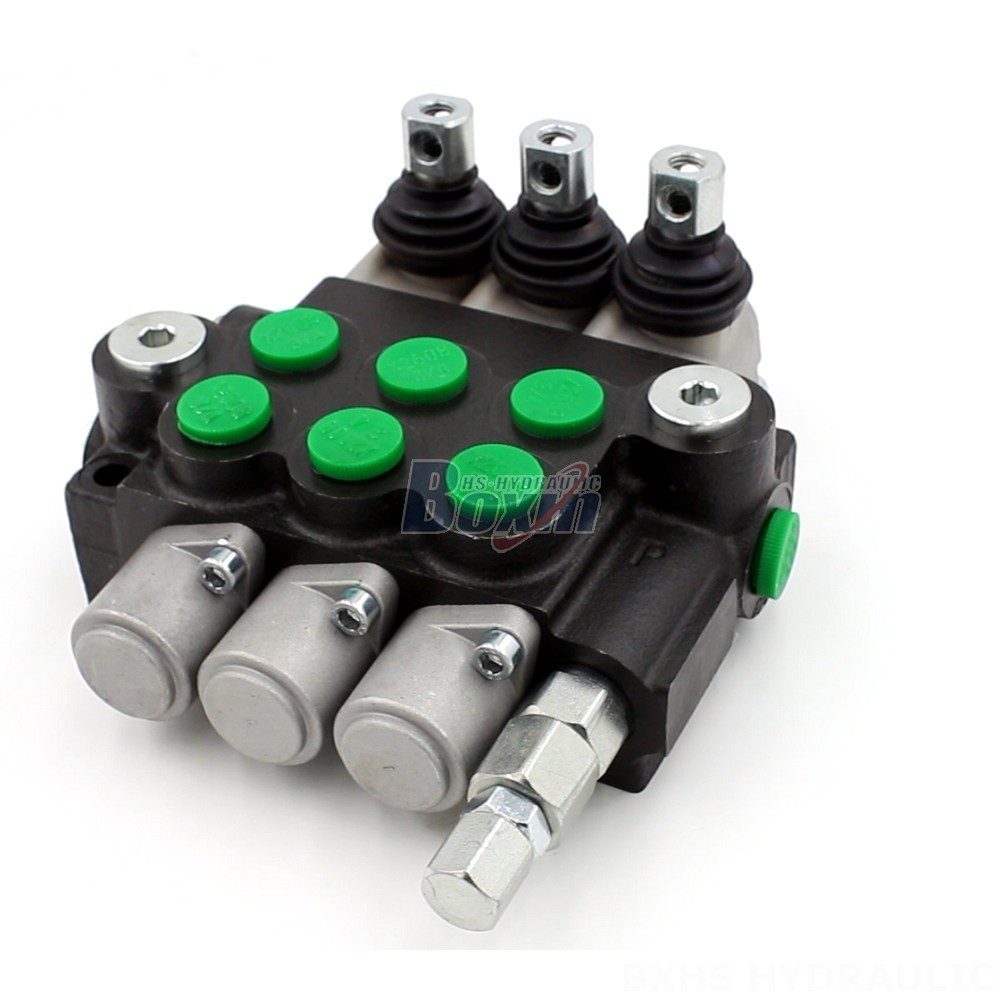

The P40-U34-OT hydraulic directional valve is a manually operated, 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| P40 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 250 bar (3600 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Boyutu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-OT hydraulic directional valve is a high-quality, durable valve that is designed to meet the demands of the most challenging applications. It is constructed from high-strength materials and features a precision-machined spool for smooth, reliable operation. The valve is also equipped with a variety of features that make it easy to install and maintain, including:
- Manual control for precise operation
- 3-section design for versatility
- Monoblock construction for strength and durability
- 40 L/min rated flow for high performance
- 250 bar maximum pressure for demanding applications
- 15 - 75 mm²/s operating viscosity range for compatibility with a wide range of fluids
- -40°C to +80°C ambient temperature range for use in a variety of environments
- 3 spool for increased control
- P40 series for compatibility with other P40 series valves
- Suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
- Compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
