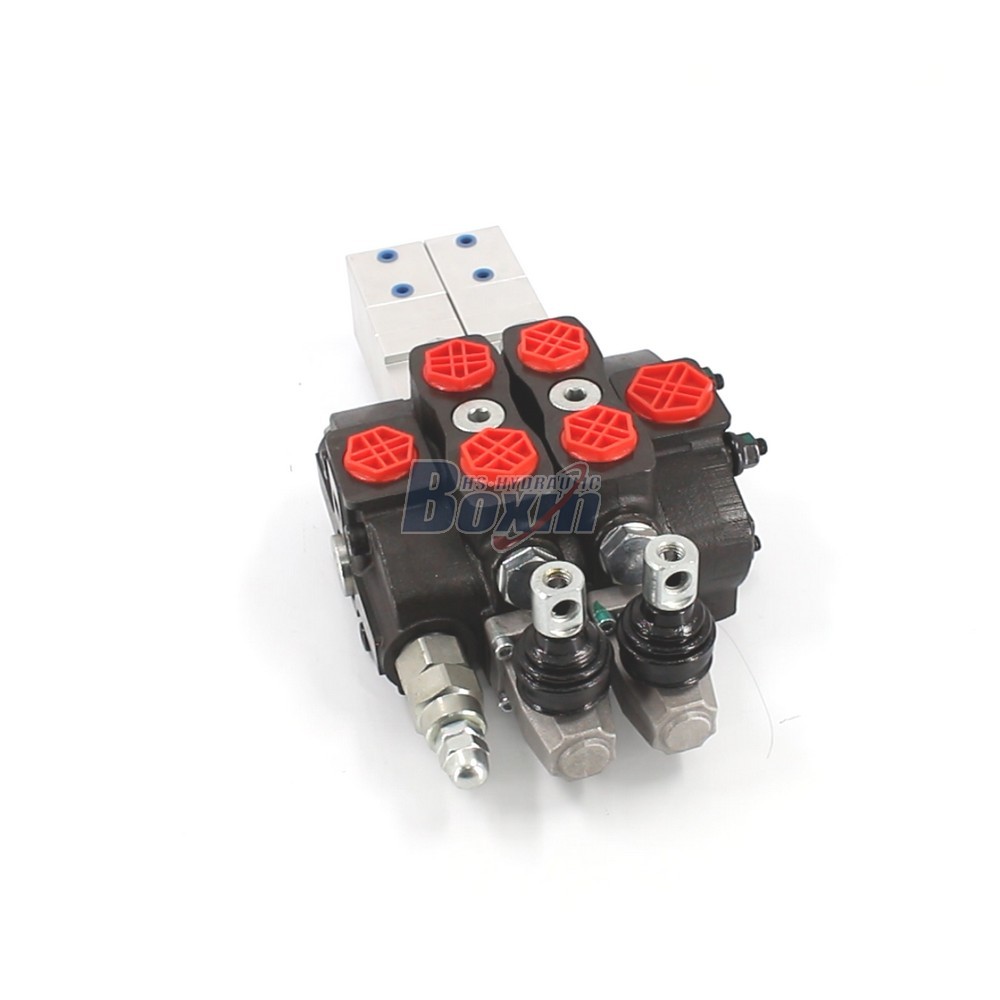

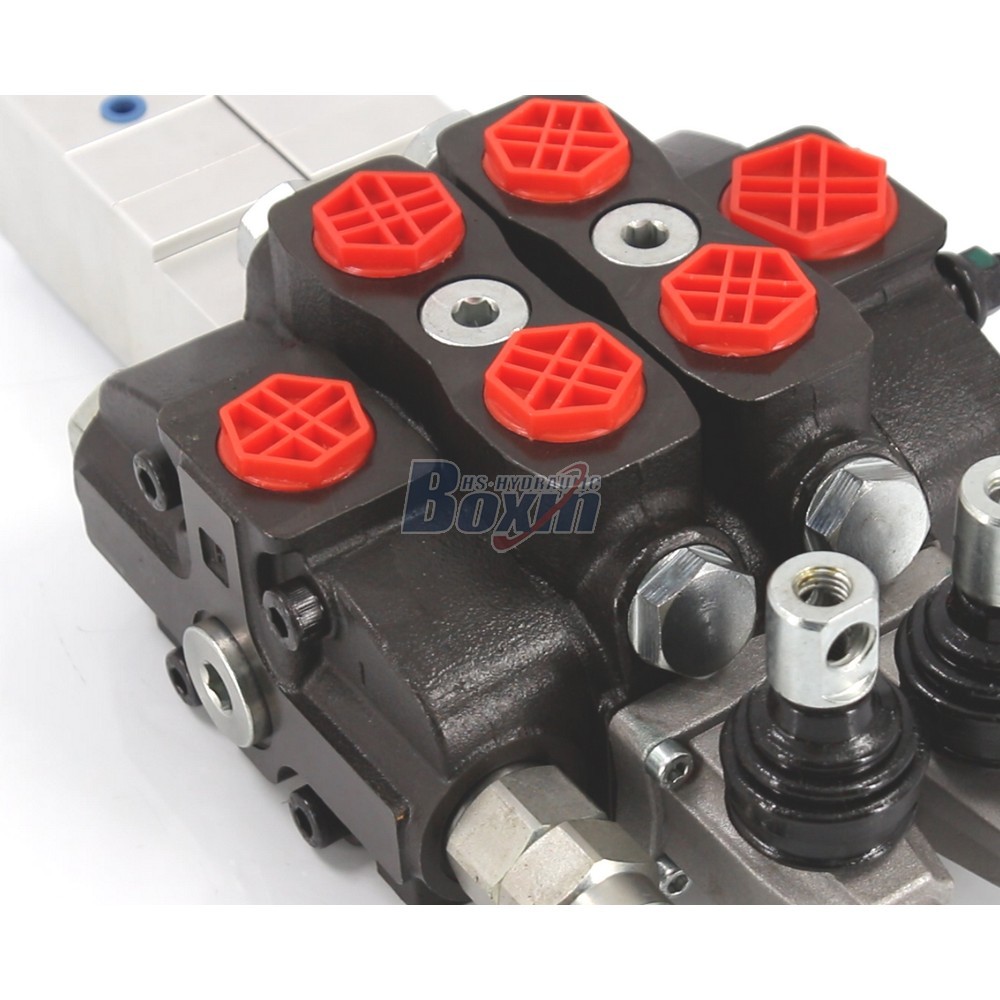

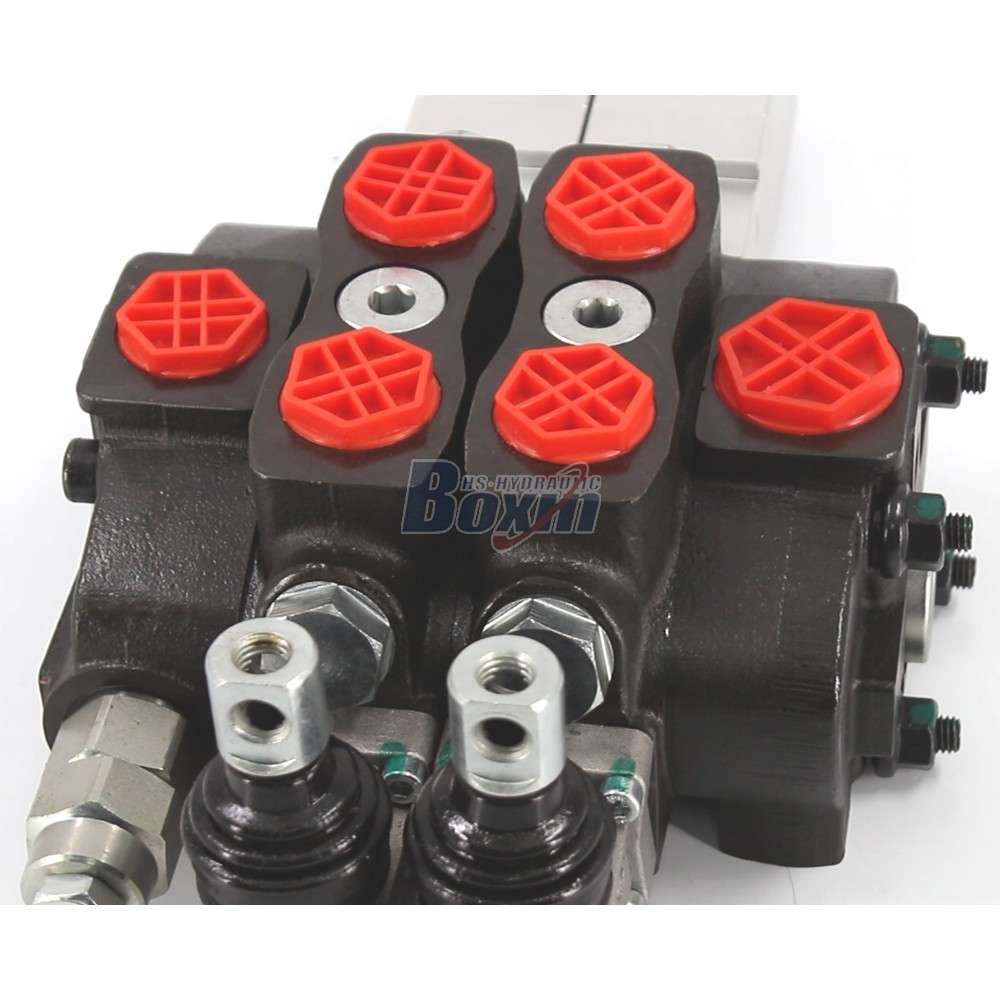

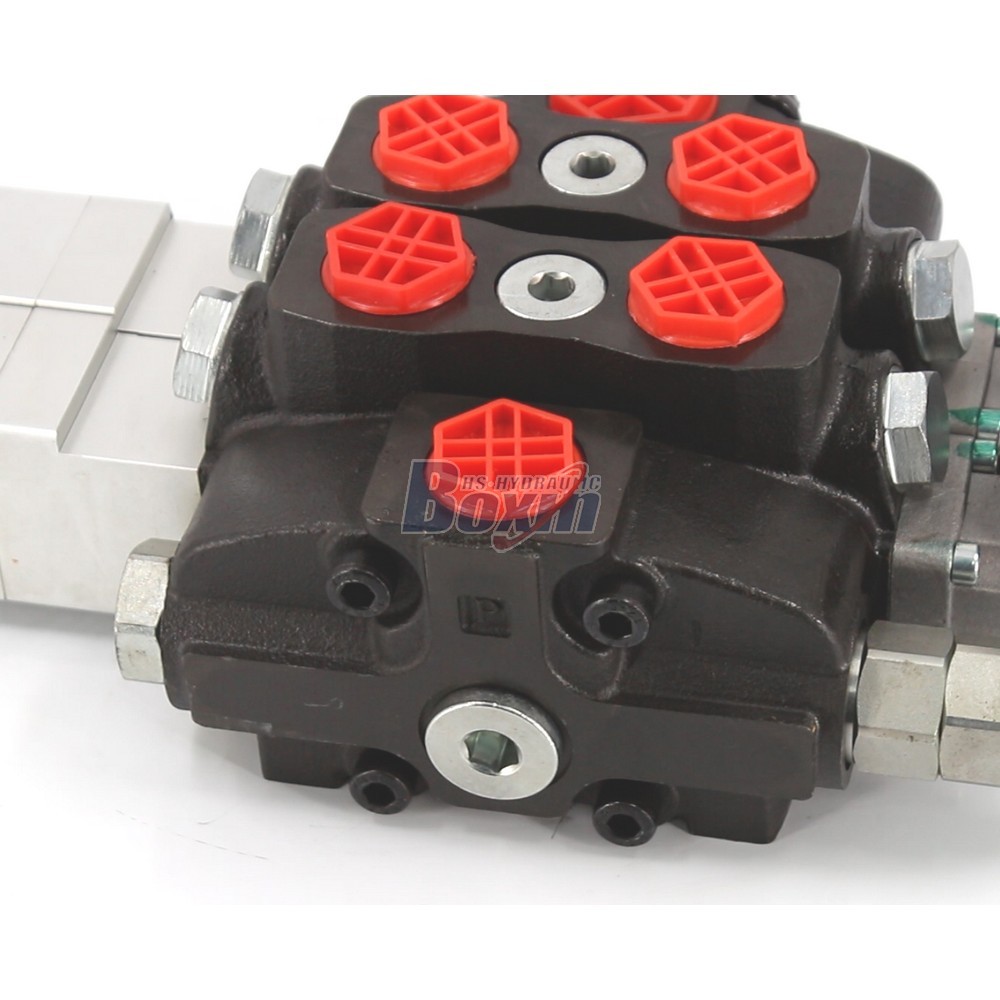

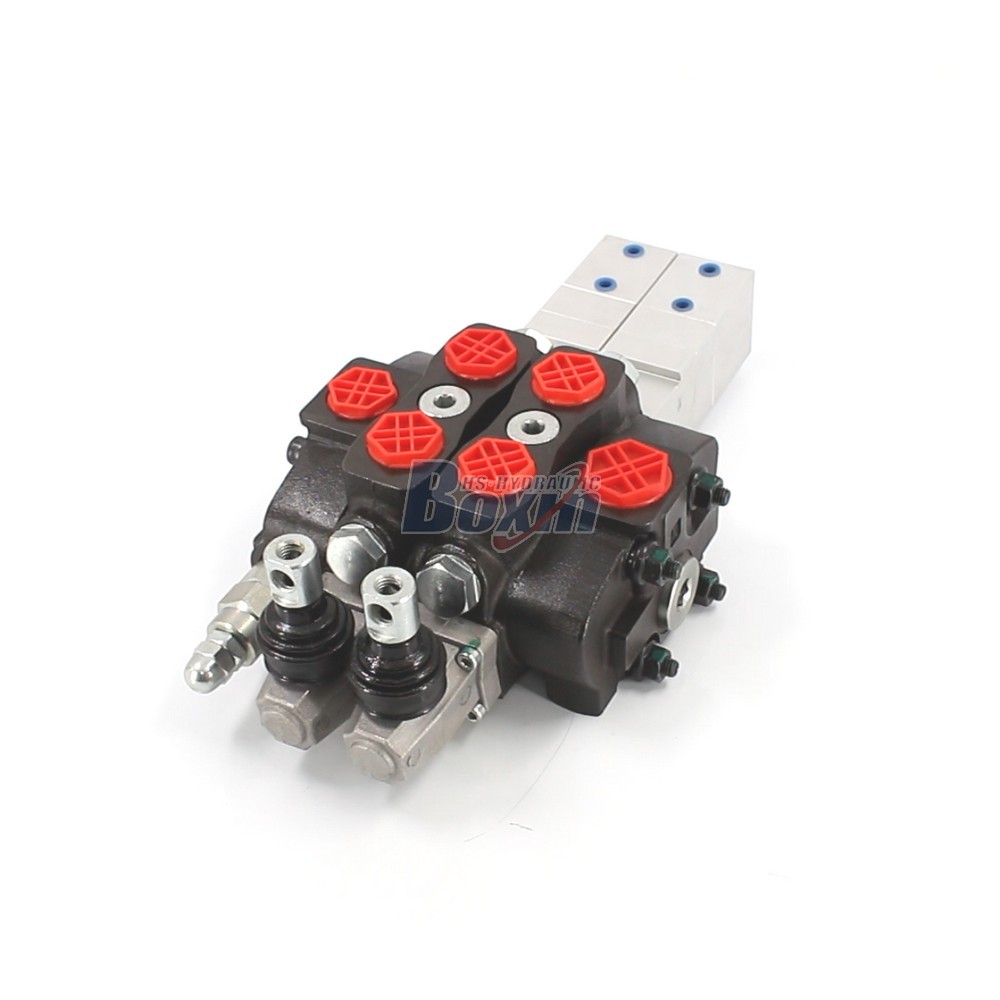

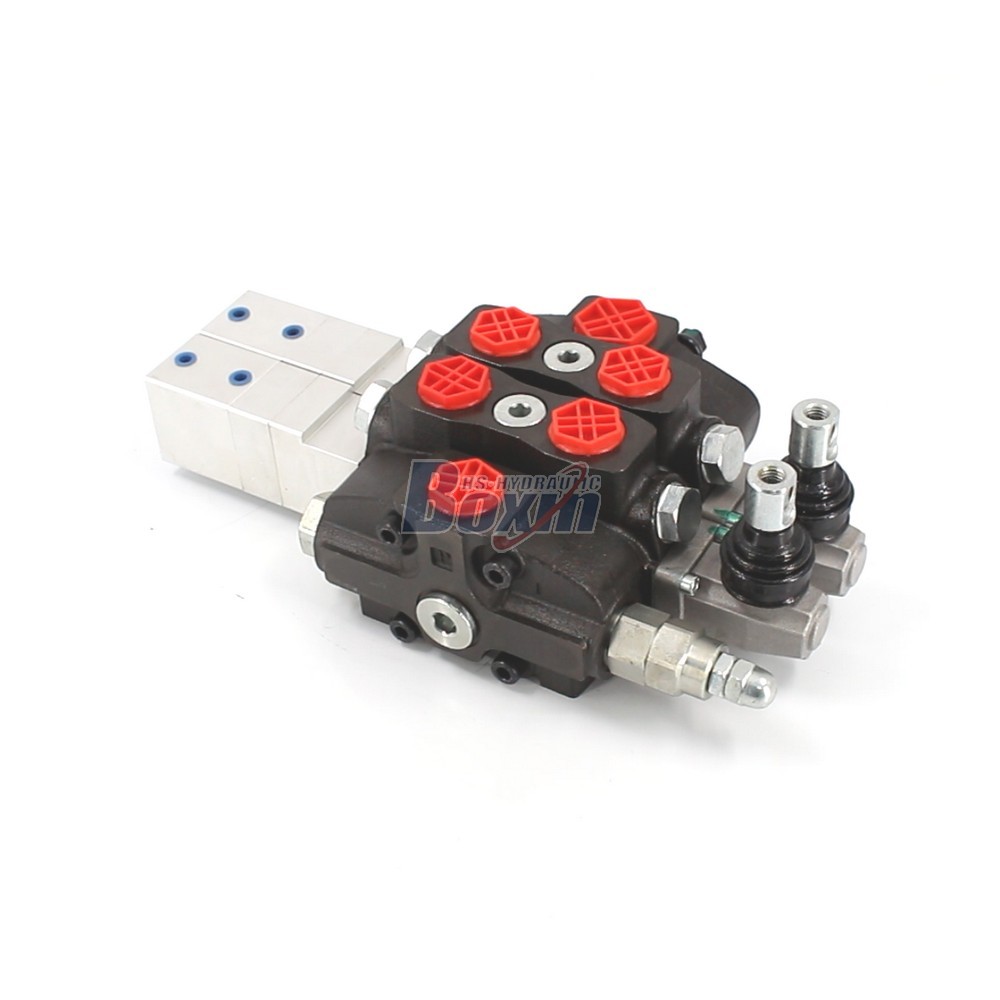

Manufacturer direct sale of the SD8 Series Pneumatic Sectional Valve, featuring a 2-spool design with an 80 L/min rated flow and 350 bar maximum pressure capacity for diverse industrial and agricultural applications.
| SD8 Serisi Kesitsel Yönsel Valf Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara, 8 Makara, 9 Makara, 10 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Seksiyonel vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm, 8 Bölüm, 9 Bölüm, 10 Bölüm |
| İşletme Viskozite Aralığı | 12 - 400 mm²/sn (12 cSt ila 400 cSt) |
| Anma Akışı | 90 L/dk (23,8 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, SAE 10 |
| Çıkış Portu | G1/2, G3/4, SAE 10, 3/4 NPT |
| Port Boyutu | G1/2, SAE 10 |
As a leading heavy-duty hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Valve directly from our factory. This 2-spool valve supports a rated flow of 80 L/min (21.2 US gpm) and functions efficiently under pressures up to 350 bar (5100 psi). Designed for versatility, it features G1/2 inlet and G3/4 outlet ports, making it ideal for forklifts, mini-excavators, tractors, and waste compactors. We provide comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. Our facility supports large-scale wholesale and private labeling solutions for global partners. We are actively seeking professional distributors, wholesalers, agents, and traders to expand our global supply chain. Benefit from factory-direct pricing, robust technical support, and reliable quality for construction, material handling, and agricultural machinery sectors.
