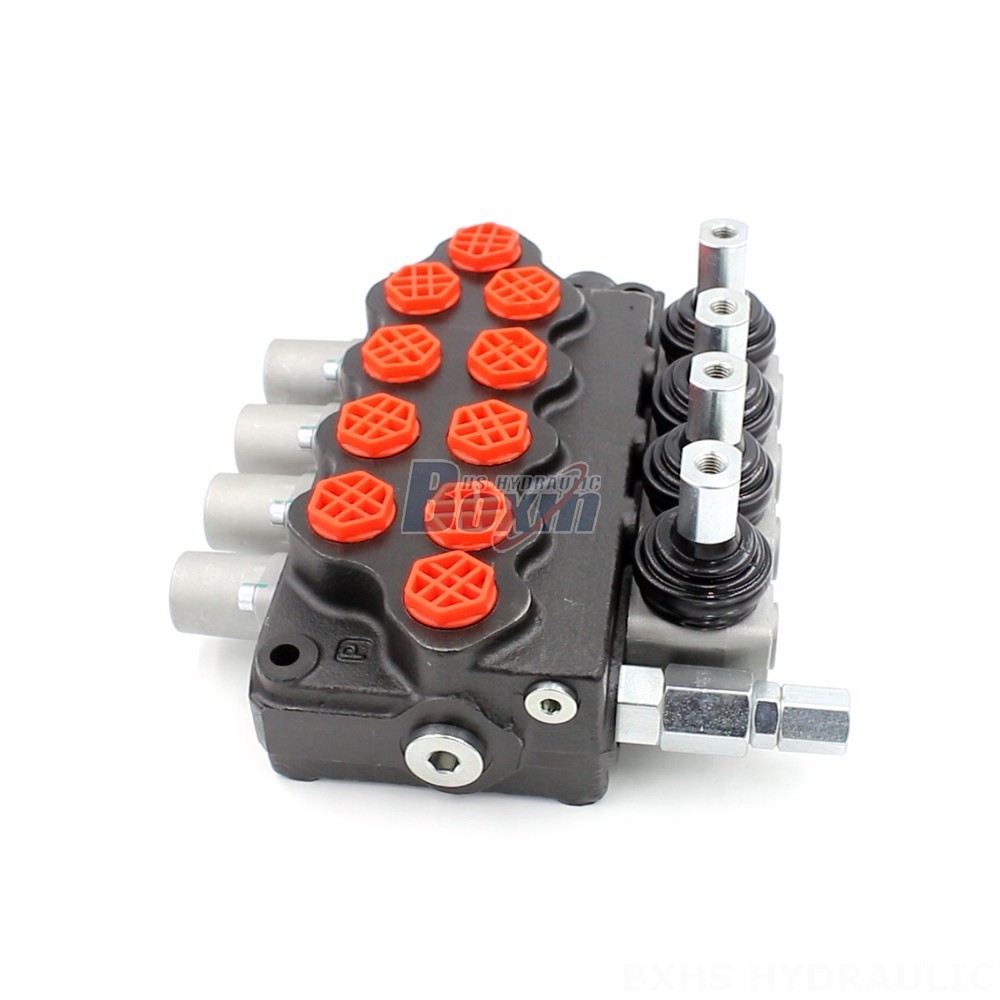

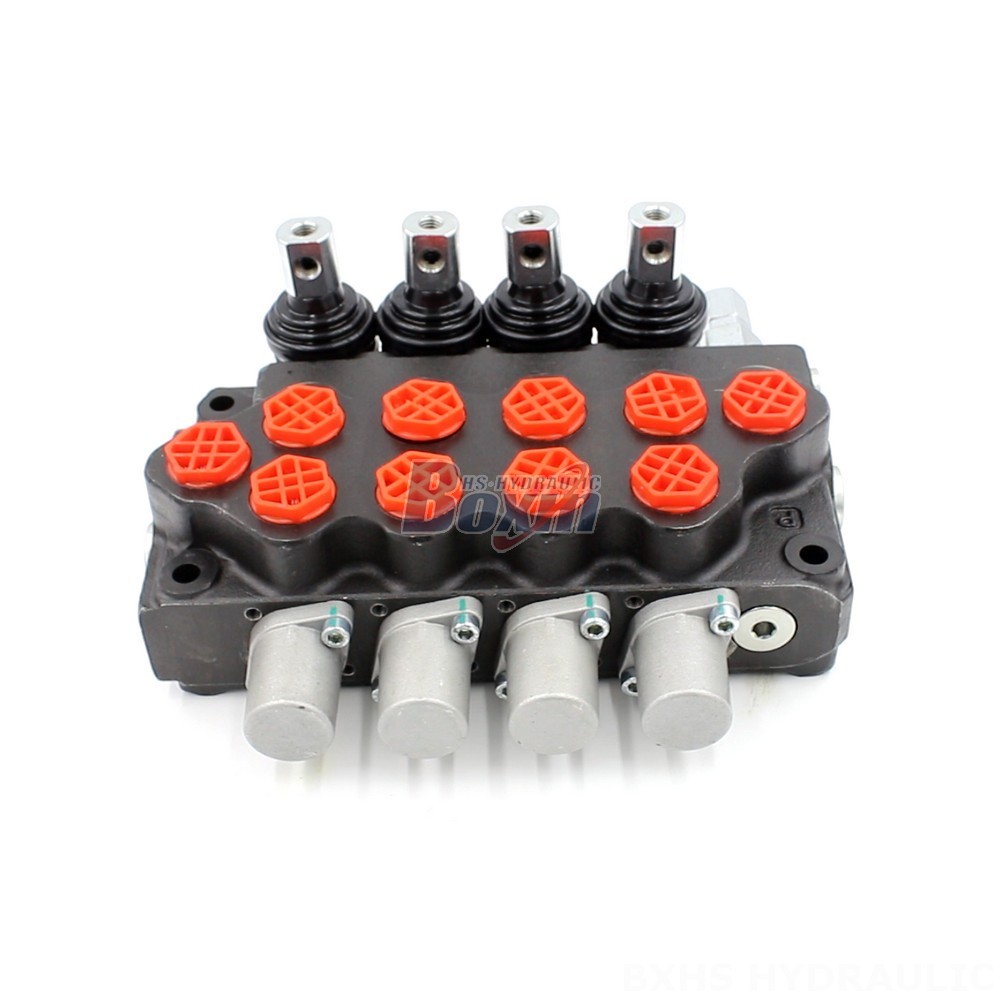

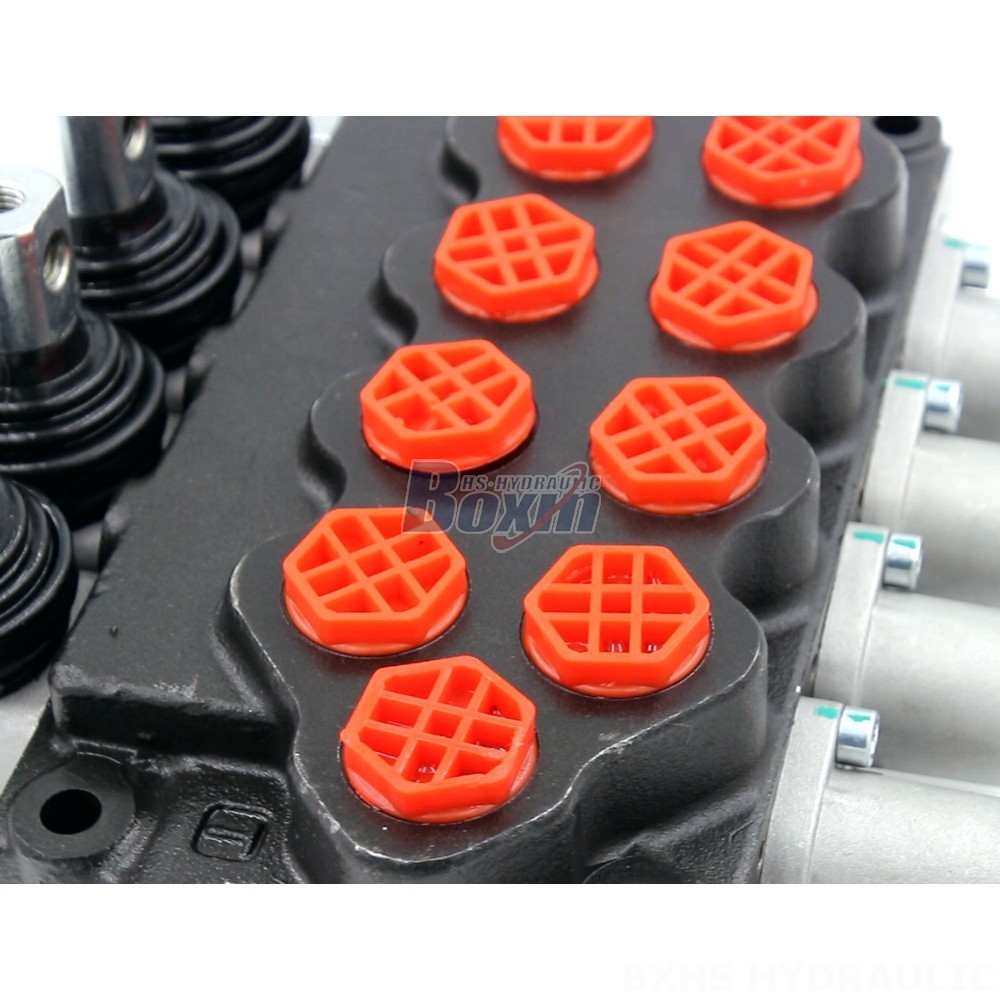

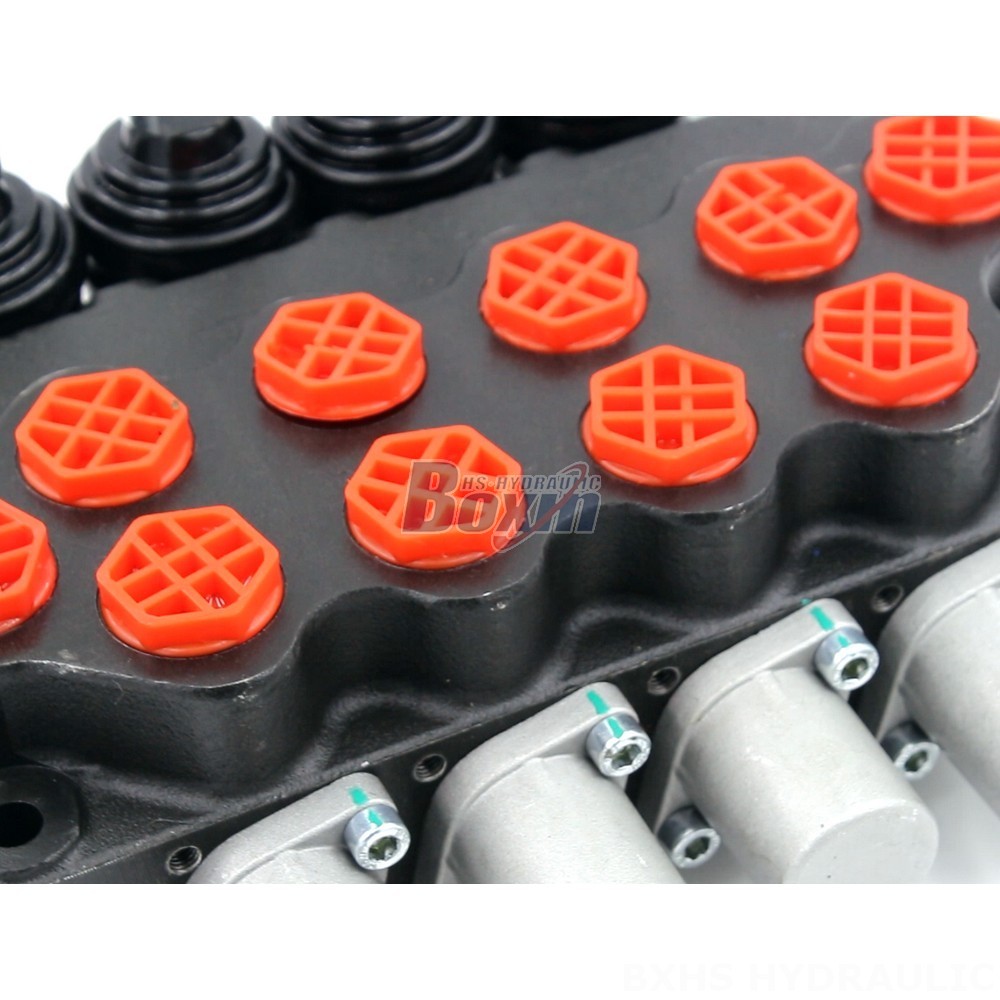

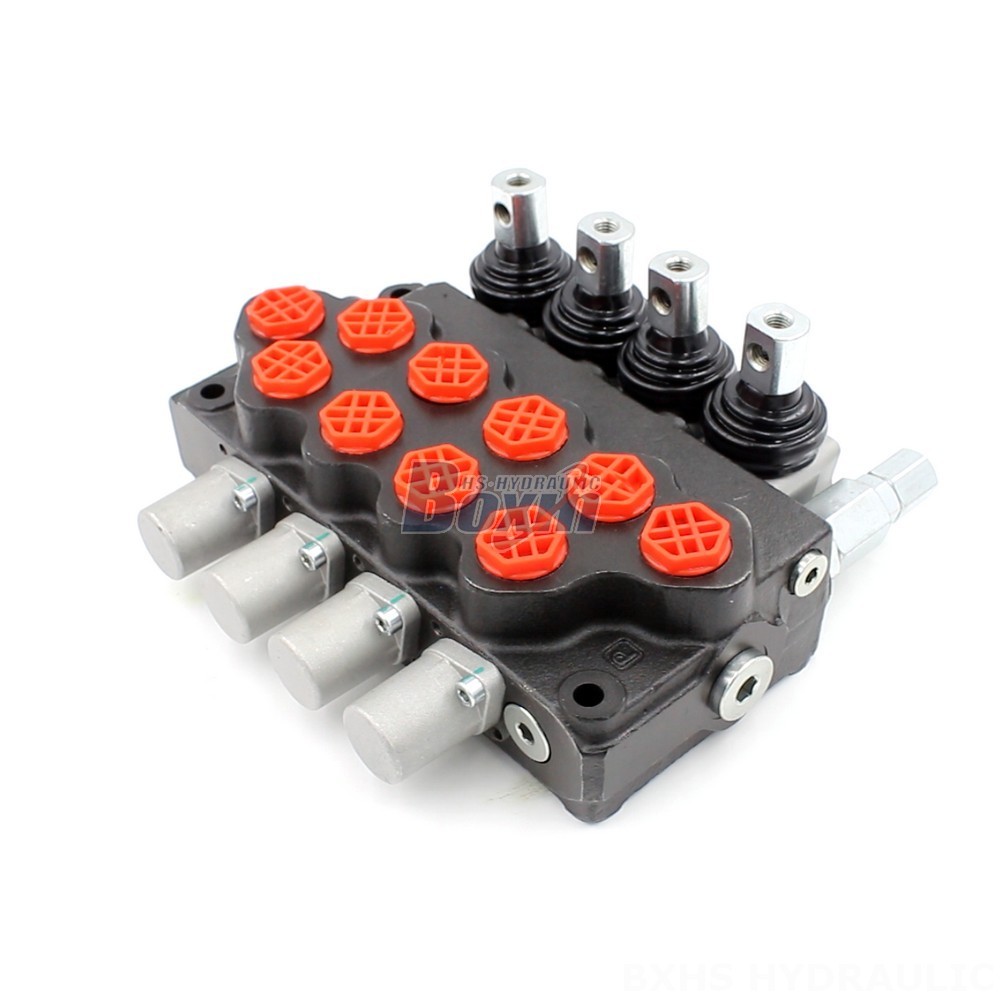

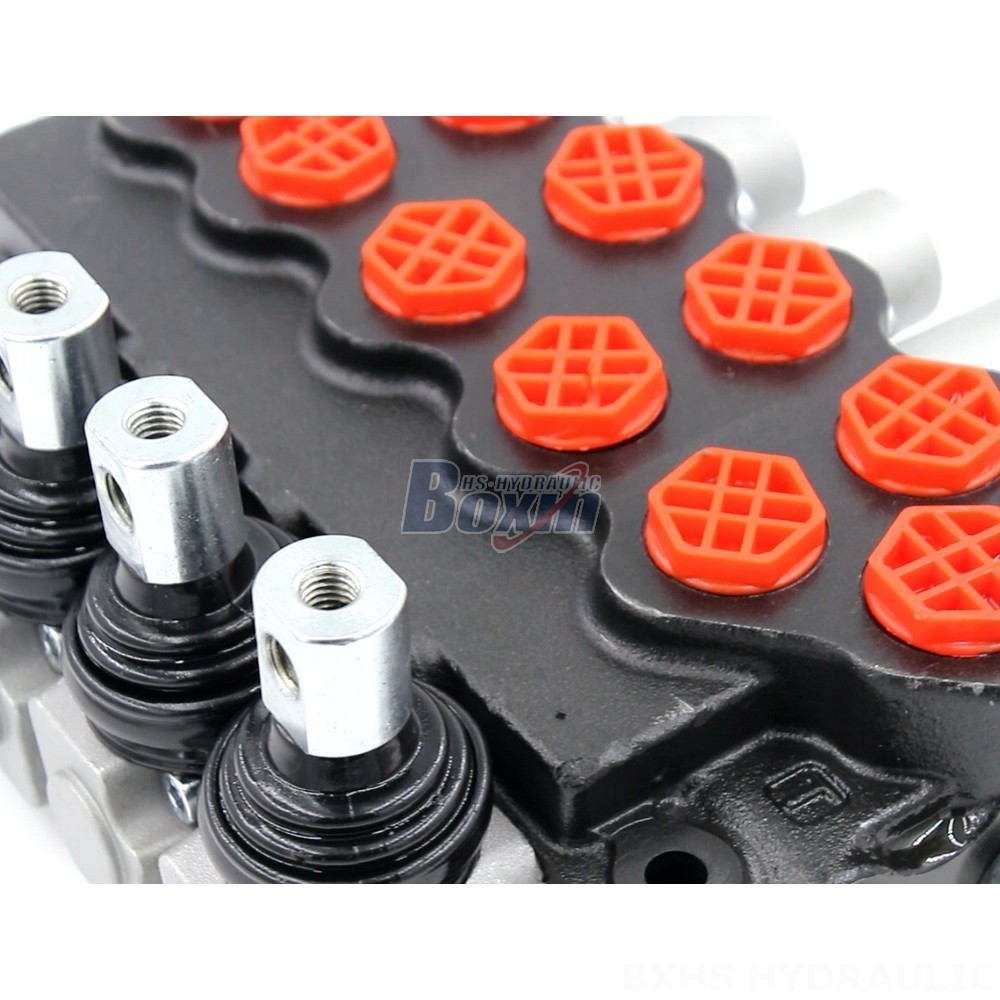

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Kontrol Yöntemi:Manuel

Makara:4 Makara

Anma Akışı:45 L/dk (11,8 ABD galon/dak)

Maksimum Basınç:315 bar (4600 psi)

Giriş Portu:G3/8

Çıkış Portu:G3/8

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:SD5 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:22.5*23.5*12.5

Brüt ağırlık:9.90 kg

Stok Durumu: Stokta Var

958 Görünümler Bu Ürünü Arıyor

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available drawing image

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.

SD5 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +60°C (-40°F ila +140°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 305 bar (4400 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Çıkış Portu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Boyutu G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
