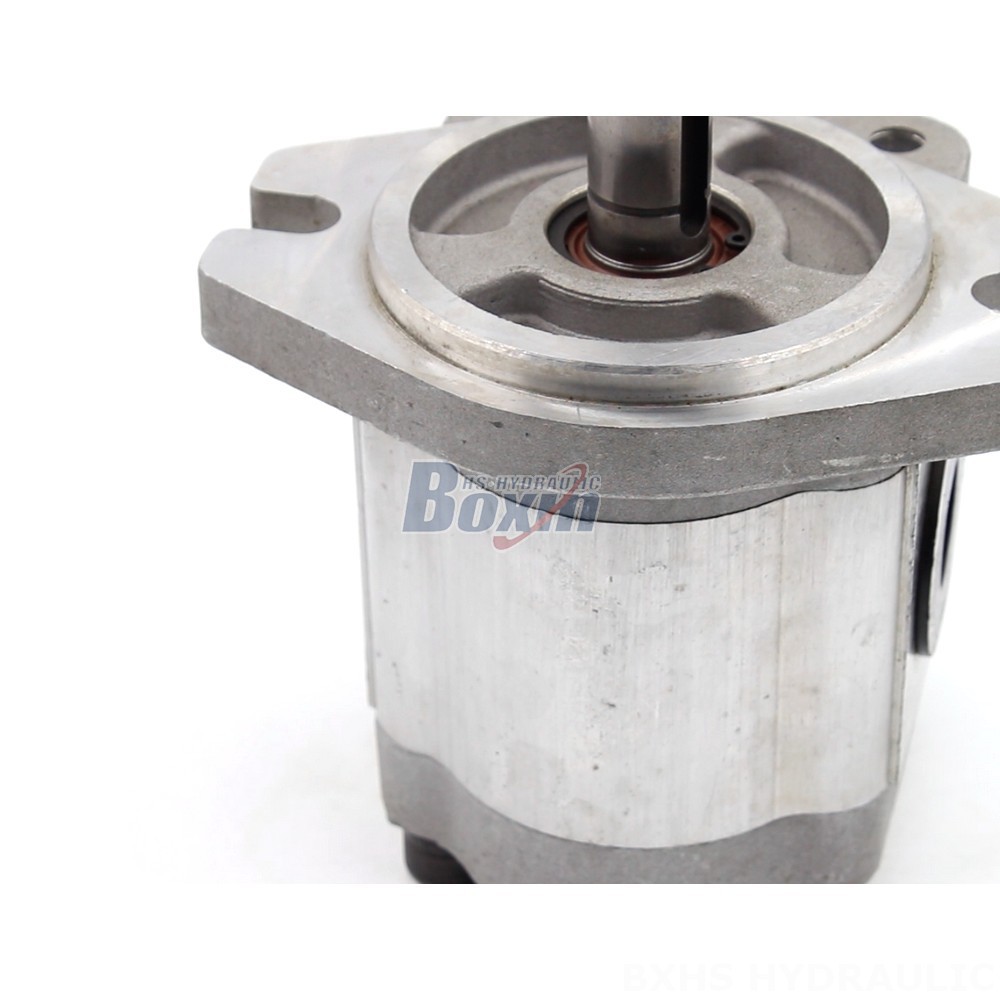

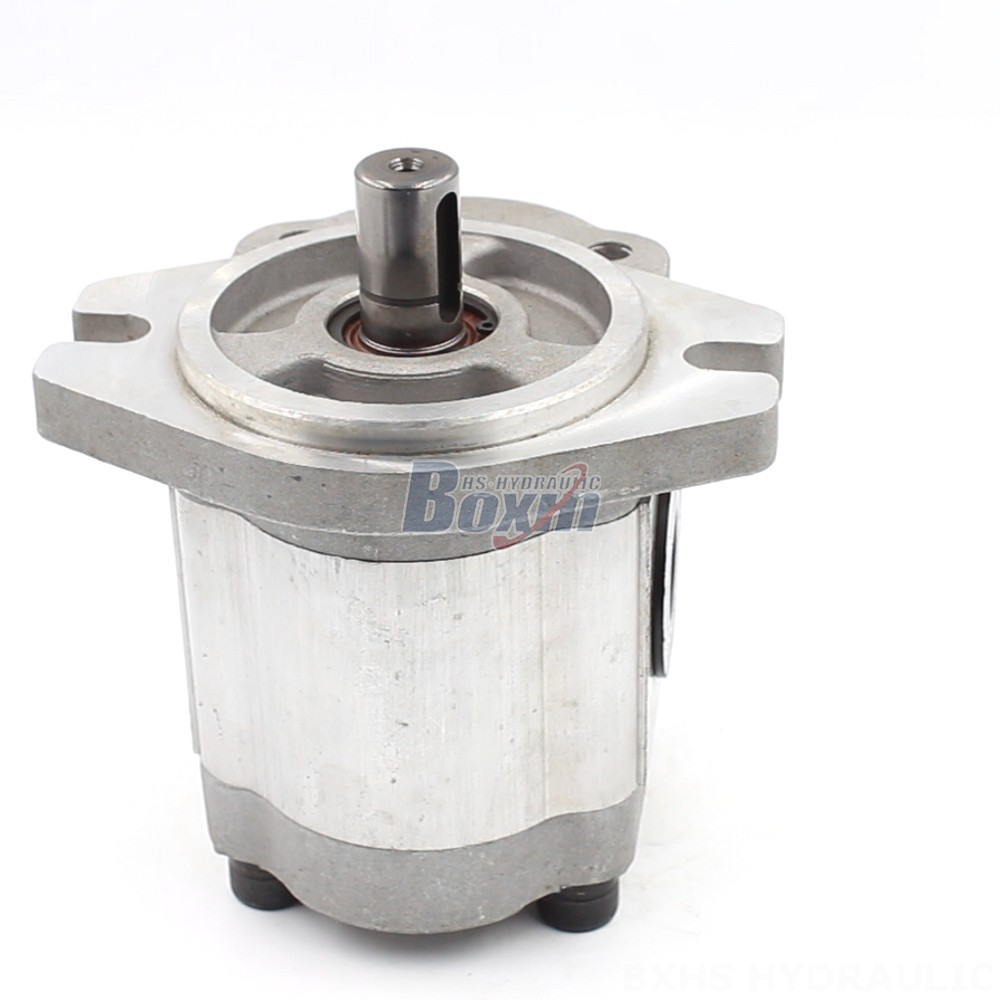

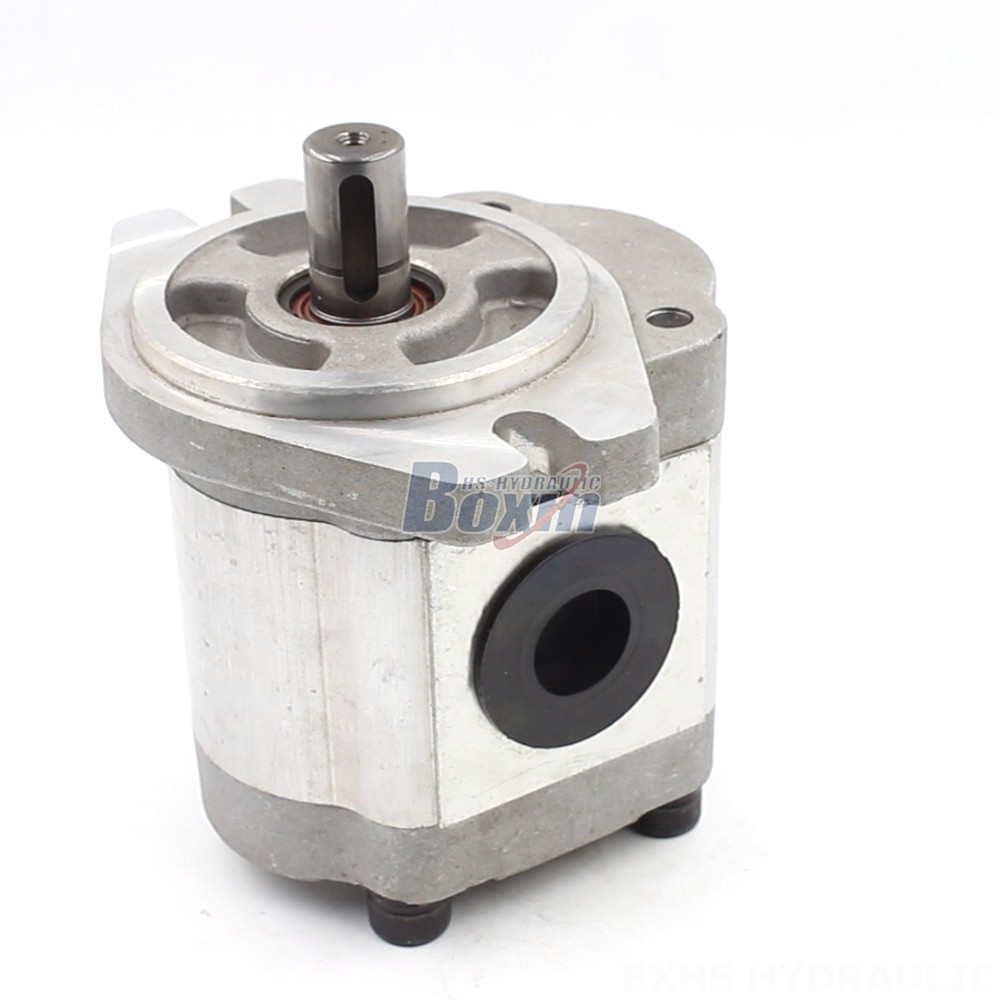

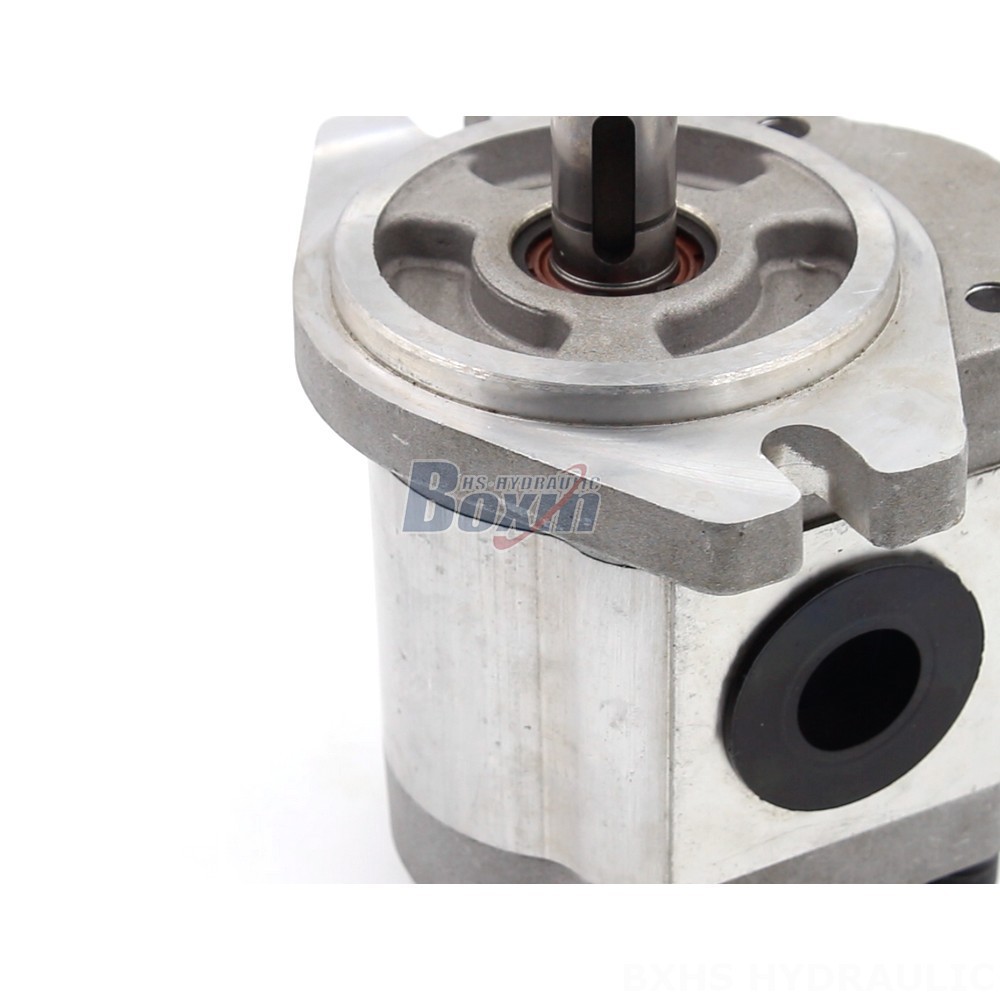

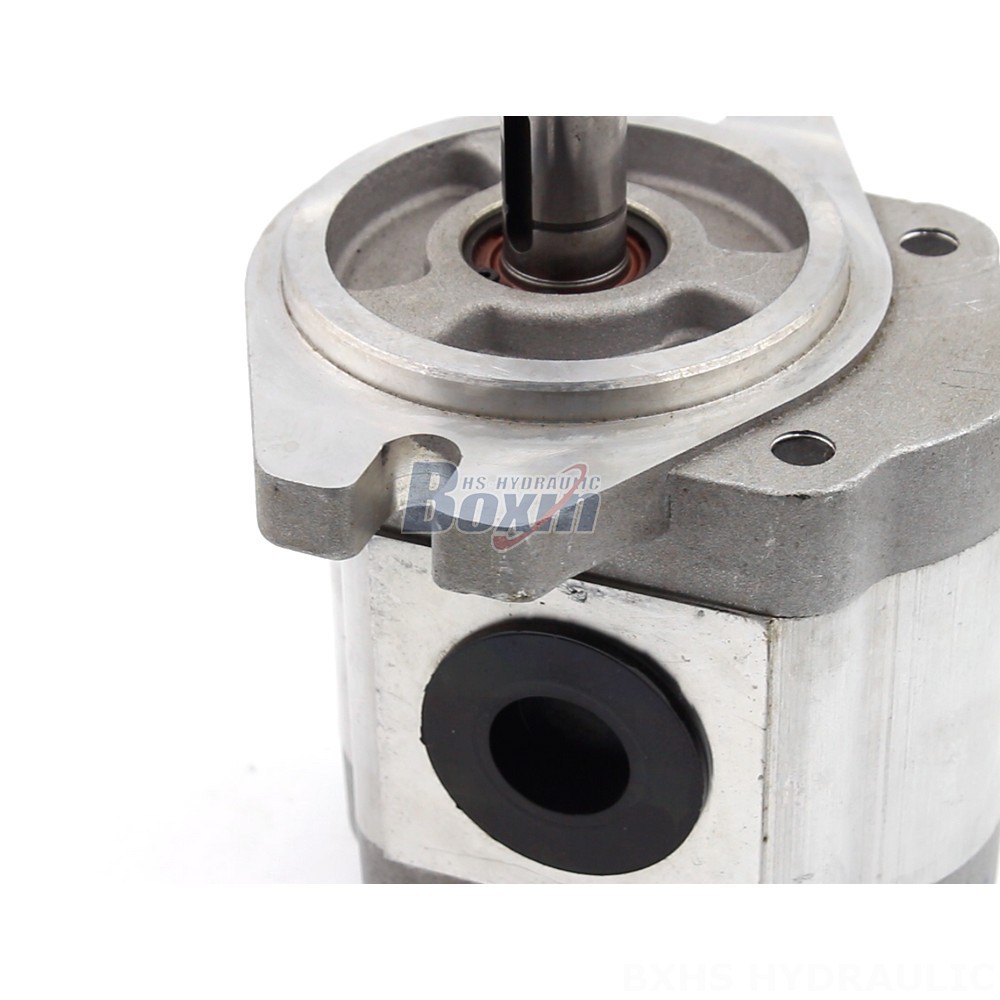

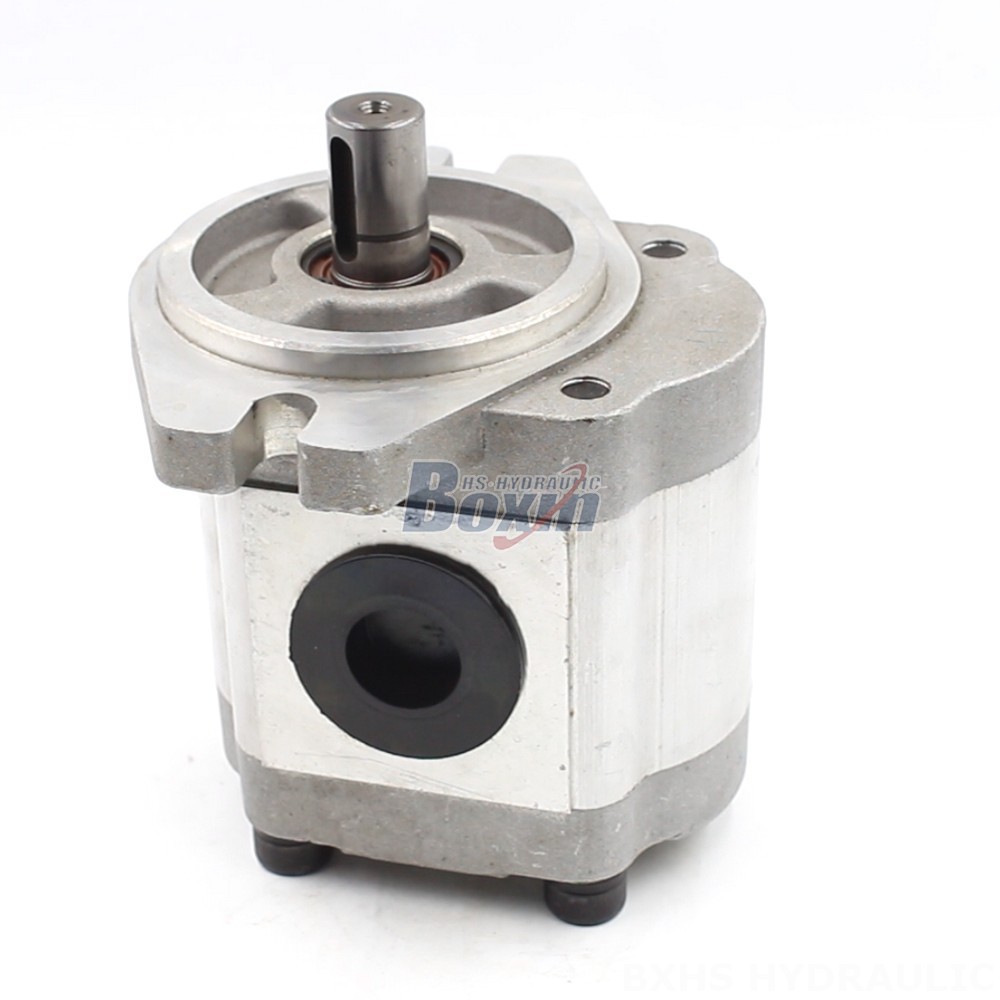

This industrial-grade 14 cc/rev hydraulic gear pump offers customizable solutions for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design and aluminium material, providing reliable performance and durability.
| CBHS-FL3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 4 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 20 MPa (2900 psi) |
| Maksimum Basınç | 25 MPa (3625 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 3000 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Malzeme | Alüminyum |
| Yapı | Dış Dişli Pompa |
| Flanş Sürümü | A-Oval Flanş |
| Mil Tipi | H: Dikdörtgen Kayar Eksen, X: Evolute Kayar Eksen, P: Düz Anahtar |
This high-performance hydraulic gear pump is designed for demanding industrial applications. It boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), ensuring powerful and efficient operation. The pump can handle speeds up to 3000 r/min and is available in both left and right rotation configurations. Its internal gear pump design, combined with its robust aluminium construction, provides exceptional durability and reliability. The A-Oval flange and plain key shaft make it compatible with a wide range of systems. This versatile pump is ideally suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors, making it a valuable asset for various industries.
