Üretim ve Teslimat
15-30 Gün Üretim Teslim Süresi

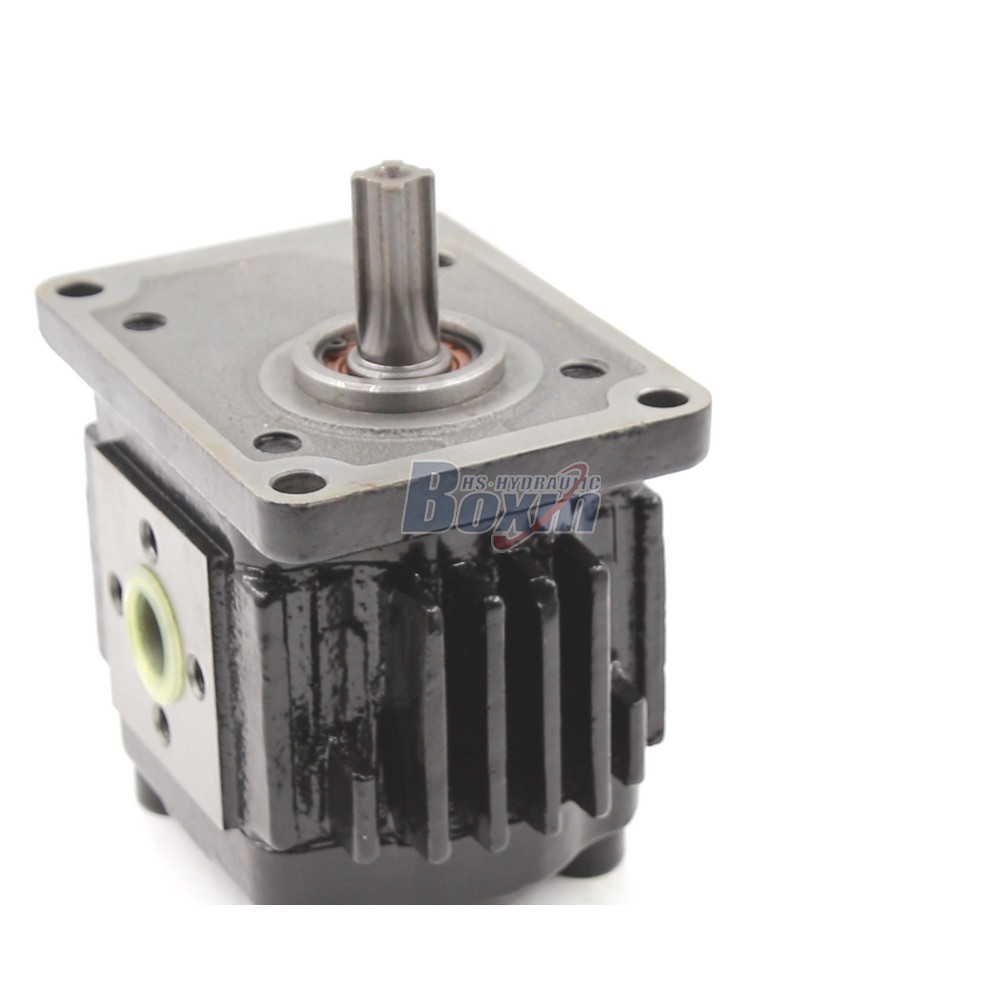

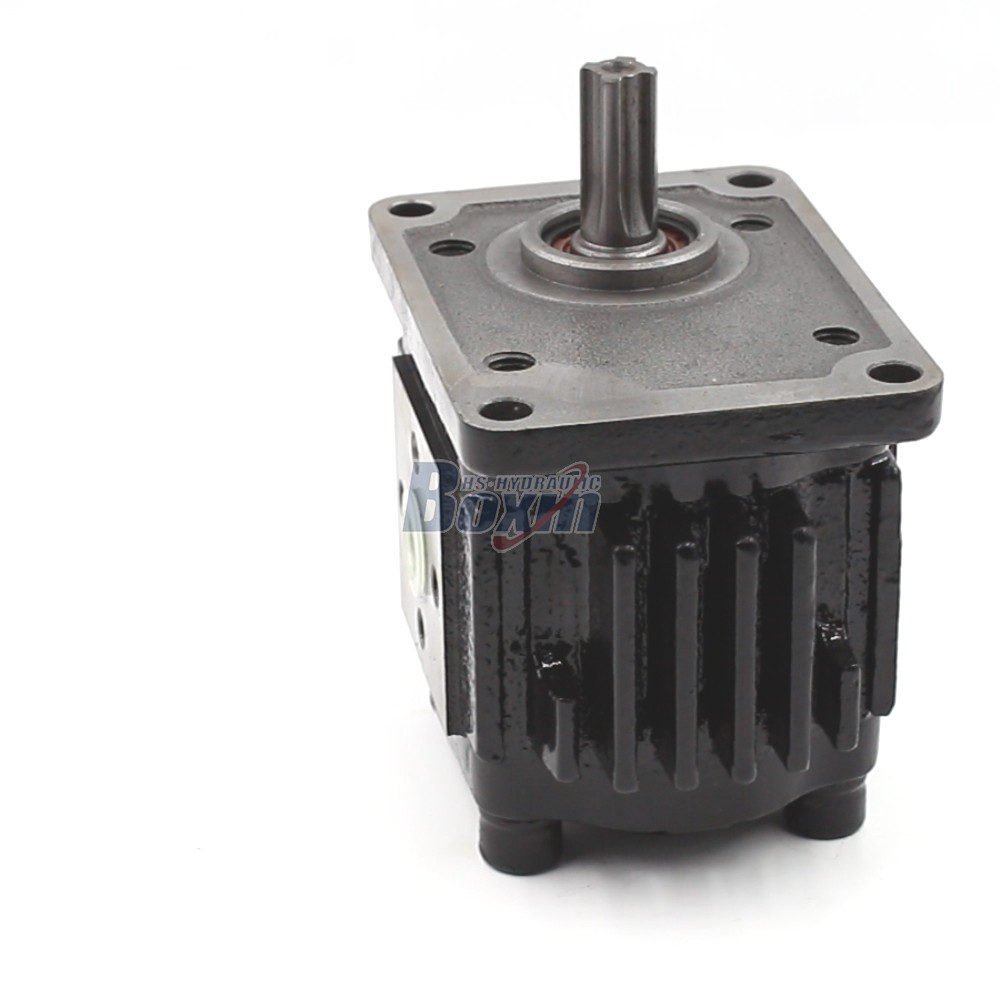

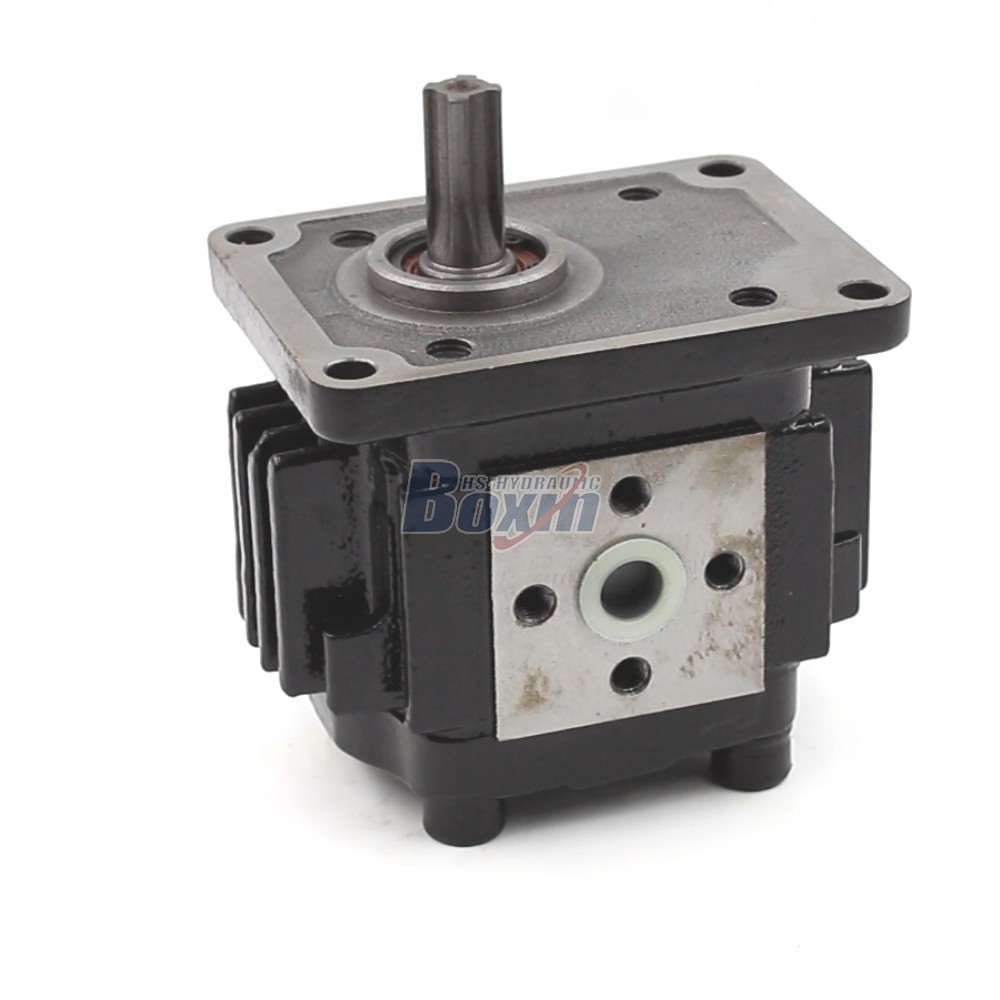

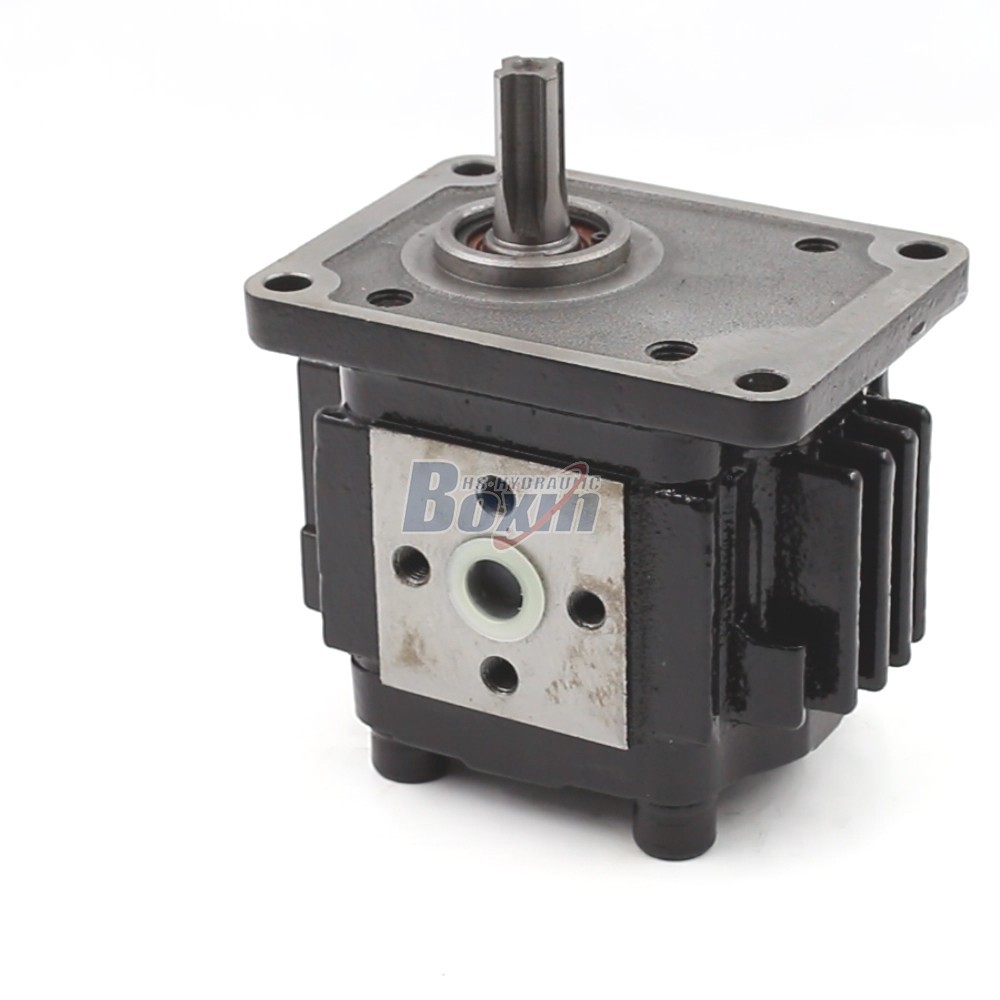

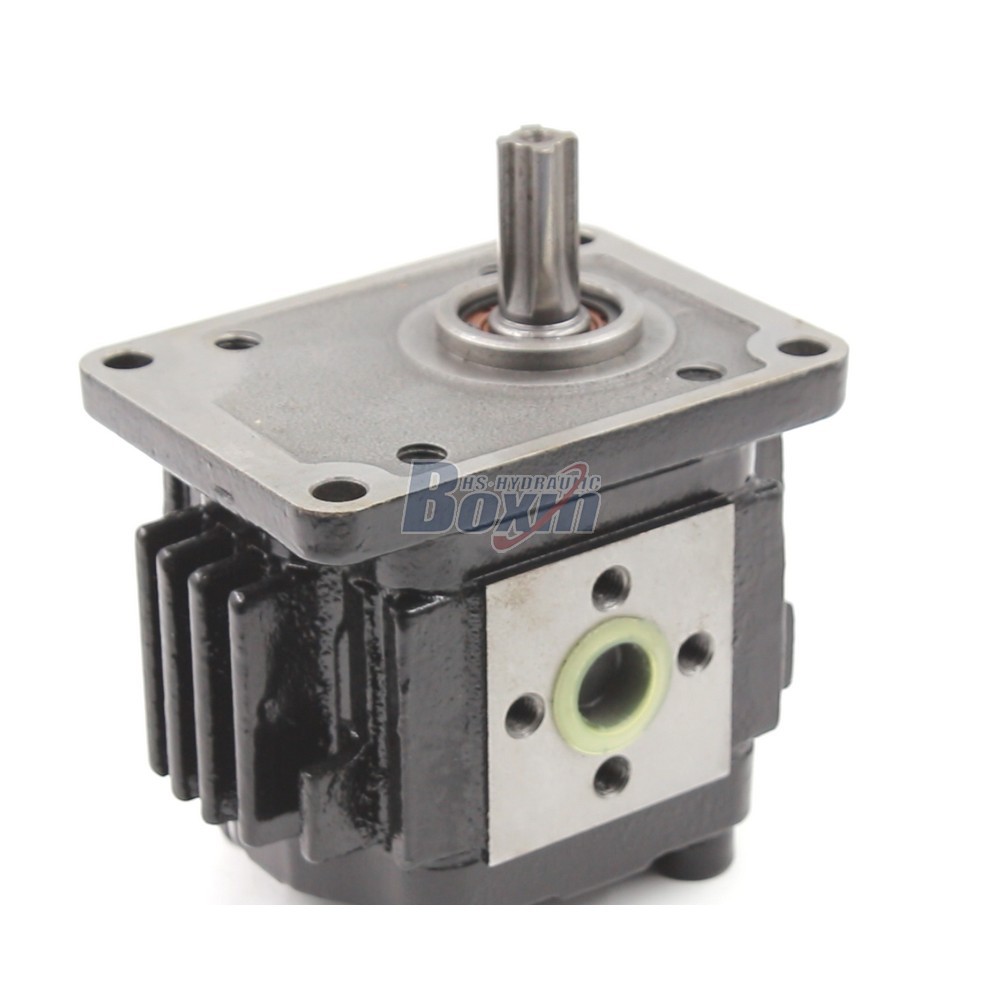

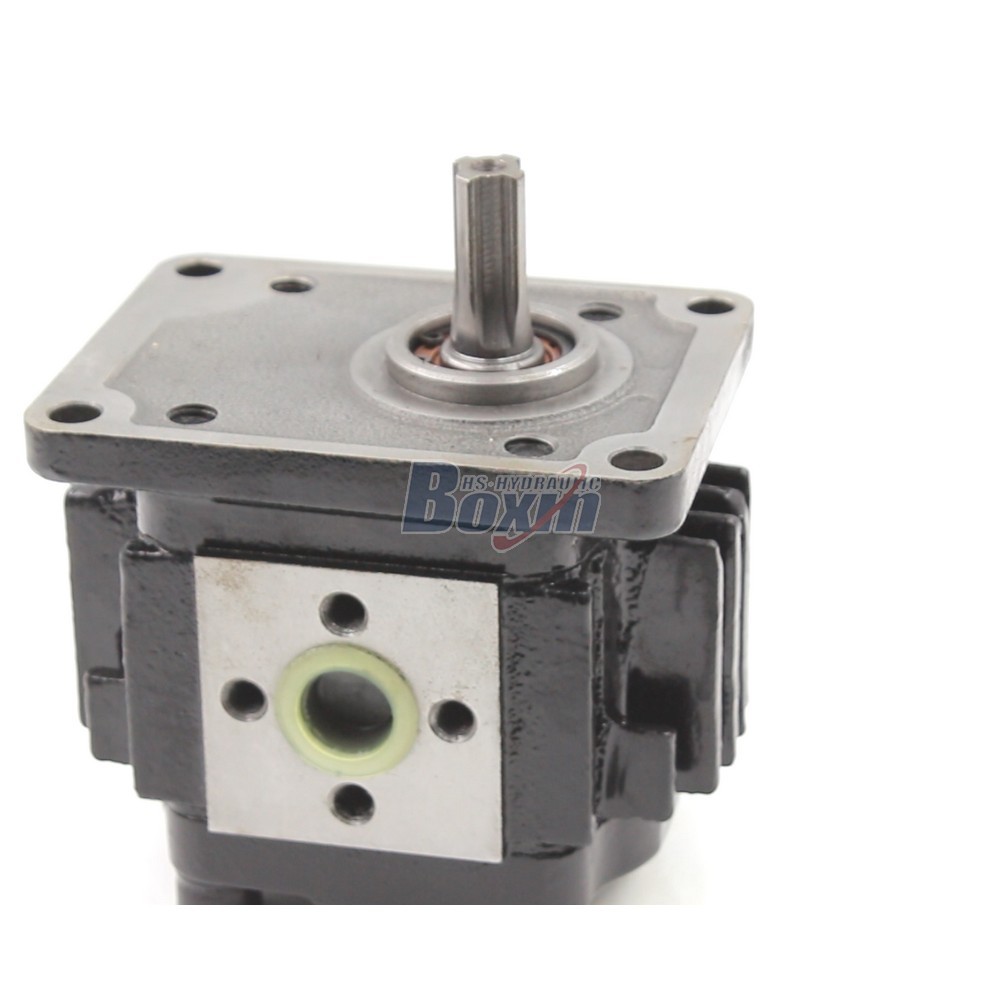

This industrial hydraulic gear pump is designed for high performance and heavy duty applications. It features a robust construction with a displacement of 16 cc/rev and a rated pressure of 18 MPa (2610 psi), ensuring reliable operation in demanding environments.
| CBHS-F3 Serisi Hidrolik Dişli Pompa Parametreler | |
|---|---|
| Deplasman | 10 cc/devir, 20 cc/devir, 16 cc/devir, 14 cc/devir, 6 cc/devir |
| Anma Basıncı | 16 MPa (2320 psi) |
| Maksimum Basınç | 18 MPa (2610 psi) |
| Anma Hızı | 2000 devir/dakika |
| Maksimum Hız | 2200 devir/dakika |
| Dönüş Yönü | Sol: Sol (saat yönünün tersine), Sağ: Sağ (saat yönünde) |
| Yapı | Dış Dişli Pompa |
| Malzeme | Alüminyum |
| Mil Tipi | P: Düz Anahtar |
| Flanş Sürümü | A-Oval Flanş |
Our Industrial Hydraulic Gear Pump is available in various displacements, including 50 cc/rev, 32 cc/rev, 45 cc/rev, and 63 cc/rev. It is designed to withstand a maximum pressure of 20 MPa (2900 psi) and can operate at speeds up to 2200 r/min. The pump features a robust cam plate type design and is available with both internal and external gear configurations. Constructed from durable aluminium, the pump comes with an A-oval flange and plain key shaft. This pump is ideal for a wide range of applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It is particularly suited for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer a complete range of services including manufacturing, OEM, ODM, private label, and customization to meet the specific requirements of our customers.
