Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Kontrol Yöntemi:Manuel

Makara:1 Makara

Anma Akışı:80 L/dk (21,2 ABD galon/dak)

Maksimum Basınç:19 MPa (2735 psi)

Giriş Portu:G1/2

Çıkış Portu:G3/4

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Kütük Ayırma Valfi

Ürün Serisi:P81 Serisi Kütük Ayırma Valfi

Ambalaj boyutu:27*16*12

Brüt ağırlık:4.80 kg

Stok Durumu: Stokta Var

2157 Görünümler Bu Ürünü Arıyor

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable drawing image

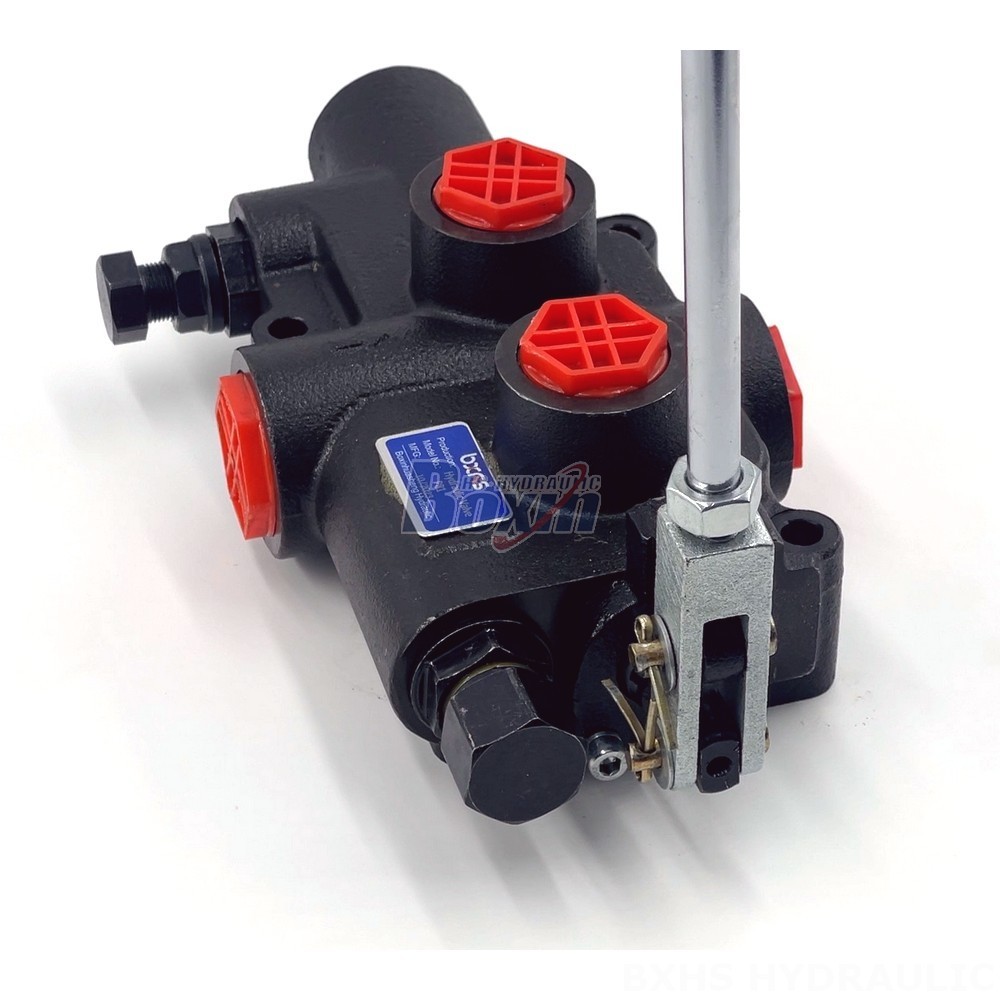

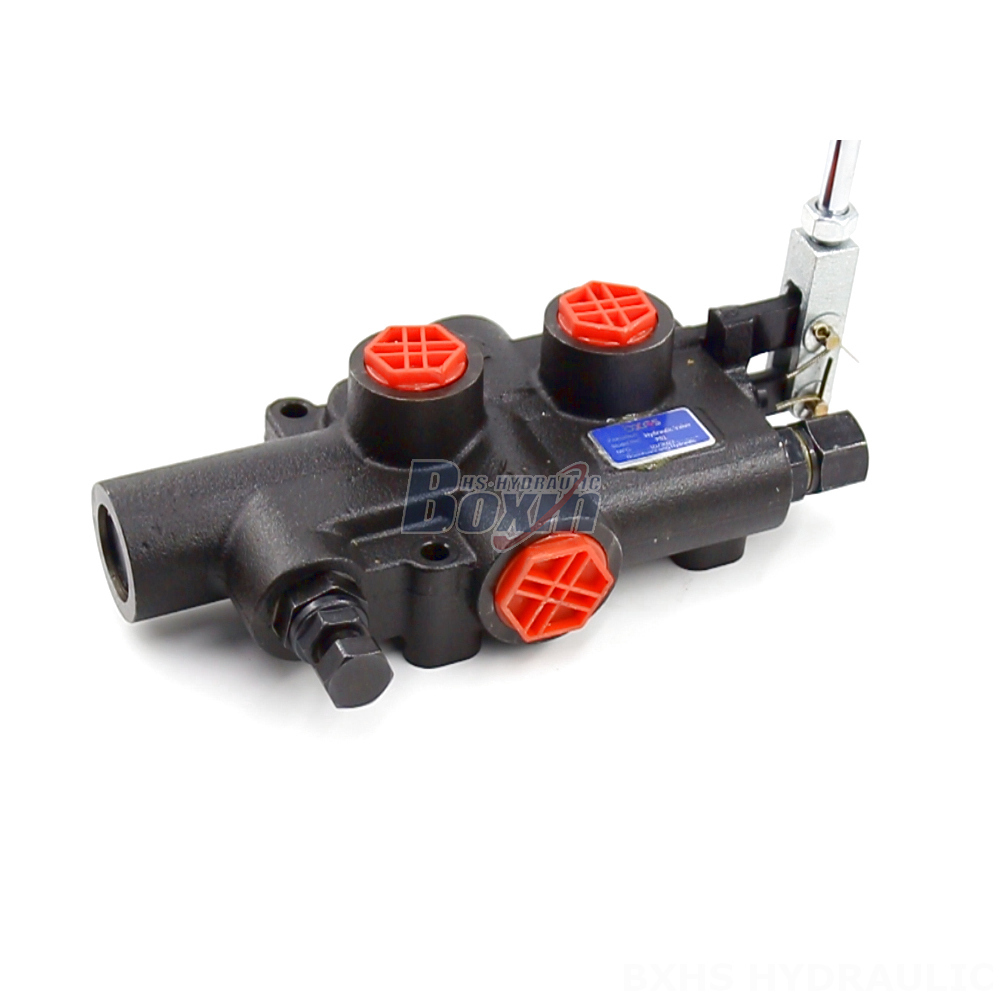

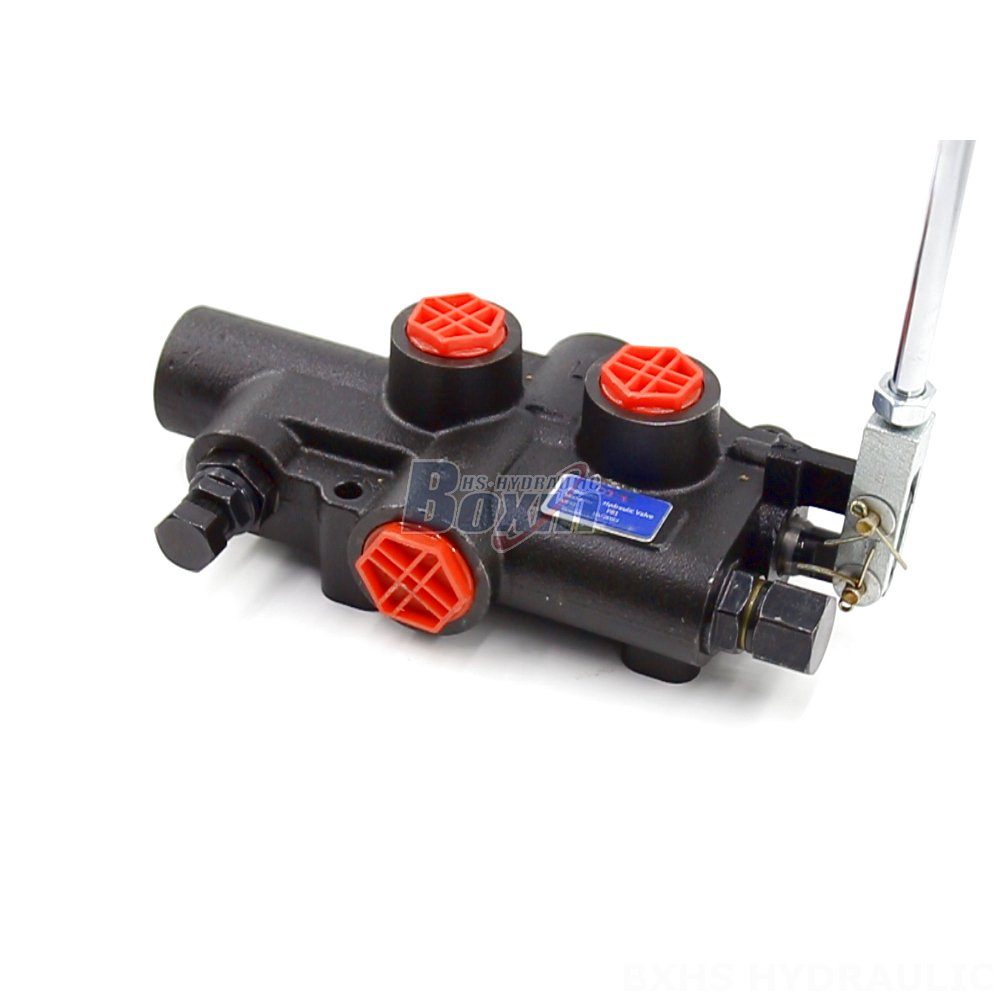

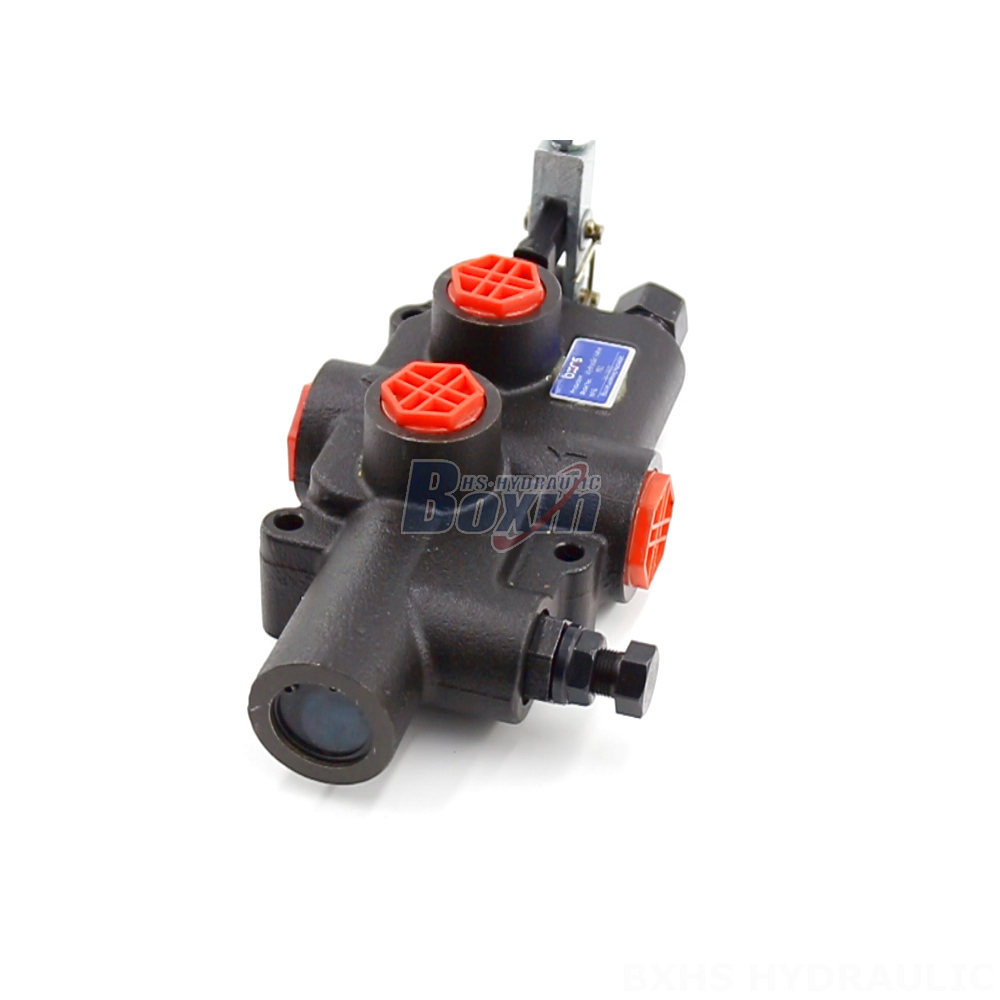

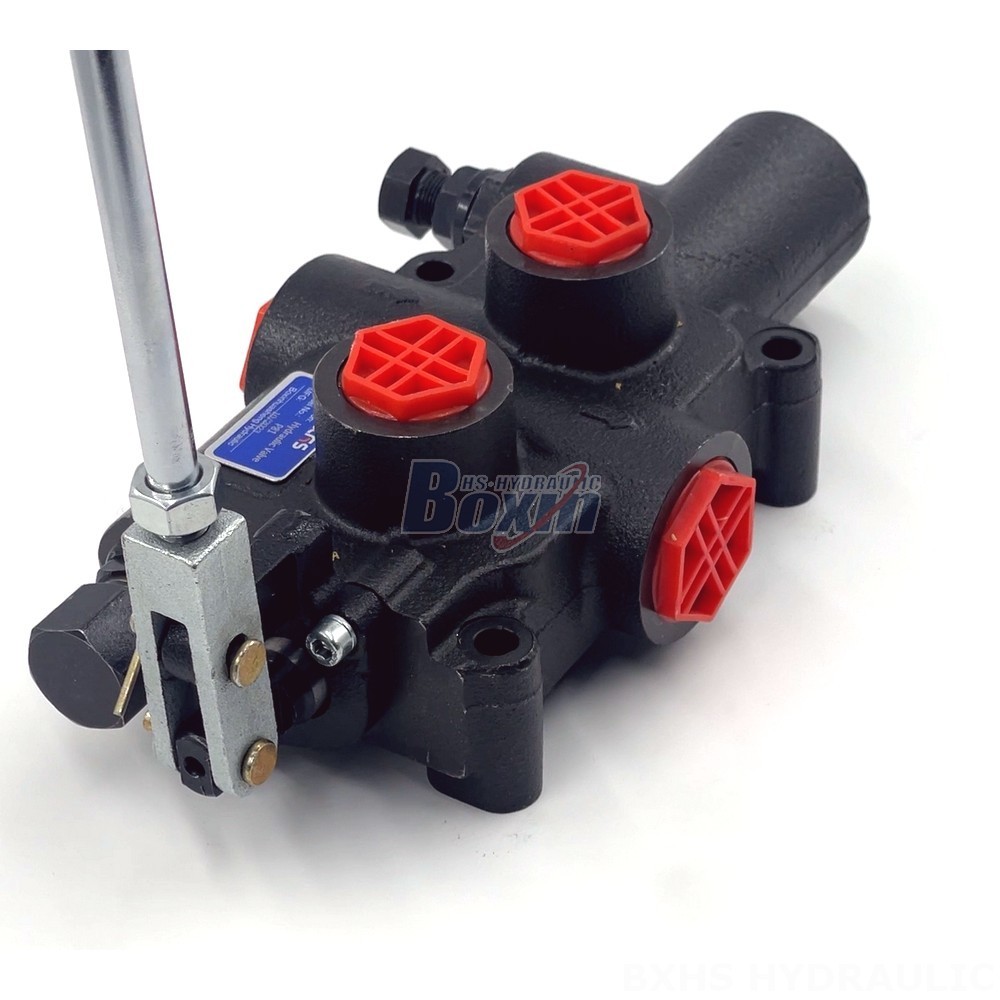

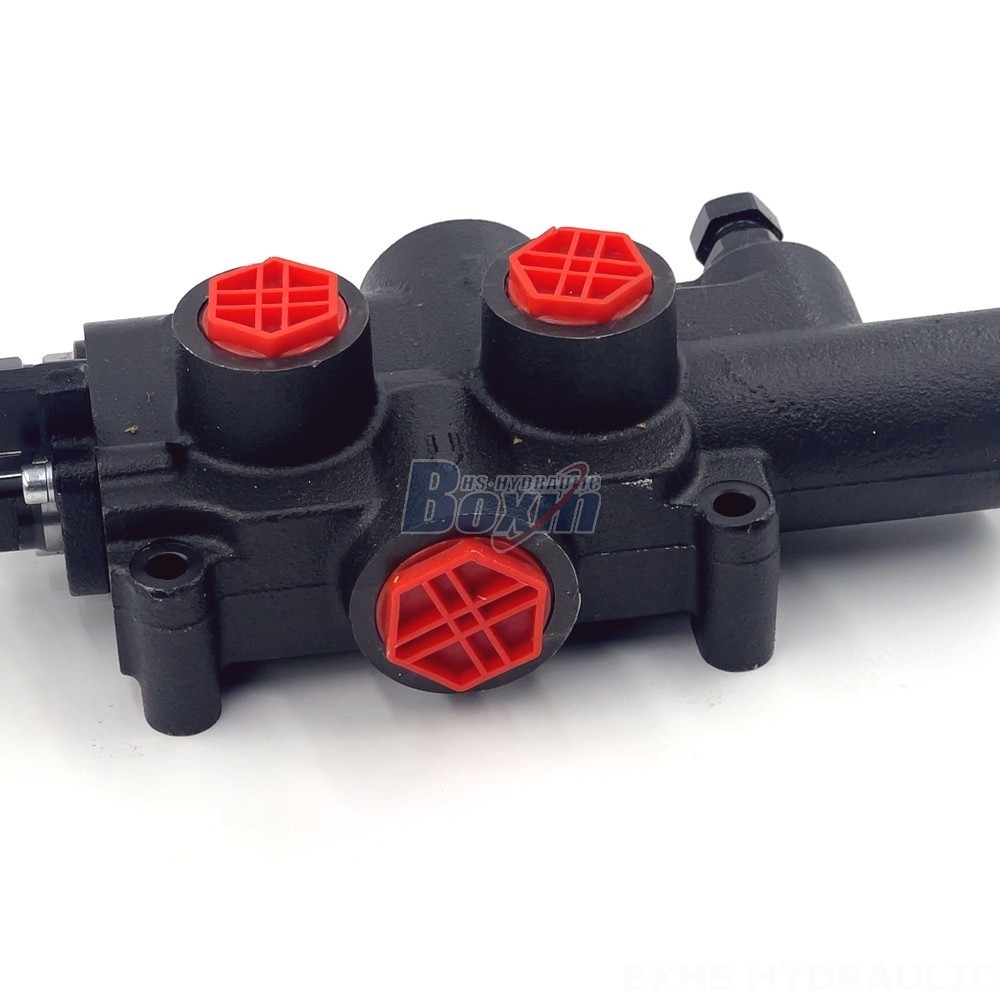

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.

P81 Serisi Kütük Ayırma Valfi Parametreler
Kontrol Yöntemi Manuel
Makara 1 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 80 L/dk (21,2 ABD galon/dak), 95 L/dk (25,1 ABD galon/dak)
Maksimum Basınç 19 MPa (2735 psi)
Giriş Portu G1/2
Çıkış Portu G1/2
Port Boyutu G3/4

The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
