Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Kontrol Yöntemi:Manuel

Makara:6 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:SAE 8

Çıkış Portu:SAE 8

Port Boyutu:SAE 8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:32*23*13

Brüt ağırlık:11.40 kg

Stok Durumu: Stokta Var

1110 Görünümler Bu Ürünü Arıyor

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available drawing image

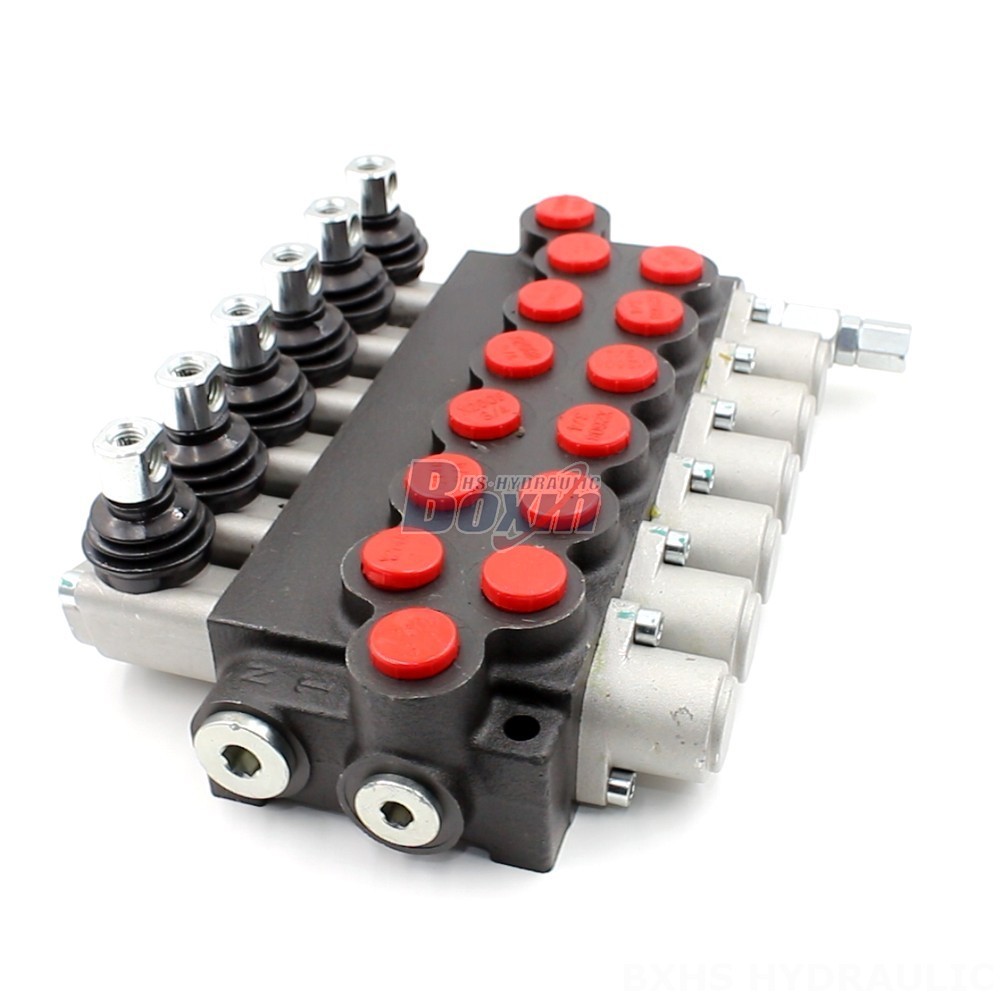

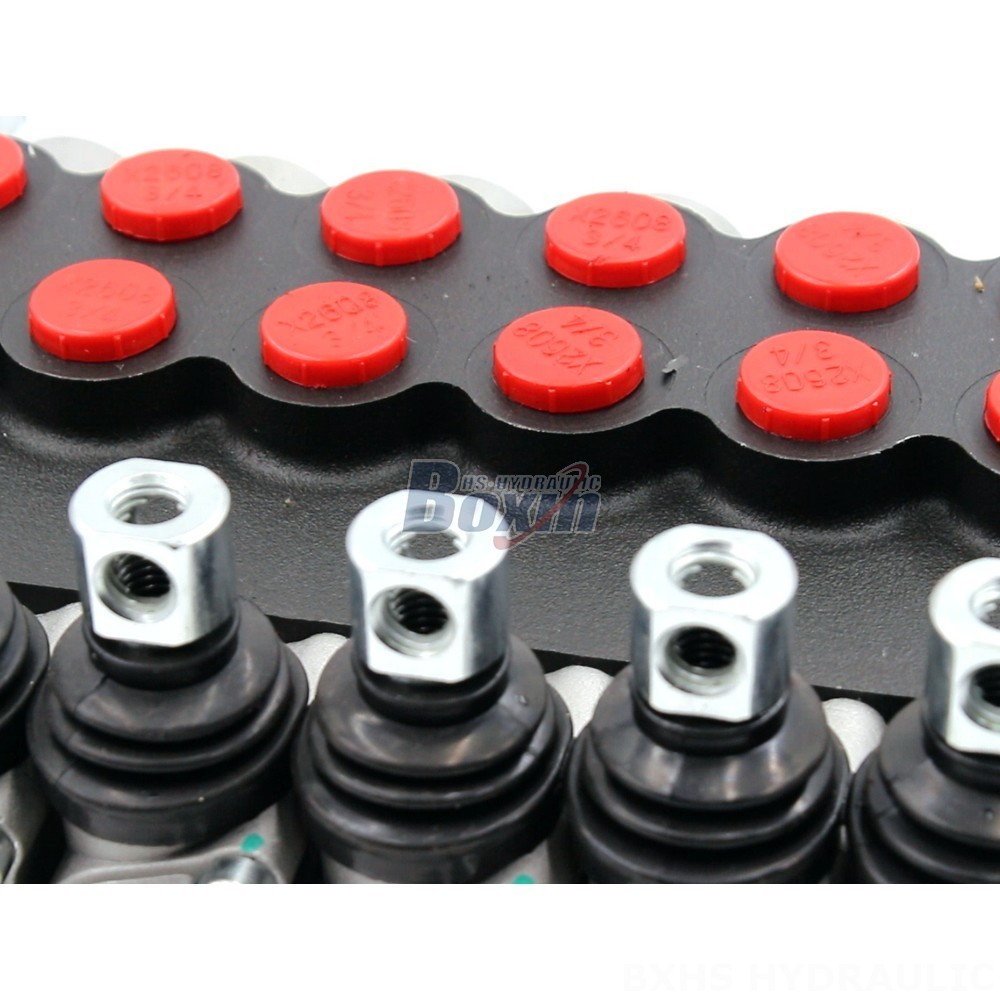

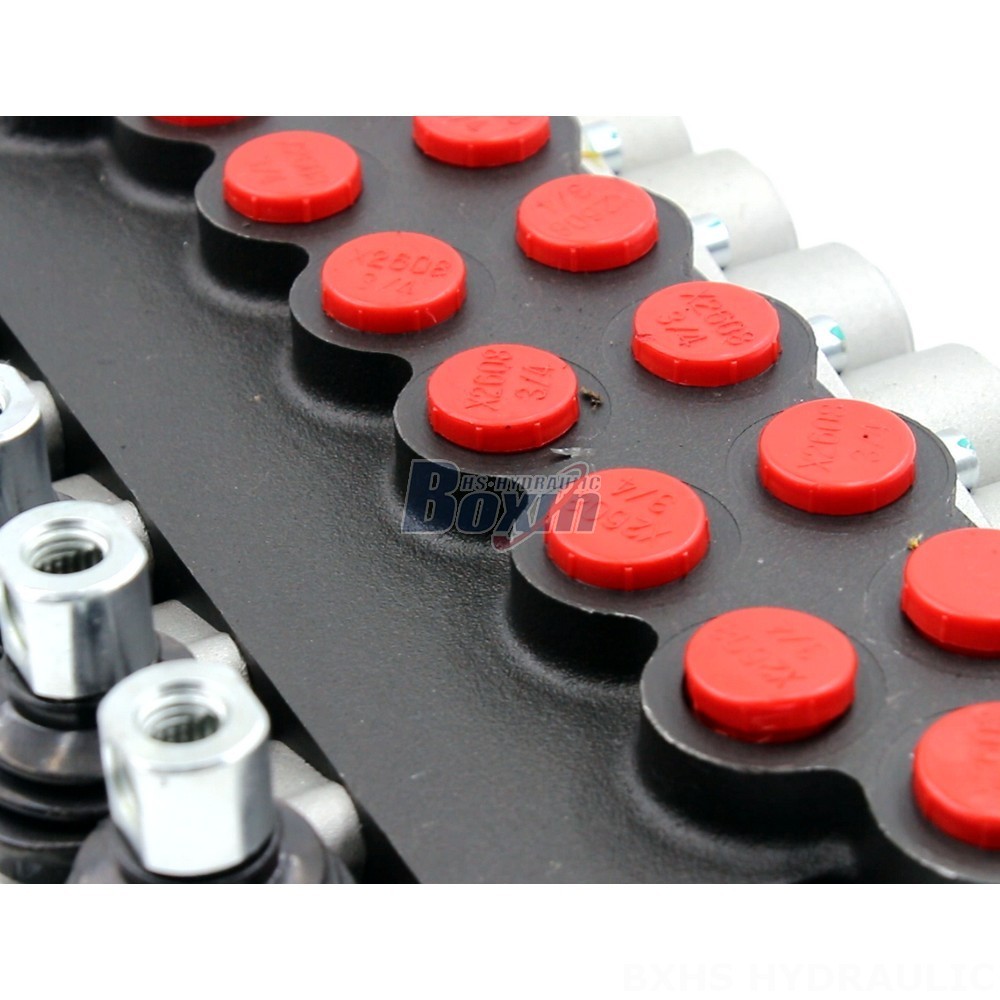

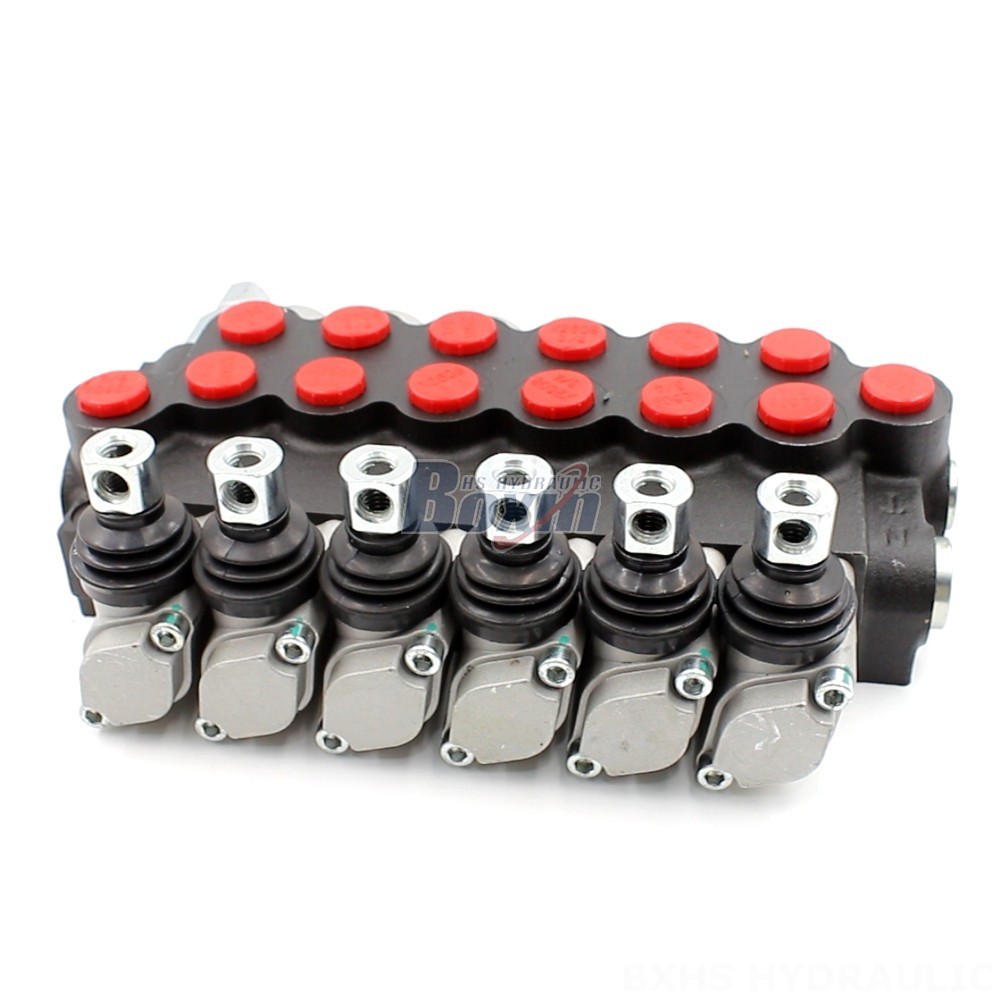

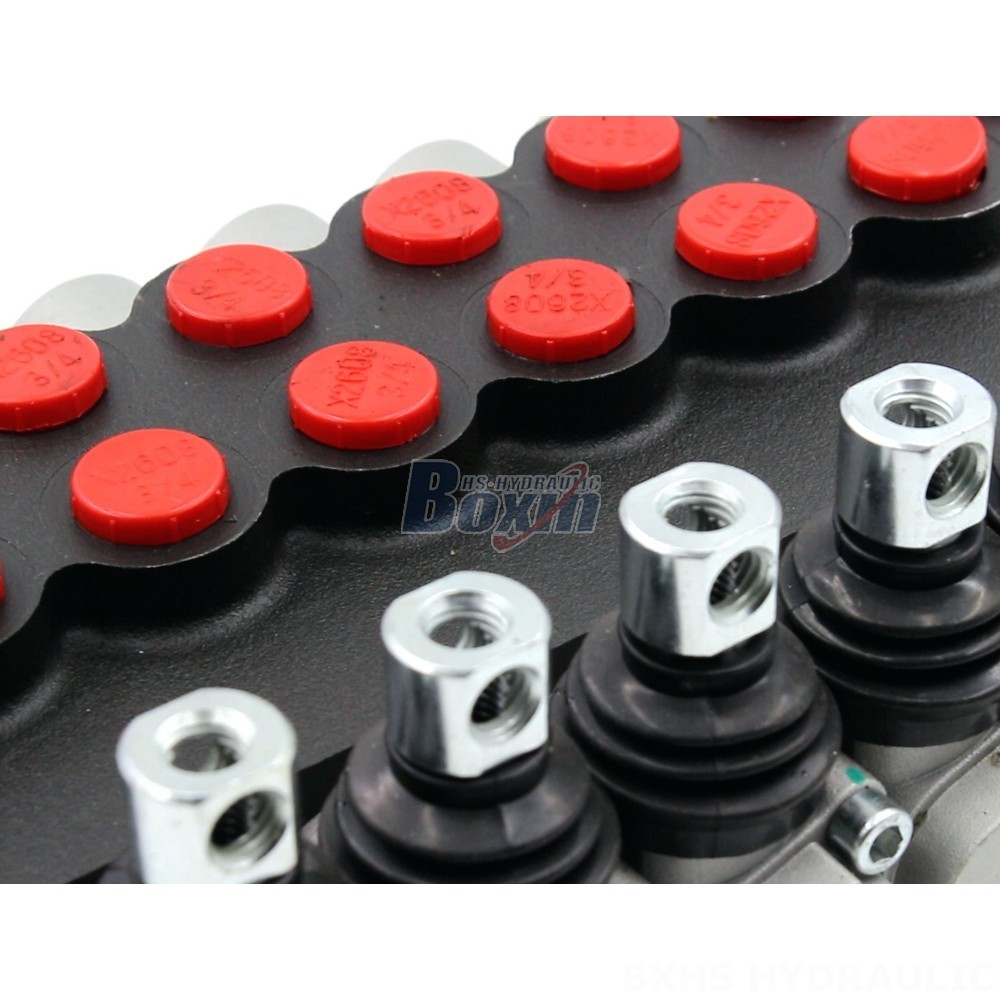

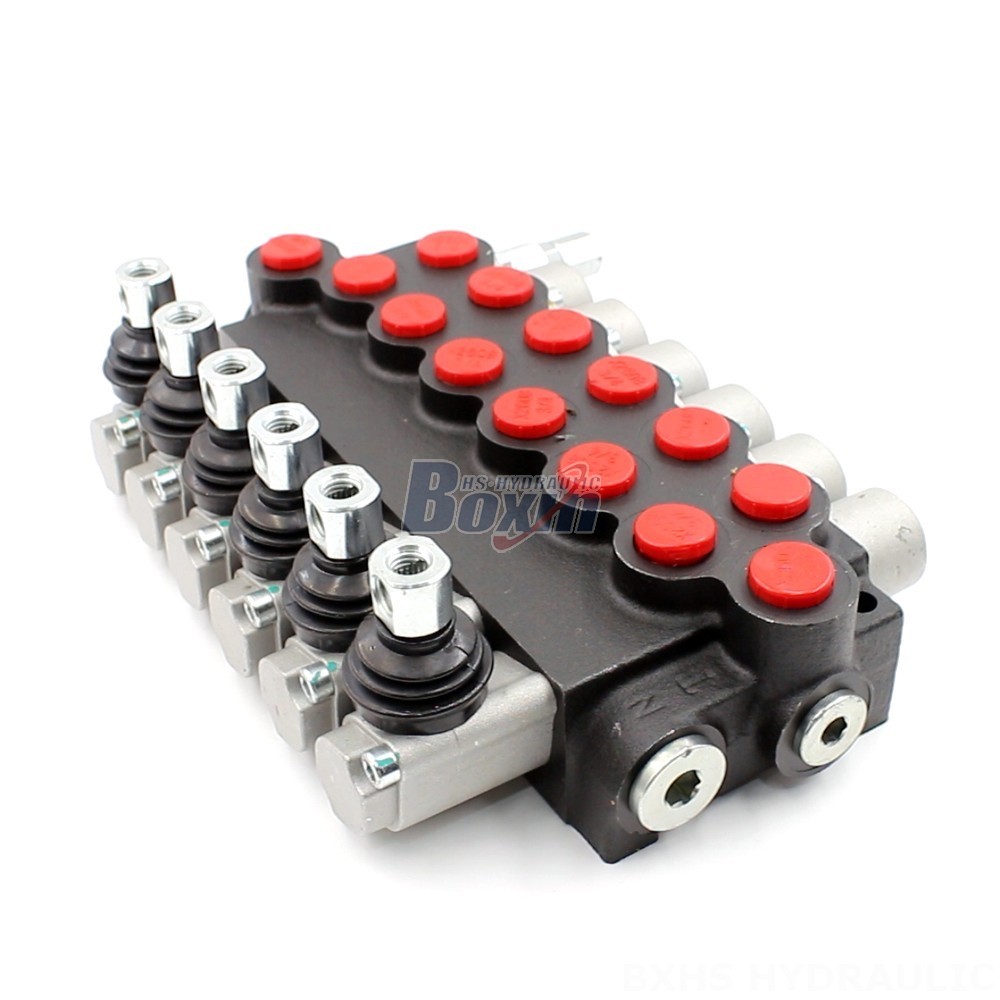

The P40-U34 is a 6-section, manual hydraulic directional valve designed for use in a variety of industrial, construction, and agricultural applications. It features a robust monoblock design, rated flow of 40 L/min, and maximum pressure of 250 bar. This versatile valve is customizable and available for OEM applications.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34 is a high-performance, 6-section manual hydraulic directional valve built for durability and reliability. With its monoblock construction, it provides exceptional strength and stability. The valve is rated for a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of demanding applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in industrial vehicles, construction and earthmoving equipment, and agriculture applications. It is compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. As a manufacturer, we offer a range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
