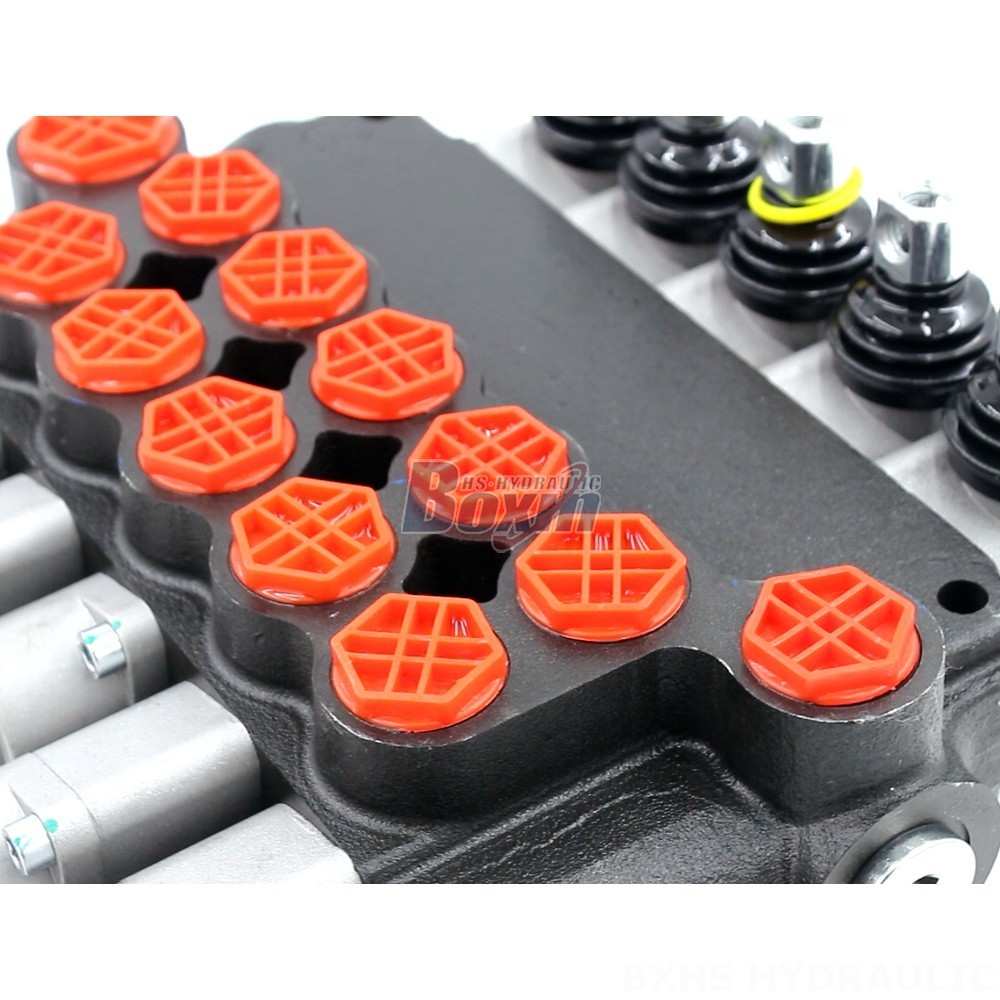

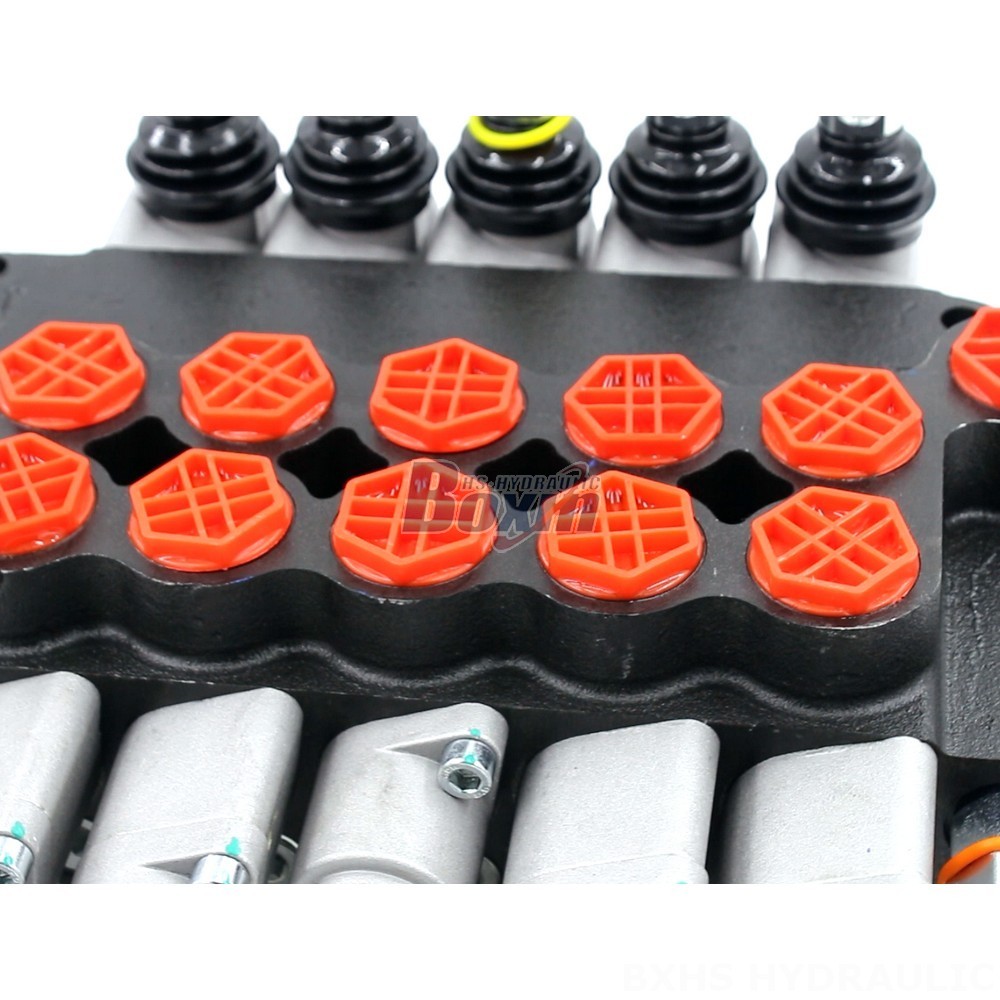

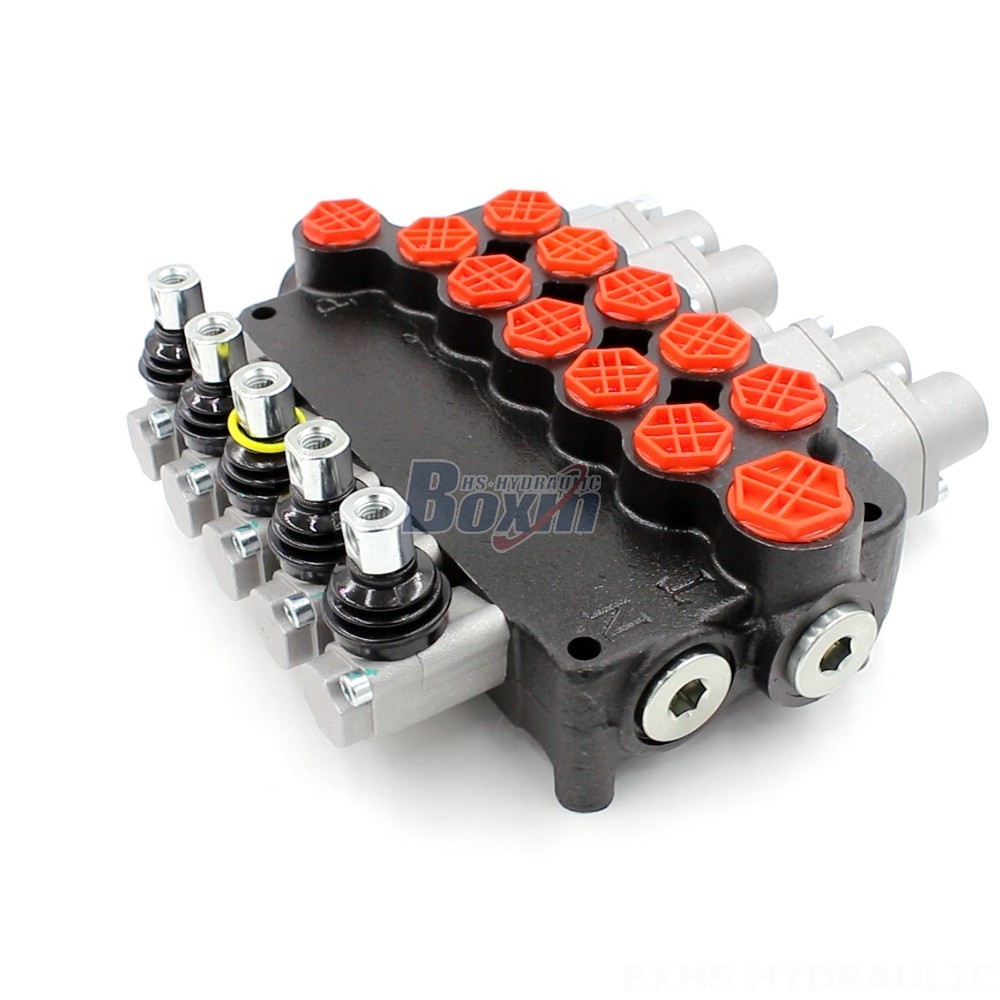

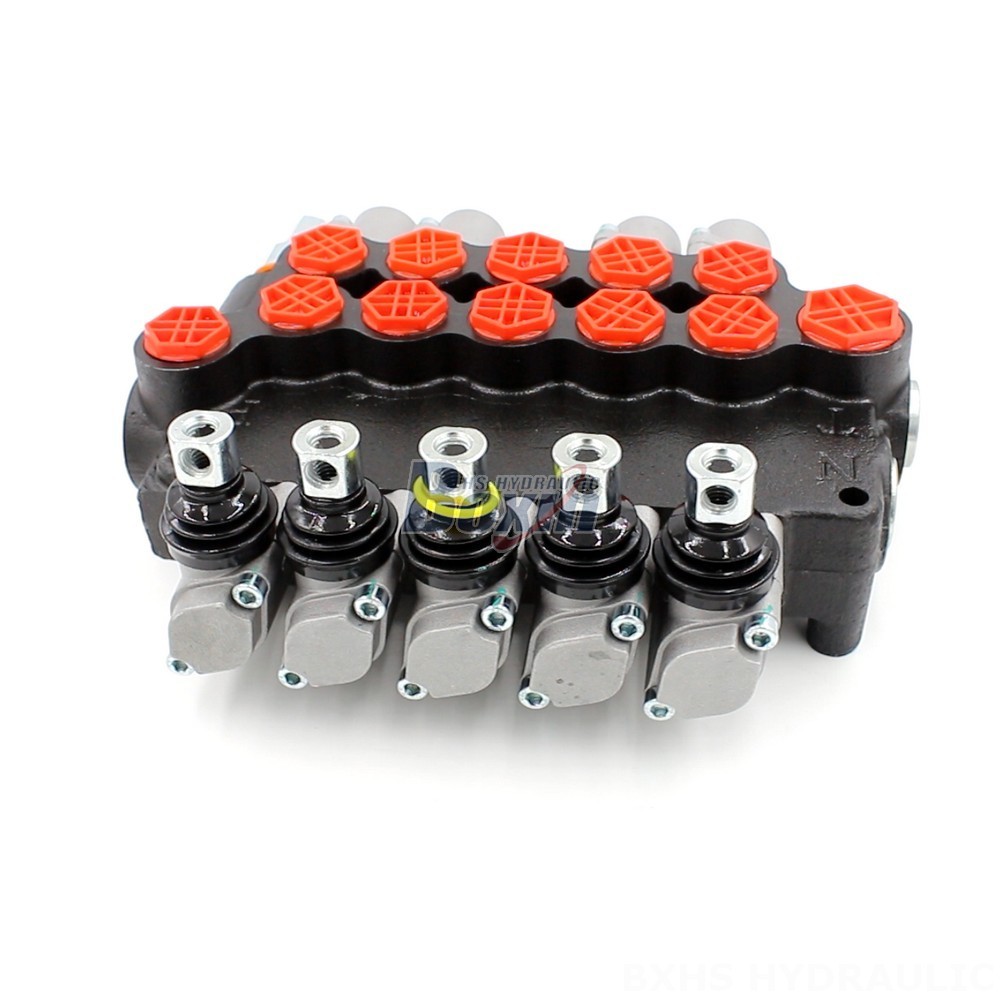

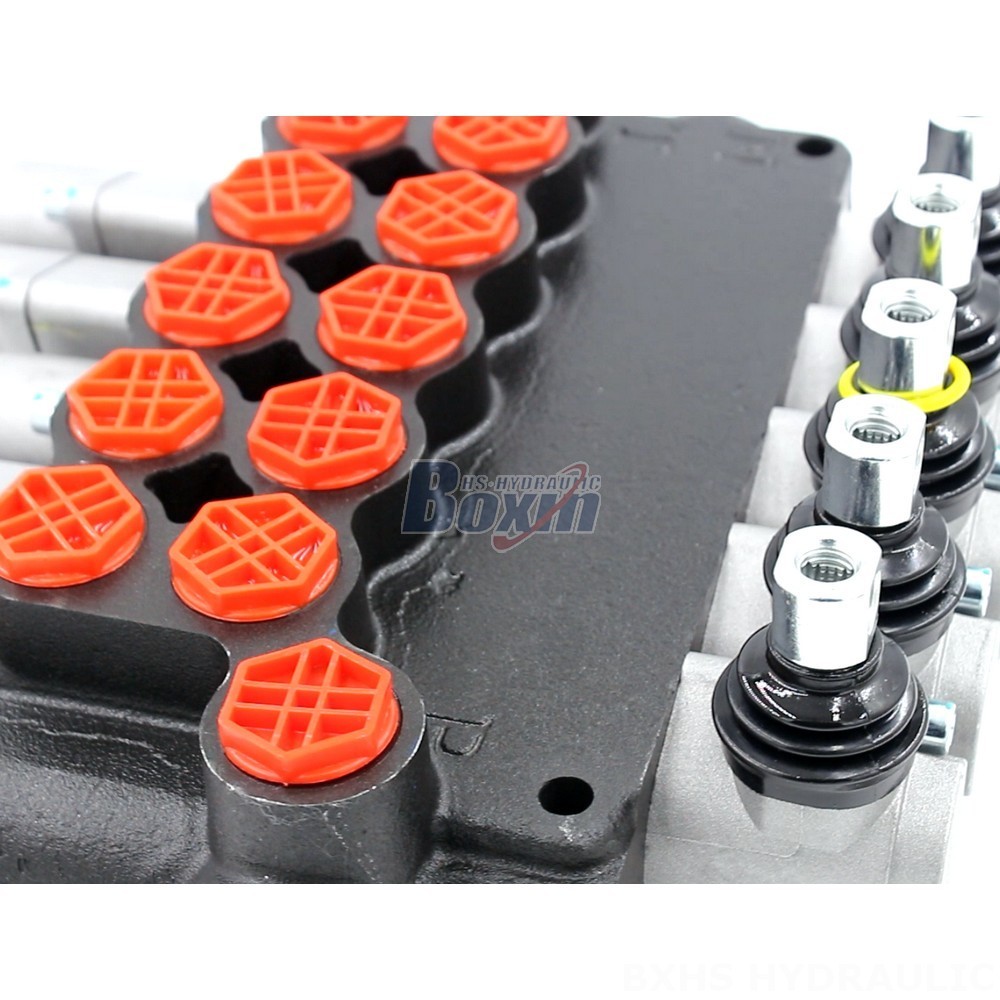

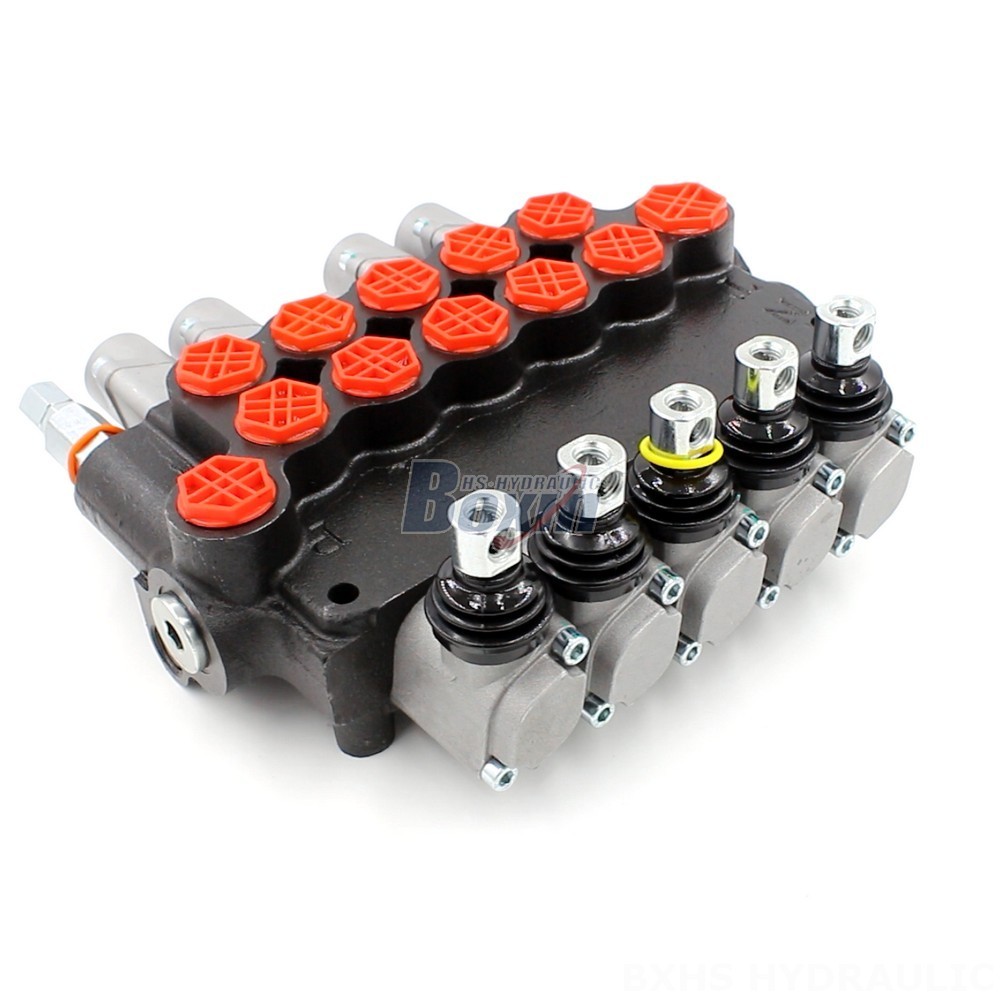

The Manual Monoblock Directional Valve from the P80 Series is a high-performance hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this 5-section, 5-spool valve offers precise control and reliable operation in challenging environments.
| P80 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Manuel ve Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +80°C (-40°F ila +176°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 80 L/dk (21,2 ABD galon/dak) |
| Maksimum Basınç | 315 bar (4600 psi) |
| Giriş Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Çıkış Portu | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Boyutu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock construction for compact and robust design
* 5-section, 5-spool configuration for versatile flow control
* Rated flow of 80 L/min for efficient hydraulic system performance
* Maximum pressure of 250 bar for handling high-pressure applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for reliable operation in extreme conditions
**Applications:**
The Manual Monoblock Directional Valve is widely used in hydraulic systems of:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
**Benefits:**
* Enhanced control and precision in hydraulic systems
* Improved efficiency and productivity of hydraulic equipment
* Reliable and durable performance even in harsh operating conditions
* Compact design for easy installation and space optimization
* Compatibility with various hydraulic fluids and operating temperatures
