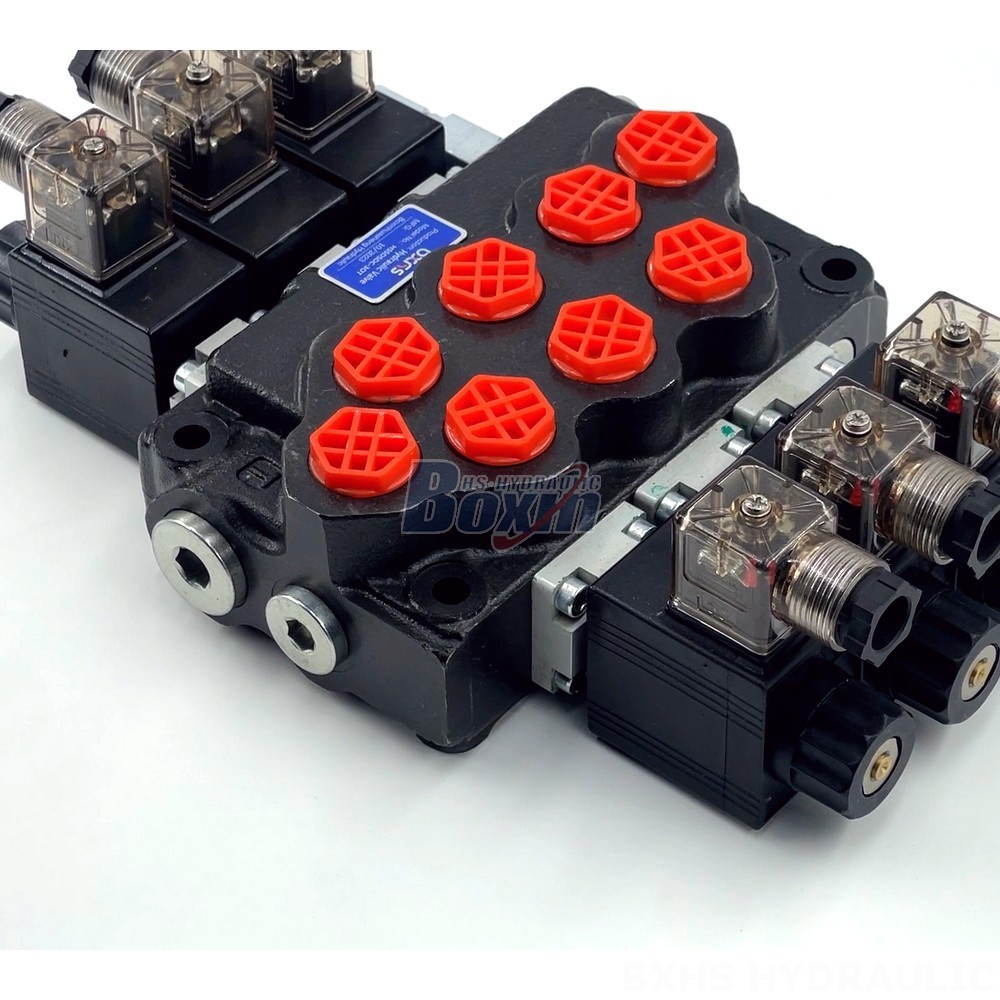

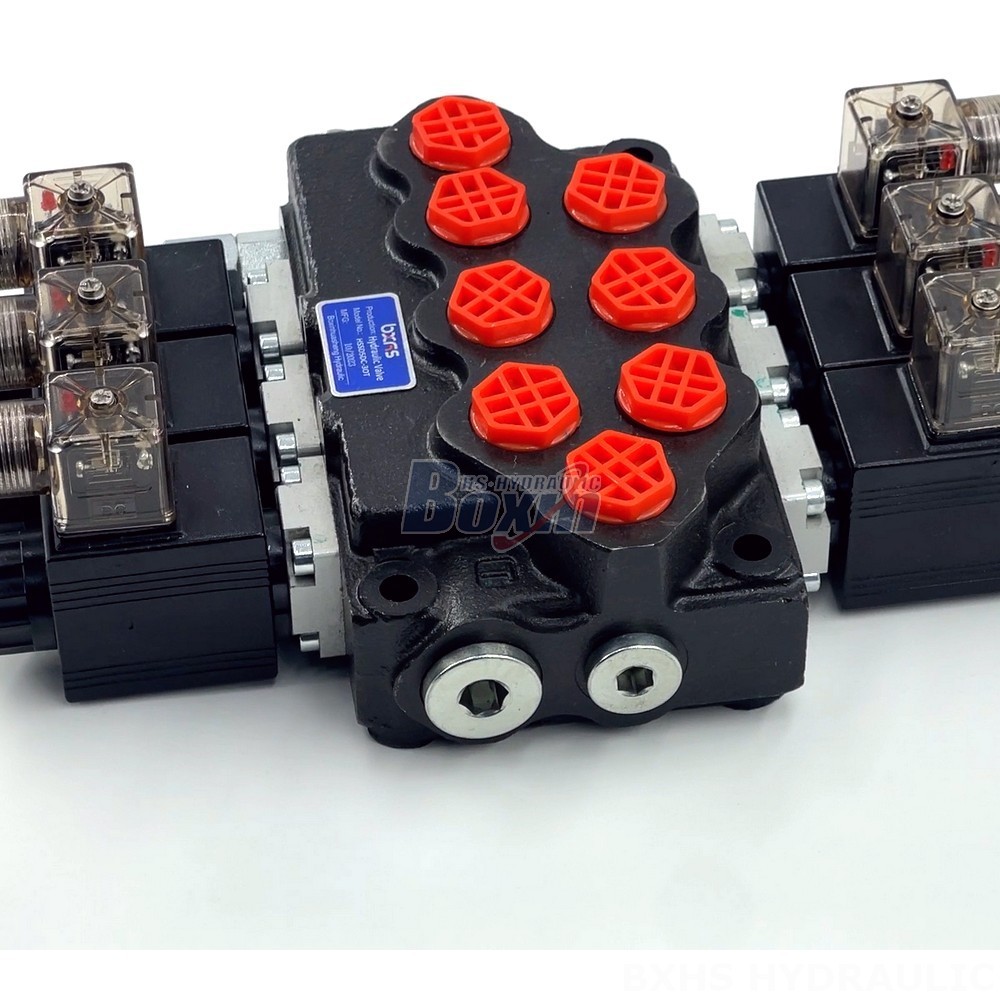

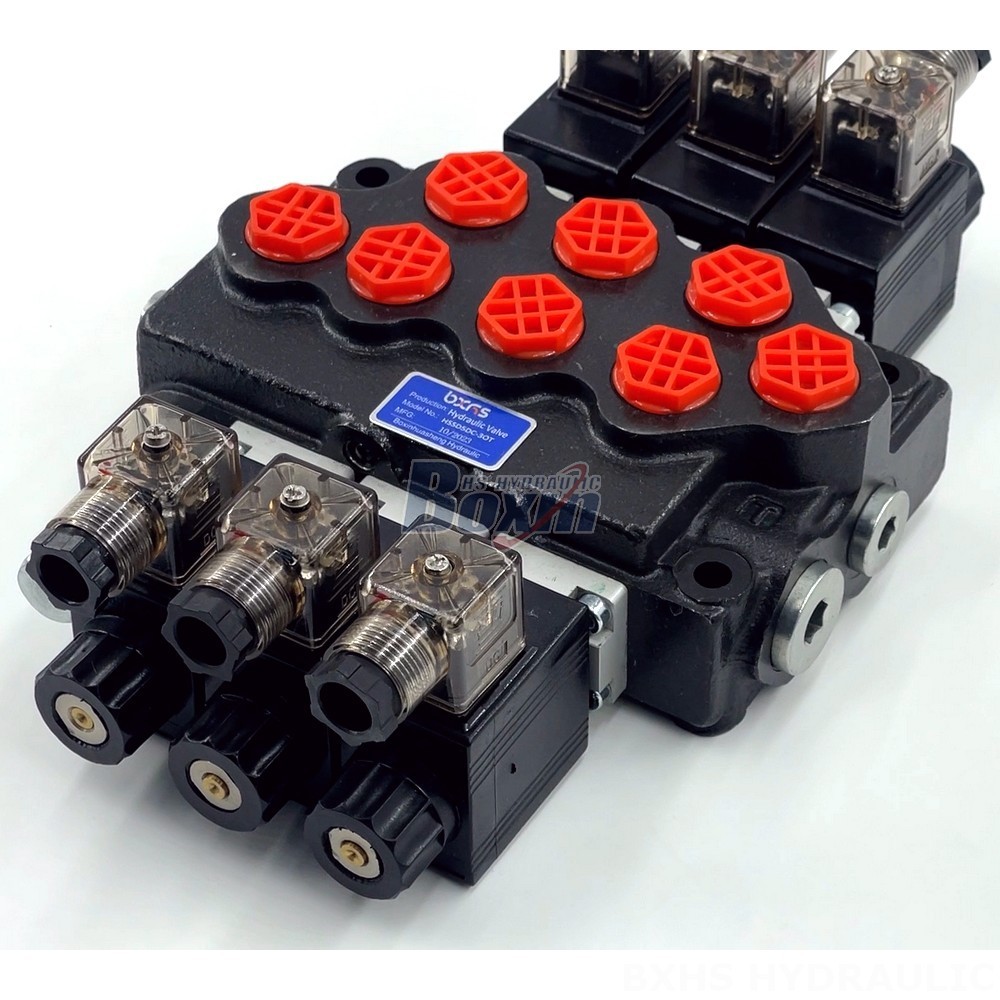

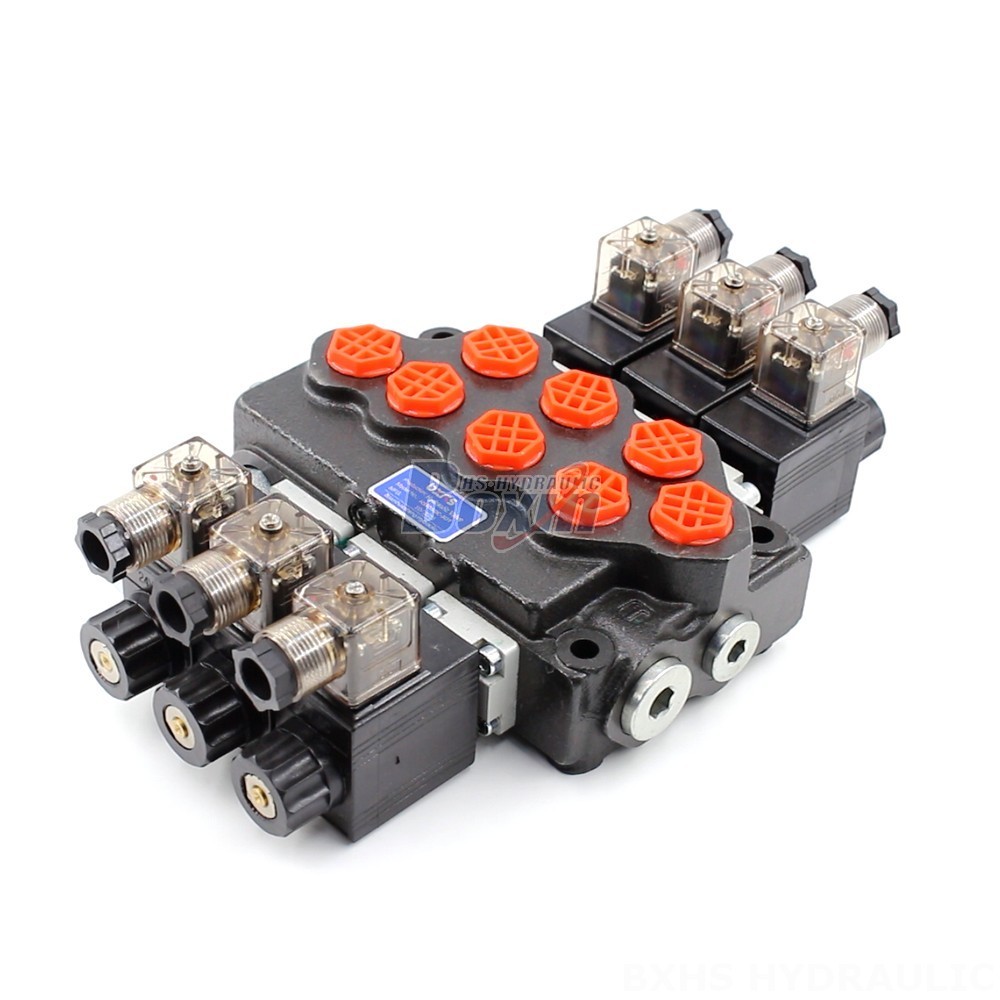

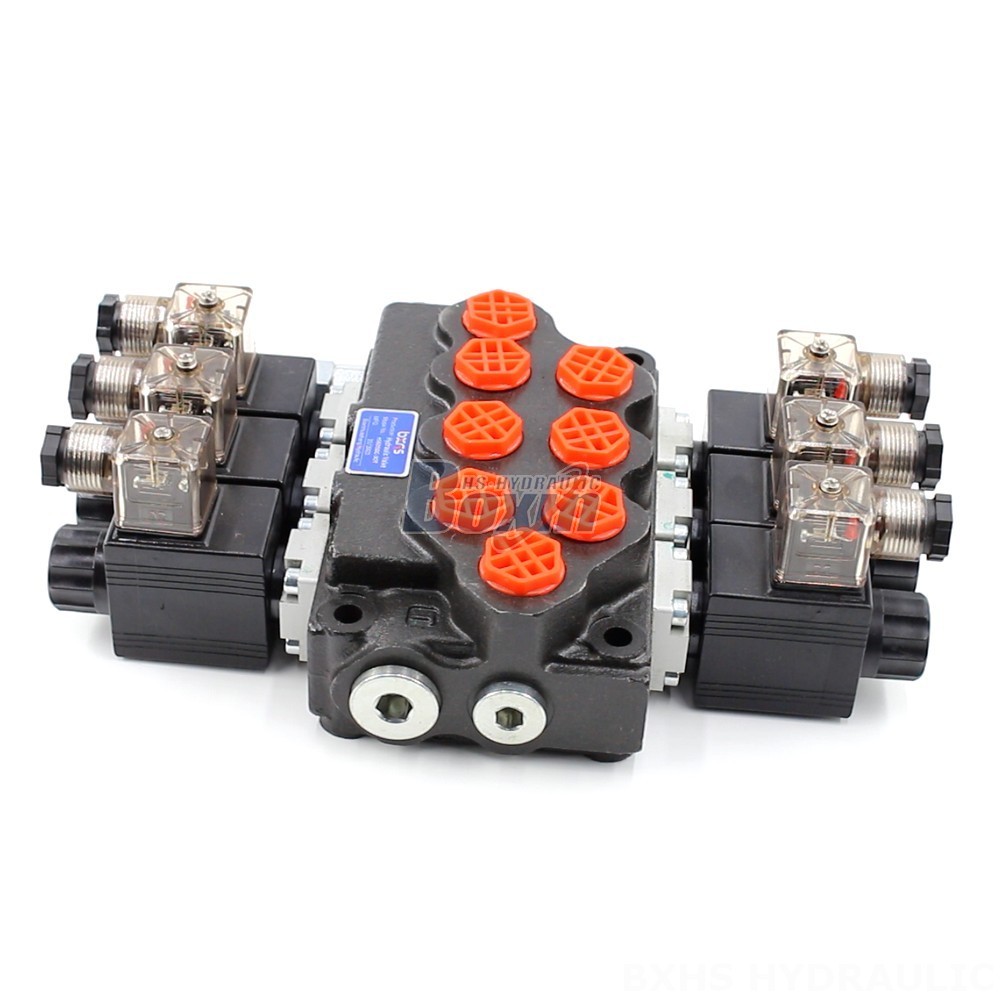

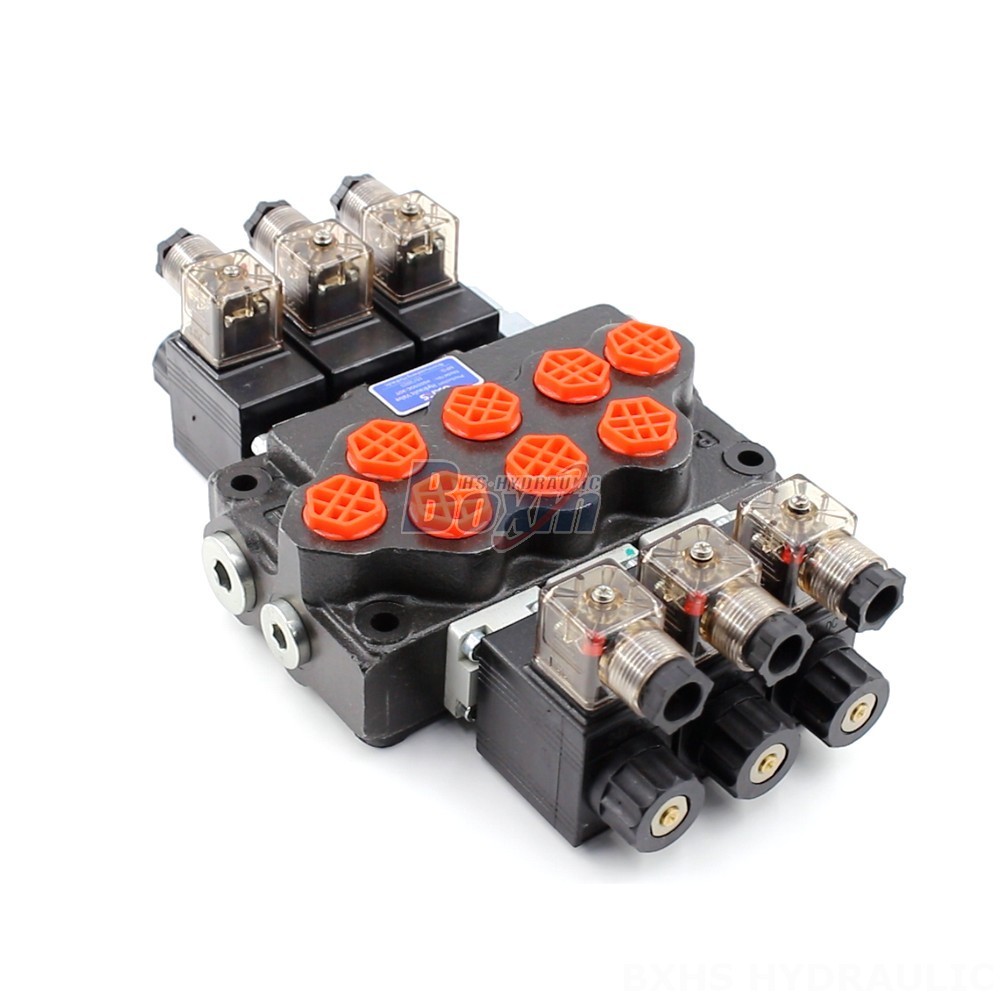

The SD5 series 2-Way Flow Divider Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 3 sections, and a rated flow of 40 L/min. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
| SD5 Serisi Monoblok Yönlendirmeli Vana Parametreler | |
|---|---|
| Kontrol Yöntemi | Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick |
| Makara | 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara |
| Ortam Sıcaklık Aralığı | -40°C ila +60°C (-40°F ila +140°F) |
| Yapı Türü | Monoblock vana |
| Bölüm | 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm |
| İşletme Viskozite Aralığı | 15 - 75 mm²/sn (15 cSt ila 75 cSt) |
| Anma Akışı | 40 L/dk (10,5 ABD galon/dak) |
| Maksimum Basınç | 305 bar (4400 psi) |
| Giriş Portu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Çıkış Portu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Port Boyutu | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 series Hydraulic 2-Way Flow Divider Monoblock Directional Valve is a compact and robust valve designed for demanding applications. It features a solenoid control method for precise and reliable operation. The 3-section design allows for multiple functions to be controlled with a single valve. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is capable of handling high flow rates and pressures. The SD5 series valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It is commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
