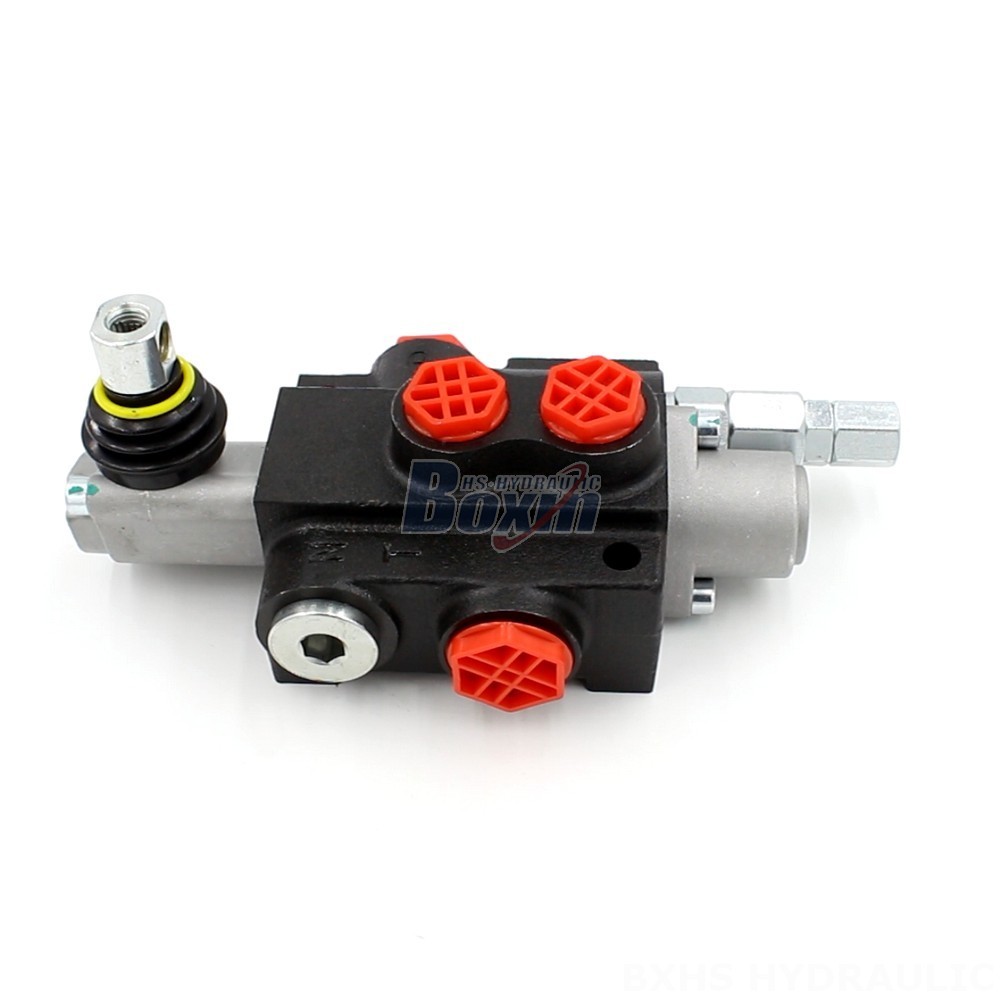

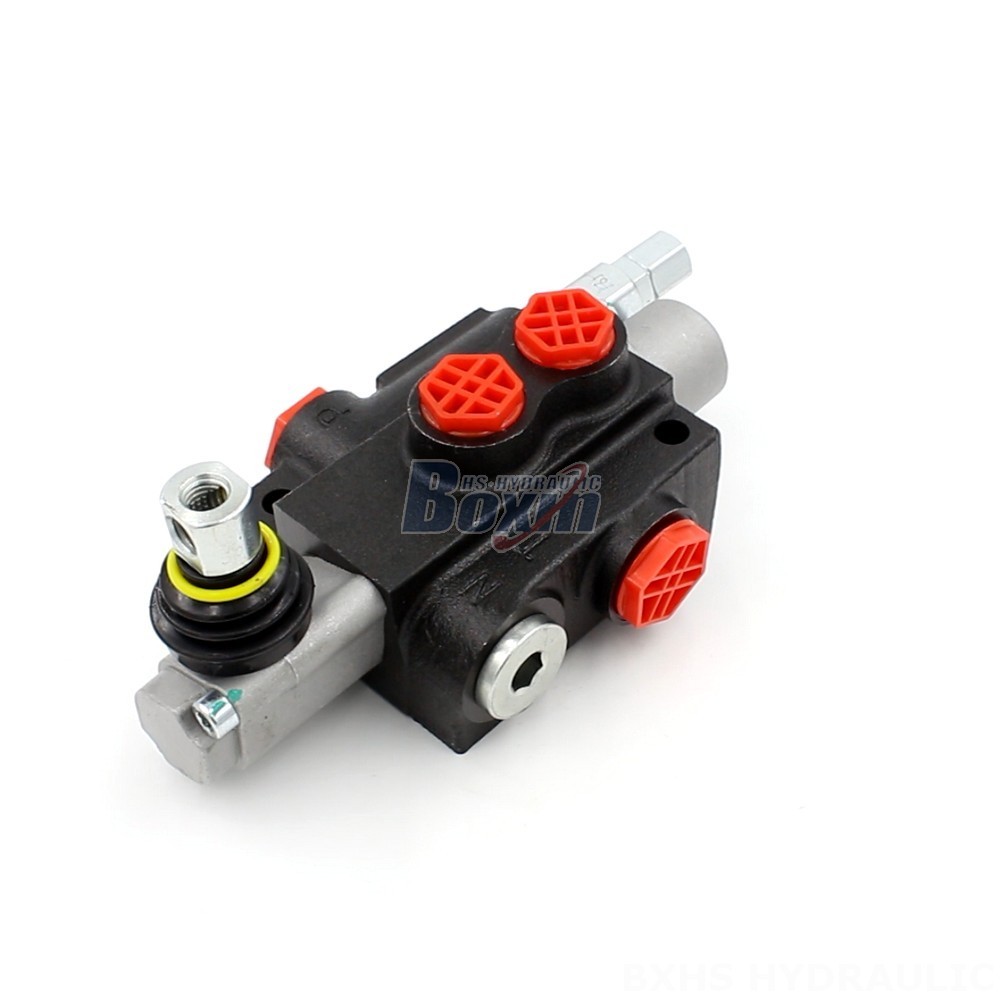

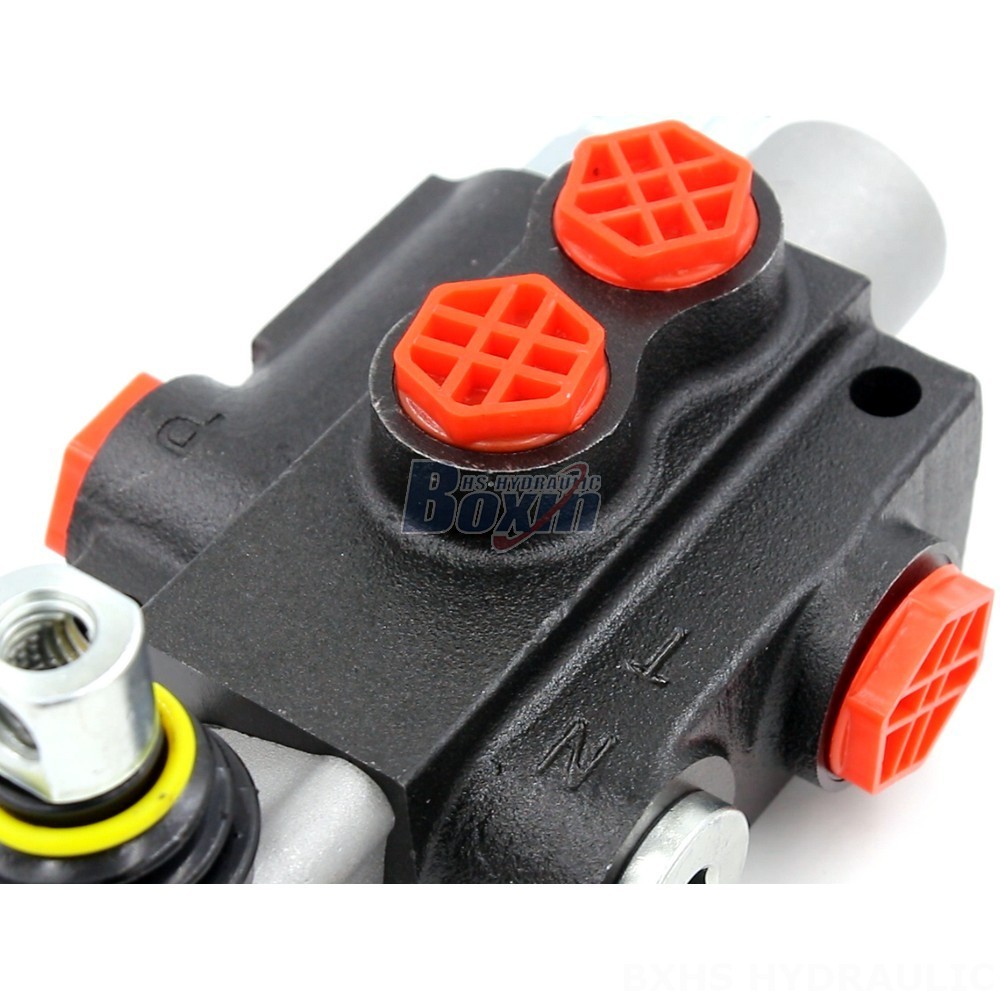

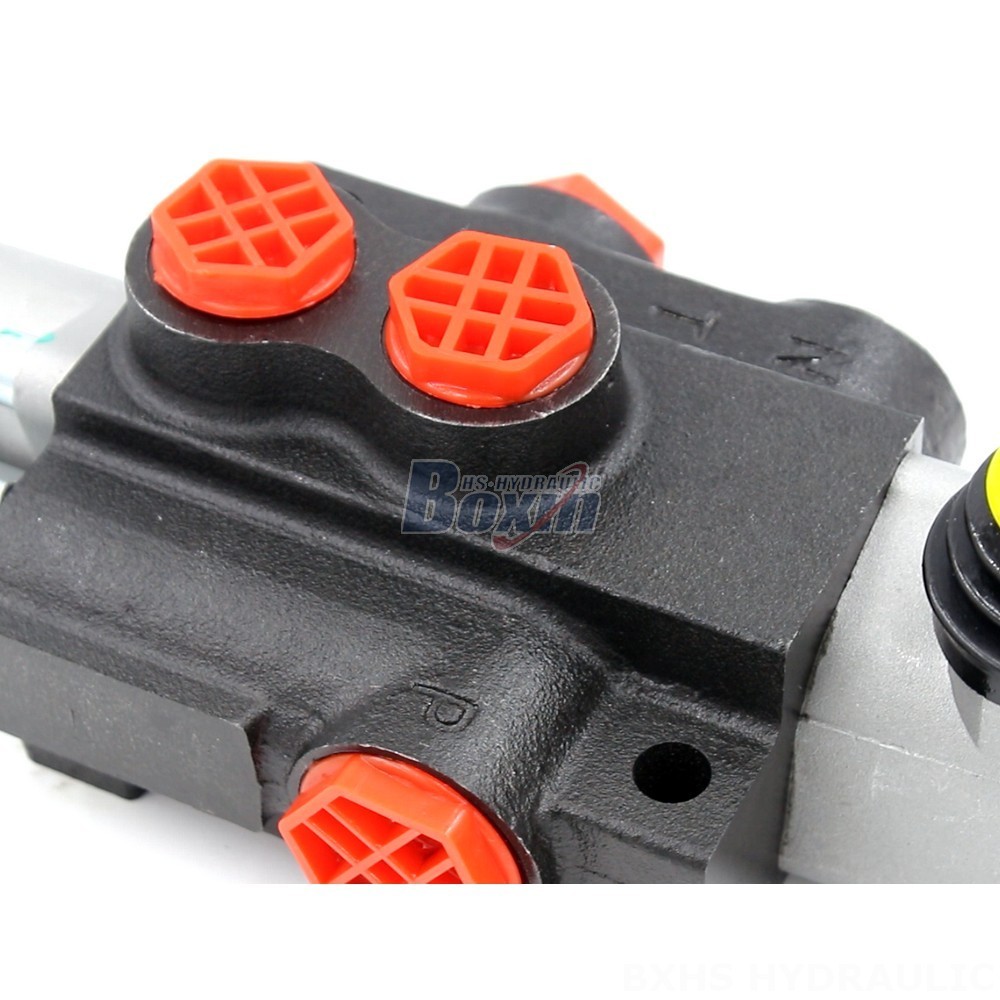

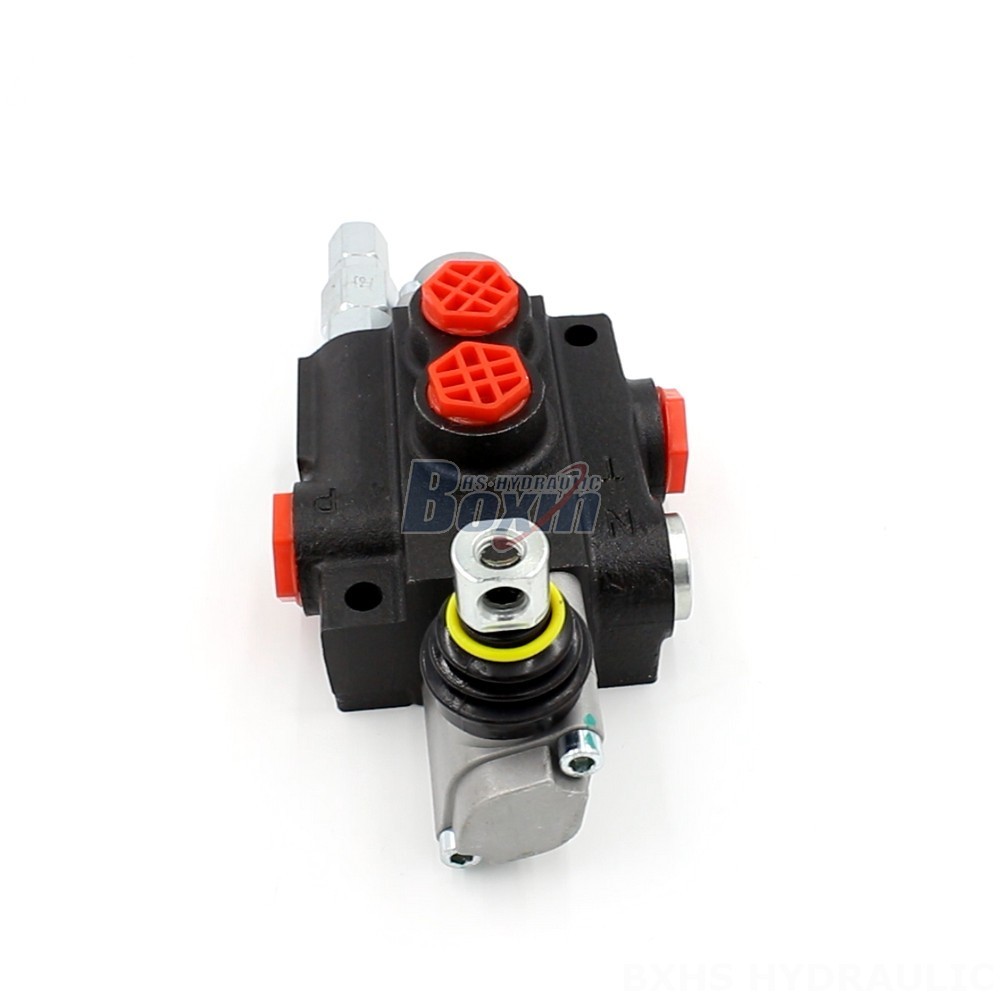

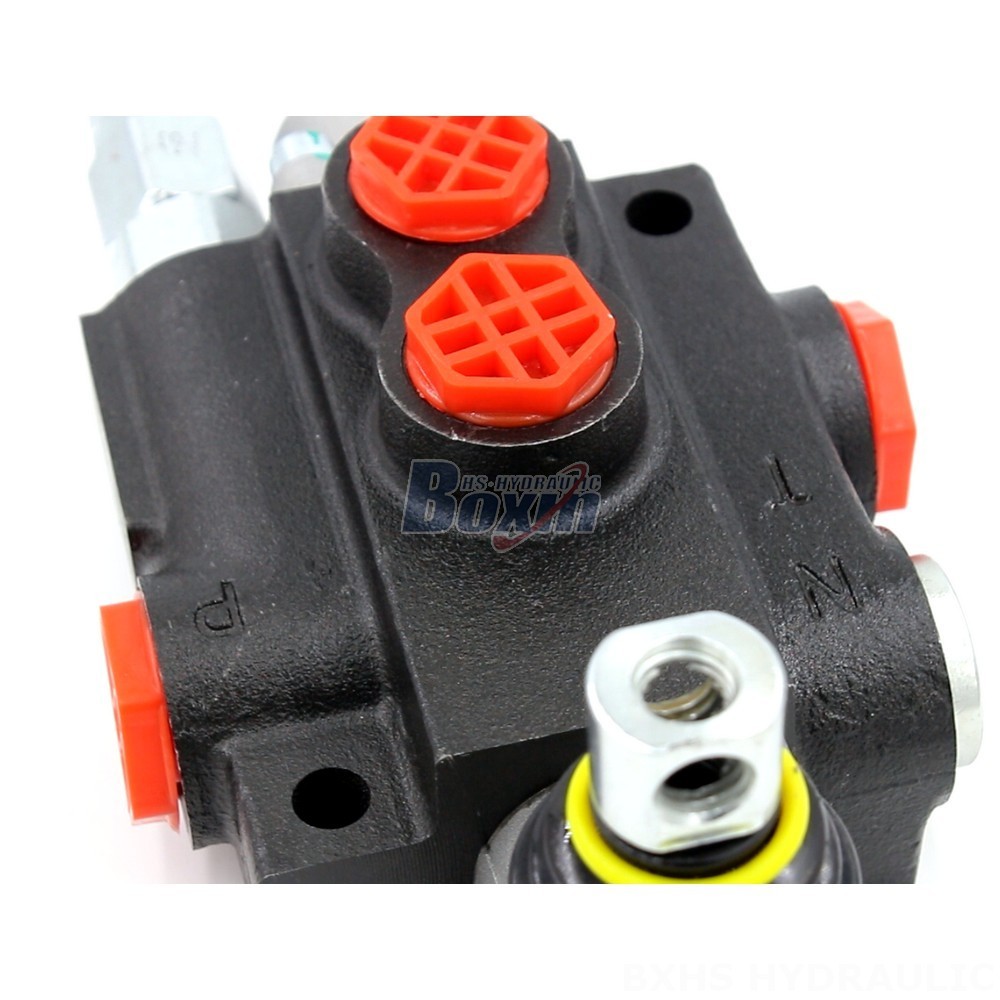

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Kontrol Yöntemi:Manuel

Makara:1 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:23*16*11

Brüt ağırlık:3.00 kg

Stok Durumu: Stokta Var

1139 Görünümler Bu Ürünü Arıyor

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value drawing image

The P40-OW Hydraulic Cut Off Solenoid Valve is a high-quality, reliable valve designed for a wide range of applications, including material handling, construction, and agriculture. It features a monoblock design, rated flow of 40 L/min, and a maximum pressure of 250 bar.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-OW Hydraulic Cut Off Solenoid Valve is a superior quality and exceptional value monoblock valve designed for a variety of demanding applications. It features a manual control method, 1 section, 1 spool, and a rated flow of 40 L/min (10.5 US gpm). This valve is capable of handling pressures up to 250 bar (3600 psi) and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its ambient temperature range is -40°C to +80°C (-40°F to +176°F), making it suitable for a wide range of operating environments. Designed for reliability and durability, this valve is ideal for use in material handling, construction, and agriculture. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
