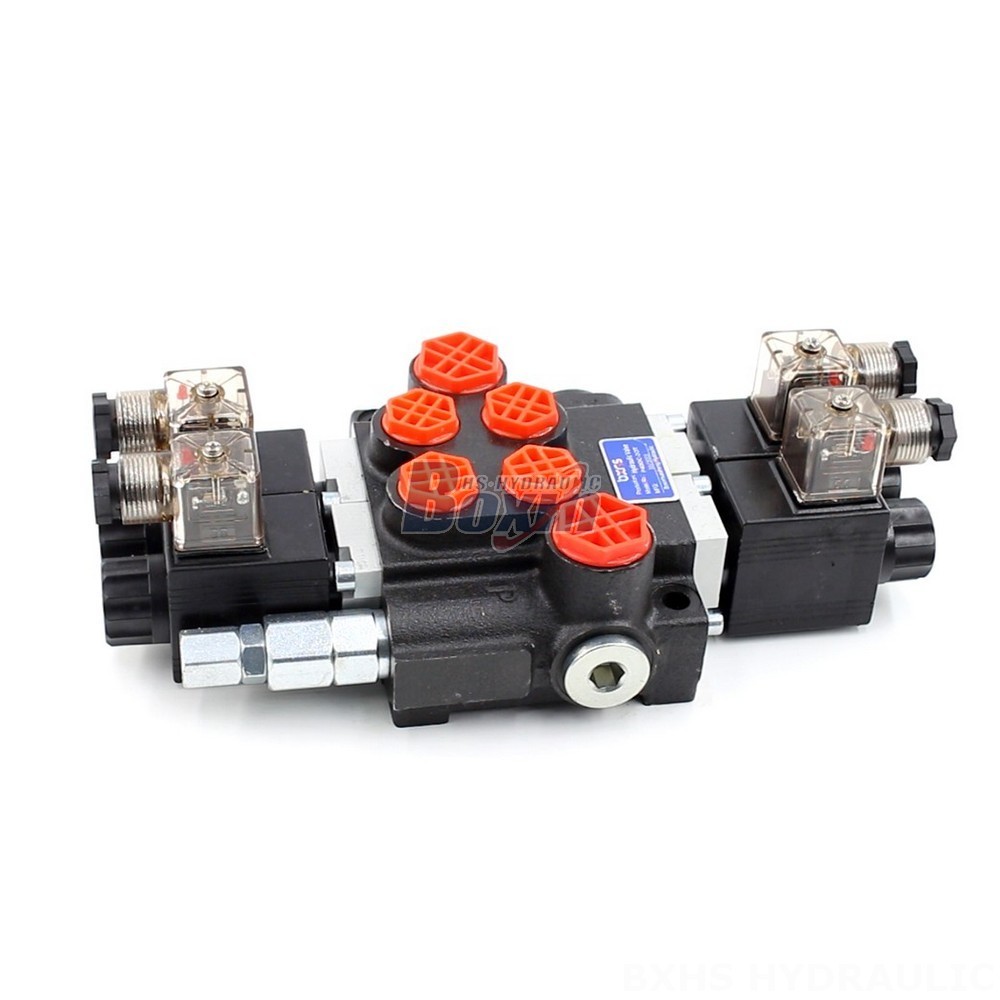

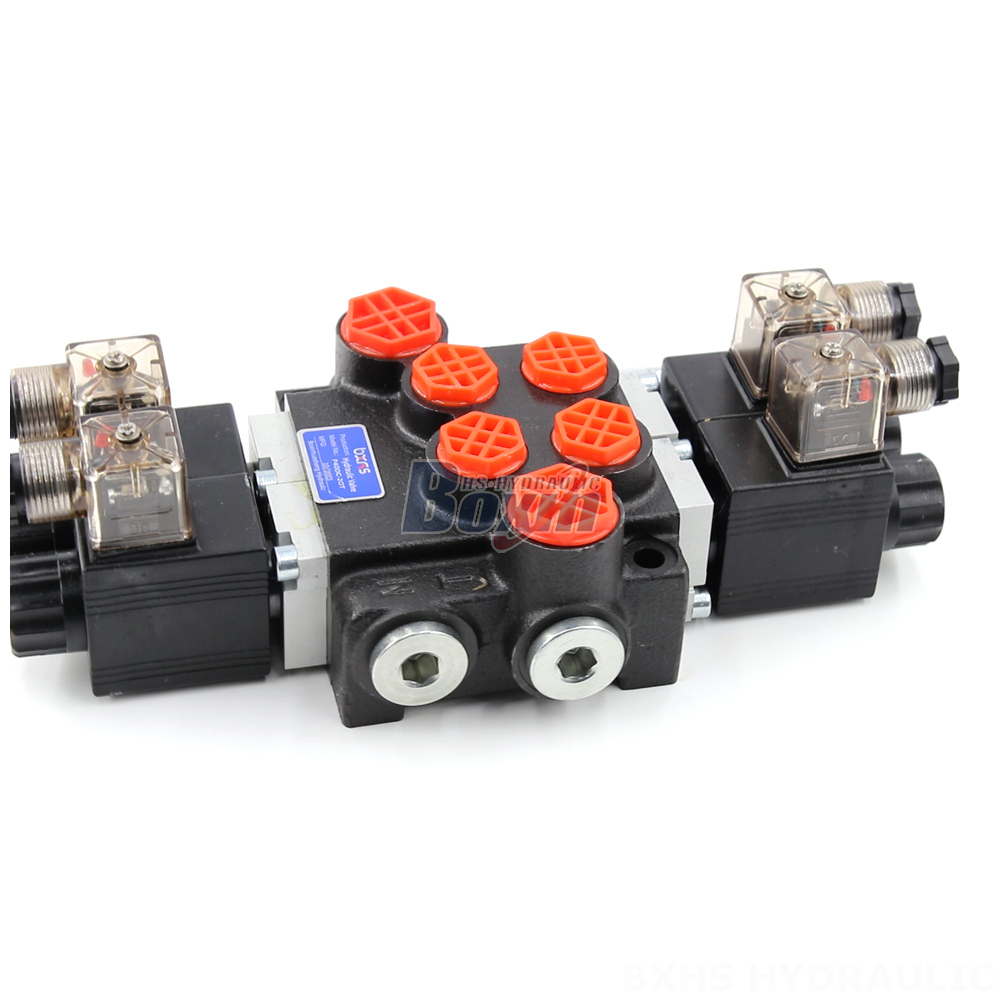

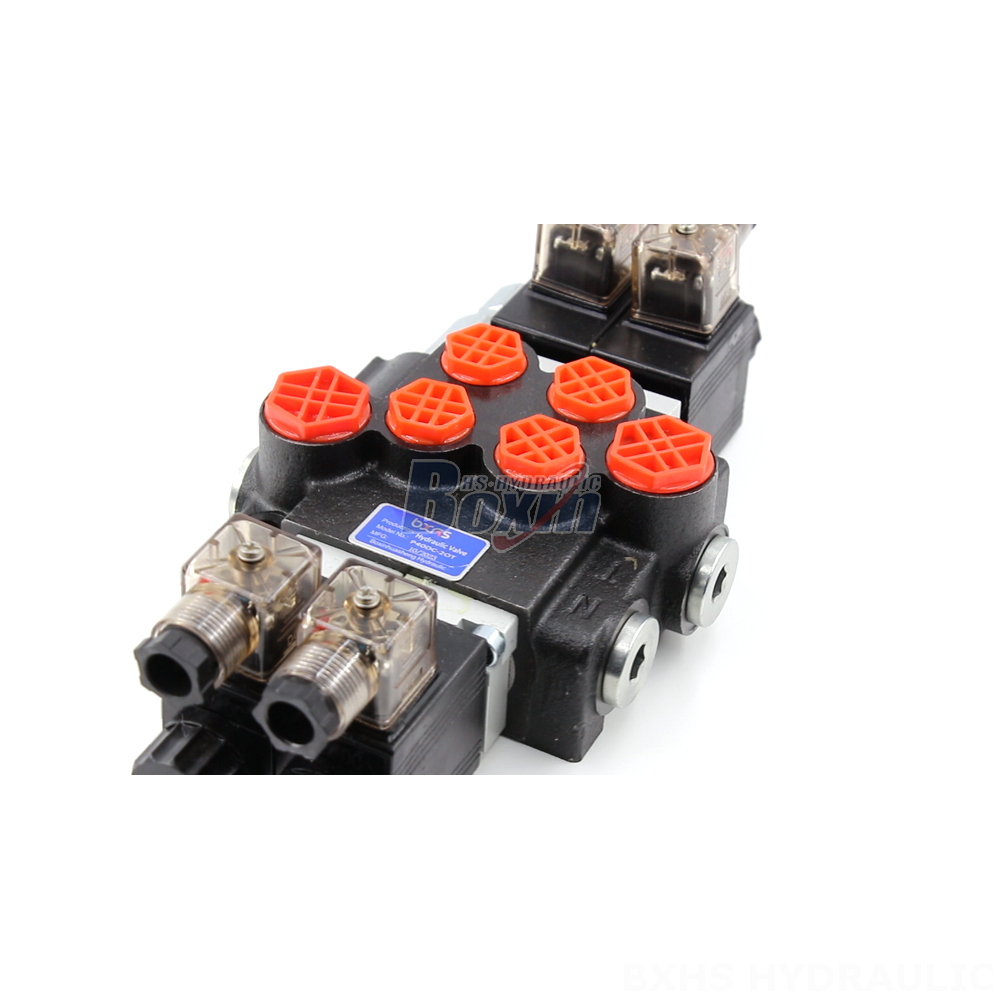

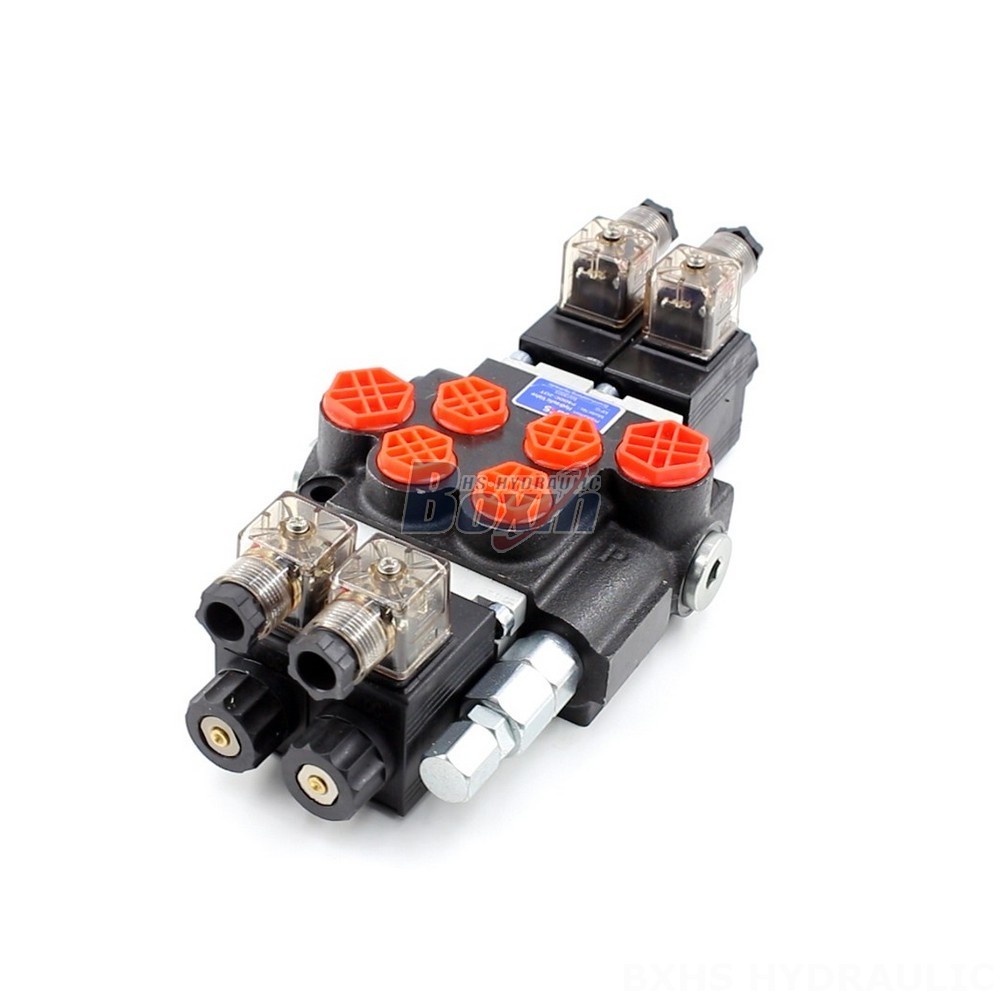

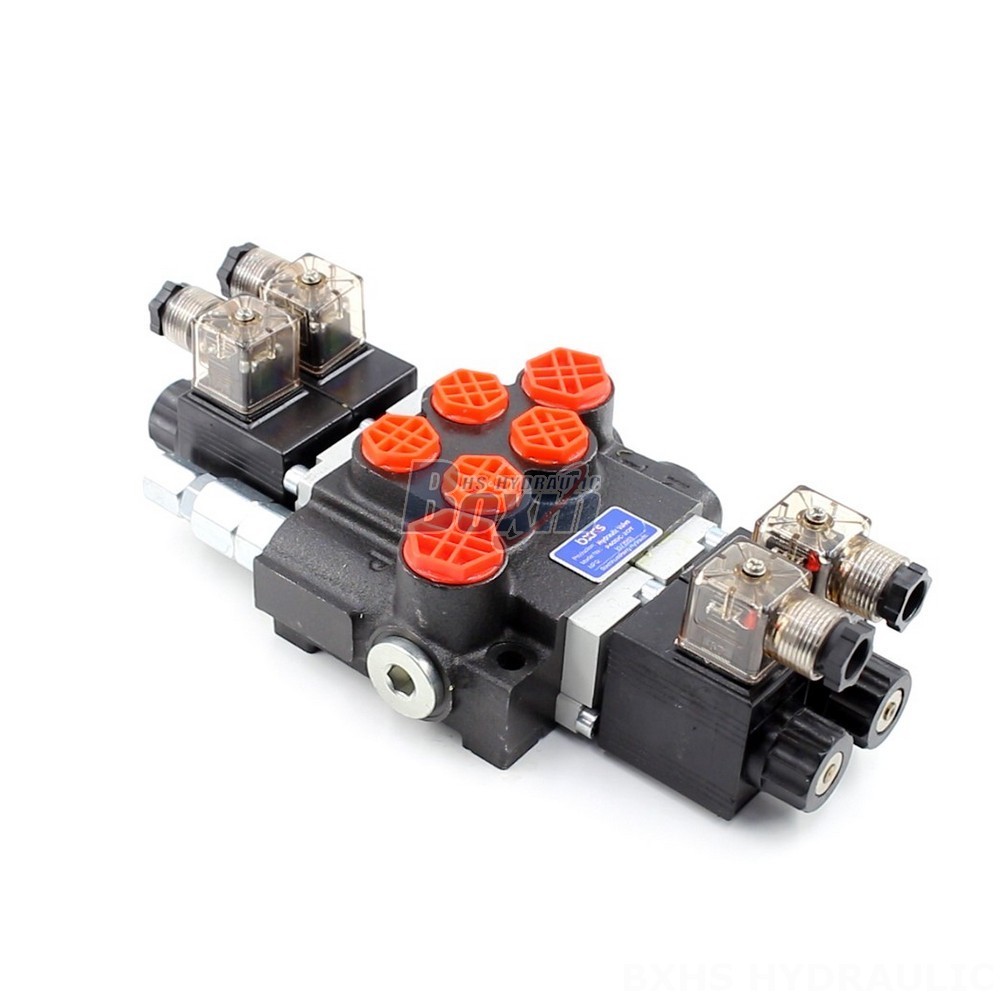

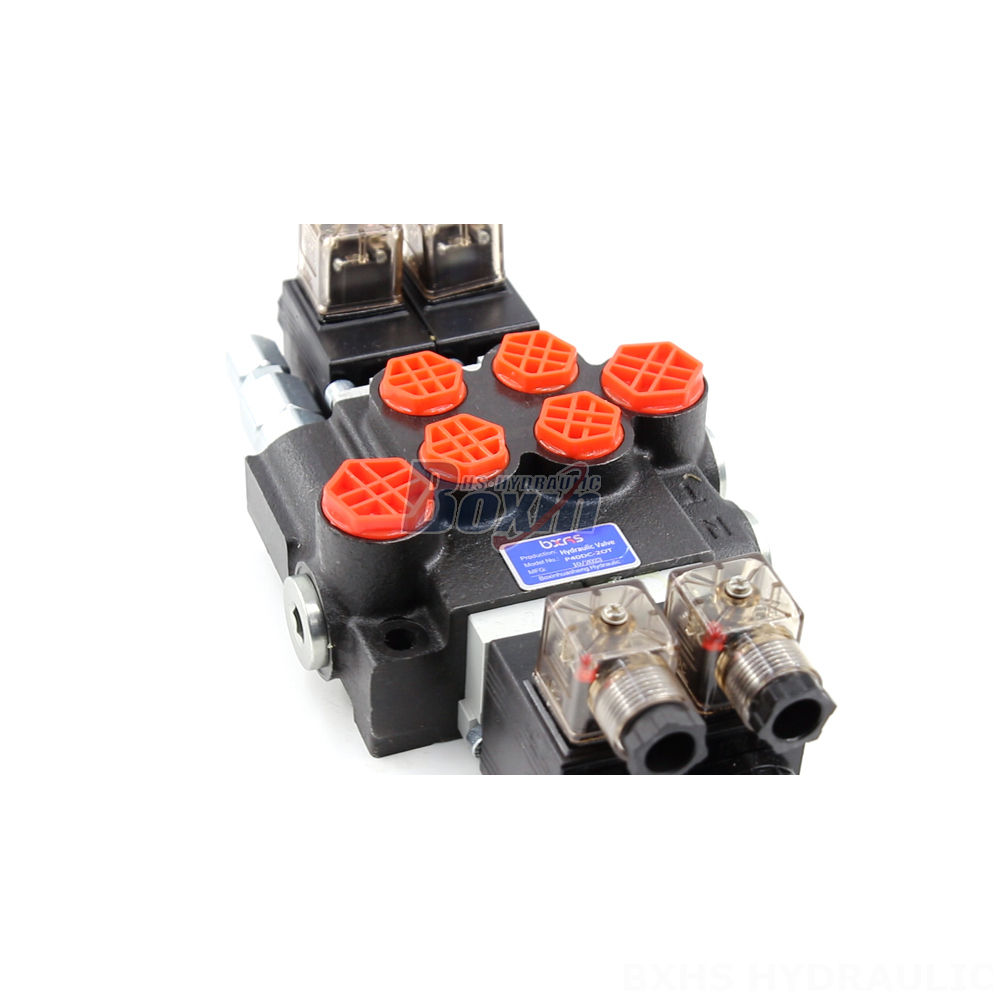

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

Kontrol Yöntemi:Selenoid

Makara:2 Makara

Anma Akışı:40 L/dk (10,5 ABD galon/dak)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G1/2

Çıkış Portu:G1/2

Port Boyutu:G3/8

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P40 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:30*18*12

Brüt ağırlık:6.50 kg

Stok Durumu: Stokta Var

1495 Görünümler Bu Ürünü Arıyor

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

OEM P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series Hydraulic Control Pressure Reducing Valve is a high-performance solenoid-operated, monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. With its 2 spool design and 40 L/min flow rate, this valve is ideal for controlling hydraulic systems in a wide range of equipment.

P40 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Pnömatik, Elektropnömatik, Elektrohidrolik, Selenoid, Hidrolik, Hidrolik ve Manuel, Kablo, Joystick, Solenoid ve Joystick, Manuel ve Joystick, Selenoid ve Kablo
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara, 5 Makara, 6 Makara, 7 Makara
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
Yapı Türü Monoblock vana
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm, 5 Bölüm, 6 Bölüm, 7 Bölüm
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)
Anma Akışı 40 L/dk (10,5 ABD galon/dak)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Çıkış Portu G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Boyutu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Hydraulic Control Pressure Reducing Valve is a robust and reliable solution for controlling hydraulic systems. It features a solenoid control method, a 2-section monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). This valve can withstand a maximum pressure of 250 bar (3600 psi) and operates efficiently within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for a wide range of applications, it's suitable for use in various types of equipment like telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Its compact design and durable construction make it a reliable and versatile choice for various hydraulic applications.
