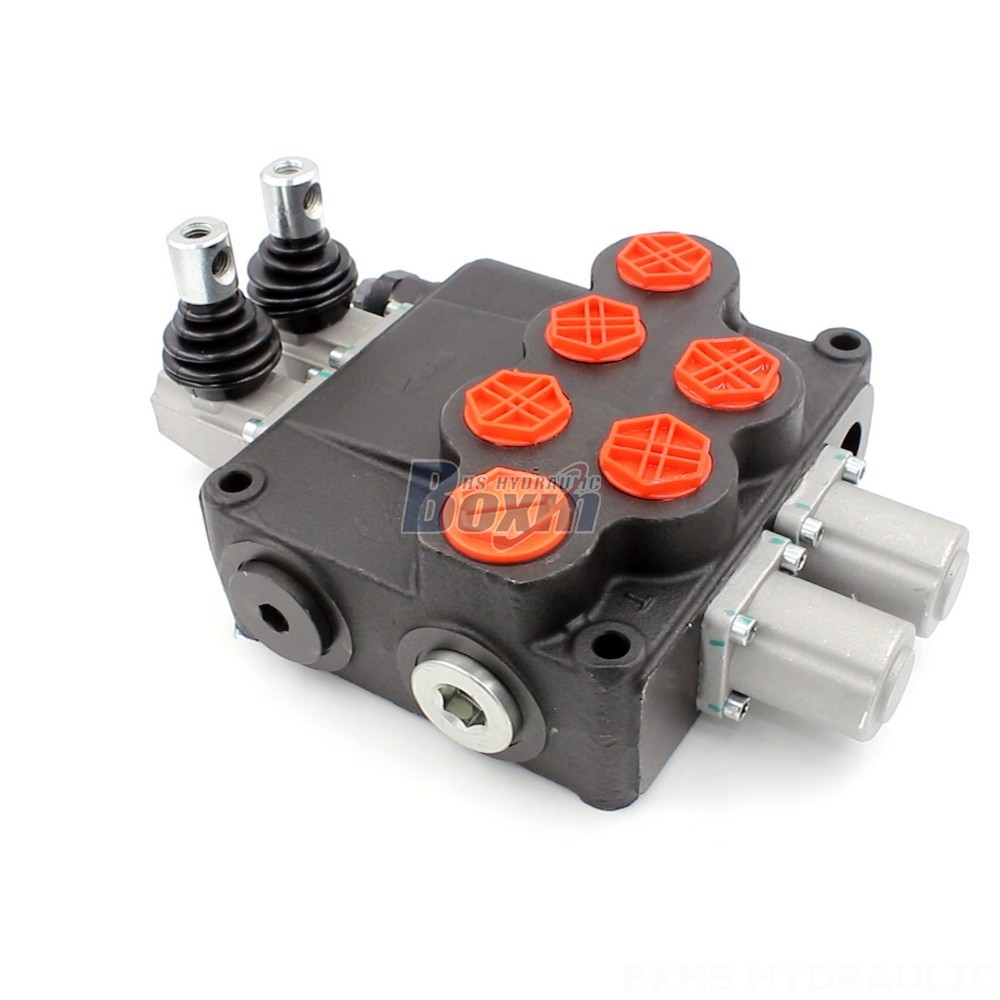

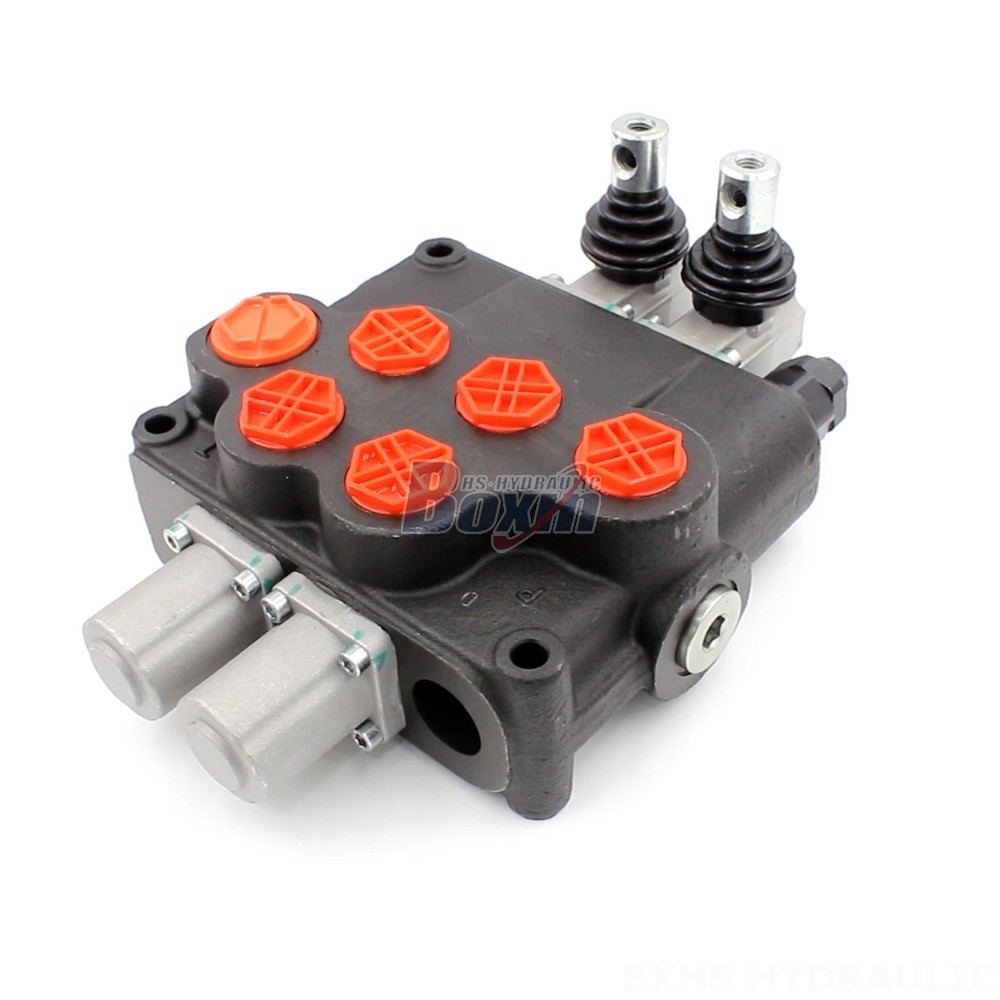

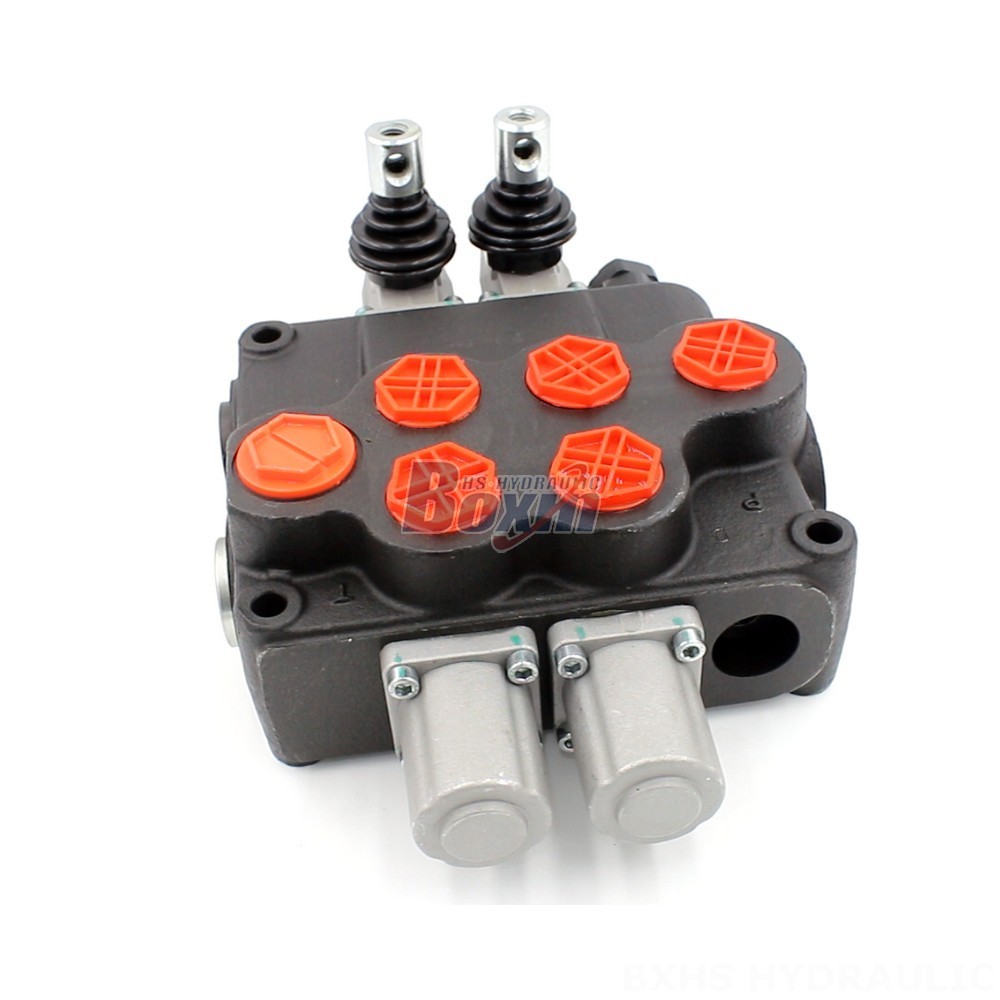

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

Kontrol Yöntemi:Manuel

Makara:2 Makara

Anma Akışı:120 L/dak (31.7 US gpm)

Maksimum Basınç:250 bar (3600 psi)

Giriş Portu:G3/4

Çıkış Portu:G1

Port Boyutu:G3/4

Marka:BXHS

Ürün Tipi:Monoblok Yönlendirmeli Vana

Ürün Serisi:P120 Serisi Monoblok Yönlendirmeli Vana

Ambalaj boyutu:30*39*17

Brüt ağırlık:19.00 kg

Stok Durumu: Stokta Var

978 Görünümler Bu Ürünü Arıyor

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization drawing image

The P120 2-Spool Hydraulic Valve is a robust and reliable monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks.

P120 Serisi Monoblok Yönlendirmeli Vana Parametreler
Kontrol Yöntemi Manuel, Kablo, Joystick, Manuel ve Joystick
Makara 1 Makara, 2 Makara, 3 Makara, 4 Makara
Anma Akışı 120 L/dak (31.7 US gpm)
Maksimum Basınç 250 bar (3600 psi)
Giriş Portu G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Çıkış Portu G1, SAE 16, 1 NPT, M36×2
Port Boyutu G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Bölüm 1 Bölüm, 2 Bölüm, 3 Bölüm, 4 Bölüm
Yapı Türü Monoblock vana
Ortam Sıcaklık Aralığı -40°C ila +80°C (-40°F ila +176°F)
İşletme Viskozite Aralığı 15 - 75 mm²/sn (15 cSt ila 75 cSt)

This high-performance hydraulic distributor valve is part of the P120 series and is specifically designed for 2-spool operation. It offers a compact and durable design with a robust monoblock construction. The valve is manually controlled and features a rated flow of 120 L/min (31.7 US gpm) with a maximum pressure rating of 250 bar (3600 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), ensuring reliable performance in various operating conditions. The P120 2-Spool Hydraulic Valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It is widely applicable in various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
